Enhancements in the LSD Prototype: Design and Structural Improvements for Layered Surface Detector

The LSD Prototype (Layered Surface Detector) has undergone significant enhancements, focusing on structural integrity and ease of use. Key updates include the repositioning of ribs beneath the top layer, improving space utilization and reducing weight to 30 kg with a maximum diameter of 320 mm. The new design features a 360 mm hole for easy access, a simple hinge system to lower costs, and improved fastening using rivets and anti-rotation pins. Future tests will address the size and watertightness of the tank's hole and the mechanism required for opening the LSD in water.

garson
Télécharger la présentation

Enhancements in the LSD Prototype: Design and Structural Improvements for Layered Surface Detector

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. LSD Prototype(Layered Surface Detector) • LSD prototype status and lessons: • The ribswereplacedunder the top layer • -> no more punching of the layers • -> gain of space • Volume and weight -> Dia max 320 mm, ~ 30 kg • Holeopeningon top of the tank -> Dia 360 mm, hand milling machine • Simple hinge system -> Lower the overallcost • -> addsome rivets, ribswithflate end, anti-rotation cotter pin • Opening tests -> Shrouds system Ok, max strength = 190 daN! • To bedefined: • Size and watertightnessof the hole on the tank liner • Strengthneeded to open the LSD in water • Mechanismused to open the LSD into the tank • -> combinationbtwpulling on the hinges and pushing on the central tube

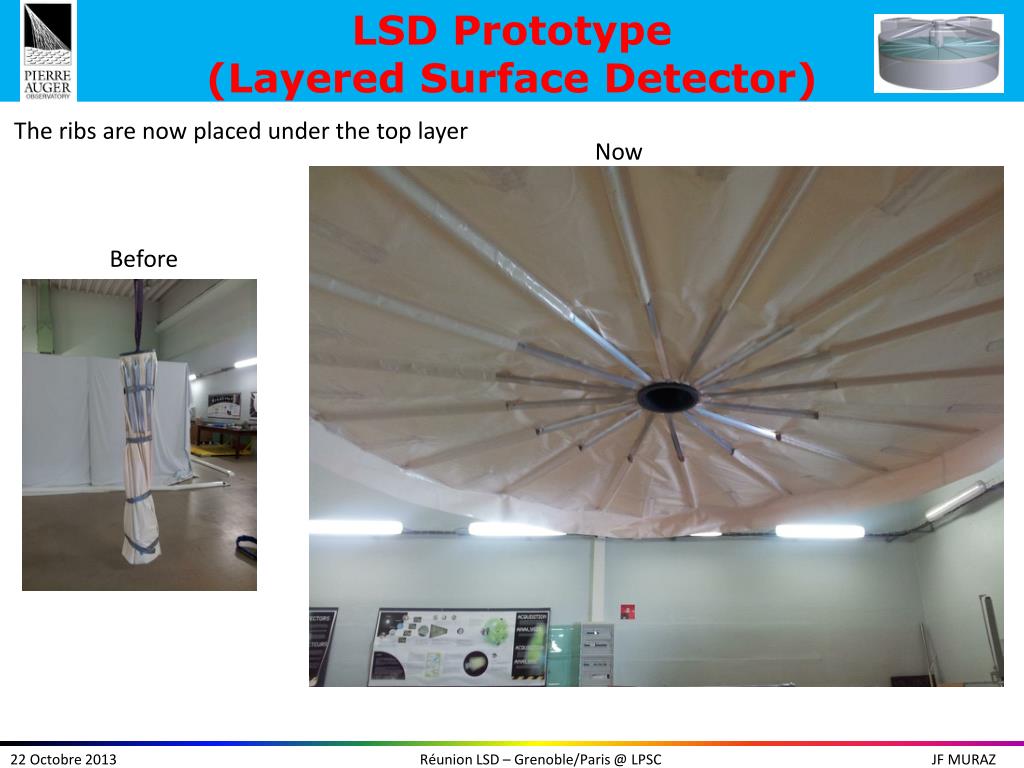

  2. LSD Prototype(Layered Surface Detector) The ribs are now placed under the top layer Now Before

  3. LSD Prototype(Layered Surface Detector) Volume and weight Total weight: 30 kg 320 mm 320 mm

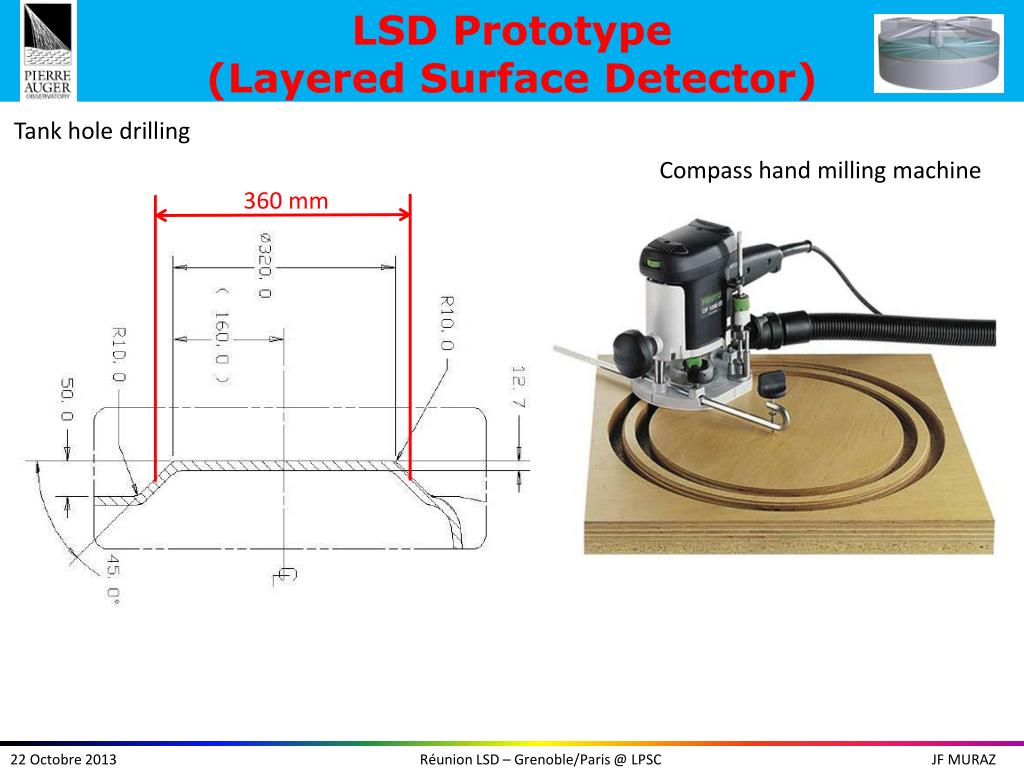

  4. LSD Prototype(Layered Surface Detector) Tank hole drilling Compass hand milling machine 360 mm

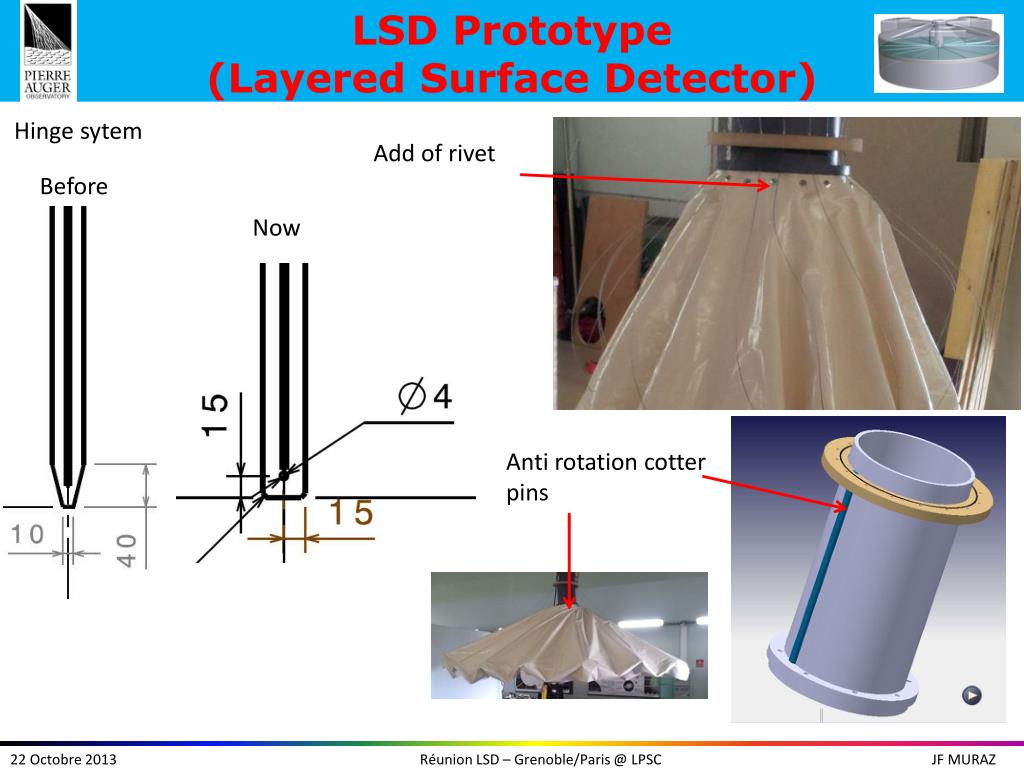

  5. LSD Prototype(Layered Surface Detector) Hinge sytem Add of rivet Before Now Anti rotation cotter pins

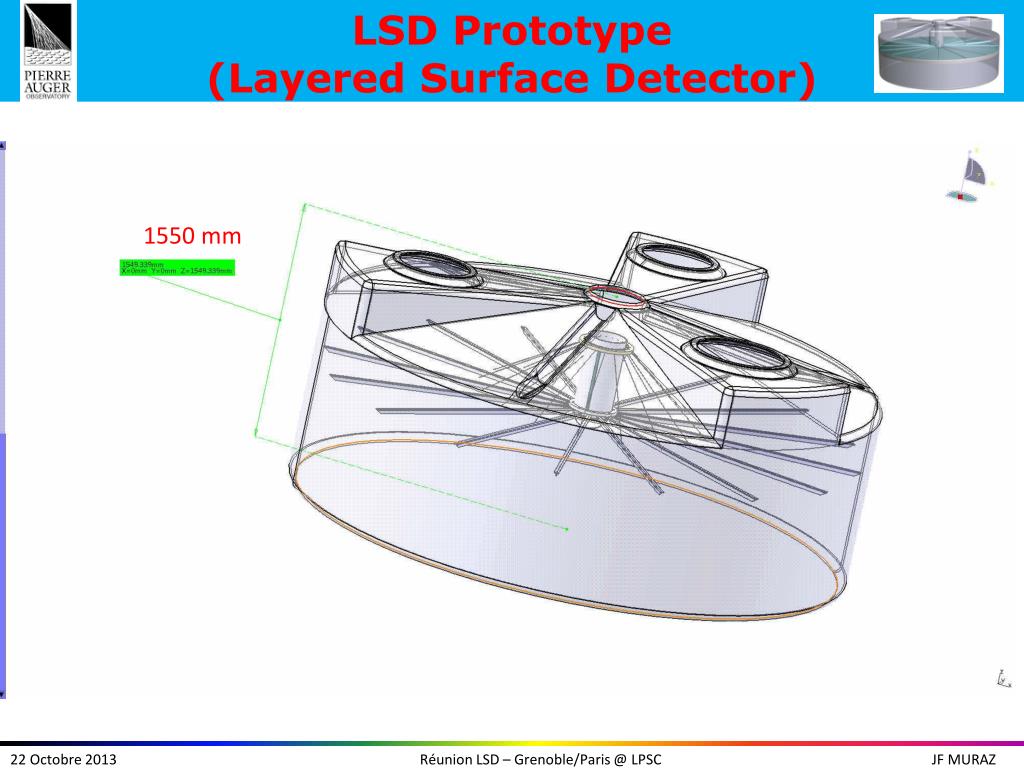

  6. LSD Prototype(Layered Surface Detector) 1550 mm

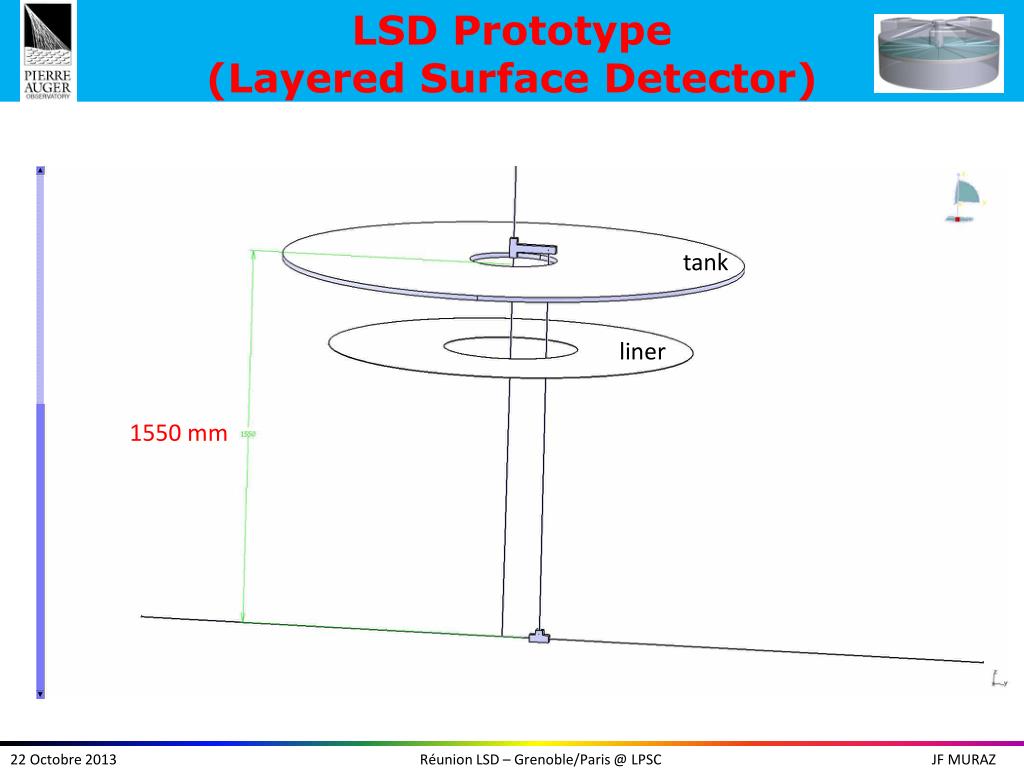

  7. LSD Prototype(Layered Surface Detector) tank liner 1550 mm

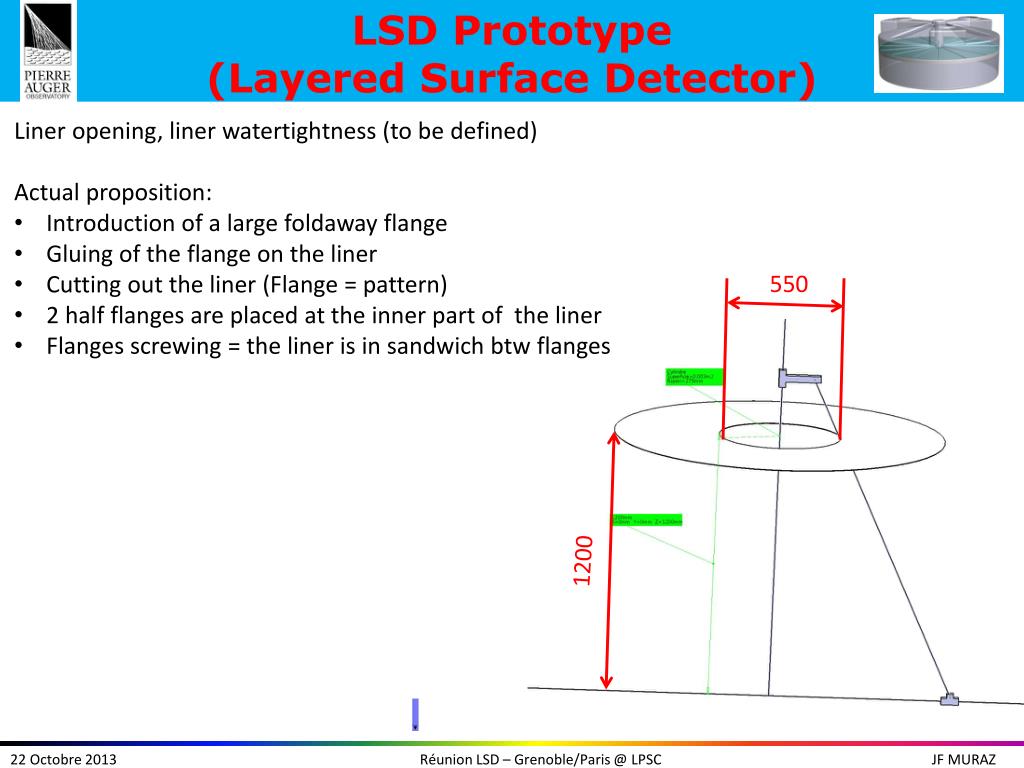

  8. LSD Prototype(Layered Surface Detector) • Liner opening, liner watertightness (to bedefined) • Actual proposition: • Introduction of a large foldawayflange • Gluing of the flange on the liner • Cutting out the liner (Flange = pattern) • 2 halfflanges are placedat the inner part of the liner • Flangesscrewing = the liner is in sandwich btwflanges 550 1200

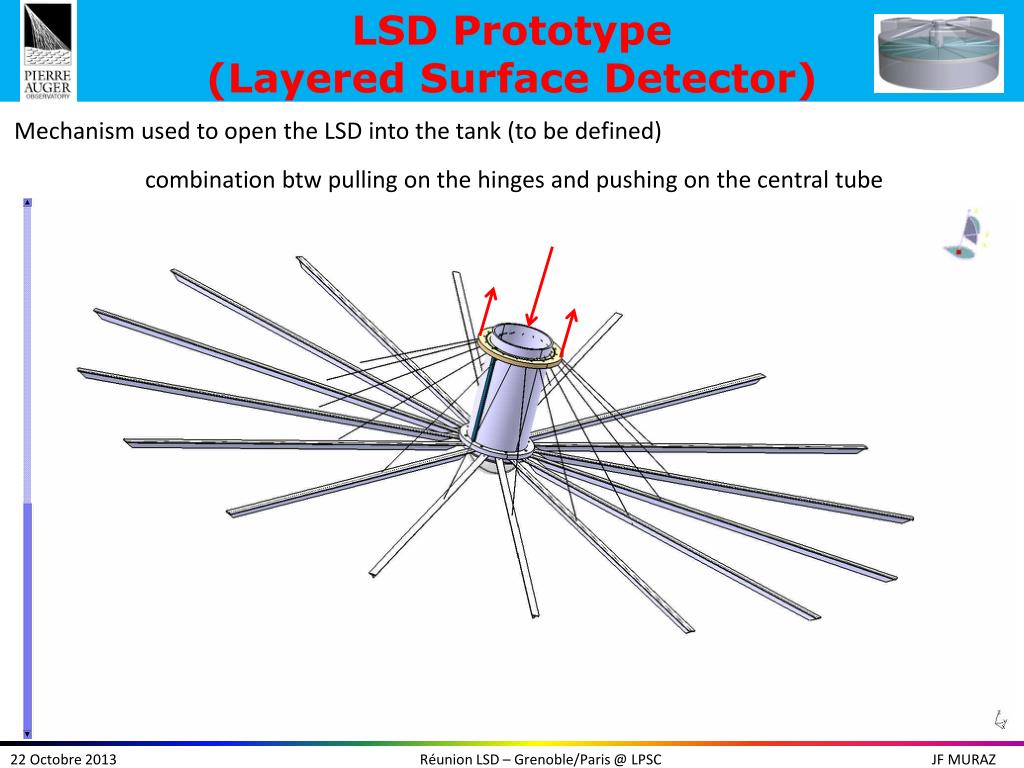

  9. LSD Prototype(Layered Surface Detector) Mechanism used to open the LSD into the tank (to be defined) combination btw pulling on the hinges and pushing on the central tube

  10. LSD Prototype(Layered Surface Detector) Strength required to keep the LSD opened : 16,5 daN (46,5 – 30)
