  1. Pushdown AutomataPDAs Costas Busch - RPI

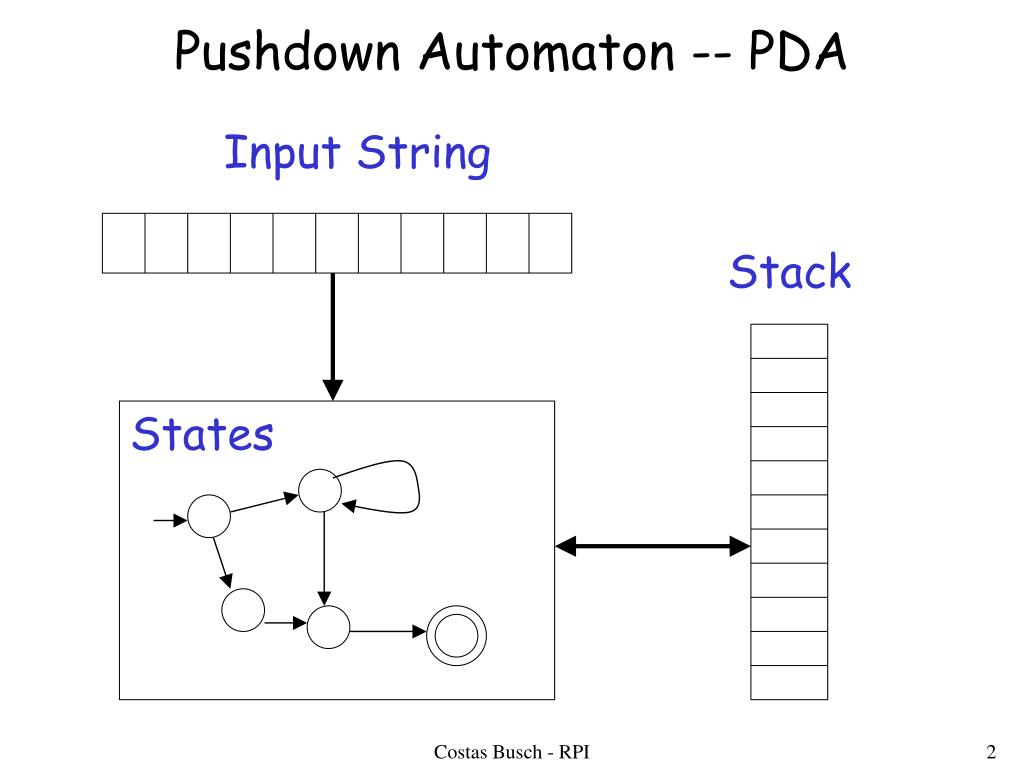

  2. Pushdown Automaton -- PDA Input String Stack States Costas Busch - RPI

  3. Initial Stack Symbol Stack Stack stack head top bottom special symbol Costas Busch - RPI

  4. The States Pop symbol Input symbol Push symbol Costas Busch - RPI

  5. input stack top Replace Costas Busch - RPI

  6. input stack top Push Costas Busch - RPI

  7. input stack top Pop Costas Busch - RPI

  8. input stack top No Change Costas Busch - RPI

  9. A Possible Transition input stack empty Pop top Costas Busch - RPI

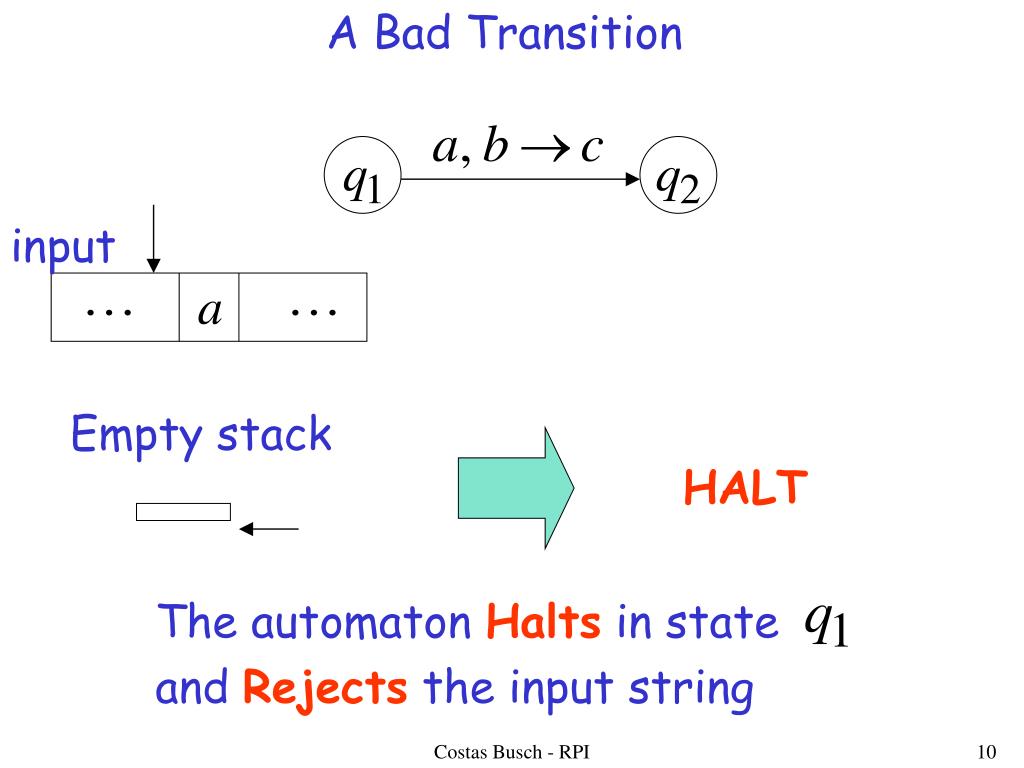

  10. A Bad Transition input Empty stack HALT The automaton Halts in state and Rejects the input string Costas Busch - RPI

  11. A Bad Transition input Empty stack HALT The automaton Halts in state and Rejects the input string Costas Busch - RPI

  12. No transition is allowed to be followed When the stack is empty Empty stack Costas Busch - RPI

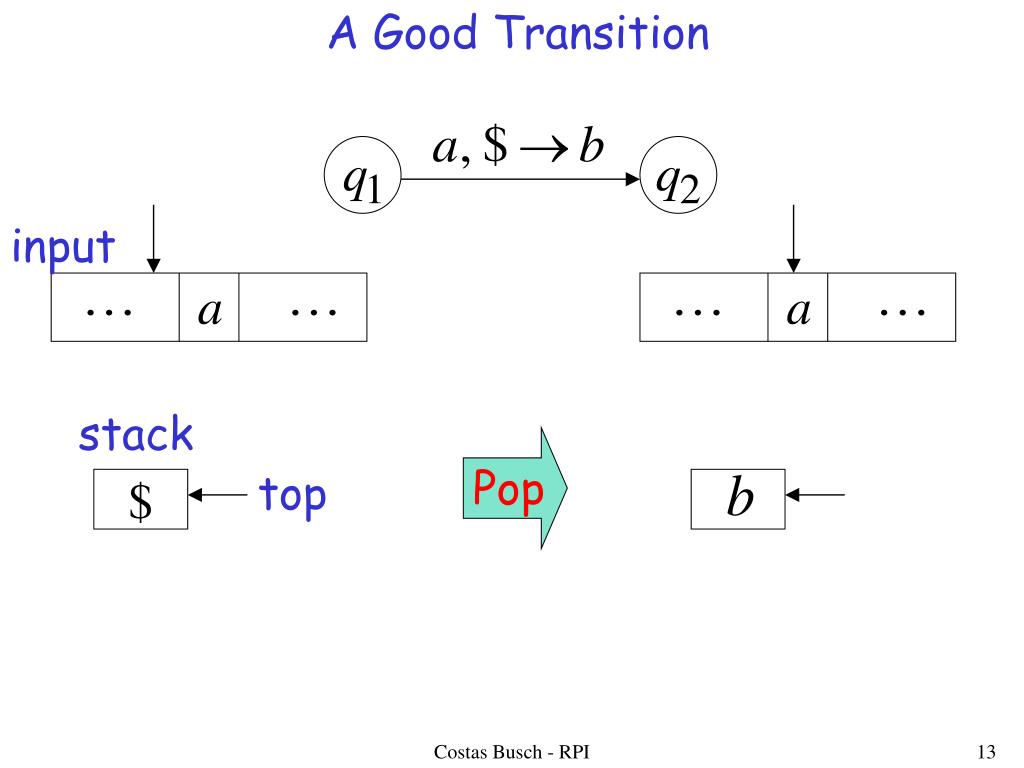

  13. A Good Transition input stack Pop top Costas Busch - RPI

  14. Non-Determinism These are allowed transitions in a Non-deterministic PDA (NPDA) Costas Busch - RPI

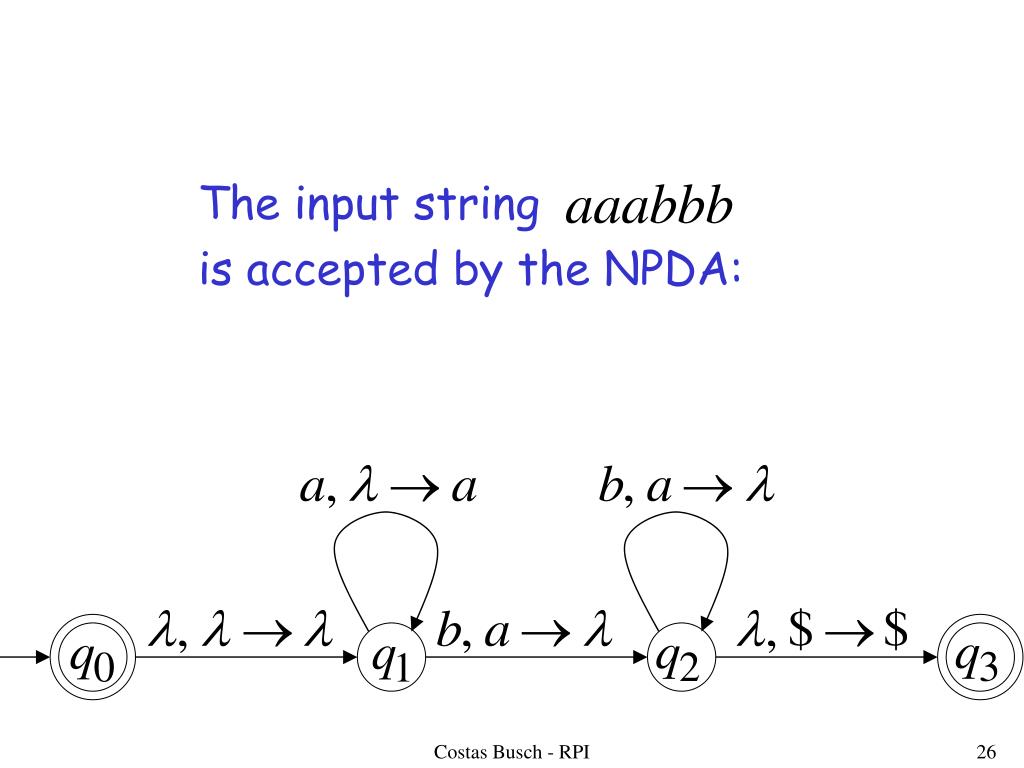

  15. The input string is accepted by the NPDA: Costas Busch - RPI

  16. NPDA example NPDA Costas Busch - RPI

  17. Execution Example: Time 0 Input Stack Costas Busch - RPI

  18. Time 1 Input Stack Costas Busch - RPI

  19. Time 2 Input Stack Costas Busch - RPI

  20. Time 3 Input Guess the middle of string Stack Costas Busch - RPI

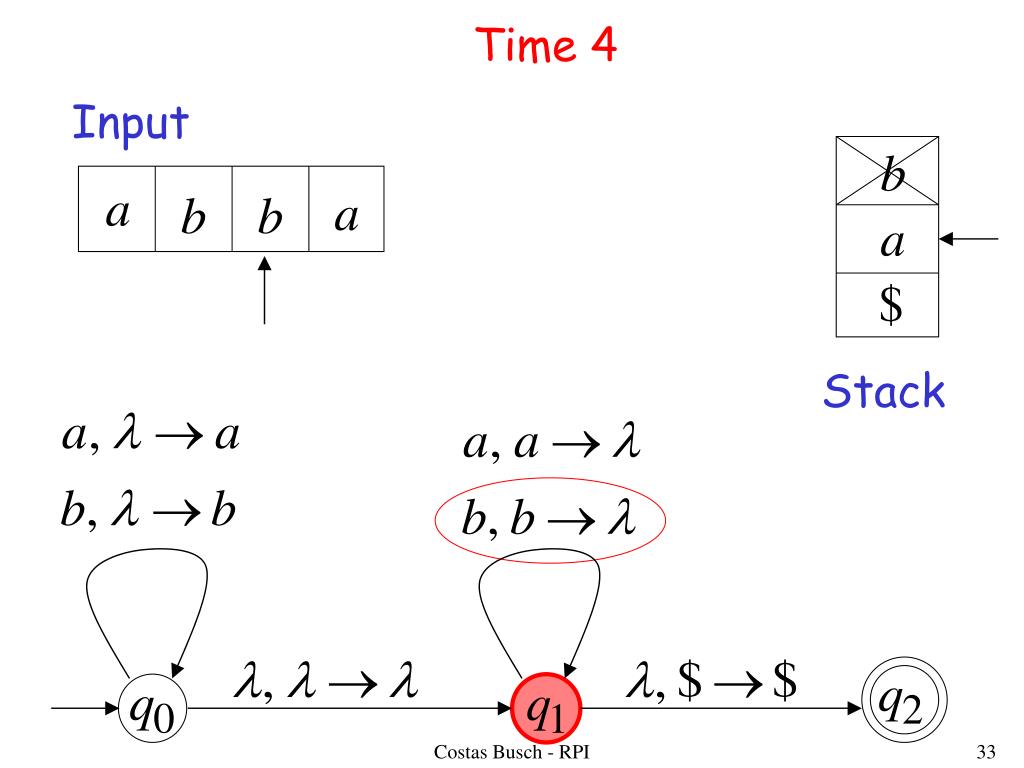

  21. Time 4 Input Stack Costas Busch - RPI

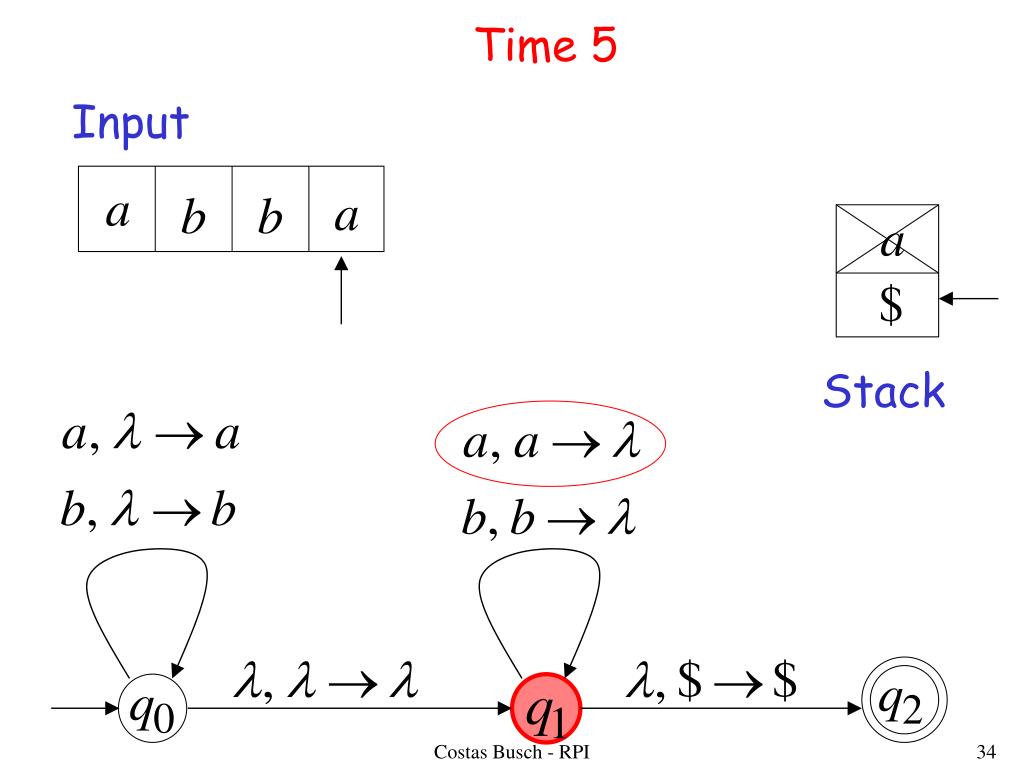

  22. Time 5 Input Stack Costas Busch - RPI

  23. Time 6 Input Stack accept Costas Busch - RPI

  24. Rejection Example: Time 0 Input Stack Costas Busch - RPI

  25. Time 1 Input Stack Costas Busch - RPI

  26. Time 2 Input Stack Costas Busch - RPI

  27. Time 3 Input Guess the middle of string Stack Costas Busch - RPI

  28. Time 4 Input Stack Costas Busch - RPI

  29. Time 5 There is no possible transition. Input Input is not consumed Stack Costas Busch - RPI

  30. Another computation on same string: Input Time 0 Stack Costas Busch - RPI

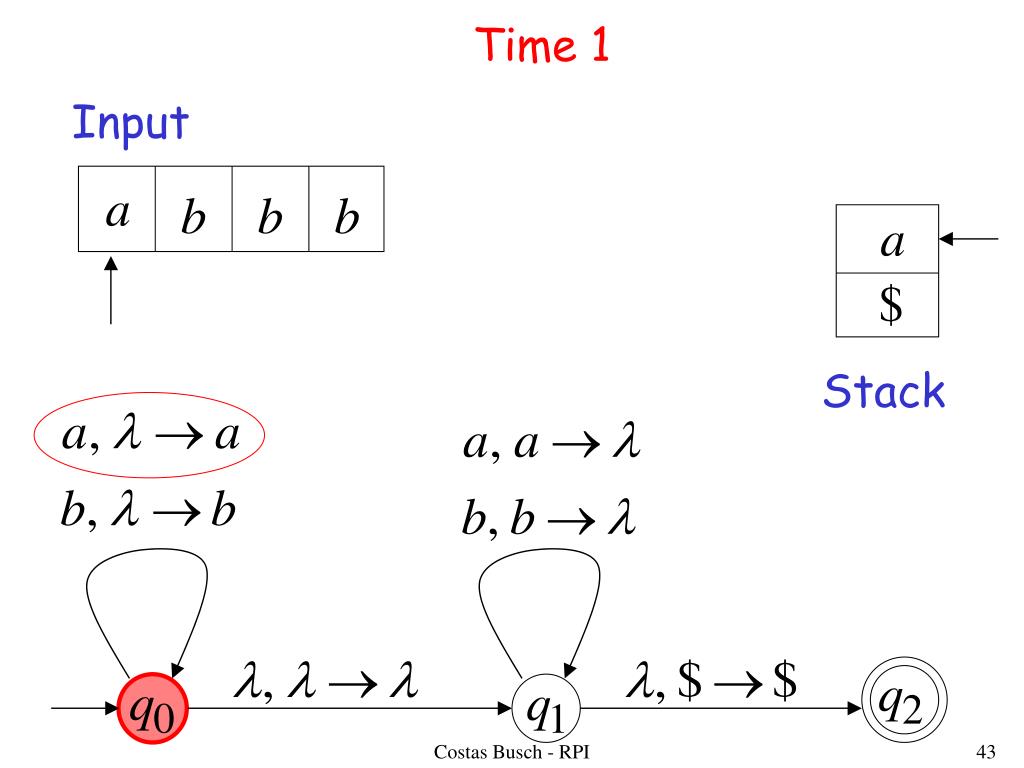

  31. Time 1 Input Stack Costas Busch - RPI

  32. Time 2 Input Stack Costas Busch - RPI

  33. Time 3 Input Stack Costas Busch - RPI

  34. Time 4 Input Stack Costas Busch - RPI

  35. Time 5 Input No final state is reached Stack Costas Busch - RPI

  36. There is no computation that accepts string Costas Busch - RPI

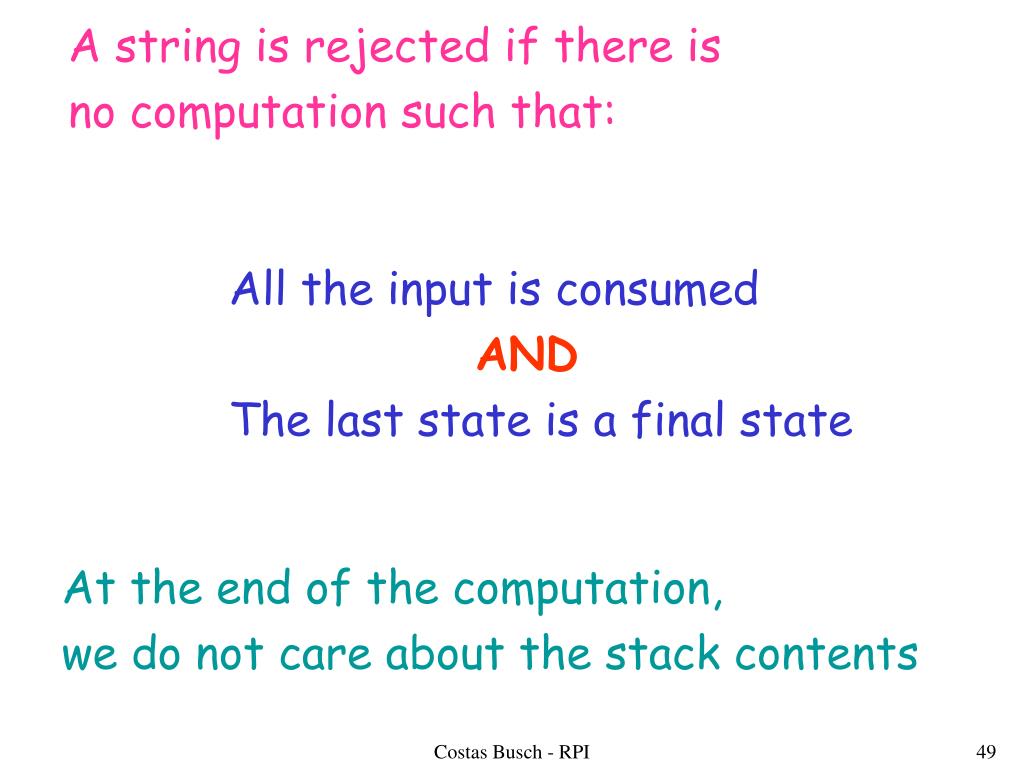

  37. A string is rejected if there is no computation such that: All the input is consumed AND The last state is a final state At the end of the computation, we do not care about the stack contents Costas Busch - RPI

  38. In other words, a string is rejected if in every computation with this string: The input cannot be consumed OR The input is consumed and the last state is not a final state OR The stack head moves below the bottom of the stack Costas Busch - RPI

  39. Pushing Strings Pop symbol Input symbol Push string Costas Busch - RPI

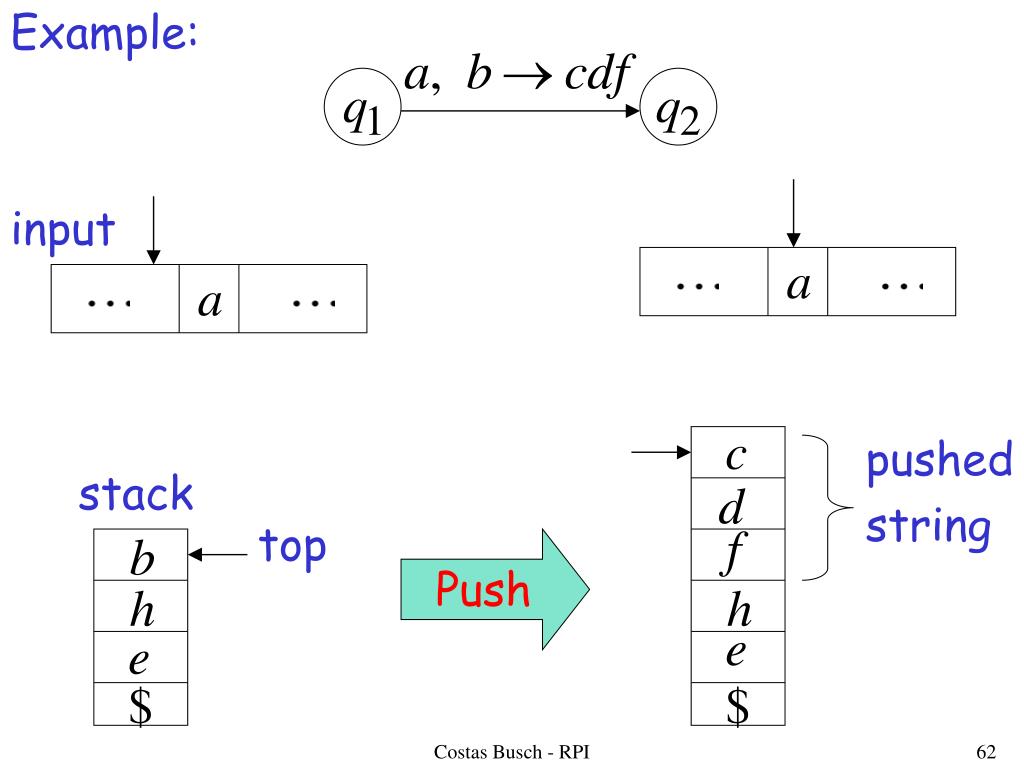

  40. Example: input pushed string stack top Push Costas Busch - RPI
