OSI Data Link Layer

1. OSI Data Link Layer Network Fundamentals – Chapter 7

2. Objectives • Explain the role of Data Link layer protocols in data transmission. • Describe how the Data Link layer prepares data for transmission on network media. • Describe the different types of media access control methods. • Identify several common logical network topologies and describe how the logical topology determines the media access control method for that network. • Explain the purpose of encapsulating packets into frames to facilitate media access. • Describe the Layer 2 frame structure and identify generic fields. • Explain the role of key frame header and trailer fields including addressing, QoS, type of protocol and Frame Check Sequence.

3. Context Index • 7.1 Data Link Layer – Accessing the Media • 7.2 Media Access Control Techniques • 7.3 Media Access Control Addressing and Framing Data • 7.4 Putting it All Together • 7.5 Labs and Activities

4. 7.1 Data Link Layer – Accessing the Media

5. 7.1.1 Data Link Layer – Supporting & Connecting to Upper Layer Services • The Data Link layer performs two basic services: －Allows the upper layers to access the media using techniques such as framing －Controls how data is placed onto the media and is received from the media using techniques such as media access control and error detection

6. 7.1.1 Data Link Layer – Supporting & Connecting to Upper Layer Services • Data Link Layer Terms

7. 7.1.1 Data Link Layer – Supporting & Connecting to Upper Layer Services • Numerous Data Link layer protocols are being used over various types of LANs and WANs.

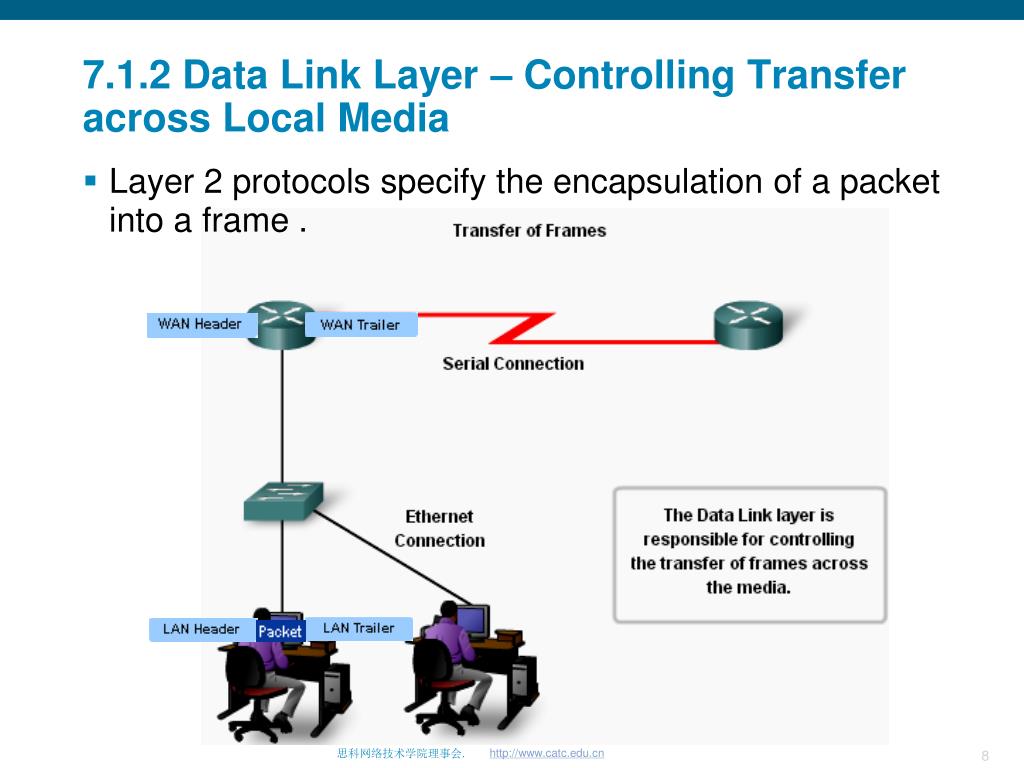

8. 7.1.2 Data Link Layer – Controlling Transfer across Local Media • Layer 2 protocols specify the encapsulation of a packet into a frame .

9. 7.1.3 Data Link Layer – Creating a Frame • Data Link layer frame includes:

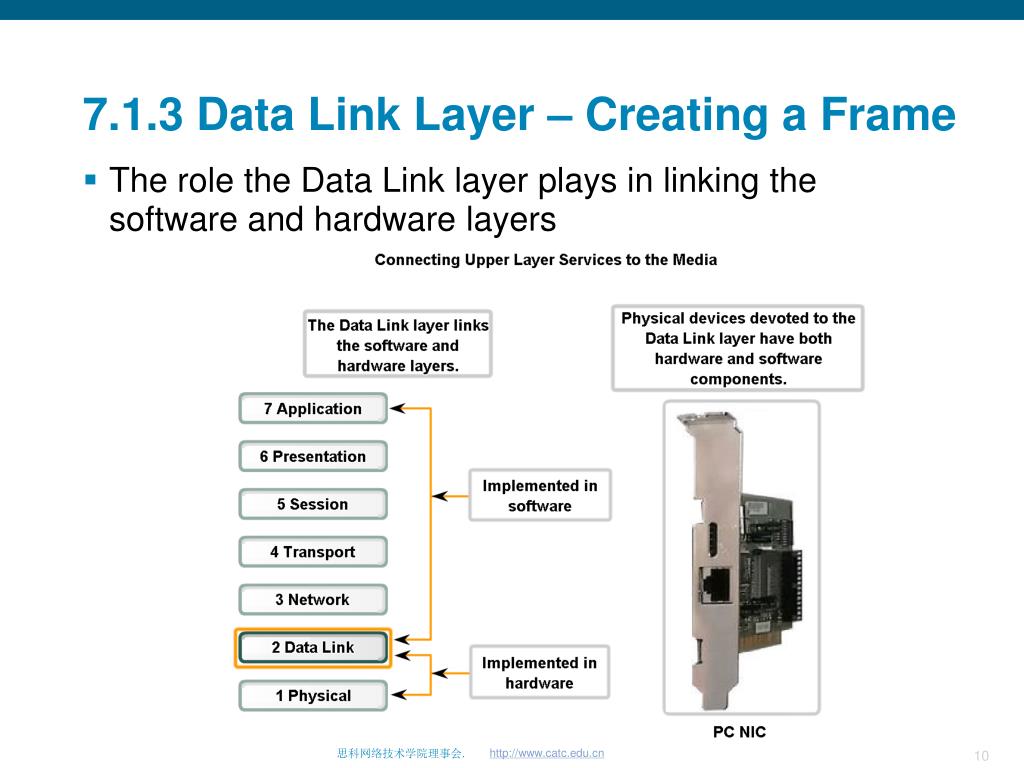

10. 7.1.3 Data Link Layer – Creating a Frame • The role the Data Link layer plays in linking the software and hardware layers

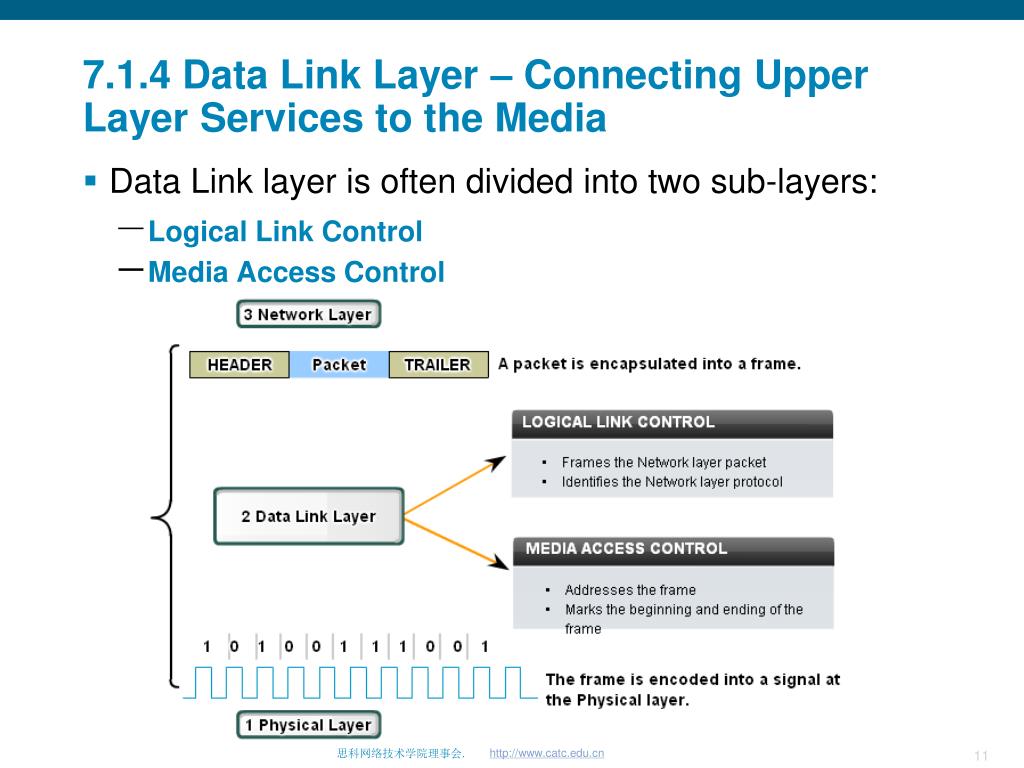

11. 7.1.4 Data Link Layer – Connecting Upper Layer Services to the Media • Data Link layer is often divided into two sub-layers: －Logical Link Control －Media Access Control

12. 7.1.5 Data Link Layer – Standards • Standards for the Data Link layer

13. 7.2 Media Access Control Techniques

14. 7.2.1 Placing Data on the Media • Explain the necessity for controlling access to the media

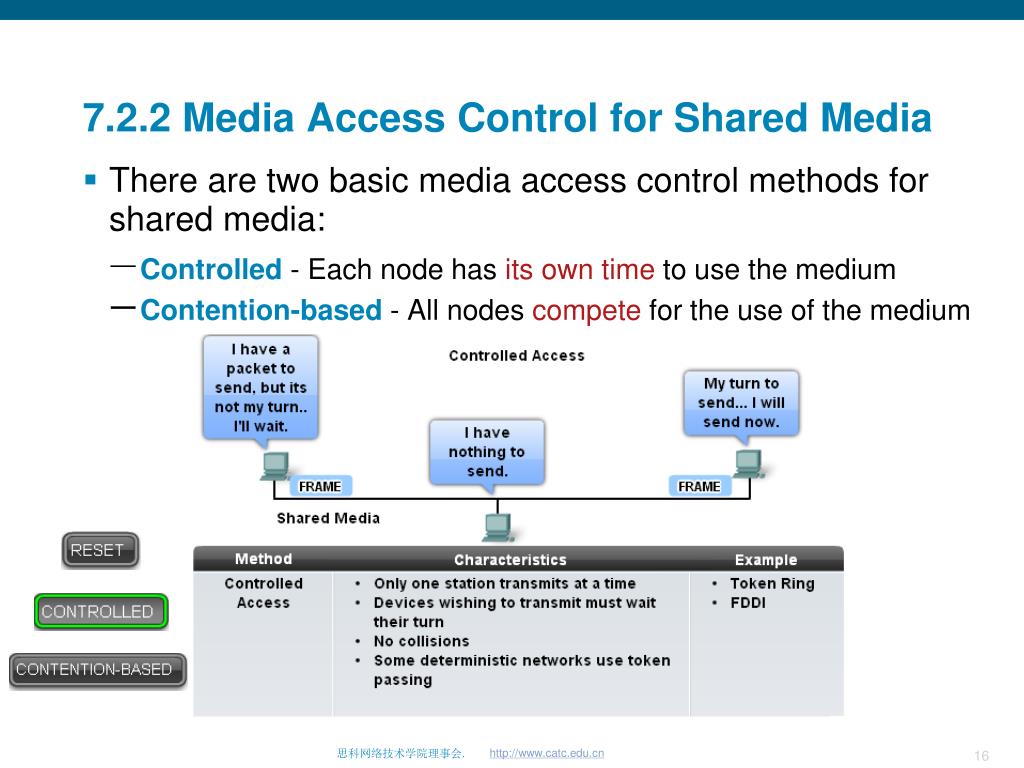

15. 7.2.2 Media Access Control for Shared Media • There are two basic media access control methods for shared media: －Controlled - Each node has its own time to use the medium －Contention-based- All nodes compete for the use of the medium

16. 7.2.2 Media Access Control for Shared Media • There are two basic media access control methods for shared media: －Controlled - Each node has its own time to use the medium －Contention-based- All nodes compete for the use of the medium

17. 7.2.2 Media Access Control for Shared Media • There are two basic media access control methods for shared media: －Controlled - Each node has its own time to use the medium －Contention-based- All nodes compete for the use of the medium

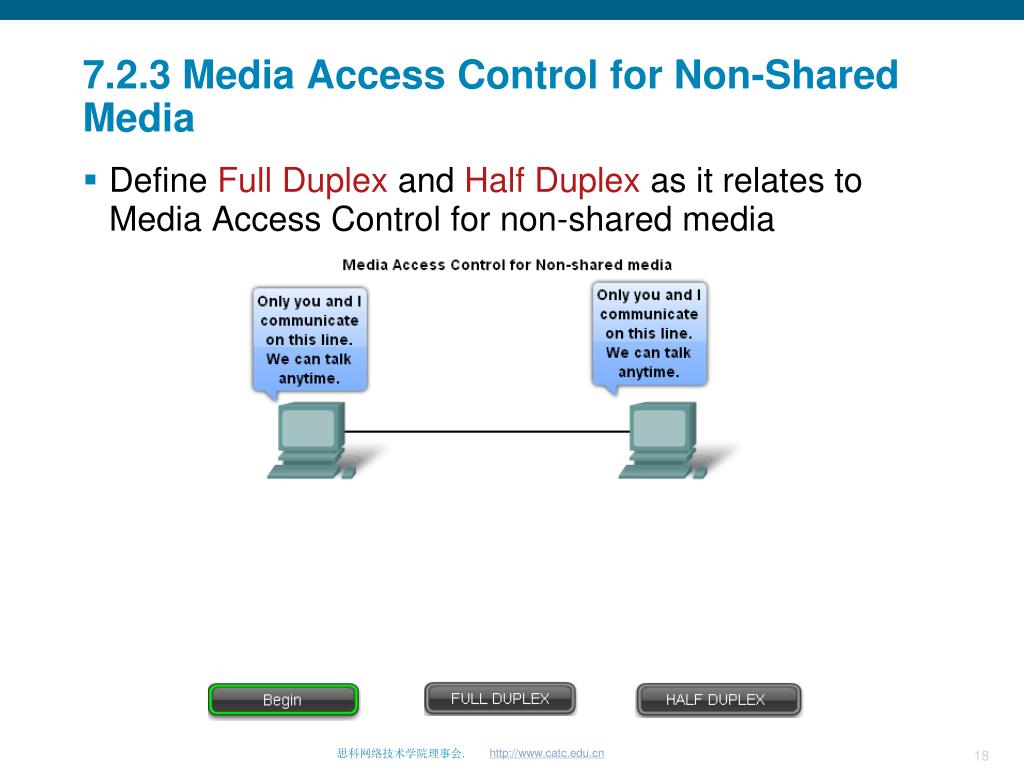

18. 7.2.3 Media Access Control for Non-Shared Media • Define Full Duplex and Half Duplex as it relates to Media Access Control for non-shared media

19. 7.2.3 Media Access Control for Non-Shared Media • Define Full Duplex and Half Duplex as it relates to Media Access Control for non-shared media

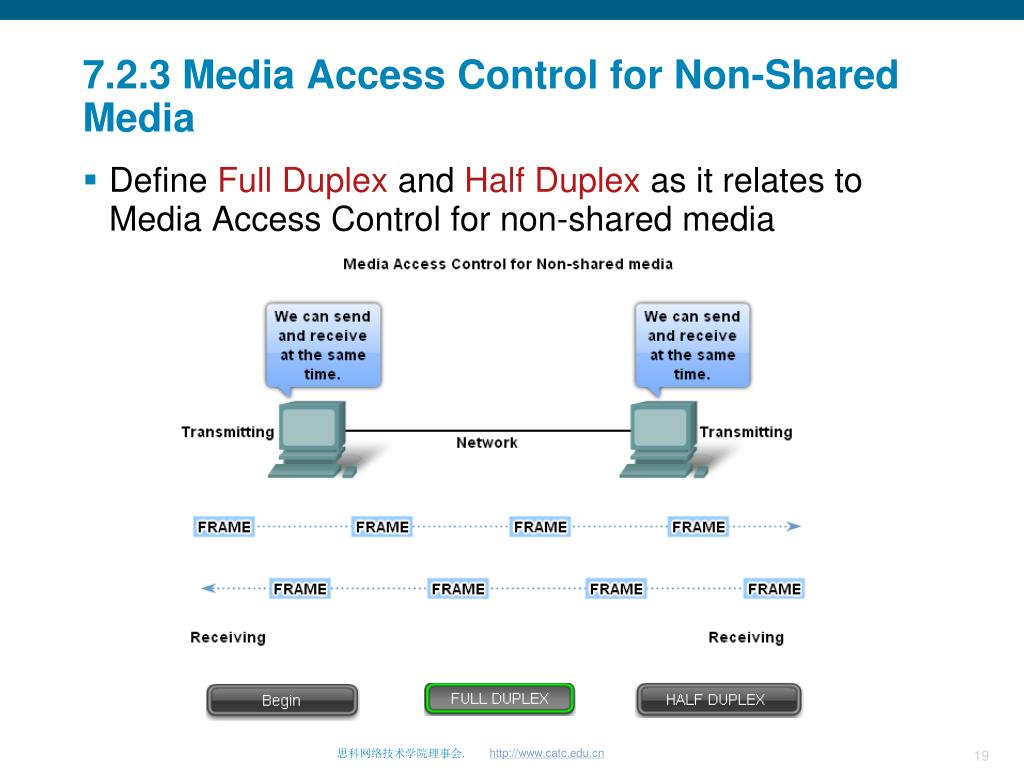

20. 7.2.3 Media Access Control for Non-Shared Media • Define Full Duplex and Half Duplex as it relates to Media Access Control for non-shared media

21. 7.2.4 Logical Topology vs Physical Topology • The representation of how the media is used to interconnect the devices is the physical topology. • A logical topology is the way a network transfers frames from one node to the next. • Topologies used in networks are: －Point-to-Point －Multi-Access －Ring

22. 7.2.5 Point-to-Point Topology • A point-to-point topology connects two nodes directly together.

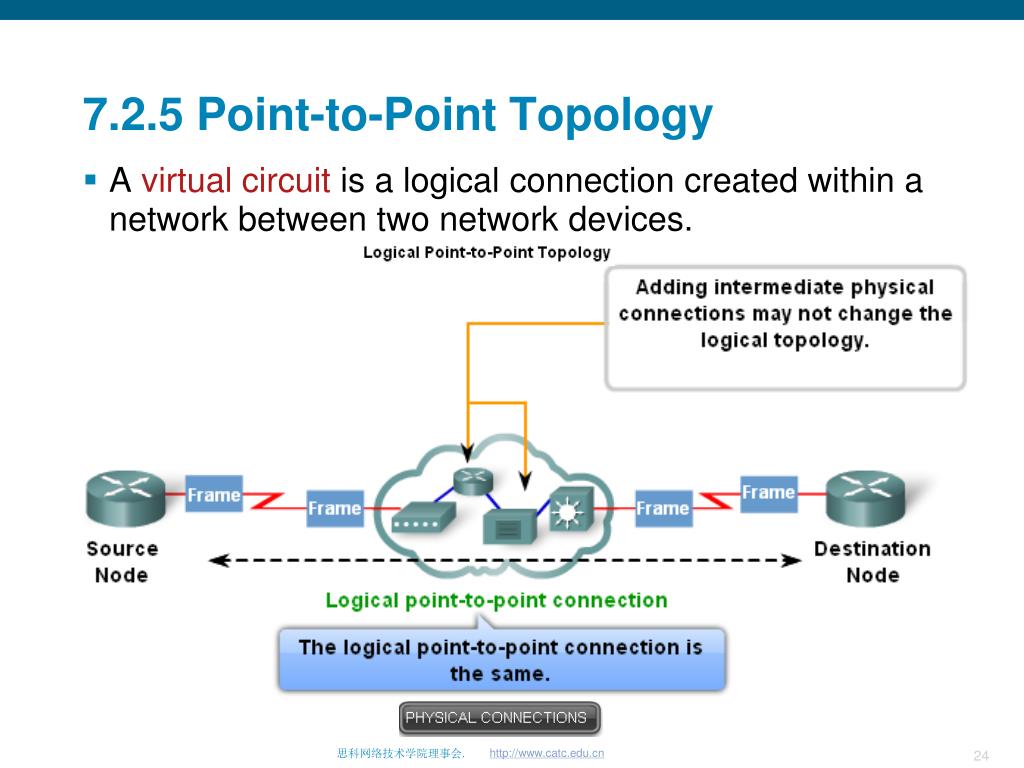

23. 7.2.5 Point-to-Point Topology • A virtual circuit is a logical connection created within a network between two network devices.

24. 7.2.5 Point-to-Point Topology • A virtual circuit is a logical connection created within a network between two network devices.

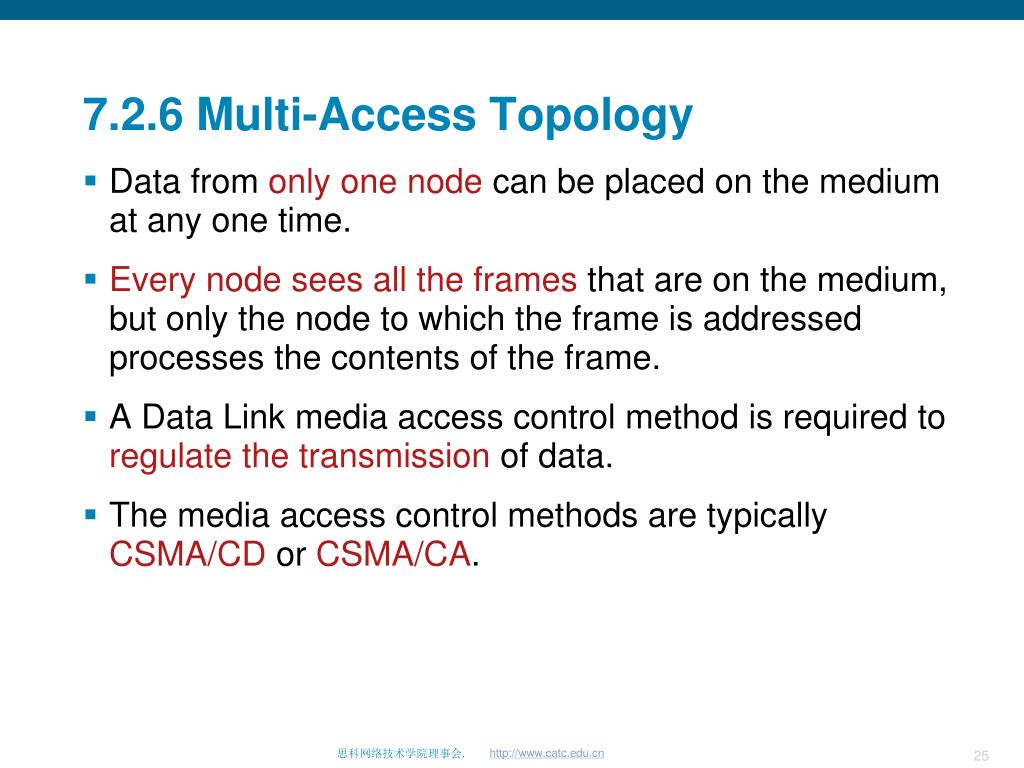

25. 7.2.6 Multi-Access Topology • Data from only one node can be placed on the medium at any one time. • Every node sees all the frames that are on the medium, but only the node to which the frame is addressed processes the contents of the frame. • A Data Link media access control method is required to regulate the transmission of data. • The media access control methods are typically CSMA/CD or CSMA/CA.

26. 7.2.6 Multi-Access Topology • How nodes access the media in a multi-access topology

27. 7.2.7 Ring Topology • In a logical ring topology, each node in turn receives a frame. If the frame is not addressed to the node, the node passes the frame to the next node. • If there is no data being transmitted, a signal (known as a token) may be placed on the media and a node can only place a data frame on the media when it has the token.

28. 7.2.7 Ring Topology • How nodes access the media in a logical ring topology

29. 7.3 Media Access Control Addressing and Framing Data

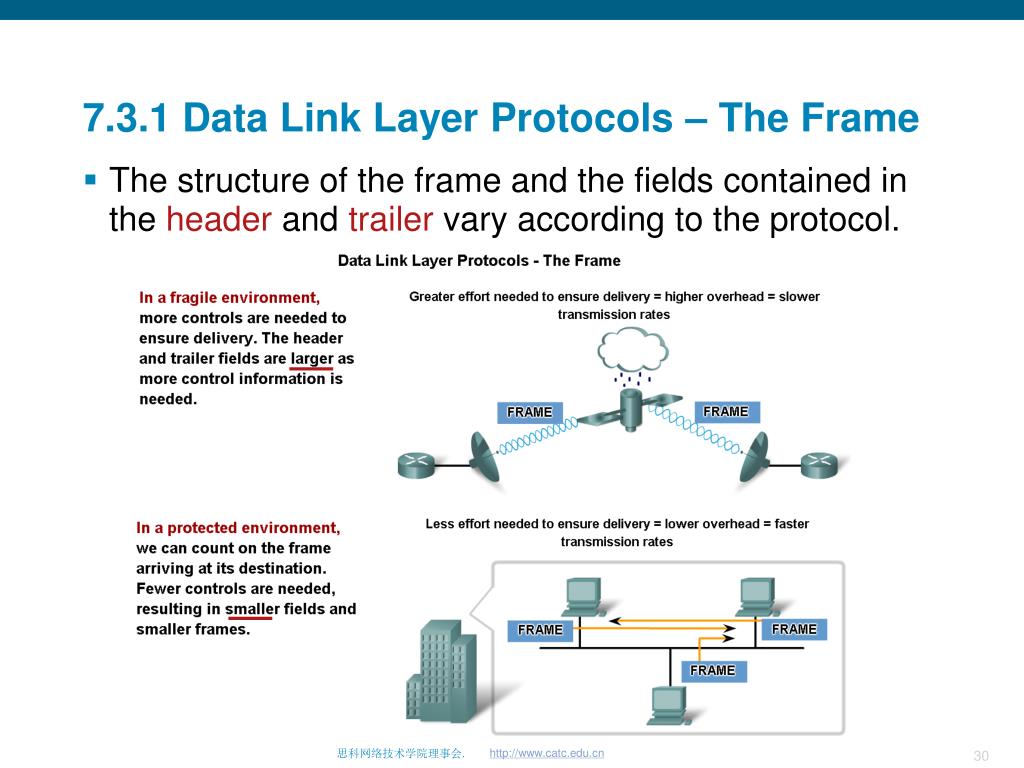

30. 7.3.1 Data Link Layer Protocols – The Frame • The structure of the frame and the fields contained in the header and trailer vary according to the protocol.

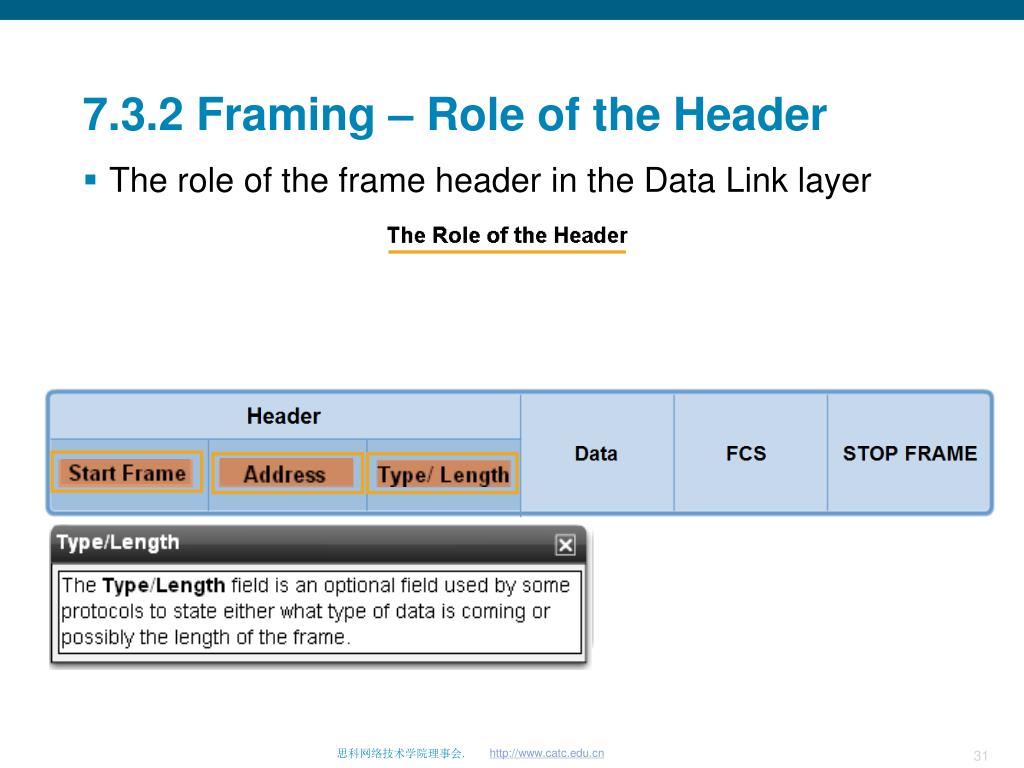

31. 7.3.2 Framing – Role of the Header • The role of the frame header in the Data Link layer

32. 7.3.3 Addressing – Where the Frame Goes • Data Link layer addressing is contained within the frame header and specifies the frame destination node on the local network. • If the device is moved to another network or subnet, physical addresses will still function with the same Layer 2 physical address. • The intermediate device - a router - will decapsulate the original frame, create a new frame for the packet.

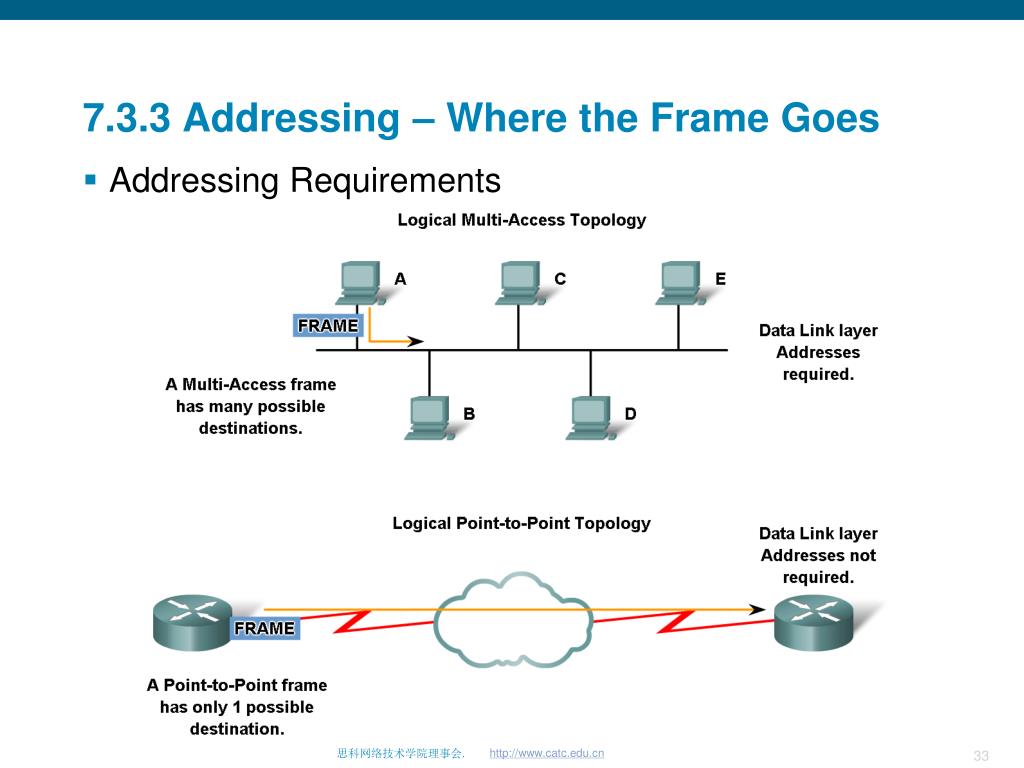

33. 7.3.3 Addressing – Where the Frame Goes • Addressing Requirements

34. 7.3.4 Framing – Role of the Trailer • The role of the frame trailer in the Data Link layer

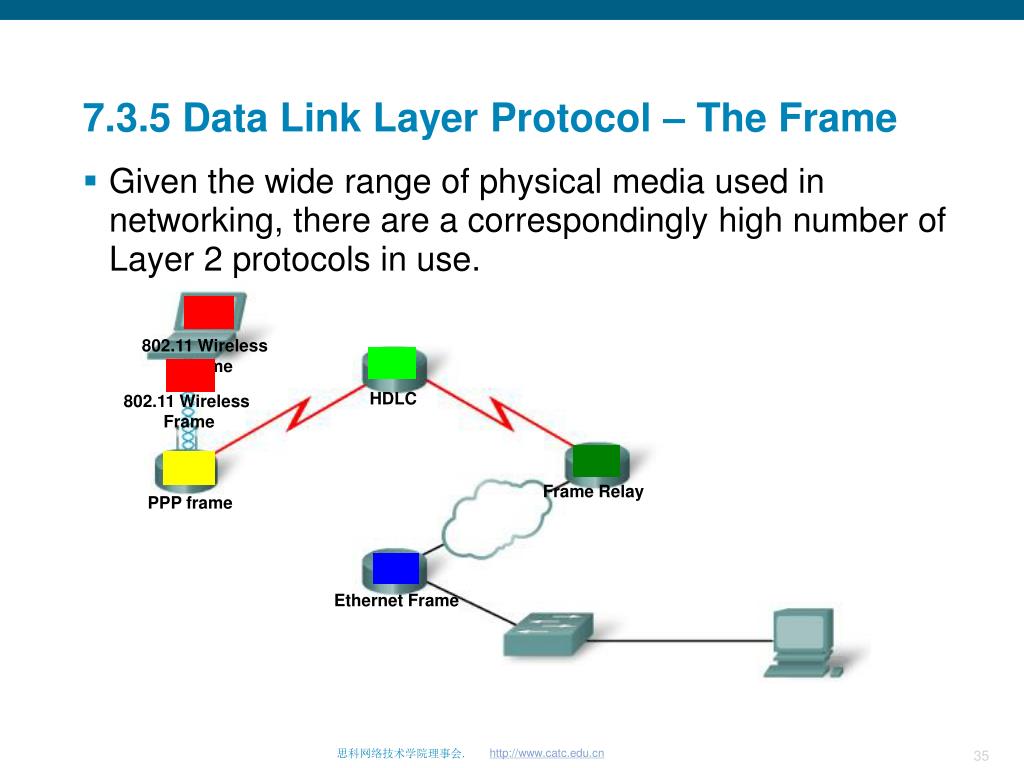

35. 7.3.5 Data Link Layer Protocol – The Frame • Given the wide range of physical media used in networking, there are a correspondingly high number of Layer 2 protocols in use. 802.11 Wireless Frame HDLC 802.11 Wireless Frame Frame Relay PPP frame Ethernet Frame

36. 7.3.5 Data Link Layer Protocol – The Frame • Ethernet Protocol for LANs

37. 7.3.5 Data Link Layer Protocol – The Frame • Point-to-point Protocol for WANs

38. 7.3.5 Data Link Layer Protocol – The Frame • Wireless Protocol for LANs More Data field -Set to 1 to indicate to a node in power-save mode that more frames are buffered for that node Power Management field -Set to 1 to indicate that a node will be in power-save mode Retry field -Set to 1 if the frame is a retransmission of an earlier frame From DS field -Set to 1 in data frames exiting the distribution system More Fragments field -Set to 1 for frames that have another fragment Transmitter Address (TA) field -MAC address that identifies the wireless device that transmitted the frame To DS field -Set to 1 in data frames destined for the distribution system (devices in the wireless structure) Duration/ID field -Depending on the type of frame, represents either the time, in microseconds, required to transmit the frame or an association identity (AID) for the station that transmitted the frame Sequence Number field -Indicates the sequence number assigned to the frame; retransmitted frames are identified by duplicate sequence numbers Fragment Number field -Indicates the number for each fragment of a frame Order field -Set to 1 in a data type frame that uses Strictly Ordered service class (does not need reordering) FCS field -Contains a 32-bit cyclic redundancy check (CRC) of the frame Destination Address (DA) field -MAC address of the final destination node in the network Source Address (SA) field -MAC address of the node the initiated the frame Frame Body field -Contains the information being transported; for data frames, typically an IP packet Type and Subtype fields – Identifies one of three functions and sub functions of the frame: control, data, and management Receiver Address (RA) field -MAC address that identifies the wireless device that is the immediate recipient of the frame Wired Equivalent Privacy (WEP) field -Set to 1 if the frame contains WEP encrypted information for security Protocol Version field - Version of 802.11 frame in use

39. 7.4 Putting it All Together

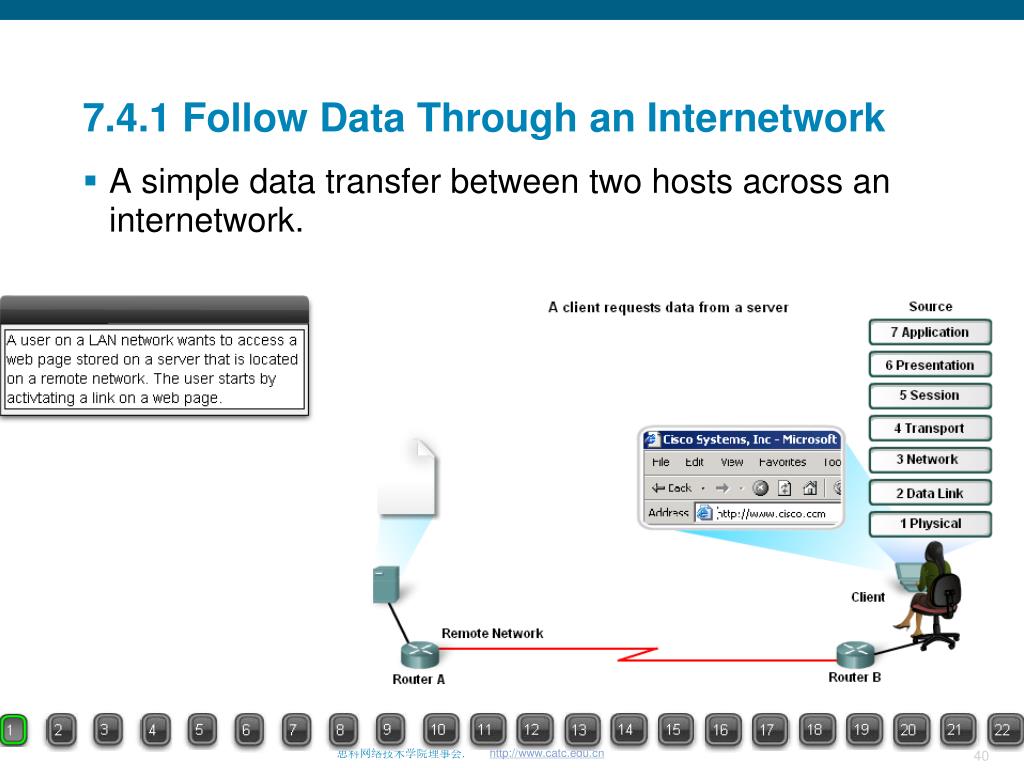

40. 7.4.1 Follow Data Through an Internetwork • A simple data transfer between two hosts across an internetwork.

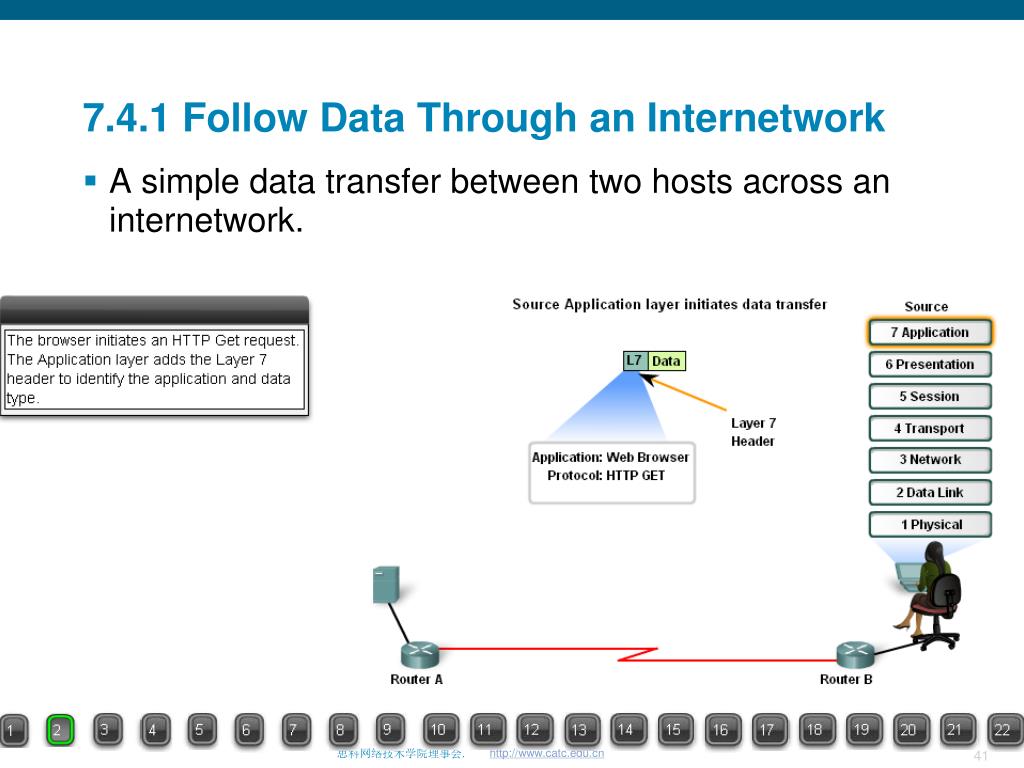

41. 7.4.1 Follow Data Through an Internetwork • A simple data transfer between two hosts across an internetwork.

42. 7.4.1 Follow Data Through an Internetwork • A simple data transfer between two hosts across an internetwork.

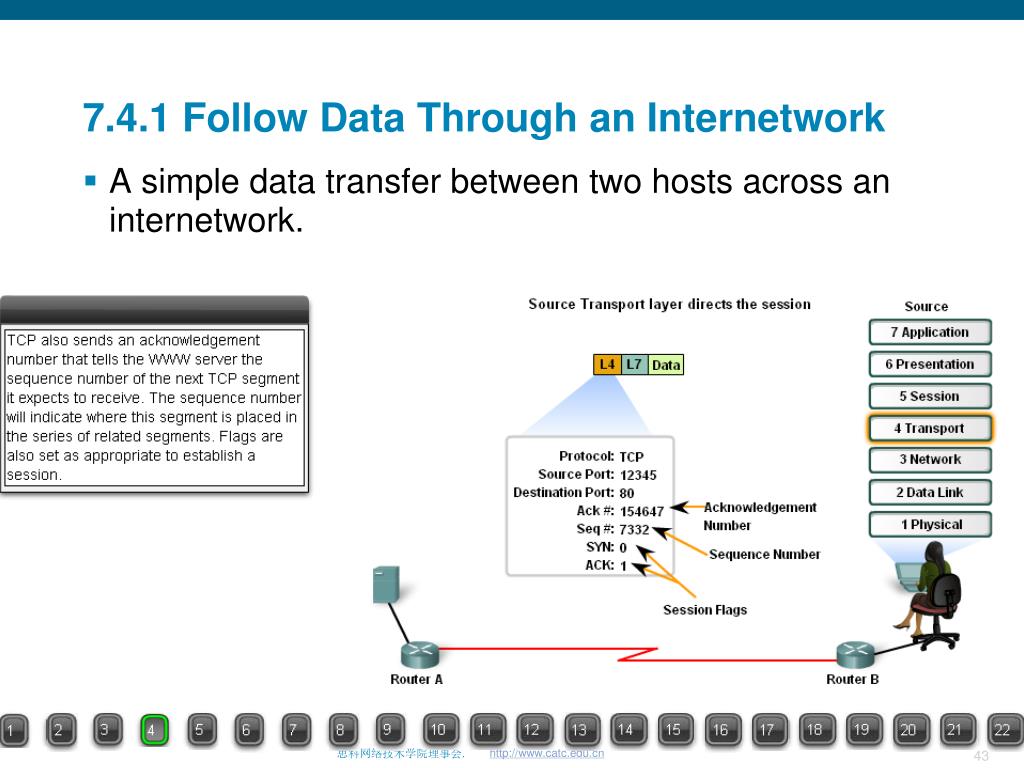

43. 7.4.1 Follow Data Through an Internetwork • A simple data transfer between two hosts across an internetwork.

44. 7.4.1 Follow Data Through an Internetwork • A simple data transfer between two hosts across an internetwork.

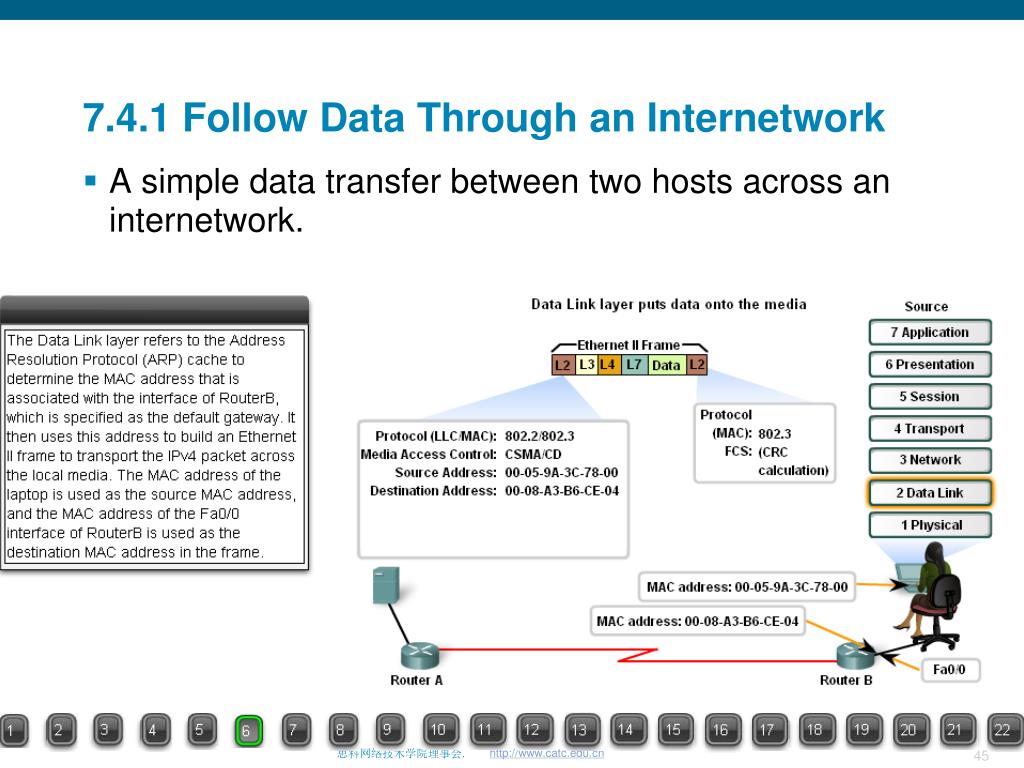

45. 7.4.1 Follow Data Through an Internetwork • A simple data transfer between two hosts across an internetwork.

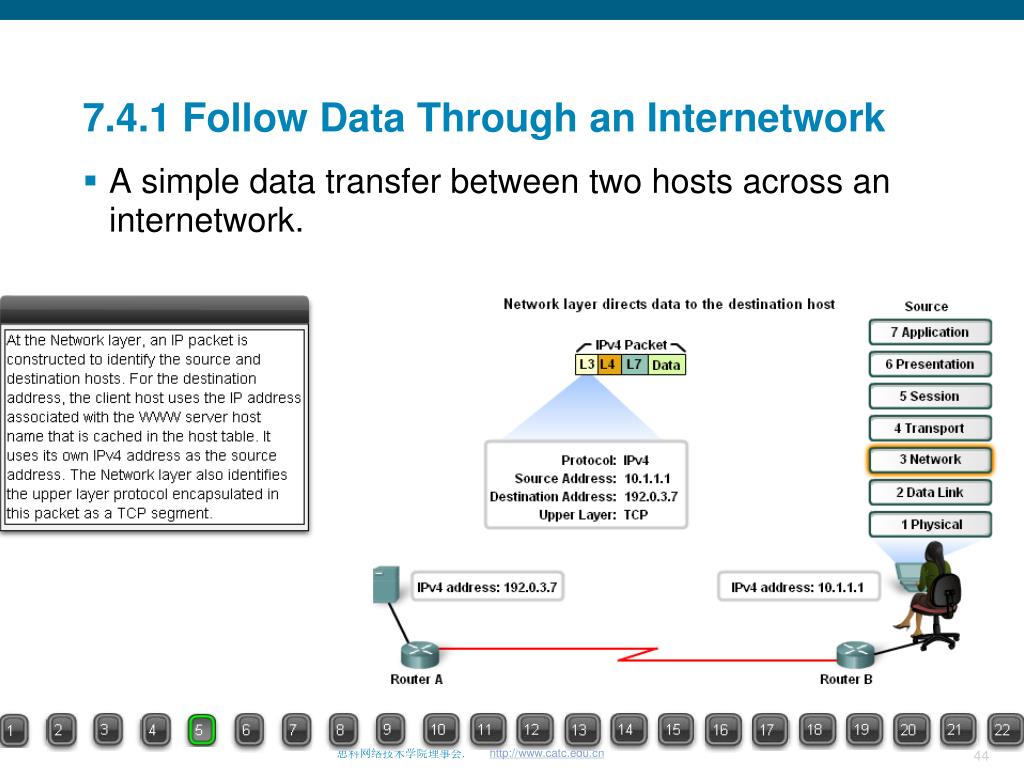

46. 7.4.1 Follow Data Through an Internetwork • A simple data transfer between two hosts across an internetwork.

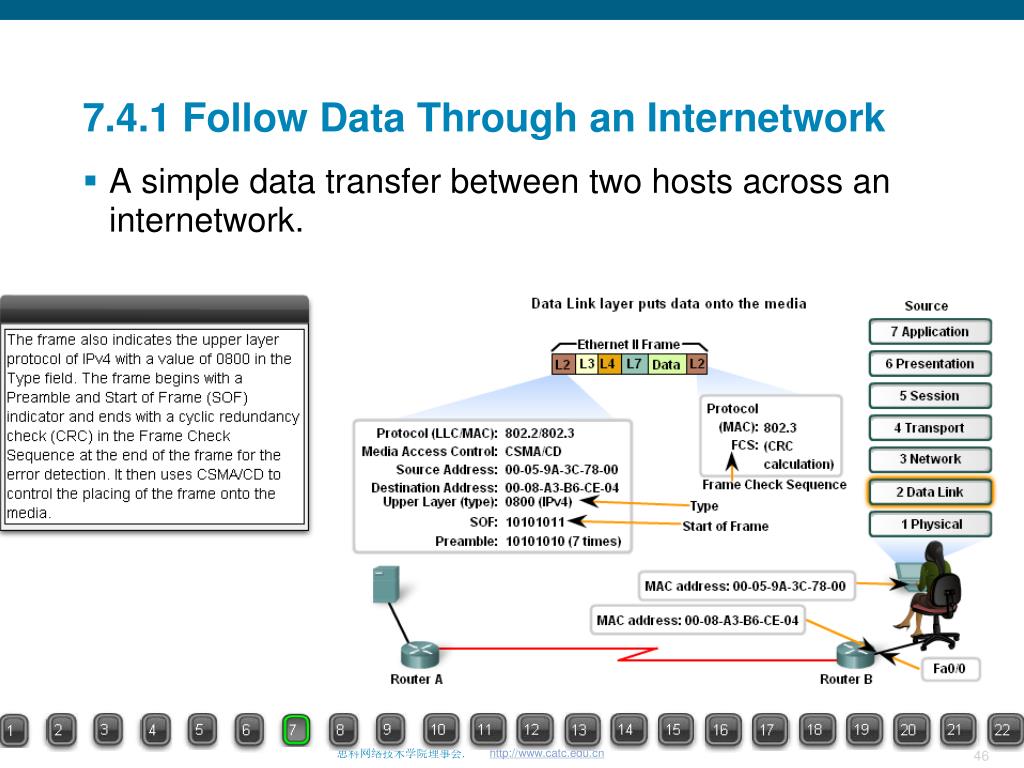

47. 7.4.1 Follow Data Through an Internetwork • A simple data transfer between two hosts across an internetwork.

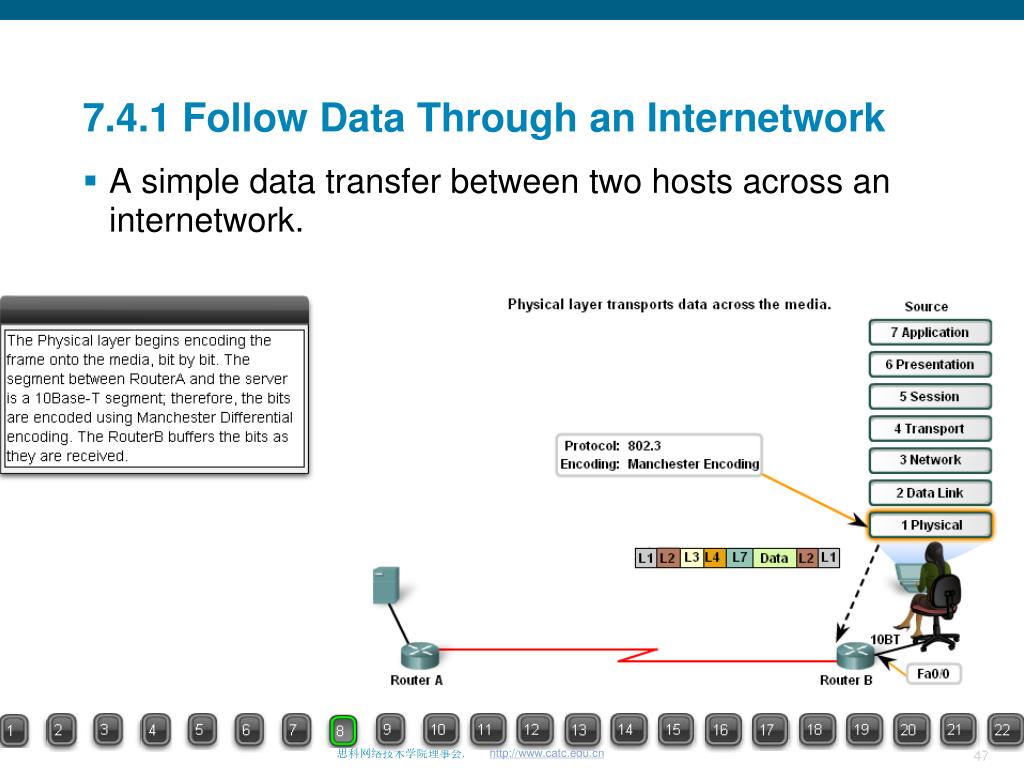

48. 7.4.1 Follow Data Through an Internetwork • A simple data transfer between two hosts across an internetwork.

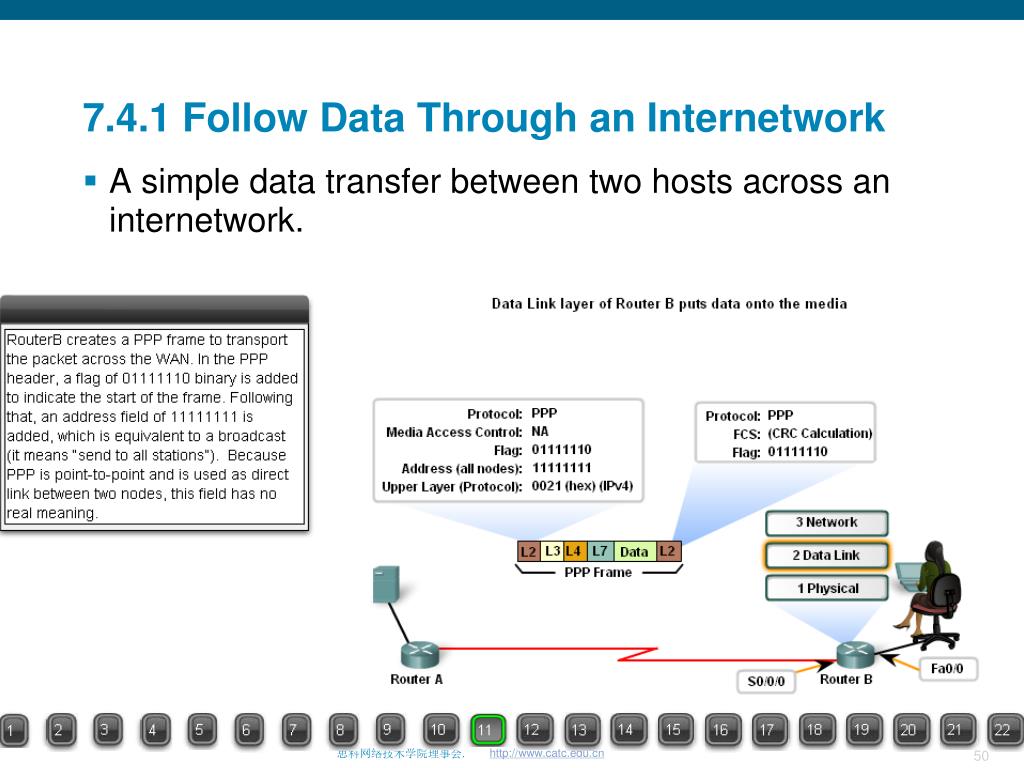

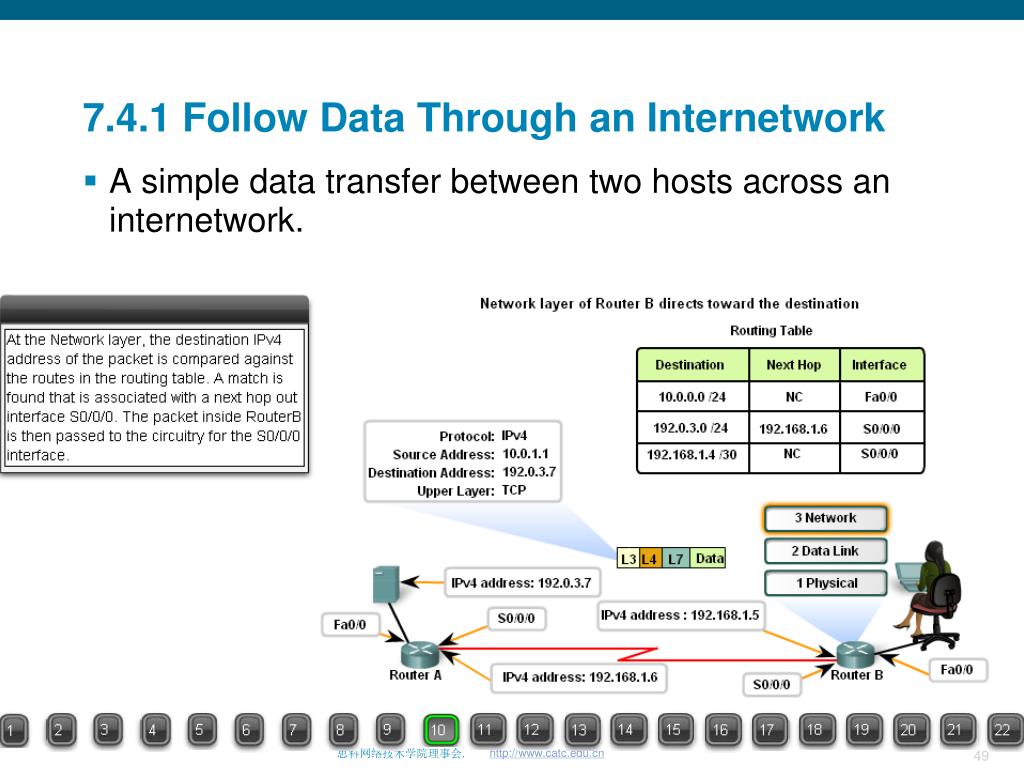

49. 7.4.1 Follow Data Through an Internetwork • A simple data transfer between two hosts across an internetwork.
