  1. Technology Driven Solutions Vadodara, Gujarat, India www.dattatreyainc.com

  2. HAVE A PROBLEM?? WE PROVIDE THE SOLUTION!!

  3. ABOUT US • Represent 14 global companies from 8 countries. • Serve clients in a wide range of applications • Known in India for launching innovative technologies, which are well proven & accepted world over • Our goal is to successfully implement world-class value driven technology of the highest standard for shaping the future backed by a team of creative & dynamic people.

  4. COMPANIES REPRESENTED • Relining and Rehabilitation of Pipelines (Water/Sewerage/Gas/Oil) • Nuflow, Australia • BKP Berolina, Germany • Primus Line • APM, USA • Non Explosive Eco-friendly Rock Fragmentation – KAPRA, S.Korea • Non Explosive Rock Splitting Mortar – ROCKFRAC, USA • Pollution Control Systems • Dust/Odour/Smoke Controllers- EMI Controls, Italy • Nano Dust Particle Control System – ENS, Netherlands • Solid Waste Management and Recycling • Automatic Pneumatic Solid Waste Management System • Solid Waste Recycling System – ERS, Japan

  5. COMPANIES REPRESENTED • Trenchless Utility Services • Laying of Underground Pipes by Micro Tunnelling- MTS, GERMANY • Pipe Layout using HDD • Anti- Corrosive Concrete Admix – Conshield, APM • Water Proofing Solution for Concrete- Crystal X, APM • Mobile Fire Fighting Systems – EMI Controls, Italy • UV/Infrared/Heat Resistant Glass Paints – Yantai, China • Artificial Snow Making System • Snow Chambers – Areasana, Italy • Snow Making Guns – Technoalpin, Italy

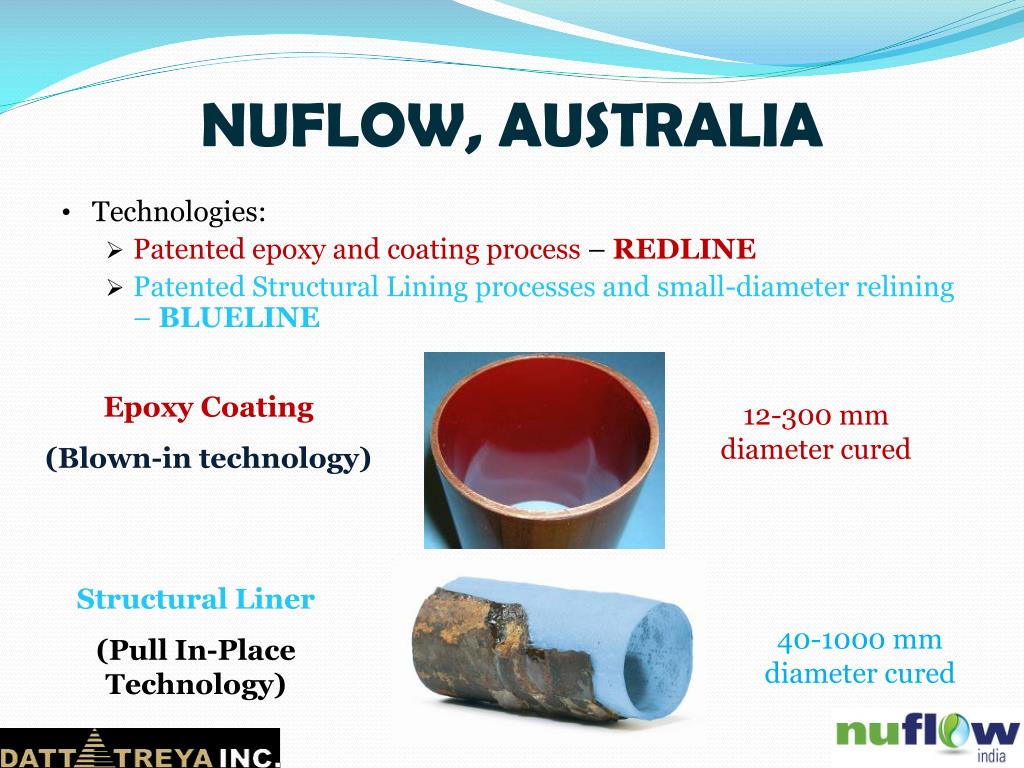

  6. NUFLOW, AUSTRALIA • Technologies: • Patented epoxy and coating process – REDLINE • Patented Structural Lining processes and small-diameter relining – BLUELINE Epoxy Coating (Blown-in technology) 12-300 mm diameter cured Structural Liner (Pull In-Place Technology) 40-1000 mm diameter cured

  7. APPLICATIONS • BLUELINE • Vertical Sanitary Stacks • Horizontal Sewer Branches • Sewer Lines • Roof Drain Systems • Spot Repair Liners • Storm water REDLINE • Hot and Cold Potable Water Systems • Potable Water Risers • Compressed Air • HVAC and Chiller Systems • Fire Suppression Systems • Processed Piping • Conduit Piping • Chemical Piping

  8. BKP BEROLINA, GERMANY • Patented UV Stabilized Structural Liner Technology for • Sewer Pipes • Channels • Oval and Circular Pipes • Suitable for 150-1500 mm diameter pipes • Factory impregnated Liner • Seamless Construction • Fast Hardening • Fiber-Glass Reinforcement • Brief Installation Time • ISO Certified

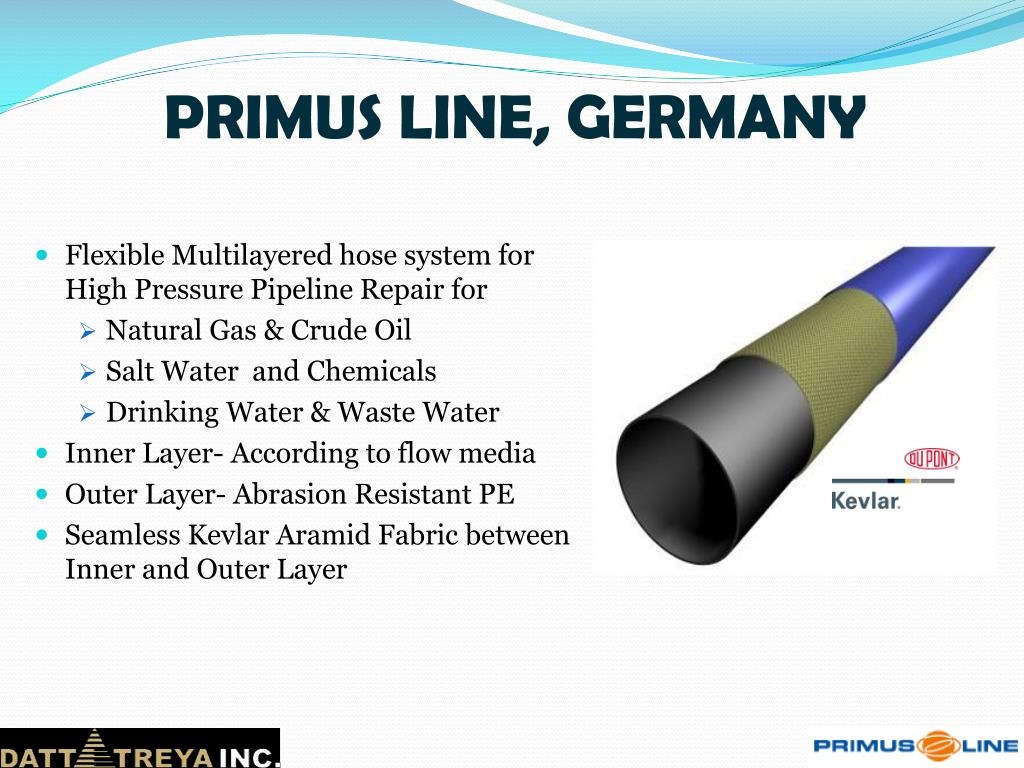

  9. PRIMUS LINE, GERMANY • Flexible Multilayered hose system for High Pressure Pipeline Repair for • Natural Gas & Crude Oil • Salt Water and Chemicals • Drinking Water & Waste Water • Inner Layer- According to flow media • Outer Layer- Abrasion Resistant PE • Seamless Kevlar Aramid Fabric between Inner and Outer Layer

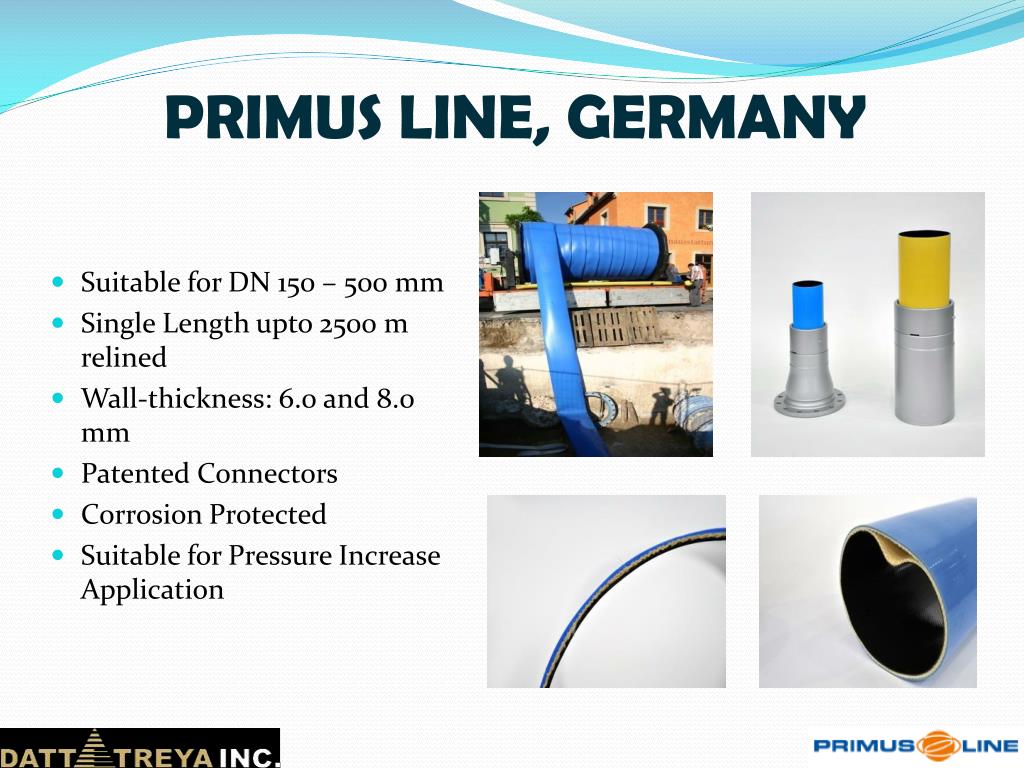

  10. PRIMUS LINE, GERMANY • Suitable for DN 150 – 500 mm • Single Length upto 2500 m relined • Wall-thickness: 6.0 and 8.0 mm • Patented Connectors • Corrosion Protected • Suitable for Pressure Increase Application

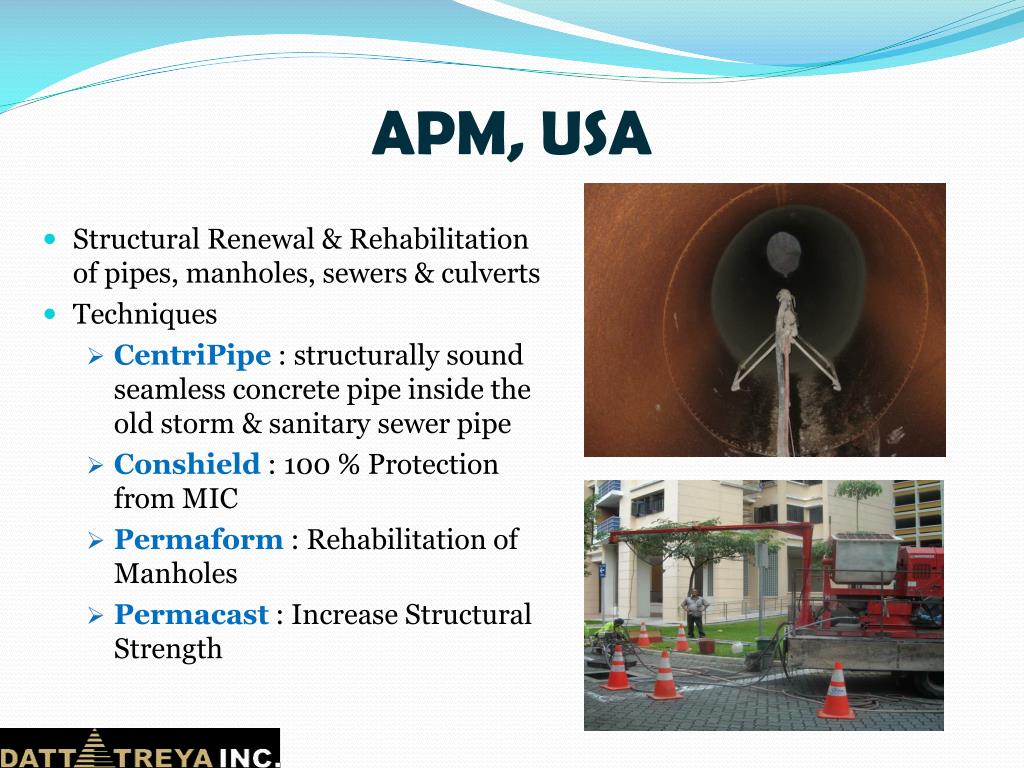

  11. APM, USA • Structural Renewal & Rehabilitation of pipes, manholes, sewers & culverts • Techniques • CentriPipe : structurally sound seamless concrete pipe inside the old storm & sanitary sewer pipe • Conshield : 100 % Protection from MIC • Permaform : Rehabilitation of Manholes • Permacast : Increase Structural Strength

  12. APM, USA • Techniques • COR + GARD- Chemical Protection & High temperature in sewer lines • COR + ROC- Chemical Protection for spot repairs • Chimney Frame Seals – Manhole Protection from water and dirt

  13. KAPRA, SOUTH KOREA • Eco Friendly Pulse Plasma Rock Fragmentation Technology • Aluminum & Copper Oxide powder energized in milliseconds to a Plasma stage using Electrostatic Power Impulse (EPI) Generator. • Process generates the heat & impact wave to crack & break the rock. • Impact Cells: • 2Al + 3Cuo = Al2O3 + 3Cu + 1197 KJ GENERATOR EPI PULSE PULSE GENERATOR CELL CELL

  14. KAPRA, SOUTH KOREA • Advantages • Non- Explosive • No License required • Low Vibration and noise • No flying rocks and gases • No resonance generated • Applications • Building Foundations • Tunnels • Next to Airport, Rail Lines, Roads, Dams, Canals, Pipelines, Utility Networks • For weak and hard rock both

  15. ROCKFRAC, USA • Eco Friendly Non Explosive “RockFrac” Rock Splitting Mortar from US • Material is mixed with cold water & poured in the drilled holes. • Expansion pressure allows crack / cut towards free face. • Applications • Under Water Applications • Soft and hard rock • Sensitive areas near to airports, rails, buildings etc • Benefits • No vibrations, noise and dust • No flying rocks • No hindrance to nearby works

  16. EMI CONTROLS , ITALY • Mobile / Stationery Operation for Optimum Dust/Odour Suppression • Special Ceramic Nozzles nebulises water which traps dust or the odour at source. • 52-60 degrees angle of inclination • 360 degrees rotation • Used for • Chemical Industries • Demolition Sites • Recycling and Treatment Plants • Crushing • Land Fill Areas and Disposal Sites

  17. EMI CONTROLS , ITALY V12S ODOUR CONTROLLER Neutralising Agent added to water

  18. ENS, NETHERLANDS • Capturing of Nano Dust Particles using Electrodes and Filtering Media • Positive Ions sent in air which capture fine dust particles • Diverted to the negative electrode where all particles are collected • Cleaner Air, Lesser Pollution • Large Air Cleaning Capacity at high speed with low maintenance • Applications : • Hospitals and Research labs • Hospitality Industry • Corporate Buildings and parking spaces • Roads and Rails

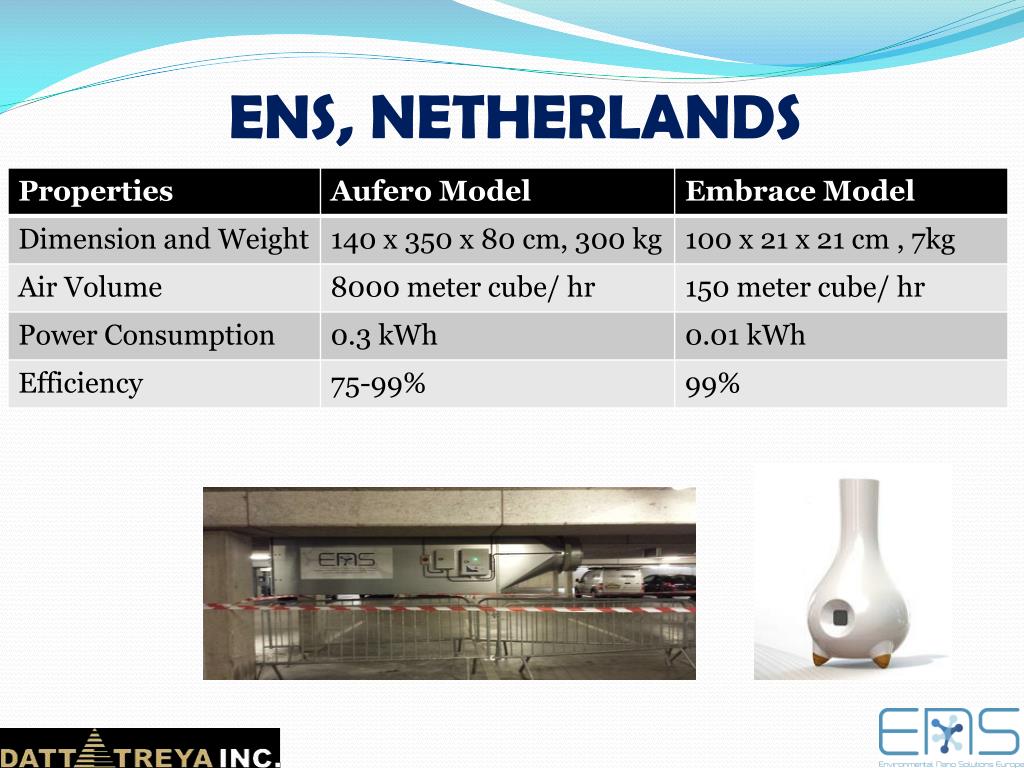

  19. ENS, NETHERLANDS

  20. ERS, JAPAN • Waste Recycling System that handles unsegregated waste • Converts the organic waste into quality fertilizer product (manure) • Machines range from 20 kg /day waste treatment capacity to 300 tones per day • No post treatment or cooling phase required • Compact and High Speed • Environment Friendly • No Bad Odour • No wastage of water

  21. MTS GERMANY •  Manufactures tunnelling systems • Diameter 200mm to 3000mm and more • Suitable to work in any type of subsoil conditions • Multiple power jack for jack rigging and cutter head • Mechanical & Hydraulic Soil Removal • Intermediate jacking stations & slurry pumps for underwater condition • Thrust Boring and Pipe Bursting Machine

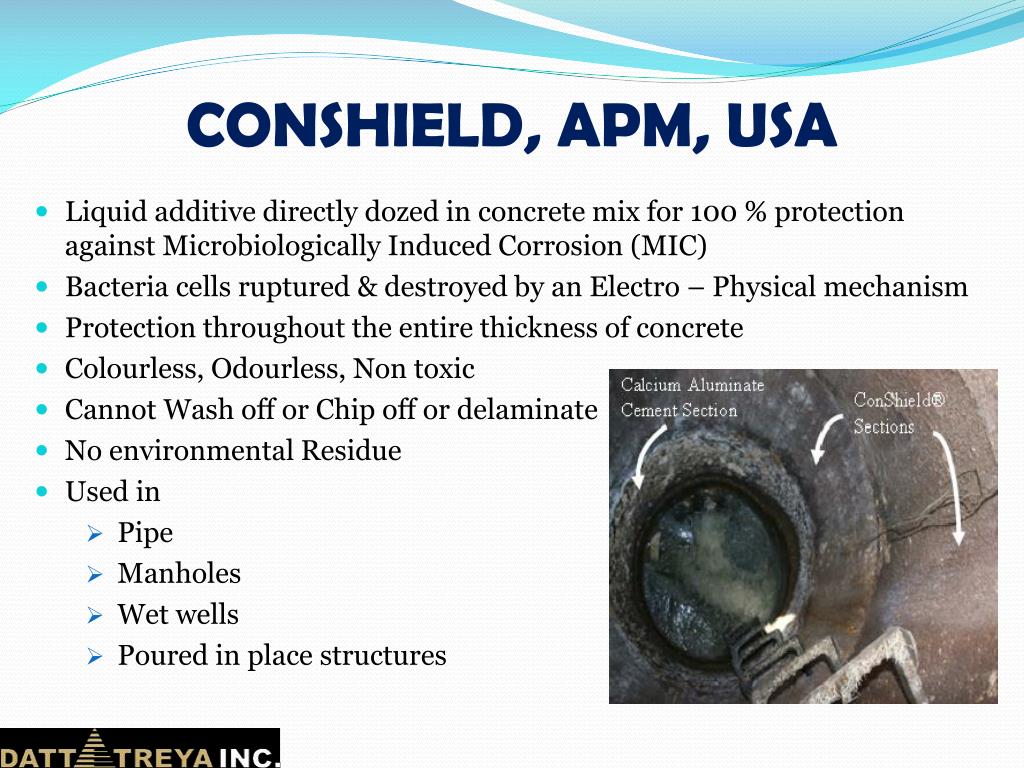

  22. CONSHIELD, APM, USA • Liquid additive directly dozed in concrete mix for 100 % protection against Microbiologically Induced Corrosion (MIC) • Bacteria cells ruptured & destroyed by an Electro – Physical mechanism • Protection throughout the entire thickness of concrete • Colourless, Odourless, Non toxic • Cannot Wash off or Chip off or delaminate • No environmental Residue • Used in • Pipe • Manholes • Wet wells • Poured in place structures

  23. EMI CONTROLS, ITALY • Highly Efficient Mobile Fire Fighting System • Atomizes water into mist & combines with foam concentrate thus covering large heat transfer area • Highly durable ceramic nozzles • 70 degree inclination • 360 degree rotation • 350 MW heat energy reduced to 0-10 MW in 40 seconds • Applications • Refineries and Industries • Fuel Depots • Forrest Fires

  24. YANTAI, CHINA • Energy Saving and Anti-UV Glass Paint • Saves 30-40 % energy once applied • Zero effect on transparency • 100 % Protection from Infrared Radiations • Heat Transmittance reduces by 25-30 % • Applications • Hospitality Sector • Commercial and Residential Building • Solar Incubators • Solar Batteries

  25. AREASANA, ITALY • Artificial Snow Rooms built as per client design • Snow Treatment scientifically proven to be more beneficial than dip in cold water after sauna • Benefits • Increases blood circulation • Strengthens immunity • Improved skin tone • Relaxation Therapy • Strengthens Pain Reception

  26. AREASANA, ITALY • Available from 6 sq m size to 15 sq m. • Technical room required • 30 l/hr water consumption • 11-18 kW Energy Requirement • Applications • Resorts • 5 Star Hotels • Villas • Commercial Buildings • Gymnasiums • Spas

  27. TECHNOALPIN, ITALY • Designs and Provides custom-built systems for ski resorts since 25 years. • World Leaders in Snow Making System ( 70 % of the world market) • Large Basket of Snow Guns and Snow Lances available for building artificial ski slopes • Machines available for indoor snow/ice building

  28. THANK YOU For Further Details Contact : Sumul Patel sumul.patel@dattatreyainc.com +919824049872
