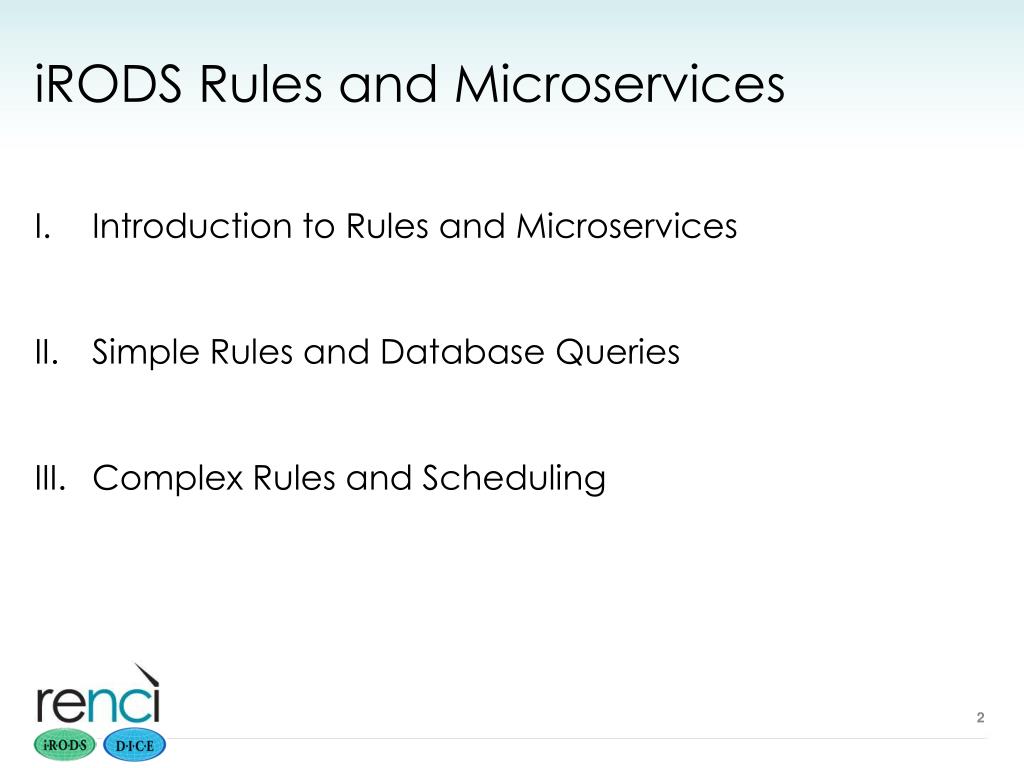

iRODS Rules and Microservices • Introduction to Rules and Microservices • Simple Rules and Database Queries • Complex Rules and Scheduling

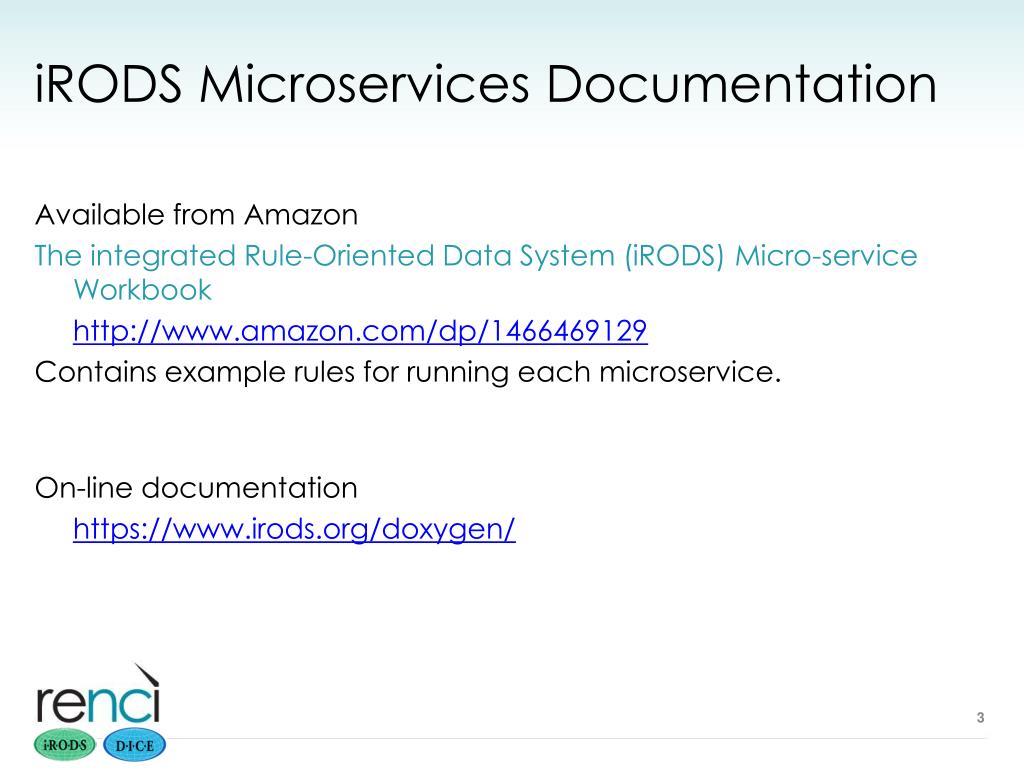

iRODS Microservices Documentation Available from Amazon The integrated Rule-Oriented Data System (iRODS) Micro-service Workbook http://www.amazon.com/dp/1466469129 Contains example rules for running each microservice. On-line documentation https://www.irods.org/doxygen/

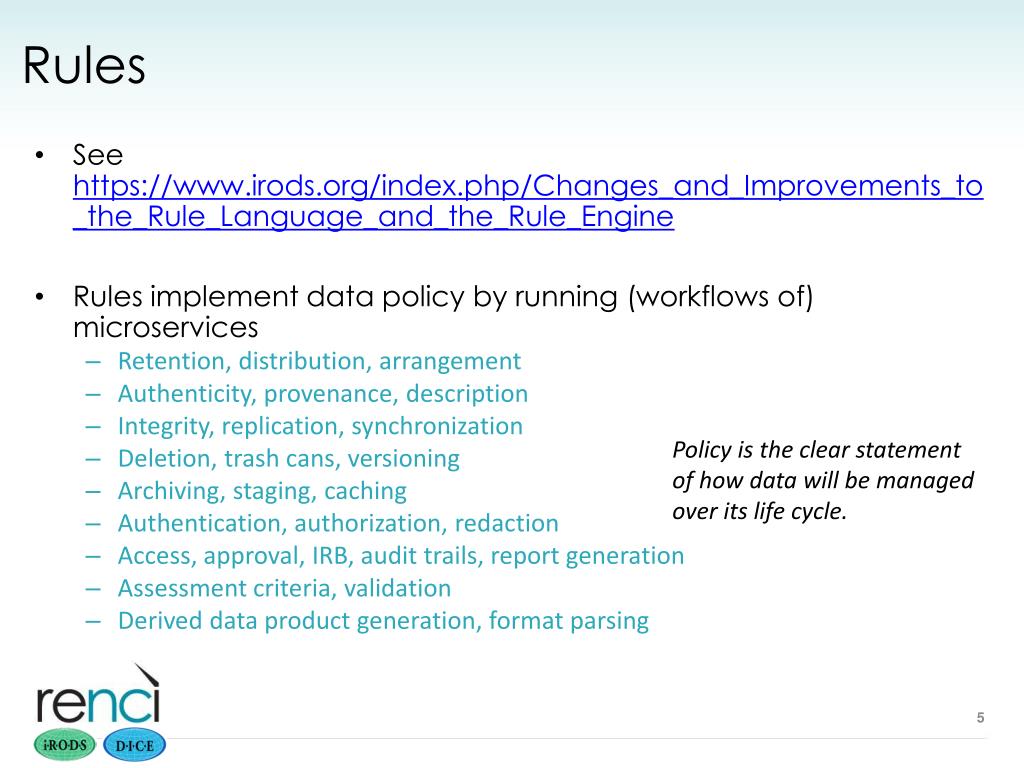

Rules • See https://www.irods.org/index.php/Changes_and_Improvements_to_the_Rule_Language_and_the_Rule_Engine • Rules implement data policy by running (workflows of) microservices • Retention, distribution, arrangement • Authenticity, provenance, description • Integrity, replication, synchronization • Deletion, trash cans, versioning • Archiving, staging, caching • Authentication, authorization, redaction • Access, approval, IRB, audit trails, report generation • Assessment criteria, validation • Derived data product generation, format parsing Policy is the clear statement of how data will be managed over its life cycle.

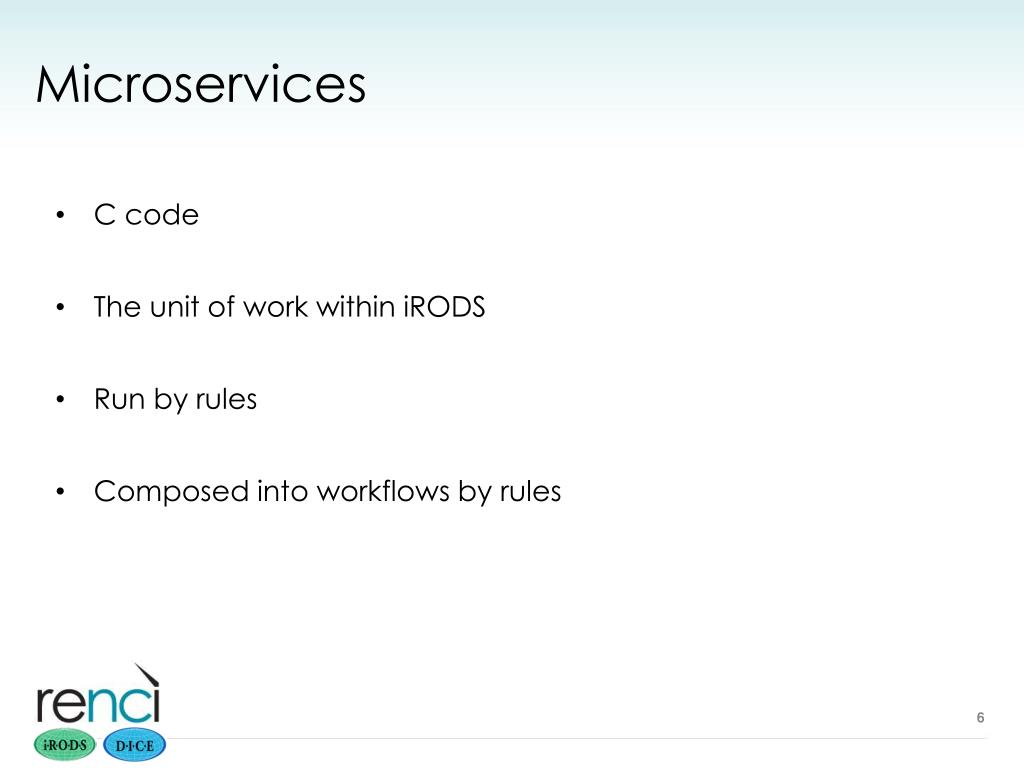

Microservices • C code • The unit of work within iRODS • Run by rules • Composed into workflows by rules

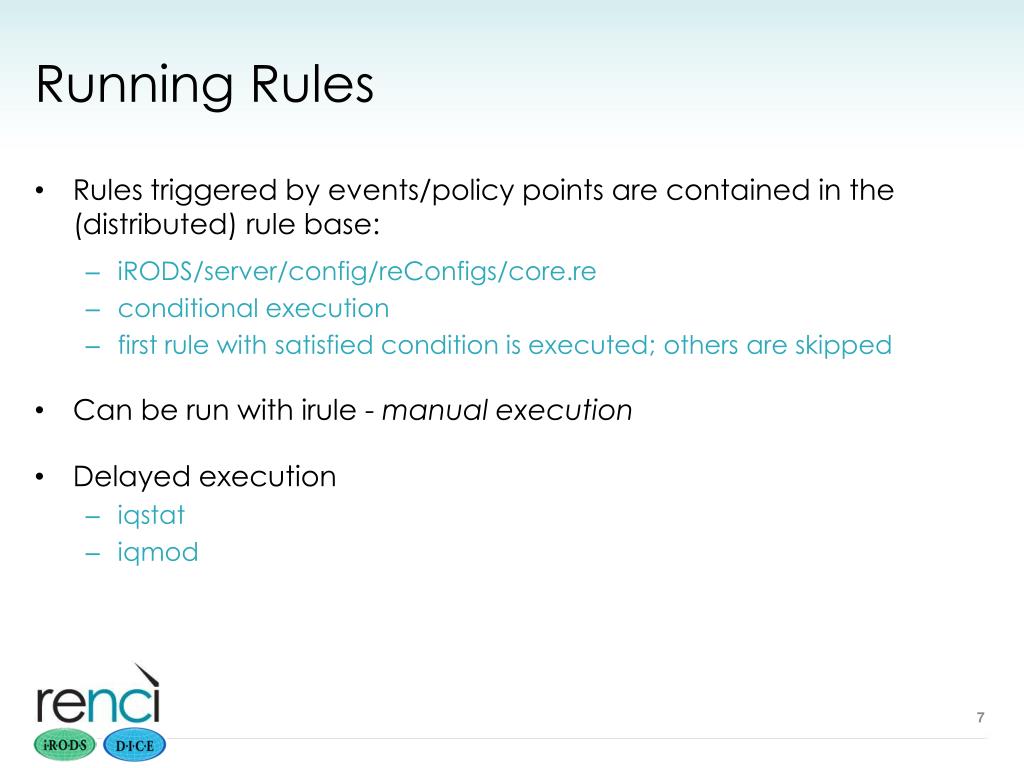

Running Rules • Rules triggered by events/policy points are contained in the (distributed) rule base: • iRODS/server/config/reConfigs/core.re • conditional execution • first rule with satisfied condition is executed; others are skipped • Can be run with irule - manual execution • Delayed execution • iqstat • iqmod

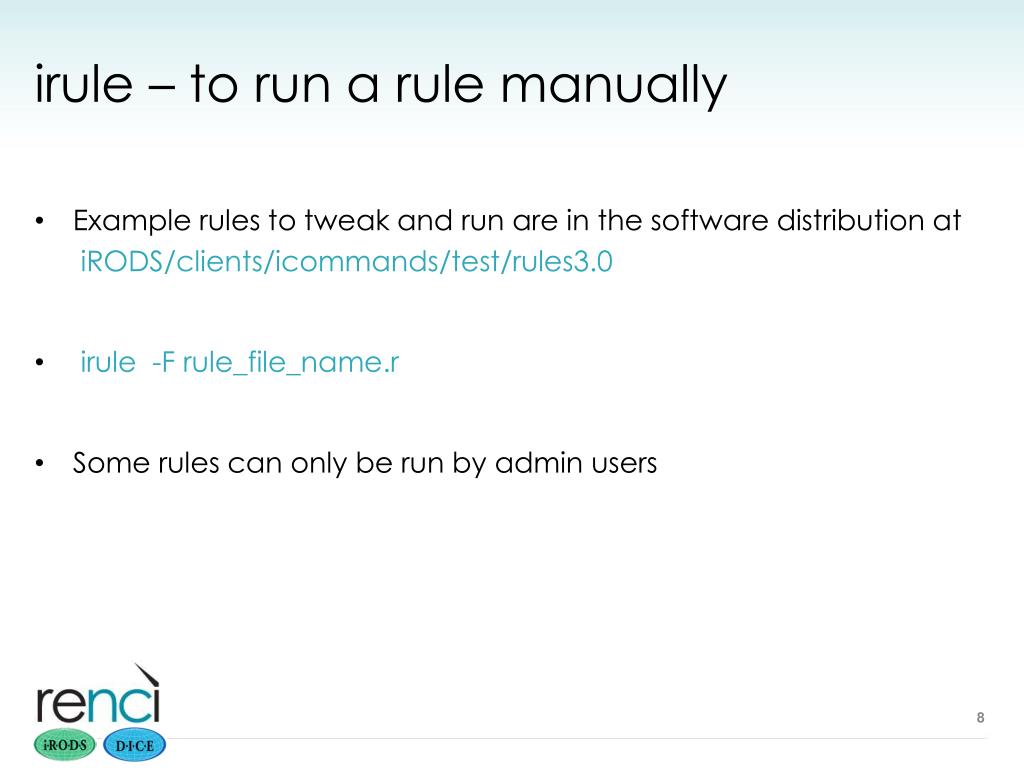

irule – to run a rule manually • Example rules to tweak and run are in the software distribution at iRODS/clients/icommands/test/rules3.0 • irule -F rule_file_name.r • Some rules can only be run by admin users

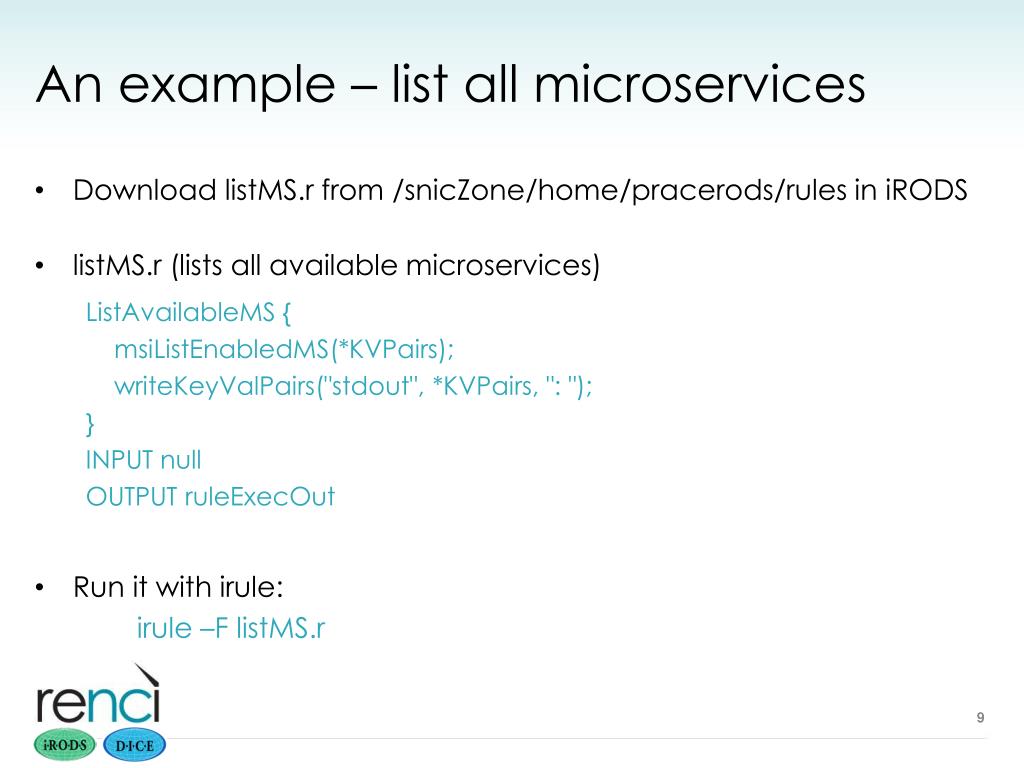

An example – list all microservices • Download listMS.r from /snicZone/home/pracerods/rules in iRODS • listMS.r (lists all available microservices) ListAvailableMS { msiListEnabledMS(*KVPairs); writeKeyValPairs("stdout", *KVPairs, ": "); } INPUT null OUTPUT ruleExecOut • Run it with irule: irule –F listMS.r

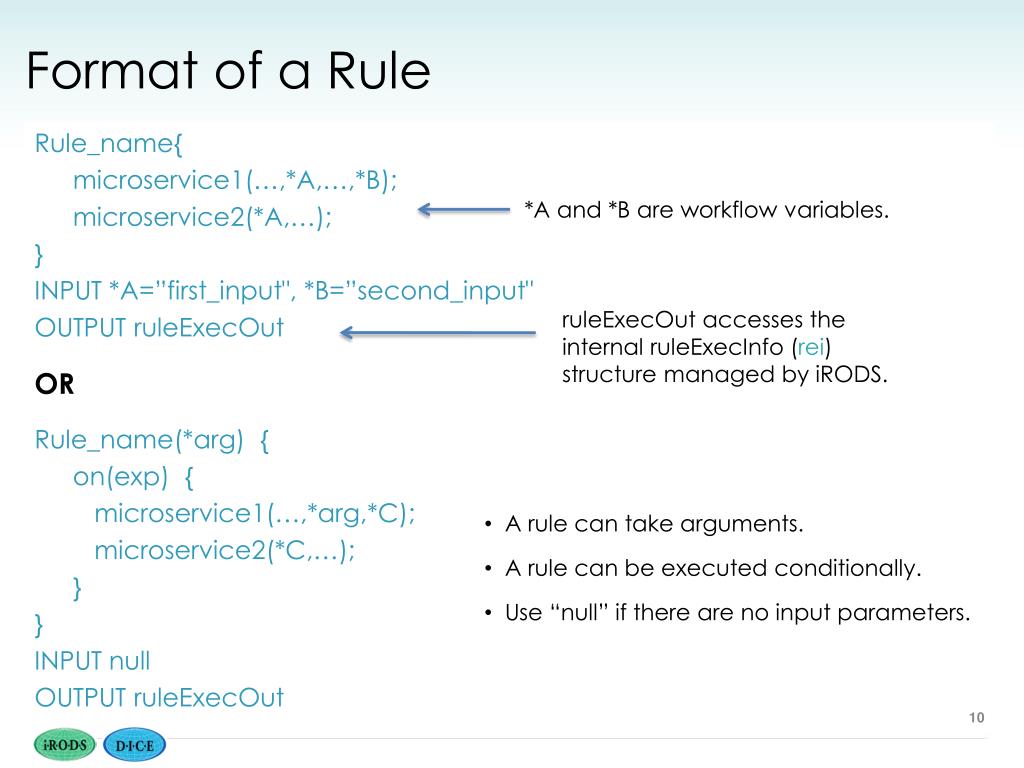

Format of a Rule Rule_name{ microservice1(…,*A,…,*B); microservice2(*A,…); } INPUT *A=”first_input", *B=”second_input" OUTPUT ruleExecOut OR Rule_name(*arg) { on(exp) { microservice1(…,*arg,*C); microservice2(*C,…); } } INPUT null OUTPUT ruleExecOut *A and *B are workflow variables. ruleExecOut accesses the internal ruleExecInfo (rei) structure managed by iRODS. • A rule can take arguments. • A rule can be executed conditionally. • Use “null” if there are no input parameters.

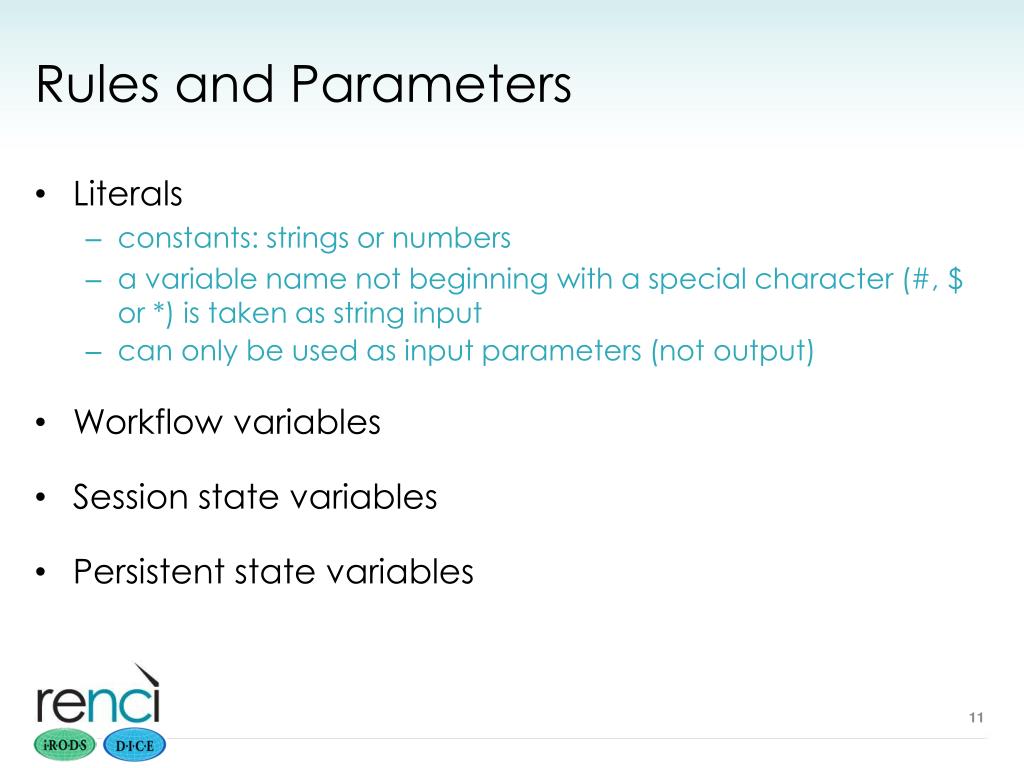

Rules and Parameters • Literals • constants: strings or numbers • a variable name not beginning with a special character (#, $ or *) is taken as string input • can only be used as input parameters (not output) • Workflow variables • Session state variables • Persistent state variables

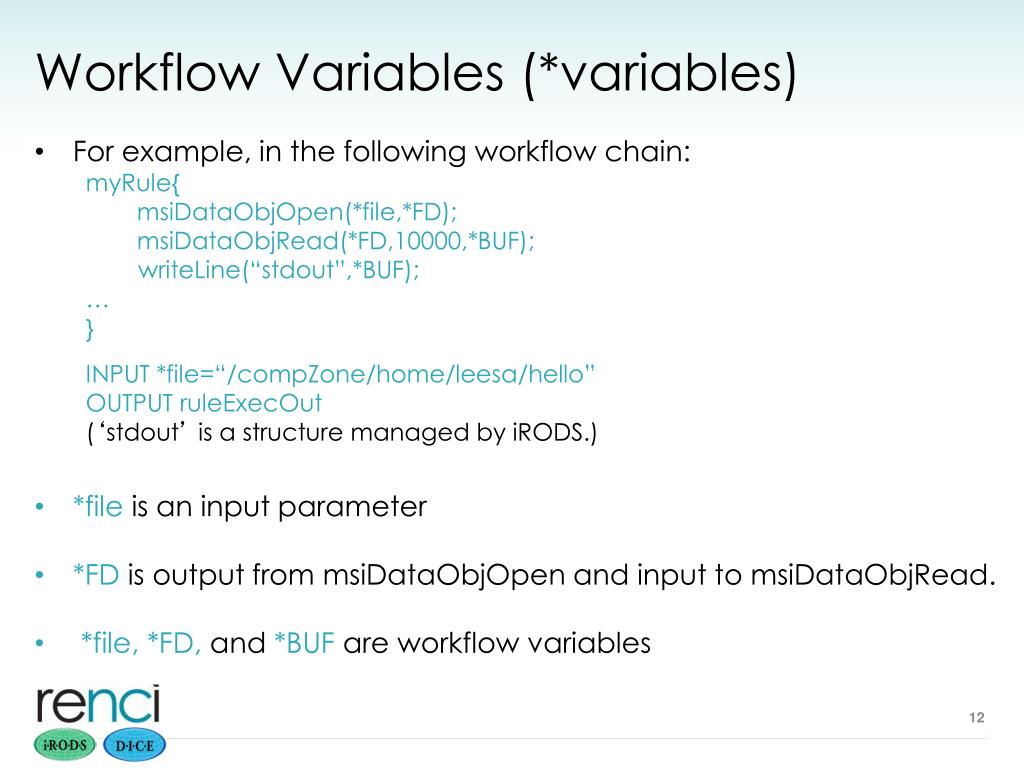

Workflow Variables (*variables) • For example, in the following workflow chain: myRule{ msiDataObjOpen(*file,*FD); msiDataObjRead(*FD,10000,*BUF); writeLine(“stdout”,*BUF); … } INPUT *file=“/compZone/home/leesa/hello” OUTPUT ruleExecOut (‘stdout’ is a structure managed by iRODS.) • *fileis an input parameter • *FD is output from msiDataObjOpen and input to msiDataObjRead. • *file, *FD, and *BUF are workflow variables

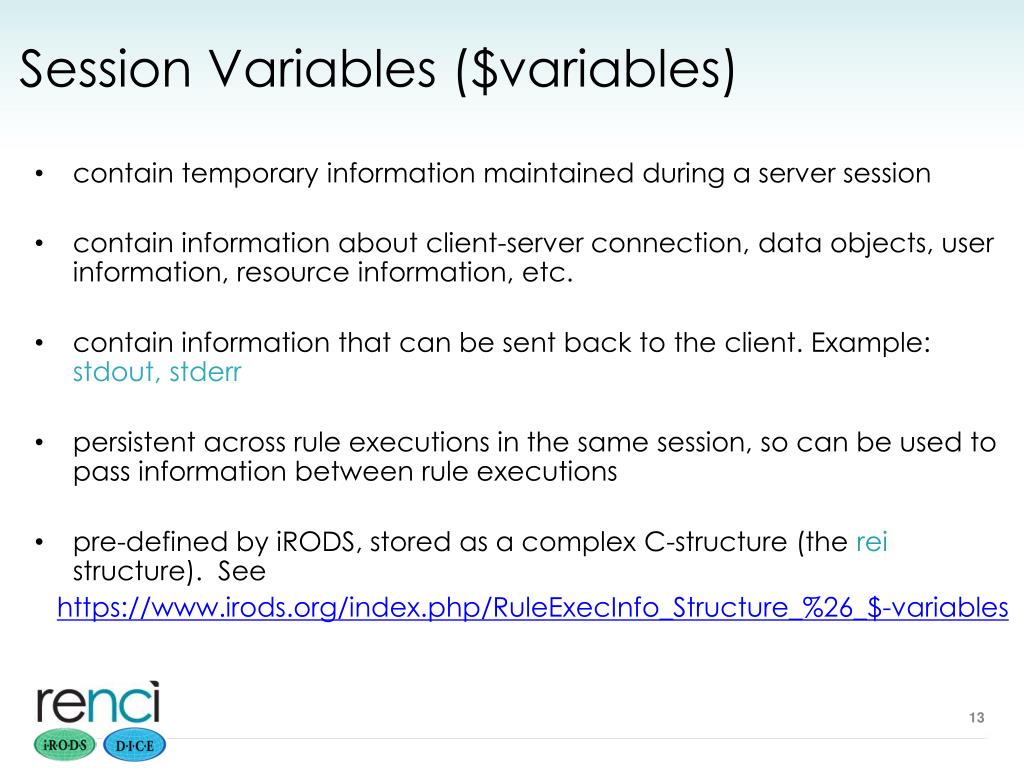

Session Variables ($variables) • contain temporary information maintained during a server session • contain information about client-server connection, data objects, user information, resource information, etc. • contain information that can be sent back to the client. Example: stdout, stderr • persistent across rule executions in the same session, so can be used to pass information between rule executions • pre-defined by iRODS, stored as a complex C-structure (the rei structure). See https://www.irods.org/index.php/RuleExecInfo_Structure_%26_$-variables

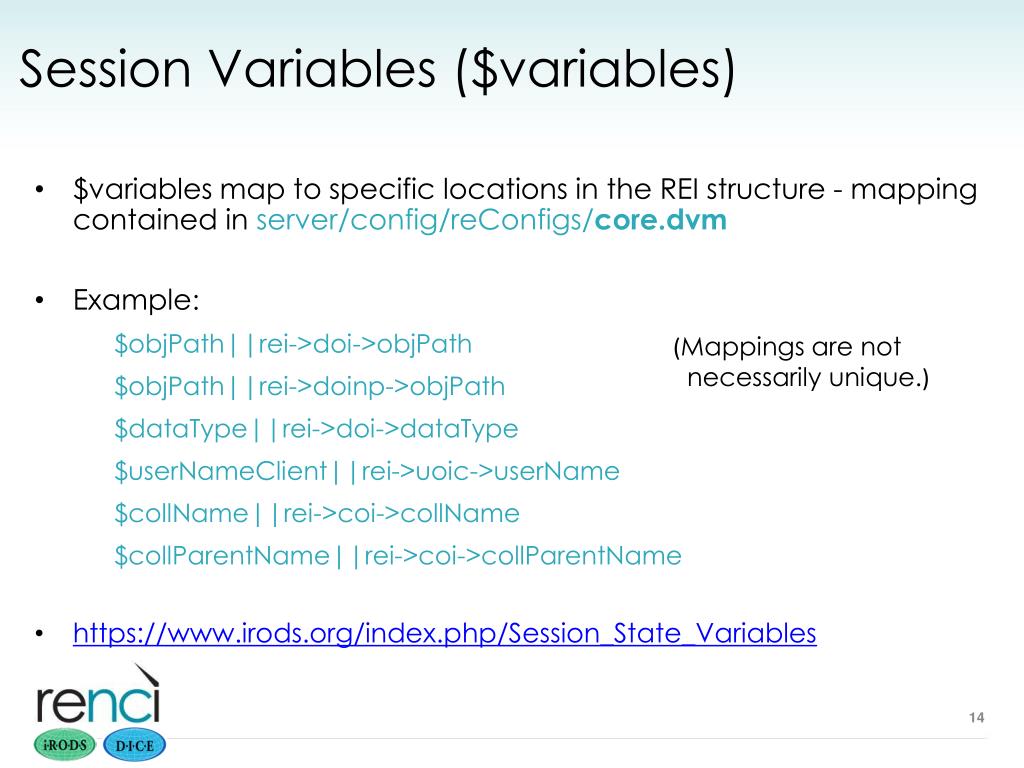

Session Variables ($variables) • $variables map to specific locations in the REI structure - mapping contained in server/config/reConfigs/core.dvm • Example: $objPath||rei->doi->objPath $objPath||rei->doinp->objPath $dataType||rei->doi->dataType $userNameClient||rei->uoic->userName $collName||rei->coi->collName $collParentName||rei->coi->collParentName • https://www.irods.org/index.php/Session_State_Variables (Mappings are not necessarily unique.)

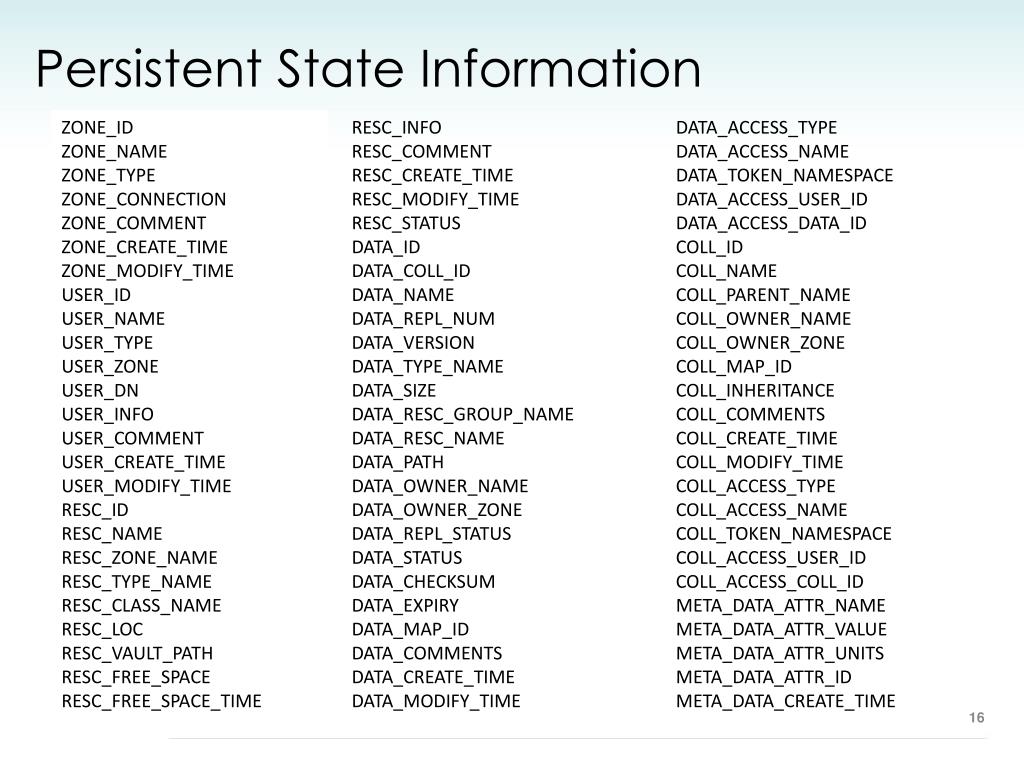

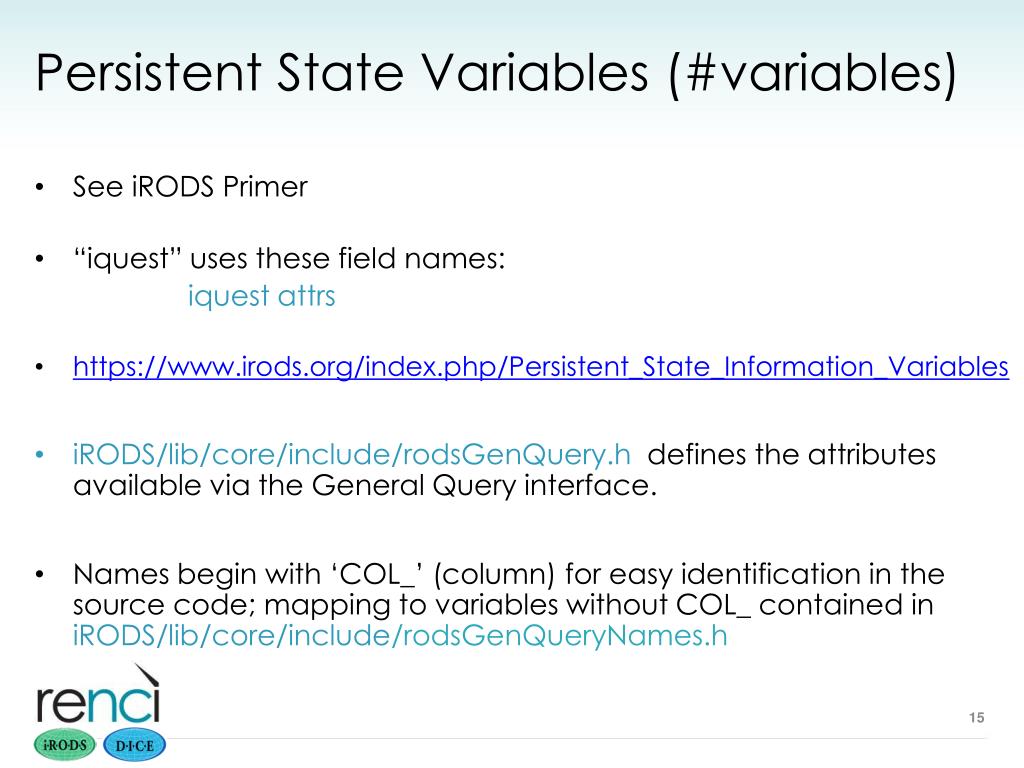

Persistent State Variables (#variables) • See iRODS Primer • “iquest” uses these field names: iquest attrs • https://www.irods.org/index.php/Persistent_State_Information_Variables • iRODS/lib/core/include/rodsGenQuery.h defines the attributes available via the General Query interface. • Names begin with ‘COL_’ (column) for easy identification in the source code; mapping to variables without COL_ contained in iRODS/lib/core/include/rodsGenQueryNames.h

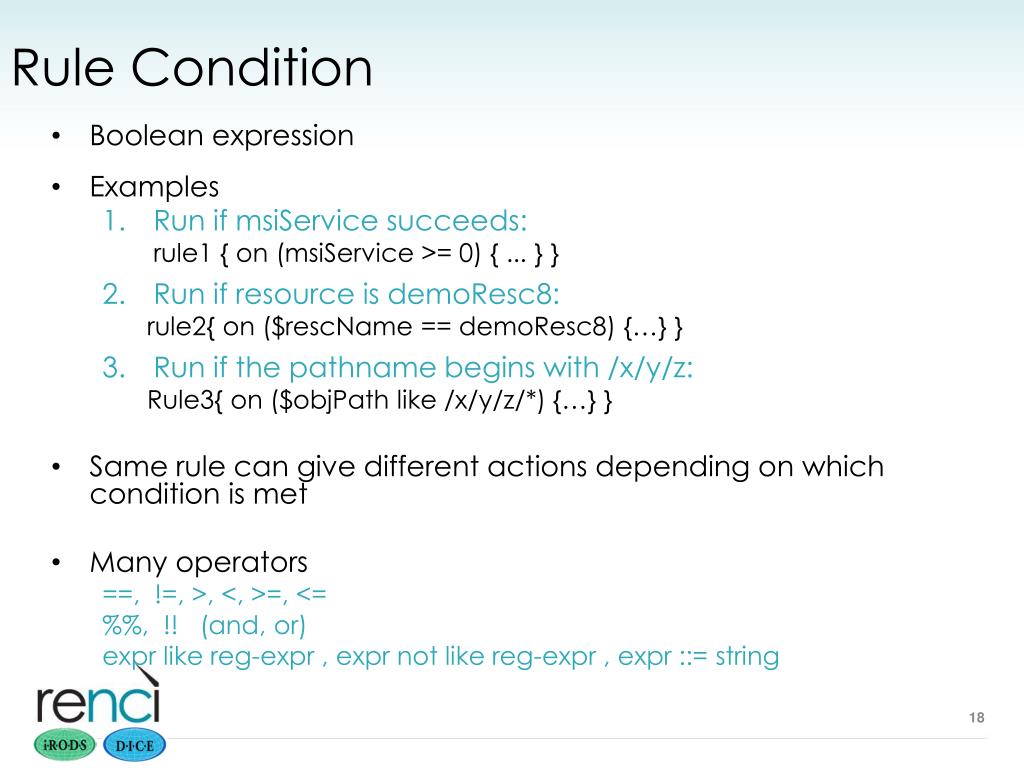

Rule Condition • Boolean expression • Examples • Run if msiService succeeds: rule1 { on (msiService >= 0) { ... } } • Run if resource is demoResc8: rule2{ on ($rescName == demoResc8) {…} } • Run if the pathname begins with /x/y/z: Rule3{ on ($objPath like /x/y/z/*) {…} } • Same rule can give different actions depending on which condition is met • Many operators ==, !=, >, <, >=, <= %%, !! (and, or) expr like reg-expr , expr not like reg-expr , expr ::= string

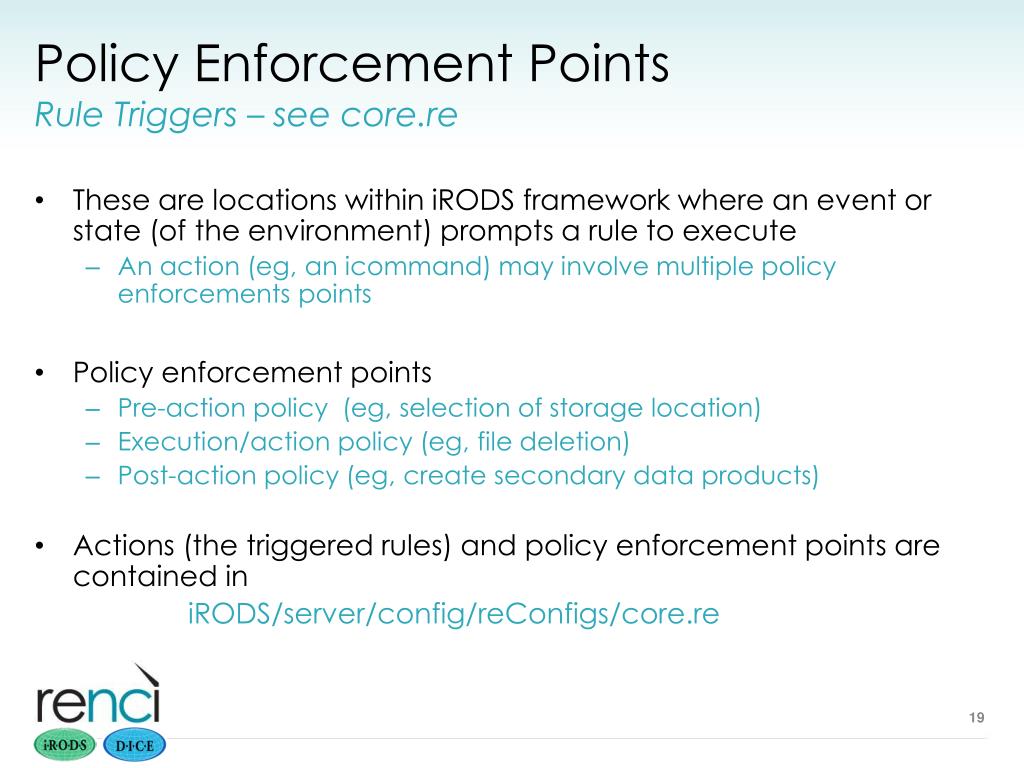

Policy Enforcement Points Rule Triggers – see core.re • These are locations within iRODS framework where an event or state (of the environment) prompts a rule to execute • An action (eg, an icommand) may involve multiple policy enforcements points • Policy enforcement points • Pre-action policy (eg, selection of storage location) • Execution/action policy (eg, file deletion) • Post-action policy (eg, create secondary data products) • Actions (the triggered rules) and policy enforcement points are contained in iRODS/server/config/reConfigs/core.re

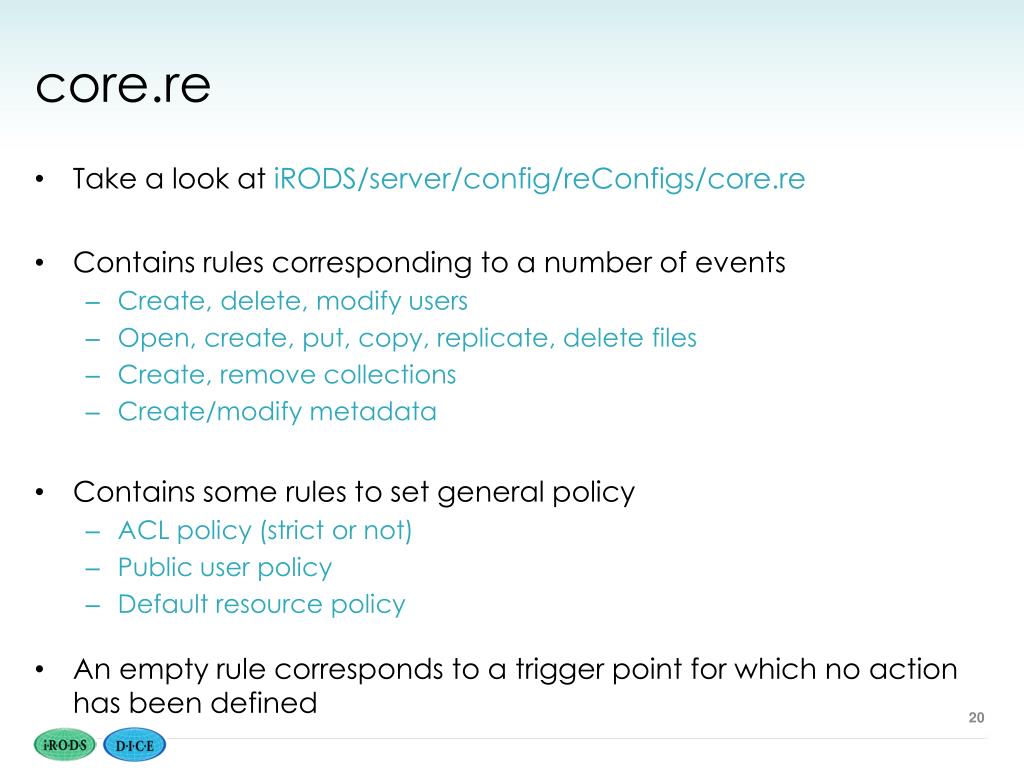

core.re • Take a look at iRODS/server/config/reConfigs/core.re • Contains rules corresponding to a number of events • Create, delete, modify users • Open, create, put, copy, replicate, delete files • Create, remove collections • Create/modify metadata • Contains some rules to set general policy • ACL policy (strict or not) • Public user policy • Default resource policy • An empty rule corresponds to a trigger point for which no action has been defined

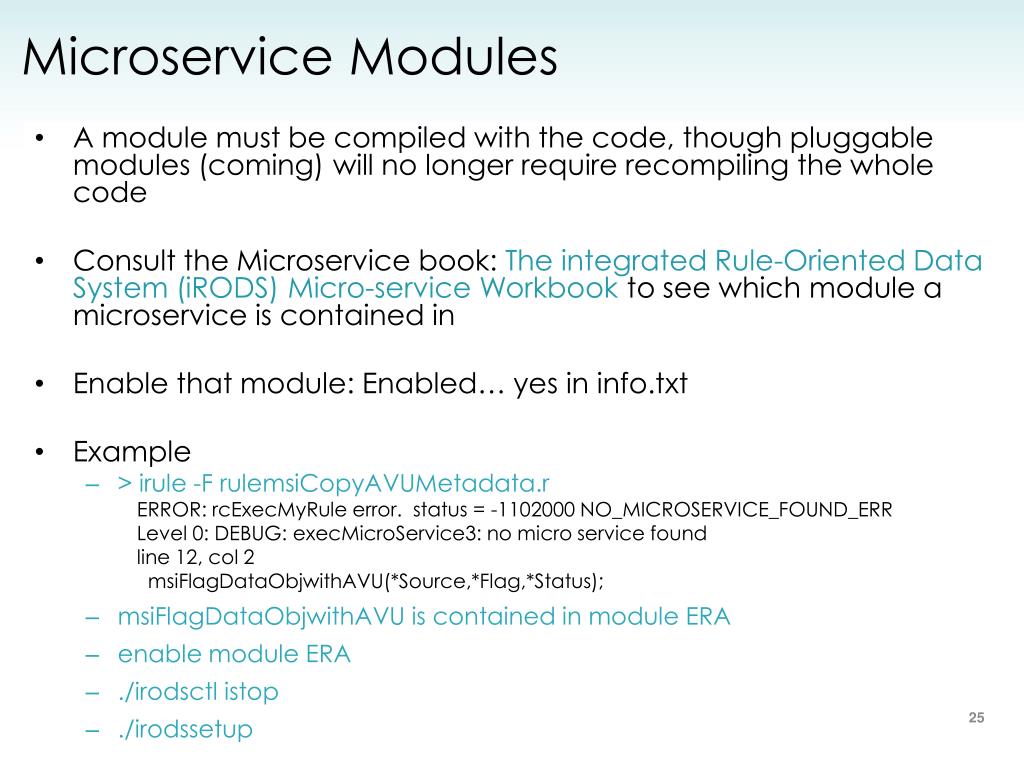

Microservice Modules • A module must be compiled with the code, though pluggable modules (coming) will no longer require recompiling the whole code • Consult the Microservice book: The integrated Rule-Oriented Data System (iRODS) Micro-service Workbook to see which module a microservice is contained in • Enable that module: Enabled… yes in info.txt • Example • > irule -F rulemsiCopyAVUMetadata.r ERROR: rcExecMyRule error. status = -1102000 NO_MICROSERVICE_FOUND_ERR Level 0: DEBUG: execMicroService3: no micro service found line 12, col 2 msiFlagDataObjwithAVU(*Source,*Flag,*Status); • msiFlagDataObjwithAVU is contained in module ERA • enable module ERA • ./irodsctl istop • ./irodssetup
Creating New MicroservicesModules Define Function Siganture Register mService Mapping Create Internal Function Describe mService Any function can be converted into a microservice, but it’s important to implement recovery microservices Important!! Implement recovery mService This procedure will change with coming releases.

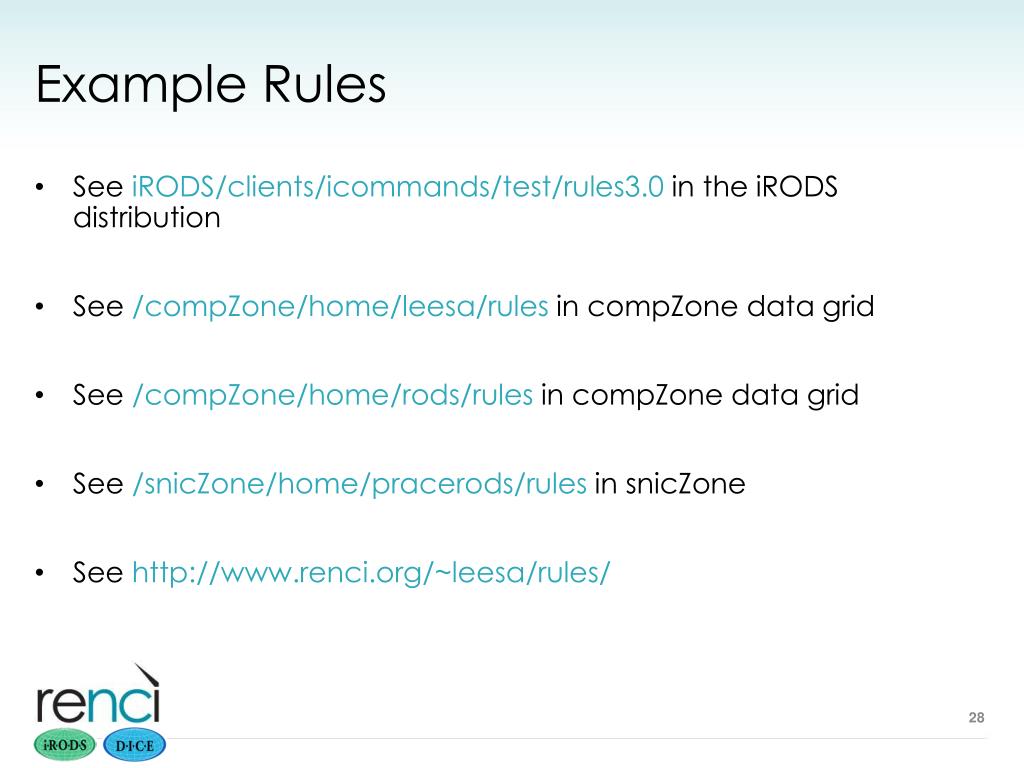

Example Rules • See iRODS/clients/icommands/test/rules3.0 in the iRODS distribution • See /compZone/home/leesa/rules in compZone data grid • See /compZone/home/rods/rules in compZone data grid • See /snicZone/home/pracerods/rules in snicZone • See http://www.renci.org/~leesa/rules/
Listing the Rule Base showCore.r showCoreRules { # Listing of the core.re file # # Input parameters: # none msiAdmShowCoreRE(); } INPUT null OUTPUT ruleExecOut An admin user can execute the rule to show the rule base: • irule –vF showCore.r

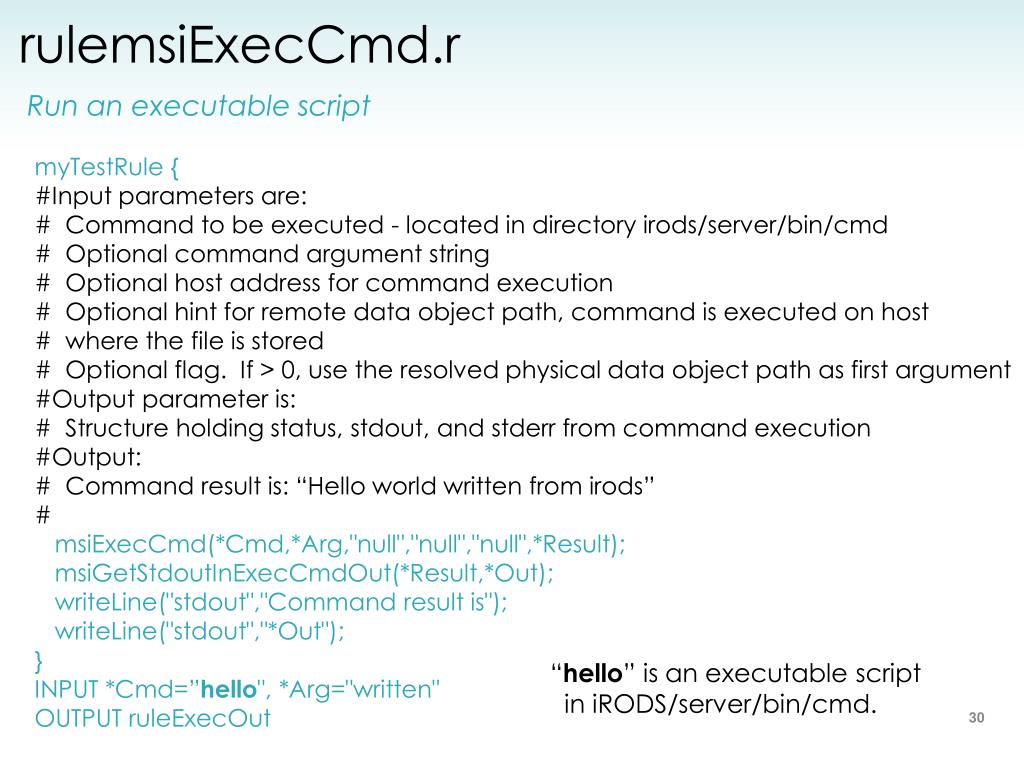

rulemsiExecCmd.rRun an executable script myTestRule { #Input parameters are: # Command to be executed - located in directory irods/server/bin/cmd # Optional command argument string # Optional host address for command execution # Optional hint for remote data object path, command is executed on host # where the file is stored # Optional flag. If > 0, use the resolved physical data object path as first argument #Output parameter is: # Structure holding status, stdout, and stderr from command execution #Output: # Command result is: “Hello world written from irods” # msiExecCmd(*Cmd,*Arg,"null","null","null",*Result); msiGetStdoutInExecCmdOut(*Result,*Out); writeLine("stdout","Command result is"); writeLine("stdout","*Out"); } INPUT *Cmd=”hello", *Arg="written" OUTPUT ruleExecOut “hello” is an executable script in iRODS/server/bin/cmd.

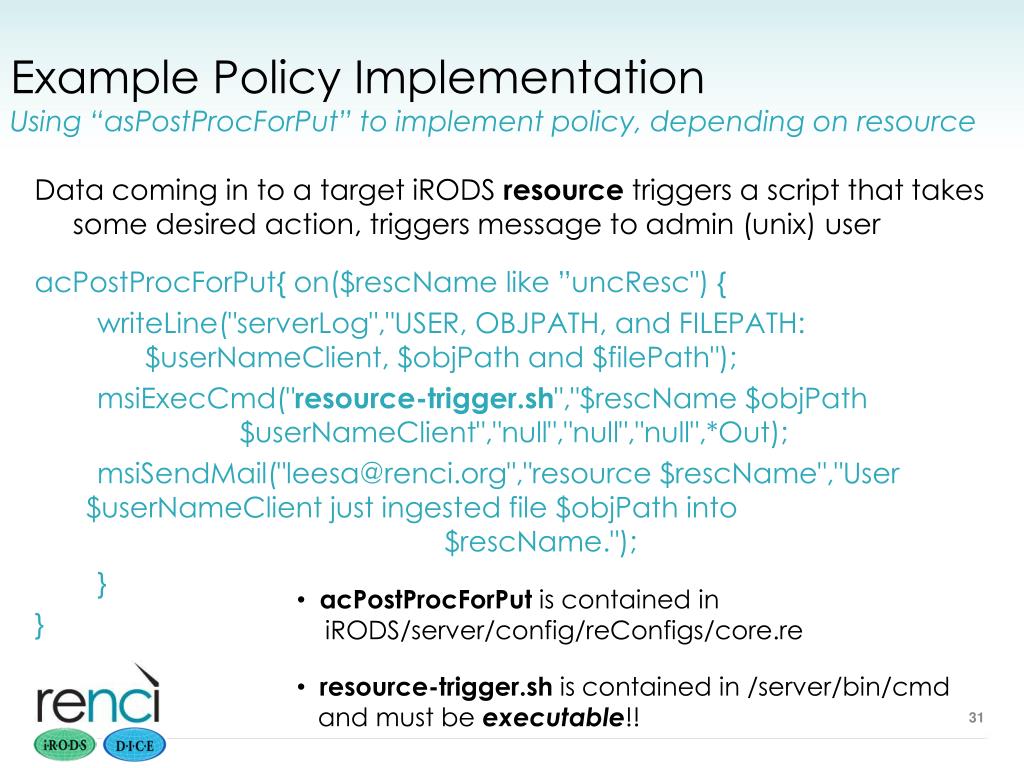

Example Policy ImplementationUsing “asPostProcForPut” to implement policy, depending on resource Data coming in to a target iRODS resource triggers a script that takes some desired action, triggers message to admin (unix) user acPostProcForPut{ on($rescName like ”uncResc") { writeLine("serverLog","USER, OBJPATH, and FILEPATH: $userNameClient, $objPath and $filePath"); msiExecCmd("resource-trigger.sh","$rescName $objPath $userNameClient","null","null","null",*Out); msiSendMail("leesa@renci.org","resource $rescName","User $userNameClient just ingested file $objPath into $rescName."); } } • acPostProcForPut is contained in • iRODS/server/config/reConfigs/core.re • resource-trigger.sh is contained in /server/bin/cmd • and must be executable!!

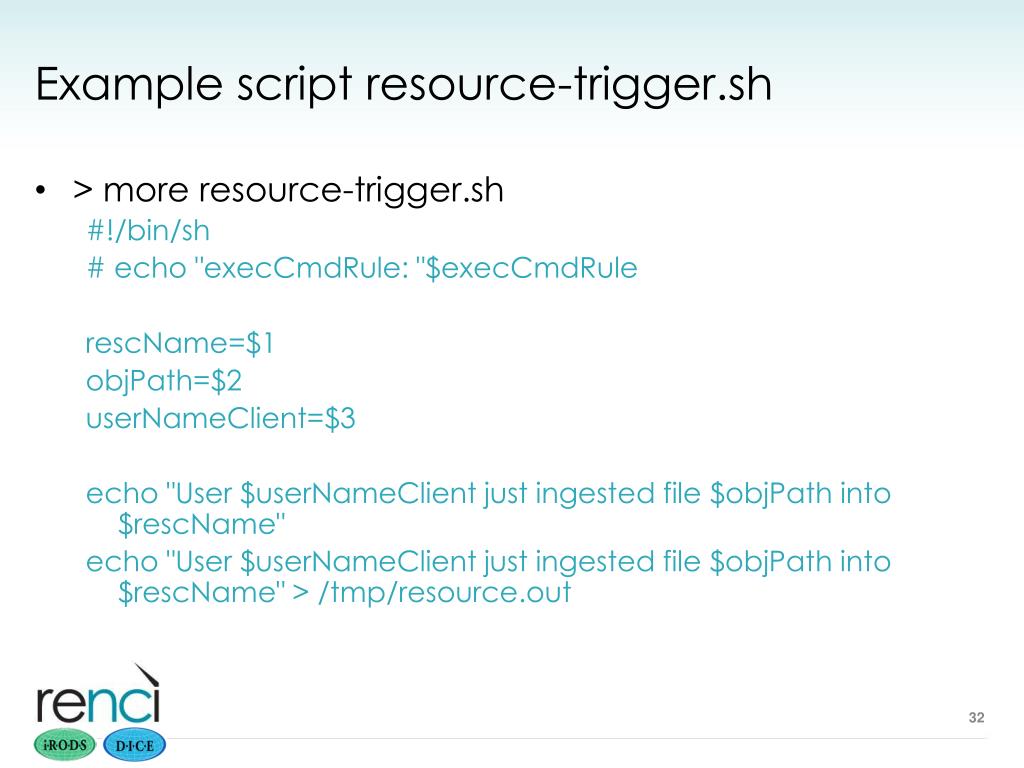

Example script resource-trigger.sh • > more resource-trigger.sh #!/bin/sh # echo "execCmdRule: "$execCmdRule rescName=$1 objPath=$2 userNameClient=$3 echo "User $userNameClient just ingested file $objPath into $rescName" echo "User $userNameClient just ingested file $objPath into $rescName" > /tmp/resource.out
Example Policy ImplementationUsing asPostProcForPut to implement policy: inputs to a specific resource Data coming in to a target iRODS collection triggers a script that takes some desired action (sending data to a remote ftp site) acPostProcForPut{ on($objPath like ”/snicZone/home/prace-class/*") { writeLine("serverLog", "$userNameClient sending $objPath to NCDC."); msiSplitPath($filePath,*fileDir,*fileName); msiExecCmd(“outgoing.sh","*fileDir *fileName","null","null","null",*Out); msiSendMail("leesa@renci.org", "send to NCDC","User $userNameClient sent $objPath to NCDC."); } } • acPostProcForPut is contained in • iRODS/server/config/reConfigs/core.re • acPostProcForPut is the same rule in both examples! Just using different conditions.
Example script outgoing.sh • > more outgoing.sh #!/bin/sh HOST=ftp.****.****.*** USER=anonymous PASSWD=leesa@renci.org srcDir=$1 srcFile=$2 echo $srcDir echo $srcFile #echo "Place holder for outgoing script. Dir: $srcDir, File: $srcFile" echo "Place holder for outgoing script. Dir: $srcDir, File: $srcFile" > /tmp/test.out

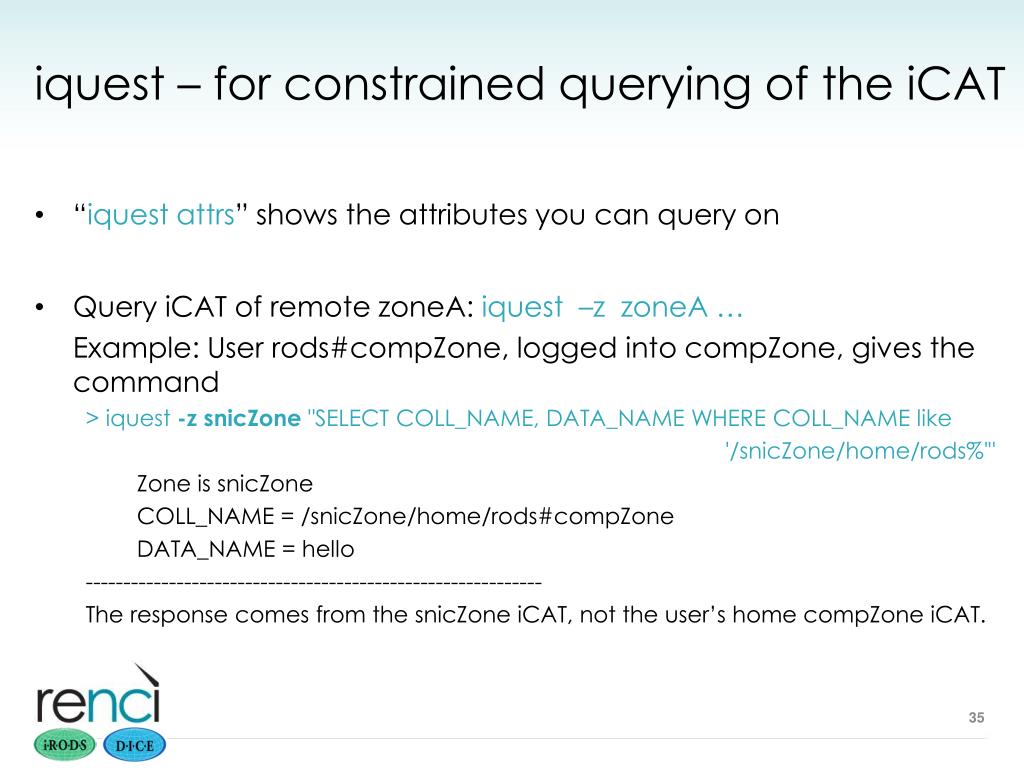

iquest – for constrained querying of the iCAT • “iquest attrs” shows the attributes you can query on • Query iCAT of remote zoneA: iquest –z zoneA … Example: User rods#compZone, logged into compZone, gives the command > iquest -z snicZone "SELECT COLL_NAME, DATA_NAME WHERE COLL_NAME like '/snicZone/home/rods%'" Zone is snicZone COLL_NAME = /snicZone/home/rods#compZone DATA_NAME = hello ------------------------------------------------------------ The response comes from the snicZone iCAT, not the user’s home compZone iCAT.

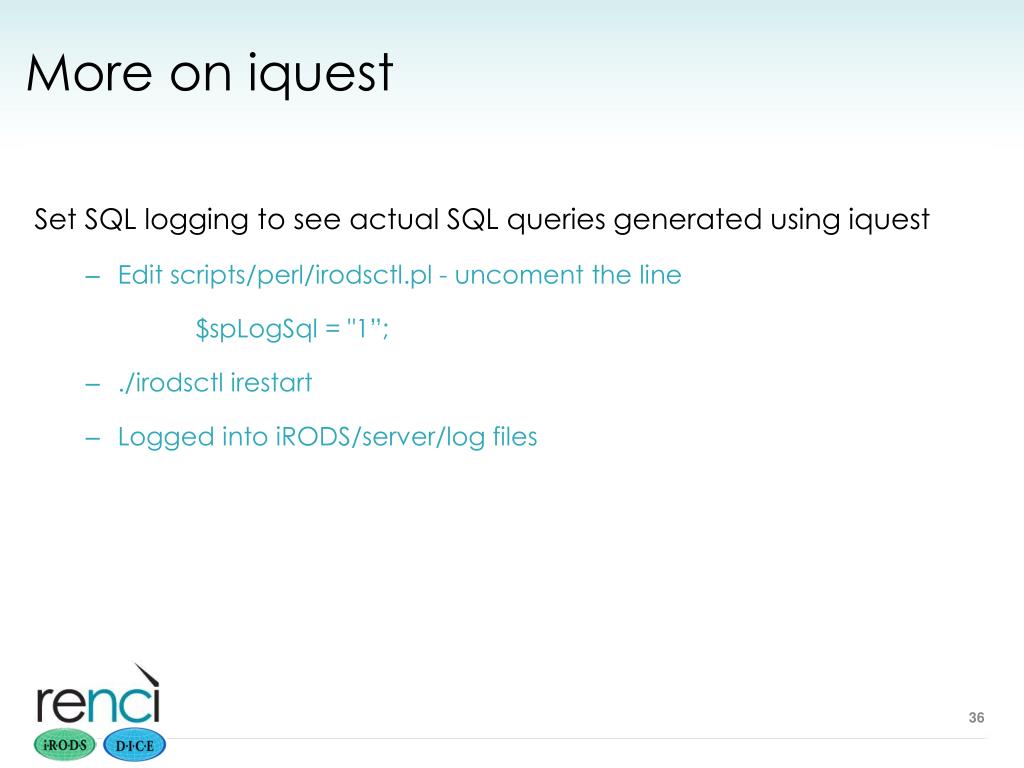

More on iquest Set SQL logging to see actual SQL queries generated using iquest • Edit scripts/perl/irodsctl.pl - uncoment the line $spLogSql = "1”; • ./irodsctl irestart • Logged into iRODS/server/log files

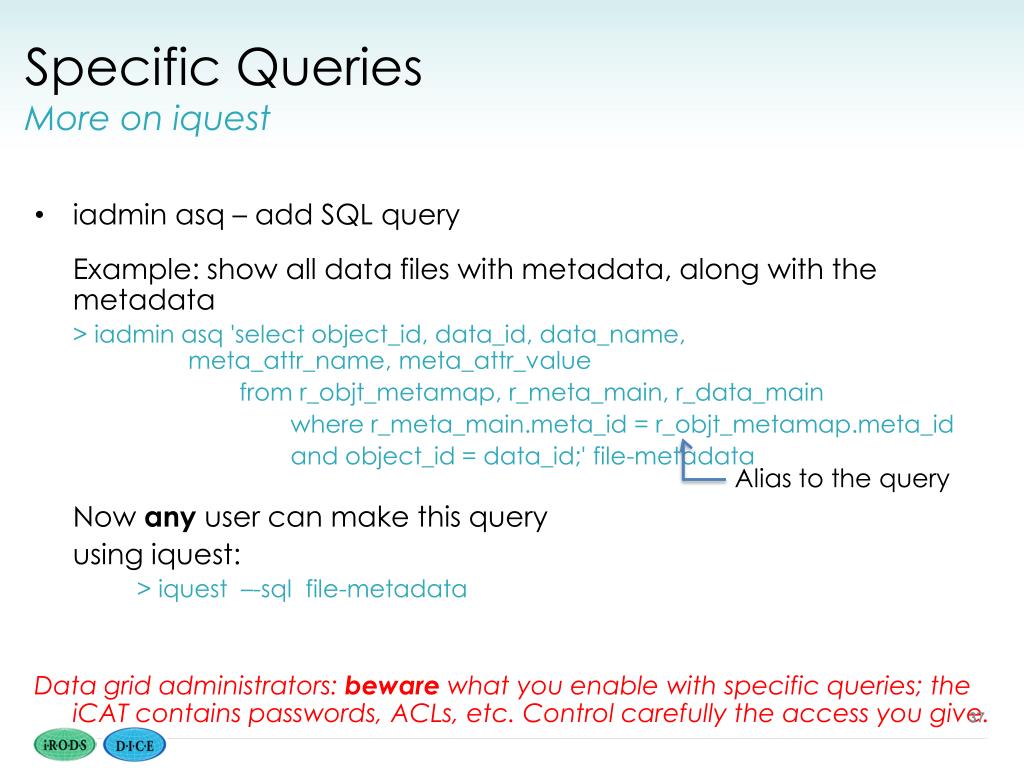

Specific QueriesMore on iquest • iadmin asq – add SQL query Example: show all data files with metadata, along with the metadata > iadmin asq 'select object_id, data_id, data_name, meta_attr_name, meta_attr_value from r_objt_metamap, r_meta_main, r_data_main where r_meta_main.meta_id = r_objt_metamap.meta_id and object_id = data_id;' file-metadata Now any user can make this query using iquest: > iquest –-sql file-metadata Data grid administrators: beware what you enable with specific queries; the iCAT contains passwords, ACLs, etc. Control carefully the access you give. Alias to the query

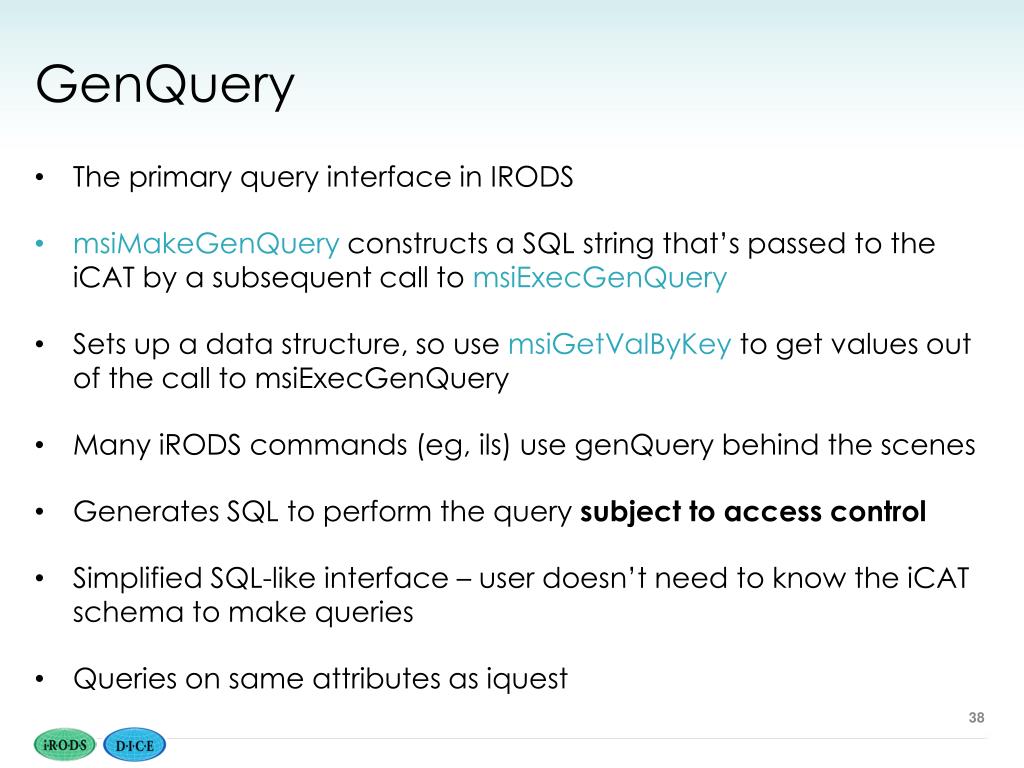

GenQuery • The primary query interface in IRODS • msiMakeGenQuery constructs a SQL string that’s passed to the iCAT by a subsequent call to msiExecGenQuery • Sets up a data structure, so use msiGetValByKey to get values out of the call to msiExecGenQuery • Many iRODS commands (eg, ils) use genQuery behind the scenes • Generates SQL to perform the query subject to access control • Simplified SQL-like interface – user doesn’t need to know the iCAT schema to make queries • Queries on same attributes as iquest
GenQuery Example test0.r – list all data objects with the name “hello” mygenQuery{ # Input: # string containing attribute list to select on # string containing condition # Output: # GenQInp: an internal data structure # msiMakeGenQuery("COLL_NAME", *Condition, *GenQInp); msiExecGenQuery(*GenQInp,*GenQOut); foreach(*GenQOut){ msiGetValByKey(*GenQOut,"COLL_NAME",*outcoll); writeLine("stdout", "*outcoll/hello"); } } INPUT *Condition="DATA_NAME = 'hello'" OUTPUT ruleExecOut

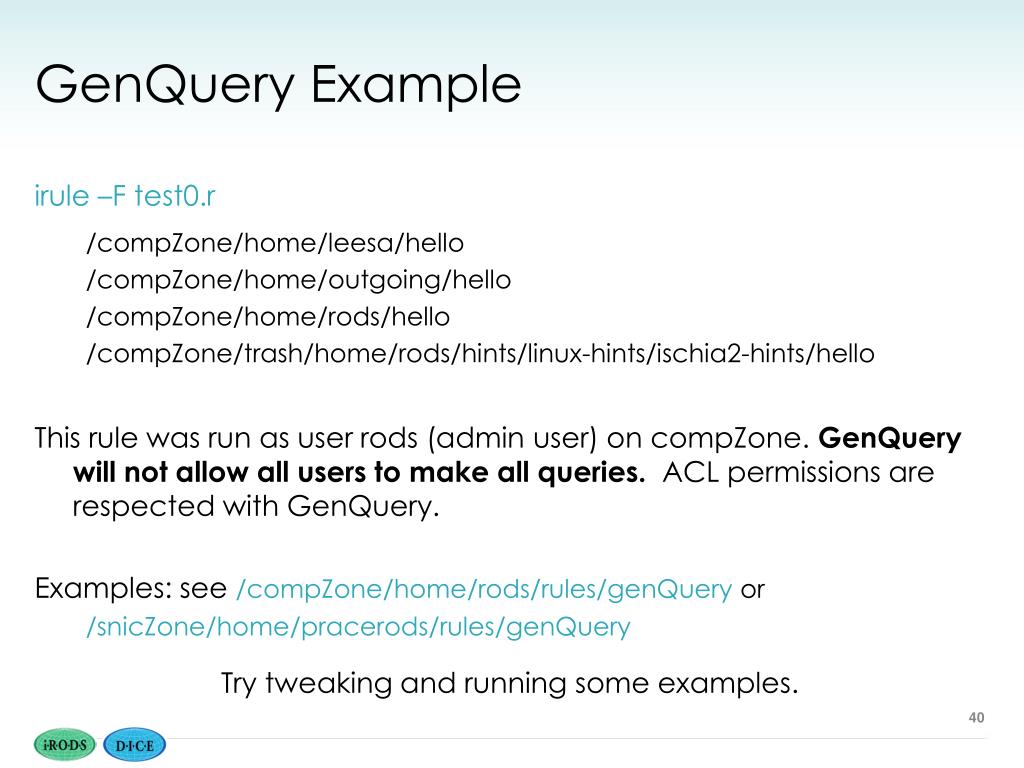

GenQuery Example irule –F test0.r /compZone/home/leesa/hello /compZone/home/outgoing/hello /compZone/home/rods/hello /compZone/trash/home/rods/hints/linux-hints/ischia2-hints/hello This rule was run as user rods (admin user) on compZone. GenQuery will not allow all users to make all queries. ACL permissions are respected with GenQuery. Examples: see /compZone/home/rods/rules/genQuery or /snicZone/home/pracerods/rules/genQuery Try tweaking and running some examples.

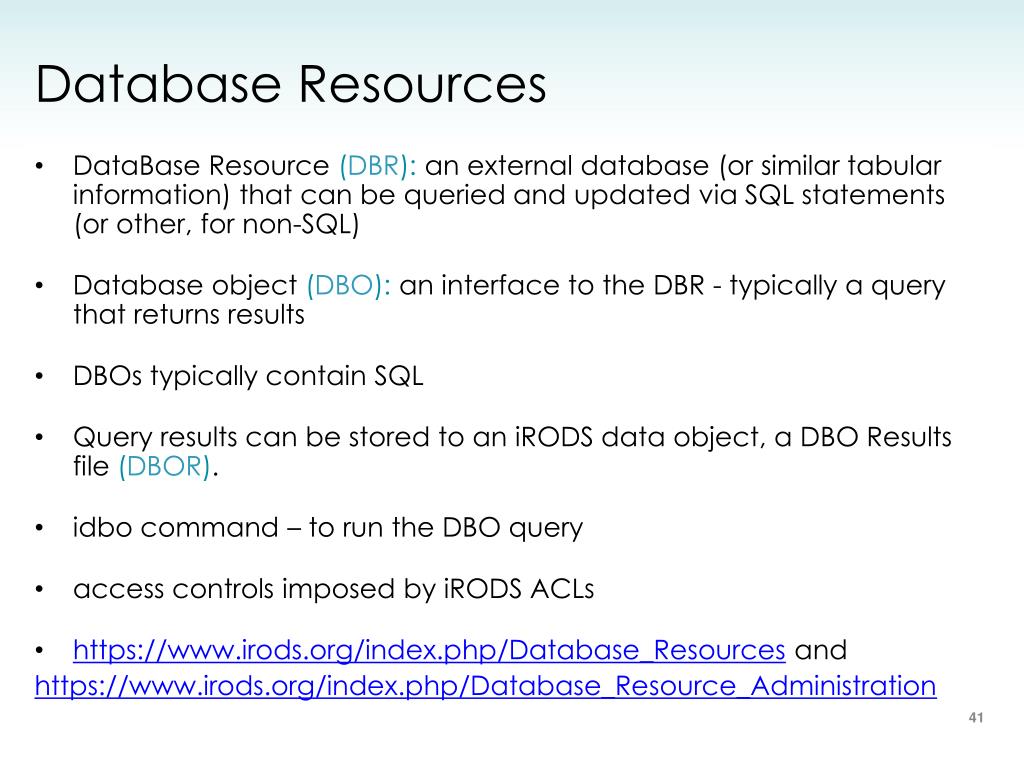

Database Resources • DataBase Resource (DBR): an external database (or similar tabular information) that can be queried and updated via SQL statements (or other, for non-SQL) • Database object (DBO): an interface to the DBR - typically a query that returns results • DBOs typically contain SQL • Query results can be stored to an iRODS data object, a DBO Results file (DBOR). • idbo command – to run the DBO query • access controls imposed by iRODS ACLs • https://www.irods.org/index.php/Database_Resources and https://www.irods.org/index.php/Database_Resource_Administration

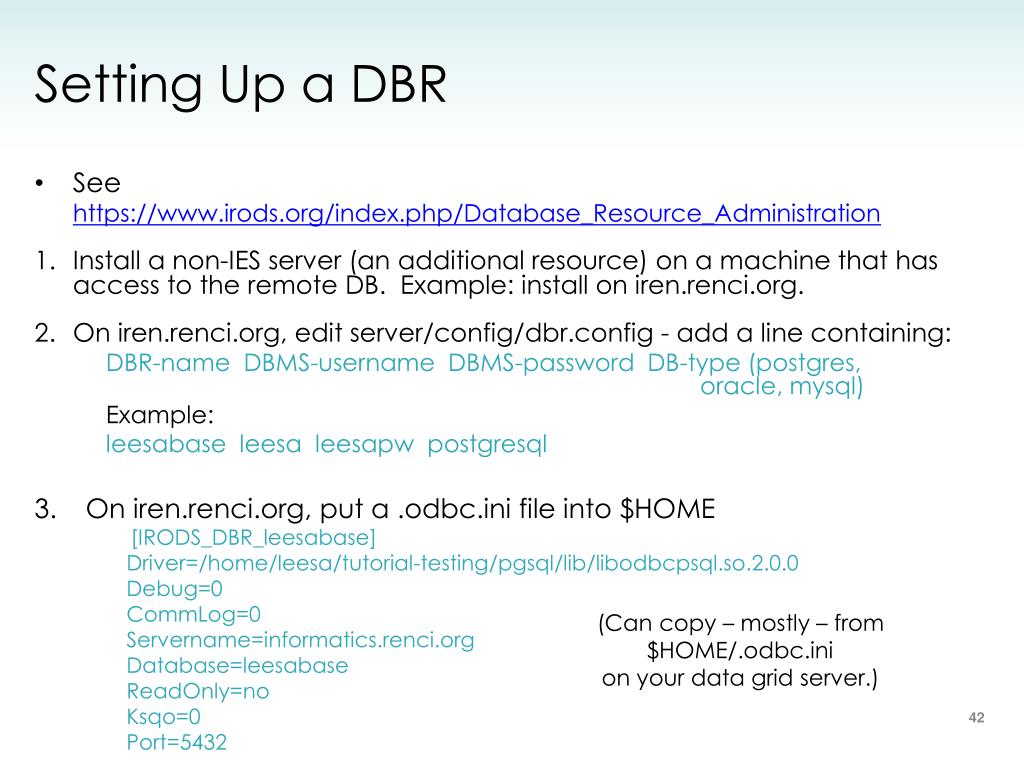

Setting Up a DBR • See https://www.irods.org/index.php/Database_Resource_Administration • Install a non-IES server (an additional resource) on a machine that has access to the remote DB. Example: install on iren.renci.org. • On iren.renci.org, edit server/config/dbr.config - add a line containing: DBR-name DBMS-username DBMS-password DB-type (postgres, oracle, mysql) Example: leesabase leesa leesapw postgresql • On iren.renci.org, put a .odbc.ini file into $HOME [IRODS_DBR_leesabase] Driver=/home/leesa/tutorial-testing/pgsql/lib/libodbcpsql.so.2.0.0 Debug=0 CommLog=0 Servername=informatics.renci.org Database=leesabase ReadOnly=no Ksqo=0 Port=5432 (Can copy – mostly – from $HOME/.odbc.ini on your data grid server.)
Setting Up a DBR • Edit iRODS/config/config.mk: • uncomment DBR=1 • define POSTGRES_HOME: POSTGRES_HOME=/home/leesa/tutorial-testing/pgsql • Make sure the LD_LIBRARY_PATH includes the postgres libraries: setenv LD_LIBRARY_PATH /home/leesa/tutorial-testing/pgsql/lib • Do a new "make" of the code in iRODS/and then ./irodsctl irestart

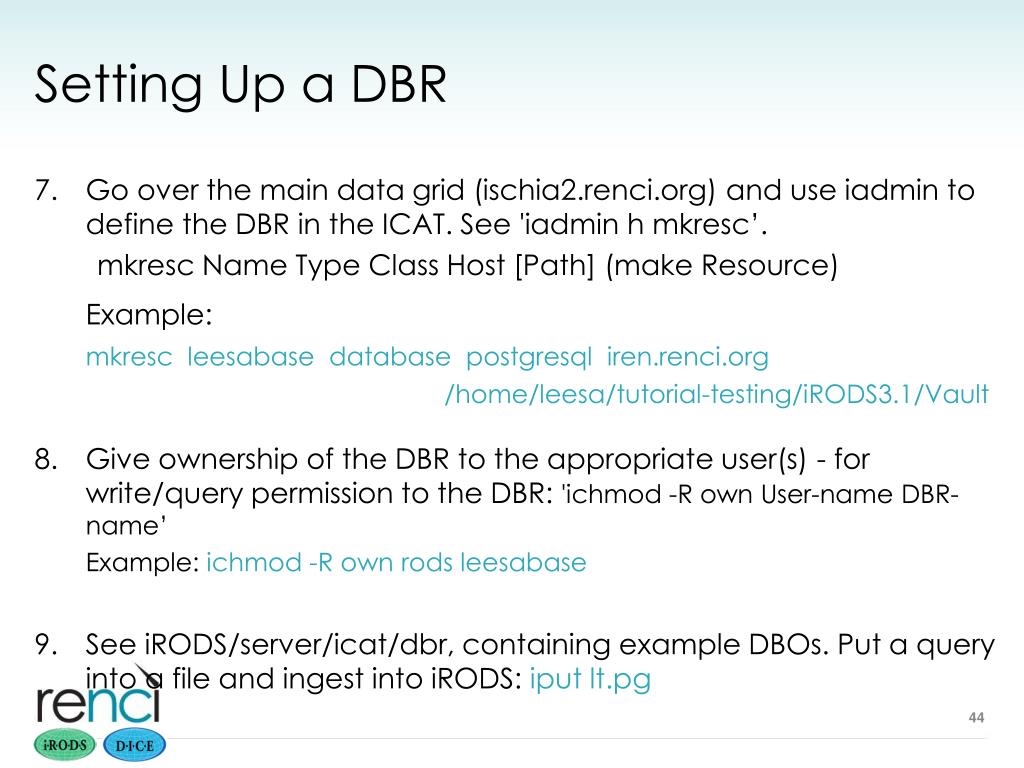

Setting Up a DBR • Go over the main data grid (ischia2.renci.org) and use iadmin to define the DBR in the ICAT. See 'iadmin h mkresc’. mkresc Name Type Class Host [Path] (make Resource) Example: mkresc leesabase database postgresql iren.renci.org /home/leesa/tutorial-testing/iRODS3.1/Vault • Give ownership of the DBR to the appropriate user(s) - for write/query permission to the DBR: 'ichmod -R own User-name DBR-name’ Example: ichmod -R own rods leesabase • See iRODS/server/icat/dbr, containing example DBOs. Put a query into a file and ingest into iRODS: iput lt.pg
Setting Up a DBR • Use isysmeta to declare this as a DBO type: isysmeta mod lt.pg datatype 'database object' • Use idbo to execute a query (contained in a dbo) on the DBR (leesabase in this case), running as a user that has ‘own’ permission on the DBR: idbo exec dbrname dboname Example:idbo exec leesabase lt.pg Note: when giving this command, you either need to be in the collection that contains the dbo file, or you need to give the full path name to it.
Using a DBR • idbo to execute a query contained in a DBO • Store results into a DBO Result file (DBOR) by using idbo as an interactive shell: >idbo idbo> output lt.out 'exec' results will be stored in /compZone/home/rods/dbr-examples/lt.out idbo>exec leesabase lt.pg Output written to /compZone/home/rods/dbr-examples/lt.out idbo>quit • Examples: in /compZone/home/rods/dbr-examples NB: For this tutorial the DBR hasn’t been set up on snicZone, so DBOs must be run on compZone.
Delayed Execution • Example myTestRule{ delay("<PLUSET>1m</PLUSET>"){ writeLine("stdout",”Writing message with a delay."); msiSendStdoutAsEmail(*Mailto, "Sending email"); } } INPUT *Mailto="leesa@renci.org" OUTPUT ruleExecOut • Queue management: • iqstat • iqdel • iqmod

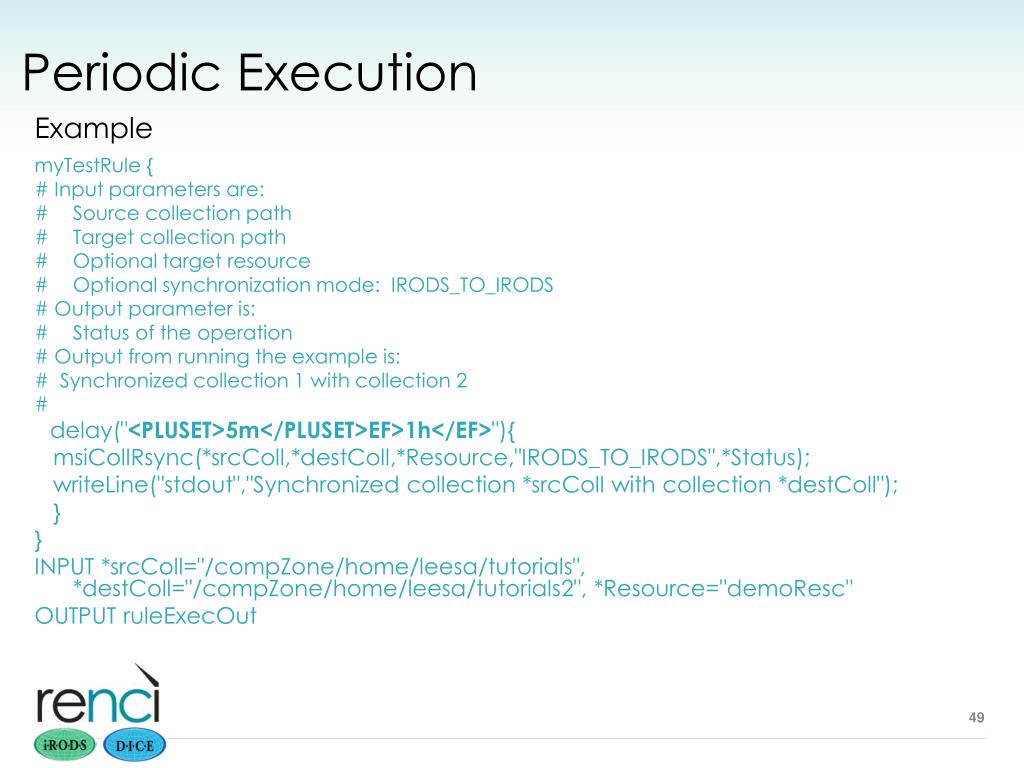

Periodic Execution Example myTestRule { # Input parameters are: # Source collection path # Target collection path # Optional target resource # Optional synchronization mode: IRODS_TO_IRODS # Output parameter is: # Status of the operation # Output from running the example is: # Synchronized collection 1 with collection 2 # delay("<PLUSET>5m</PLUSET>EF>1h</EF>"){ msiCollRsync(*srcColl,*destColl,*Resource,"IRODS_TO_IRODS",*Status); writeLine("stdout","Synchronized collection *srcColl with collection *destColl"); } } INPUT *srcColl="/compZone/home/leesa/tutorials", *destColl="/compZone/home/leesa/tutorials2", *Resource="demoResc" OUTPUT ruleExecOut

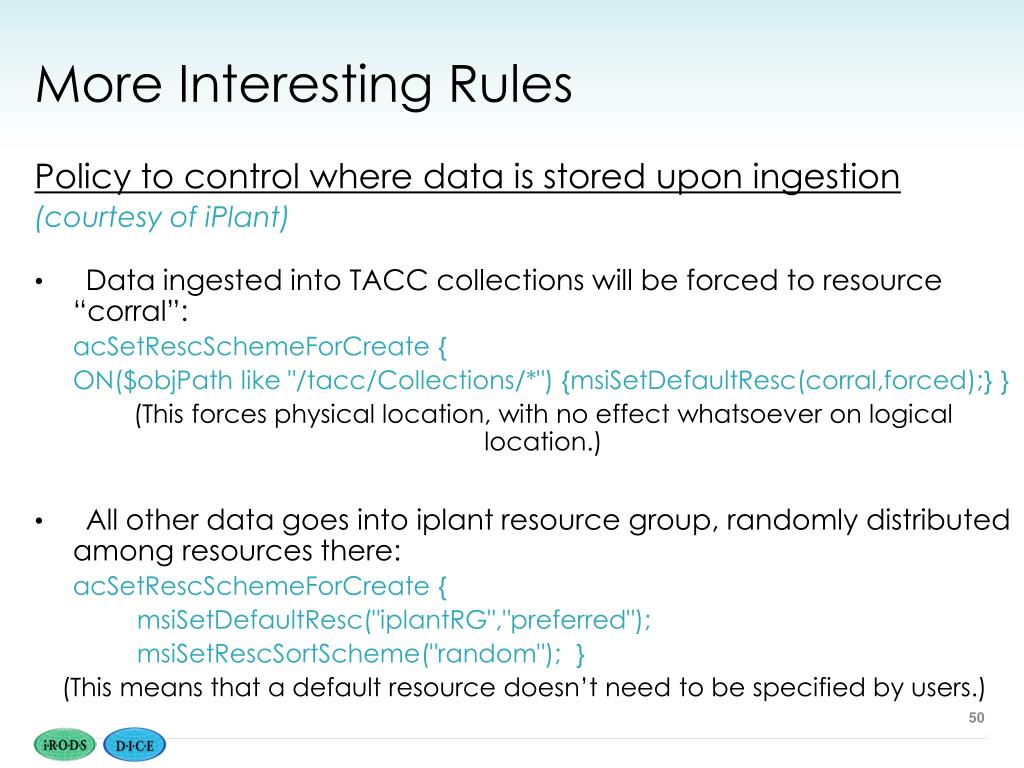

More Interesting Rules Policy to control where data is stored upon ingestion (courtesy of iPlant) • Data ingested into TACC collections will be forced to resource “corral”: acSetRescSchemeForCreate { ON($objPath like "/tacc/Collections/*") {msiSetDefaultResc(corral,forced);} } (This forces physical location, with no effect whatsoever on logical location.) • All other data goes into iplant resource group, randomly distributed among resources there: acSetRescSchemeForCreate { msiSetDefaultResc("iplantRG","preferred"); msiSetRescSortScheme("random"); } (This means that a default resource doesn’t need to be specified by users.)
