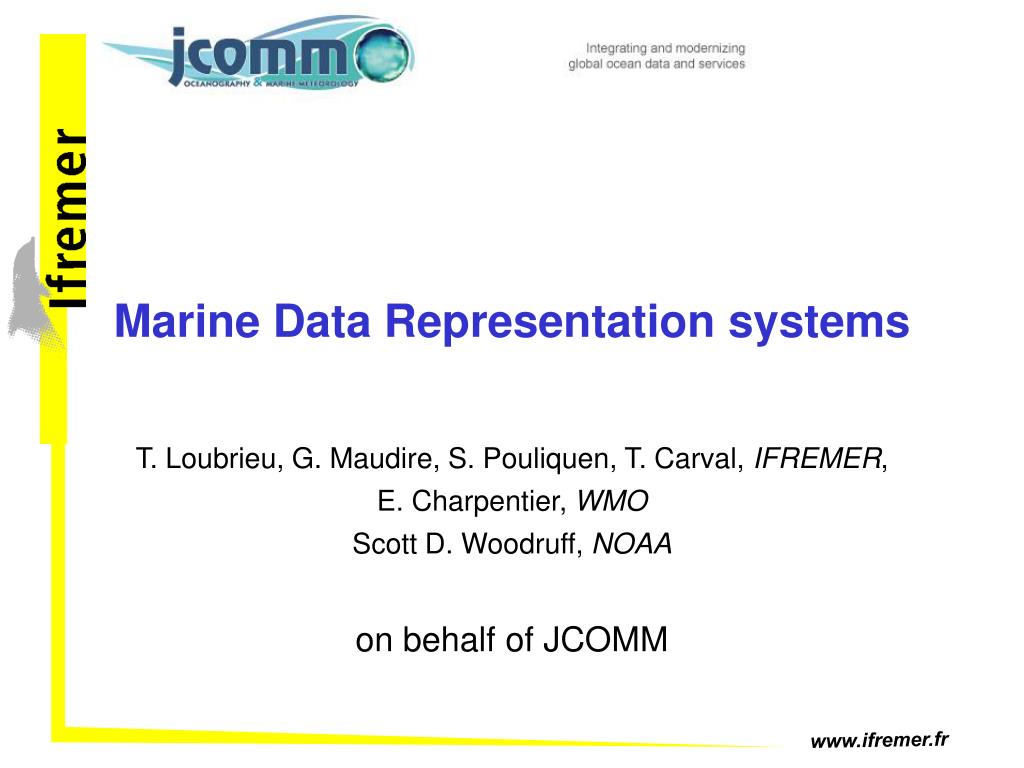

  1. T. Loubrieu, G. Maudire, S. Pouliquen, T. Carval, IFREMER, E. Charpentier, WMO Scott D. Woodruff, NOAA on behalf of JCOMM Marine Data Representation systems

  2. Background Involved in : • European Operational Oceanography (Mersea/MyOcean, ECOOP) information management system design. • CORIOLIS operational data management system ocean in-situ observation. • SeaDataNet, marine data management pan-european framework.

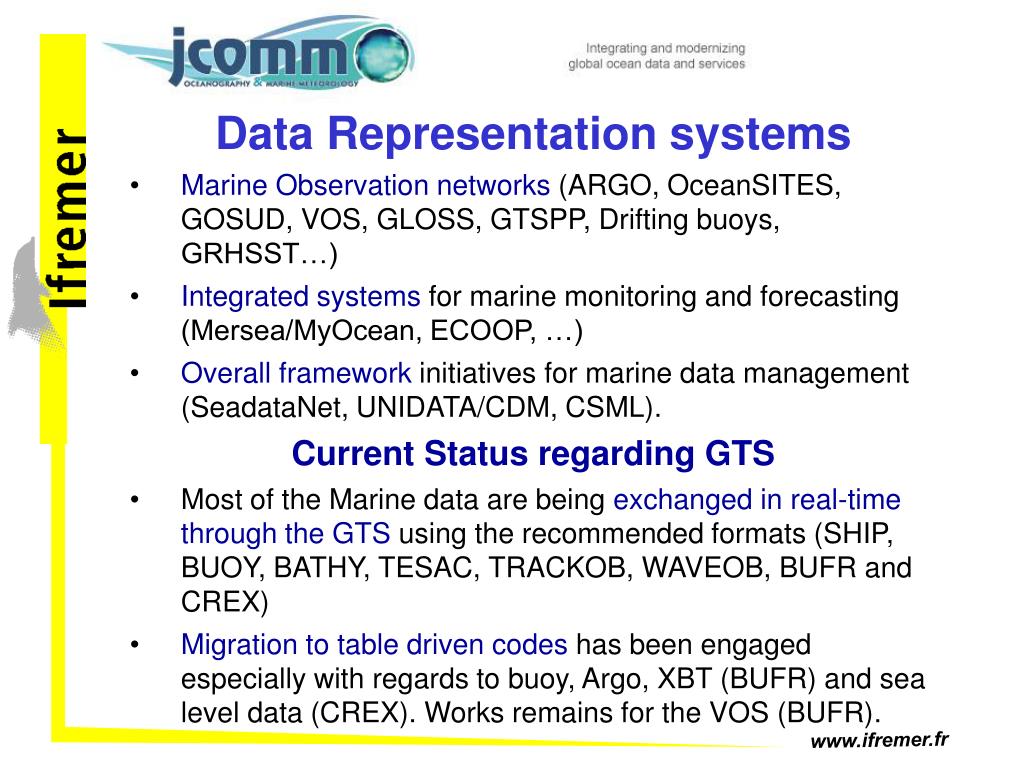

  3. Data Representation systems • Marine Observation networks (ARGO, OceanSITES, GOSUD, VOS, GLOSS, GTSPP, Drifting buoys, GRHSST…) • Integrated systems for marine monitoring and forecasting (Mersea/MyOcean, ECOOP, …) • Overall framework initiatives for marine data management (SeadataNet, UNIDATA/CDM, CSML). Current Status regarding GTS • Most of the Marine data are being exchanged in real-time through the GTS using the recommended formats (SHIP, BUOY, BATHY, TESAC, TRACKOB, WAVEOB, BUFR and CREX) • Migration to table driven codes has been engaged especially with regards to buoy, Argo, XBT (BUFR) and sea level data (CREX). Works remains for the VOS (BUFR).

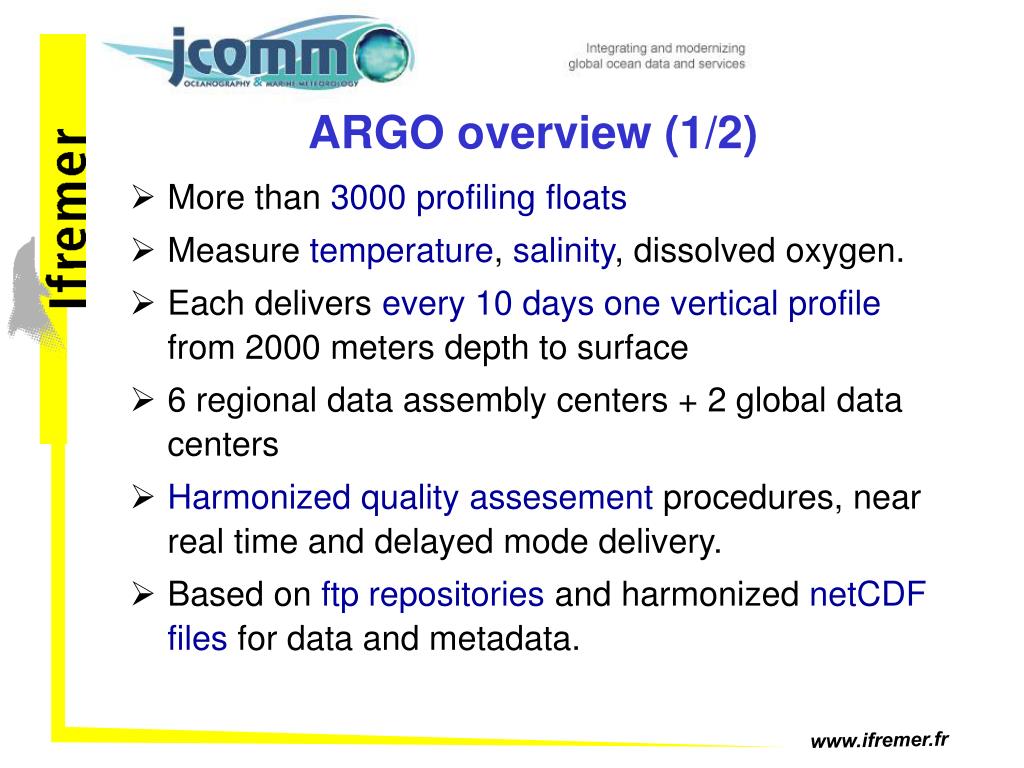

  4. ARGO overview (1/2) • More than 3000 profiling floats • Measure temperature, salinity, dissolved oxygen. • Each delivers every 10 days one vertical profile from 2000 meters depth to surface • 6 regional data assembly centers + 2 global data centers • Harmonized quality assesement procedures, near real time and delayed mode delivery. • Based on ftp repositories and harmonized netCDF files for data and metadata.

  5. ARGO overview (2/2) GOSUD, OceanSITE are extensions of the DRS to thermosalinographs and moorings datasets. Drifting buoys data are also managed at ISDM and CORIOLIS data center.

  6. Voluntary Observation Shipsoverview • Observation from volontary ships • Transmitted in real time (F-13 SHIP format). • Transmitted in delayed mode (IMMT file format) to Global Collecting Centers and archived at ICOADS (IMMA file format). • Data analysis, climate studies provided in netCDF/CF files.

  7. Global Temperature and Salinity Profile Program (GTSPP) • Provide a timely and complete data and information base of ocean temperature and salinity profile data of known and documented quality.

  8. Global Sea Level Observing System (GLOSS) • A 'Global Core Network' (GCN) of 290 sea level stations around the world for long term climate change and oceanographic sea level monitoring. • A permanent service managing delayed mode data (PSMSL) : ASCII files. • A station directory and link to regional data management facility (non-harmonized). • A fast-mode delivery service (OPeNDAP and ASCII files).

  9. GHRSST overview • Remote sensing observations of sea surface temperature (SST) • Harmonized quality assesment and file dissemination (L2 products) in real time through data centers (ftp/http). • Analysis, gridded products mixing datasets from different satellites (L4). • Central facilities for indexing the datasets (MMR) and archiving and reanalysing them (LTSRF).

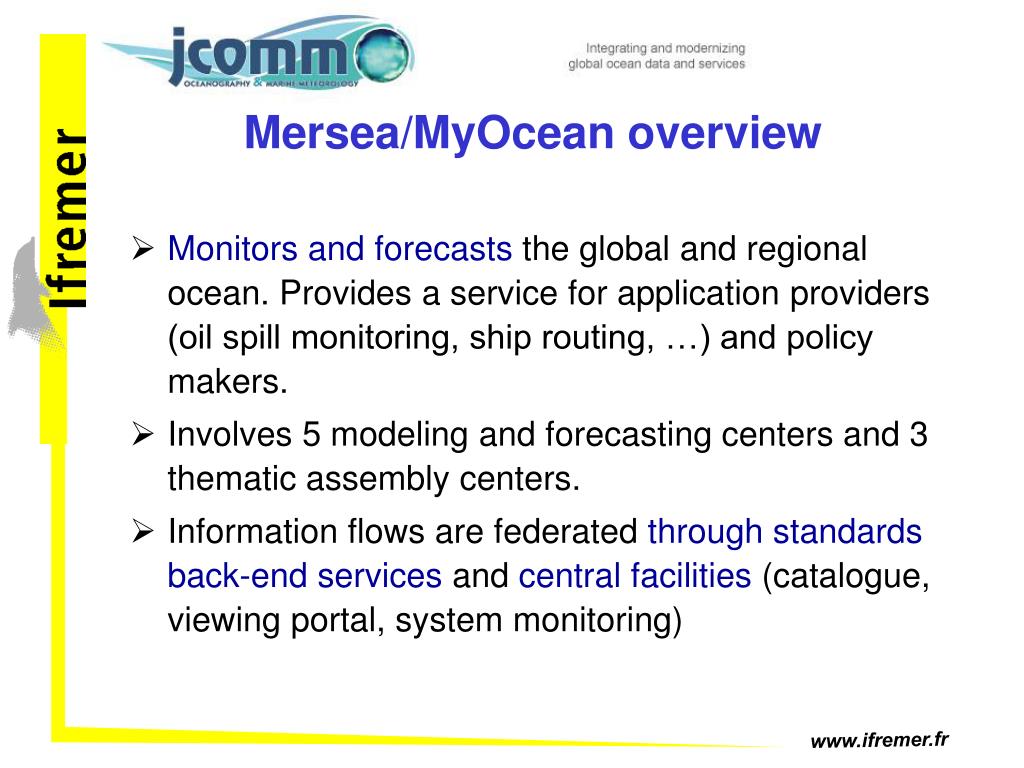

  10. Mersea/MyOcean overview • Monitors and forecasts the global and regional ocean. Provides a service for application providers (oil spill monitoring, ship routing, …) and policy makers. • Involves 5 modeling and forecasting centers and 3 thematic assembly centers. • Information flows are federated through standards back-end services and central facilities (catalogue, viewing portal, system monitoring)

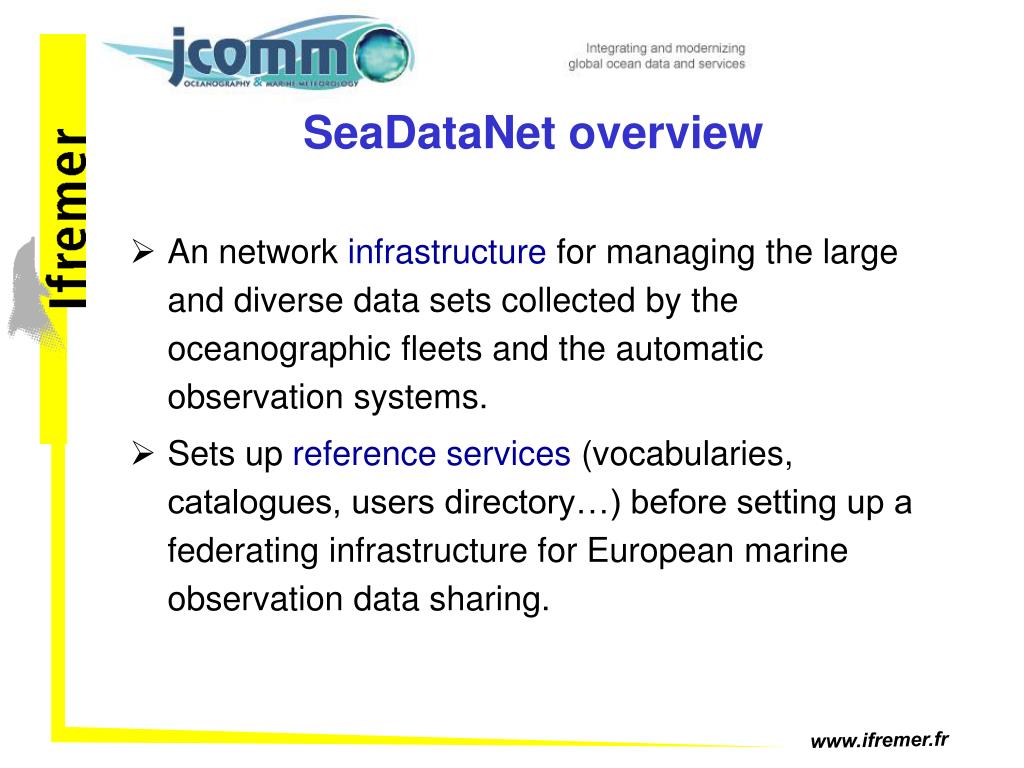

  11. SeaDataNet overview • An network infrastructure for managing the large and diverse data sets collected by the oceanographic fleets and the automatic observation systems. • Sets up reference services (vocabularies, catalogues, users directory…) before setting up a federating infrastructure for European marine observation data sharing.

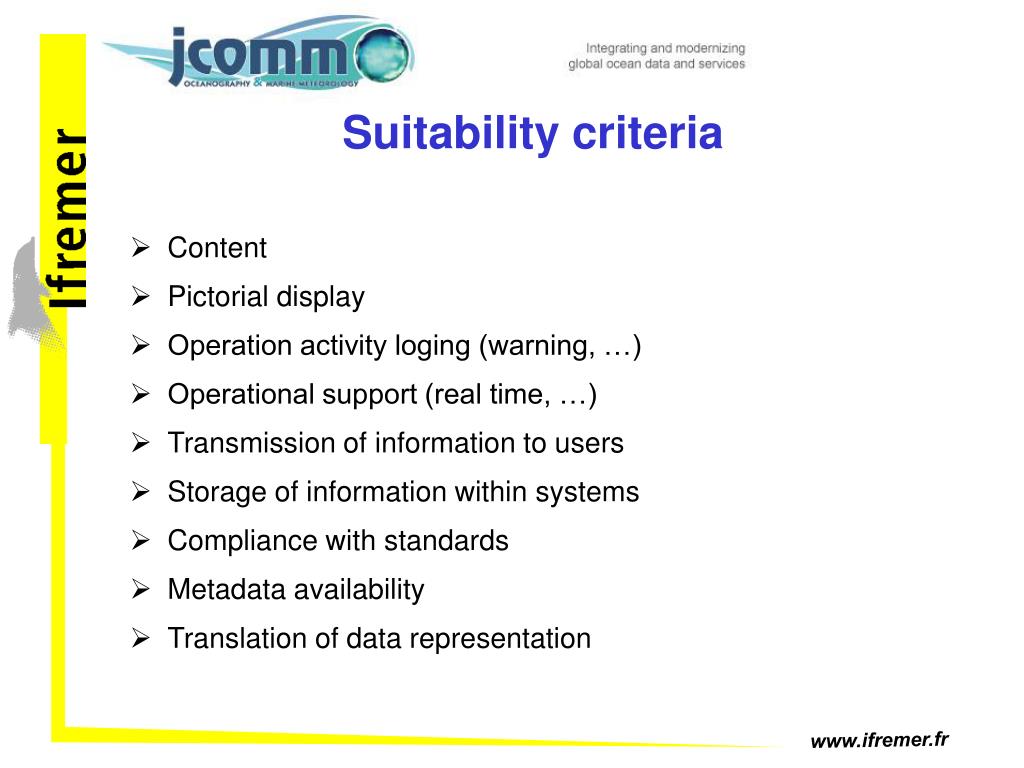

  12. Suitability criteria • Content • Pictorial display • Operation activity loging (warning, …) • Operational support (real time, …) • Transmission of information to users • Storage of information within systems • Compliance with standards • Metadata availability • Translation of data representation

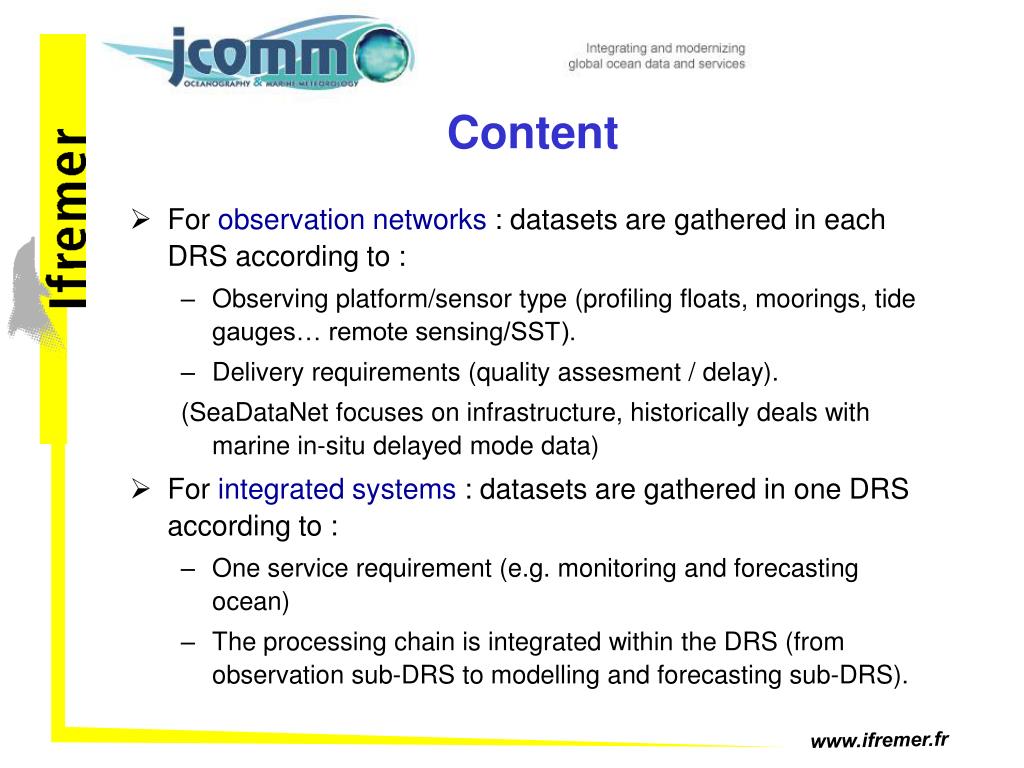

  13. Content • For observation networks : datasets are gathered in each DRS according to : • Observing platform/sensor type (profiling floats, moorings, tide gauges… remote sensing/SST). • Delivery requirements (quality assesment / delay). • (SeaDataNet focuses on infrastructure, historically deals with marine in-situ delayed mode data) • For integrated systems : datasets are gathered in one DRS according to : • One service requirement (e.g. monitoring and forecasting ocean) • The processing chain is integrated within the DRS (from observation sub-DRS to modelling and forecasting sub-DRS).

  14. Pictorial display • Most of time specific GIS web portal or pre-processed quicklooks with adavanced web interfaces. • More and more GIS web portal based on OGC/WMS back-end services and generic web portal interface (openlayer, mapbuilder).

  15. Operation activity log • Up to now, very few standardized exchanges for operational activity and results, for example : • Grey list for profiling floats status (ARGO). • Textual information on web site (e.g. GTSPP, pressure warning) • Automatic mail report for activity (end of process, status of process) within a production unit (at CORIOLIS). • Standardized monitoring engines, on-going development : • Automatic check of data availability (according to SLA requirements) : NAGIOS tools verify in real time OPeNDAP services for Mersea/MyOcean. • Later on, standardized report for activity of MyOcean production units to Service Desk (e-mail or RSS).

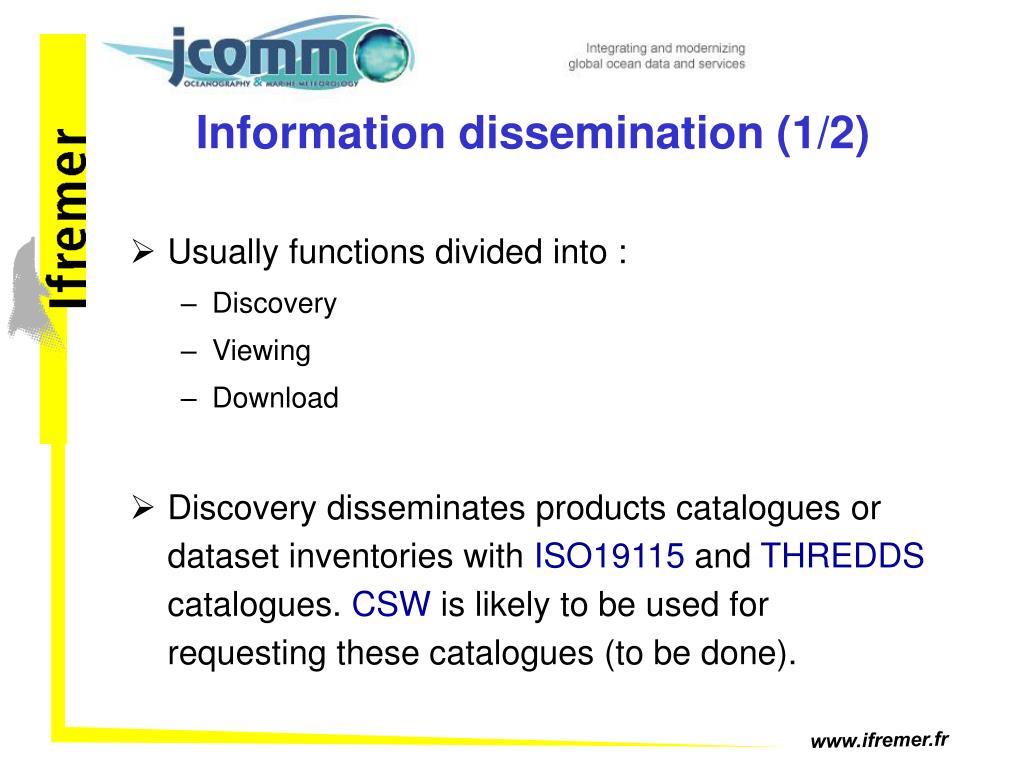

  16. Information dissemination (1/2) • Usually functions divided into : • Discovery • Viewing • Download • Discovery disseminates products catalogues or dataset inventories with ISO19115 and THREDDS catalogues. CSW is likely to be used for requesting these catalogues (to be done).

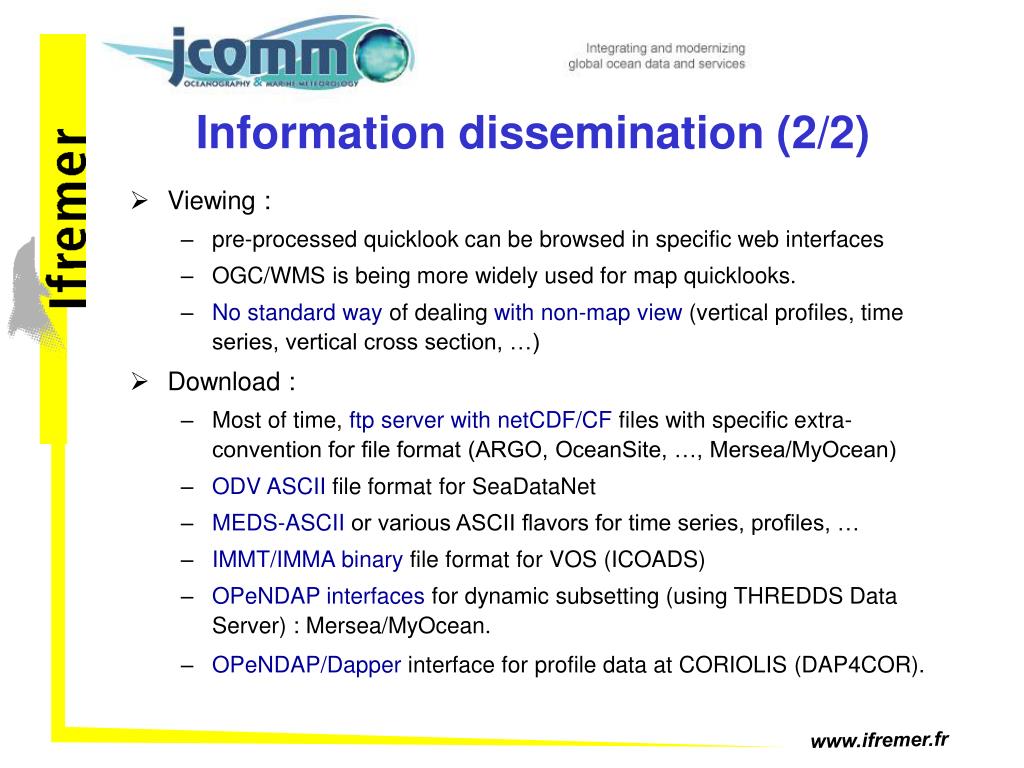

  17. Information dissemination (2/2) • Viewing : • pre-processed quicklook can be browsed in specific web interfaces • OGC/WMS is being more widely used for map quicklooks. • No standard way of dealing with non-map view (vertical profiles, time series, vertical cross section, …) • Download : • Most of time, ftp server with netCDF/CF files with specific extra-convention for file format (ARGO, OceanSite, …, Mersea/MyOcean) • ODV ASCII file format for SeaDataNet • MEDS-ASCII or various ASCII flavors for time series, profiles, … • IMMT/IMMA binary file format for VOS (ICOADS) • OPeNDAP interfaces for dynamic subsetting (using THREDDS Data Server) : Mersea/MyOcean. • OPeNDAP/Dapper interface for profile data at CORIOLIS (DAP4COR).

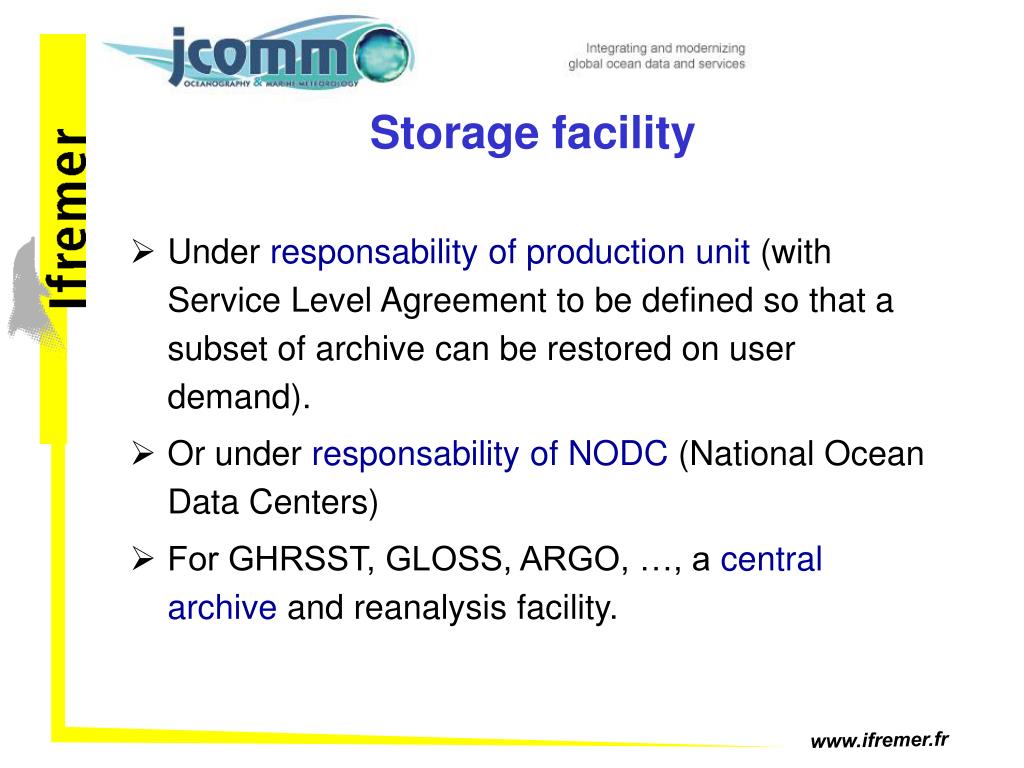

  18. Storage facility • Under responsability of production unit (with Service Level Agreement to be defined so that a subset of archive can be restored on user demand). • Or under responsability of NODC (National Ocean Data Centers) • For GHRSST, GLOSS, ARGO, …, a central archive and reanalysis facility.

  19. Standard compliance • Metadata : XML/ISO19115 widely used with different profiles depending on requirements (SeaDataNet, Mersea/MyOcean). THREDDS used for simple metadata index (Mersea/MyOcean). • Images : OGC/WMS (not extended for non-map representation) • Download : • netCDF file format with CF convention. • OPeNDAP interfaces (supported and checked by information management team in Mersea) • OGC/WFS and OGC/WCS emerging (not used yet). • (requires further standardization/convention for non gridded datasets) • References, background (to be used) : • vocularies provided by SeaDataNet • guidelines for usage of metadata standard for marine datasets. • CDM / CSML provide federated data model for ocean/atmosphere dataset.

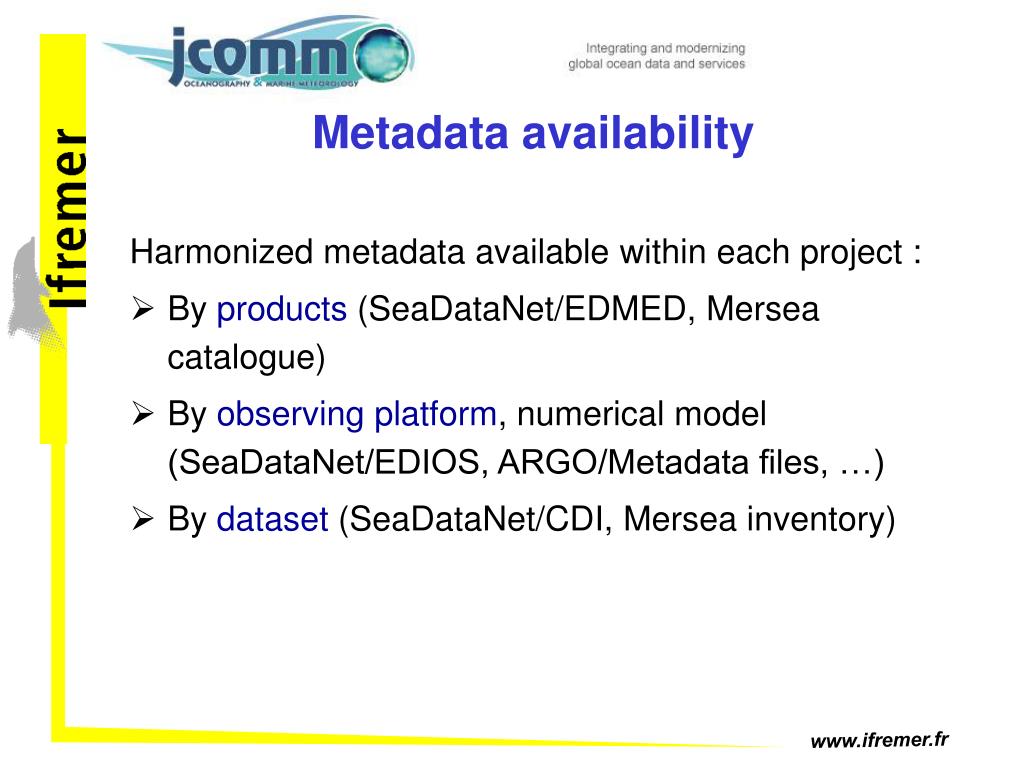

  20. Metadata availability Harmonized metadata available within each project : • By products (SeaDataNet/EDMED, Mersea catalogue) • By observing platform, numerical model (SeaDataNet/EDIOS, ARGO/Metadata files, …) • By dataset (SeaDataNet/CDI, Mersea inventory)

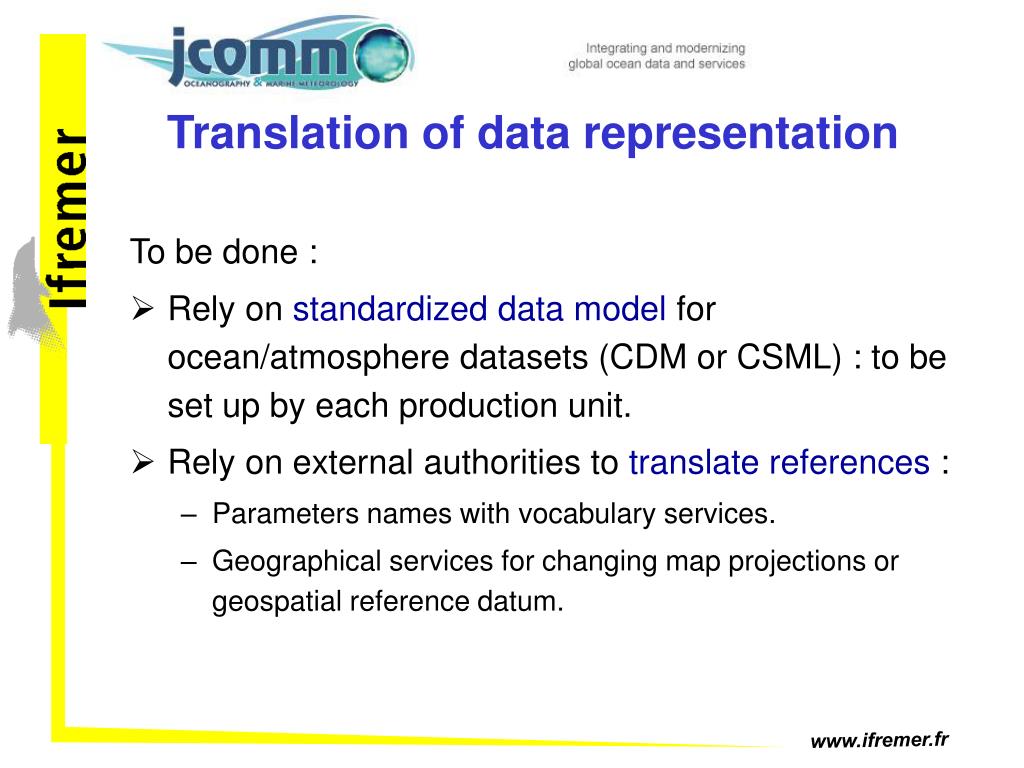

  21. Translation of data representation To be done : • Rely on standardized data model for ocean/atmosphere datasets (CDM or CSML) : to be set up by each production unit. • Rely on external authorities to translate references : • Parameters names with vocabulary services. • Geographical services for changing map projections or geospatial reference datum.

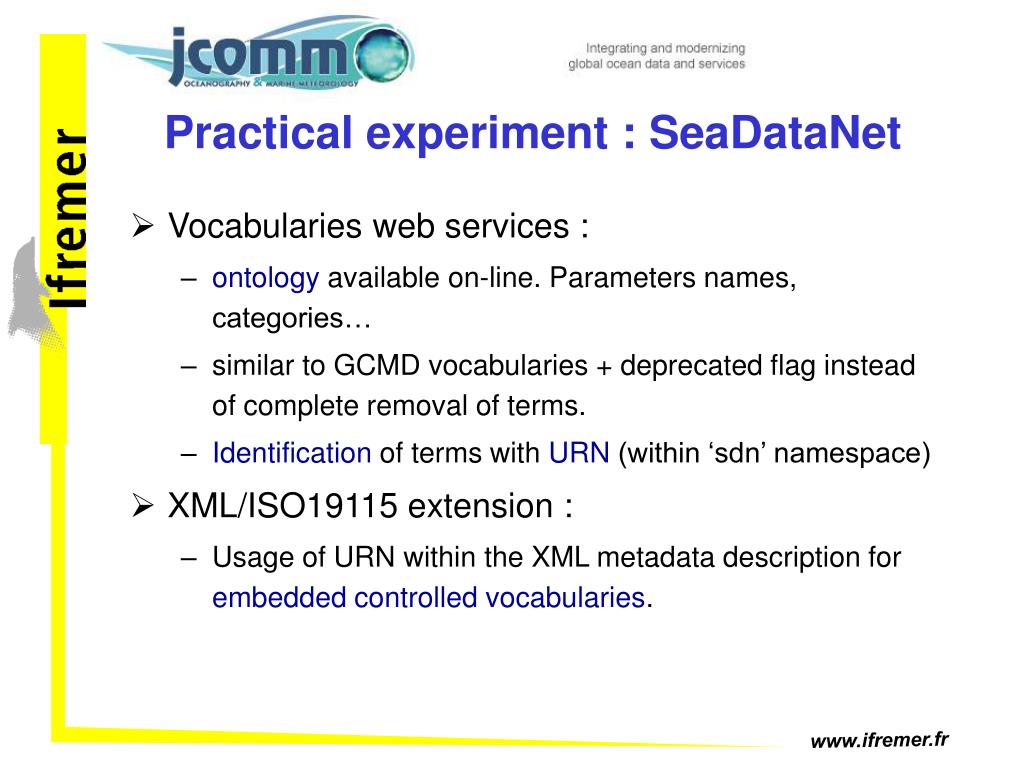

  22. Practical experiment : SeaDataNet • Vocabularies web services : • ontology available on-line. Parameters names, categories… • similar to GCMD vocabularies + deprecated flag instead of complete removal of terms. • Identification of terms with URN (within ‘sdn’ namespace) • XML/ISO19115 extension : • Usage of URN within the XML metadata description for embedded controlled vocabularies.

  23. Practical experiment : download from Mersea • Download integrated service architecture :

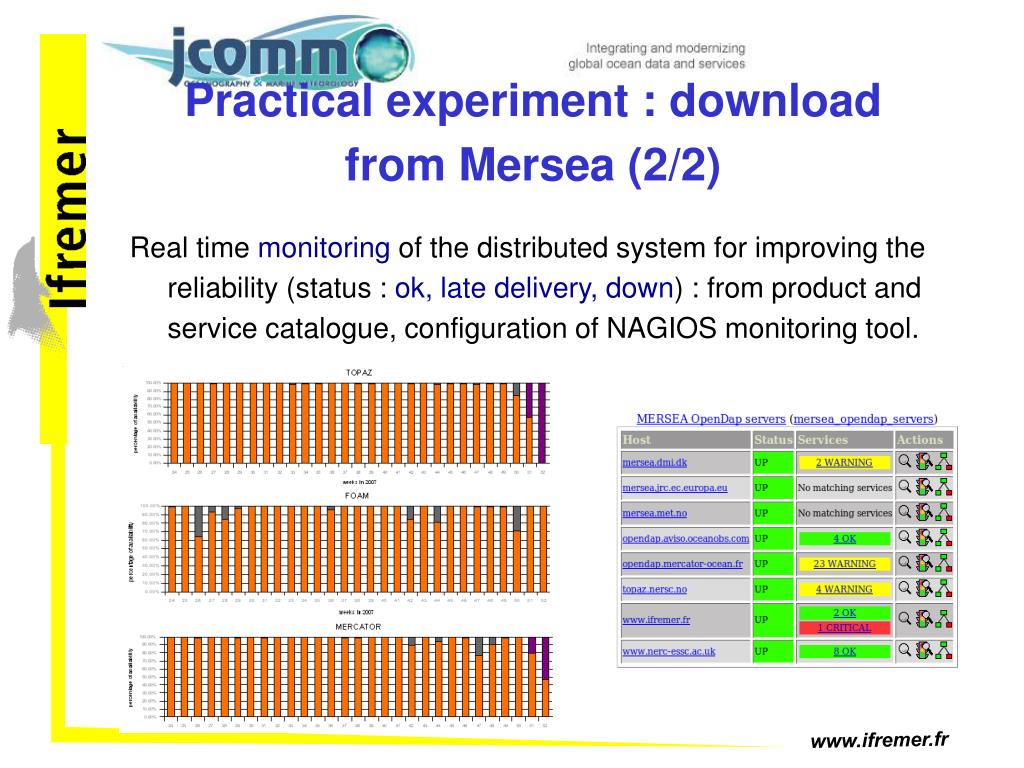

  24. Practical experiment : download from Mersea (2/2) Real time monitoring of the distributed system for improving the reliability (status : ok, late delivery, down) : from product and service catalogue, configuration of NAGIOS monitoring tool.

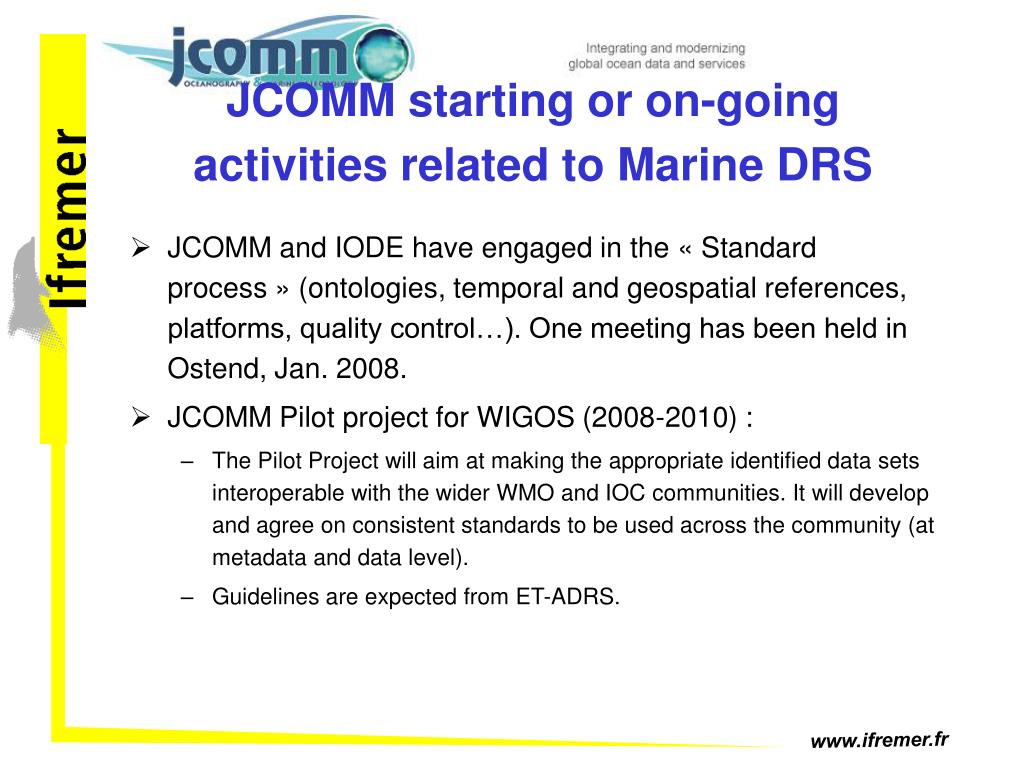

  25. JCOMM starting or on-going activities related to Marine DRS • JCOMM and IODE have engaged in the « Standard process » (ontologies, temporal and geospatial references, platforms, quality control…). One meeting has been held in Ostend, Jan. 2008. • JCOMM Pilot project for WIGOS (2008-2010) : • The Pilot Project will aim at making the appropriate identified data sets interoperable with the wider WMO and IOC communities. It will develop and agree on consistent standards to be used across the community (at metadata and data level). • Guidelines are expected from ET-ADRS.
