  1. NA60 weekly meetings Status of the new NA60 “cluster” Objectives, implementation and utilization Pedro Martins 03/03/2005

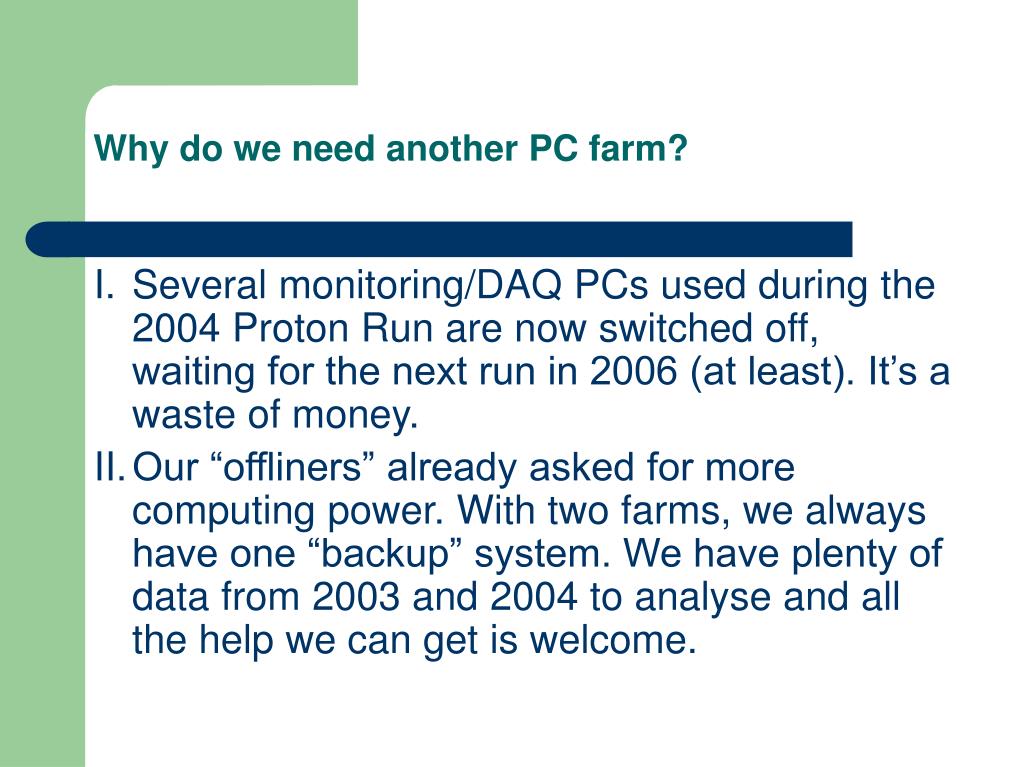

  2. Why do we need another PC farm? • Several monitoring/DAQ PCs used during the 2004 Proton Run are now switched off, waiting for the next run in 2006 (at least). It’s a waste of money. • Our “offliners” already asked for more computing power. With two farms, we always have one “backup” system. We have plenty of data from 2003 and 2004 to analyse and all the help we can get is welcome.

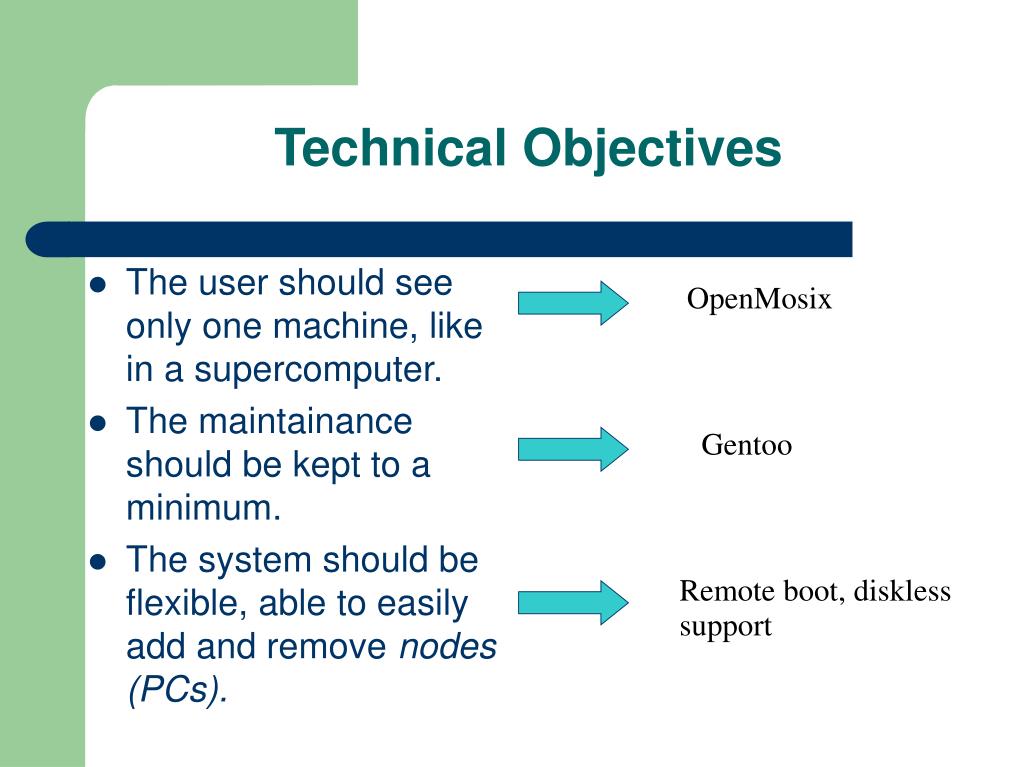

  3. Technical Objectives • The user should see only one machine, like in a supercomputer. • The maintainance should be kept to a minimum. • The system should be flexible, able to easily add and remove nodes (PCs). OpenMosix Gentoo Remote boot, diskless support

  4. Remote boot, diskless support Gentoo Openmosix • The Scientific Linux does not allow (to the non-IT user) the creation of clusters, • Simple maintenance, using Portage. • Easy implementation, • Node discovery tool, • Migration of processes Na60pc08 is our cluster's disk server: • It provides network information to all nodes, • controls the process migration, • makes the interface with the user. A single process, like a macro, is NOT going to be shared among all computers. Each process goes to one CPU only. CERN/IT does not support Gentoo based OS. Our IT experts will be the only ones solving the problems. The previous data from the machines is kept, meaning that we always have a fallback option. In principle we can run as many processes as the number of CPUs we have. Advantage?

  5. CASTOR, na60tera1, na60tera2... NAT Node 1 (diskless) nfs na60pc08 • Boot and network information, • OS data. OpenMosix migrator vnc ssh • Network information user Node 10 (OS on local disk)

  6. Present status • The main node (na60pc08) is operational. • One node with local disk is fully working. • Another diskless node is still in the debug phase. • Our “cluster” is still small but it has already a considerable power (P4 2.4GHz, AMD 1GHz and 1.5 GB RAM). • Since the Memory Migration feature doesn't deal properly with the X server, we are using VNC. Actually, VNC is much better than an X remote server, since it compresses the data transferred through the network, allows remote connections from windows and linux machines and is acessible from outside CERN (IT allows this).

  7. To do list • Queuing (FIFO) tool, like auson: • It will use the “cpujob” and “iojob” commands that send the processes to the adequate nodes, • Debug the diskless implementation, checking with a new diskless machine, • Connect as many machines as we can. • Write a Howto/FAQ for the offliners.
