  1. Shibboleth 2.0 IdP Training:Attributes • January, 2009

  2. Terms: Attribute • A piece of information about a user • Has a unique identifier and zero or more values • Shibboleth attributes are protocol agnostic data structures

  3. Terms: SAML Attribute • An attribute represented in SAML notation • Shibboleth encodes attributes into SAML attributes

  4. Terms: Data Connector • A plugin that defines multiple attributes from data sources • Shibboleth supports static, LDAP, relational database, computed and stored ID data connectors

  5. Terms: Attribute Definition • A plugin that creates a single attribute by transforming other attributes and state information • Attribute definition types: • simple, scoped, regex, mapping, template, scripting, principal name and principal authentication method

  6. Terms: Attribute Encoder • A plugin that converts an attribute into a protocol specific form, like a SAML attribute • Attribute encoders are associated with an attribute through the attribute’s definition

  7. Terms: Attribute Resolver • A subsystem in Shibboleth responsible for fetching, transforming and associating encoders with attributes • Only attributes produced by attribute definitions leave the resolver and are available to the other parts of Shibboleth

  8. Roadmap • Define a simple attribute with a static value • Define an attribute filter policy for that attribute • Define a simple attribute using values from a LDAP directory • Define another attribute filter policy • Define scoped attributes

  9. Data Connectors: Definition • Data connectors are defined in attribute-resolver.xml • Uses the <DataConnector> element • Every data connector must have: • Unique identifier – id attribute • Type – xsi:type attribute • Each type has its own set of configuration attributes

  10. Data Connector: Dependencies • Some connectors will need information collected by another plugin in order to work • <resolver:Dependency ref="refid" /> • Dependencies must be declared before any other configuration elements

  11. Data Connector: Static • Static data connectors add attributes to every resolved account • Data connector type: • Static • Configuration attributes: • (none)

  12. Data Connector: Static • Attributes produced by the data connector are defined by the <Attribute> element: • <Attribute id="attributeid"> • Values are added by the <Value> element: • <Value>attributevalue</Value> • Attributes may have more than one value

  13. Lab: Static Data Connector • Define a static data connector for a single attribute returning a single value

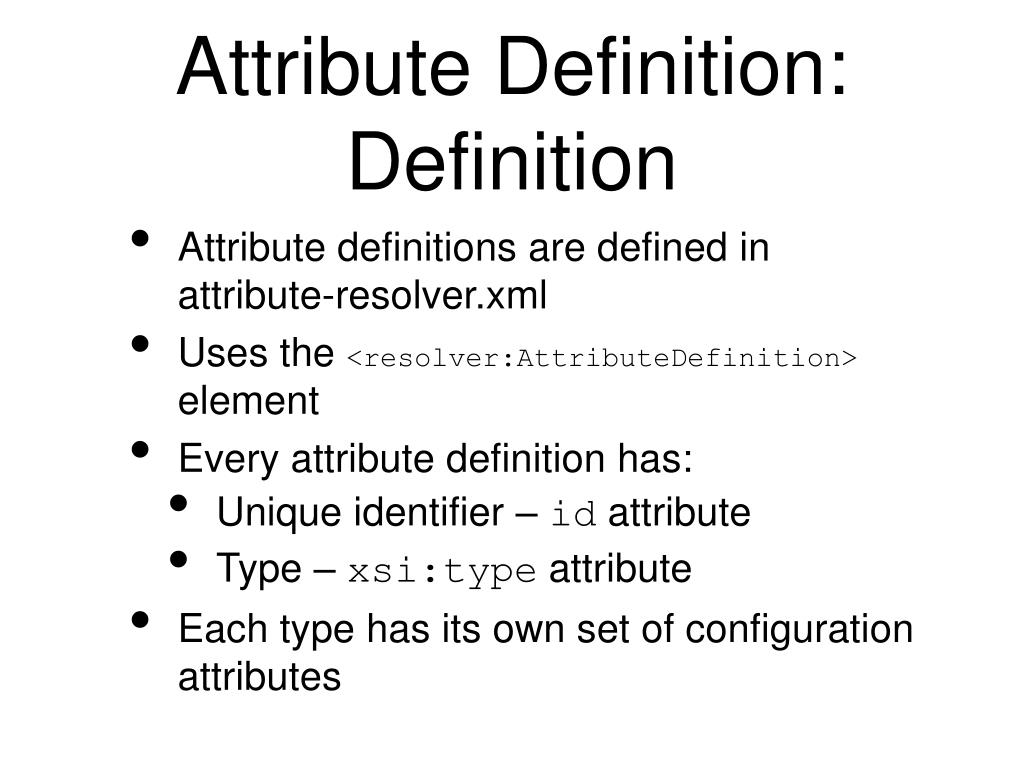

  14. Attribute Definition: Definition • Attribute definitions are defined in attribute-resolver.xml • Uses the <resolver:AttributeDefinition> element • Every attribute definition has: • Unique identifier – id attribute • Type – xsi:type attribute • Each type has its own set of configuration attributes

  15. Attribute Definition: Dependencies • Most attribute definitions will need information collected by another plugin in order to work • <resolver:Dependency ref="refid" /> • Dependencies must be declared before any other configuration elements

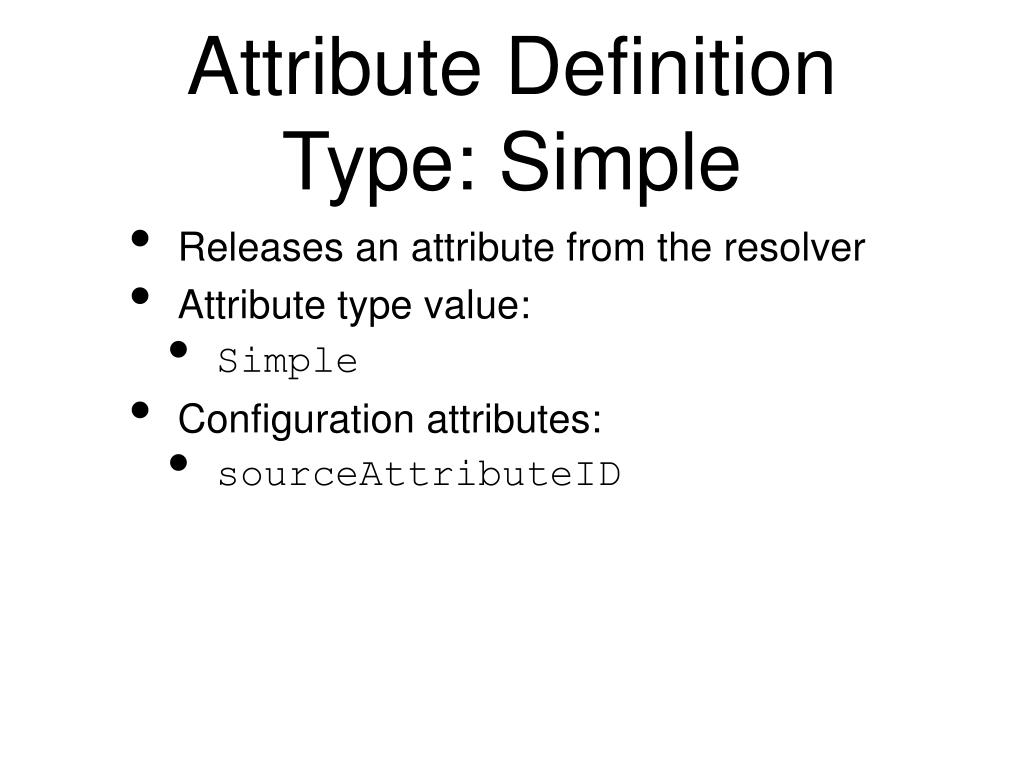

  16. Attribute Definition Type: Simple • Releases an attribute from the resolver • Attribute type value: • Simple • Configuration attributes: • sourceAttributeID

  17. Lab: Attribute Definition • Create an attribute definition for eduPersonAffiliation using static data connector.

  18. Attribute Encoders: Definition • Shibboleth uses SAML attributes • Attribute encoders allow conversion of attributes as SAML attributes • Configured as children of an attribute definition • Uses <resolver:AttributeEncoder> • Each must have a type – xsi:type • Each type has configuration attributes

  19. Attribute Encoder Type: Basic SAML 1 • SAML 1 encoder definition: • <resolver:AttributeEncoder • xsi:type="SAML1String" • xmlns="urn:mace:shibboleth:2.0:attribute-encoder" • name="attributenameURN" /> • Only the name attribute changes (URN): • <resolver:AttributeEncoder • xsi:type="SAML1String" • xmlns="urn:mace:shibboleth:2.0:attribute-encoder" name="urn:mace:dir:attribute-def:eduPersonAffiliation" />

  20. Attribute Encoder Type: Basic SAML 2 • Similar to the SAML 1 encoder but uses the OID name for the attribute name and adds a friendly name: • <resolver:AttributeEncoder • xsi:type="SAML2String" • xmlns="urn:mace:shibboleth:2.0:attribute-encoder" • name="urn:oid:1.3.6.1.4.1.5923.1.1.1.1" • friendlyName="eduPersonAffiliation" />

  21. Roadmap • Define a simple attribute with a static value • Define an attribute filter policy for that attribute • Define a simple attribute using values from a LDAP directory • Define another attribute filter policy • Define scoped attributes

  22. Terms: Attribute Filter Policy • Describes what attributes are available to service providers

  23. Terms: Policy Requirement Rule • A specific requirement that must be met • An attribute filter policy may only have one requirement rule but some allow child rules

  24. Terms: Attribute Rule • A rule specific to an attribute • Determines which values of the attribute are released • An attribute filter policy may have any number of attribute rules

  25. Terms: Permit Value Rule • Determines if an attribute value is to be released to a relying party

  26. Terms: Attribute Filter Policy Group • A collection of attribute filter policies • Unit of configuration loaded by the attribute filtering engine

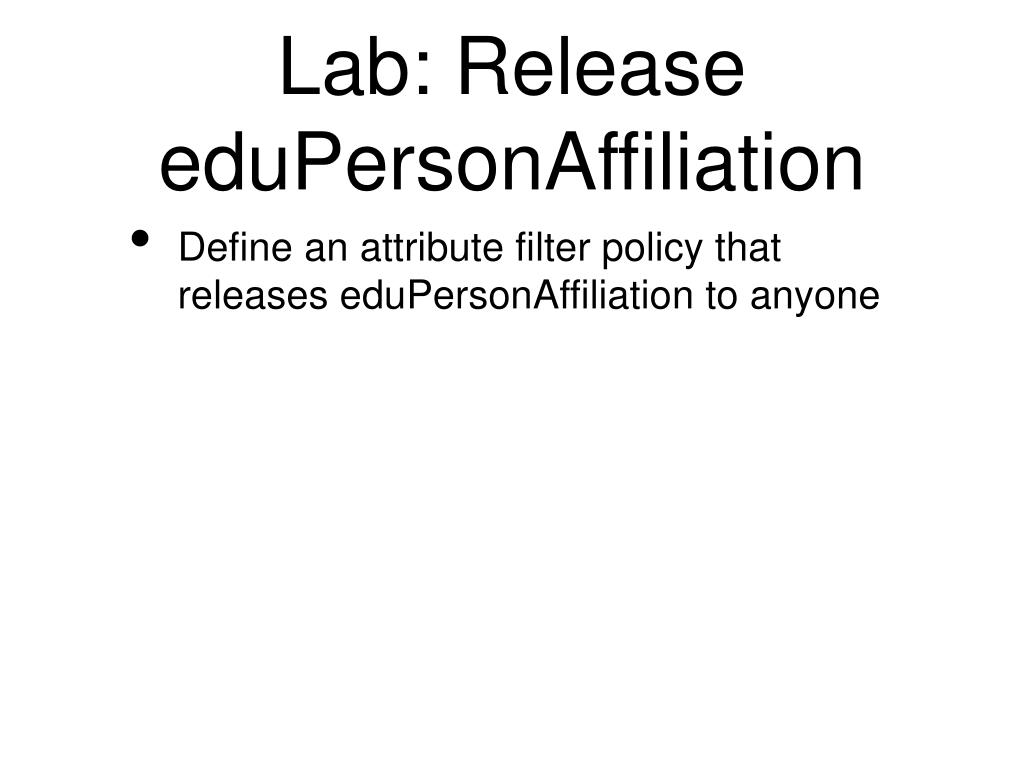

  27. Lab: Release eduPersonAffiliation • Define an attribute filter policy that releases eduPersonAffiliation to anyone

  28. Roadmap • Define a simple attribute with a static value • Define an attribute filter policy for that attribute • Define a simple attribute using values from a LDAP directory • Define another attribute filter policy • Define scoped attributes

  29. Data Connector: LDAP • Data connector that retrieves information from an LDAP directory • Attribute Type: • LDAPDirectory • Configuration Attributes: • ldapURL • baseDN • principal • credential

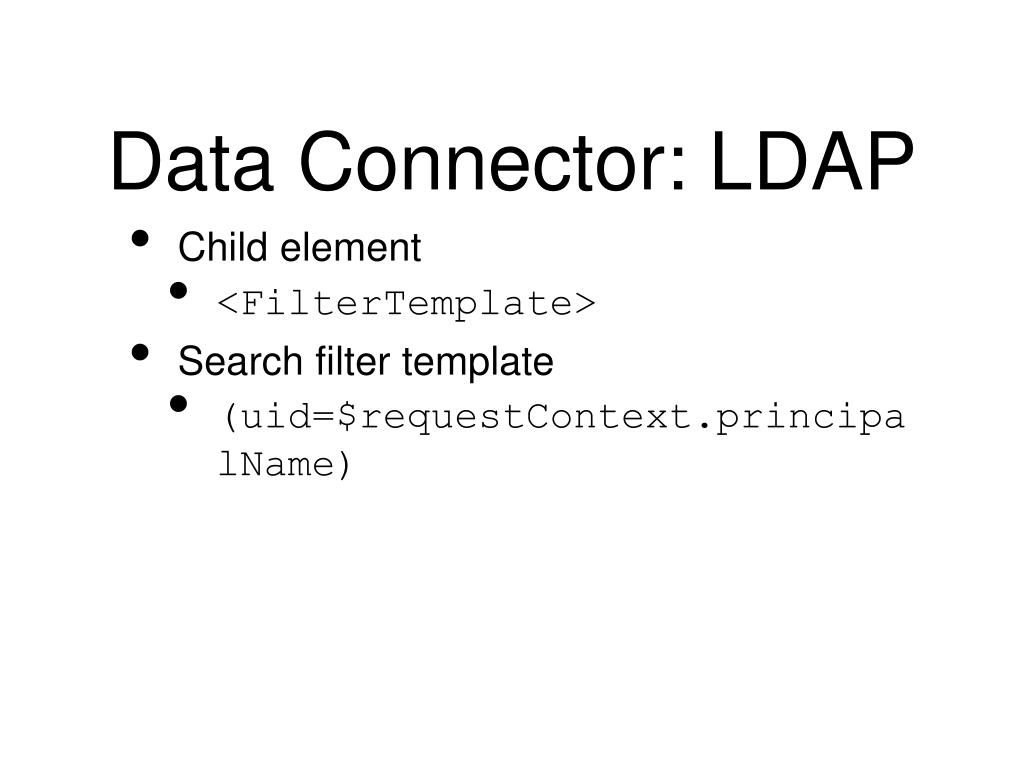

  30. Data Connector: LDAP • Child element • <FilterTemplate> • Search filter template • (uid=$requestContext.principalName)

  31. Data Connector: LDAP • A Sample: • <resolver:DataConnector id="localLDAP" • xsi:type="LDAPDirectory" • xmlns="urn:mace:shibboleth:2.0:resolver:dc" • ldapURL="ldap://127.0.0.1:389" • baseDN="ou=people,dc=example,dc=org" • principal="uid=admin,ou=system" • principalCredential="password"> • <FilterTemplate> • (uid=$requestContext.principalName) • </FilterTemplate> • </resolver:DataConnector>

  32. Lab: LDAP Data Connector • Define a LDAP Data Connector that connects to the shared LDAP server in the training lab

  33. Attribute Definition: LDAP • Use the attribute definition dependency to define the LDAP data connector as a source: • <resolver:Dependency ref="localLDAP" /> • If you define multiple dependencies, the returned values will be combined

  34. Lab: LDAP Attribute Definition • Add the LDAP data connector as a dependency to the attribute definition for eduPersonAffiliation

  35. Roadmap • Define a simple attribute with a static value • Define an attribute filter policy for that attribute • Define a simple attribute using values from a LDAP directory • Define another attribute filter policy • Define a scoped attribute

  36. Scoped Attributes • Two parts • Value – separator – Scope • student@example.edu • The scope indicates a domain where the value is valid

  37. Attribute Definition: Scoped • Adds a static scope • Attribute Type: • Scoped • Configuration attributes: • sourceAttributeID • scope

  38. Attribute Definition: Prescoped • Already contain the scope within the data source • Attribute Type: • Prescoped • Configuration attributes: • sourceAttributeID • scopeDelimiter

  39. Lab: Create a Scoped Attribute • Define a Prescoped Attribute Definition that generates and sends eduPersonPrincipalName from the LDAP directory

  40. Attribute Encoders: Scoped • Can Convert into a SAML attribute in two ways: • As an attribute for the SAML <AttributeValue> • <AttributeValue Scope="…"> • Using the inline notation • value@scope • Set by the scopeType attribute: • attribute • inline

  41. Lab: Release eduPersonPrincipalName • Define an attribute filter policy that releases eduPersonPrincipalName to the test SP

  42. More on Dependencies • Any resolver definition can have any number of dependencies • Dependency results are merged • Attributes definitions may be defined as for dependency purposes only

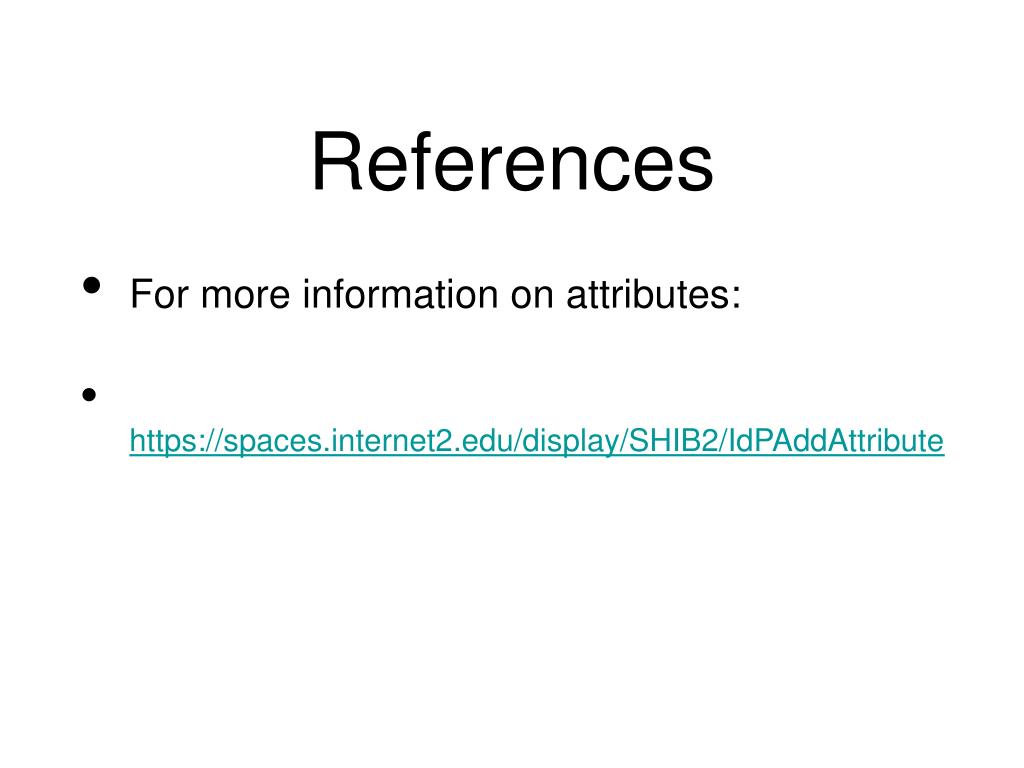

  43. References • For more information on attributes: • https://spaces.internet2.edu/display/SHIB2/IdPAddAttribute
