  1. Incandescent Lightbulbs

  2. Introductory Question • An incandescent lightbulb contains some gas with the filament. How would removing the gas affect the bulb’s energy efficiency? • Make it more efficient • Make it less efficient • No change

  3. Observations about Lightbulbs • Lightbulbs normally emit yellow-white light • They get hot during operation • You can feel heat radiating from them • They eventually burn out • They come in many wattages • They come in many specialized types

  4. 5 Questions about Lightbulbs • How does a lightbulb produce light? • What determines a lightbulb’s color? • What determines a lightbulb’s brightness? • Why do lightbulbs eventually “burn out”? • Are halogen bulbs really better?

  5. An Incandescent Lightbulb • Light is emitted by a hot tungsten filament • that is heated electrically • and that emits thermal radiation • that includes visible light • Heat is flowing from the hotterfilament to its cooler surroundingas thermal radiation, that is partlyvisible light

  6. Question 2 • What determines a lightbulb’s color?

  7. Thermal Radiation • Materials all emit thermal radiation because • they contain electric charges • and thermal energy causes those charges accelerate. • Accelerating charges emit electromagnetic waves • Hotter temperatures yield shorter wavelengths

  8. Black Body Spectrum • The spectrum and intensity of electromagnetic waves from a black body depend only on its temperature

  9. Filament Temperature and Color • Filament behaves as a (nearly) black body • It emits a spectrum characteristic of its temperature, • so its visible efficiency increases with temperature. • Its life expectancy decreases with temperature • Filament’s temperature is set by a power balance • Power arrives as electricity • and leaves as heat, some of which is radiation. • Net power is zero when filament is about 2500 °C

  10. Question 3 • What determines a lightbulb’s brightness?

  11. Power and Light • Lightbulb filament maintains zero net power • Its thermal power out must equal electrical power in • so its radiated power increases with electrical power. • Higher wattage bulbs • use larger filaments with more surface area, • obtain more electrical power, • maintain the usual 2500 C filament temperature, • and radiate more visible light overall.

  12. Three-Way Bulbs • Two separate filaments • One small, low-power filament • One large, high-power filament • Three light levels • Low-power filament only • High-power filament only • Both filaments together

  13. Question 4 • Why do lightbulbs eventually “burn out”?

  14. Filament Requirements • Filament requirements are challenging • It must remain solid to high temperatures, • experience minimal sublimation • and be electrically conducting. • Tungsten metal is the best filament material • Tungsten remains solid to 3422 °C, • sublimes relatively slowly at 2500 °C, • and conducts electricity.

  15. Tungsten’s Shortcomings • Tungsten is burns in air and gradually sublimes • Filament is encased in inert-gas-filled glass bulb • to keep out oxygen • and to bounce tungsten atoms back onto filament. • Inert gas, however, leads to convective heat loss • and filament is short-lived above 2500 °C • Sublimation and convection darken top of bulb

  16. Introductory Question (revisited) • An incandescent lightbulb contains some gas with the filament. How would removing the gas affect the bulb’s energy efficiency? • Make it more efficient • Make it less efficient • No change

  17. Sealing Issues • Atoms vibrate with thermal energy • Average separations increase with temperature • Solids expand when heated • Some materials expand morewith temperature than others • To avoid stresses and fracture,glass and wires must expand equally

  18. Question 5 • Are halogen bulbs really better? • What about “long-life” bulbs? • What about “energy-saver” bulbs? • What about krypton bulbs?

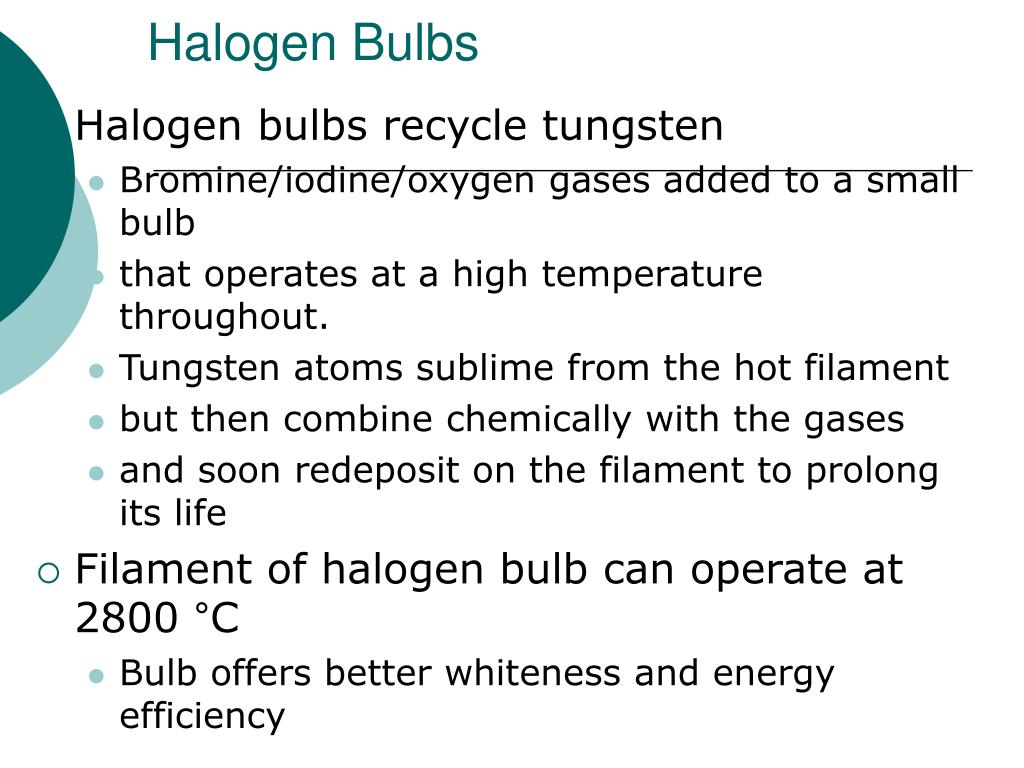

  19. Halogen Bulbs • Halogen bulbs recycle tungsten • Bromine/iodine/oxygen gases added to a small bulb • that operates at a high temperature throughout. • Tungsten atoms sublime from the hot filament • but then combine chemically with the gases • and soon redeposit on the filament to prolong its life • Filament of halogen bulb can operate at 2800 °C • Bulb offers better whiteness and energy efficiency

  20. Summary about Lightbulbs • Lightbulbs emit visible thermal radiation • Most of their thermal radiation is not visible • They fail when the filament sublimes away • The glass envelope keeps oxygen out • The inert gas fill lengthens the filament life
