Upper Extremity

gilon avatar
11 diapositives · 368 Views · Jul 19, 2014

Upper Extremity. Shoulder Girdle. Shoulder G irdle. The sternoclavicular joints connect the sternum and clavicle. The acromioclavicular joints connect the acromion process of each scapula with the corresponding clavicle. Shoulder Girdle.

Upper Extremity - slide 1
01 / 11Upper Extremity
1 / 17

Télécharger la présentation

Upper Extremity
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

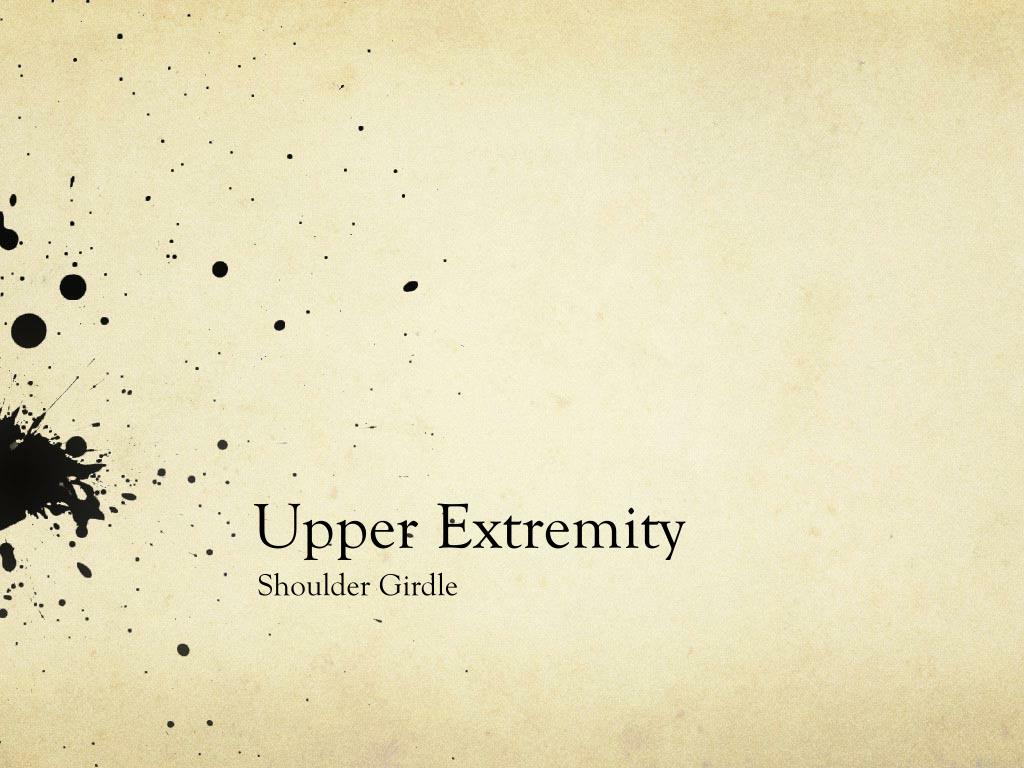

  1. Upper Extremity Shoulder Girdle

  2. Shoulder Girdle • The sternoclavicular joints connect the sternum and clavicle • The acromioclavicular joints connect the acromion process of each scapula with the corresponding clavicle

  3. Shoulder Girdle • Since there is no union between the scapula in the back, this is an incomplete girdle

  4. Shoulder Girdle • The sternoclavicular joint is a very small joint and it is the sole skeletal connection between the upper extremity and the trunk.

  5. Structure of theAcromioclavicularArticulation • Acromioclavicularligament – Strengthens the joint from above • Aponeurosis of the trapezius and the deltoid – Strengthens the joint from behind • Coracoclavicular ligament • Is two ligaments • Bind the clavicle to the coracoid process

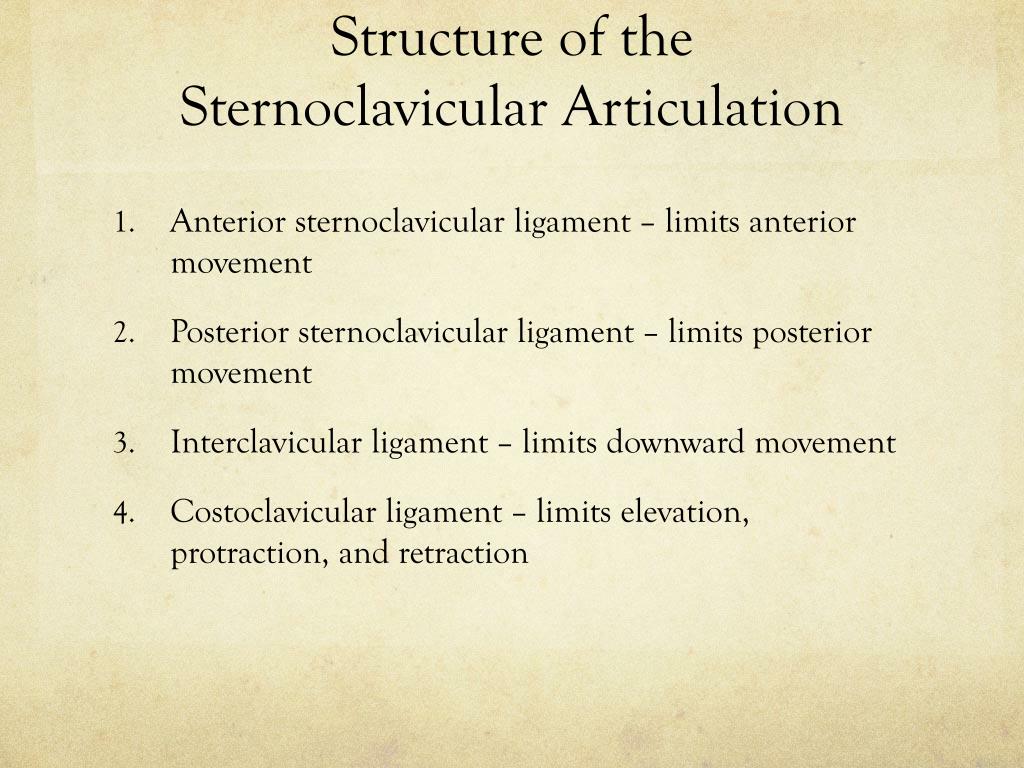

  6. Structure of theSternoclavicularArticulation • Anterior sternoclavicular ligament – limits anterior movement • Posterior sternoclavicular ligament – limits posterior movement • Interclavicular ligament – limits downward movement • Costoclavicular ligament – limits elevation, protraction, and retraction

  7. Movements of the Shoulder Girdle – Scapula • Every movement of the scapula involves motion in both the acromioclavicular and sternoclavicular joints. • Elevation • Depression • Abduction (Protraction) • Adduction (Retraction) • Upward Rotation

  8. Muscles of the Shoulder Girdle • Pectoralis minor – Helps with posture (balance out pull of muscles on scapula) • Serratus anterior – Important in reaching and pushing (elevation of the arm) • Subclavius – protect and stabilize the sternoclavicular articulation • Levator scapulae – causes elevation of scapula • Rhomboids (Major & Minor) – causes adduction and elevation of the scapula • Trapezius (4 parts) – causes elevation, retraction, depression, and upward rotation
