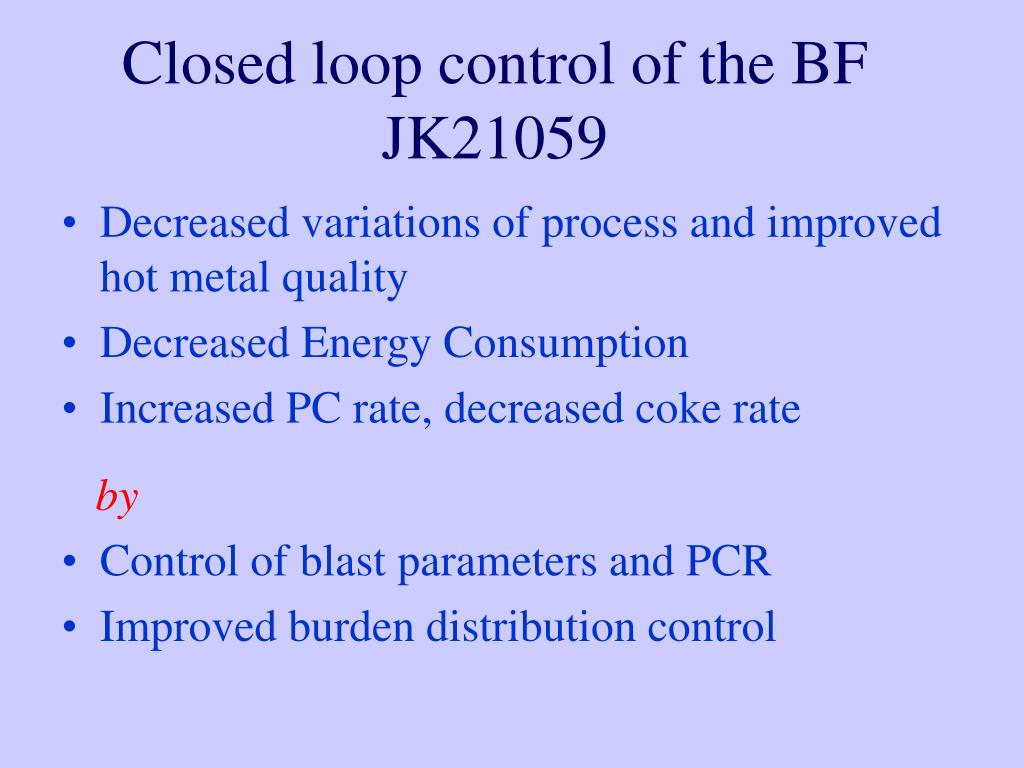

  1. Closed loop control of the BF JK21059 • Decreased variations of process and improved hot metal quality • Decreased Energy Consumption • Increased PC rate, decreased coke rate by • Control of blast parameters and PCR • Improved burden distribution control

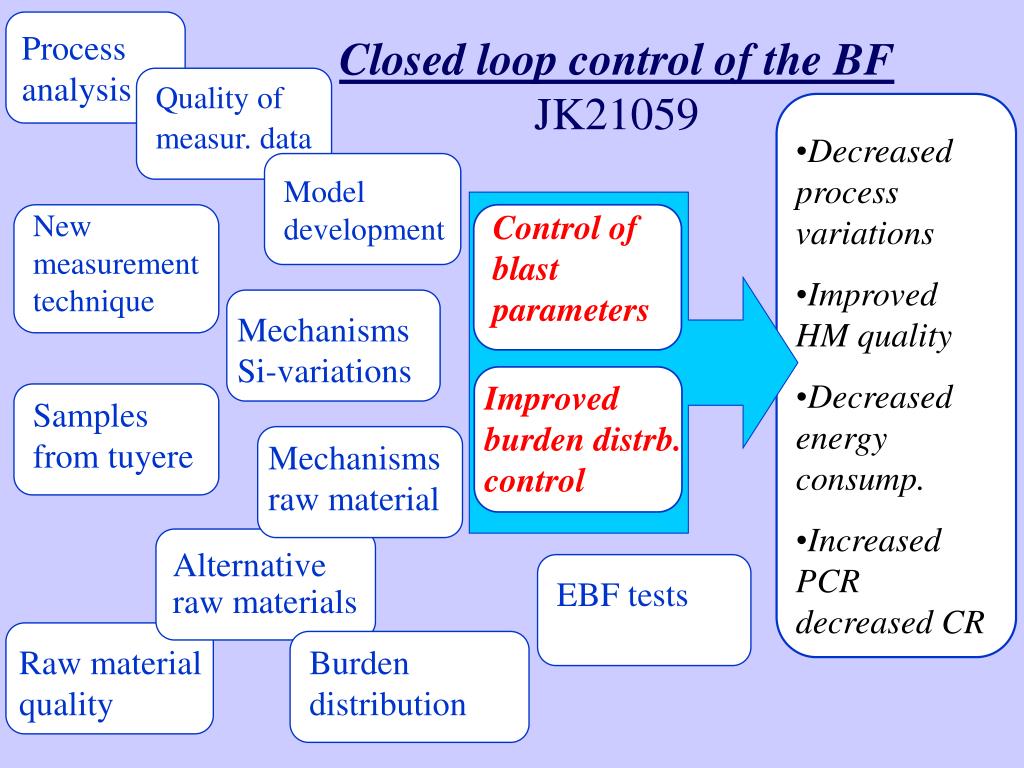

  2. Process analysis Closed loop control of the BF JK21059 Quality of measur. data • Decreased process variations • Improved HM quality • Decreased energy consump. • Increased PCR decreased CR Model development New measurement technique Control of blast parameters Mechanisms Si-variations Improved burden distrb. control Samples from tuyere Mechanisms raw material Alternative raw materials EBF tests Raw material quality Burden distribution

  3. Activities at SSAB • Process evaluation with extended raw material sampling • Raw material • 100 % MPBO/100 % KPBO • Test of MV and LV coal • Coal combustion – a literature survey • Burden distribution strategy • New measurements • Continous HMT measurements • Raceway depth in collaboration with Mefos • Core Drilling/Tuyere raking

  4. Further Work • Raw material • Evaluation of test with MPBO 2004 • Summarised report of coal testing • Caractherisation of raceway and deadman – master thesis • Measurement technique- • Continous HMT (test of equipment 2 och 3) • Raceway depth
