Presentation Transcript

  1. ravel@sparcs dNSII

  2. DNS 1 2 ravel sparcs.org org 3 10 4 6 9 5 8 blog.naver.com naver.com com 7

  3. DNS sparcs.org DNS server인 동시에 client!

  4. as DNS client : resolver

  5. search

  6. nameserver

  7. as DNS server : named • 부팅 때 named가 시작 • named.boot

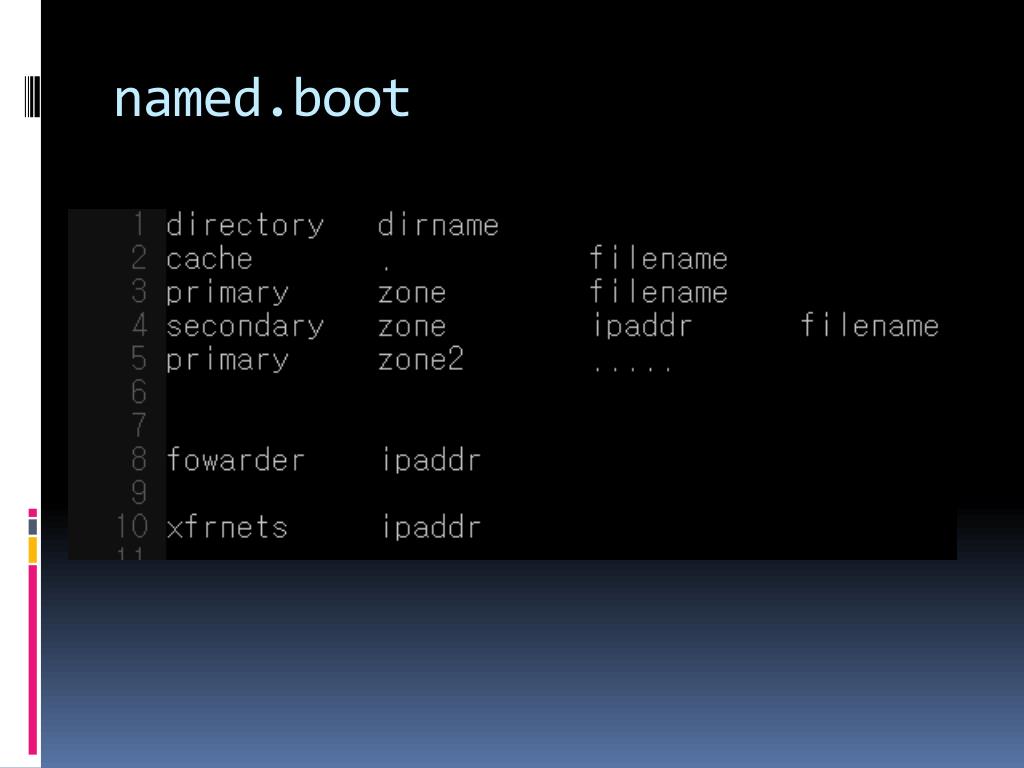

  8. named.boot

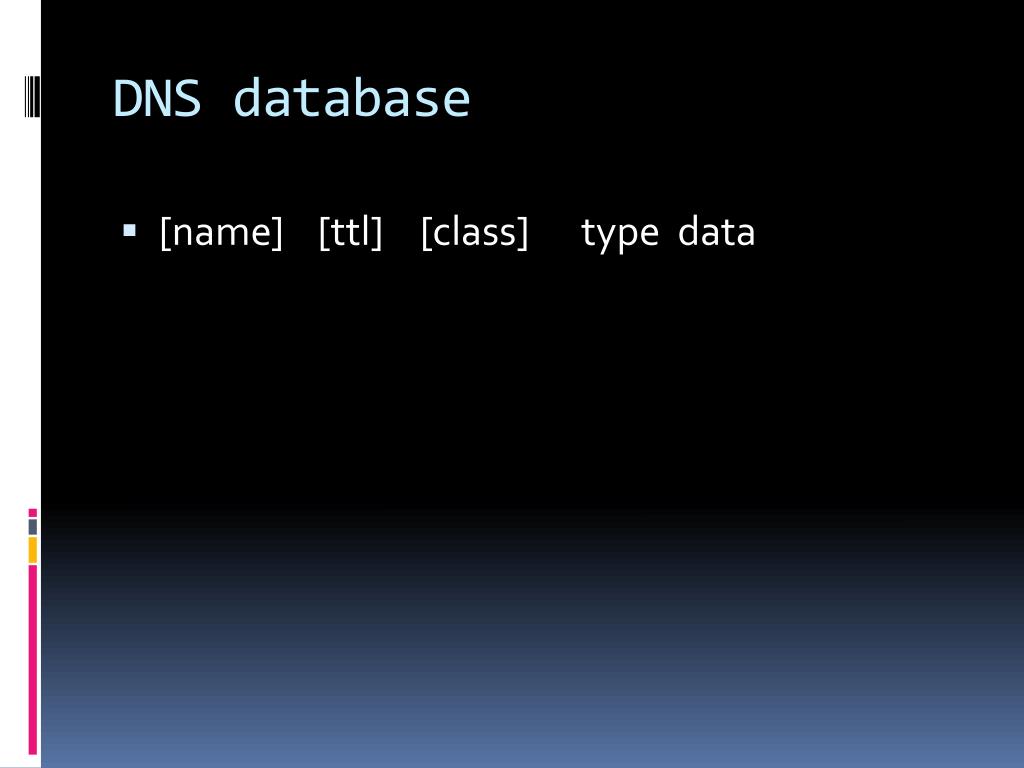

  9. DNS database • [name] [ttl] [class] type data

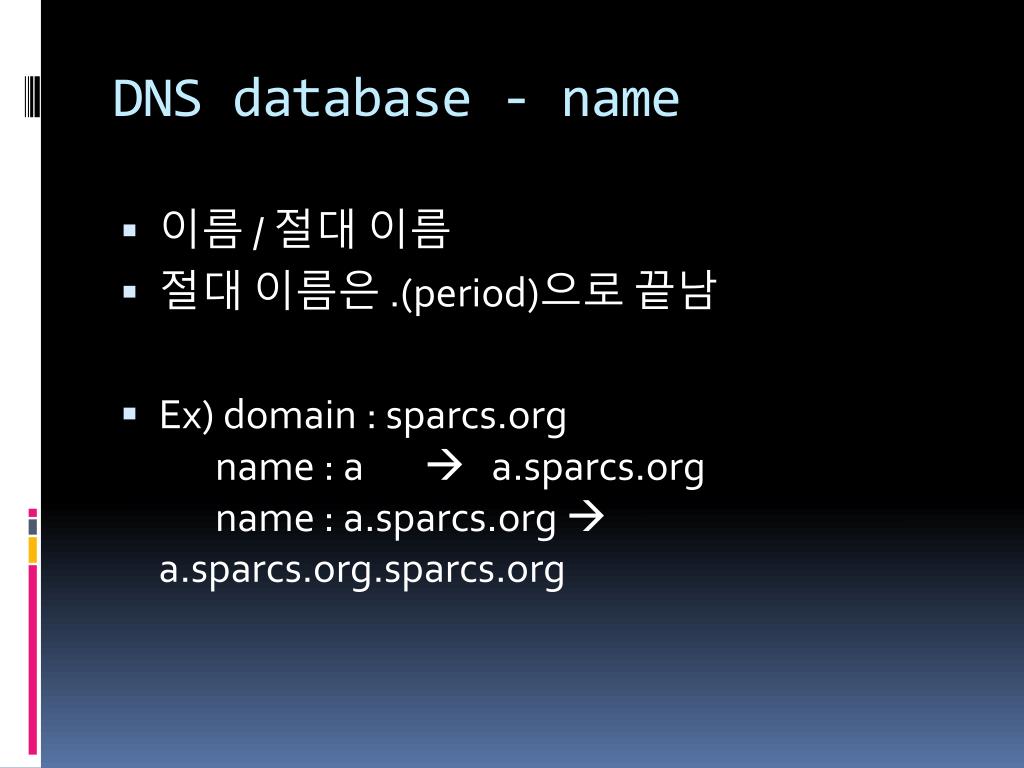

  10. DNS database - name • 이름 / 절대 이름 • 절대 이름은 .(period)으로 끝남 • Ex)domain : sparcs.org name : a  a.sparcs.org name : a.sparcs.org  a.sparcs.org.sparcs.org

  11. DNS database - class • IN / CH / HS • IN

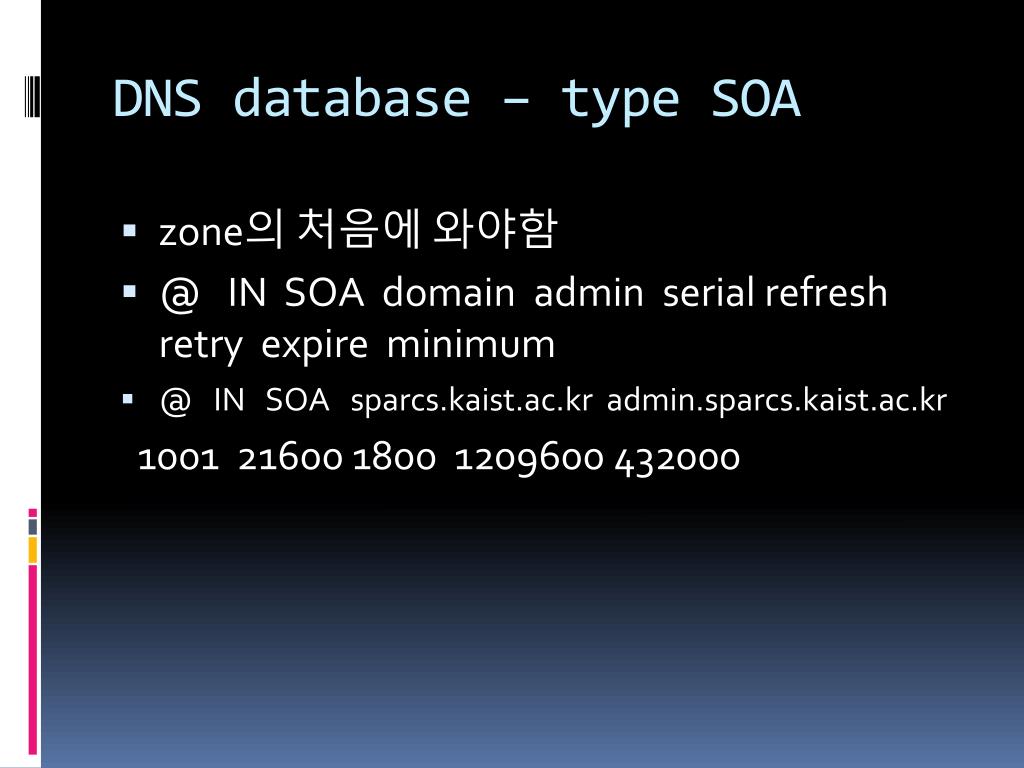

  12. DNS database – type SOA • zone의 처음에 와야함 • @ IN SOA domain admin serial refresh retry expire minimum • @ IN SOA sparcs.kaist.ac.kr admin.sparcs.kaist.ac.kr 1001 21600 1800 1209600 432000

  13. DNS database – type NS • SOA 다음에… • Zone [ttl] [class] NS hostname • sparcs.kaist.ac.kr. IN NS ns.sparcs.kaist.ac.krsparcs.kaist.ac.kr. IN NS ns2.sparcs.kaist.ac.kr

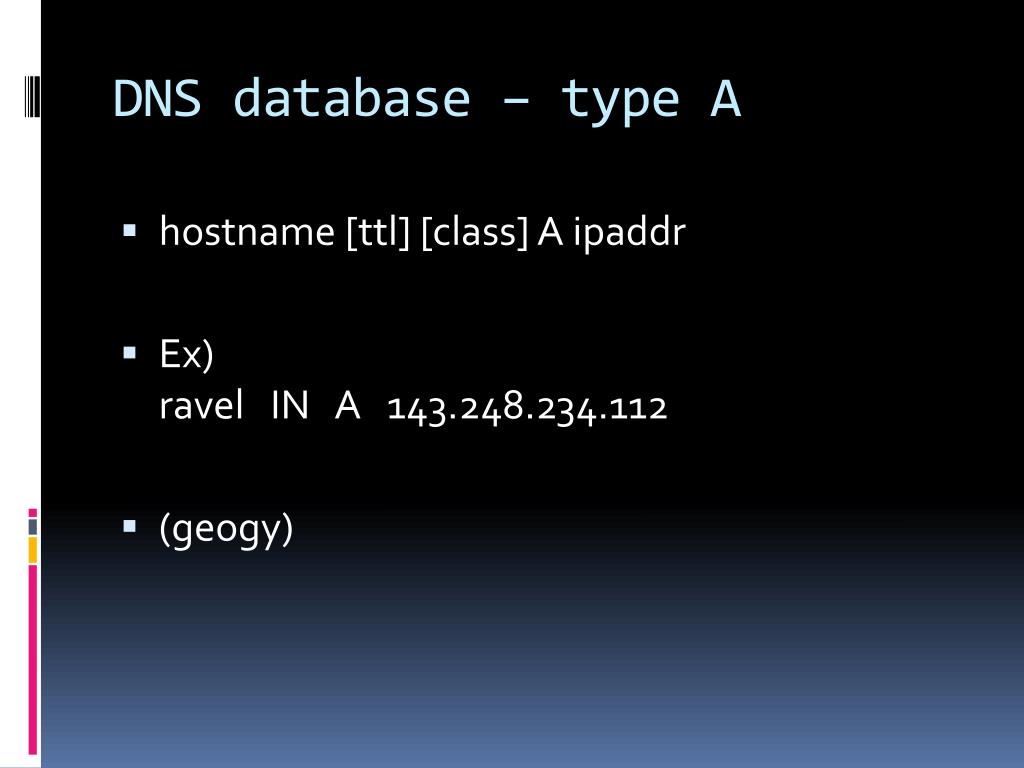

  14. DNS database – type A • hostname [ttl] [class] A ipaddr • Ex)ravel IN A 143.248.234.112 • (geogy)

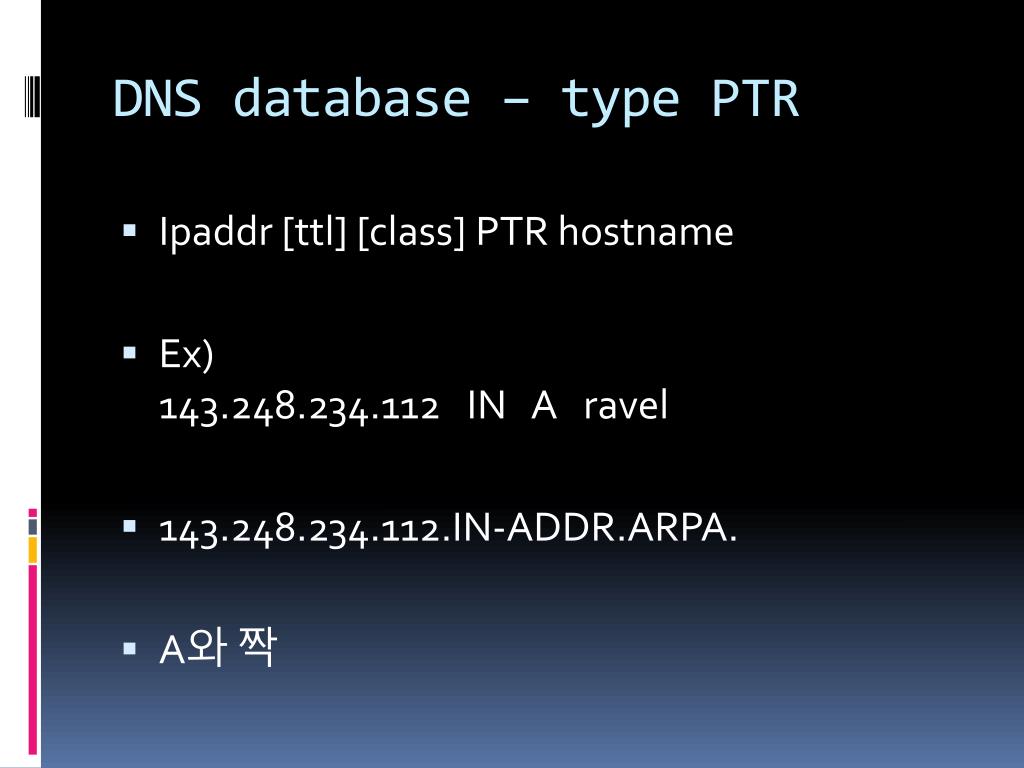

  15. DNS database – type PTR • Ipaddr [ttl] [class] PTR hostname • Ex)143.248.234.112 IN A ravel • 143.248.234.112.IN-ADDR.ARPA. • A와 짝

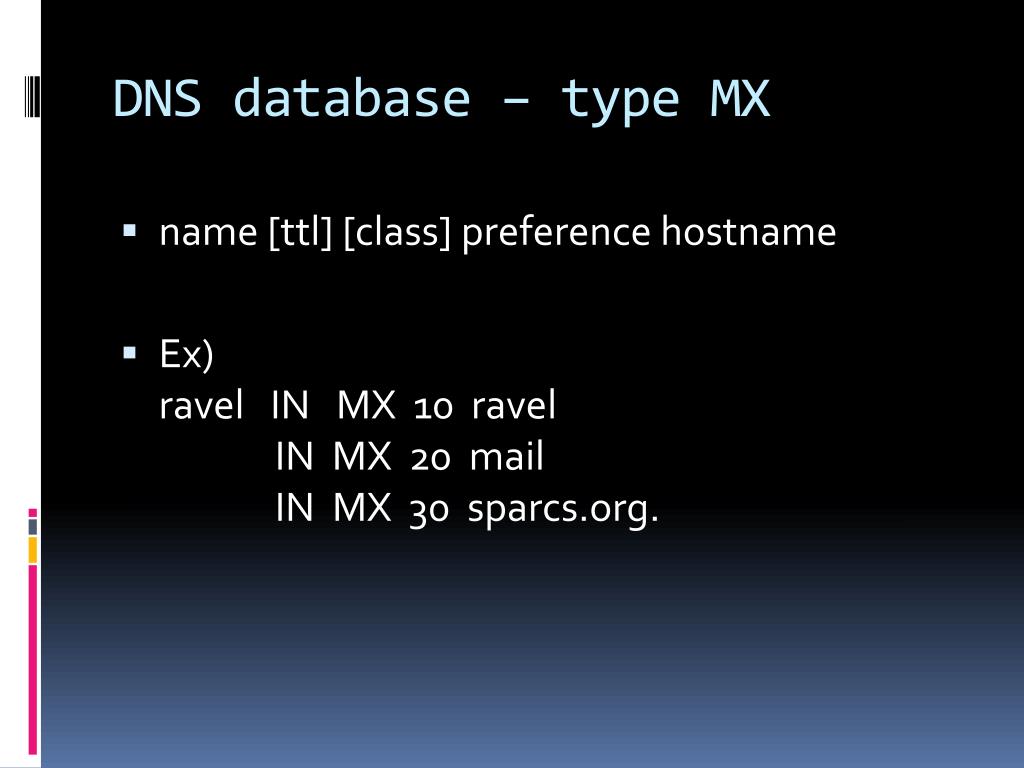

  16. DNS database – type MX • name [ttl] [class] preference hostname • Ex)ravel IN MX 10 ravel IN MX 20 mail IN MX 30 sparcs.org.

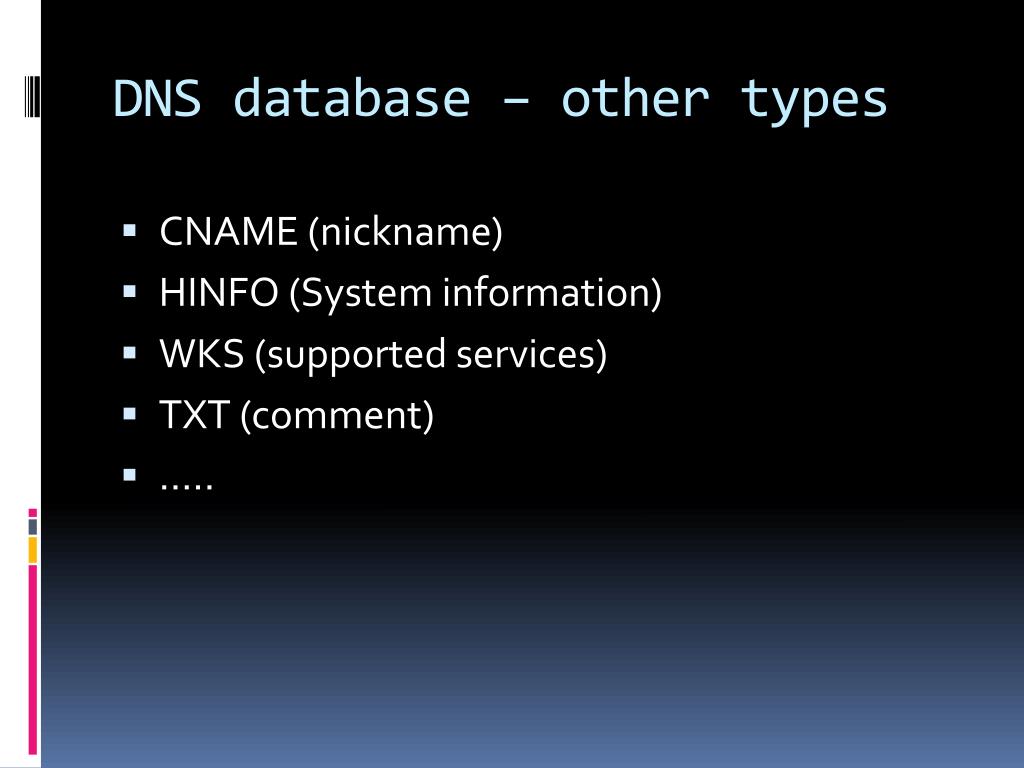

  17. DNS database – other types • CNAME (nickname) • HINFO (System information) • WKS (supported services) • TXT (comment) • …..
