  1. Network Topology Design Prepared by: Nitin Machhar Date: 2010-04-27

  2. Moxa Turbo Ring Technology Confidential

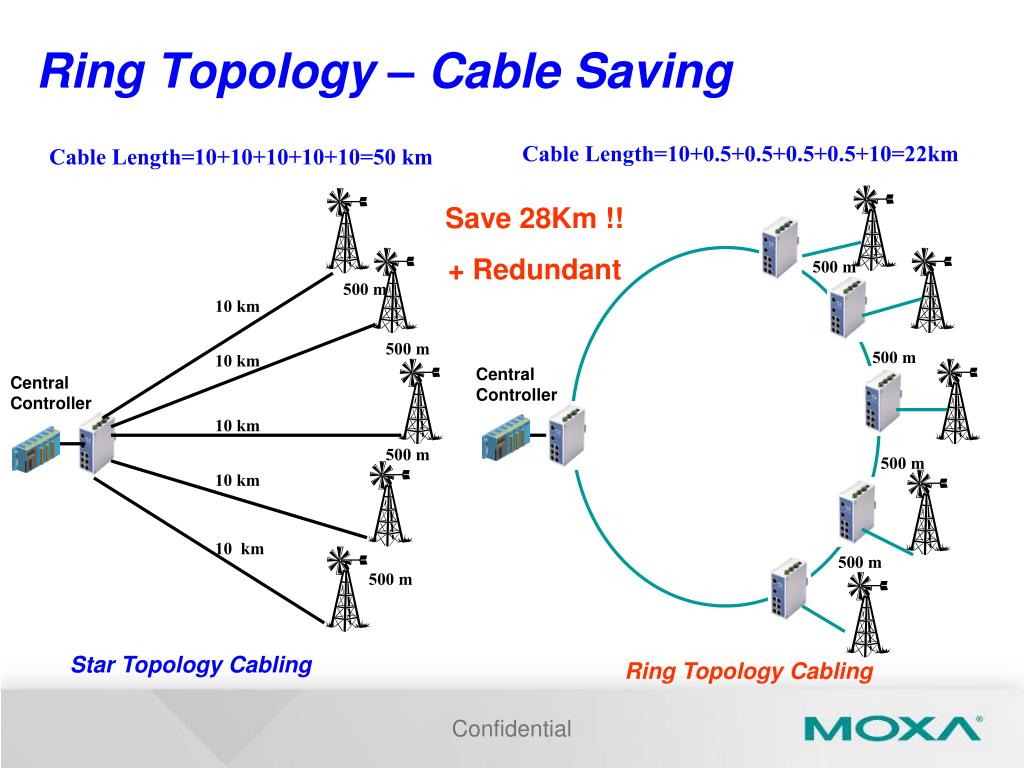

  3. Cable Length=10+0.5+0.5+0.5+0.5+10=22km 500 m 500 m Central Controller 500 m 500 m Ring Topology Cabling Ring Topology – Cable Saving Cable Length=10+10+10+10+10=50 km Save 28Km !! + Redundant 500 m 10 km 500 m 10 km Central Controller 10 km 500 m 10 km 10 km 500 m Star Topology Cabling Confidential

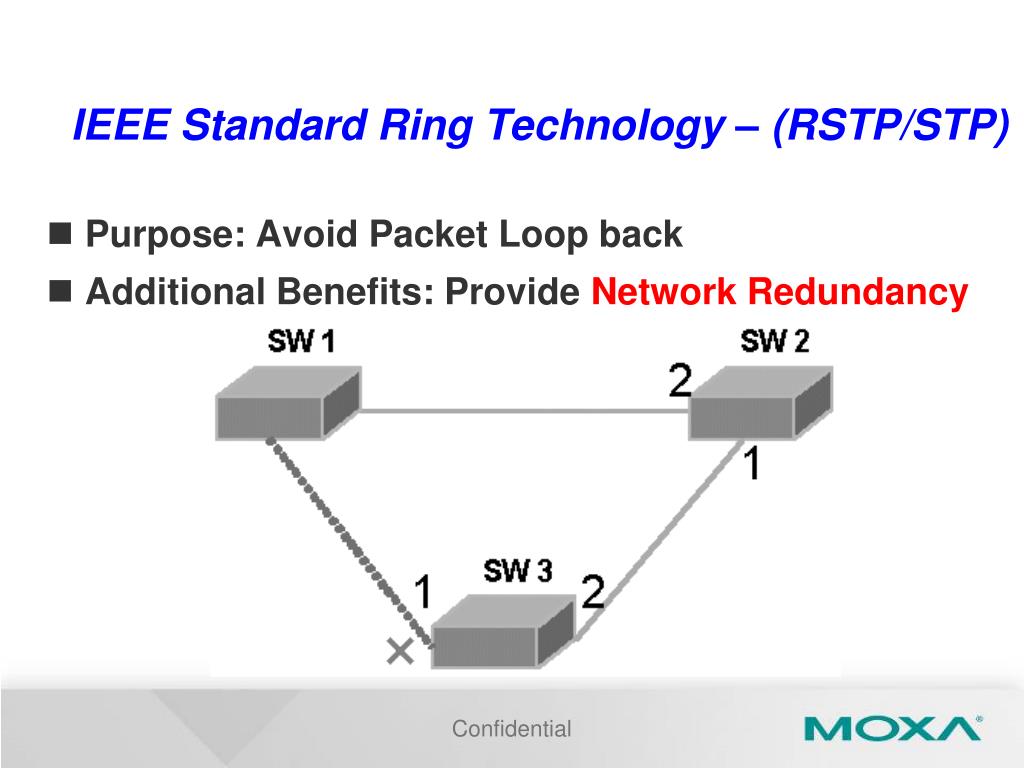

  4. IEEE Standard Ring Technology – (RSTP/STP) • Purpose: Avoid Packet Loop back • Additional Benefits: Provide Network Redundancy Confidential

  5. Up to 250 nos < 20 ms MOXA Turbo Ring • MOXA Proprietary Redundant Ring Technology • Better Performance & Practicability (especially for Device Level Network) • Easy to configure • Web browser / Windows utility / RS 232 Console / Telnet • DIP switch Setup Confidential

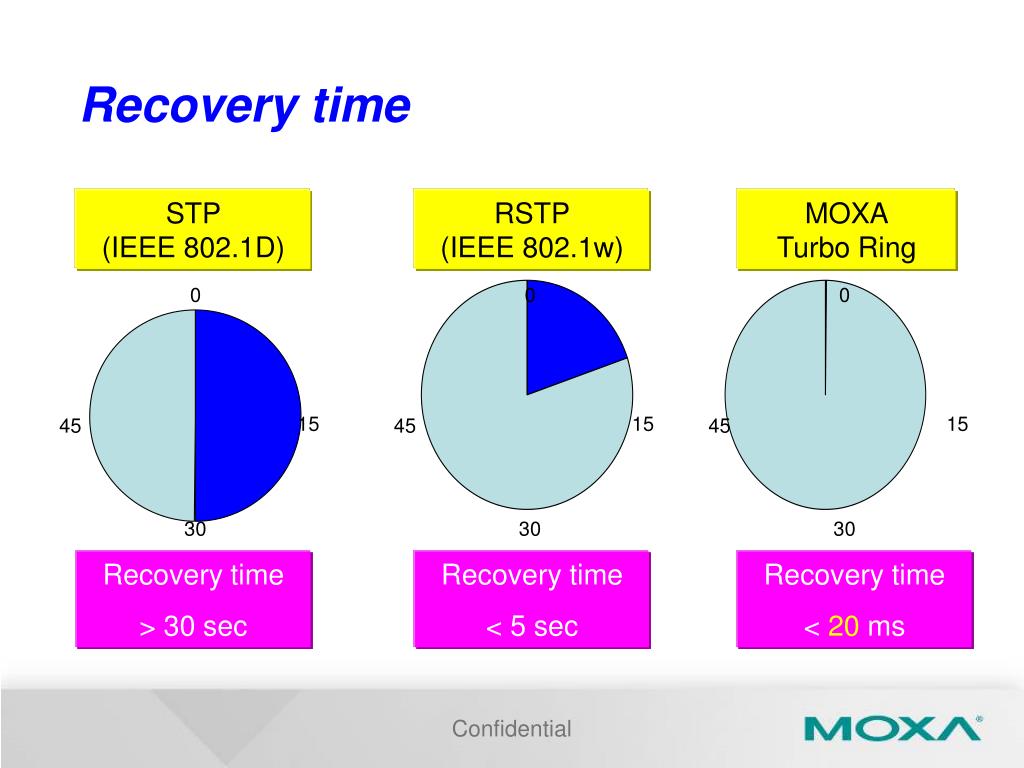

  6. STP(IEEE 802.1D) RSTP(IEEE 802.1w) MOXATurbo Ring 0 0 0 15 15 15 45 45 45 30 30 30 Recovery time > 30 sec Recovery time < 5 sec Recovery time < 20 ms Recovery time Confidential

  7. Turbo Ring vs. RSTP/STP Confidential

  8. Unblock Backup Port Ring Master 1. Ring Master Blocked Port Backup Path 3. If any path Broken 4. Activate Backup path How Turbo Ring Works? 2. Block one Port to avoid Looping Confidential

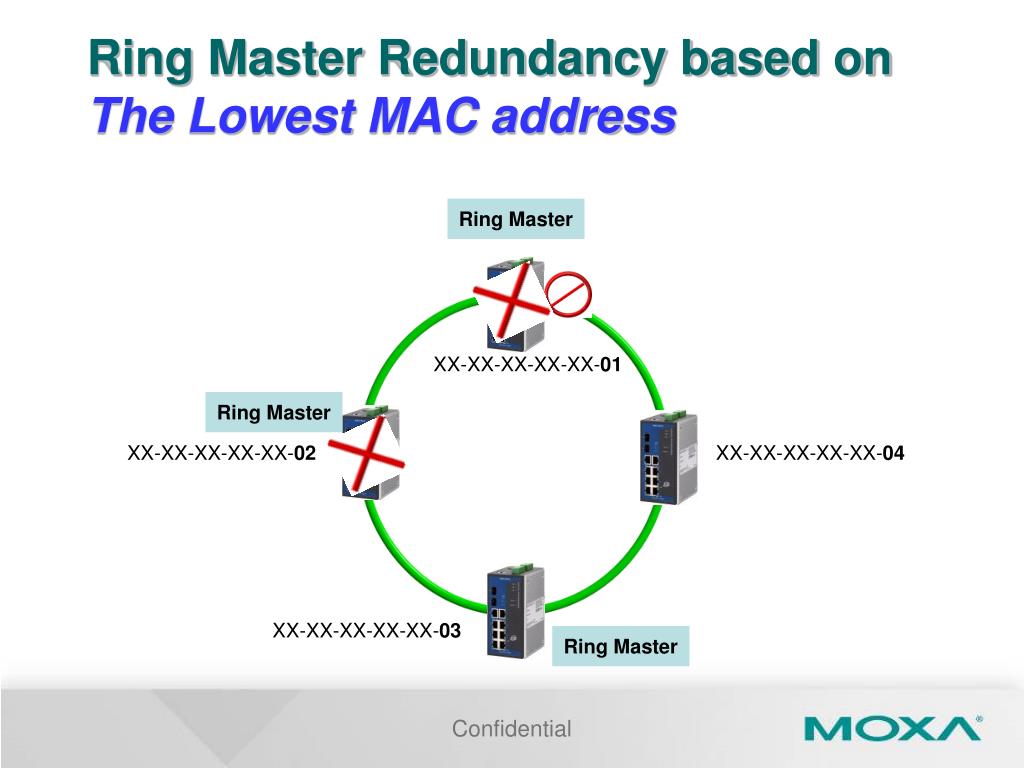

  9. Ring Master Redundancy based on The Lowest MAC address Ring Master XX-XX-XX-XX-XX-01 Ring Master XX-XX-XX-XX-XX-02 XX-XX-XX-XX-XX-04 XX-XX-XX-XX-XX-03 Ring Master Confidential

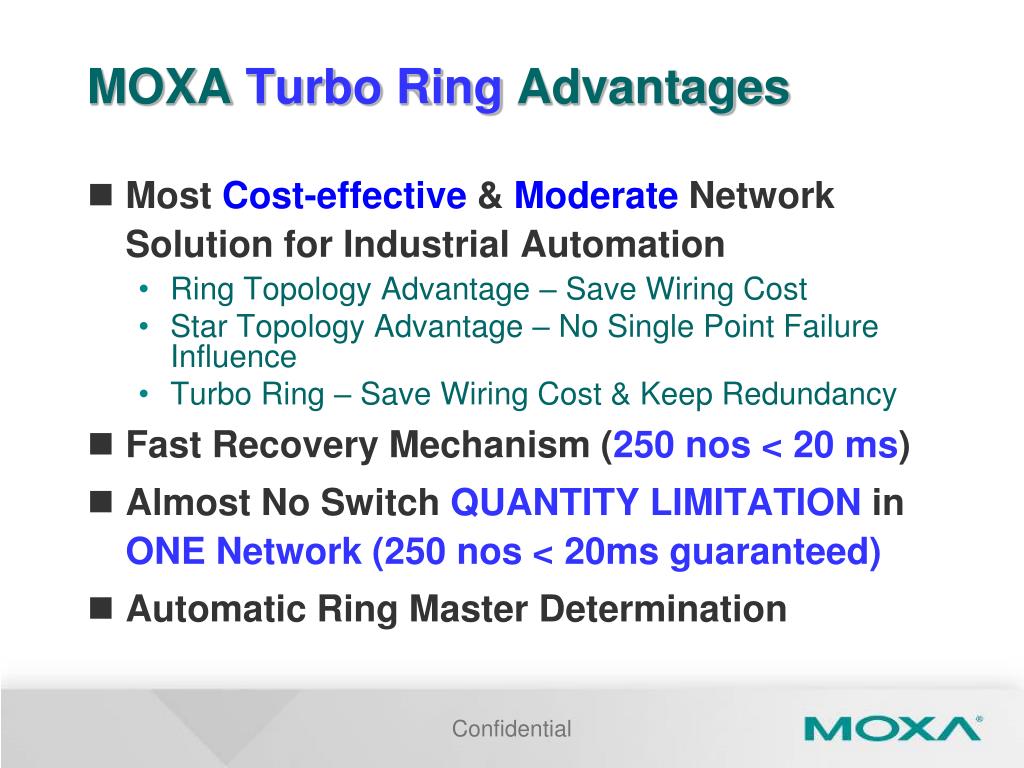

  10. MOXA Turbo Ring Advantages • Most Cost-effective & Moderate Network Solution for Industrial Automation • Ring Topology Advantage – Save Wiring Cost • Star Topology Advantage – No Single Point Failure Influence • Turbo Ring – Save Wiring Cost & Keep Redundancy • Fast Recovery Mechanism (250 nos < 20 ms) • Almost No Switch QUANTITY LIMITATION in ONE Network (250 nos < 20ms guaranteed) • Automatic Ring Master Determination Confidential

  11. Moxa Ring Coupling Technology Confidential

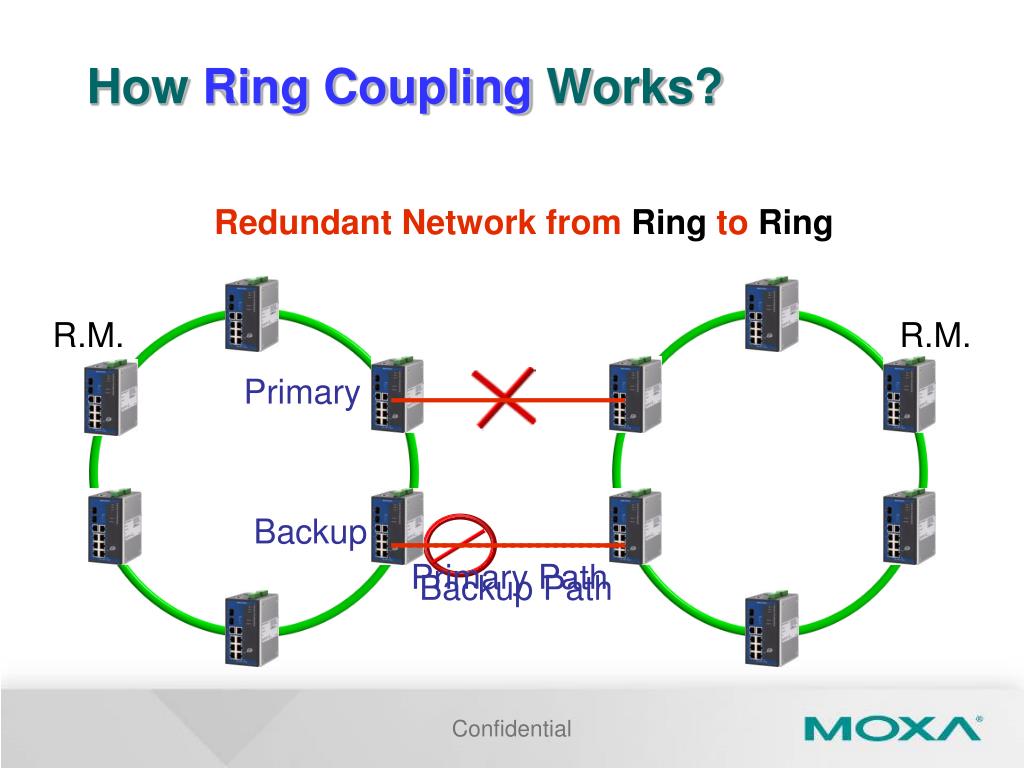

  12. Backup Path Primary Path How Ring Coupling Works? Redundant Network from Ringto Ring R.M. R.M. Primary Backup Confidential

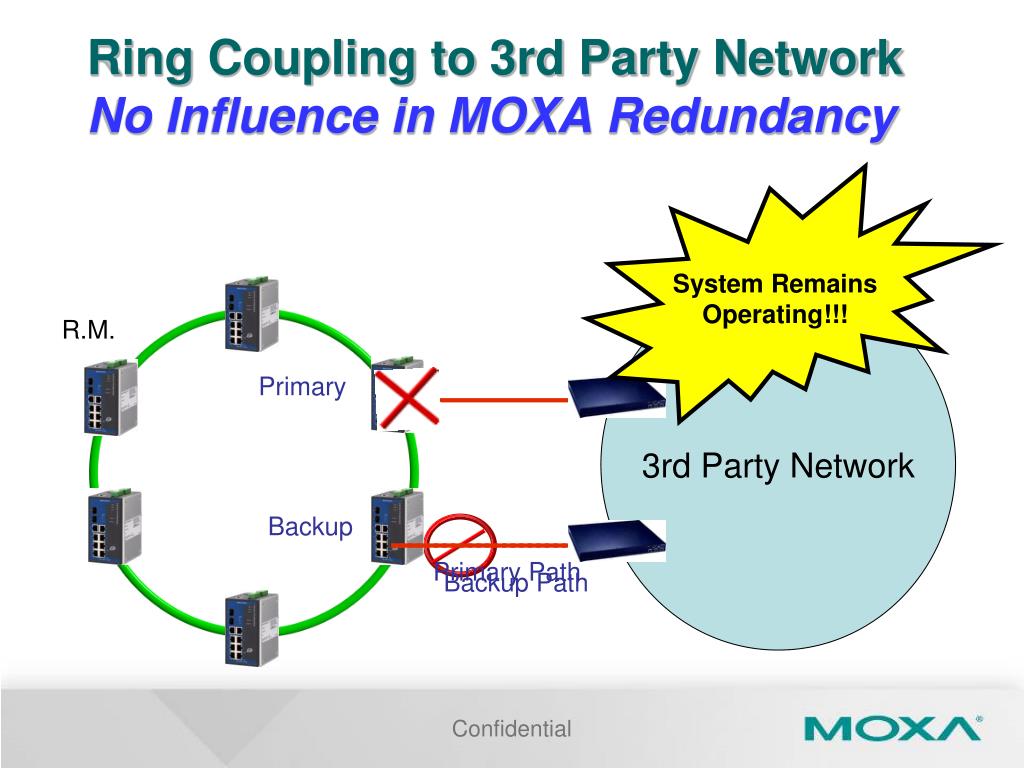

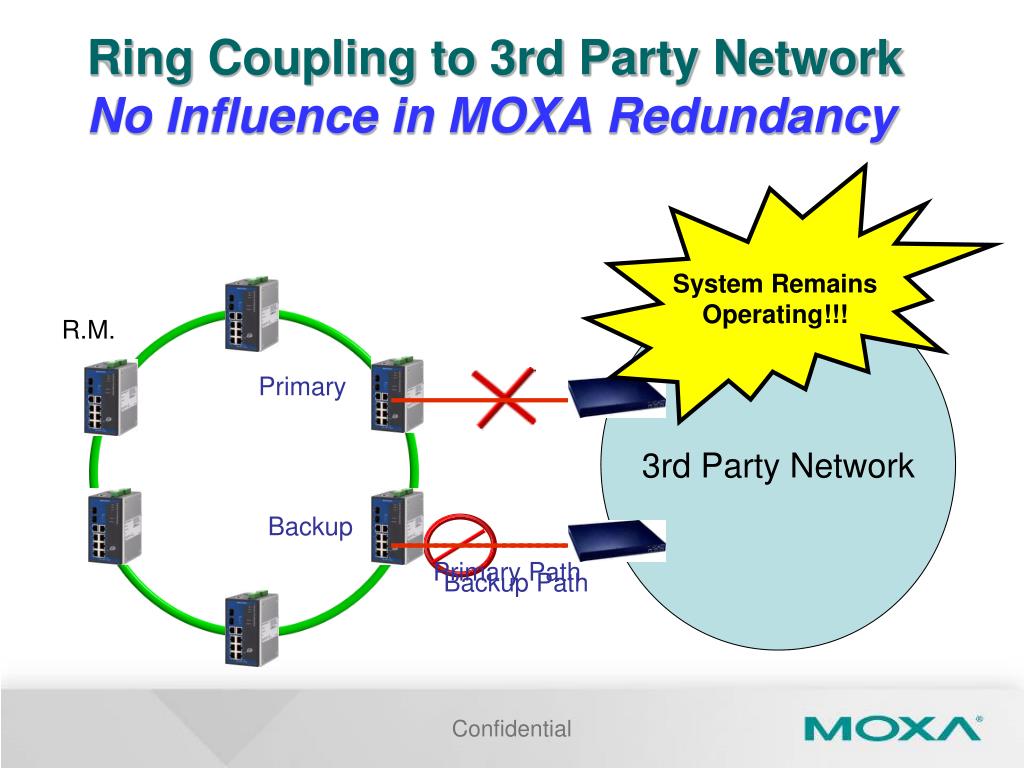

  13. Backup Path Primary Path Ring Coupling to 3rd Party NetworkNo Influence in MOXA Redundancy System Remains Operating!!! 3rd Party Network R.M. Primary Backup Confidential

  14. Backup Path Primary Path Ring Coupling to 3rd Party NetworkNo Influence in MOXA Redundancy System Remains Operating!!! 3rd Party Network R.M. Primary Backup Confidential

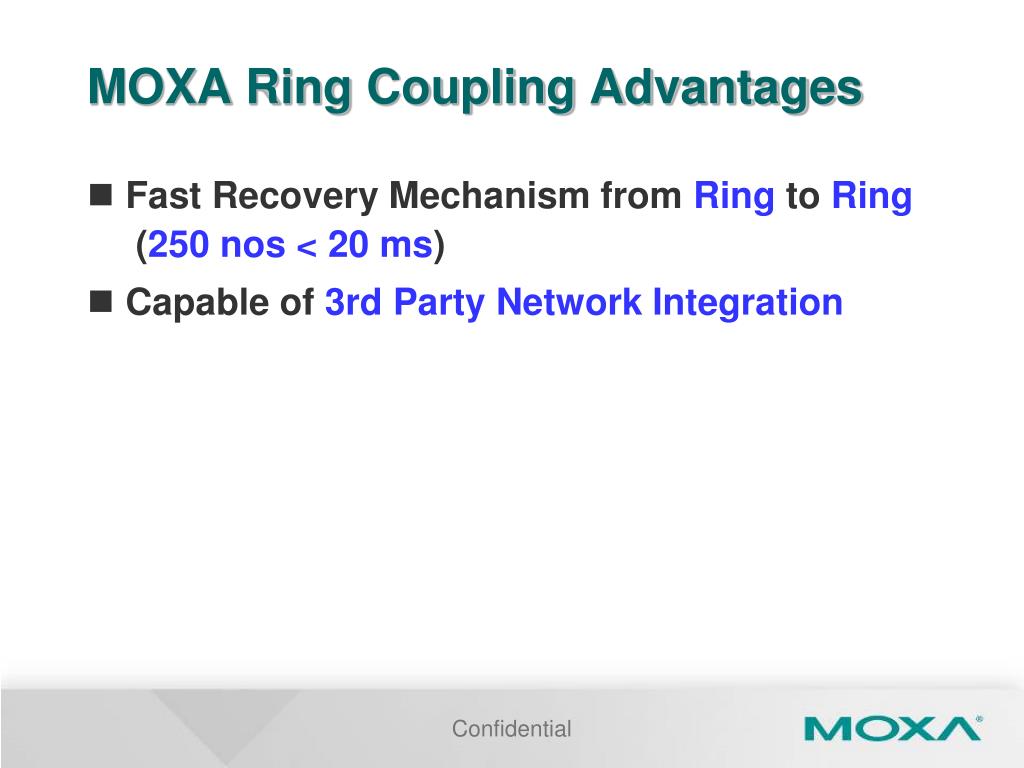

  15. MOXA Ring Coupling Advantages • Fast Recovery Mechanism from Ring to Ring (250 nos < 20 ms) • Capable of 3rd Party Network Integration Confidential

  16. Moxa Turbo Chain Technology Evolution !! Confidential

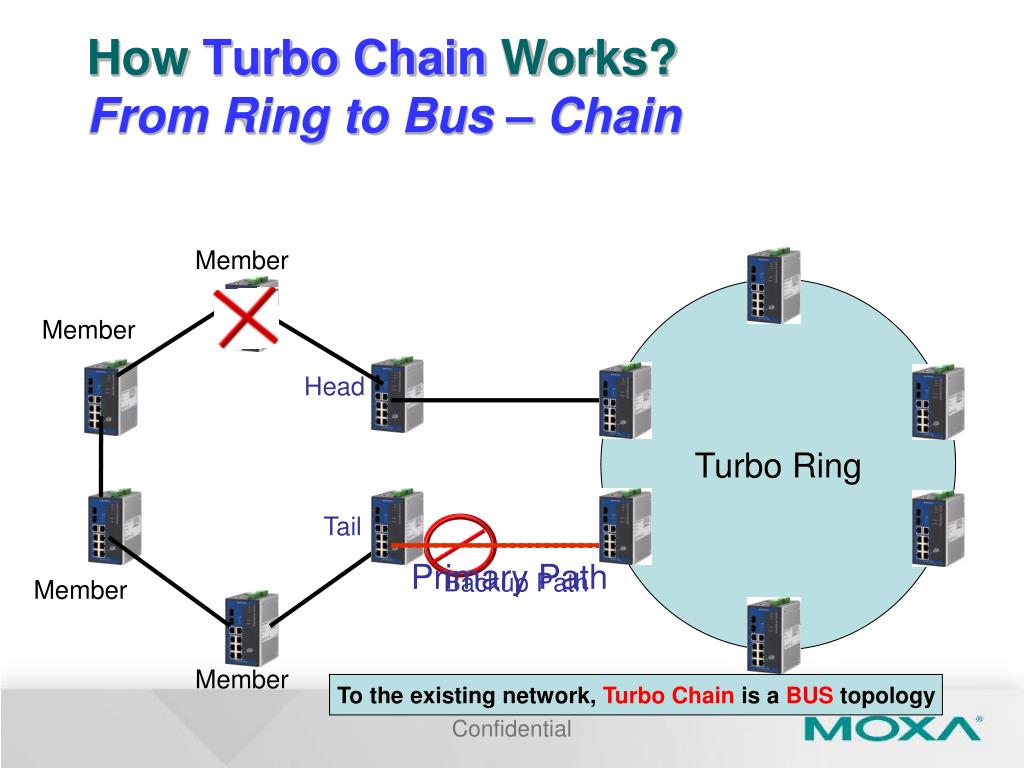

  17. Backup Path Primary Path How Turbo Chain Works?From Ring to Bus – Chain Member Turbo Ring Member Head Tail Member Member To the existing network, Turbo Chain is a BUS topology Confidential

  18. Backup Path Primary Path How Turbo Chain Works?From Ring to Bus – Chain Member Turbo Ring Member Head Tail Member Member To the existing network, Turbo Chain is a BUS topology Confidential

  19. MOXA Turbo Chain Advantages • Ring-like Bus Topology – Chain • Fast Recovery Mechanism (250 nos < 20 ms) • User Friendly for Large Network • Reducing Cable Costs • Flexible for Network Design & Expansion • No Interoperability Issue(Link down or switch failure won’t influence any other networks) Confidential

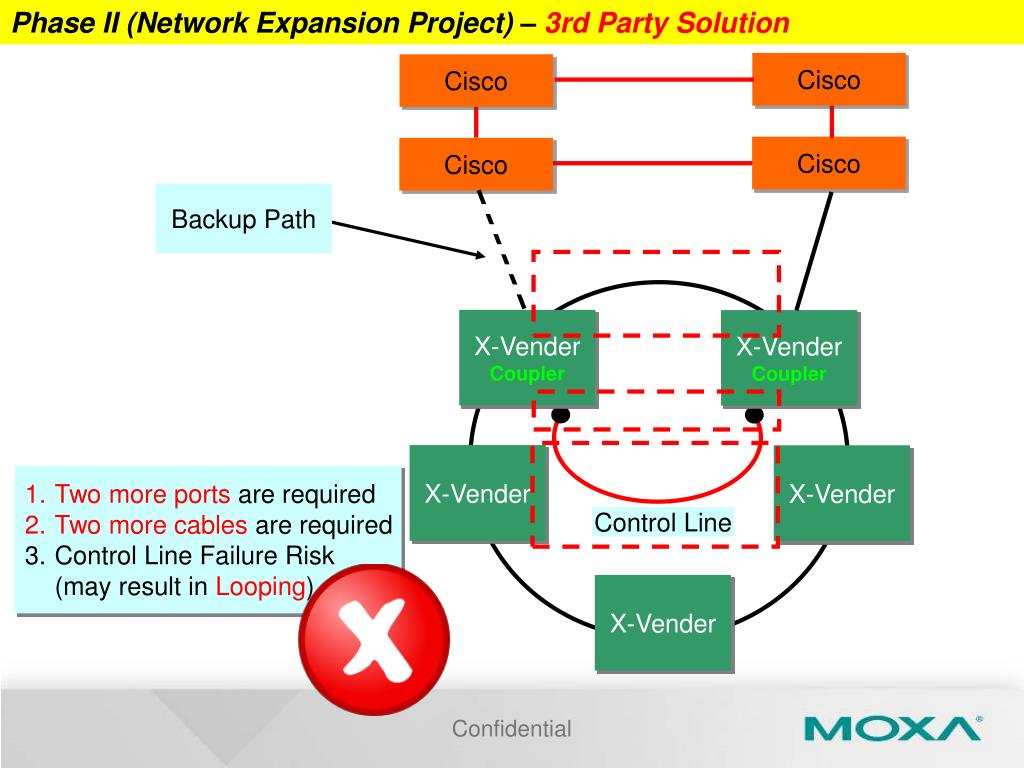

  20. Phase II (Network Expansion Project) – 3rd Party Solution Cisco Cisco Cisco Cisco Backup Path X-Vender Coupler X-Vender Coupler X-Vender X-Vender • Two more ports are required • Two more cables are required • Control Line Failure Risk(may result in Looping) Control Line X-Vender Confidential

  21. Phase II (Network ExpansionProject) – MOXA Solution Cisco Cisco Cisco Cisco Backup Path MOXA EDS-G509 (Tail) MOXA EDS-G509 (Head) EDS-508A EDS-508A MOXA EDS-G509 (Member) MOXA EDS-G509 (Member) EDS-508A EDS-508A MOXA EDS-G509 (Member) EDS-508A Turbo Chain 20ms@250 pcs • Flexible • Easy to Use • Load Sharing • Flexible Integration • Fast Recovery Confidential

  22. Recommended Network DesignTopology A Network Backbone MOXA Turbo Ring MOXA Turbo Ring MOXA Turbo Ring Confidential

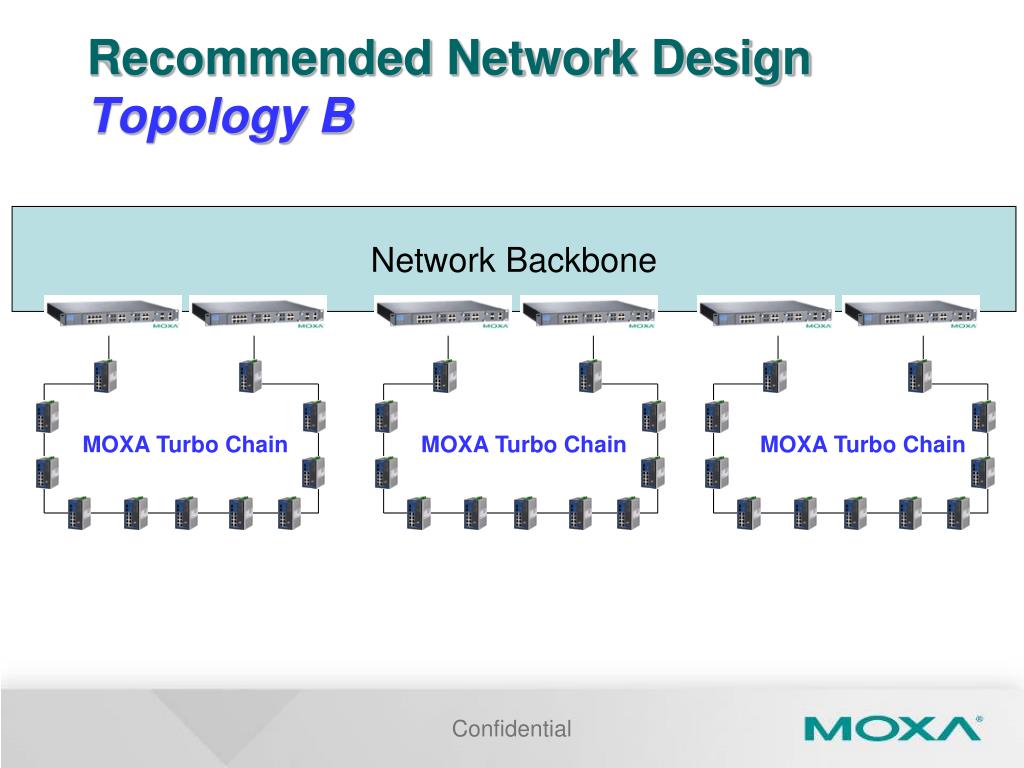

  23. Recommended Network DesignTopology B Network Backbone MOXA Turbo Chain MOXA Turbo Chain MOXA Turbo Chain Confidential

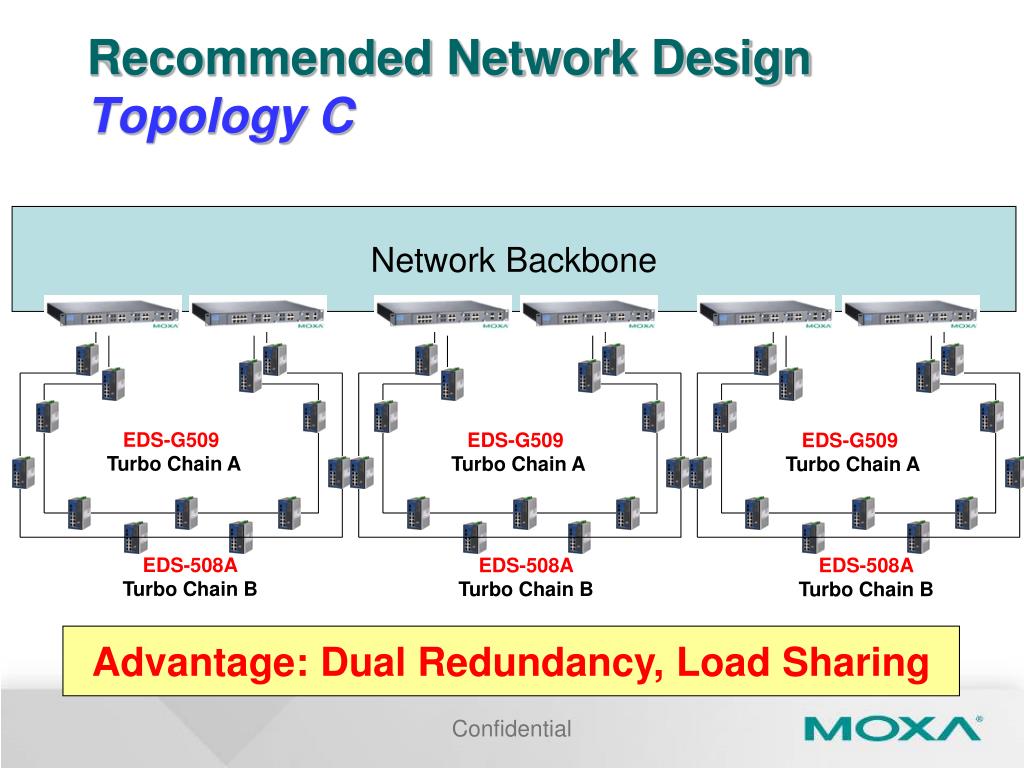

  24. Recommended Network DesignTopology C Network Backbone EDS-G509 Turbo Chain A EDS-G509 Turbo Chain A EDS-G509 Turbo Chain A EDS-508A Turbo Chain B EDS-508A Turbo Chain B EDS-508A Turbo Chain B Advantage: Dual Redundancy, Load Sharing Confidential

  25. Turbo ChainConfiguration Confidential

  26. Chain Switch Roles • Head • Member • Tail Confidential

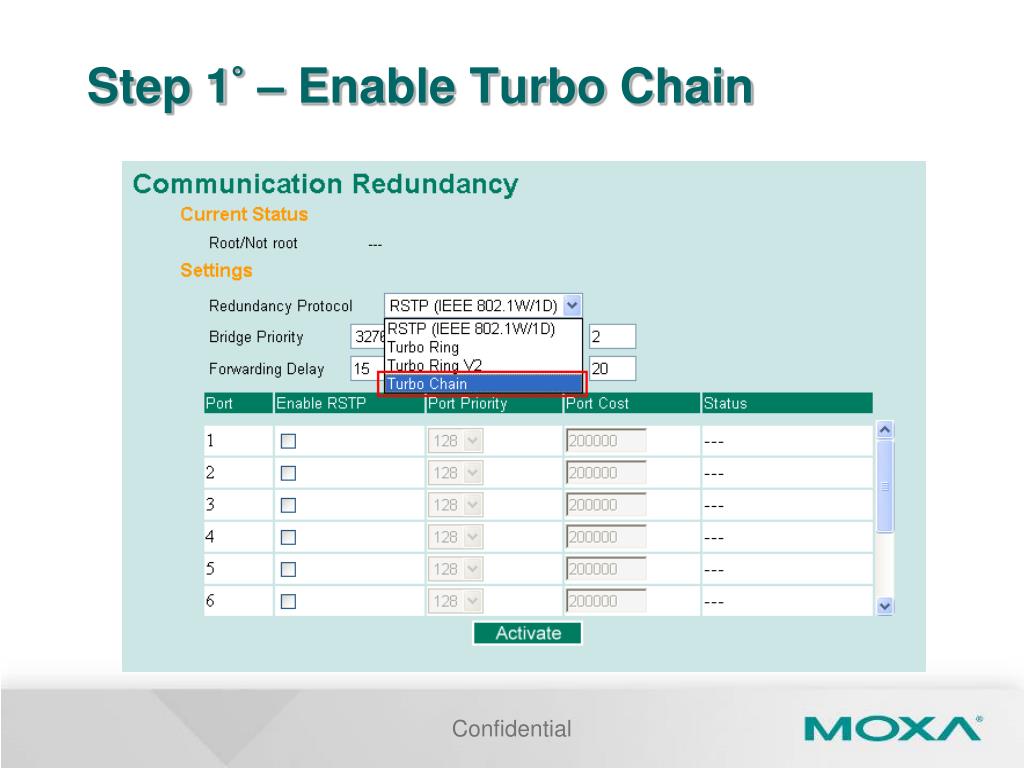

  27. Step 1° – Enable Turbo Chain Confidential

  28. Step 2° – Define Switch Role (Head) Confidential

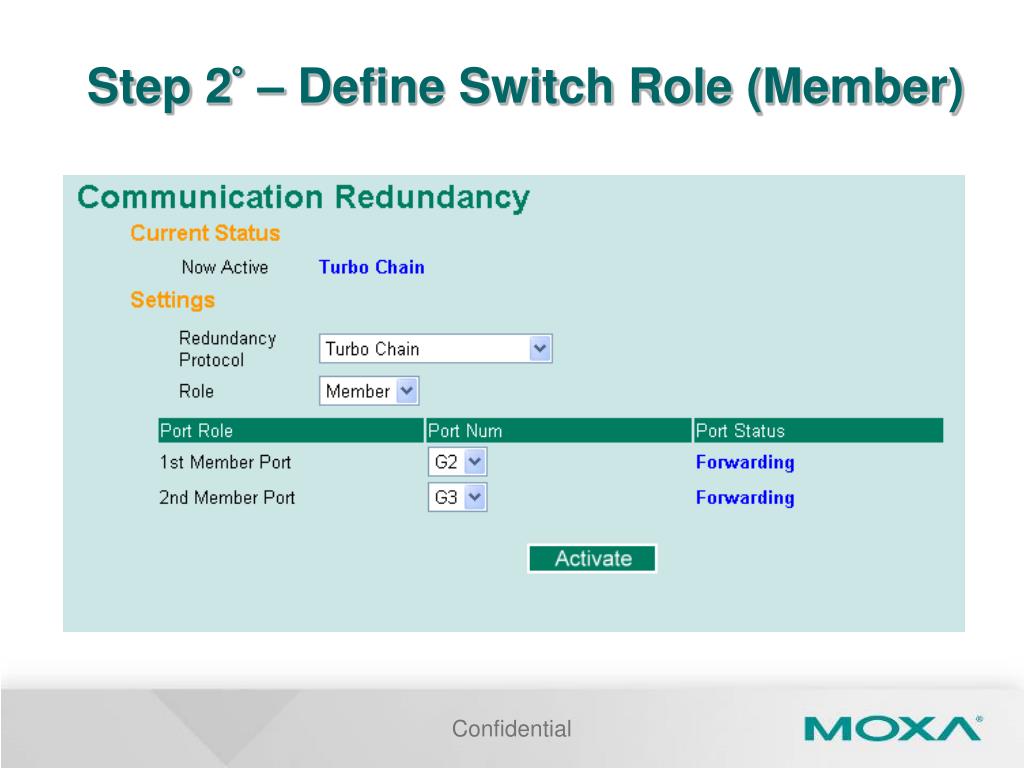

  29. Step 2° – Define Switch Role (Member) Confidential

  30. Step 2° – Define Switch Role (Tail) Confidential

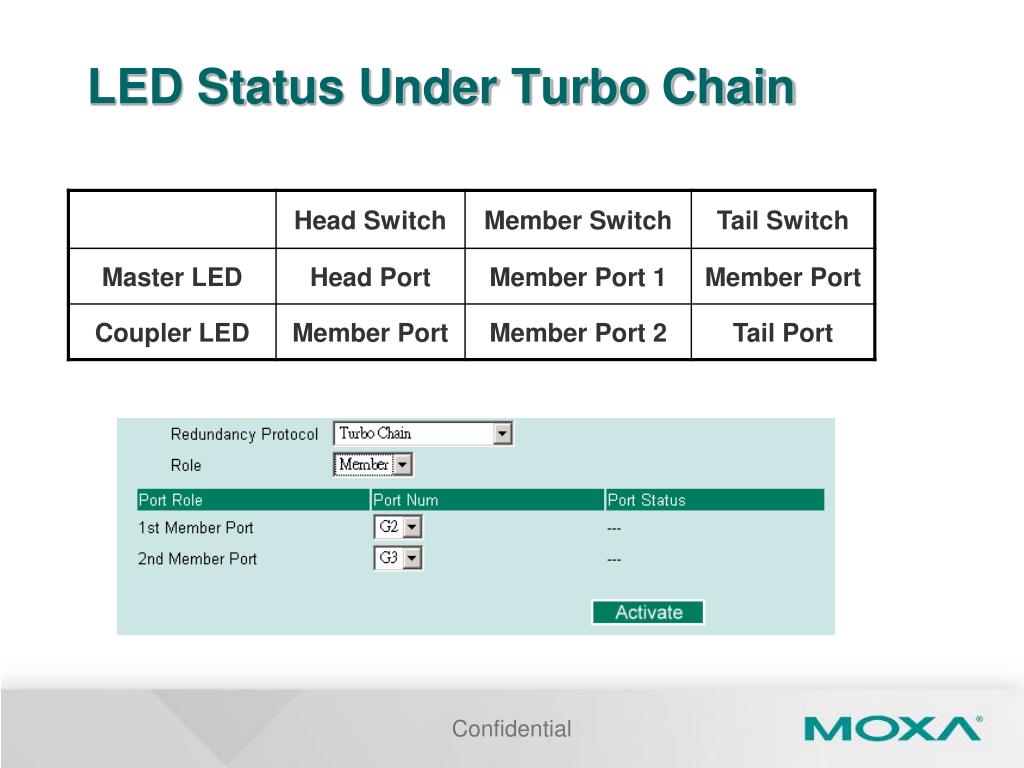

  31. LED Status Under Turbo Chain Confidential

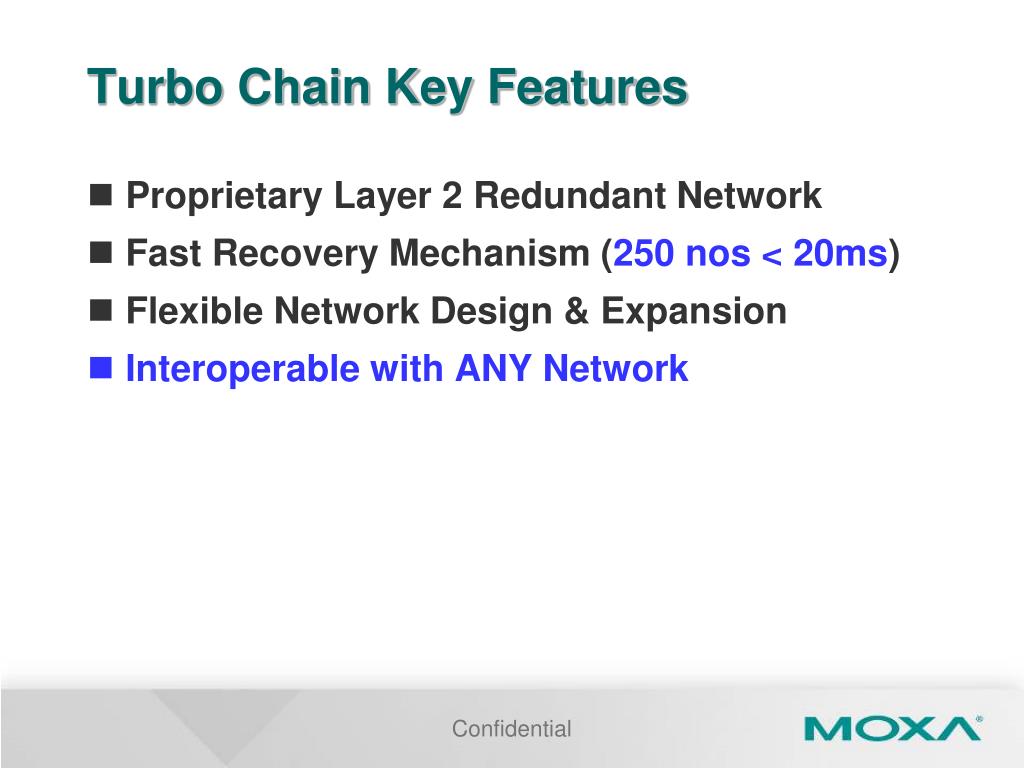

  32. Turbo Chain Key Features • Proprietary Layer 2 Redundant Network • Fast Recovery Mechanism (250 nos < 20ms) • Flexible Network Design & Expansion • Interoperable with ANY Network Confidential

  33. More Fancy Examples Confidential

  34. Blocking Port Turbo Chain with RSTP Network RSTP F Turbo Chain F Confidential

  35. Turbo Chain Blocking Port Single Ring Network Confidential

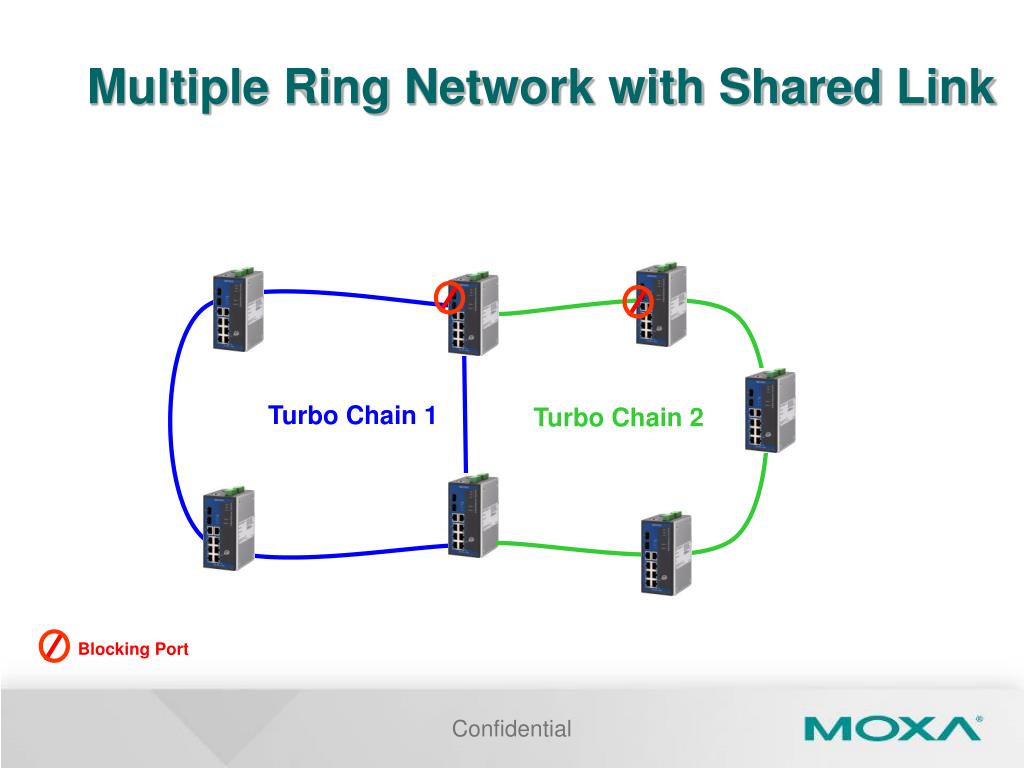

  36. Blocking Port Multiple Ring Network with Shared Link Turbo Chain 1 Turbo Chain 2 Confidential

  37. Turbo Chain 2 Turbo Chain 1 Turbo Chain 3 Turbo Chain 2 Blocking Port Multiple Ring Network with ONE Node Confidential

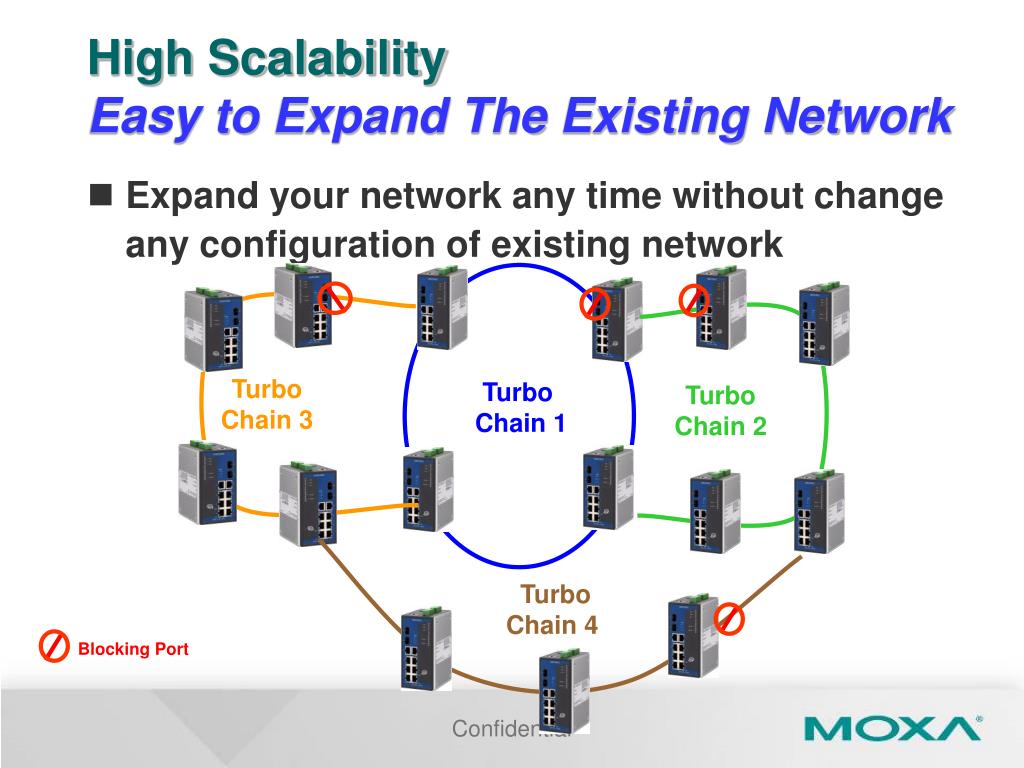

  38. Turbo Chain 2 Turbo Chain 3 Turbo Chain 1 Turbo Chain 4 Blocking Port High ScalabilityEasy to Expand The Existing Network • Expand your network any time without change any configuration of existing network Confidential

  39. Applications with Turbo Chain Confidential

  40. Network in Wind Farm Confidential

  41. 乌兹别克斯坦的石油管道监控项目三期(Uzbekistan Pipeline Monitoring Phase #3) Turbo Ring Turbo Chain SW SW SW SW7 SW1 SW2 SW3 SW SW SW SW SW SW SW SW SW SW4 SW SW SW SW SW SW5 SW6 SW SW SW SW SW SW SW SW SW Confidential

  42. 台鐵監控系統架構(Taiwan Railway Monitoring System) Confidential

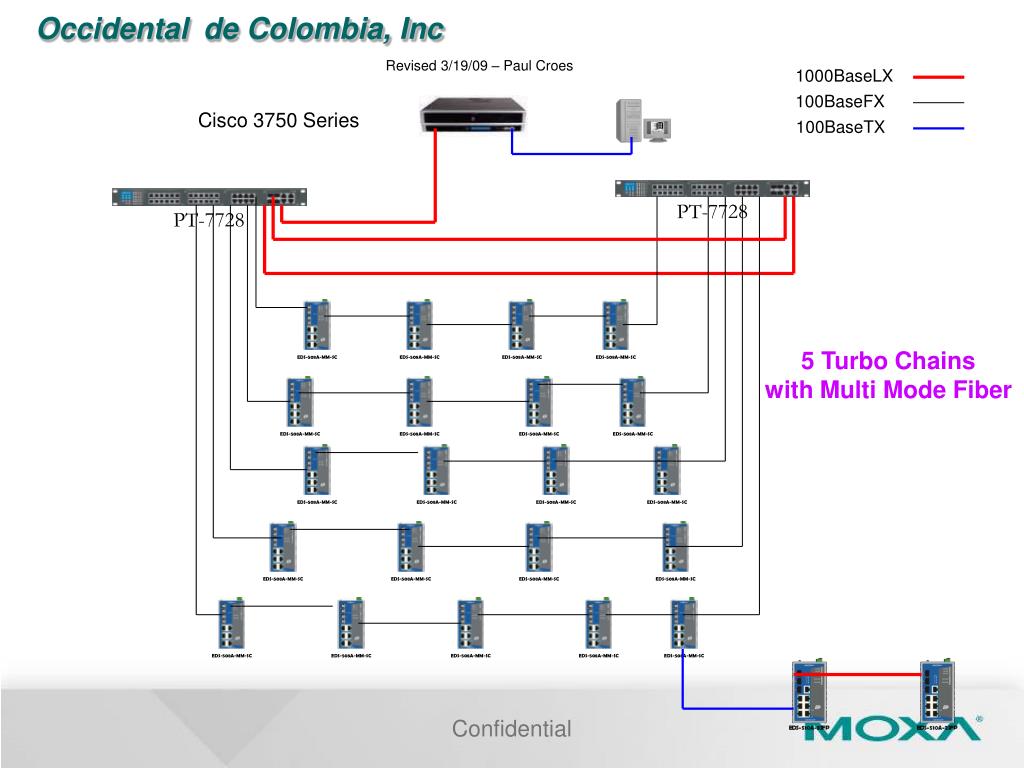

  43. Occidentalde Colombia, Inc Revised 3/19/09 – Paul Croes 1000BaseLX 100BaseFX Cisco 3750 Series 100BaseTX 5 Turbo Chains with Multi Mode Fiber Confidential

  44. MOXA Reference (Oil/Gas) Confidential

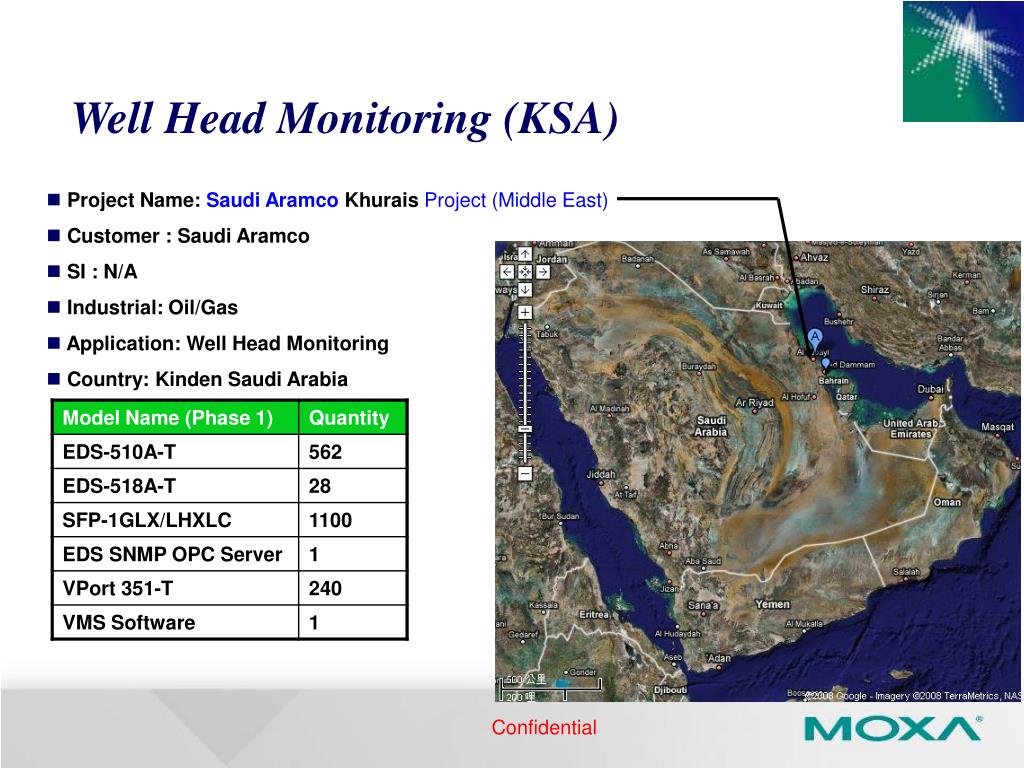

  45. Well Head Monitoring (KSA) • Project Name: Saudi Aramco Khurais Project (Middle East) • Customer : Saudi Aramco • SI : N/A • Industrial: Oil/Gas • Application: Well Head Monitoring • Country: Kinden Saudi Arabia Confidential

  46. Well Head Monitoring (Saudi) • Saudi Aramco, the state-owned national oil company of Saudi Arabia, is the largest oil corporation in the world and the world's largest in terms of proven crude oil reserves and production [2]. Headquartered in Dhahran, Saudi Arabia, Saudi Aramco also operates the world's largest single hydrocarbon network, the Master Gas System. It was formerly known as just Aramco between the years of 1933-1988, an acronym for Arabian American Oil Company. Confidential

  47. Well Head Monitoring (KSA) Confidential Confidential

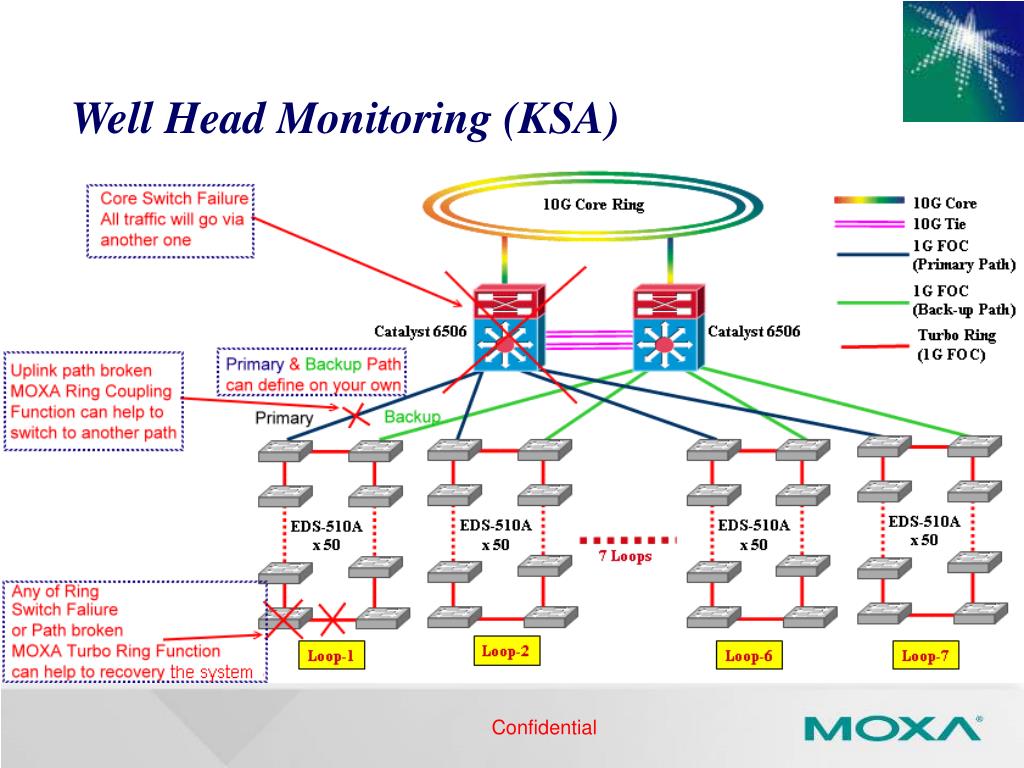

  48. Well Head Monitoring (KSA) Confidential

  49. Confidential Confidential

  50. Confidential Confidential
