Network Topology

Network Topology. Network topology is the layout pattern of interconnections of various elements of a computer network. Four Main Topologies Point-to-point Bus Star Tree. Point-to-Point Topology. This is the simplest topology and it is a permanent link between two endpoints.

gyan
Télécharger la présentation

Network Topology

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

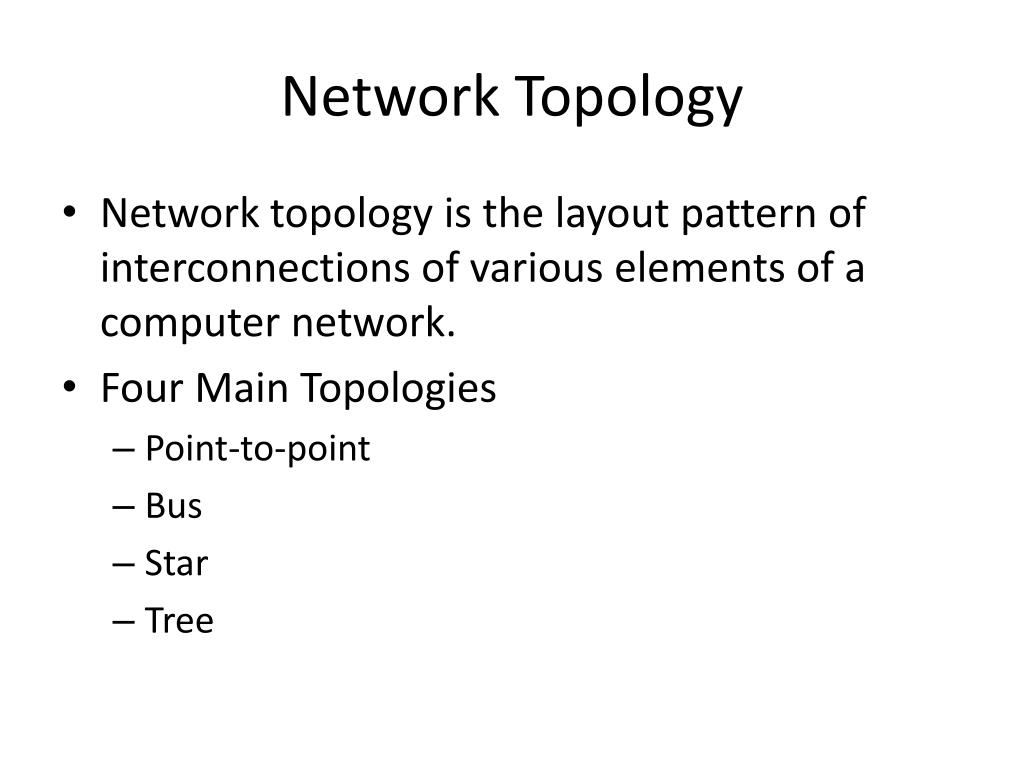

  1. Network Topology • Network topology is the layout pattern of interconnections of various elements of a computer network. • Four Main Topologies • Point-to-point • Bus • Star • Tree

  2. Point-to-Point Topology • This is the simplest topology and it is a permanent link between two endpoints. • Two subcategories: • permanent topology, this is a point-to-point communication channel that appears, to the user, to be permanently associated with the two endpoints. • switched topology, this uses circuit-switching technologies, a point-to-point circuit can be set up dynamically, and dropped when no longer needed.

  3. Bus Topology • each node is connected to a single cable. • Two subcategories: • linear bus, this network topology in which all of the nods of the network are connected to a common transmission medium, which has two end point. • is distributed bus topology is a topology in which all nodes in the network are connected to a common transmission medium which has more than endpoints that are made by adding branches to the main section.

  4. Star Topology • each network host is connected to a central hub. In contrast to the bus topology, the star topology connects each node to the hub with a point-to-point connection.

  5. Tree Topology • This topology has a central root node that is connected to one or more other nodes that are one level lower in the network. It has a point-to-point link between the second and top level central nodes. A the same time, the second level nodes that are connected to the top will also have nodes connected to it that is one level lower.
