  1. Cracking the Case: Microstamping Joshua Horwitz Educational Fund to Stop Gun Violence Jhorwitz@csgv.org

  2. Components of a Cartridge

  3. Components of a Gun

  4. Cartridge Case Ejection

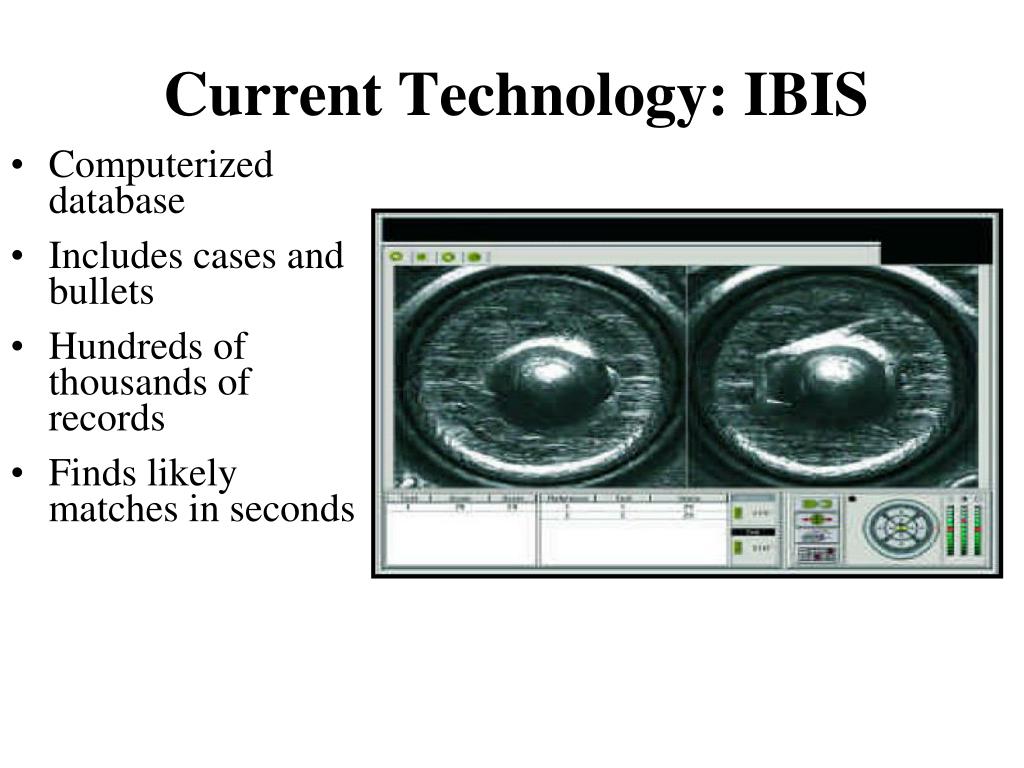

  5. Current Technology: IBIS • Computerized database • Includes cases and bullets • Hundreds of thousands of records • Finds likely matches in seconds • Top candidates reviewed by trained examiner

  6. New Technology: Microstamping Inventors: Todd Lizotte & Orest Ohar Manchester, NH www.NanoMark.com

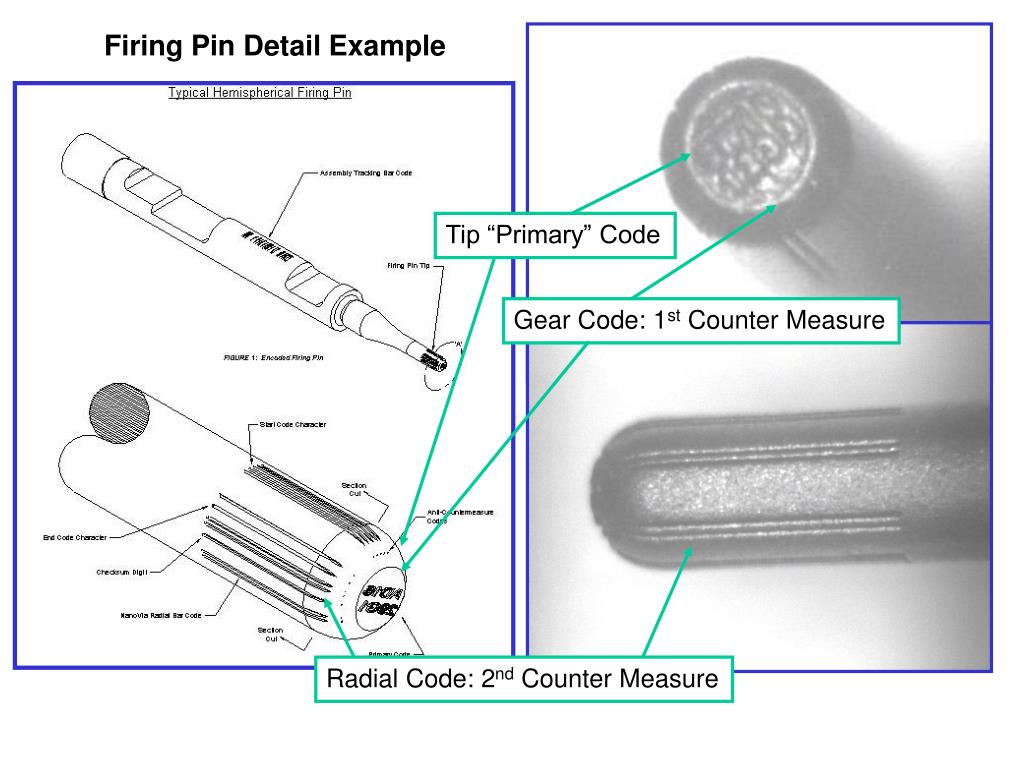

  7. Firing Pin Detail Example Tip “Primary” Code Gear Code: 1st Counter Measure Radial Code: 2nd Counter Measure

  8. Breach Face Mark Firing Pin Mark SW10 8 Digit Code SW10 Gear Code 1233 1233 Primer Head Stamp / Casing

  9. $8.50 to $4.00 Per Surface $4.00 to $1.50 Per Surface $1.50 to $0.25 Per Surface NanoMark TMBallistic ID TagTM Manufacturing Keeping The Focus On The Physical Evidence. TM MicroStamping Manufacturing Added Cost Low Volume / Specialty Firearms Manufacturers Semi / Fully Automated System *$250,000.00 to $350,000.00 Medium Volume Firearms Manufacturers Large Volume / Military Firearms Manufacturers Manual System / $200,000.00 Licensed Regional Job Shops (Multiple Sources) Competitive Pricing & Quality Licensed Captive Manufacturers Licensed Captive Manufacturers Providing Services (Excess Production Capacity) *Lizotte and Ohar developed a new direct write maskless process which has reduced capital costs

  10. Fired Cartridge Cases from the Thompson SMG “Sub Machine Gun” after 2500 rds. .45 Cal Cartridges Used From a Study by Lucien Haag Presented to the National Academy of Sciences

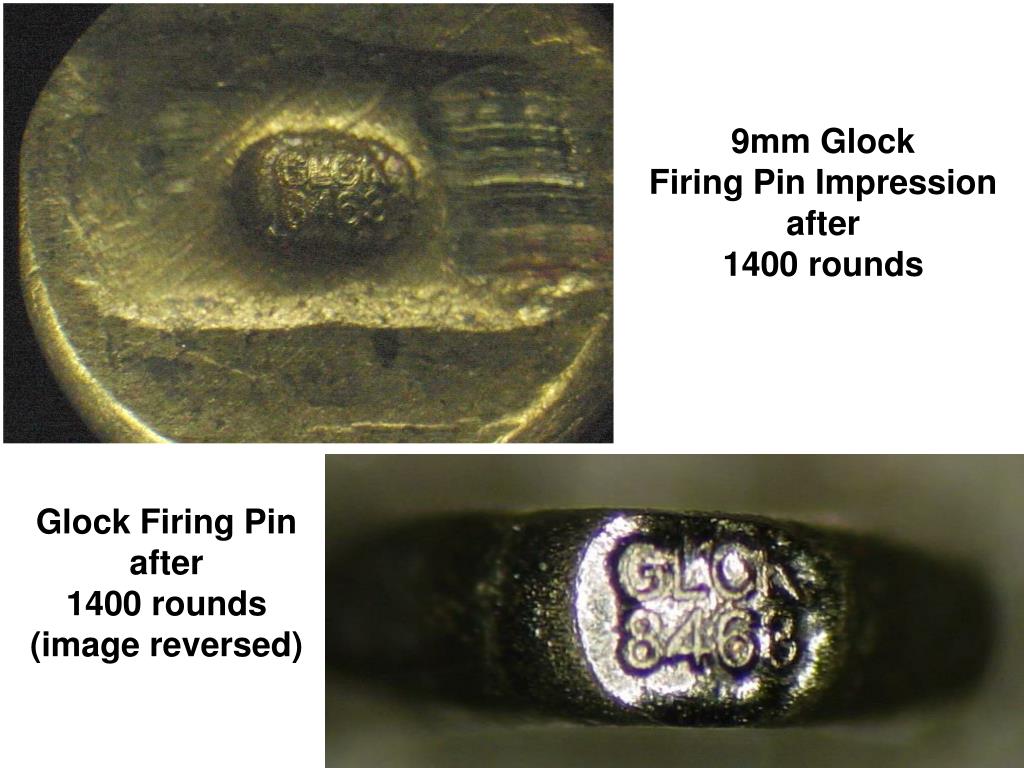

  11. 9mm Glock Firing Pin Impression after 1400 rounds Glock Firing Pin after 1400 rounds (image reversed)

  12. SEM View at 130X

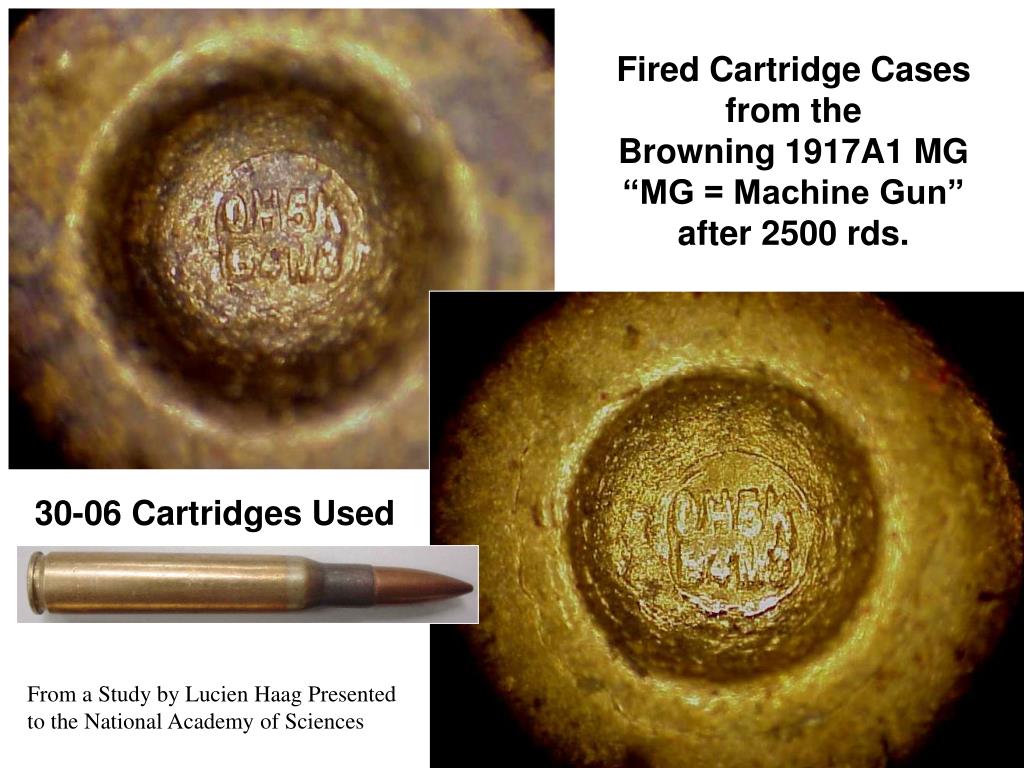

  13. Fired Cartridge Cases from the Browning 1917A1 MG “MG = Machine Gun” after 2500 rds. 30-06 Cartridges Used From a Study by Lucien Haag Presented to the National Academy of Sciences

  14. SEM at 130X Winchester Cartridge after ca. 200 rds. SEM at 130X Norinco Cartridge With Massive Shear

  15. 9mm Glock Firing Pin Impression after 1400 rounds Glock Firing Pin after 1400 rounds (image reversed) From a Study by Lucien Haag Presented to the National Academy of Sciences

  16. SUMMARY Ballistic ID Tagging™ Glock Project The scraping action associated with Glock firing pins does not degrade the embossed ID information after 1400+ rounds. Lacquered primers do not present a problem. Ageing of fired cartridges followed by cleaning does not present a problem. Misfired cartridges and variations in peak pressure during discharge do not present a problem. Primer finish and hardness do not present a problem. From a Study by Lucien Haag Presented to the National Academy of Sciences
