VSEPR Theory

VSEPR Theory. Molecular geometries. VSEPR Theory. Stands for valence-shell electron-pair repulsion theory States that because electrons repel each other, the molecular shape of the compound will change so that the valence electron pairs are as far away from each other as possible.

gisela
Télécharger la présentation

VSEPR Theory

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. VSEPR Theory Molecular geometries

  2. VSEPR Theory • Stands for valence-shell electron-pair repulsion theory • States that because electrons repel each other, the molecular shape of the compound will change so that the valence electron pairs are as far away from each other as possible

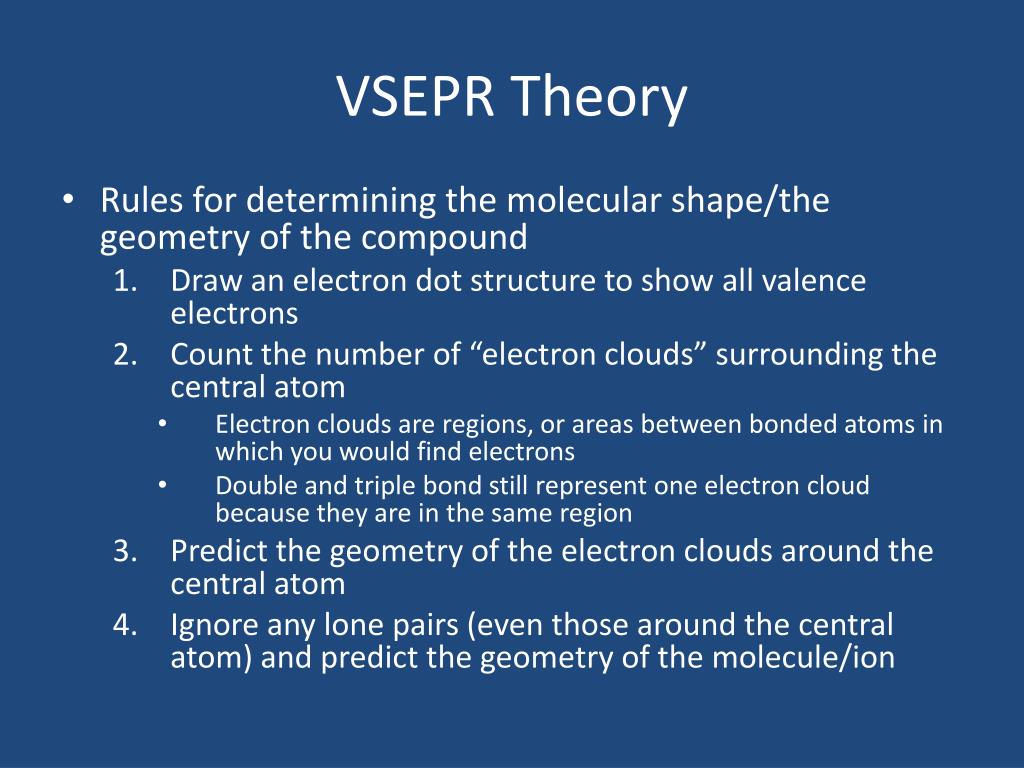

  3. VSEPR Theory • Rules for determining the molecular shape/the geometry of the compound • Draw an electron dot structure to show all valence electrons • Count the number of “electron clouds” surrounding the central atom • Electron clouds are regions, or areas between bonded atoms in which you would find electrons • Double and triple bond still represent one electron cloud because they are in the same region • Predict the geometry of the electron clouds around the central atom • Ignore any lone pairs (even those around the central atom) and predict the geometry of the molecule/ion

  4. Linear • CO2 • Electron clouds present: 2 • Geometry: Linear

  5. Trigonal Planar • CO3-2 • Electron clouds present: 3 • Geometry: Trigonal Planar

  6. Trigonal Pyramidal • NH3 • Electron Clouds present: 4 • One is due to a lone pair of electrons • Geometry: Trigonal pyramidal

  7. Tetrahedral • CH4 • Electron Clouds present: 4 • Geometry: Tetrahedral

  8. TrigonalBipyramidal • PCl5 • Electron Clouds present: 5 • Geometry: TrigonalBipyramidal

  9. Octahedral • SF6 • Electron Clouds present: 6 • Geometry: Octahedral

  10. Bent • H2O • Electron clouds present: 4 • 1 cloud contains a lone pair of electrons • Geometry: Bent

  11. Example 1 • CO • Electron clouds present: 1 • Geometry: Linear

  12. Example 2 • SO2 • Electron clouds present: 3 • Geometry: Bent

  13. Example 3 NO3-1 • Electron clouds present: 3 • Geometry: Trigonal planar
