  1. Edge and Face Meshing

  2. Meshing - General • To reduce overall mesh size, confine small cells to areas where they are needed (e.g., where high gradients are expected). • Controlling cell size distribution • Edges, Faces and Volumes can be directly meshed • A uniform mesh is generated unless pre-meshing or sizing functions are used. • Pre-meshing • Edge meshes can be graded (varying interval size on edge) • Graded edge mesh can be used to control distribution of cell size in face mesh. • Controlling distribution of cell size in face mesh also controls distribution of cell size in volume mesh. • Sizing Functions • New feature to control cell size in faces and volumes directly.

  3. Edge Meshing • Edge mesh distribution is controlled through the spacing and grading parameters. • Using the Edge meshing form • Picking • Temporary graphics • Links, Directions • Grading/Spacing • Special characteristics • Apply and Defaults • Invert and Reverse • Options

  4. Picking Edges for Meshing • Picking • Temporarily meshed edges • When you pick an edge, the edge is temporarily meshed using white nodes • Displayed edge mesh is based on current grading and spacing parameters • If you modify the scheme or spacing, the temporary mesh will be immediately updated • When you Apply, the mesh nodes will turn blue • Sense • Sense is used to show direction of grading • Every picked edge will show its sense direction using an arrow • The sense can be reversed by a shift-middle click on the last edge picked (this is in addition to the “next” functionality) or by clicking on the Reverse button

  5. Soft Links • Picking and soft links • Pick with links • By enabling this option, Soft-linked edges can be selected in a single pick • Linked edges share the same information and can be picked in a single pick • Modifying soft links • You can anytime: • Form links • Break links • Maintain links • By default, GAMBIT will form links between unmeshed edges that are picked together • By default, GAMBIT will maintain links between meshed edges that are picked together

  6. Single-sided grading Symmetric grading Asymmetric grading Grading • Controls mesh density distribution along an edge. • Grading can produce single-sided or double-sided mesh • Doubled-sided mesh can be symmetric or asymmetric. • Symmetric schemes produce symmetric mesh about edge center. • Asymmetric schemes can produce asymmetric mesh about edge center. • Single-sided grading: • Uses a multiplicative constant, R, to describe the ratio of the length of two adjacent mesh elements, i.e., • R = l(i+1) / li • R can be specified explicitly (Successive Ratio) or determined indirectly • Gambit also uses edge length and spacing information to determine R.

  7. Double Sided Grading • Symmetric grading schemes implicitly generate double sided grading that is symmetric. • Asymmetric schemes are accessible when Double-Sided Option is used with: • Successive Ratio, First Length, Last Length, First-Last Ratio, and Last-First Ratio • The mesh is symmetric if R1 and R2 are equal. • The mesh is asymmetric if R1 and R2 are not equal. • Edge center is determined automatically.

  8. Spacing • Spacing • In all meshing forms, the following spacing functions can be specified: • Interval count - recommended for edge meshing only • A value of 5 creates 5 intervals on the edge (6 nodes, including ends) • % of edge length - recommended for edge meshing only • An edge length of 10 and a value of 20 creates 5 intervals on the edge • Interval size - the default setting • Identifies the interval size relative to overall dimensions of geometry • Identifies “average” interval size if used with grading • An edge-length of 10 and a value of 2 creates 5 intervals on the edge • Average size of elements/grid is 2

  9. First Edge Settings • Use first edge settings enabled • First edge selected in pick list updates form • Useful to copy settings from one meshededge to other edges. • Use first edge settings disabled • Any time you pick two or more meshed edges where there is a difference in: • the Type • the Spacing the local Apply button for that option will be turned off • This allows you to maintain pre-existing grading and/or spacing settings for each edge. • Enforce a change in grading and/or spacing by enabling Apply button.

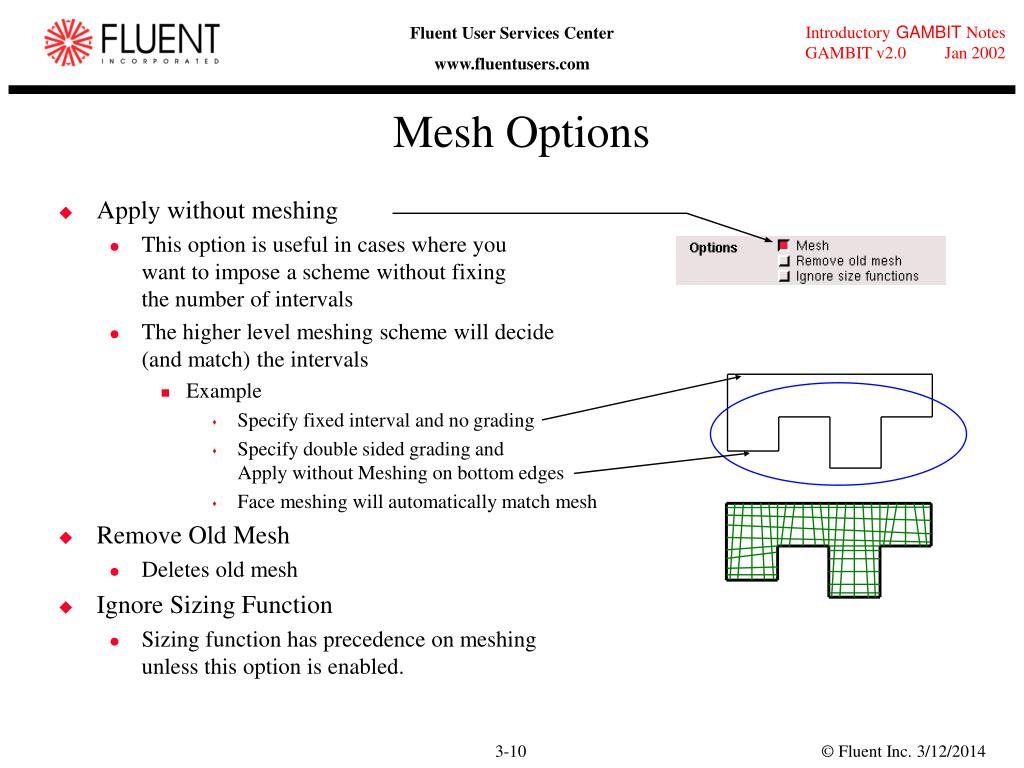

  10. Mesh Options • Apply without meshing • This option is useful in cases where you want to impose a scheme without fixing the number of intervals • The higher level meshing scheme will decide (and match) the intervals • Example • Specify fixed interval and no grading • Specify double sided grading andApply without Meshing on bottom edges • Face meshing will automatically match mesh • Remove Old Mesh • Deletes old mesh • Ignore Sizing Function • Sizing function has precedence on meshingunless this option is enabled.

  11. Face Meshing • Face Meshing form • Upon picking a face • GAMBIT automatically chooses Quad elements • GAMBIT chooses the Type based on the Solver/face vertex types • Available element/scheme type combinations • Quad • Map • Submap • Tri-Primitive • Pave • Tri • Pave • Gambit also has quad-to-tri conversion utility. • Quad/Tri • Map • Pave • Wedge

  12. Face Meshing - Quad Examples • Quad: Map • Quad: Submap • Quad: Tri-Primitive • Quad: Pave

  13. Face Meshing - Quad/Tri and Tri Examples • Quad/Tri: Map • Quad/Tri: Pave • Quad/Tri: Wedge • Tri: Pave

  14. Deleting Old Mesh • Existing mesh must be removed before remeshing. • Mesh can be deleted using delete mesh form. • Lower topology mesh can also be deleted (default) • Existing mesh can also be removed in all Create mesh forms without the need for Delete mesh • Remove mesh • Leaves all lower topology mesh • Remove mesh + lower mesh • Removes all lower mesh that is not shared with another entity • Undo after meshing operation also works!

  15. + + + + Hard Linking • Mesh Links (Hard Links) • Mesh linked entities have identical mesh • created for periodic boundary conditions • Applicable to Edge, Face, and Volume entities • Best to use soft links for edge meshing • To link volume meshes, all faces must be mesh hard linked first. • Setting up Hard Links for Faces • Select faces and reference vertices • Edge ‘sense’ will appear • Reverse orientation on by default for sense • Periodic option can be used for split edges • Mesh one face before or after hard link is defined • mesh on second face generated automatically • Multiple pairs of hard links can be created.

  16.  max 0 1 bestworst  min Assessing Mesh Quality • Default measure of quality is based on EquiAngle Skew. • Definition of EquiAngle Skew: • where: • max = largest angle in face or cell • min = smallest angle in face or cell • e = angle for equiangular face or cell • e.g., 60 for triangle, 90 for square • Range of skewness:

  17. Examining the Mesh Examine Mesh Form • Display Type • Plane/Sphere • View mesh elements that fall in plane or sphere. • Range • View mesh elements within quality range. • Histogram shows quality distribution. • Select 2D/3D and Element Type • Select Quality Type • Display Mode • Change cell display attributes.

  18. Striving for Quality • A poor quality grid will cause inaccurate solutions and/or slow convergence. • Minimize EquiAngle Skew: • Hex and Quad Cells • Skewness should not exceed 0.85. • Tri’s • Skewness should not exceed 0.85. • Tet’s • Skewness should not exceed 0.9 • Minimize local variations in cell size: • e.g., adjacent cells should not have ‘size ratio’ greater than 20%. • If Examine Mesh shows such violations: • Delete mesh • Perform necessary decomposition and/or pre-mesh edges and faces. • Remesh

  19. Mesh Smoothing • Gambit generally incorporates default smoothing scheme after initial mesh on face or in volume is created. • Default scheme can be changed in Edit - Defaults • Different scheme can be selected and applied after meshing. • Face mesh smoothing • Length-weighted Laplacian • Centroid Area • Winslow • Volume mesh smoothing • Length-weighted Laplacian • Equipotential • Boundary mesh by default is fixed. • Option allows frees boundary mesh.

  20. Assigning Boundary and Continuum Types • The Boundary Type Form • Enter entities to be grouped into single zone in entity list box. • First choose entity type as face or edge. • Select boundary type for zone (entity group). • Available types depend on Solver • Name zone if desired. • Apply defines zone and boundary type. • Can also modify and delete zone/boundary. • By default, • External faces/edges are walls • Internal faces/edges are interior • The Continuum Type Form • Similar operation. • All continuum zones are by default, fluid.

  21. Linear/Quadratic Elements (FIDAP/POLYFLOW USERS ONLY) • General tools • Higher-order elements • For FEM codes (FIDAP and POLYFLOW), the element order can be changed at all three meshing levels • Only linear and quadratic elements are directly available • A change to quadratic element type at one level will automatically change the element type in other levels • The following table presents the most commonly used and recommended quadratic element types for FEM - solvers POLYFLOW FIDAP edge 3-node 3-node face 8-node quad 9-node quad volume 21-node brick 27-node brick
