  1. Gui Design Taken from “Gui Bloopers” by Jeff Johnson

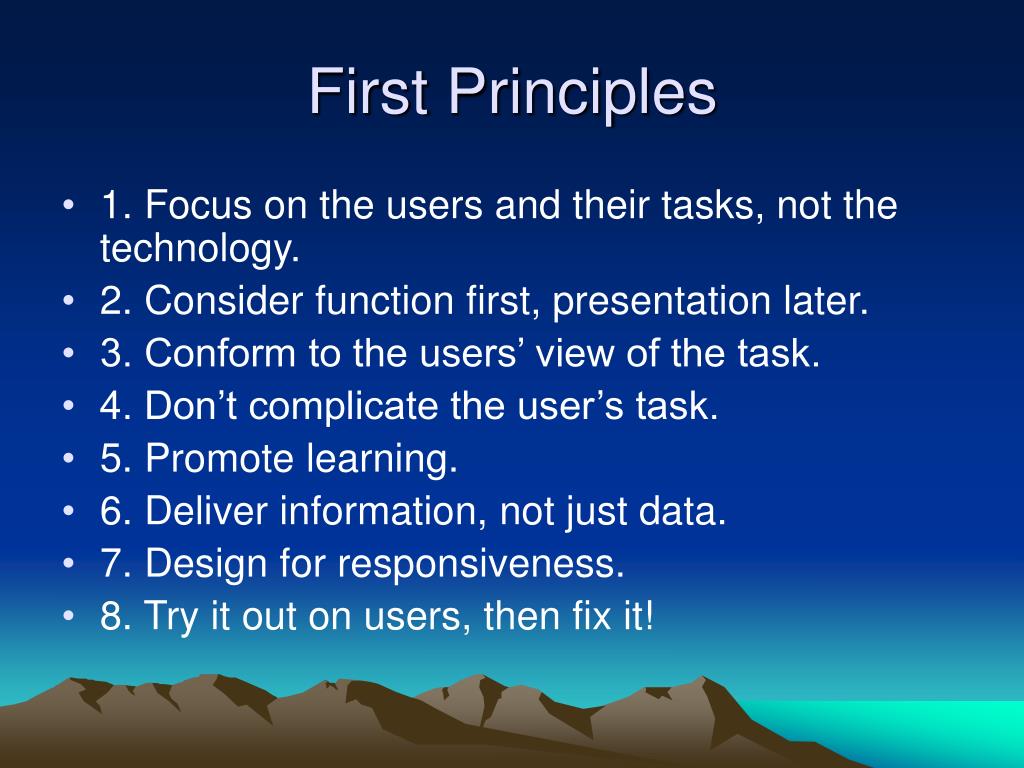

  2. First Principles • 1. Focus on the users and their tasks, not the technology. • 2. Consider function first, presentation later. • 3. Conform to the users’ view of the task. • 4. Don’t complicate the user’s task. • 5. Promote learning. • 6. Deliver information, not just data. • 7. Design for responsiveness. • 8. Try it out on users, then fix it!

  3. Focus on the usersAnswer the following Questions. • For whom is this product or service being designed? Who are the intended customers? Who are the intended users? Are the customers and the users the same people? • What is the product or service for? What activity is it intended to support? What problems will it help users solve? What value will it provide?

  4. More Questions • What problems do the intended users have now? What do they like and disklike about the way they work now? • What are the skills and knowledge of the intended users? Are they motivated to learn? How? • How do users conceptualize and work with the data in their task domain?

  5. And more • What are the intended users’ preferred ways of working? How will the product or service fit into those ways? How will it change them?

  6. Users • Software should be designed neither FOR users nor BY them, but rather WITH them.

  7. 2. Consider Function First • This does NOT mean “Get the functionality designed and implemented first, and worry about the user interface later.” • It means consider the purpose, structure, and function of the user interface – and of the software as a whole – before considering the presentation – the surface appearance – of the user interface. • The word “function” here does not mean implementation, it means “role” – what does it do?

  8. KISS • Keep It Simple Stupid • Keep it as simple as possible, but no simpler.

  9. 3. Conform to the user’s view • Don’t make users commit unnatural acts. • Steps users have to perform to get what they want that have no obvious connection to their goal. • Imposing arbitrary restrictions • Limiting person’s name to 16 characters • Allowing table rows to be sorted by at most three columns • Providing undo for only the last three actions • Forcing all address book entries to specify a fax number even though some people don’t have fax machines

  10. Cont. • Use the users’ vocabulary, not your own • Keep the program internals inside the program. • Find the correct point on the power/complexity trade-off • Sensible defaults • Templates or canned solutions • Progressive disclosure • Generic commands (create, copy, move, …) • Task specific design

  11. 4. Don’t complicate the users task • Common tasks should be easy. • Support customization • Provide wizzards • Don’t give users extra problems to solve. • Tiff to gif conversion, etc.

  12. 5. Promote Learning • Think “outside-in” not “inside-out” • Don’t design like you assume the users will automatically know what the developers intended. • Often the cause of Textual Ambiguity

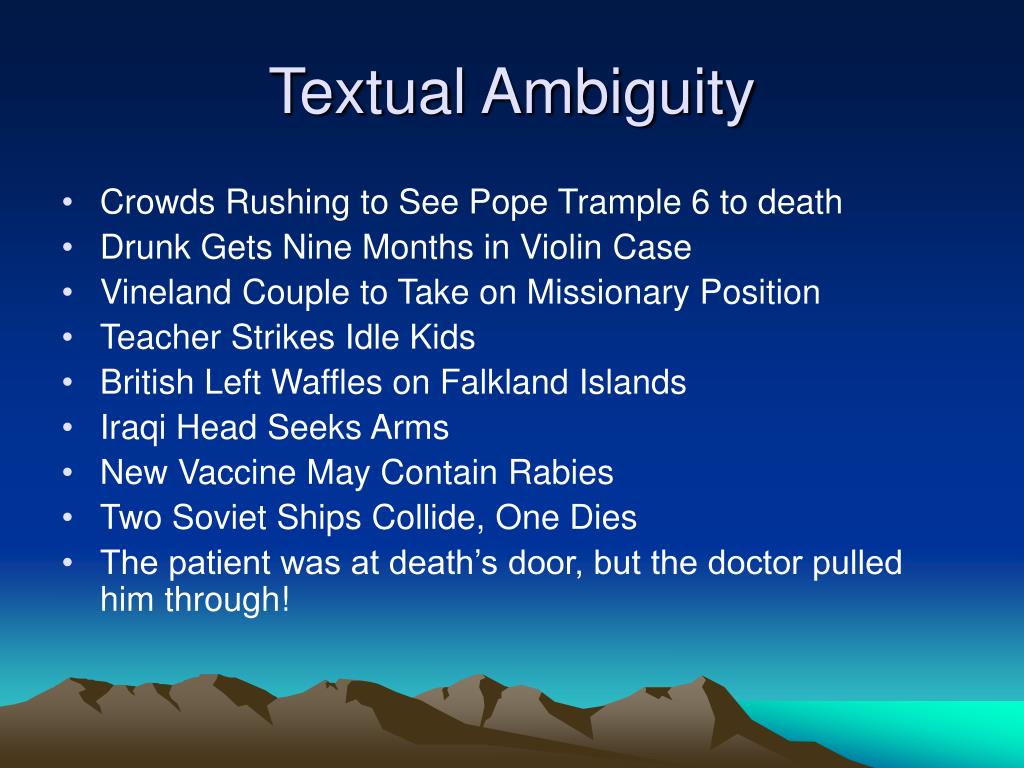

  13. Textual Ambiguity • Crowds Rushing to See Pope Trample 6 to death • Drunk Gets Nine Months in Violin Case • Vineland Couple to Take on Missionary Position • Teacher Strikes Idle Kids • British Left Waffles on Falkland Islands • Iraqi Head Seeks Arms • New Vaccine May Contain Rabies • Two Soviet Ships Collide, One Dies • The patient was at death’s door, but the doctor pulled him through!

  14. Other Ambiguities • Typographical Ambiguity • DOIT • Graphical Ambiguity • In or out

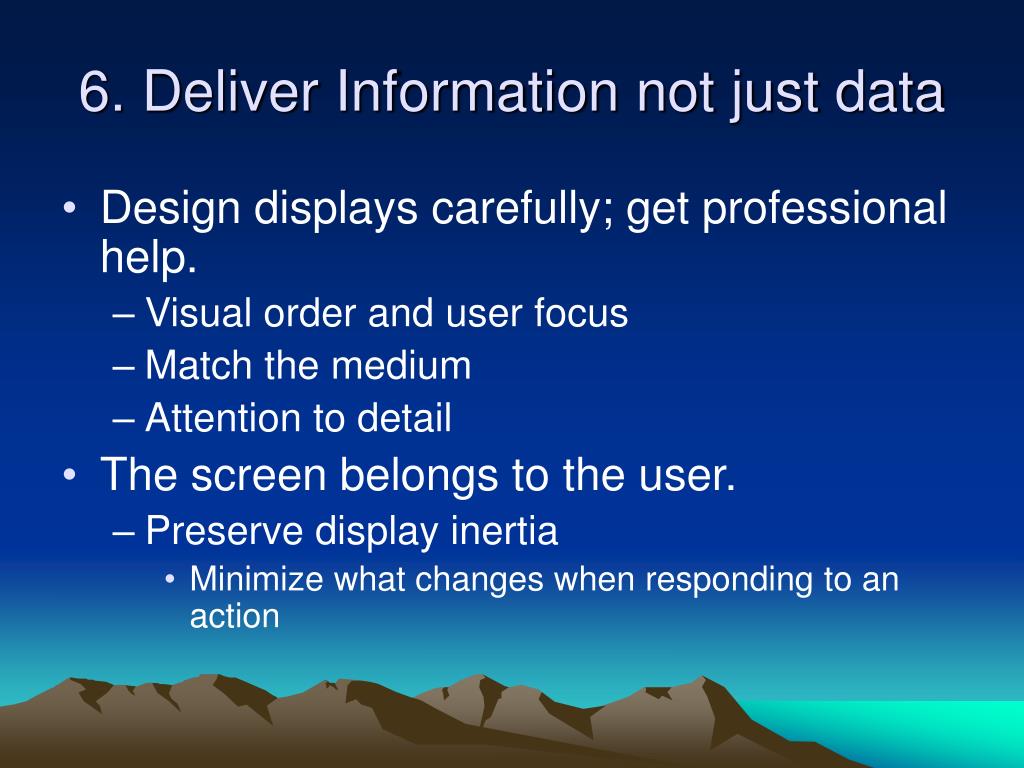

  15. 6. Deliver Information not just data • Design displays carefully; get professional help. • Visual order and user focus • Match the medium • Attention to detail • The screen belongs to the user. • Preserve display inertia • Minimize what changes when responding to an action

  16. 7. Design for Responsiveness • Responsive software keeps up with users even if it can’t fulfill every request immediately. • It provides enough feedback for users to see what they are doing. • It lets users know when it’s busy and when it’s not.

  17. Poor Responsiveness • Delayed or nonexistent feedback for user actions. • Time-consuming operations that block other activity and cannot be aborted. • Providing no clue how long lengthy operations will take • Periodically ignoring user input while performing internal “housekeeping” tasks

  18. 8. Try it out on users, then fix it! • Test results can surprise even experienced designers. • Schedule time to correct problems found by tests. • Testing has two goals: informational and social • Find aspects of the user interface that cause problems • Convince developers that there are problems
