  1. Colormaps 101Sources – Russell Taylor Comp 290 course notesColin Ware – Perception for DesignIBM Web Site Rachael Brady Visualization Friday Forum November 22, 2002 An Excellent Paper: A Rule-based Tool for Assisting Colormap Selection, L. Bergman, B. Rogowitz and L. Treinish. Proceedings of the IEEE Computer Society Visualization '95 pp. 118-125, October 1995.

  2. Color is useful for classification Color is not needed to understand shape, spatial relationships of objects, movement Laboratory assistant went 21 years without realizing he was color-blind

  3. Color Space: RGB Taken from Russell Taylor II, UNC CS 290 Course Notes

  4. Colorspace: HSV Taken from Russell Taylor II, UNC CS 290 Course Notes

  5. Opponent Process Theory (Hering 1920) The six elementary colors are paired on 3 orthogonal axis: Black-White, Red-Green, Yellow-Blue Modified from Russell Taylor II, UNC CS 290 Course Notes

  6. Color Category Perception • Task: Name the colors • Regions same > 75% • Nonuniform sizes • Why “rainbow scale” is so nonuniform • The fact that only 8 hues were named out of 210 different colors indicates that there may be only a few colors available for labeling. Taken from Russell Taylor II, UNC CS 290 Course Notes

  7. Other Color Issues • Color Blindness • Most red/green color blind (10% of males, 1% females) • Field Size • Avoid small spots, especially in yellow/blue • Small areas: strong, highly-saturated colors • Large areas: low saturation with slight differences • Conventions • U.S.: Red = danger, Green = life • China: Red = life, Green = death • Some scientific domains have color conventions Taken from Russell Taylor II, UNC CS 290 Course Notes

  8. Designing of a colormap • Perceptually Ordered Sequence is required, such as black-white, red-green, blue-yellow, or saturation (dull->vivid) • Note: a perceptually ordered sequence will result from a series of colors that monotonically increase or decrease with respect to one or more of the color opponent channels • Use a Luminance Ordered Sequence for High Spatial Frequency Data • Use a Saturation Ordered Sequence for Low Spatial Frequency Data • Use several discrete colors when it is necessary to read back values (to avoid contrast effects)

  9. Example Colormaps Source: Ware, Perception for Design

  10. Not ordered (red at both ends) Taken from Russell Taylor II, UNC CS 290 Course Notes

  11. Luminance (Gray) Scale Taken from Russell Taylor II, UNC CS 290 Course Notes

  12. Saturation Scale Taken from Russell Taylor II, UNC CS 290 Course Notes

  13. Hue Scale Taken from Russell Taylor II, UNC CS 290 Course Notes

  14. Hue+Luminence Taken from Russell Taylor II, UNC CS 290 Course Notes

  15. Hue+Saturation Taken from Russell Taylor II, UNC CS 290 Course Notes

  16. Black Body Radiation Taken from Russell Taylor II, UNC CS 290 Course Notes

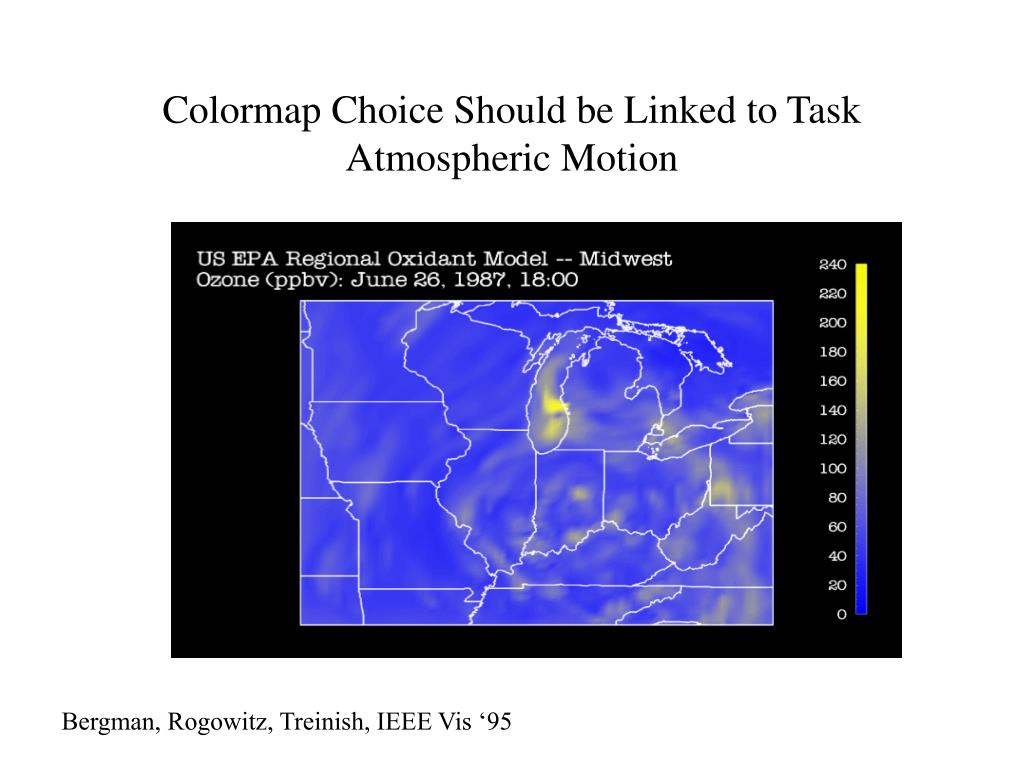

  17. Colormap Choice Should be Linked to TaskAtmospheric Motion Bergman, Rogowitz, Treinish, IEEE Vis ‘95

  18. Colormap Choice Should be Linked to TaskPollution Levels Bergman, Rogowitz, Treinish, IEEE Vis ‘95

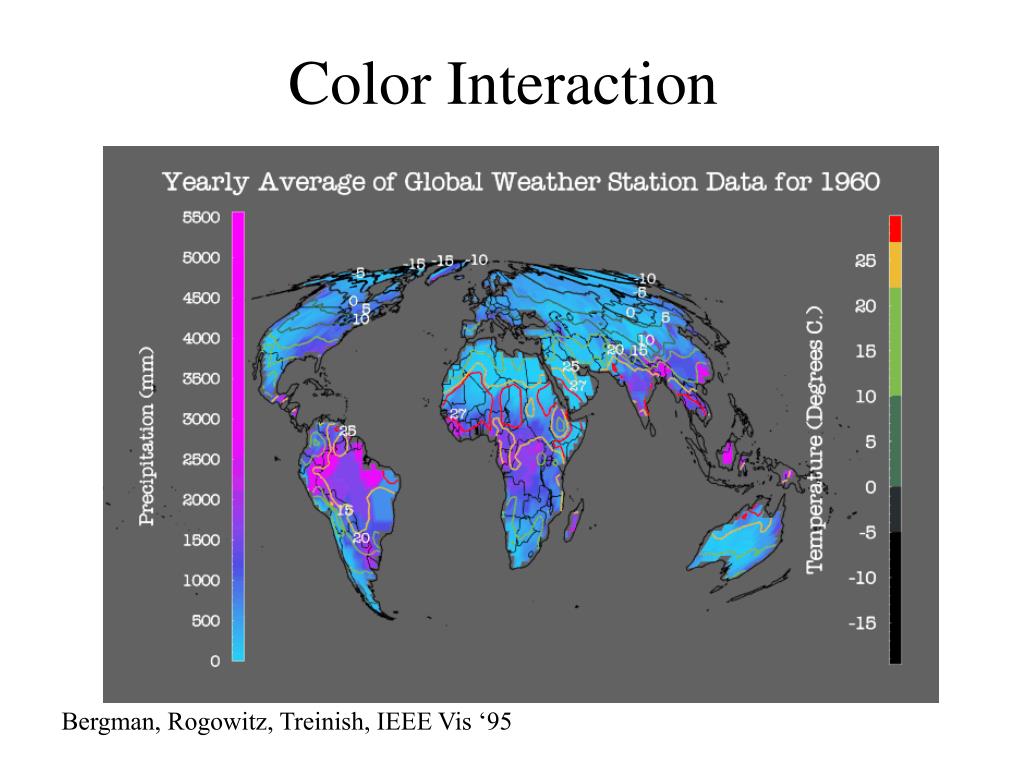

  19. Color Interaction Bergman, Rogowitz, Treinish, IEEE Vis ‘95

  20. Color Interaction Bergman, Rogowitz, Treinish, IEEE Vis ‘95

  21. Trumbo’s Principles • Univariate • Order: ordered values should be represented by perceptually-ordered colors • Separation: significantly different levels should be represented by distinguishable colors Modified from Russell Taylor II, UNC CS 290 Course Notes

  22. Ordered (and double-ended) • Tufte ‘97, pg. 76. Taken from Russell Taylor II, UNC CS 290 Course Notes

  23. Not ordered • Tufte ‘97, pg. 77. Taken from Russell Taylor II, UNC CS 290 Course Notes

  24. Double-ended Scale • Two distinct scales joined at neutral middle • Characteristics • segments values into two groups • can emphasize both extremes of data range Taken from Russell Taylor II, UNC CS 290 Course Notes

  25. Double-Ended Income • Olson ‘97, fig. 11-8. Taken from Russell Taylor II, UNC CS 290 Course Notes

  26. In Summary • Interesting values? • Position striking colors at interesting values • Zero in range? • Double-ended scale • High spatial frequency? • Vary lightness in addition to hue Taken from Russell Taylor II, UNC CS 290 Course Notes

  27. Color Theory in Cartography is well developed. Cynthia Brewer at Penn State has a great color creator for discrete, monotonic color sequences. http://www.personal.psu.edu/faculty/c/a/cab38/ColorBrewerBeta.html
