  1. Required Slide SESSION CODE: WSV310 What Does the Cloud Mean for the IT Professional? Joey Snow Technical Evanglist Microsoft Corporation

  2. Steering the Cloud: IT Pros and Windows Azure

  3. Platform Continuum On-Premises Servers Hosted Servers Cloud Platform • Bring your own machines, connectivity, software, etc. • Complete control • Complete responsibility • Static capabilities • Upfront capital costs for the infrastructure • Renting machines, connectivity, software • Less control • Fewer responsibilities • Lower capital costs • More flexible • Pay for fixed capacity, even if idle • Shared, multi-tenant infrastructure • Virtualized & dynamic • Scalable & available • Abstracted from the infrastructure • Higher-level services • Pay as you go

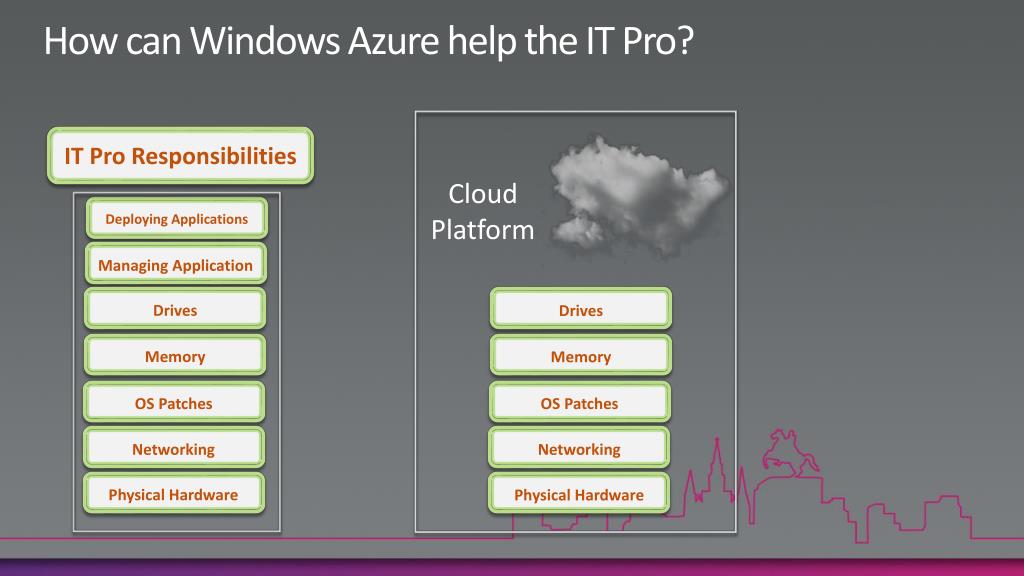

  4. How can Windows Azure help the IT Pro? Deploying Applications IT Pro Responsibilities Managing Application Cloud Platform Drives Drives Memory Memory OS Patches OS Patches Networking Networking Physical Hardware Physical Hardware

  5. Windows Azure, In One Picture Business Portal Developer Portal REST Service Management Service User Code … … Runtime API Storage Cluster VS Tools Compute Cluster … WA SDK VM Setup REST MSFT Datacenters Desktop Cloud VM

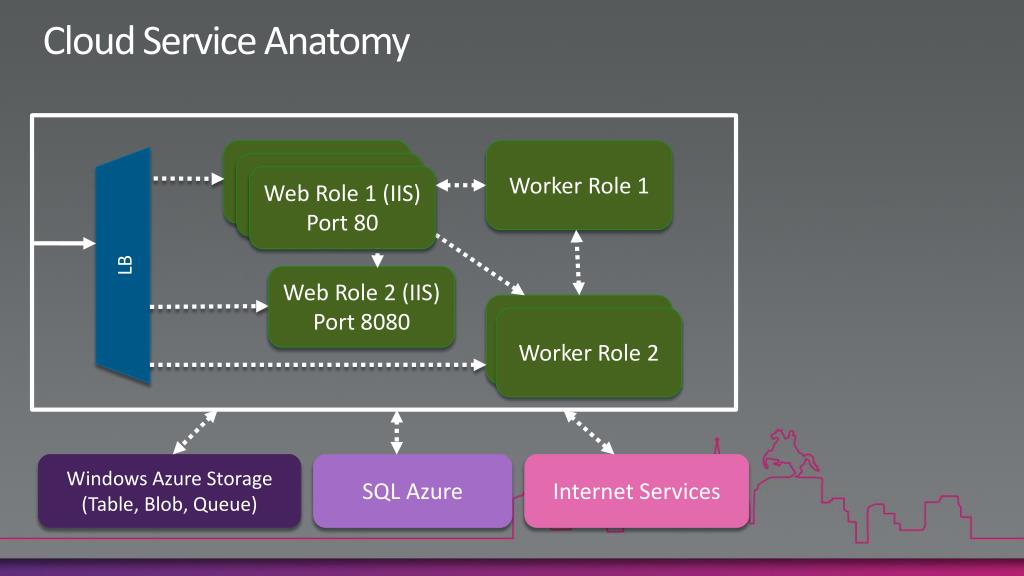

  6. Cloud Service Anatomy Web Role Worker Role 1 Web Role Web Role 1 (IIS) Port 80 LB Web Role 2 (IIS) Port 8080 Worker Role 2 Worker Role 2 Windows Azure Storage (Table, Blob, Queue) SQL Azure Internet Services

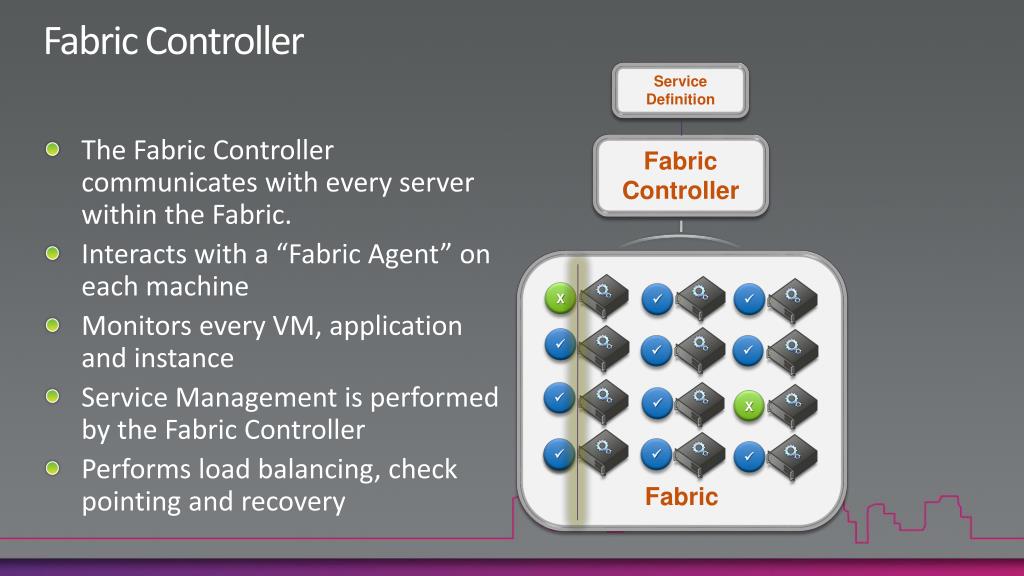

  7. Fabric Controller Service Definition • The Fabric Controller communicates with every server within the Fabric. • Interacts with a “Fabric Agent” on each machine • Monitors every VM, application and instance • Service Management is performed by the Fabric Controller • Performs load balancing, check pointing and recovery Fabric Controller Fabric X        X   X 

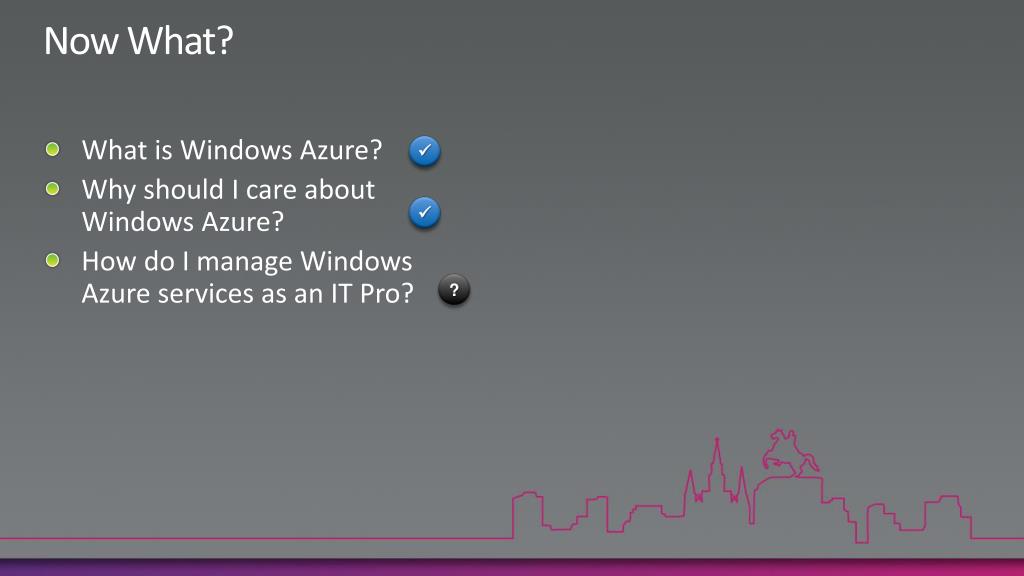

  8. Now What? • What is Windows Azure? • Why should I care about Windows Azure? • How do I manage Windows Azure services as an IT Pro?   ?

  9. Managing Services IT Pro Deployment Monitoring

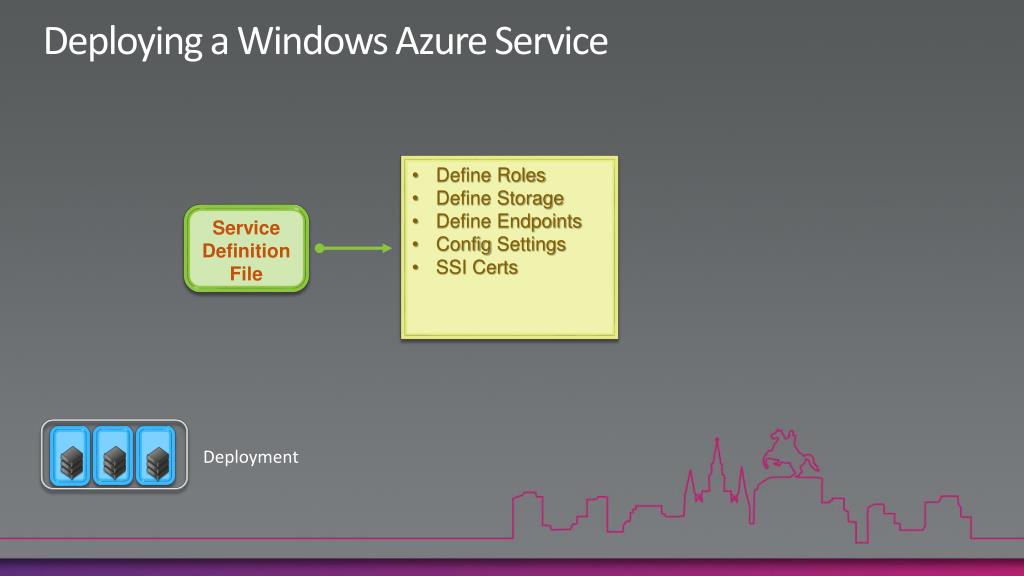

  10. Deploying a Windows Azure Service • Define Roles • Define Storage • Define Endpoints • Config Settings • SSI Certs Service Definition File Deployment

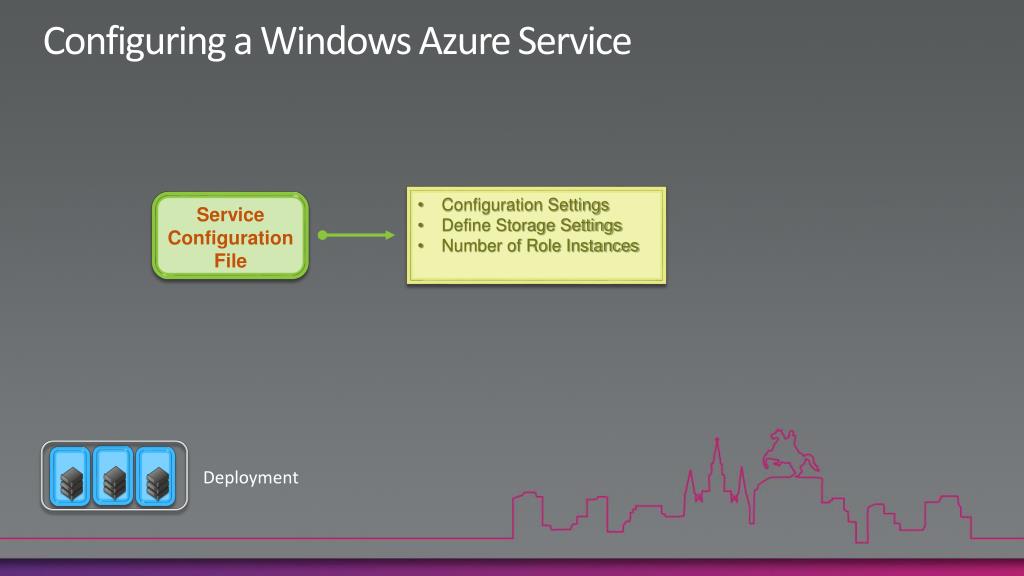

  11. Configuring a Windows Azure Service • Configuration Settings • Define Storage Settings • Number of Role Instances Service Configuration File Deployment

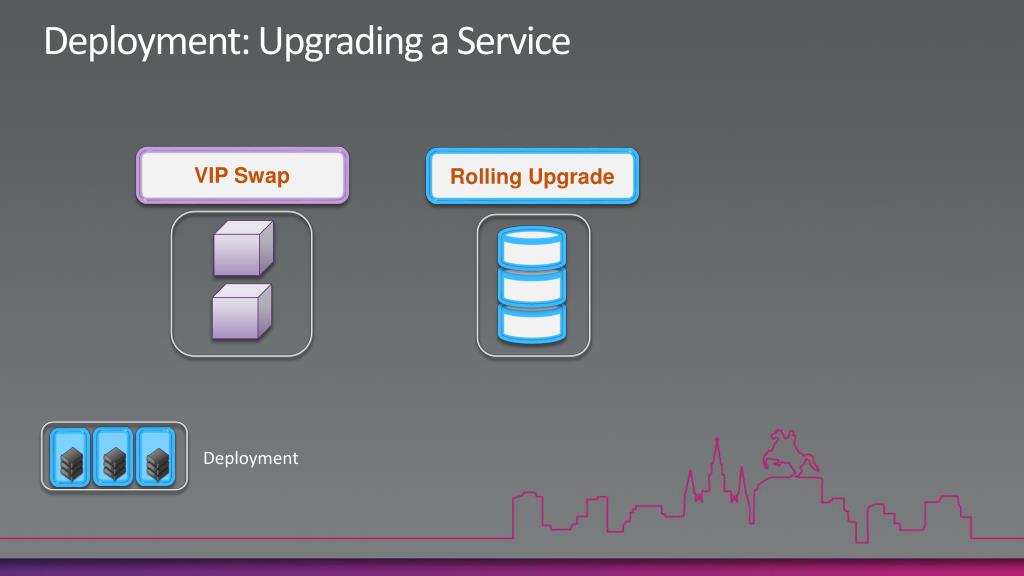

  12. Deployment: Upgrading a Service VIP Swap Rolling Upgrade Deployment

  13. Deployment: VIP Swap • Upgrades the entire service • Turns the staging environment into the production, and production into staging • Any existing state will be lost VIP Swap <guid>.cloudapp.net myapp.cloudapp.net

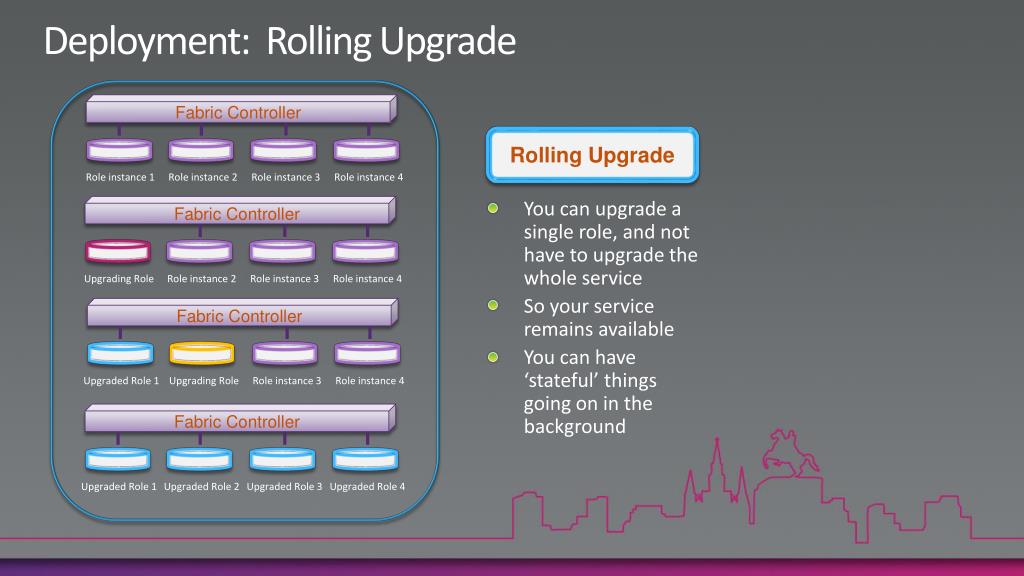

  14. Deployment: Rolling Upgrade • You can upgrade a single role, and not have to upgrade the whole service • So your service remains available • You can have ‘stateful’ things going on in the background Fabric Controller Rolling Upgrade Role instance 1 Role instance 2 Role instance 3 Role instance 4 Fabric Controller Upgrading Role Role instance 2 Role instance 3 Role instance 4 Fabric Controller Upgraded Role 1 Upgrading Role Role instance 3 Role instance 4 Fabric Controller Upgraded Role 1 Upgraded Role 2 Upgraded Role 3 Upgraded Role 4

  15. Deployment: Removing a Service No Longer Paying Still Paying

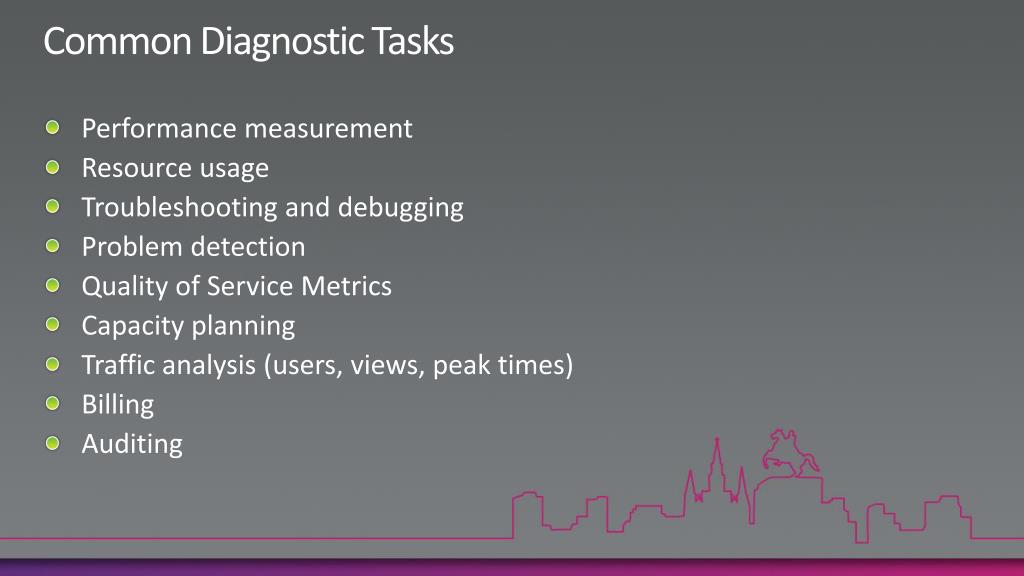

  16. Common Diagnostic Tasks • Performance measurement • Resource usage • Troubleshooting and debugging • Problem detection • Quality of Service Metrics • Capacity planning • Traffic analysis (users, views, peak times) • Billing • Auditing

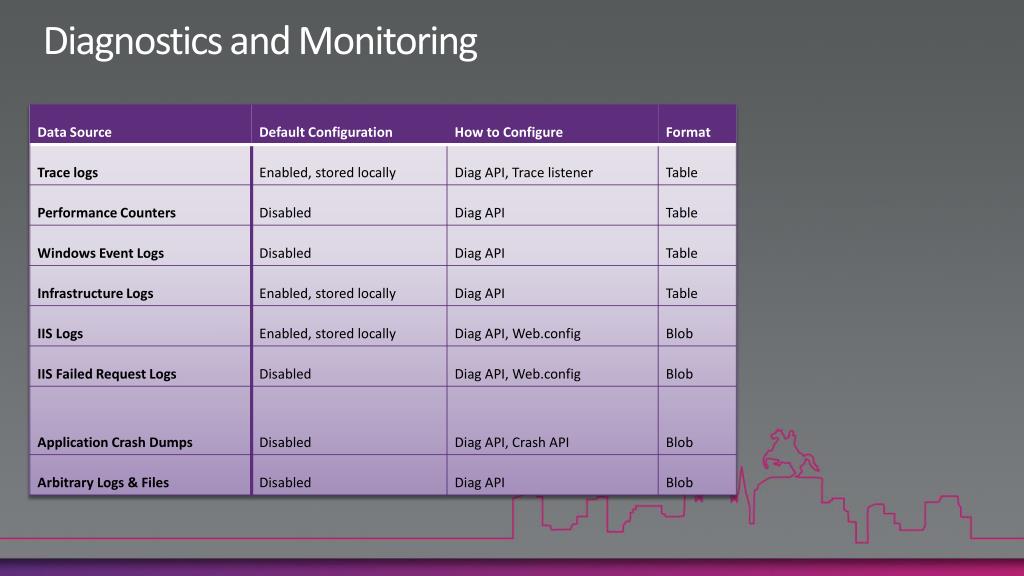

  17. Diagnostics and Monitoring

  18. How does it work (in a nutshell)? • Role Instance Starts • Diagnostic Monitor Starts • Monitor is configured • Imperatively at Start time • Remotely any time • Monitor buffers data locally • User can set a quota (FIFO) • User initiates transfer to storage • Scheduled or On Demand Role Instance Role Local directory storage Diagnostic Monitor

  19. The Diagnostic Monitor Windows Disk Cache~4GB Code IIS Log DM EL EL1GB Log2GB PC1GB PC CD

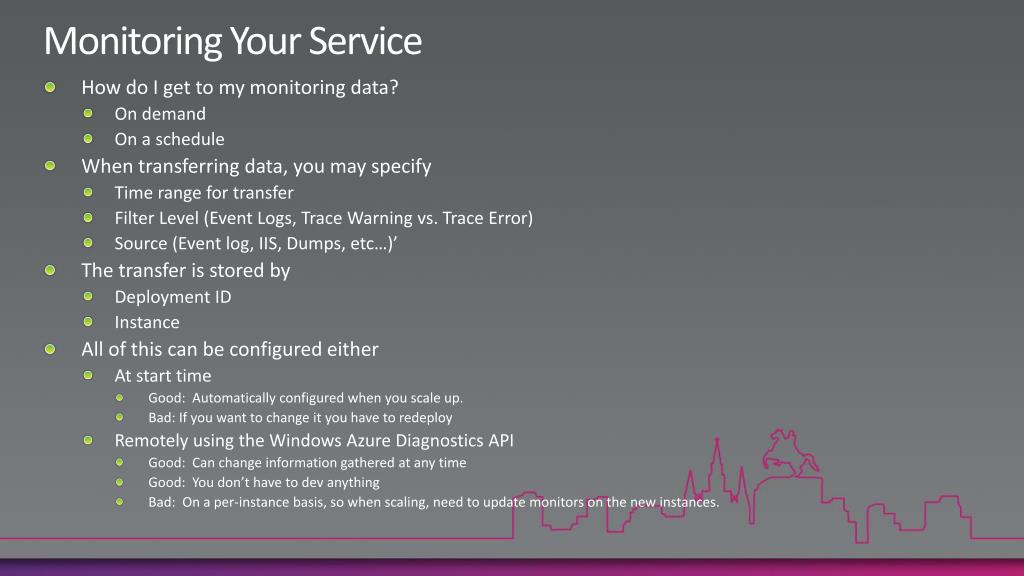

  20. Monitoring Your Service • How do I get to my monitoring data? • On demand • On a schedule • When transferring data, you may specify • Time range for transfer • Filter Level (Event Logs, Trace Warning vs. Trace Error) • Source (Event log, IIS, Dumps, etc…)’ • The transfer is stored by • Deployment ID • Instance • All of this can be configured either • At start time • Good: Automatically configured when you scale up. • Bad: If you want to change it you have to redeploy • Remotely using the Windows Azure Diagnostics API • Good: Can change information gathered at any time • Good: You don’t have to dev anything • Bad: On a per-instance basis, so when scaling, need to update monitors on the new instances.

  21. Remote Configuration Role Instance Role Poll Interval Local directory storage Diagnostic Monitor

  22. Common Diagnostic Tasks • Performance measurement • Resource usage • Troubleshooting and debugging • Problem detection • Quality of Service Metrics • Capacity planning • Traffic analysis (users, views, peak times) • Billing • Auditing

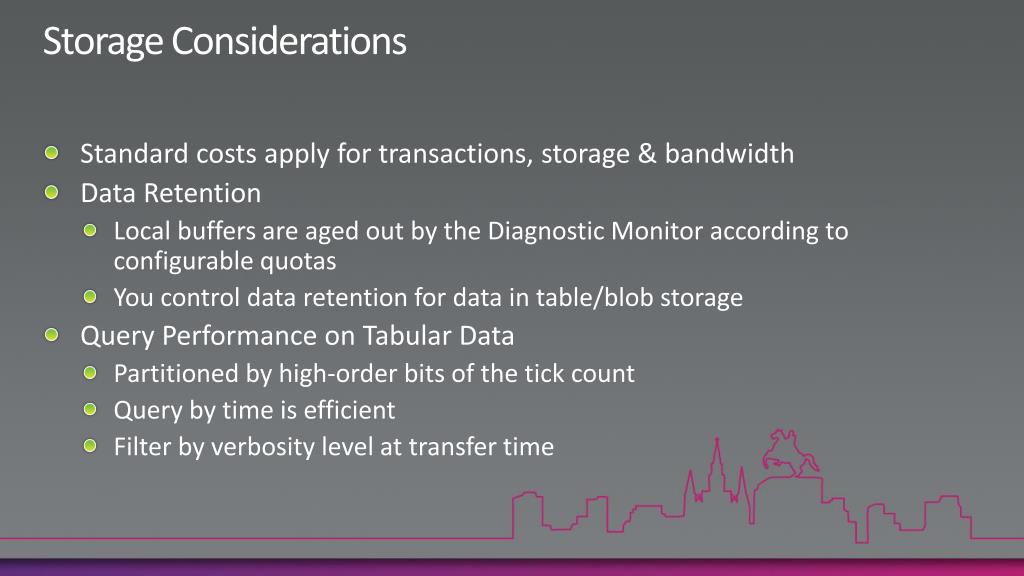

  23. Storage Considerations • Standard costs apply for transactions, storage & bandwidth • Data Retention • Local buffers are aged out by the Diagnostic Monitor according to configurable quotas • You control data retention for data in table/blob storage • Query Performance on Tabular Data • Partitioned by high-order bits of the tick count • Query by time is efficient • Filter by verbosity level at transfer time

  24. Windows Azure and the IT Pro IT Pro IT Pro

  25. Windows Azure Q&A

  26. Demo Title NameTitleCompany DEMO

  27. Required Slide Resources Learning • Sessions On-Demand & Community • Microsoft Certification & Training Resources www.microsoft.com/teched www.microsoft.com/learning • Resources for IT Professionals • Resources for Developers • http://microsoft.com/technet • http://microsoft.com/msdn
