  1. Angular Kinematics

  2. Today…. • Distinguish angular motion from linear • Discuss the relationship among angular kinematic variables • Examine the relationships between angular and linear displacement, velocity and acceleration

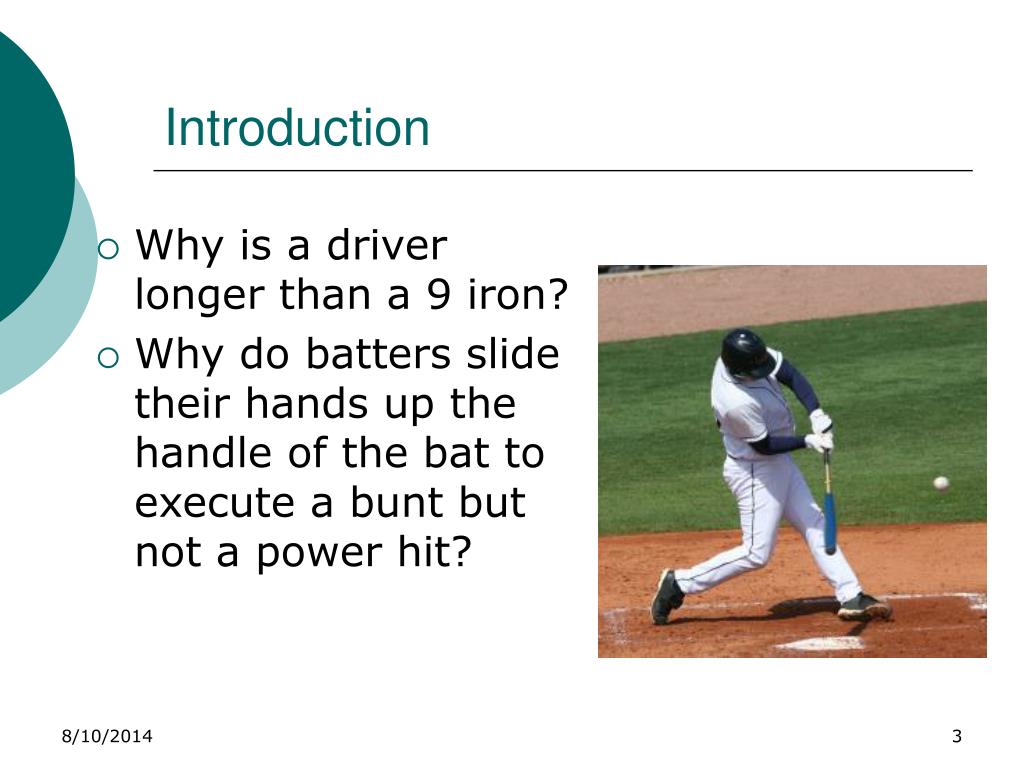

  3. Introduction • Why is a driver longer than a 9 iron? • Why do batters slide their hands up the handle of the bat to execute a bunt but not a power hit?

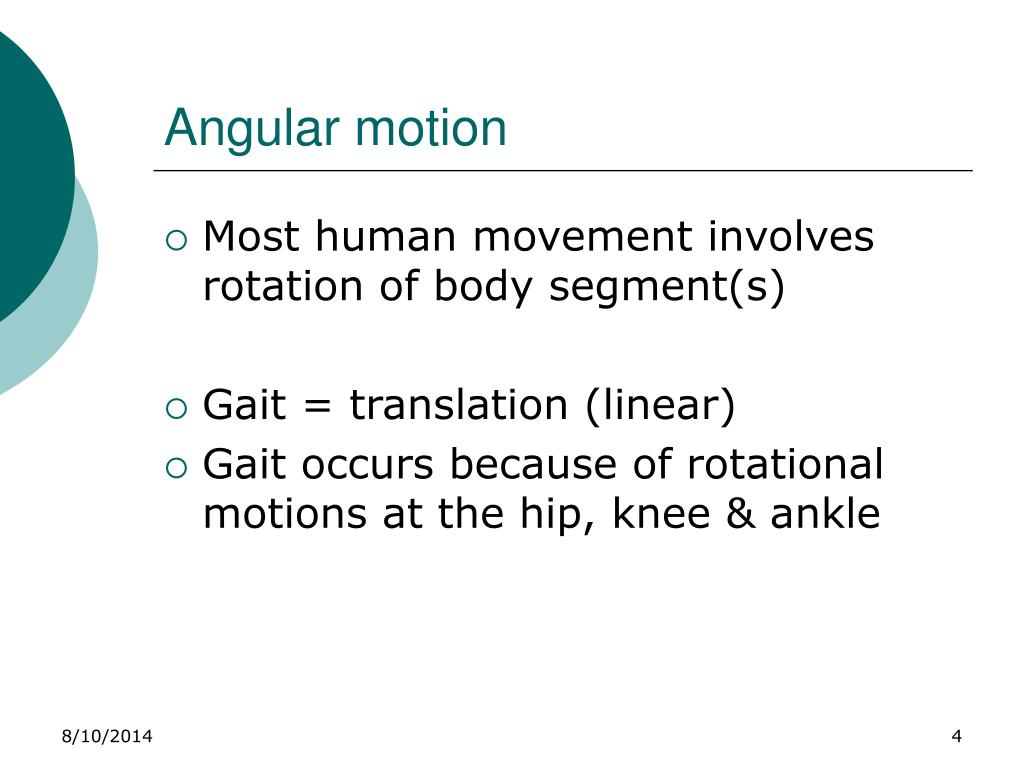

  4. Angular motion • Most human movement involves rotation of body segment(s) • Gait = translation (linear) • Gait occurs because of rotational motions at the hip, knee & ankle

  5. Measuring angles • Angle = 2 sides that intersect at a vertex • Measure of angle and change in angle position = quantitative kinematic analysis

  6. Angles • Relative angle: angle at joint formed between long axes of adjacent body segments • Absolute angle: angular orientation of a segment with respect to a fixed line of reference • Angle of inclination of the trunk

  7. Angles • Anatomical position • ALL joint angles = 0°

  8. Angles • Absolute angle uses: • Trunk inclination in a runner • Technique • ? Effect on required extensor torque

  9. Angular Kinematics Angular relationships

  10. Angular Relationships • Similar relationships as linear • Units of measure differ

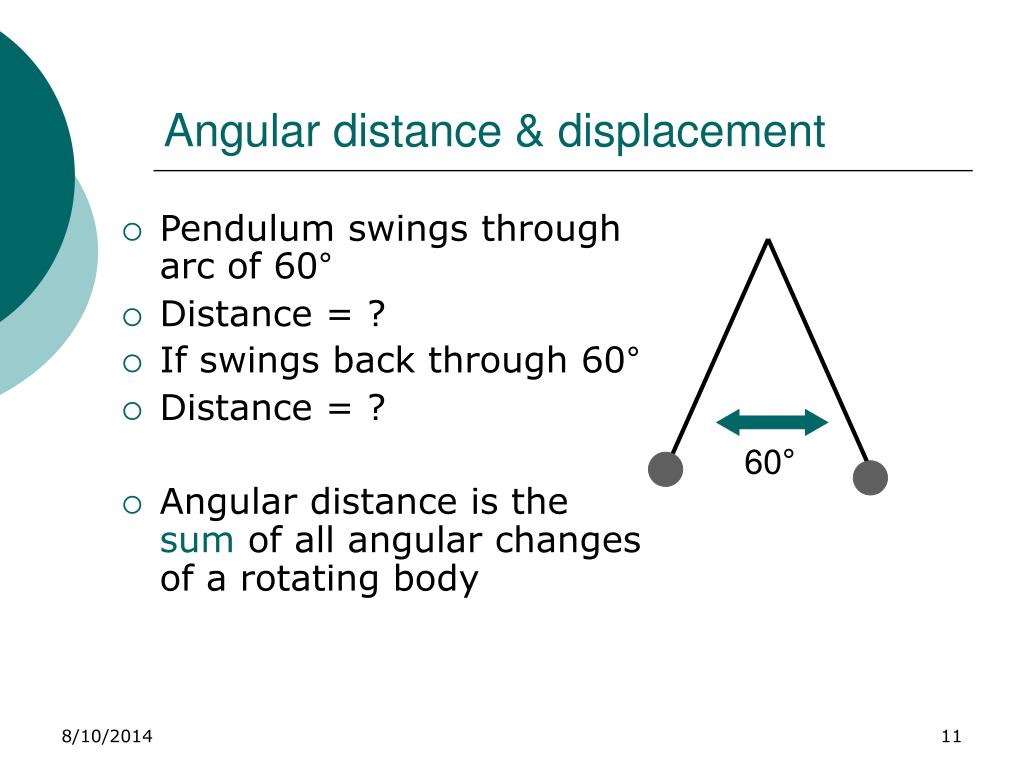

  11. Angular distance & displacement • Pendulum swings through arc of 60° • Distance = ? • If swings back through 60° • Distance = ? • Angular distance is the sum of all angular changes of a rotating body 60°

  12. Angular distance & displacement • Biceps curls: • 0° to 140° : distance = 140° • Return to 0° total distance = 280° • Repeat 10X  total distance = 2800° What is the displacement?

  13. Angular displacement • The change in angular position of a line/segment • The difference in the initial & final positions of the moving body • Biceps curl example: 0° – 140° & return • Displacement?

  14. Angular displacement • Defined by magnitude and direction • Clockwise (-) & counterclockwise (+) • Flexion & extension terms as well •  • Units • Degrees • Radian: 1 radian = 57.3° • Size of angle at the center of a circle by an arc equal in length to the radius • Often expressed in multiples of  • Revolution: used in diving & gymnastics +

  15. Degrees, rads & revolutions

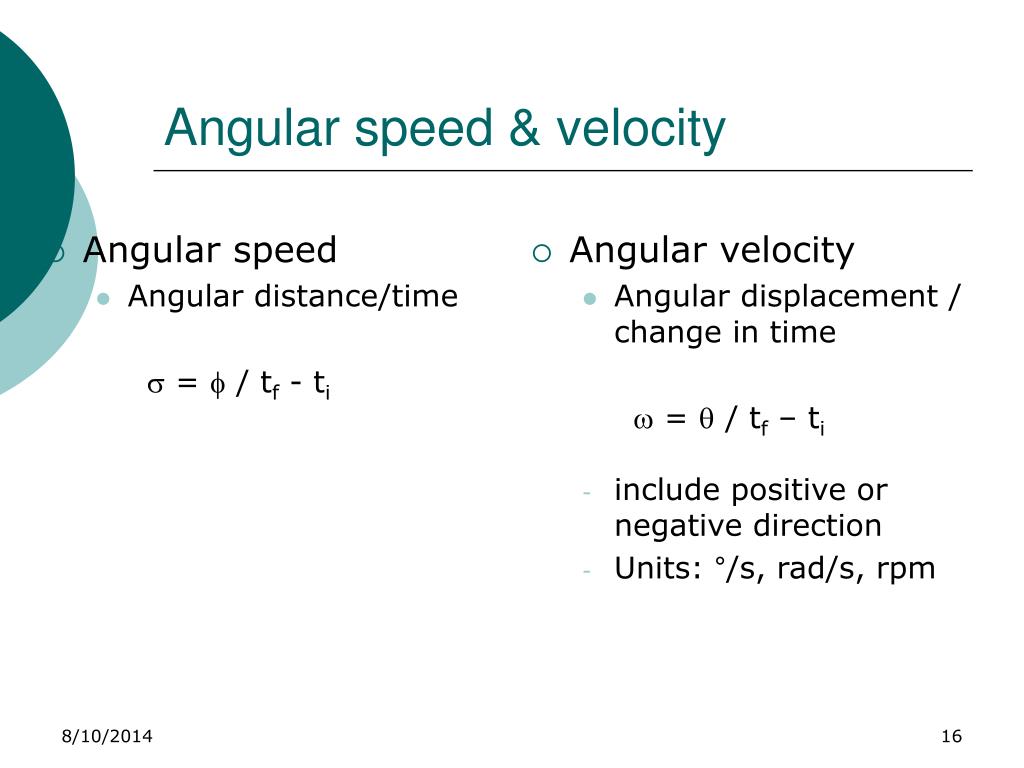

  16. Angular speed Angular distance/time  =  / tf - ti Angular velocity Angular displacement / change in time  =  / tf – ti include positive or negative direction Units: °/s, rad/s, rpm Angular speed & velocity

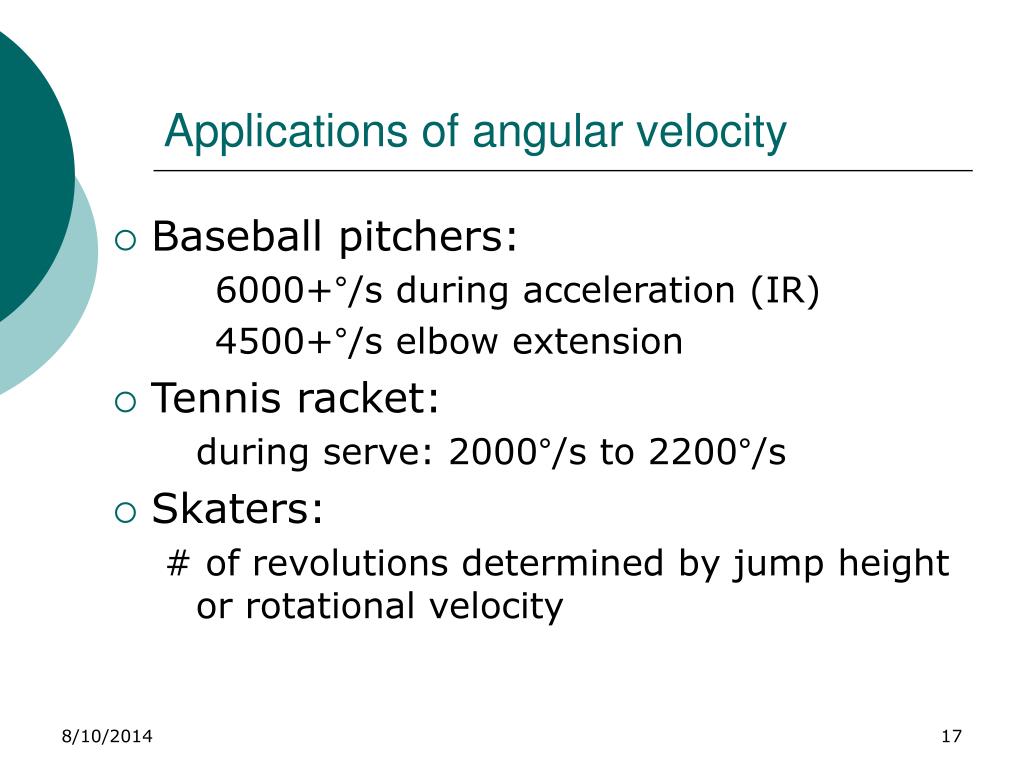

  17. Applications of angular velocity • Baseball pitchers: 6000+°/s during acceleration (IR) 4500+°/s elbow extension • Tennis racket: during serve: 2000°/s to 2200°/s • Skaters: # of revolutions determined by jump height or rotational velocity

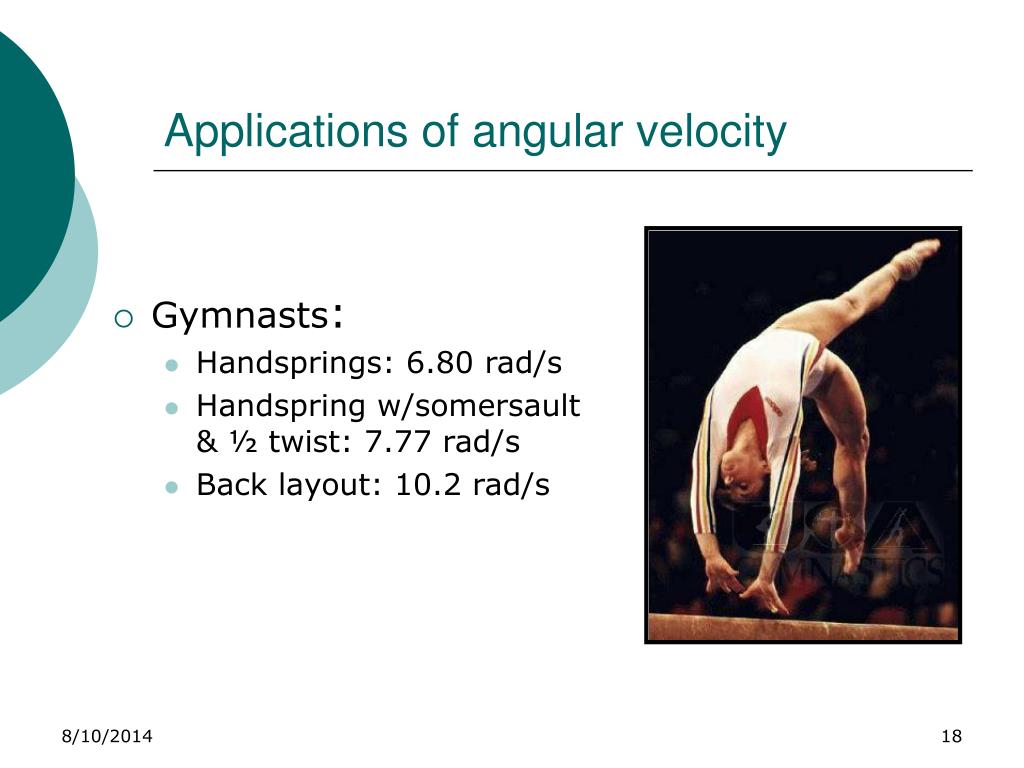

  18. Applications of angular velocity • Gymnasts: • Handsprings: 6.80 rad/s • Handspring w/somersault & ½ twist: 7.77 rad/s • Back layout: 10.2 rad/s

  19. Angular acceleration • Rate of change of angular velocity  = /t • Units: °/s2, rad/s2, rev/s2

  20. Relationships between linear & angular displacement • The greater the radius between a given point on a rotating body and the axis or rotation…… …the greater the linear distance the point moves during angular motion s2 2 2 s1 1 1 r2 r1 

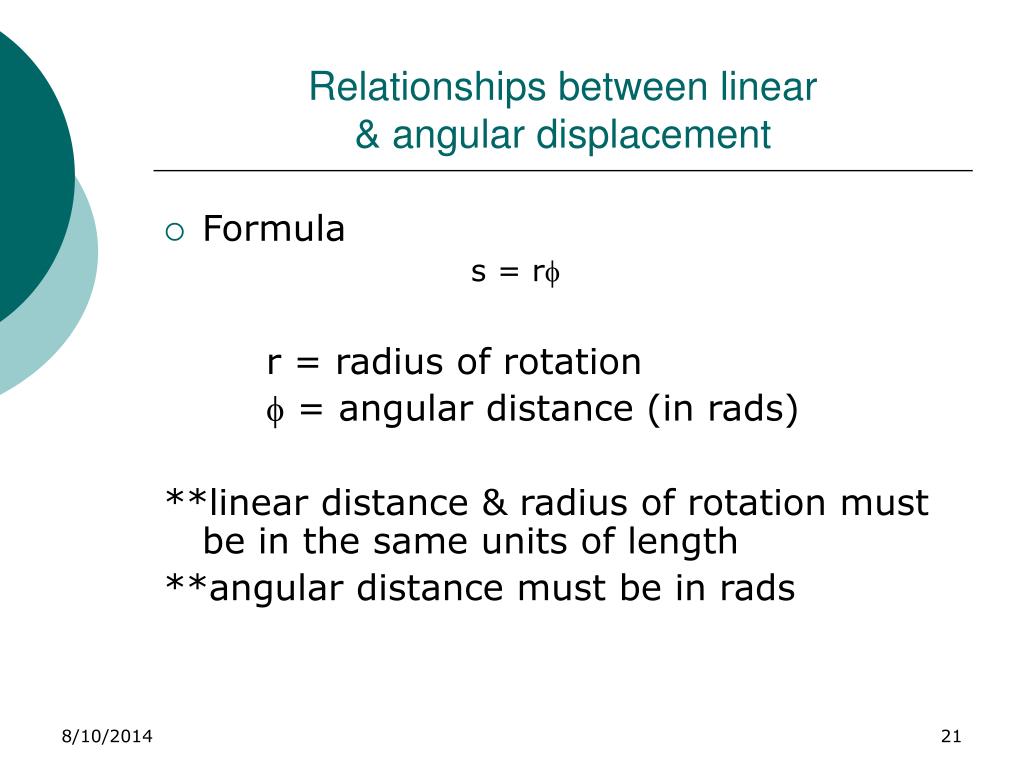

  21. Relationships between linear & angular displacement • Formula s = r r = radius of rotation  = angular distance (in rads) **linear distance & radius of rotation must be in the same units of length **angular distance must be in rads

  22. Relationships between linear & angular velocity • Similar relationship v = r v = tangential velocity r = radius of rotation  = angular velocity **rads are not balanced on both sides of the equation 30 cm 20 cm

  23. Relationships between linear & angular velocity …the greater the radius of rotation… ……the greater the linear velocity ? Length of implements vs weight of implements (control) Linear velocity of ball  velocity of implement

  24. Relationships between linear & angular acceleration • Two perpendicular linear acceleration components 1. Along path of angular motion (tangential acceleration) 2. Perpendicular to path of angular motion (radial acceleration) at ar

  25. Relationships between linear & angular acceleration • Tangential: at = v2 – v1/t at = r • Radial: ar = v2/r
