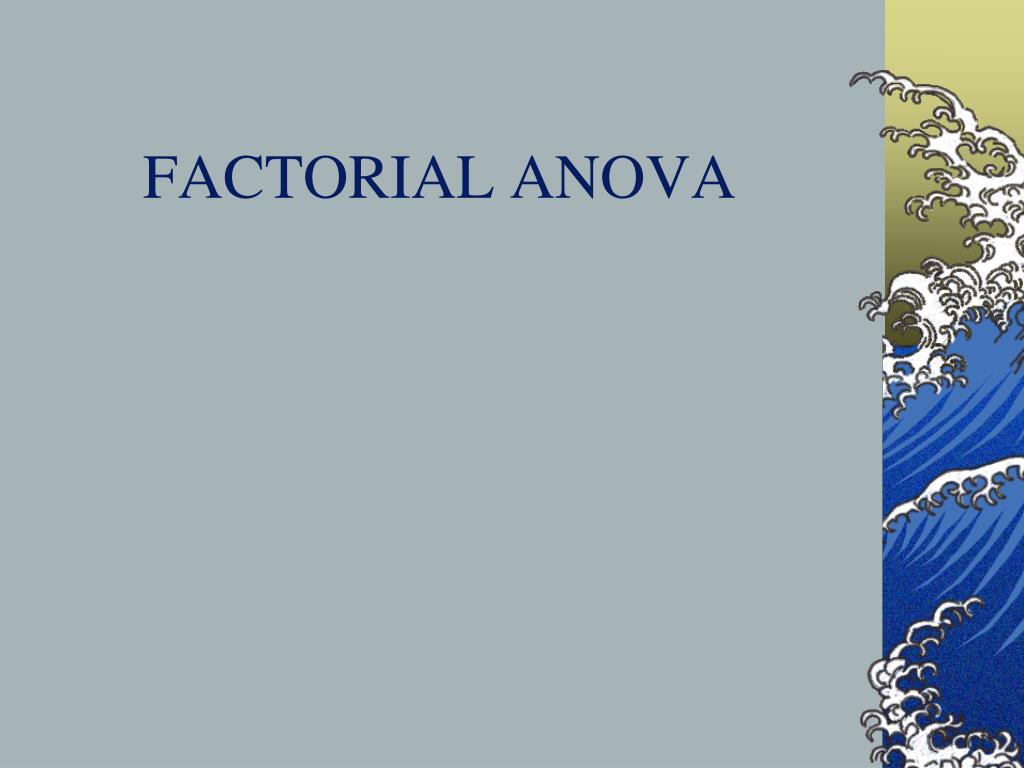

  1. FACTORIAL ANOVA

  2. Overview of Factorial ANOVA • Factorial Designs • Types of Effects • Assumptions • Analyzing the Variance • Regression Equation • Fixed and Random Effects

  3. FACTORIAL DESIGNS • All combinations of levels of two or more independent variables (factors) are measured

  4. Types of Factorials • Between subjects (independent) • Within subjects (related) • Mixed

  5. Between Subjects A 1 2 Subjects 1-10 Subjects 21-30 1 B Subjects 11-20 Subjects 31-40 2

  6. Within Subjects A 1 2 Subjects 1-40 Subjects 1-40 1 B Subjects 1-40 Subjects 1-40 2

  7. Mixed (A Between, B Within) A 1 2 Subjects 1-20 Subjects 21-40 1 B Subjects 1-20 Subjects 21-40 2

  8. TYPES OF EFFECTS • A main effect is the overall effect of each IV by itself, averaging over the levels of any other IVs • An interaction occurs when the effects of one factor change depending on the level of another factor

  9. Simple Effects • An interaction can be understood as a difference in simple effects • A simple effect is the effect of one factor on only one level of another factor • If the simple effects differ, there is an interaction

  10. 70 60 50 B2 40 d.v. 30 B1 20 10 0 1 2 A

  11. 70 B2 60 50 40 B1 d.v. 30 20 10 0 1 2 A

  12. B2 70 60 50 40 d.v. 30 B1 20 10 0 1 2 A

  13. 70 60 B2 50 40 d.v. 30 20 B1 10 0 1 2 A

  14. ASSUMPTIONS • Interval/ratio data • Normal distribution or N at least 30 • Independent observations • Homogeneity of variance • Proportional or equal cell sizes

  15. ANALYZING THE VARIANCE • Total Variance = Model + Residual • Model Variance is further divided into: • Factor A • Factor B • A x B interaction

  16. Comparing Variance • F-test for each main effect and for the interaction • Each F-test compares variance for the effect to Residual variance

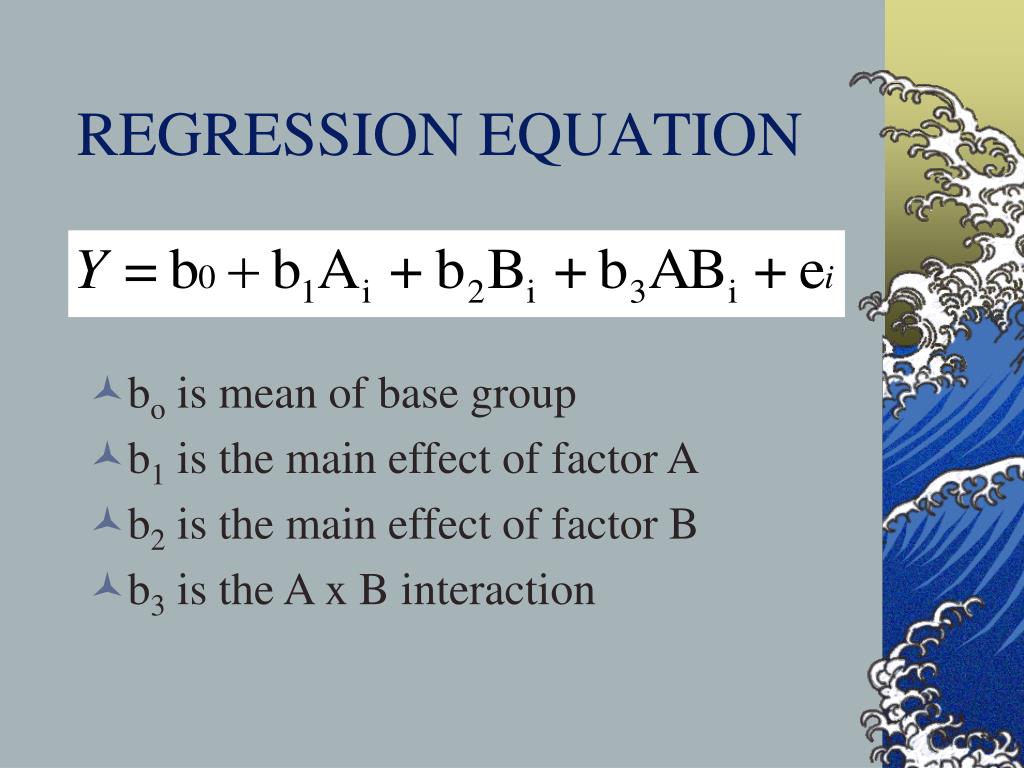

  17. REGRESSION EQUATION • bo is mean of base group • b1 is the main effect of factor A • b2 is the main effect of factor B • b3 is the A x B interaction

  18. FIXED VS. RANDOM EFFECTS • Fixed Factor: only the levels of interest are selected for the factor, and there is no intent to generalize to other levels • Random Factor: the levels are selected at random from the possible levels, and there is an intent to generalize to other levels

  19. APA Format Example The two-way between subjects ANOVA showed a significant main effect of customer type, F(1,1482) = 5.04, p = .025, partial h2 = .00, a non-significant main effect of industry type, F(2,1482) = 0.70, p = .497, partial h2 = .00, and a significant interaction, F(2,1482) = 3.12, p = .044, partial h2 = .00.
