1. State Street State Street Reconstruction November 2003

2. Project Consultant Team • MSA Professional Services • Ken Saiki Design • ZD Studios • KJWW • Jill Sebastian • Elizabeth Miller • SES

3. Project Schedule • Public Informational Meeting #1 September, 2003 • Public Informational Meeting #2 November, 2003 • Final Plans for 100 Block Due January 1, 2004 • 100 Block Construction 2004 • Final Plans for 200 Block Due January 1, 2005 • 200 Block Construction 2005 or 2006

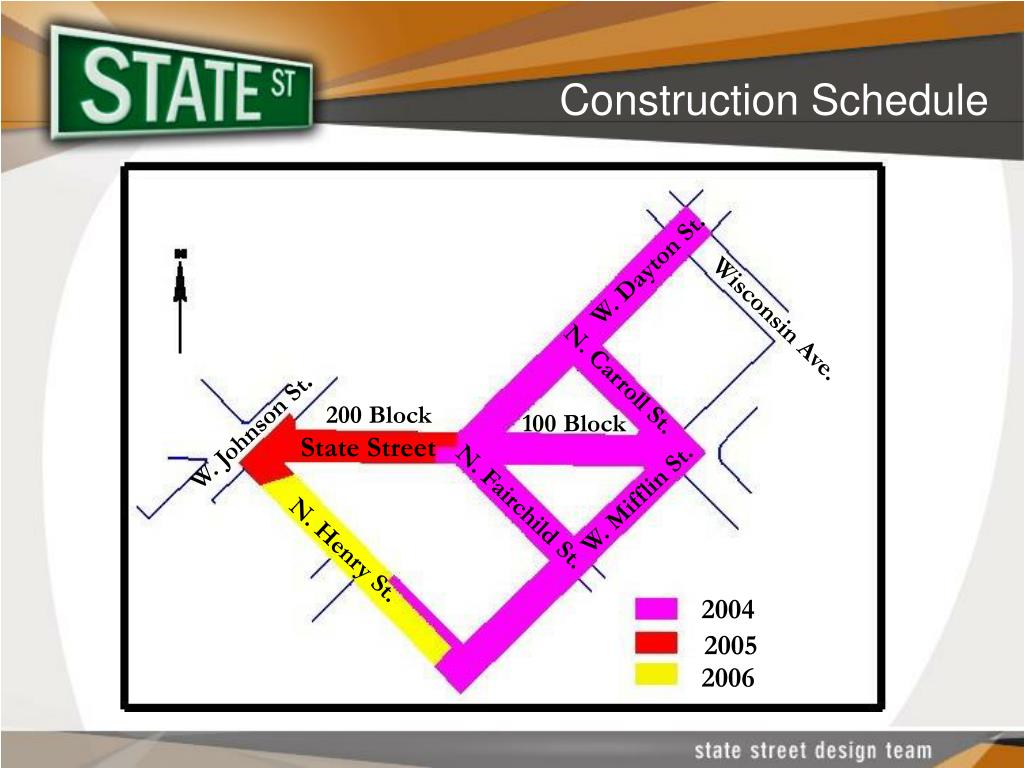

4. Construction Schedule W. Dayton St. Wisconsin Ave. N. Carroll St. 200 Block 100 Block W. Johnson St. State Street W. Mifflin St. N. Fairchild St. N. Henry St. 2004 2005 2006

5. Construction Scope • Reconstruct Sidewalk and Roadway • Replace Storm Sewer, Sanitary Sewer, and Water Main • New Street Lights and Traffic Signals • Streetscape, Wayfinding, Logo, and Public Art Opportunities

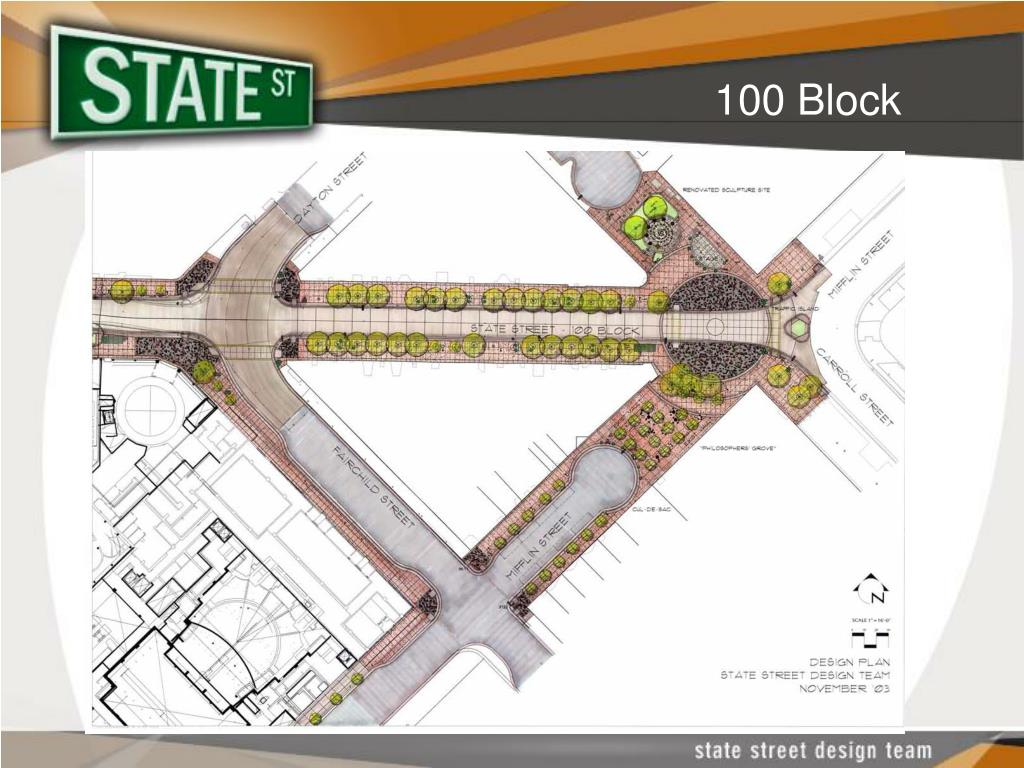

6. 100 Block

8. Carrol Court

9. Pavement Sidewalk Test Pavement - C1 Non-colored concrete Black and red aggregates Road Concrete Corners & Street Ends Accent areas of special pavement treatment

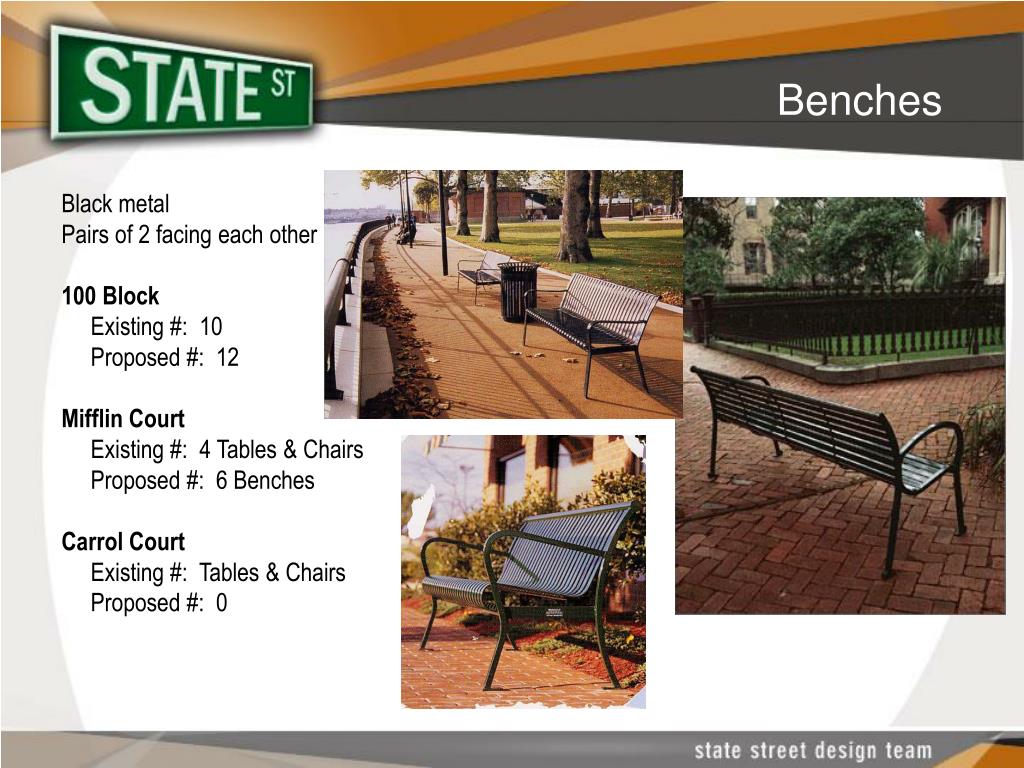

10. Benches Black metal Pairs of 2 facing each other 100 Block Existing #: 10 Proposed #: 12 Mifflin Court Existing #: 4 Tables & Chairs Proposed #: 6 Benches Carrol Court Existing #: Tables & Chairs Proposed #: 0

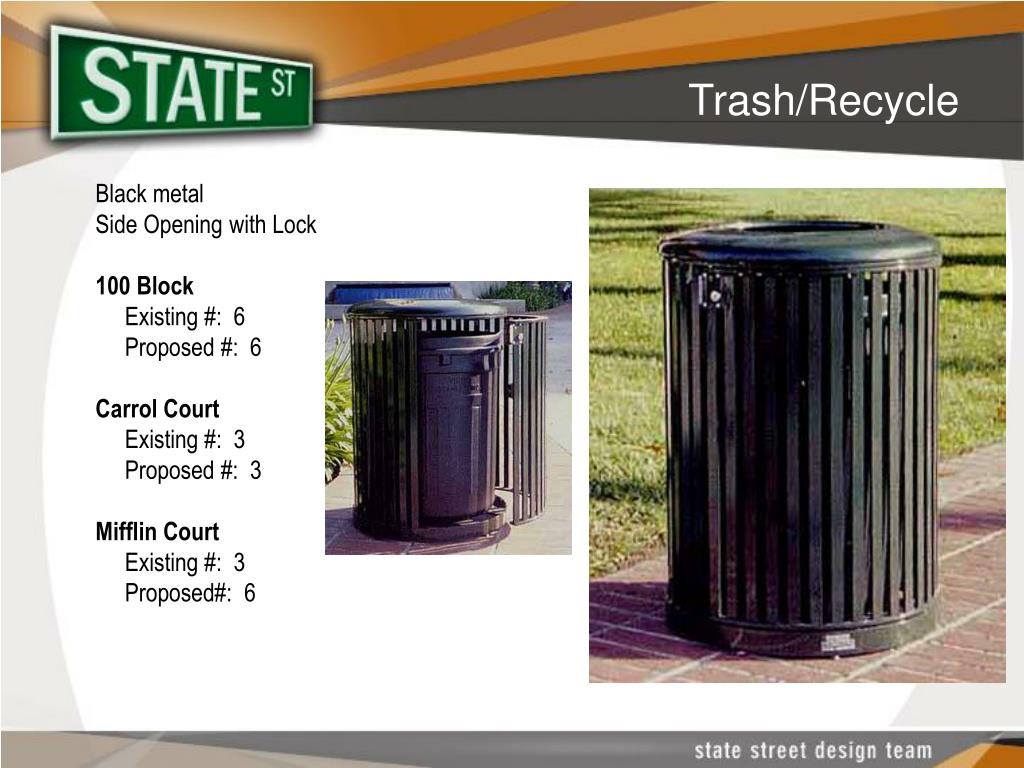

11. Trash/Recycle Black metal Side Opening with Lock 100 Block Existing #: 6 Proposed #: 6 Carrol Court Existing #: 3 Proposed #: 3 Mifflin Court Existing #: 3 Proposed#: 6

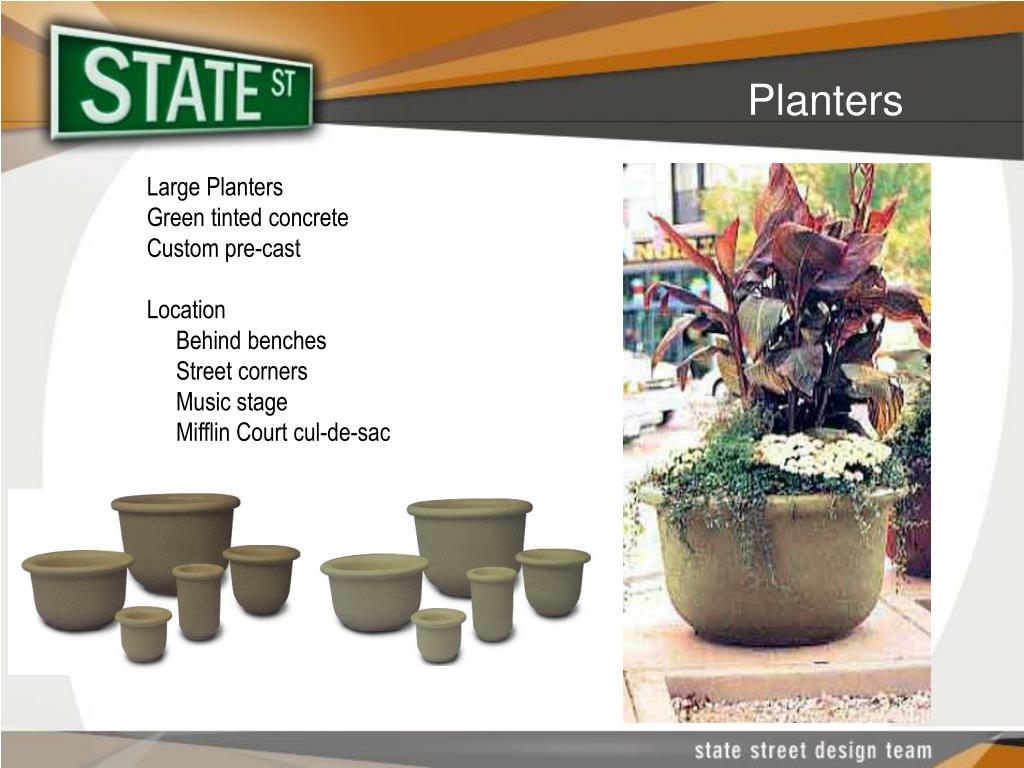

12. Planters Large Planters Green tinted concrete Custom pre-cast Location Behind benches Street corners Music stage Mifflin Court cul-de-sac

13. Tree Grates Circular grates on State Street Rectangular grates in Mifflin Court ADA Compliant Expandable with trunk growth

14. Bike Racks 100 Block Existing #: 4 Proposed #: 8 Carrol Court Existing #: 2 Proposed #: 4 Mifflin Court Existing #: 2 Proposed #: 2

15. Lighting Dark Sky Organization Outdoor Lighting Code Handbook Version 1.14 December 2000 / September 2002 http://www.darksky.org • State Street will be designed for Zone E4 Class 1 Lighting – Areas of high ambient brightness where color rendition is important. Normally these are urban areas that have both residential and commercial use and experience high levels of nighttime activity.

16. Lighting 3 Types Area Pedestrian Accent/Banner

17. Lighting • Area Lighting • Amber Glow • High Pressure Sodium • Full cut-off optics • Mounted at 30 feet

18. Lighting • Pedestrian Scale • White Color • Metal Halide • Low lumen output • and prismatic lens • Mounted at 14 feet

19. Lighting • Accent/Banner Lighting • White LEDs will replace the glitter poles through the new banner bracket design.

20. Proposed Lighting

42. Kiosk

43. Way-finding

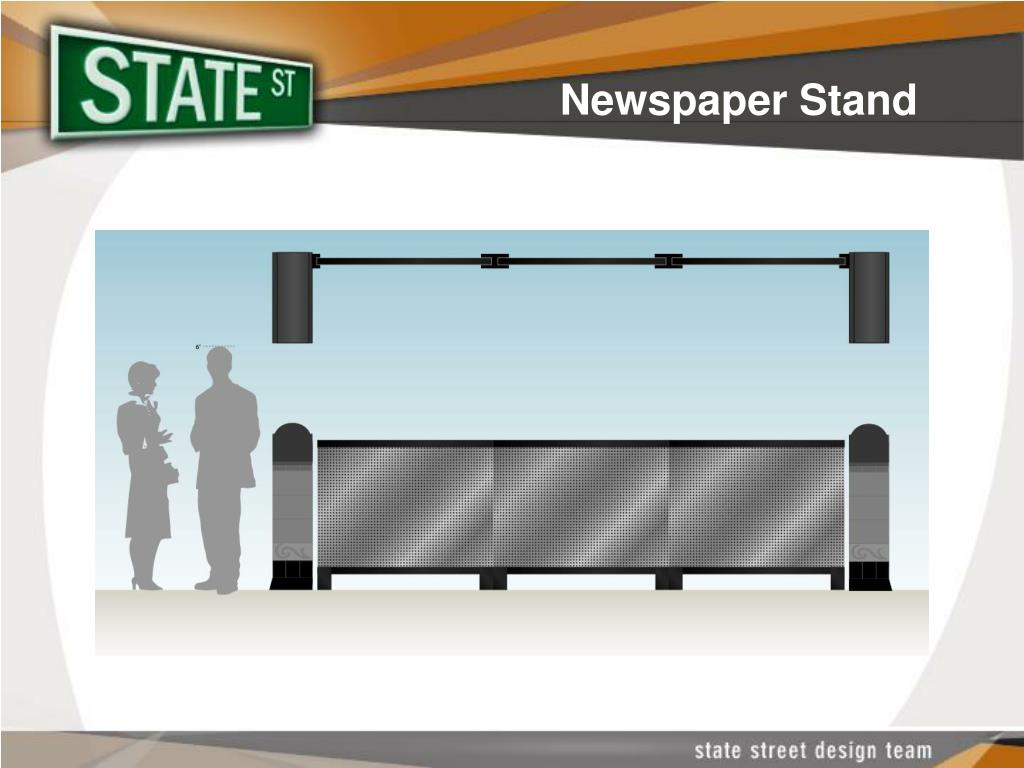

44. Newspaper Stand

45. Newspaper Stand

46. Newspaper Stand

47. Public Art Renovate sculpture setting Open visibility to State St. and the Square Make needed repairs to sculpture and its lighting Replace donor recognition system

48. Multi-tiered program Invite renowned artists Hold competition of local and regional artists Begin mentorship between young and experienced artists Create program for temporary art Encourage partnerships for public/private contributions Provide for long term maintenance

49. Public Art Opportunities Philosophers’ Grove Art Template Program for future opportunities
