Aircraft Performance Monitoring System

DESCRIPTION

Monitor aircraft performance parameters like altitude, fuel flow, oil system, and more in real time. Detect faults and diagnose events for improved maintenance.

1 / 7

Télécharger la présentation

Aircraft Performance Monitoring System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

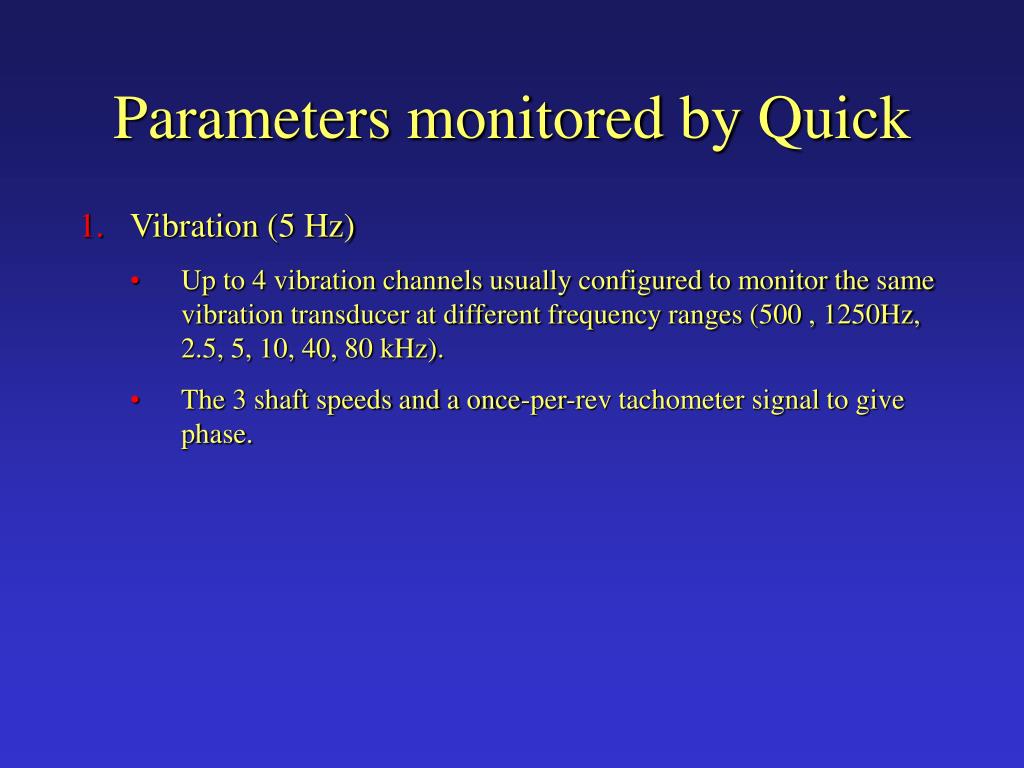

  1. Parameters monitored by Quick • Vibration (5 Hz) • Up to 4 vibration channels usually configured to monitor the same vibration transducer at different frequency ranges (500 , 1250Hz, 2.5, 5, 10, 40, 80 kHz). • The 3 shaft speeds and a once-per-rev tachometer signal to give phase.

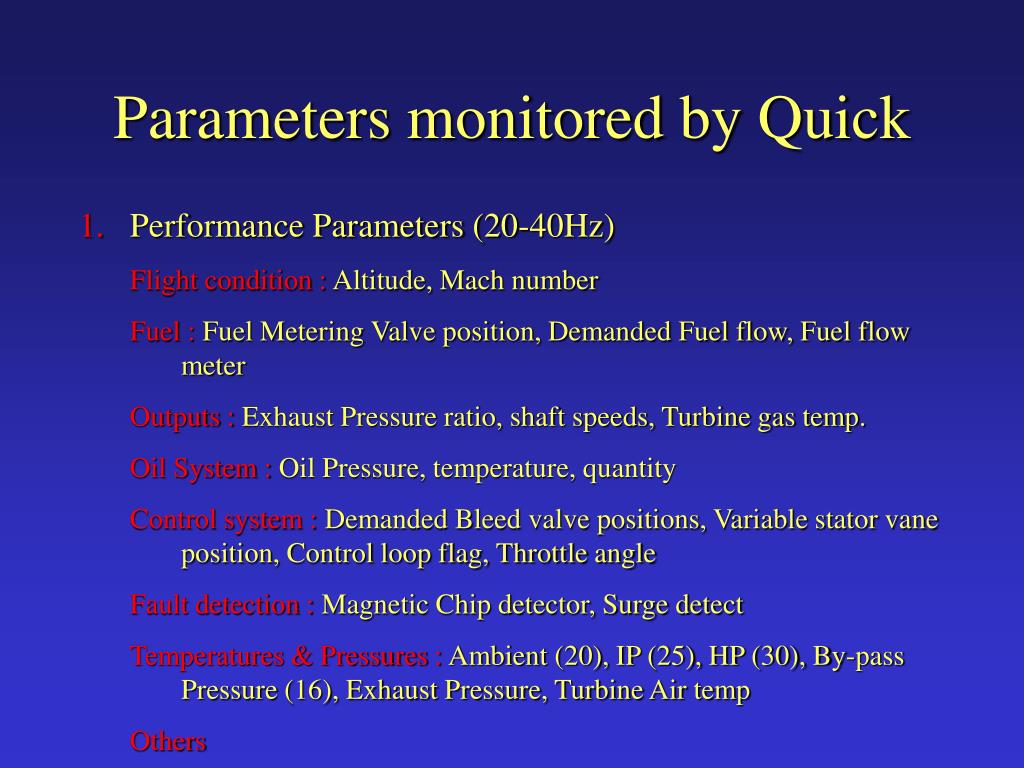

  2. Parameters monitored by Quick • Performance Parameters (20-40Hz) • Flight condition : Altitude, Mach number • Fuel : Fuel Metering Valve position, Demanded Fuel flow, Fuel flow meter • Outputs : Exhaust Pressure ratio, shaft speeds, Turbine gas temp. • Oil System : Oil Pressure, temperature, quantity • Control system : Demanded Bleed valve positions, Variable stator vane position, Control loop flag, Throttle angle • Fault detection : Magnetic Chip detector, Surge detect • Temperatures & Pressures : Ambient (20), IP (25), HP (30), By-pass Pressure (16), Exhaust Pressure, Turbine Air temp • Others

  3. Features, Symptoms & Events • Features • Occurrences of diagnostic interest. E.g. step change in vibration level

  4. Features, Symptoms & Events • Features • Occurrences of diagnostic interest. E.g. step change in vibration level • Symptoms • A feature occurring at a specific engine condition may be a symptom of a known fault.

  5. Features, Symptoms & Events • Events • The co-occurrence of several symptoms leads to the diagnosis of an event

  6. Features – Symptoms - Diagnosis List of known events defined in a config file : Diagnosis number 11 Diagnosis 1 "Bowed Rotor Start" HP_SHAFT Diagnosis 2 "Bird Strike" LP_COMP Diagnosis 3 "IP Lockplate" IP_COMP Diagnosis 4 "LP Out of Balance" LP_COMP Diagnosis 5 "IP Out of Balance" IP_SHAFT Diagnosis 6 "HP Out of Balance" HP_SHAFT Diagnosis 7 "LP Mass redistribution" LP_COMP Diagnosis 8 "IP Mass redistribution" IP_COMP Diagnosis 9 "IP Failure" IP_COMP Diagnosis 10 "HP Mass redistribution" HP_COMP Diagnosis 11 "Radial Drive Shaft bearing" HP_SHAFT

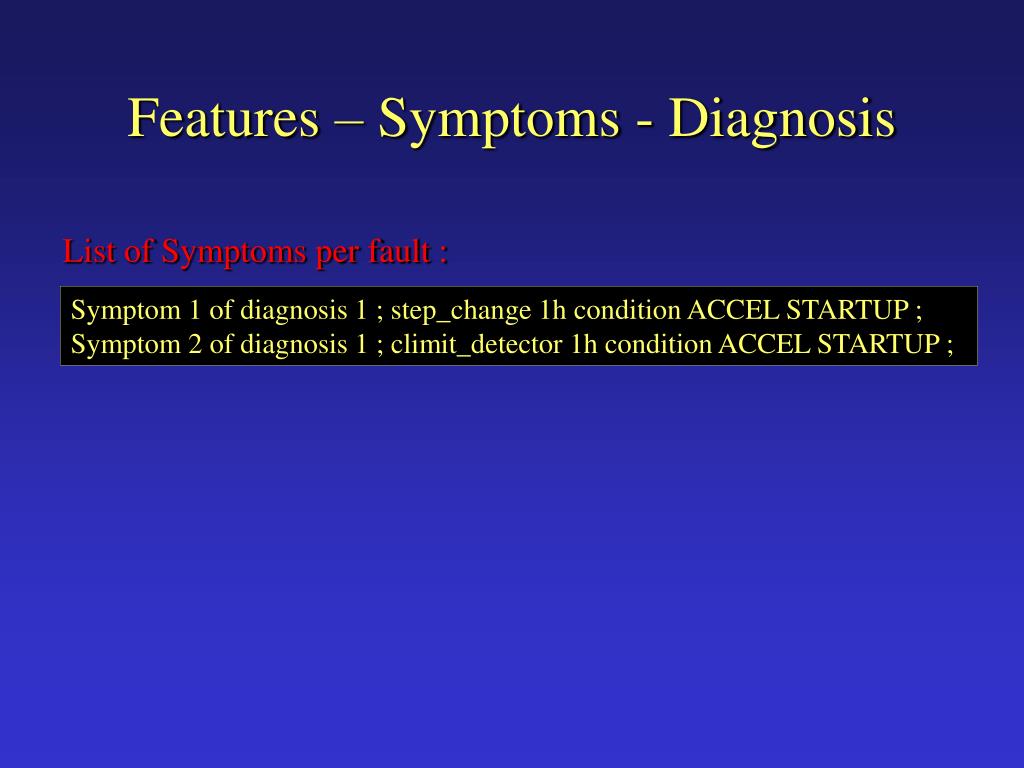

  7. Features – Symptoms - Diagnosis List of Symptoms per fault : Symptom 1 of diagnosis 1 ; step_change 1h condition ACCEL STARTUP ; Symptom 2 of diagnosis 1 ; climit_detector 1h condition ACCEL STARTUP ;
