Recycler RF for g-2. David Wildman Accelerator Physics Center. Requirements from C. M. Bhat and J.A. MacLachlan *. 2.5 MHz (h=28) = 80 kV 5 MHz (h=56) = 16 kV Broadband RF (sawtooth) = 4 kV * Beams Doc 3192-V1. 80 kV at 2.5 MHz 16kV at 5 MHz. Present systems 75 kV/ 15kV

graiden-brady
Télécharger la présentation

Recycler RF for g-2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Recycler RF for g-2 David Wildman Accelerator Physics Center

  2. Requirements from C. M. Bhat and J.A. MacLachlan* • 2.5 MHz (h=28) = 80 kV • 5 MHz (h=56) = 16 kV • Broadband RF (sawtooth) = 4 kV * Beams Doc 3192-V1

  3. 80 kV at 2.5 MHz 16kV at 5 MHz • Present systems 75 kV/ 15kV • Duty factor is increased by X1000 • RF cavities must be rebuilt for additional cooling • During rebuild switch from 6 to 8 cavities • Reuse large 4M2 cores (20” OD) • Relocate systems to MI-30. • Cost ~ $700k

  4. Broadband RF = 4 kV peak • Present system is 2 kVpeak, 10 kHz to 100MHz • Duplicate existing system • Cost ~ $1150k

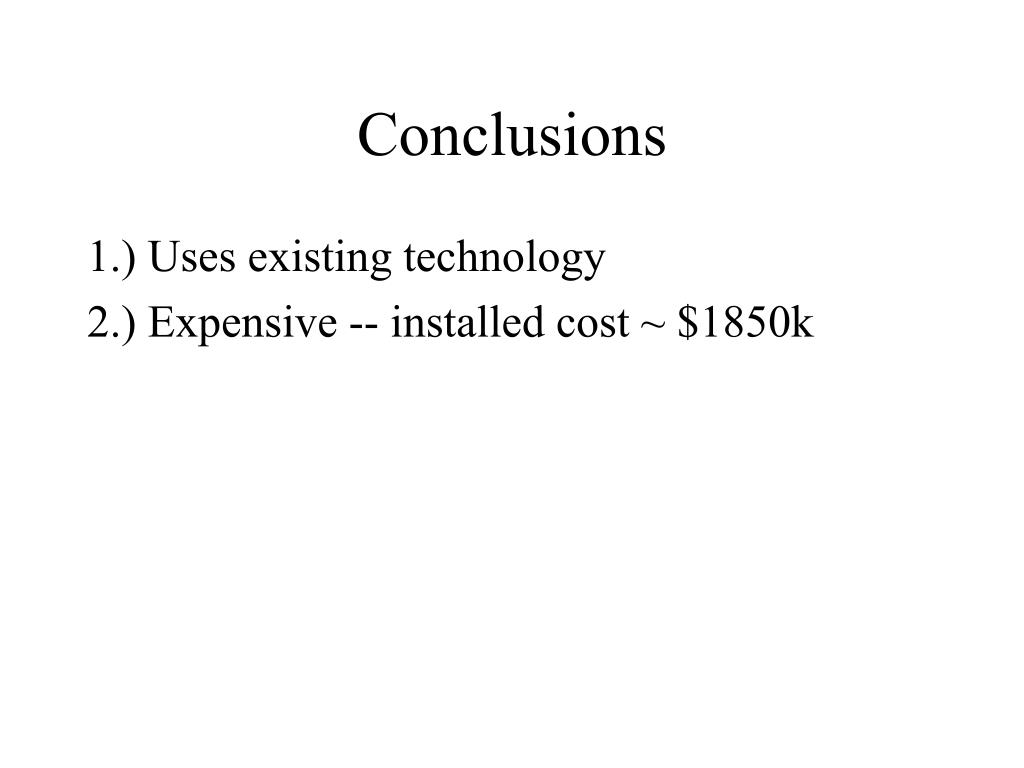

  5. Conclusions 1.) Uses existing technology 2.) Expensive -- installed cost ~ $1850k
