Chapter 1 Introductory Concepts and Calculus Review

1. Chapter 1 Introductory Concepts and Calculus Review

2. Introduction • The subjects • The derivation of the algorithms • The implementation of the algorithms • Analyze the algorithms mathematically • Accuracy, efficiency, and stability

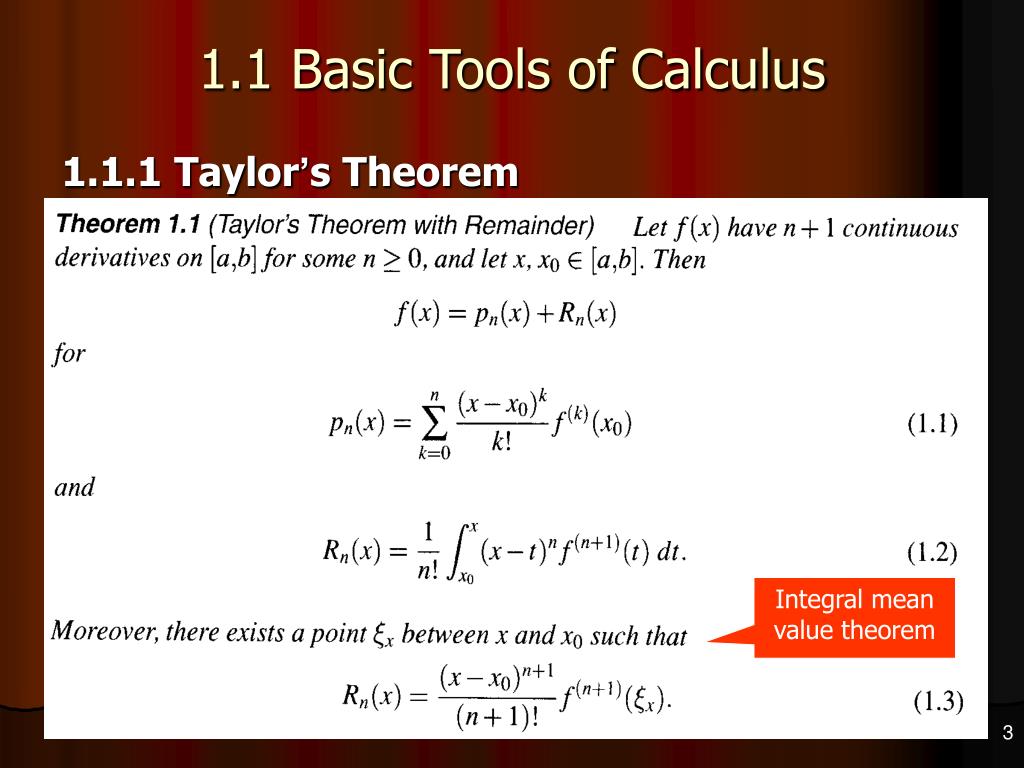

3. 1.1 Basic Tools of Calculus 1.1.1 Taylor’s Theorem Integral mean value theorem

4. Three particular expansions of Taylor’s Theorem where x0= ?

5. Three particular expansions of Taylor’s Theorem where x0= 0 where x0= 0

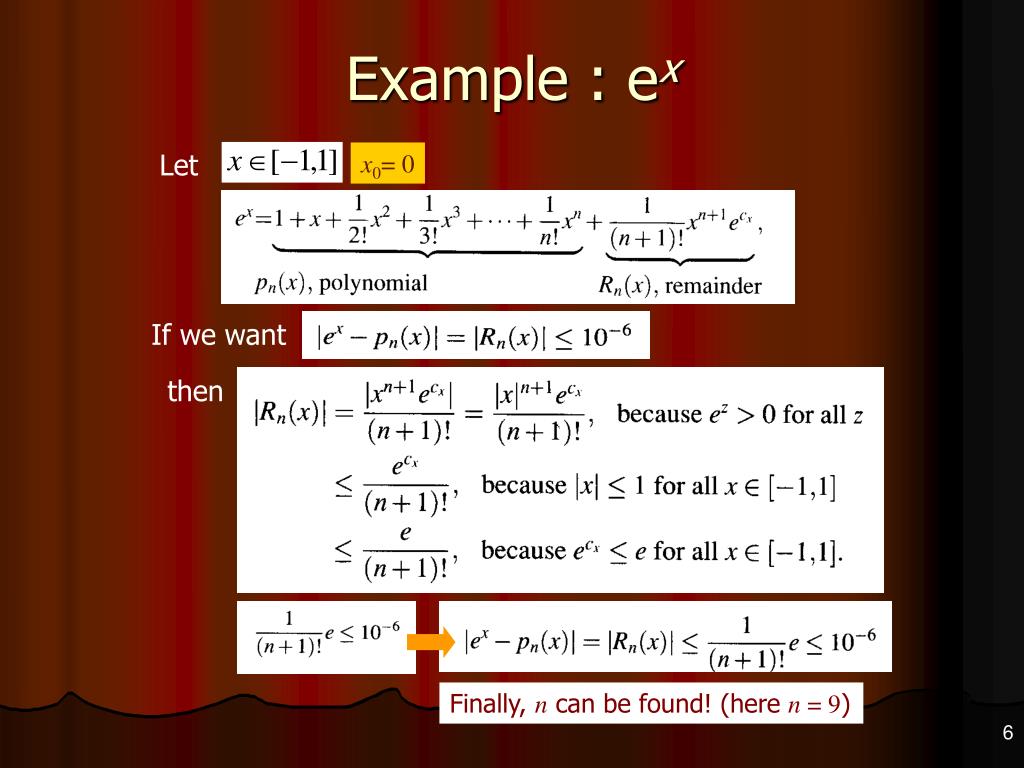

6. Example : ex Let x0= 0 If we want then Finally, n can be found! (here n = 9)

7. Example : ex p9 (x) p2 (x) exp(x)

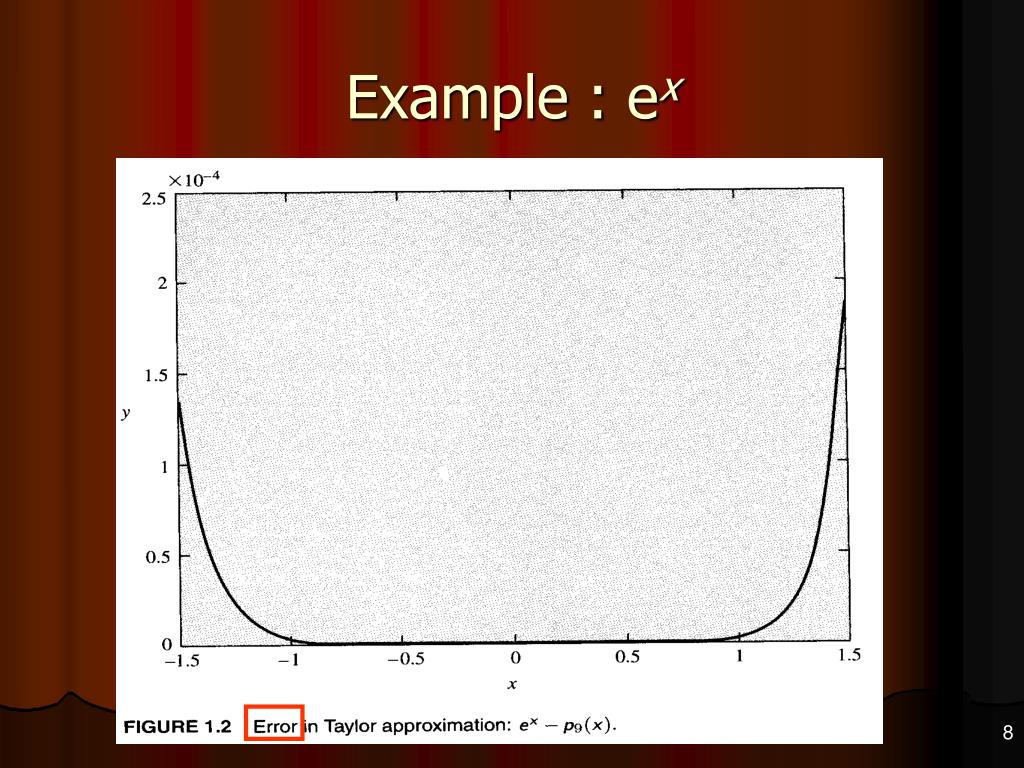

8. Example : ex

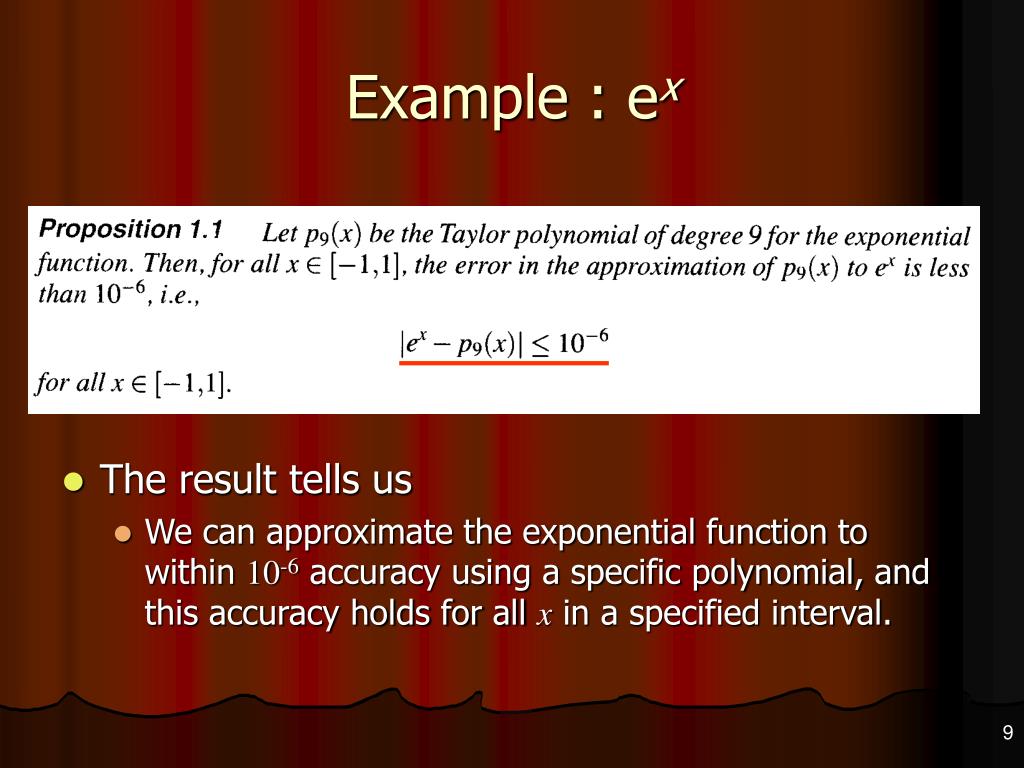

9. Example : ex • The result tells us • We can approximate the exponential function to within 10-6 accuracy using a specific polynomial, and this accuracy holds for all x in a specified interval.

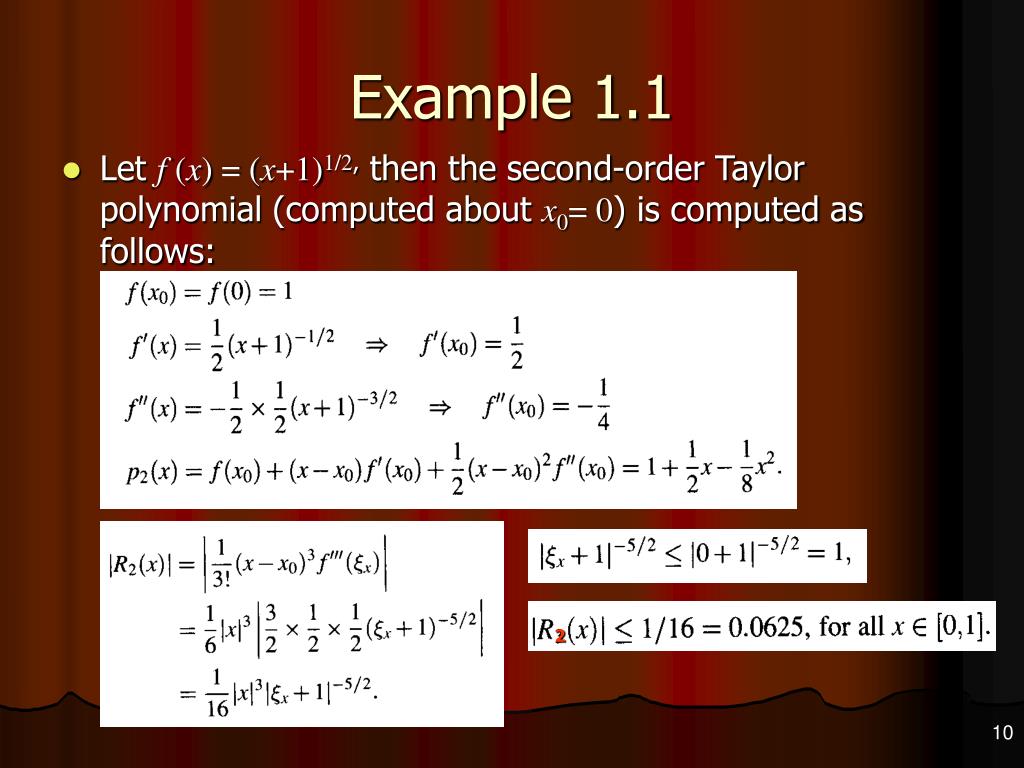

10. Example 1.1 • Let f (x) = (x+1)1/2, then the second-order Taylor polynomial (computed about x0= 0) is computed as follows: 2

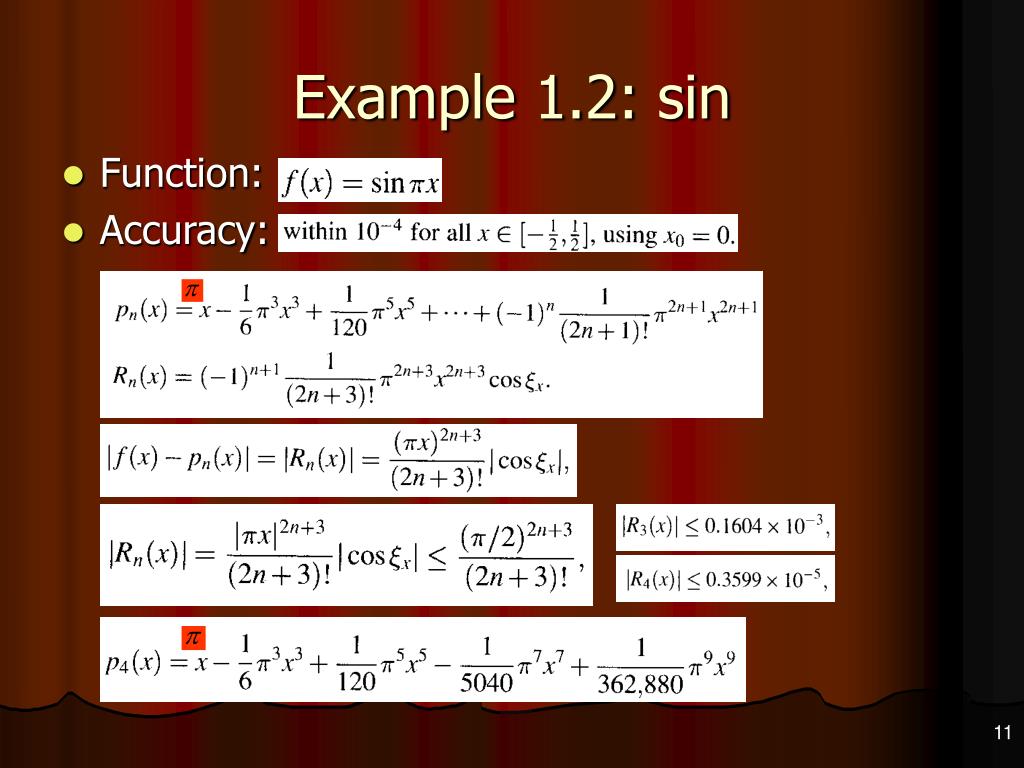

11. Example 1.2: sin • Function: • Accuracy:

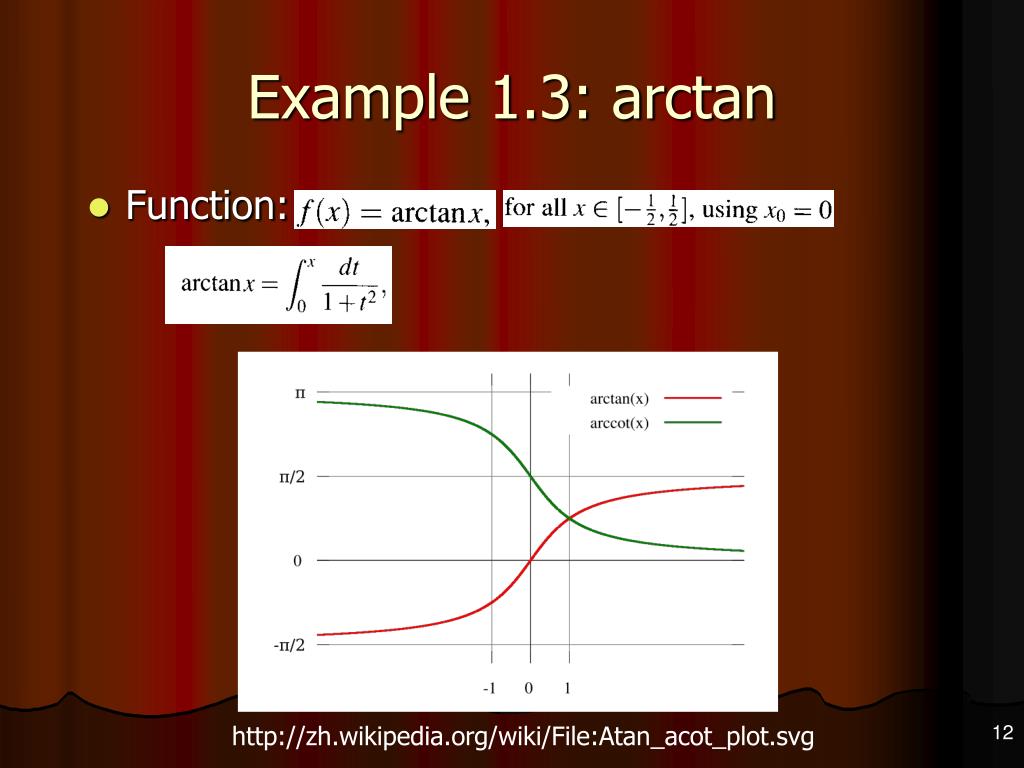

12. Example 1.3: arctan • Function: http://zh.wikipedia.org/wiki/File:Atan_acot_plot.svg

13. Example 1.3: arctan • Function: and Let Error term

14. Example 1.3 : arctan • Please determine the error in a ninth-degree Taylor approximation to the arctangent function. • Since 2n +1 = 9 implies that n = 4, we have

15. Taylor’s Theorem Expansion Let x x + hand x0x

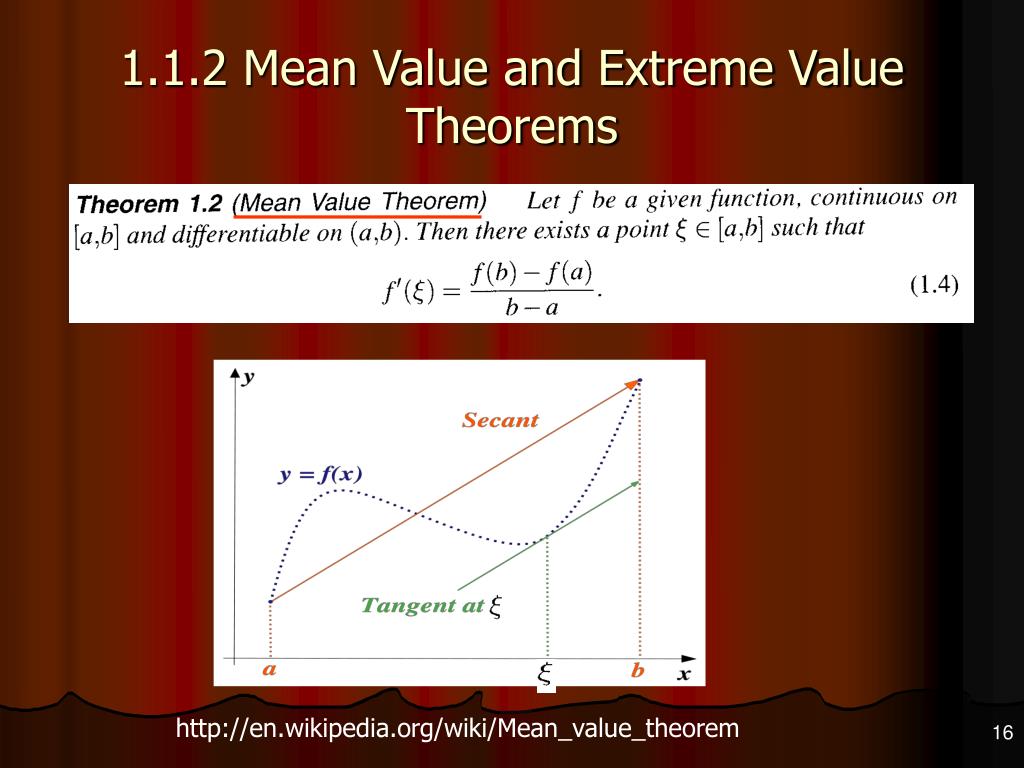

16. 1.1.2 Mean Value and Extreme Value Theorems http://en.wikipedia.org/wiki/Mean_value_theorem

17. 1.1.2 Mean Value and Extreme Value Theorems W

18. M m 1.1.2 Mean Value and Extreme Value Theorems Critical point Critical point

19. 1.1.2 Mean Value and Extreme Value Theorems The integral mean value theorem (a corollary of the intermediate value theorem) states that a function continuous on an interval takes on its average value somewhere in the interval. More exactly, if is continuous on , then there exists in such that .

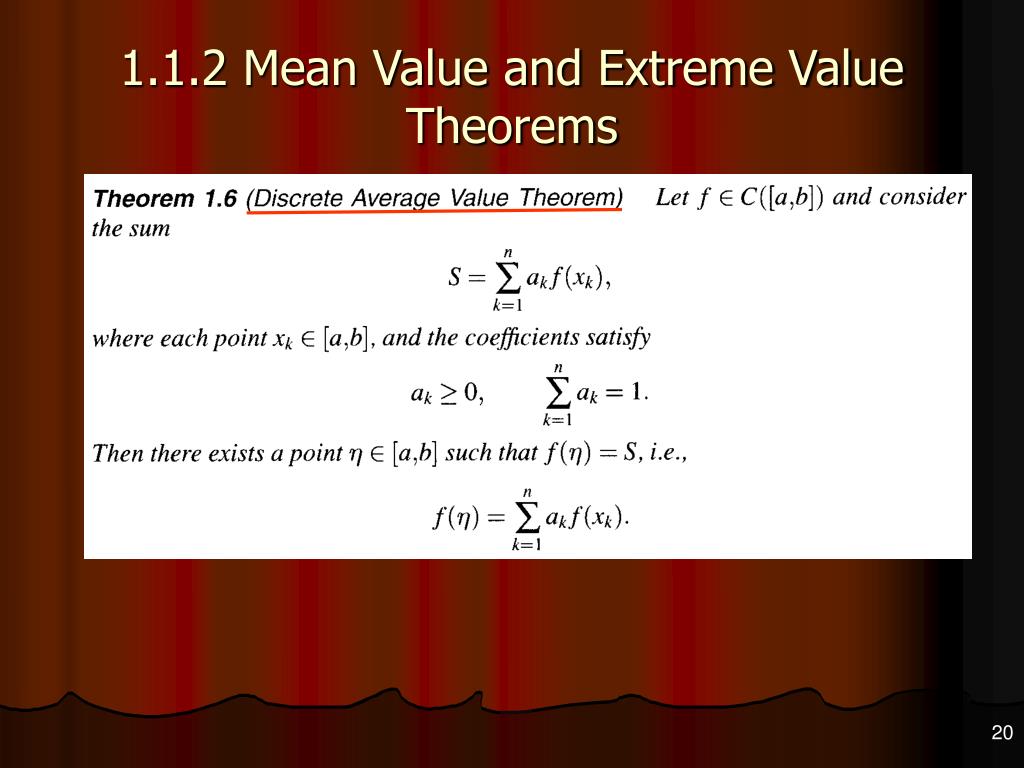

20. 1.1.2 Mean Value and Extreme Value Theorems

21. 1.2 Error, Approximate Equality, and Asymptotic Order Notation 1.2.1 Error • A : a quantity(數量) we want to compute • Ah: an approximation(近似值) to that quantity • Relative error (相對誤差) is better. • These errors are both computational errors.

22. 1.2.2 Notation: Approximate Equality • Approximate equality • It is an equivalence relation, and satisfy the following properties: • Transitive(遞移性): • Symmetric(對稱性): • Reflexive(反身性):

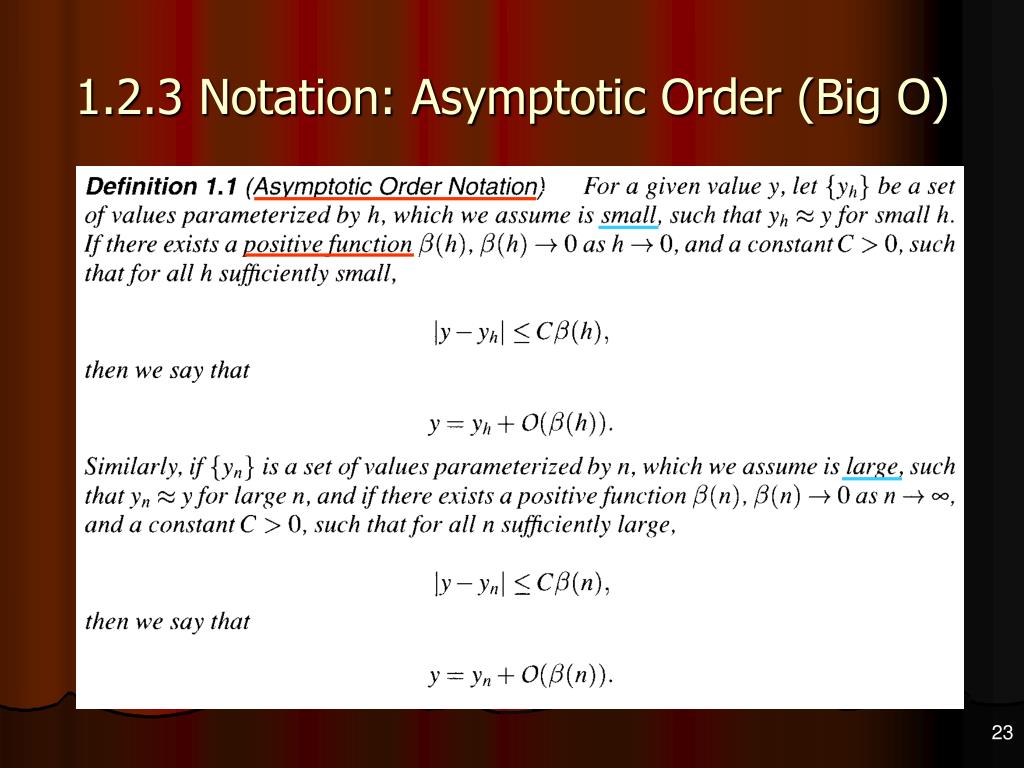

23. 1.2.3 Notation: Asymptotic Order (Big O)

24. Example 1.4 • Let • Simple calculus shows that • so that we have • Here

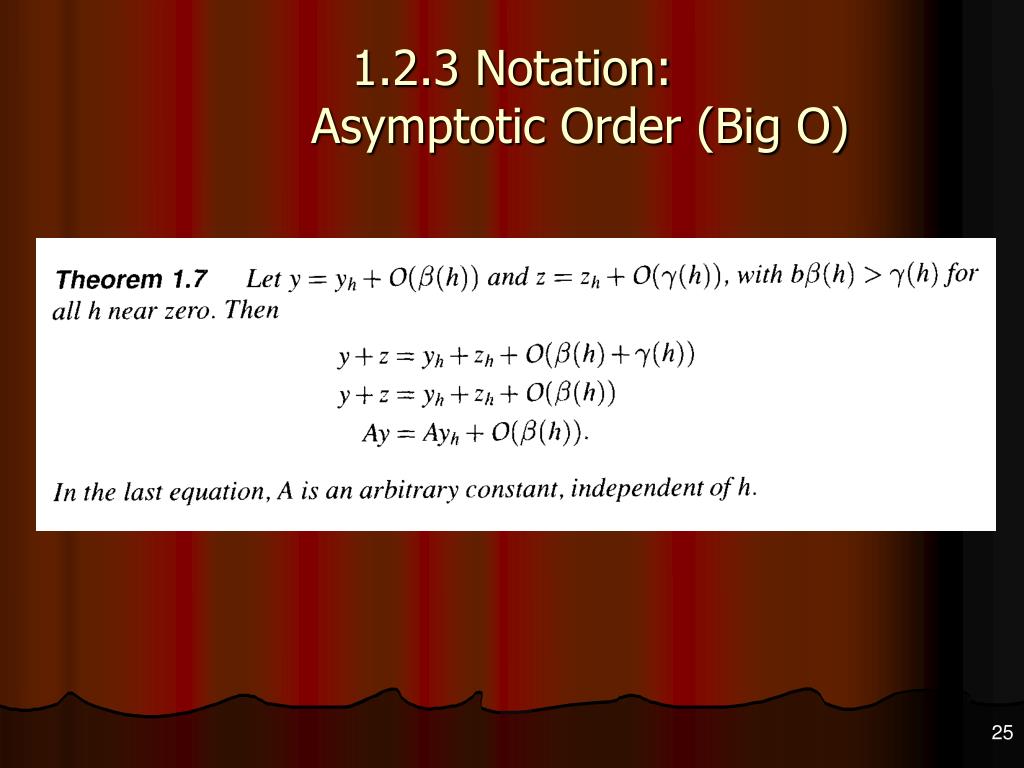

25. 1.2.3 Notation: Asymptotic Order (Big O)

26. Example 1.6

28. 1.3 A Primer on Computer Arithmetic • Computer arithmetic is generally inexact. • While the errors are very small, they can accumulate and dominate the calculation. • Example: floating-point arithmetic • Reference: An Introduction to Computer Science, Chapter 3, Excess System (Excess_127 or Excess_1023) is the sign of the number, f is the fraction (0 <= f <= 1), is the base of the internal number system

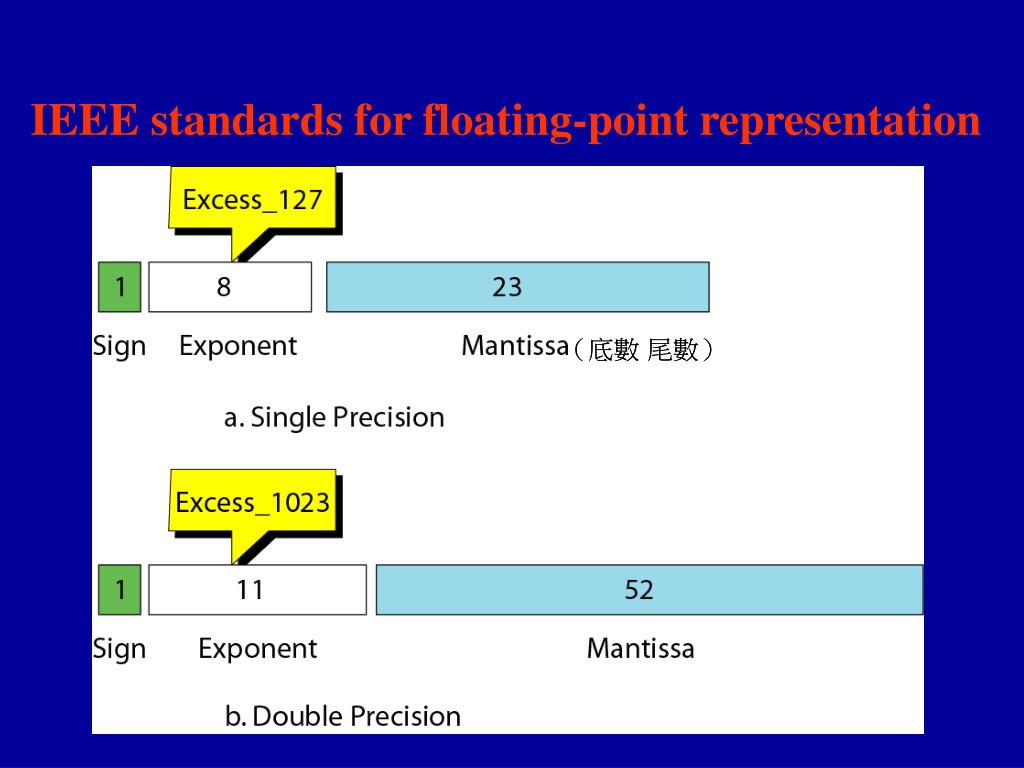

29. IEEE standards for floating-point representation （底數 尾數） （底數 尾數）

30. Example Show the representation of the normalized number + 26 x 1.01000111001 Solution The sign ispositive. The Excess_127 representation of the exponent is 133. You add extra 0s on the right to make it 23 bits. The number in memory is stored as:01000010101000111001000000000000

31. Errors • Rounding error v.s. chopping error • Rounding: 四捨五入 • Chopping: 無條件捨去 • Discussion: • Rounding is more accurate but chopping is faster. • The chopping error is indeed lager than the rounding error.

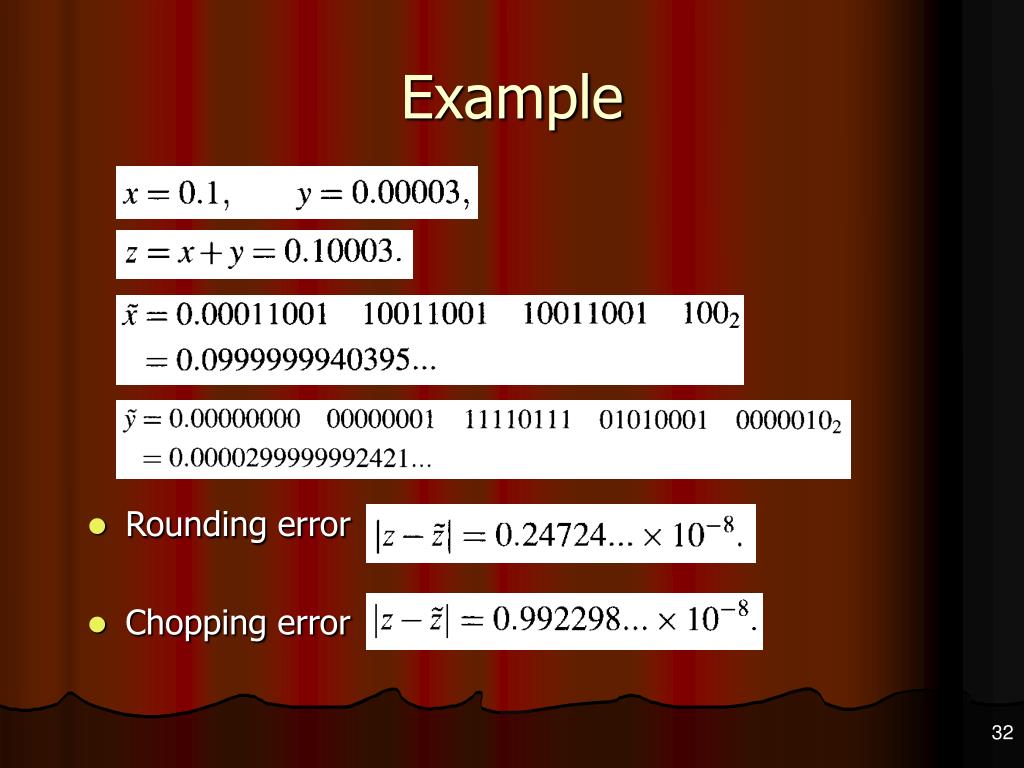

32. Example • Rounding error • Chopping error

33. Subtractive Cancellation • If a and b are accurate to 16 decimal digits. What about their difference c = a - b ? • Example: The result c is accurate to 12 digits. • This is because we were subtracting two nearly equal numbers.

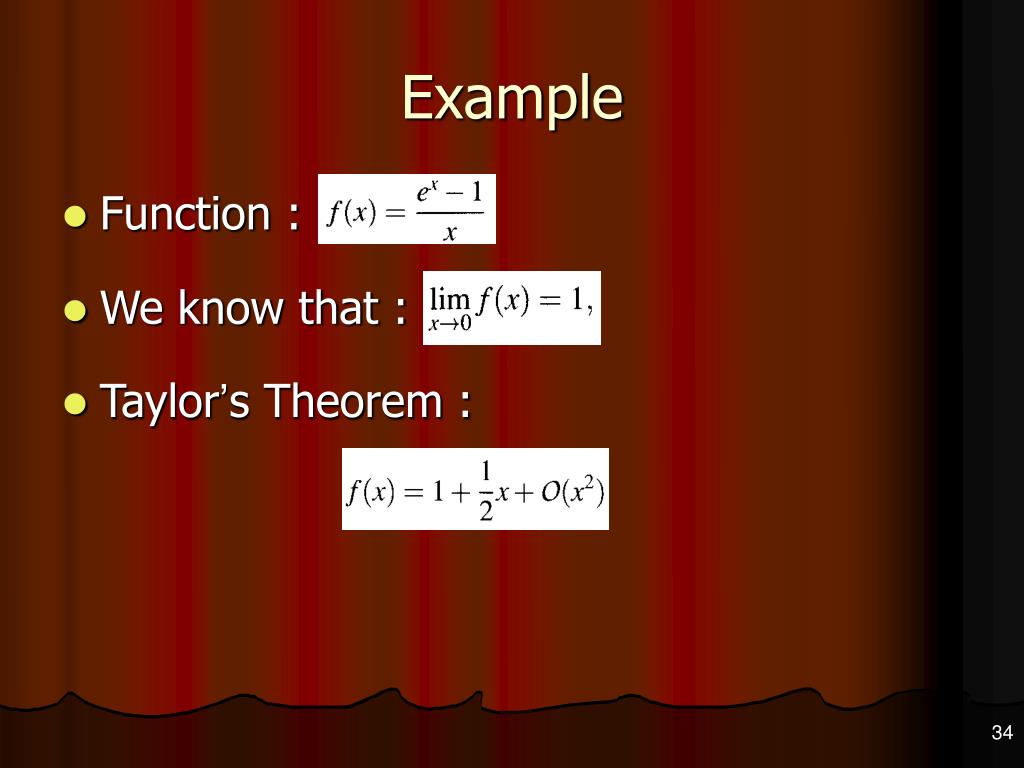

34. Example • Function : • We know that : • Taylor’s Theorem :

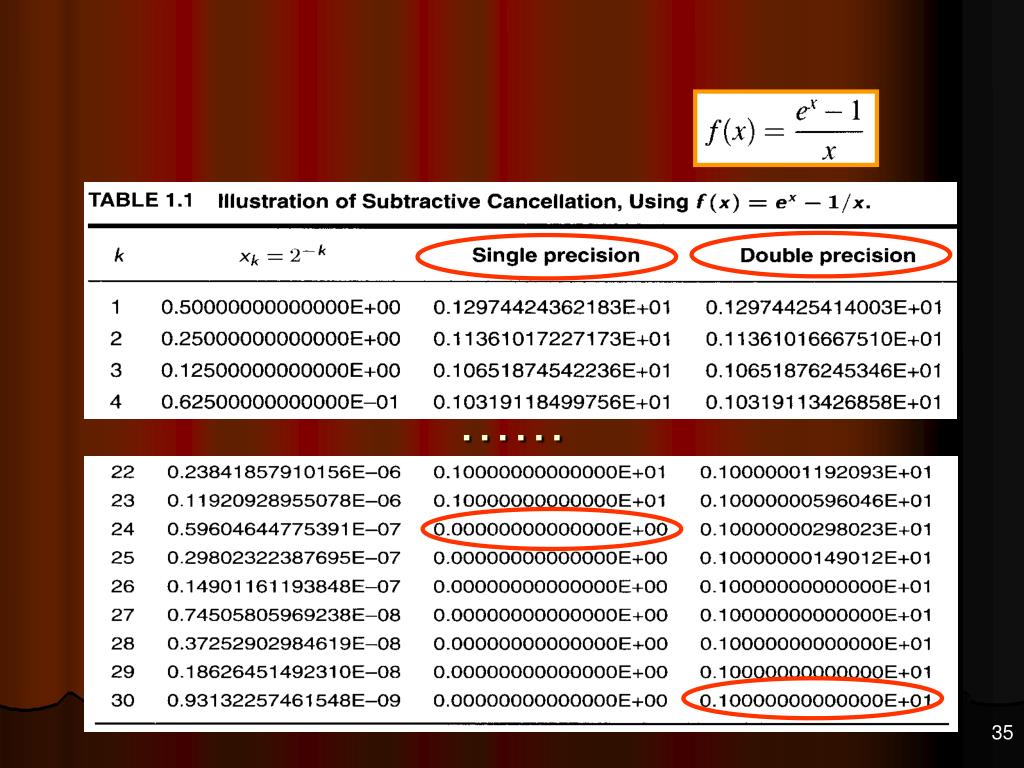

35. ……

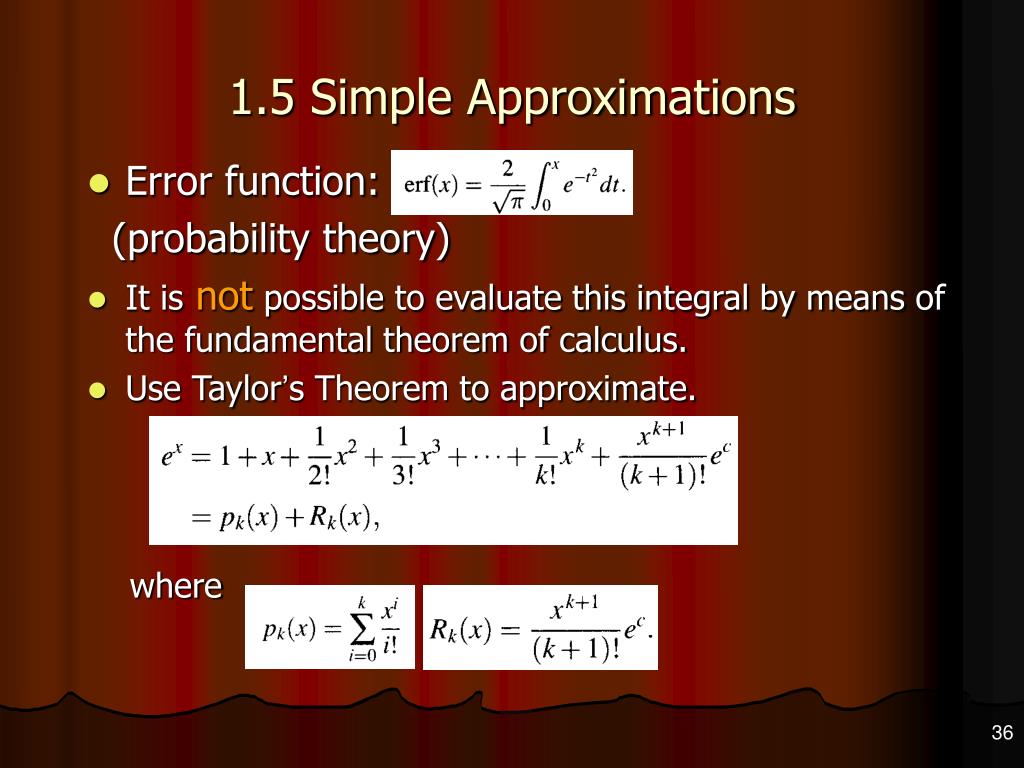

36. 1.5 Simple Approximations • Error function: (probability theory) • It isnot possible to evaluate this integral by means of the fundamental theorem of calculus. • Use Taylor’s Theorem to approximate. where

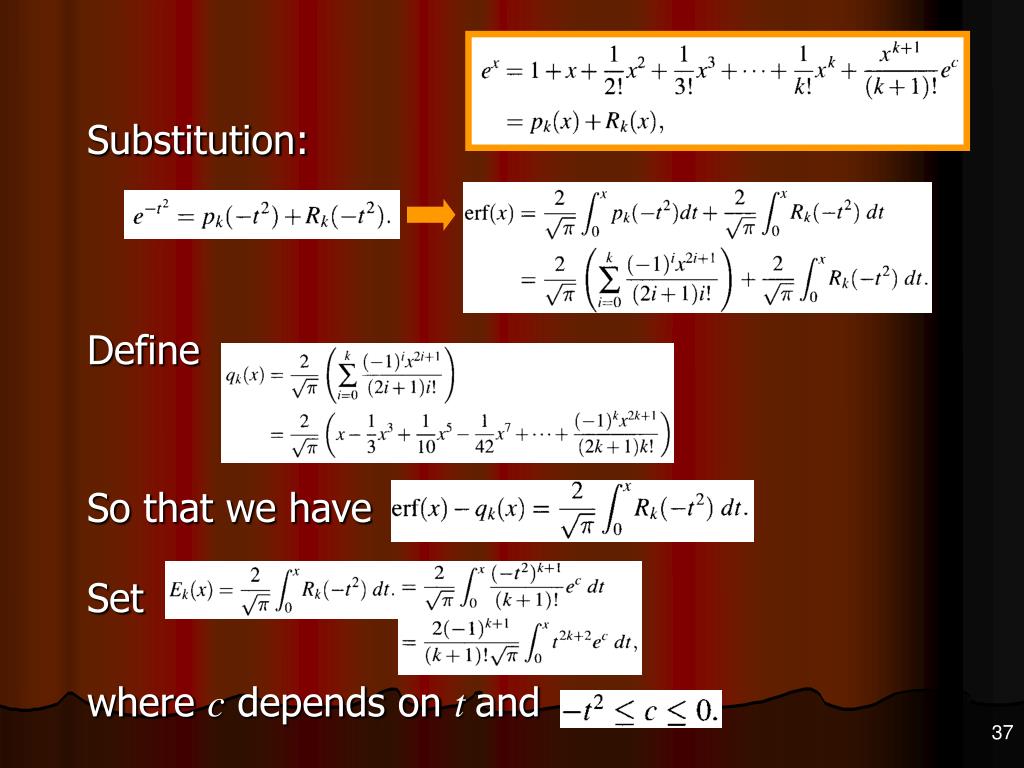

37. Substitution: Define So that we have Set where c depends on tand

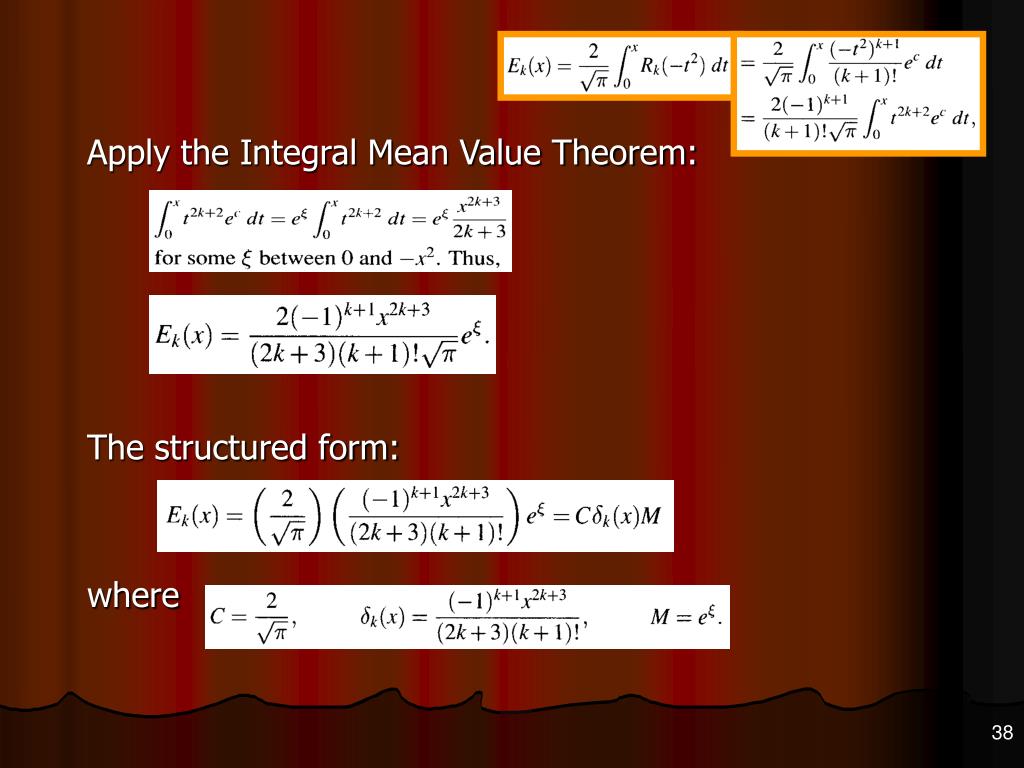

38. Apply the Integral Mean Value Theorem: The structured form: where

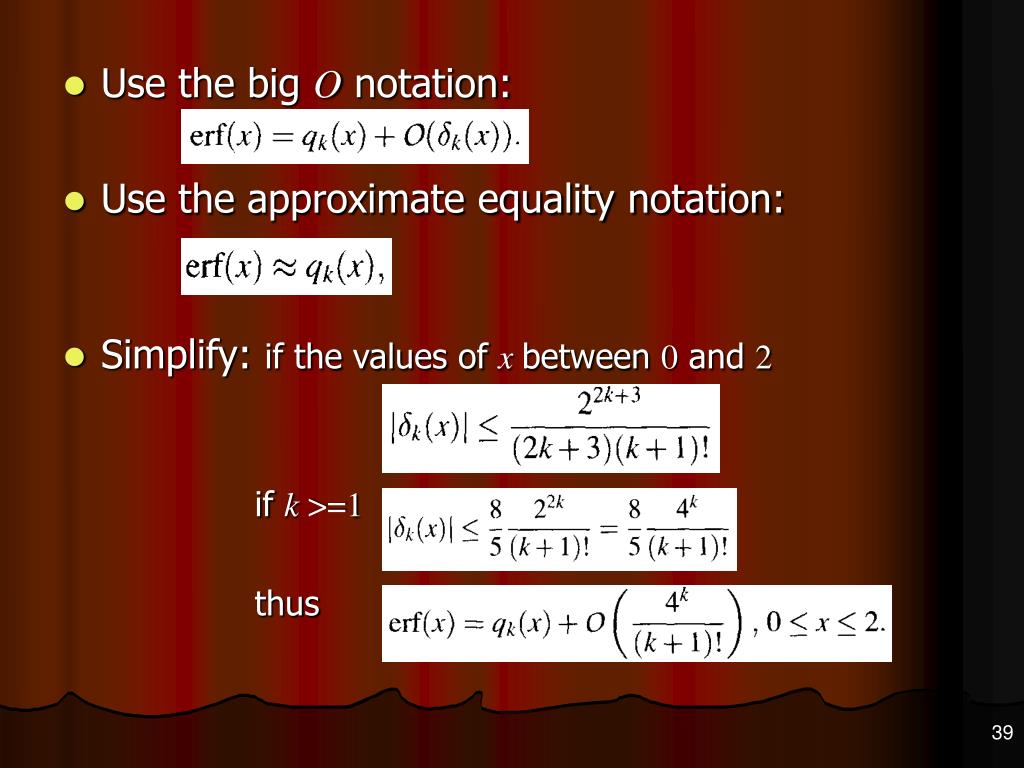

39. Use the big O notation: • Use the approximate equality notation: • Simplify: if the values of xbetween 0 and 2 if k >=1 thus

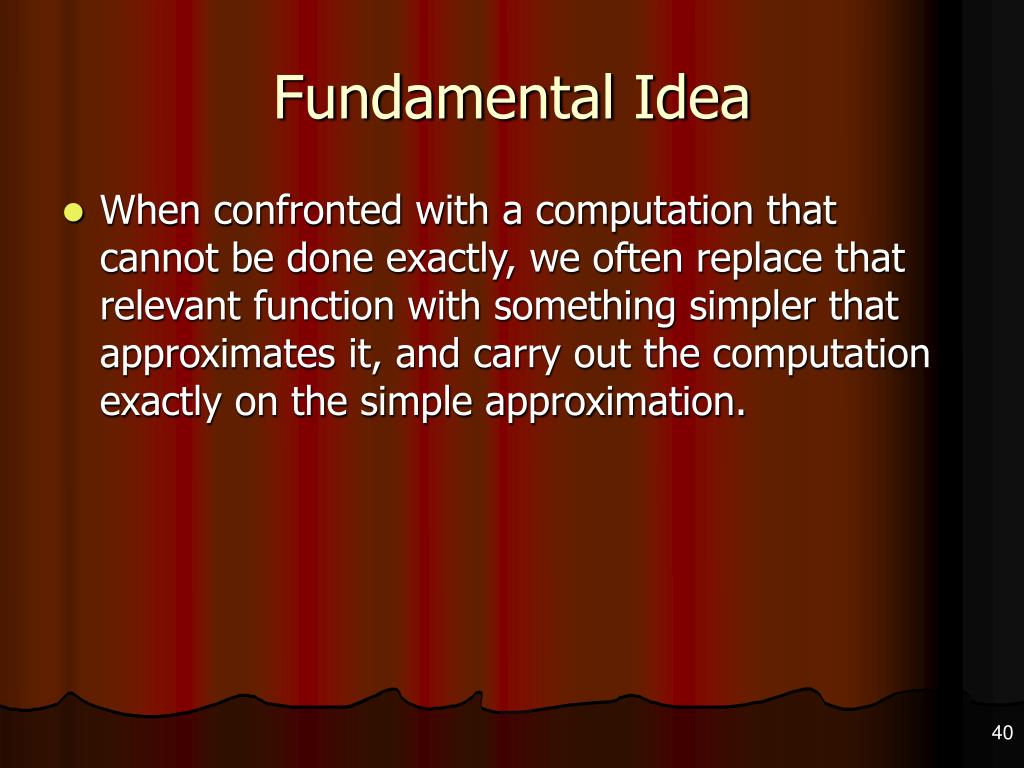

40. Fundamental Idea • When confronted with a computation that cannot be done exactly, we often replace that relevant function with something simpler that approximates it, and carry out the computation exactly on the simple approximation.
