  1. Waste Water Treatment(Sewage Treatment)

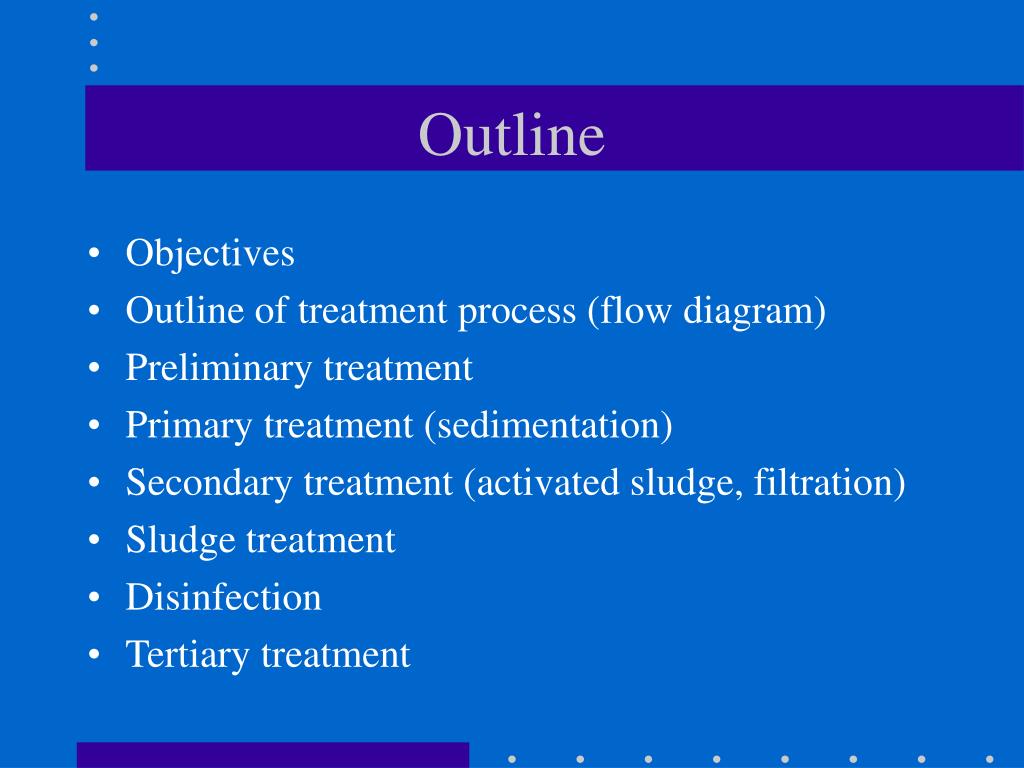

  2. Outline • Objectives • Outline of treatment process (flow diagram) • Preliminary treatment • Primary treatment (sedimentation) • Secondary treatment (activated sludge, filtration) • Sludge treatment • Disinfection • Tertiary treatment

  3. Objective of Sewage Treatment • To prevent pollution of the receiving water • To prevent offensive odour in the water • To prevent the destruction aquatic life • If the sewage has to be disposed of on land, the soil will become sewage sick after some time and cannot take any more sewage

  4. Outline of Sewage Treatment • Preliminary treatment • Primary treatment • Secondary treatment • Disinfecting • Tertiary Treatment

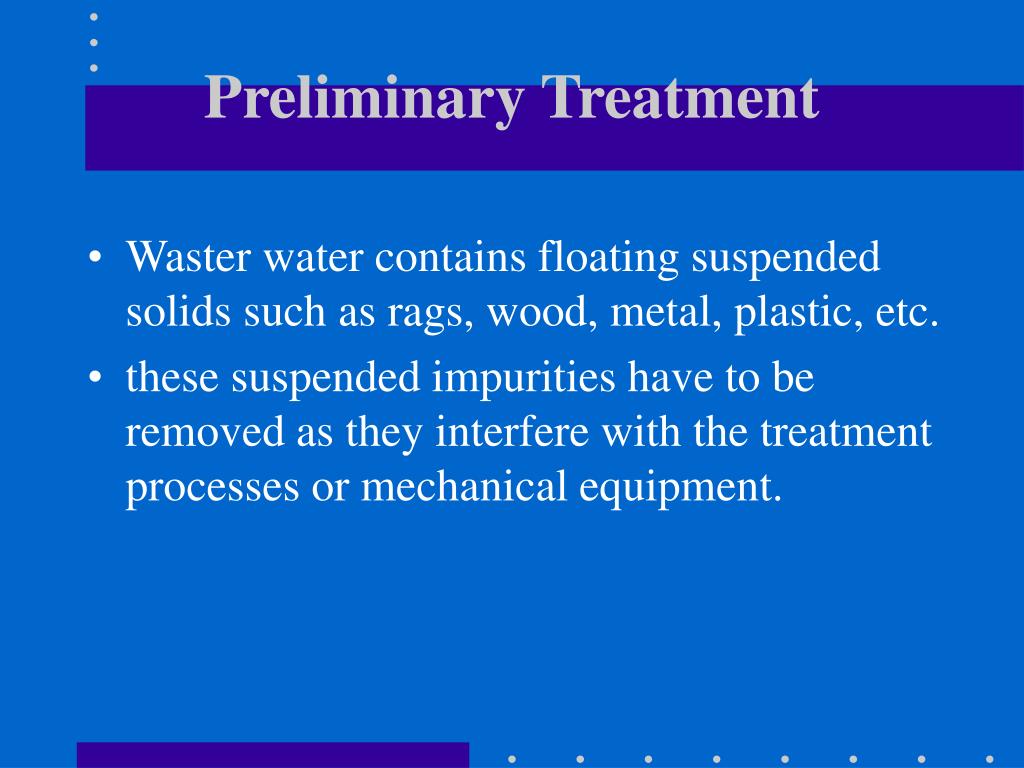

  5. Preliminary Treatment • Waster water contains floating suspended solids such as rags, wood, metal, plastic, etc. • these suspended impurities have to be removed as they interfere with the treatment processes or mechanical equipment.

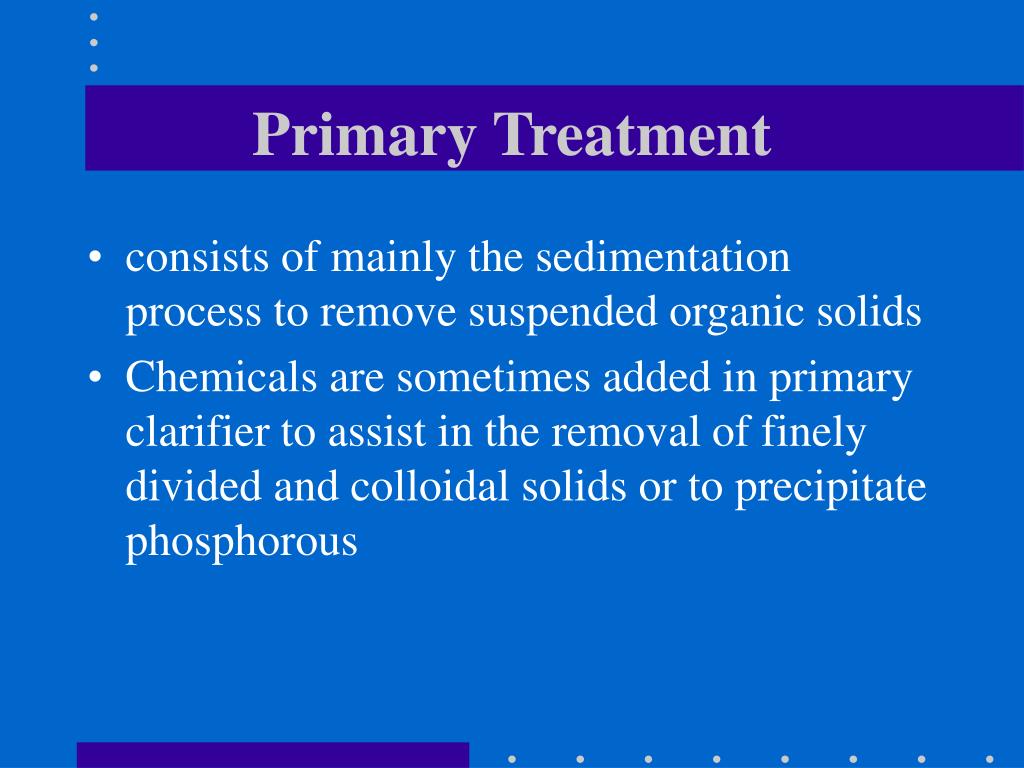

  6. Primary Treatment • consists of mainly the sedimentation process to remove suspended organic solids • Chemicals are sometimes added in primary clarifier to assist in the removal of finely divided and colloidal solids or to precipitate phosphorous

  7. Secondary or Biological Treatment • Activated sludge process • Filtration

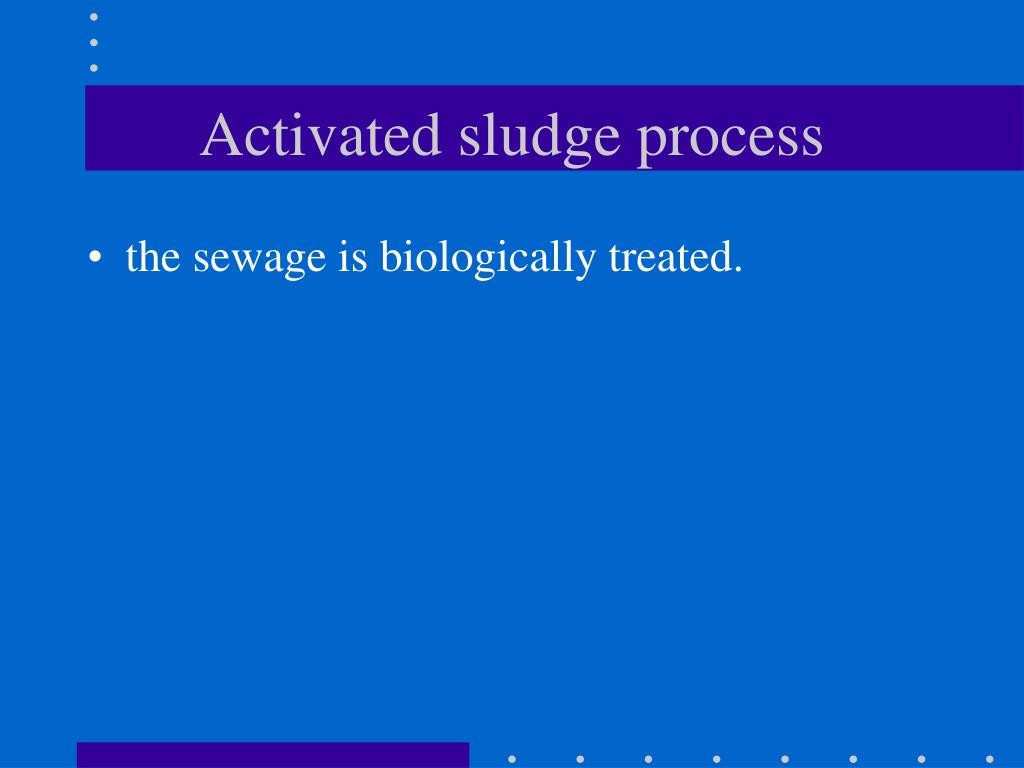

  8. Activated sludge process • the sewage is biologically treated.

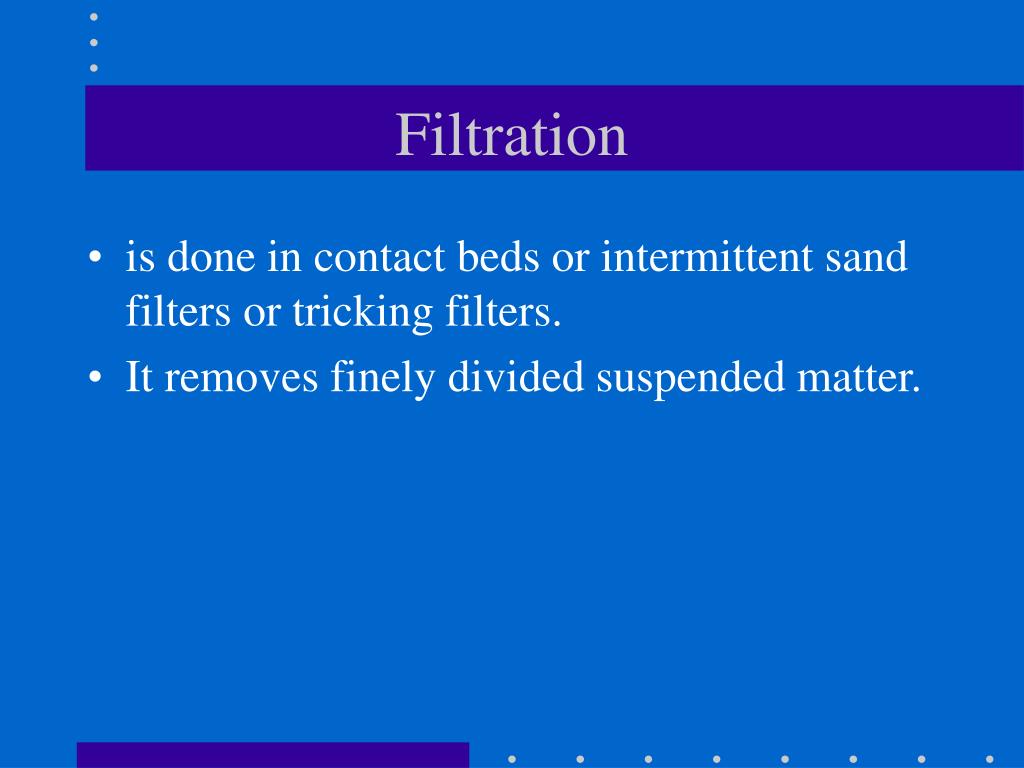

  9. Filtration • is done in contact beds or intermittent sand filters or tricking filters. • It removes finely divided suspended matter.

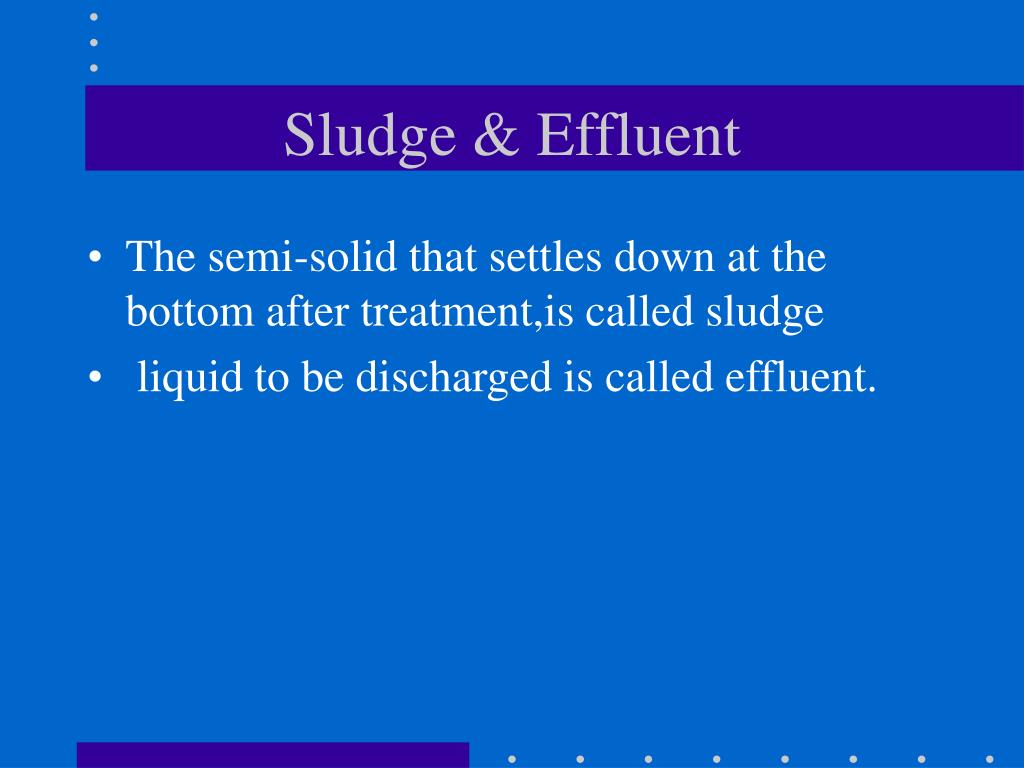

  10. Sludge & Effluent • The semi-solid that settles down at the bottom after treatment,is called sludge • liquid to be discharged is called effluent.

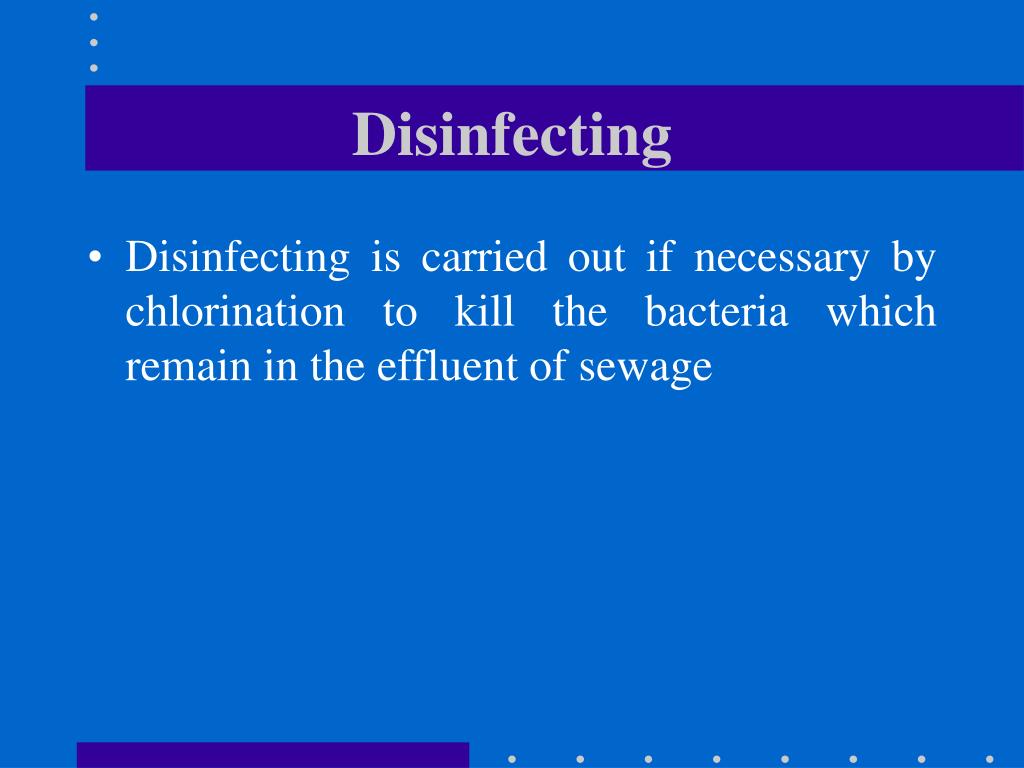

  11. Disinfecting • Disinfecting is carried out if necessary by chlorination to kill the bacteria which remain in the effluent of sewage

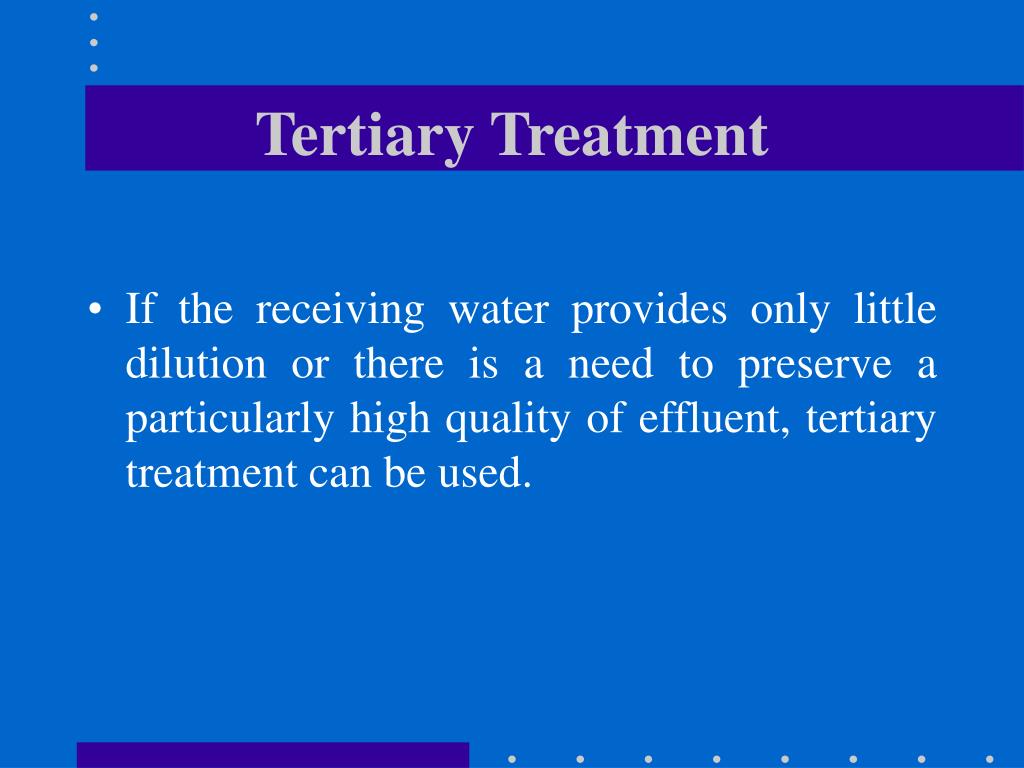

  12. Tertiary Treatment • If the receiving water provides only little dilution or there is a need to preserve a particularly high quality of effluent, tertiary treatment can be used.


  14. Objectives • Remove coarse suspended and floating matter such as rags, plastic, pieces of wood, etc., by means of screening • Remove grit, sand, broken glass, etc., in grit chambers • Remove grease, and oil substances by floatation in skimming tanks

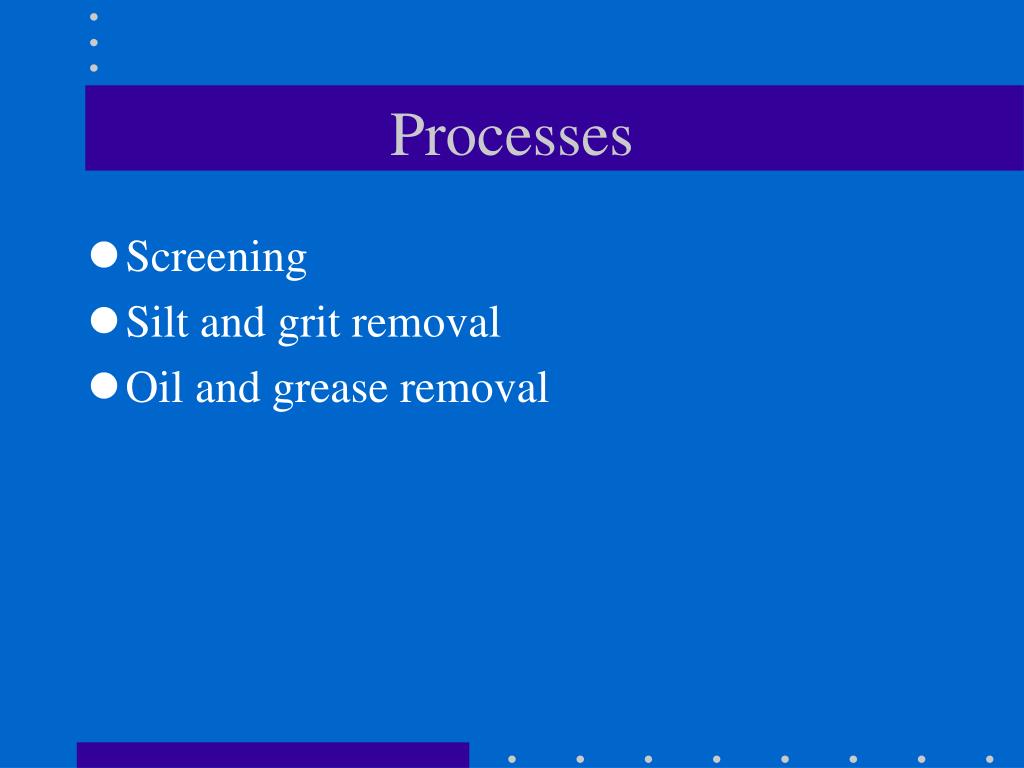

  15. Processes • Screening • Silt and grit removal • Oil and grease removal


  17. PRIMARY TREATMENT • Primary sedimentation tank • (Secondary sedimentation tank) - sedimentation after activated sludge process

  18. Advantages • The advantages of coagulation over plain sedimentation are: • Sedimentation by coagulation is more effective • BOD, colour and turbidity are reduced • Less capacity of sedimentation tanks • The process is simple

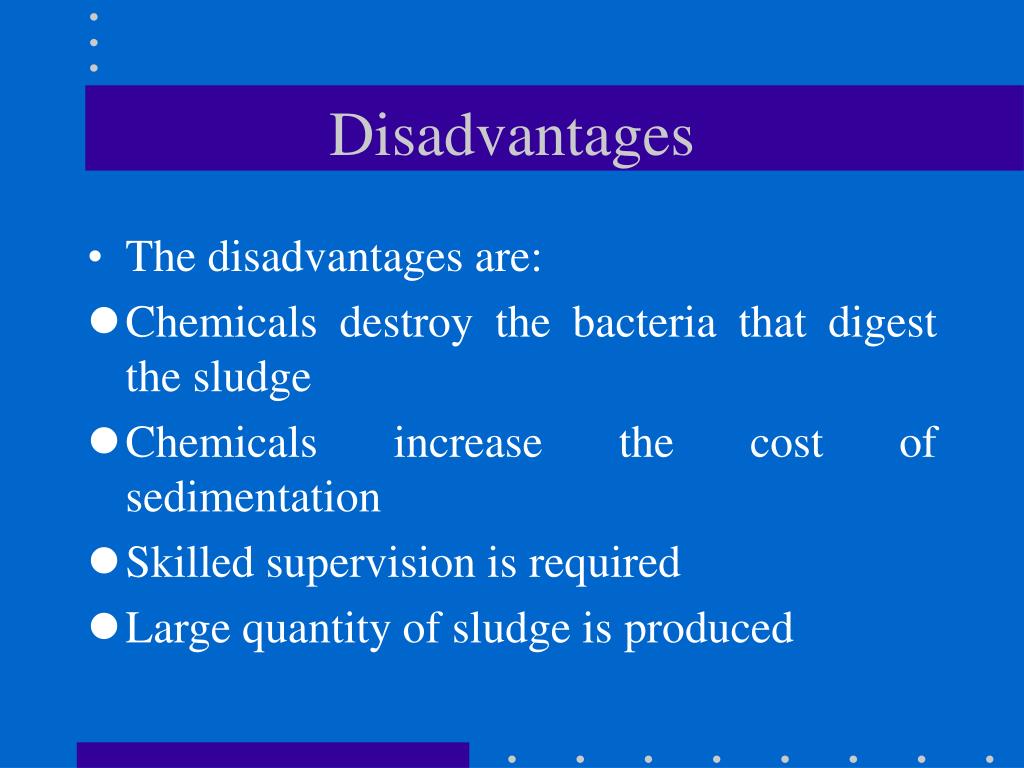

  19. Disadvantages • The disadvantages are: • Chemicals destroy the bacteria that digest the sludge • Chemicals increase the cost of sedimentation • Skilled supervision is required • Large quantity of sludge is produced

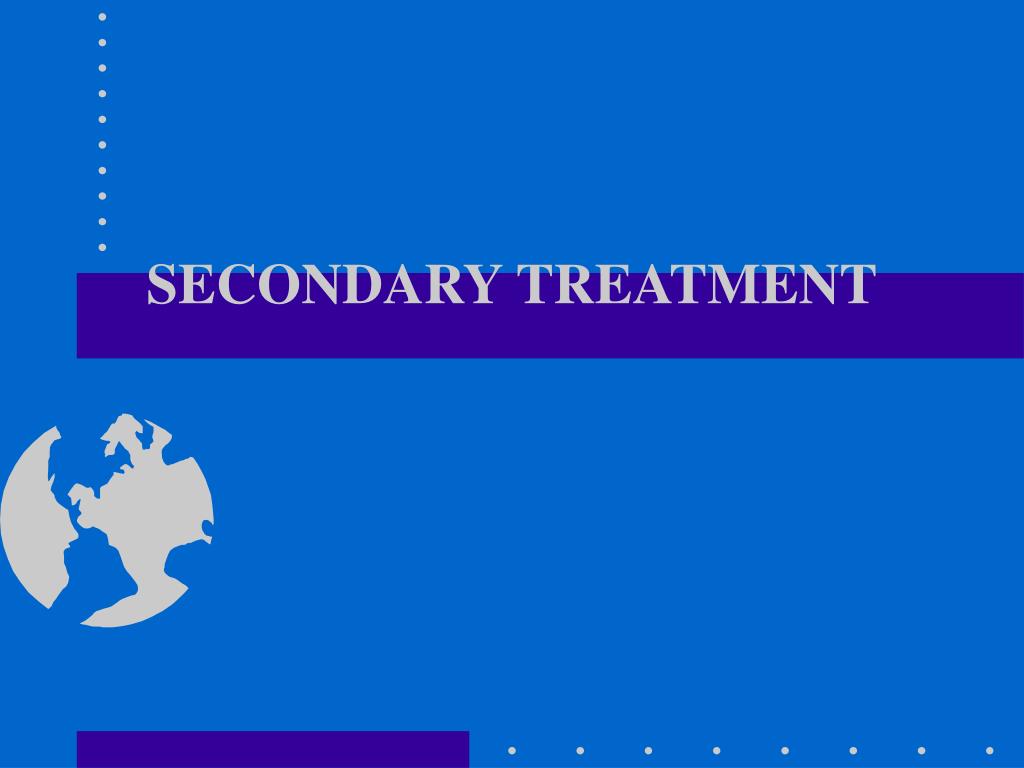

  21. SECONDARY TREATMENT • The secondary treatment converts the remaining organic matter into stable form by putting aerobic and anaerobic bacteria into action

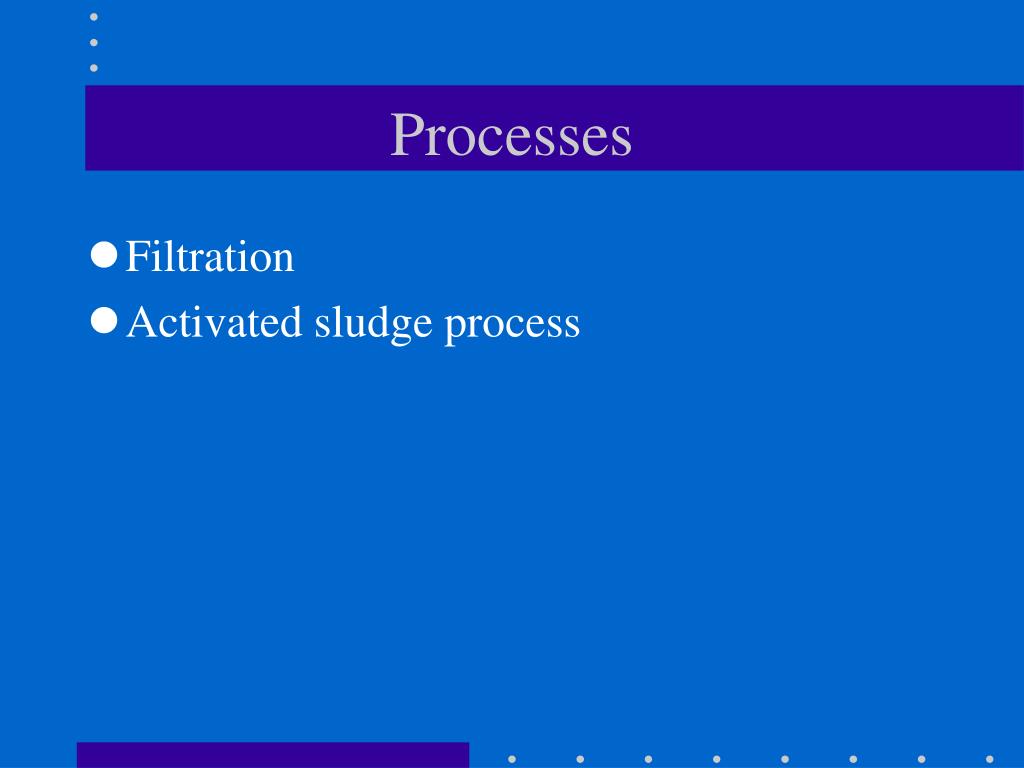

  22. Processes • Filtration • Activated sludge process

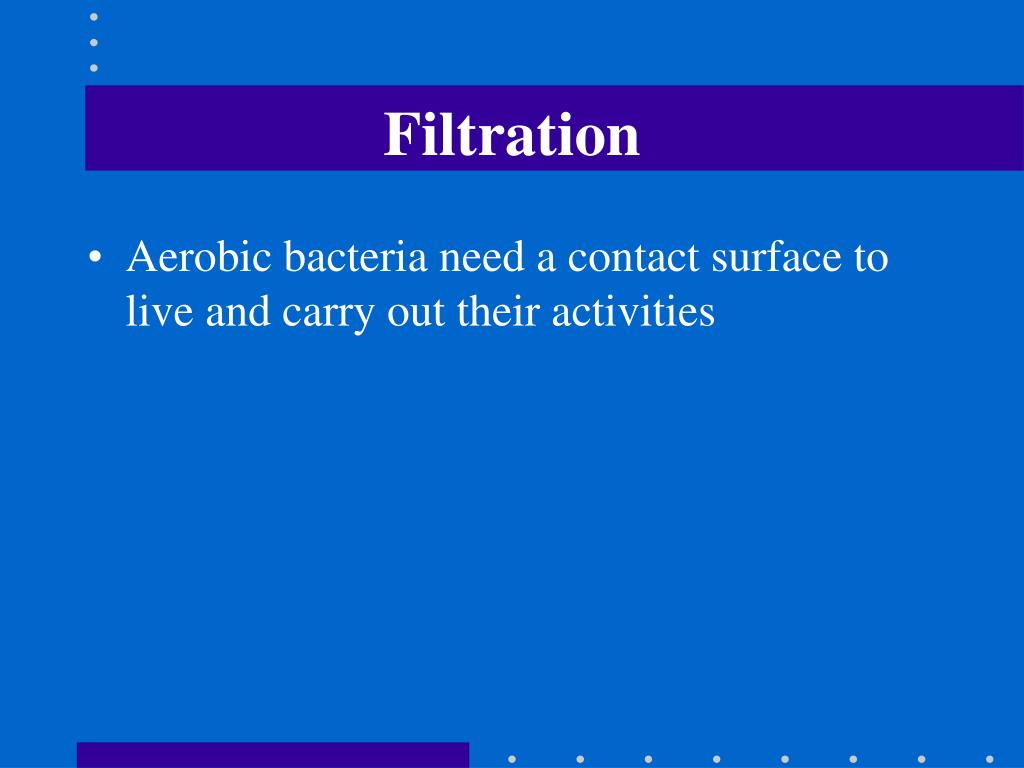

  23. Filtration • Aerobic bacteria need a contact surface to live and carry out their activities

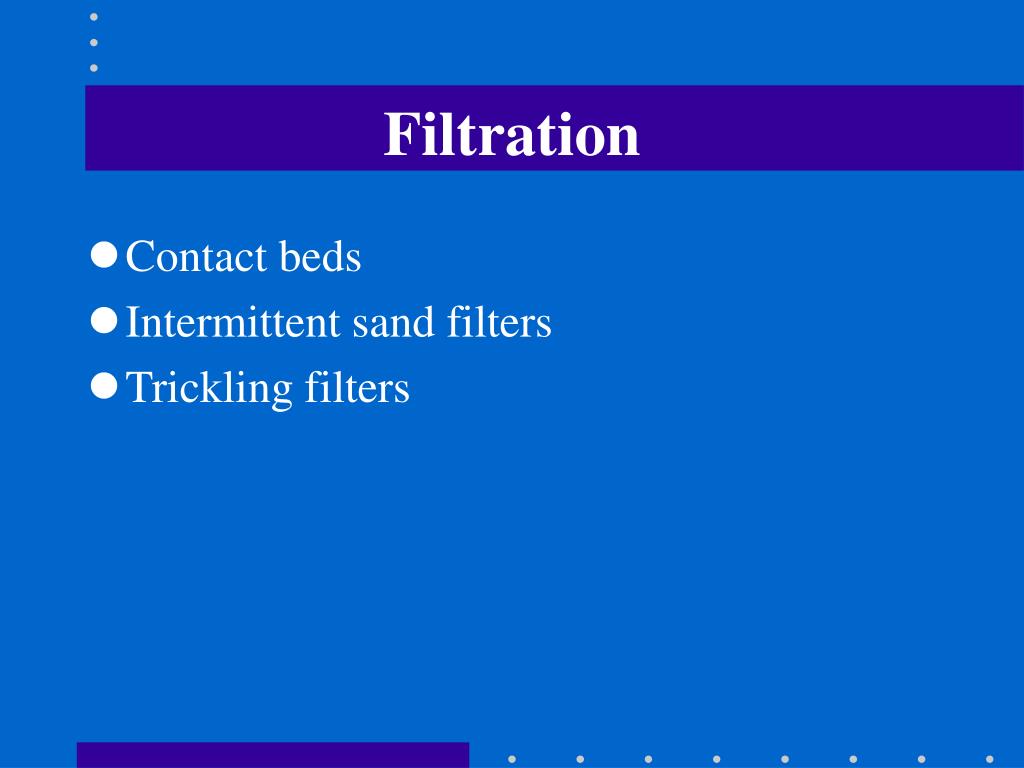

  24. Filtration • Contact beds • Intermittent sand filters • Trickling filters

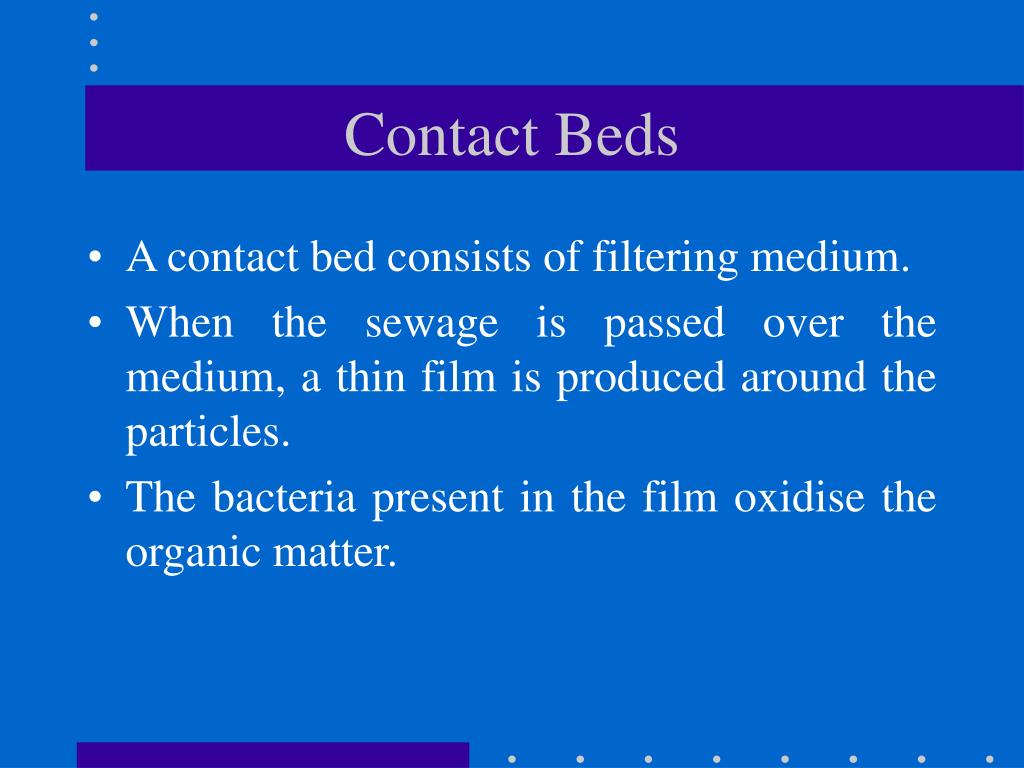

  25. Contact Beds • A contact bed consists of filtering medium. • When the sewage is passed over the medium, a thin film is produced around the particles. • The bacteria present in the film oxidise the organic matter.

  26. Intermittent Sand Filter • the filtering medium consists of sand. • The action of the filter is due to: • Mechanical straining and • Bacterial action

  27. Trickling Filters • A trickling filter is an artificial bed of stone or broken brick material • waste water is distributed an applied in drops, films or spray • A zoogleal film is formed on the surface media.

  28. ACTIVATED SLUDGE PROCESS • is a biological sewage treatment process • a mixture of sewage and activated sludge is agitated and aerated. • The activated sludge is subsequently separated from the treated sewage by sedimentation

  29. What is ACTIVATED SLUDGE • is that sludge which settles down after the sewage has been freely aerated and agitated for a certain time.

  30. How Activated Sludge works • Activated sludge contains numerous bacteria and other microorganisms. When it is mixed with raw sewage saturated with oxygen, the bacteria perform: • Oxidise the organic solids • Promote coagulation and flocculation and convert the colloidal and suspended solids into settable solids

  31. Steps in Activated Sludge process • Treat raw sewage in the primary settling tank • mix sewage with the activated sludge and aerated for 4-10 hours • final (secondary) settling tank • dispose of effluent • return some sludge to the aeration tanks • dispose of the rest of the sludge

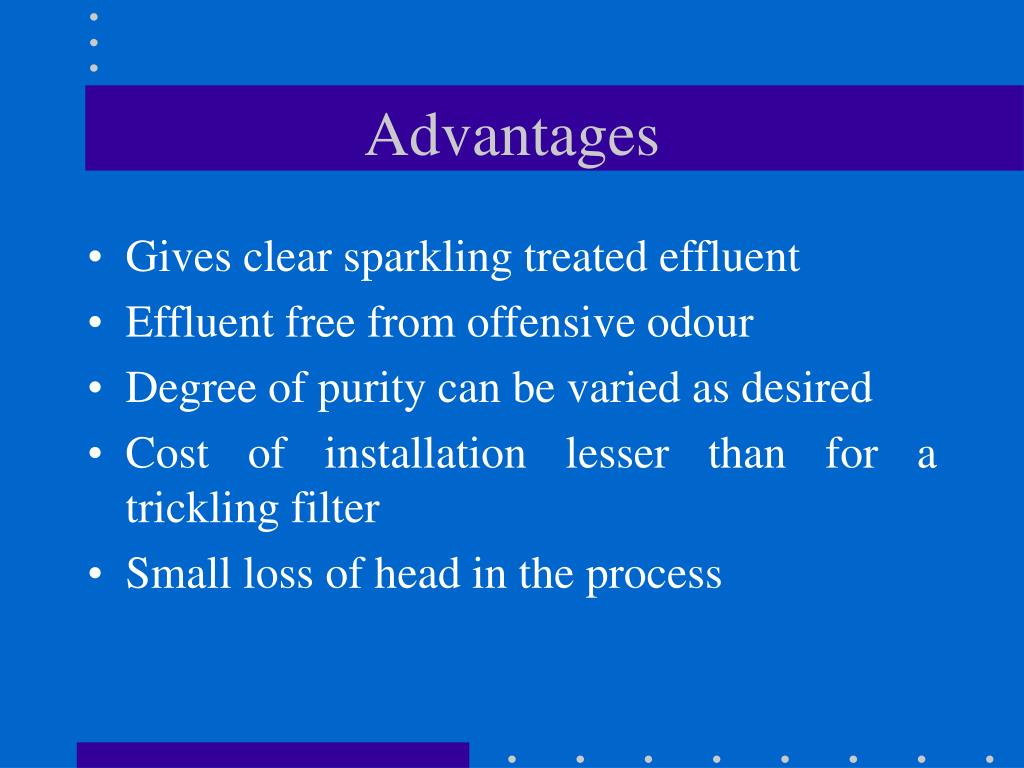

  32. Advantages • Gives clear sparkling treated effluent • Effluent free from offensive odour • Degree of purity can be varied as desired • Cost of installation lesser than for a trickling filter • Small loss of head in the process

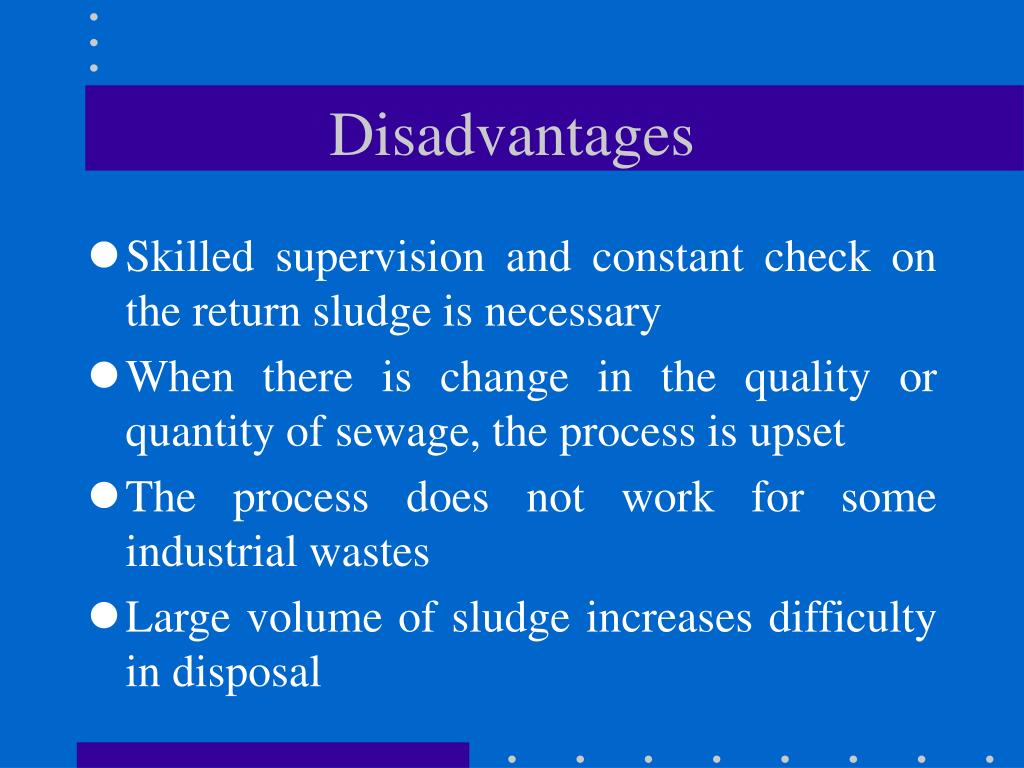

  33. Disadvantages • Skilled supervision and constant check on the return sludge is necessary • When there is change in the quality or quantity of sewage, the process is upset • The process does not work for some industrial wastes • Large volume of sludge increases difficulty in disposal

  34. Methods of Aeration • The success of the activated sludge process depends on the aeration provided. • Diffused air aeration • Mechanical aeration • Combination of the above two methods

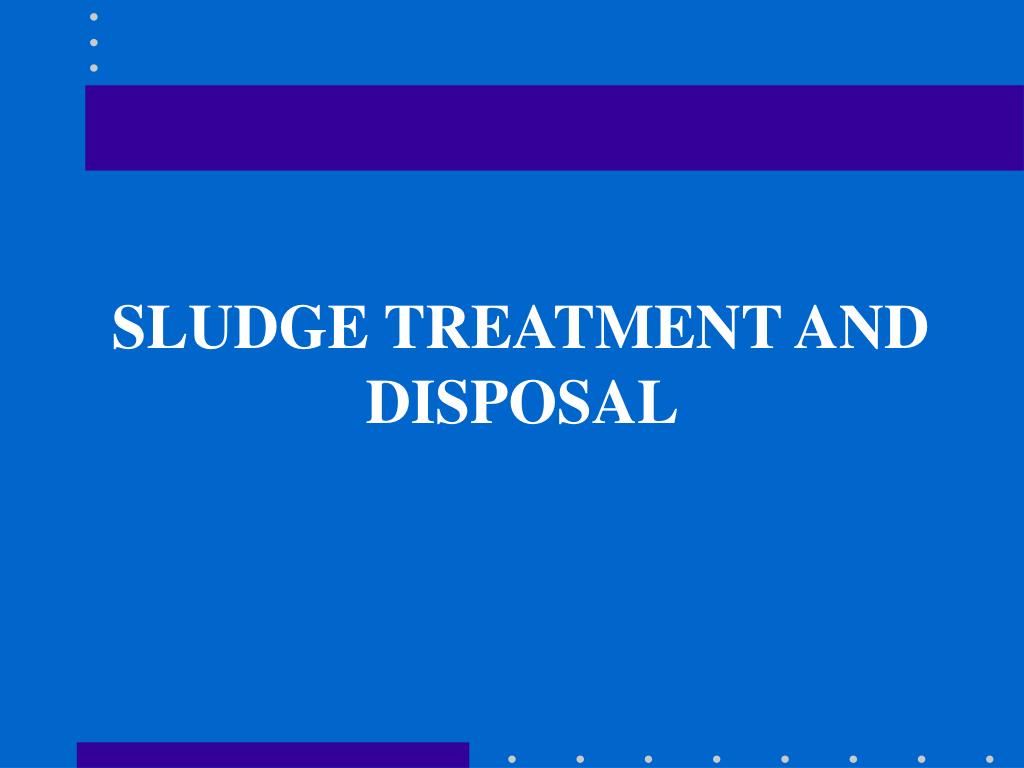

  38. Sludge • Sludge is a semi-liquid • Sludge produced by plain sedimentation • Sludge produced by chemical precipitation • Trickling filter • Activated sludge

  39. Methods of Disposal • Disposal on land • Drying on drying beds • Dumping into the sea • Heat-drying • Incineration • Lagooning or ponding • Sludge Digestion

  40. Sludge Digestion • It transforms a portion of solids into liquids and gases, thereby reducing the sludge volume to be dealt with • It breaks the organic matter of sludge into simpler compounds by the action of anaerobic bacteria.
