Chapter 18: Electromagnetic Spectrum & Light

1. Chapter 18: Electromagnetic Spectrum & Light

2. 18.1: Electromagnetic Waves • Question: What do x-ray machines, microwave ovens, and heat lamps have in common with police radar, TV, and radiation therapy???

3. Electromagnetic Waves • Answer: They all use WAVES to transport energy from one location to another!!!

4. Electromagnetic Waves • Electromagnetic Waves- (EM) transverse waves consisting of changing electric fields and changing magnetic fields

5. Electromagnetic Waves • Can carry energy from one place to another • Produced by constantly changing fields • Magnetic and electric fields travel at right angles to each other

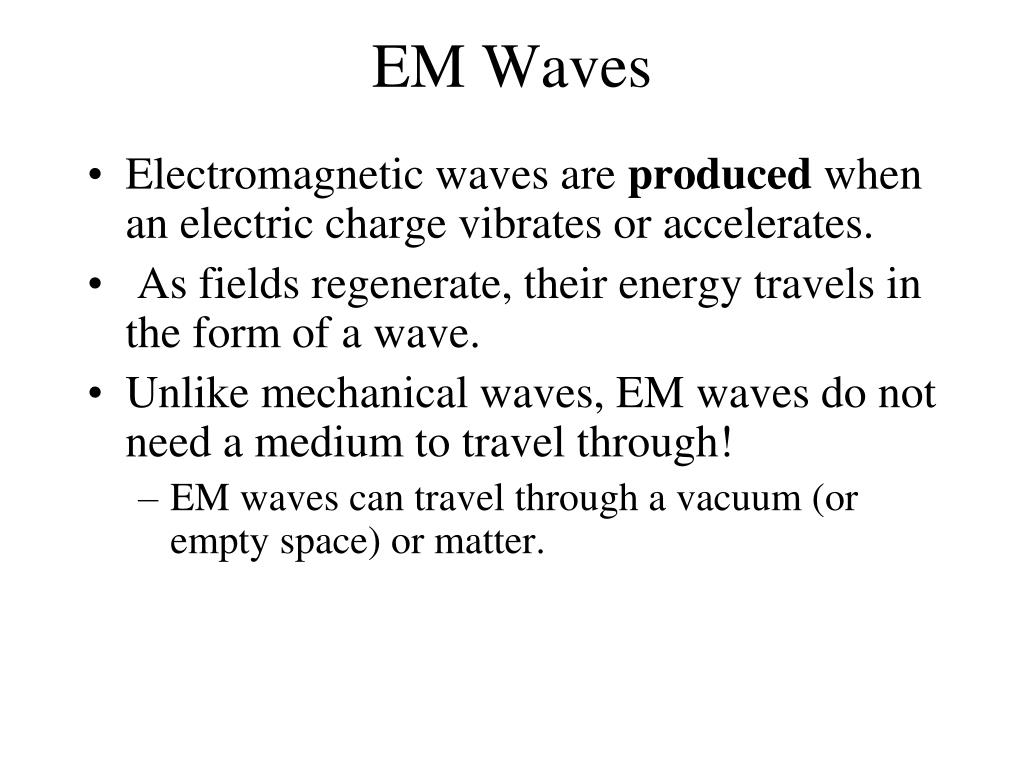

7. EM Waves • Electromagnetic waves are produced when an electric charge vibrates or accelerates. •  As fields regenerate, their energy travels in the form of a wave. • Unlike mechanical waves, EM waves do not need a medium to travel through! • EM waves can travel through a vacuum (or empty space) or matter.

8. EM Radiation • Electromagnetic Radiation- the transfer of energy by electromagnetic waves traveling through matter or across space.

9. THE SPEED OF EM WAVES • Question: Why do you see lightning before you hear thunder?

10. Speed of EM Waves • Answer: Because light travels faster than sound! • But how much faster is light???

11. How long would it take you to drive from San Francisco to New York?

12. Speed of Light Analogy • Scientists have discovered that light and all electromagnetic waves travel at the same speed when in a vacuum 3 x 108 m/s! • Consider driving non-stop at 60 mph from NYC to San Francisco. • This trip would take you ~50 hours • Light travels this distance in less than 0.02 second!!!

13. Speed of EM Wave • Speed of EM wave = wavelength x frequency • Wavelength is inversely proportional to frequency • As the wavelength increases, the frequency decreases

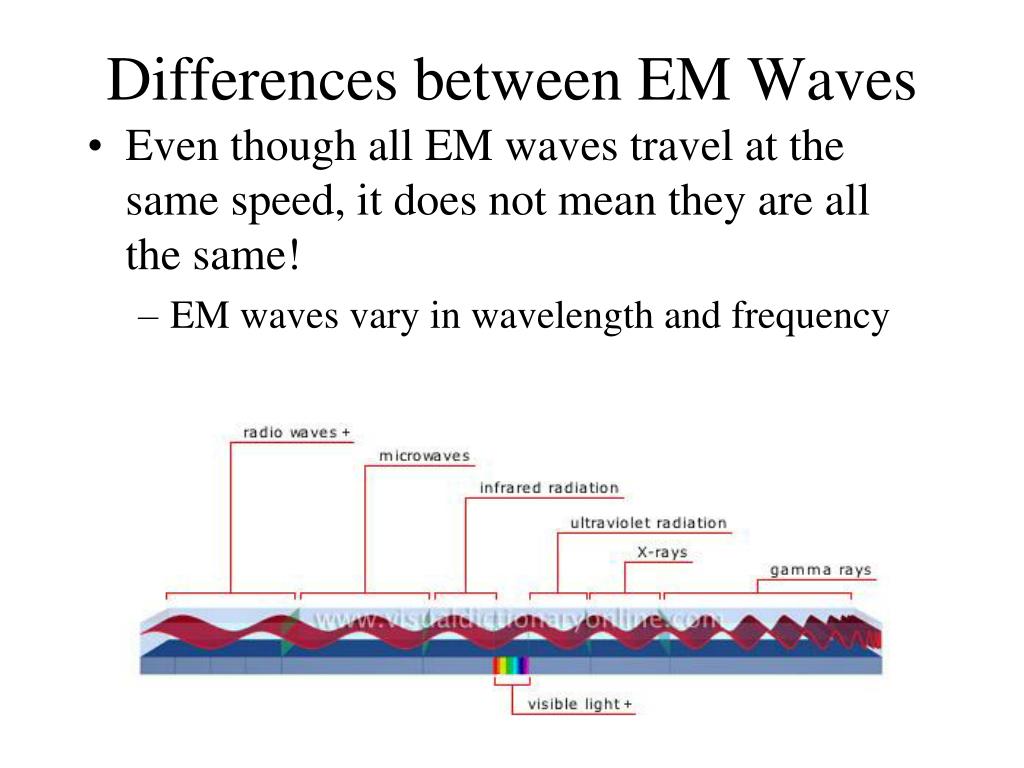

14. Differences between EM Waves • Even though all EM waves travel at the same speed, it does not mean they are all the same! • EM waves vary in wavelength and frequency

15. 18-2: The EM Spectrum

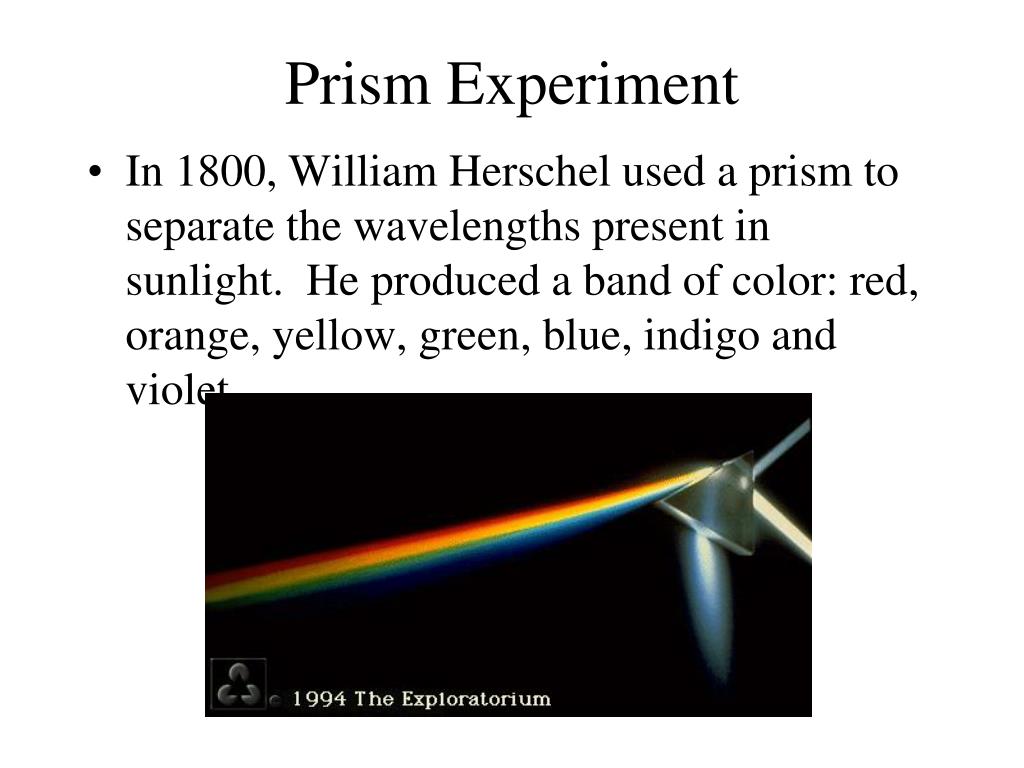

16. Prism Experiment • In 1800, William Herschel used a prism to separate the wavelengths present in sunlight. He produced a band of color: red, orange, yellow, green, blue, indigo and violet.

17. EM Spectrum • The full range of frequencies of electromagnetic radiation is called the electromagnetic spectrum • Which includes the following parts: • radio waves, infrared rays, visible light, ultraviolet rays, X-rays, and gamma rays.

18. EM Spectrum • Each kind of wave is characterized by a range of wavelengths and frequencies.

19. Radio Waves • Radio waves have the longest wavelengths in the EM spectrum, from 1mm to 1000’s of km. They also have the lowest frequencies, 300,000 mHz or less. • used in radio, TV, microwaves, and radar

21. Radio Waves • In a radio studio, music and voices are changed into electronic signals that are carried by radio waves. • AM radio stations broadcast by amplitude modulation, the amplitude of the wave is varied • FM radio stations broadcast by frequency modulation, the frequency of the wave is varied • A station is lost when its signal becomes too weak to detect, an FM station is more likely to be lost because FM signals do not travel as far

22. Difference between AM & FM

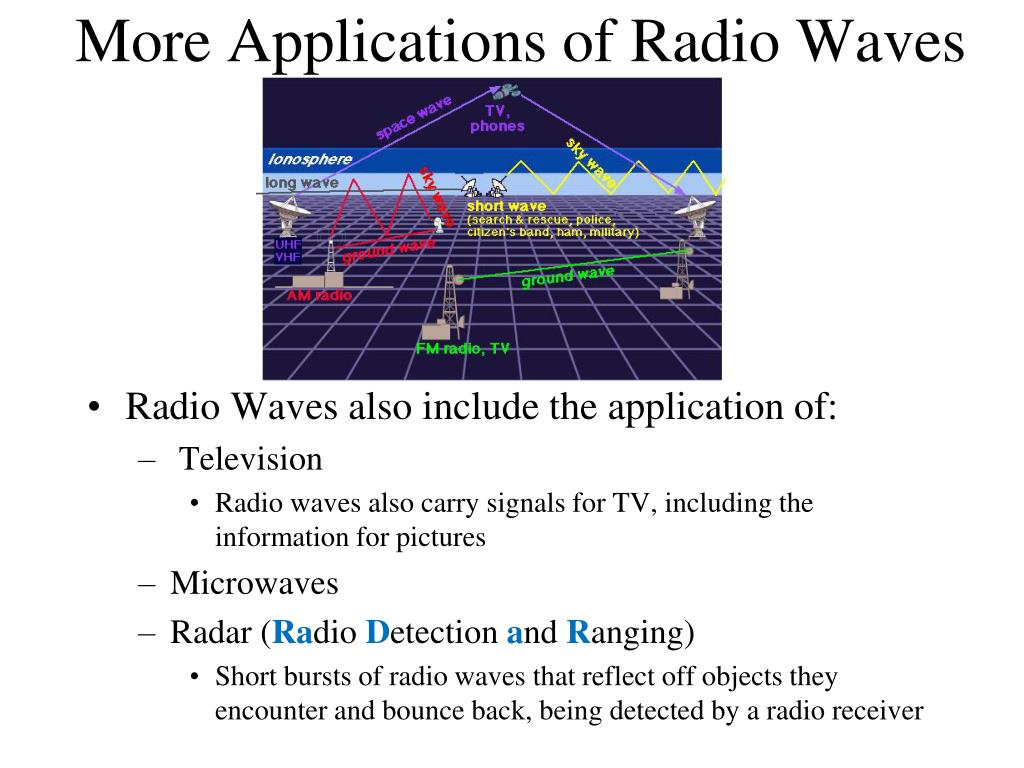

23. More Applications of Radio Waves • Radio Waves also include the application of: • Television • Radio waves also carry signals for TV, including the information for pictures • Microwaves • Radar (Radio Detection and Ranging) • Short bursts of radio waves that reflect off objects they encounter and bounce back, being detected by a radio receiver

24. Infrared Radiation • Infrared waves have higher frequencies than radio and wavelengths that vary from about 1mm to 750nm • Used as a source of heat and to discover areas of heat differences • Invisible to our eye • Warmer objects give off more infrared than cooler, a device called a thermograph create thermograms (color-coded picture) that show temperature variation • Thermograms can be used to find places where a building loses heat, search and rescue teams use infrared cameras to locate victims

25. Infrared Radiation

26. Visible Light • The visible part of the EM spectrum is light the human eye can see. • Each color of the visible spectrum corresponds to a specific frequency and wavelength (ROYGBIV)

27. Ultraviolet (UV) Rays • The wavelengths of ultraviolet rays very from 400nm to about 4nm, and higher frequencies than violet light. • In moderation, UV rays help your skin produce vitamin D • Excessive exposure can cause sunburn, wrinkles, and skin cancer • Used to kill microorganisms • Plant nurseries use UV to help plants to grow during winter

28. UV Radiation

29. X-Rays • X-rays have very short wavelengths from about 12nm to 0.005nm , and have higher frequencies than UV • Have high energy and can penetrate matter that light cannot • Used in medicine (pictures of bones), industry (test sealed lids), and transportation (contents of truck trailers)

30. Gamma Rays • Gamma rays have the shortest wavelengths about 0.005nm or less, and have the highest frequencies and therefore the most energy and the greatest penetrating ability • Used in the medical field to kill cancer cells, in brain scans, and in industrial situations such as inspecting pipelines for sign of damage • Overexposure can be deadly

31. Gamma Rays & Radiotherapy The normal cells receive a lower dose of gamma radiationthan the cancer cells, where all the rays meet. Radiotherapy aims to kill the cancer cells while doing as little damage as possible to healthy normal cells.

32. 18.3 Behavior of Light

33. Question to Ponder… • What would you see if you were snorkeling in warm ocean waters over a coral reef? You might see fish of bright colors, clown fish, sea stars, etc. Why can you see these animals SO CLEARLY??? Why can you see the reef through the water but not through the bottom of the boat that brought you to the reef???

34. Light & Materials • Without light, nothing is visible! • When you look at the reef animals, what you are really seeing is LIGHT • You can see the reef through the water, because LIGHT passes through the water between the reef and your eyes. • You can’t see the reef through the bottom of the boat because LIGHT doesn’t pass through the boat!

35. Behavior of Light • How light behaves when it strikes an object depends on many factors…including the material it is made of. • Materials can be: • Transparent • Translucent • Opaque

36. Transparent • Transparent: material through which you can see clearly, transmits light • Most light is able to pass through • Examples: water, windows

37. Translucent • Translucent: you can see through the material, but the objects you see through it does not look clear or distinct. • Scatters Light • Examples: some types of jello, certain bars of soap, frosty windows

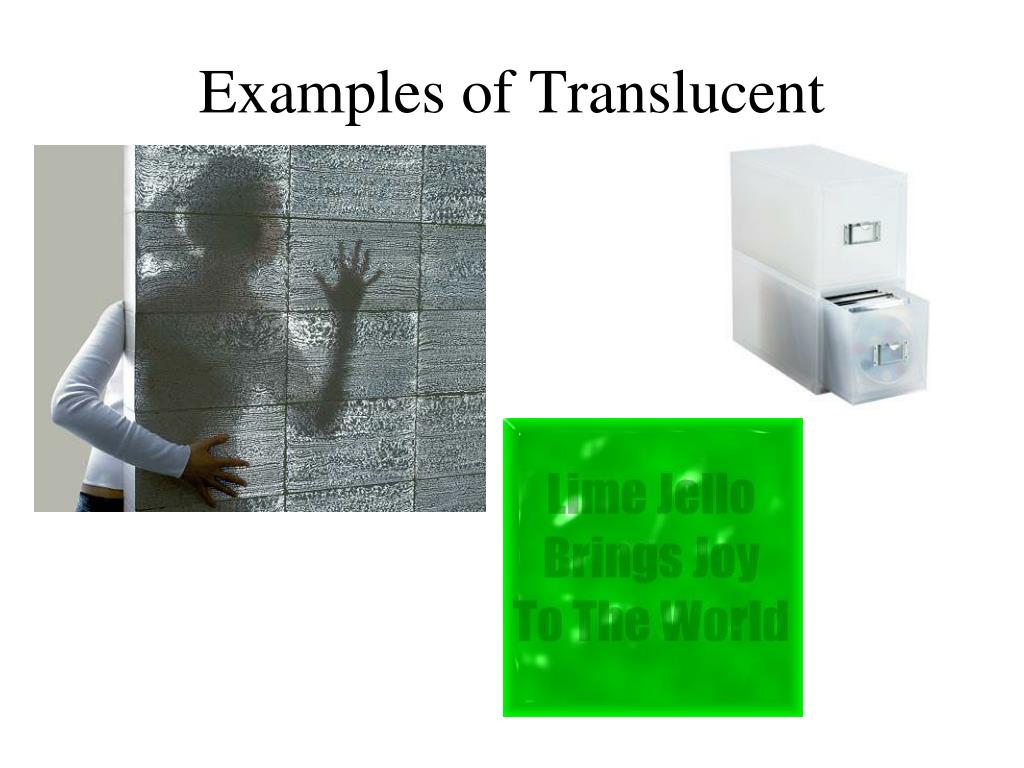

38. Examples of Translucent

39. Opaque • Opaque: material either absorbs or reflects all of the light that strikes it. • NO light is able to pass through • Examples: fruit, wooden table, metal desk

40. Interactions of Light • When light encounters matter, some or all of the energy in the light can be transferred to the matter. And just as light can affect matter, matter can affect light. • When light strikes a new medium, the light can be: • Reflected • Absorbed • Transmitted

41. Reflection • When you look in a mirror, you see a clear image of yourself. • An image is a copy of an object formed by reflected (or refracted) waves of light. • Two types of reflection: • Regular Reflection • Diffuse Reflection

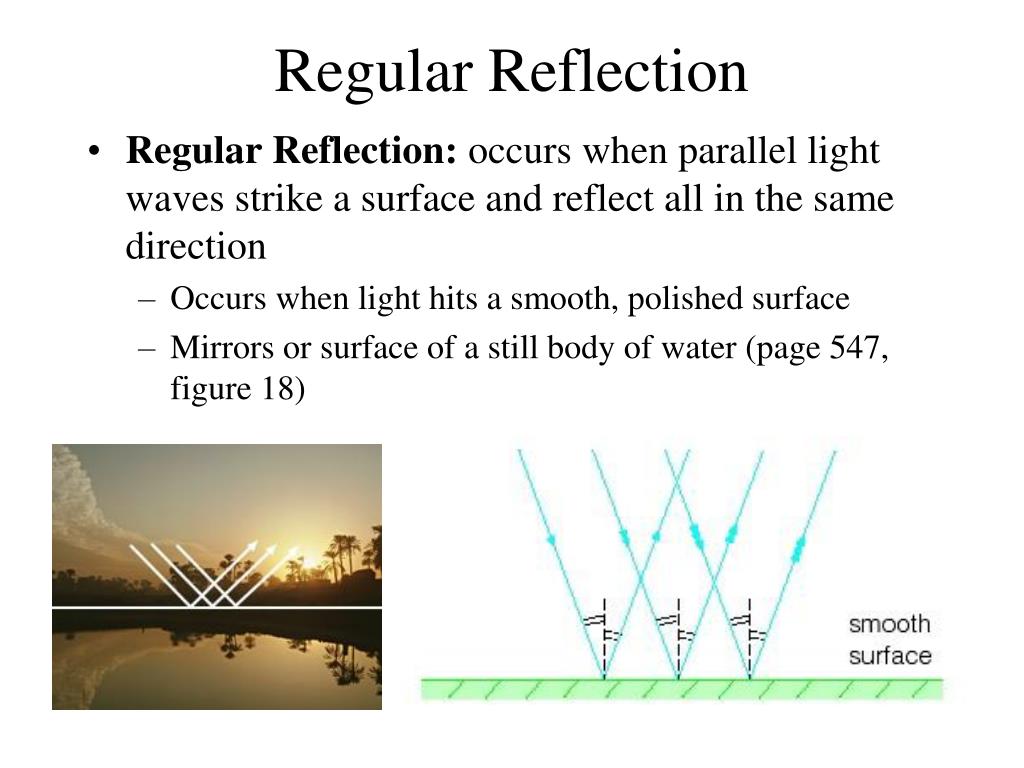

42. Regular Reflection • Regular Reflection: occurs when parallel light waves strike a surface and reflect all in the same direction • Occurs when light hits a smooth, polished surface • Mirrors or surface of a still body of water (page 547, figure 18)

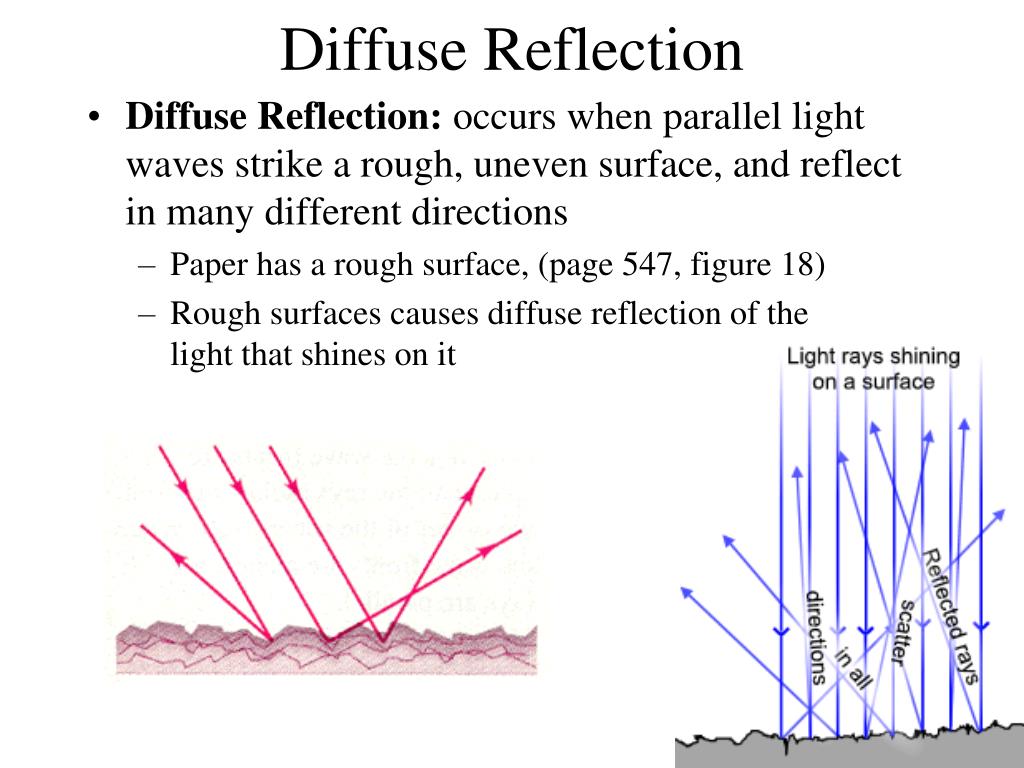

43. Diffuse Reflection • Diffuse Reflection: occurs when parallel light waves strike a rough, uneven surface, and reflect in many different directions • Paper has a rough surface, (page 547, figure 18) • Rough surfaces causes diffuse reflection of the light that shines on it

44. When Light is TRANSMITTED • Reflection occurs because there is no transmission of light (light is not able to pass through to the new material) • However, when light is transmitted different things can happen. Light can be: • Refracted • Polarized • Scattered

45. Refraction • Refraction: ability of light to refract, or bend when it passes at an angle from one medium into another. • Two easily observable examples that occur when light travels from air into water: • Underwater objects appear closer and larger than they really are • Can make an object such as a skewer (or pencil) appear to break at the surface of the water (page 548, figure 19)

46. Refraction

47. Refraction Can Create a Mirage • Refraction can sometimes cause a mirage. • Mirage: a false or distorted image. • Mirages occur because light travels faster in hot air than in cooler, dense air • On a sunny day, air tends to be hotter just above the surface of a road than higher up • Mirages also form this way above the hot sand in deserts

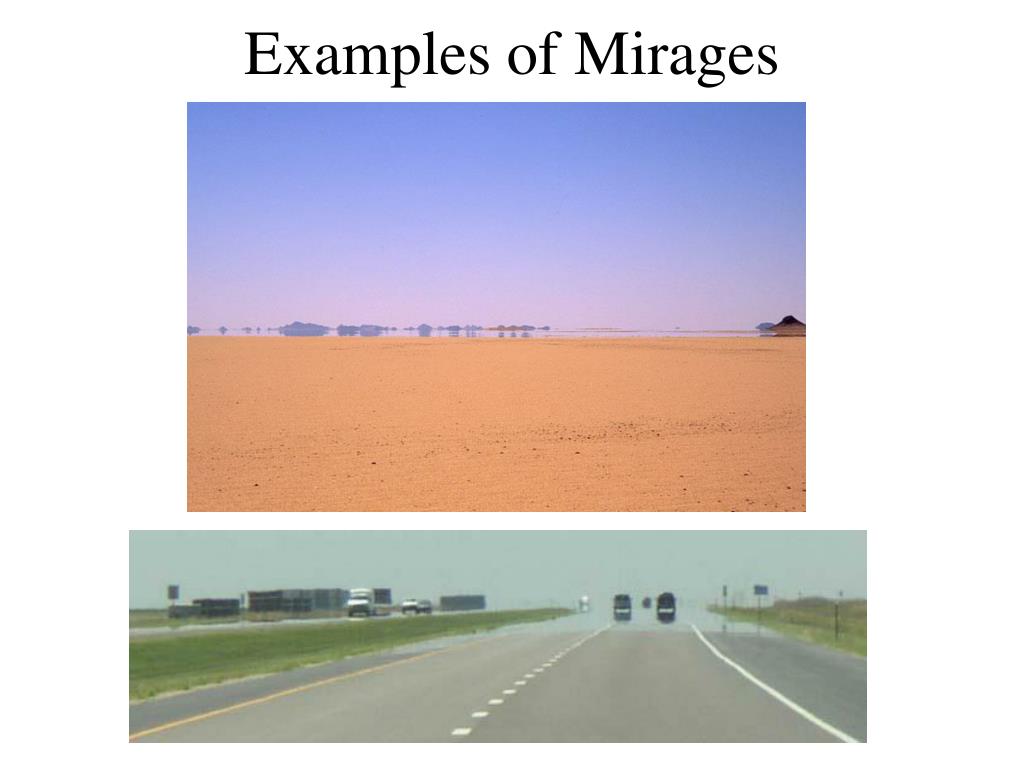

48. Examples of Mirages

49. What is Polarization?

50. Polarization • Light is an EM Wave  EM waves vibrate in TWO planes • Light waves that vibrate in only one plane is called polarized light. • Polarizing filters transmit light waves that vibrate in only one direction or plane (page 548, figure 20) • Unpolarized light vibrates in ALL directions
