  1. Smart Home Energy Management System using IEEE 802.15.4 and ZigBee 2010 IEEE Consumer Electronics Society Author(s): Dae-Man Han , Jae-Hyun Lim  Digital Object Identifier:  10.1109/TCE.2010.5606276 Issue Date :   Aug. 2010 Page(s): 1403 – 1410 Product Type: Journals & Magazines  Adviser：Yih-Ran SheuStudent：Wen-Li ShenSN：MA120106

  2. Outline • Motivation of Research • Abstract • Introduction • Related Work • Smart Home Design • Developing Control System • Conclusions

  3. Motivation of Research • Smart home system establish DRAFT MODULE

  4. Abstract • This paper designs smart home device descriptions andstandard practices for demand response and load management “Smart Energy” applications needed in a smart energy based residential or light commercial environment. HOME FACTORY FILM

  5. Introduction • ZigBee Compliant Platform (ZCP) • ZigBee Manufacturer Specific Profile(MSP) • ZigBee Home Area Network(HAN) HAN

  6. Related Work(1) • Sensing Environment

  7. Related Work(2) • ZigBee Devices • Coordinator • Router • End Devices ZigBee Devices

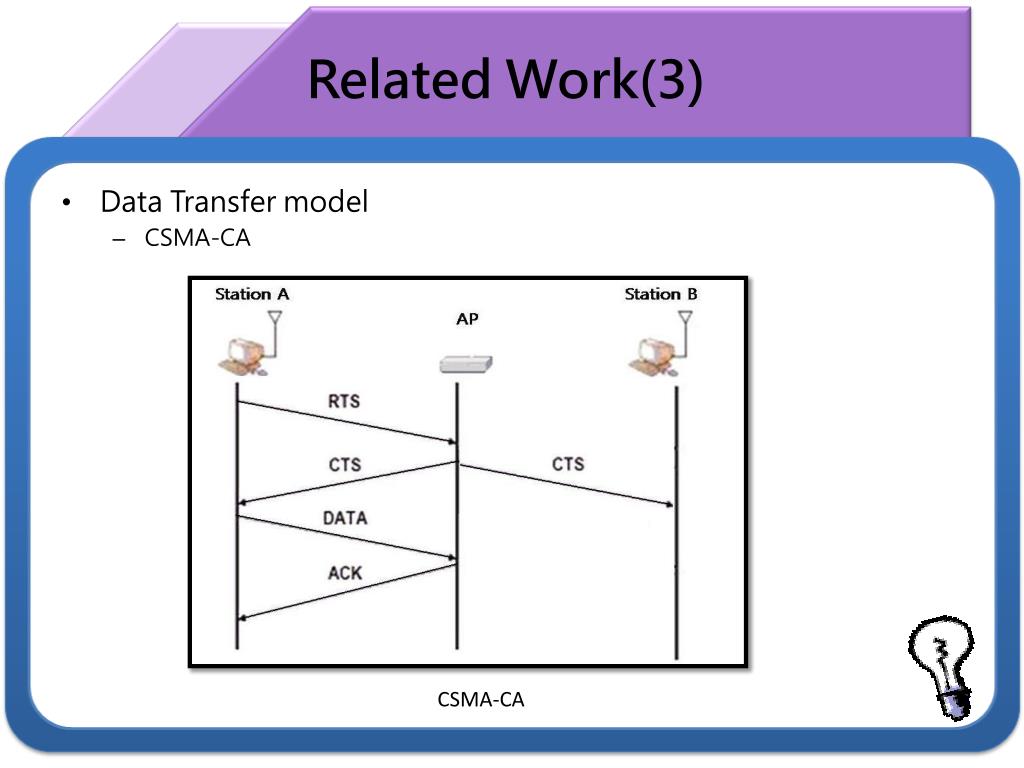

  8. Related Work(3) • Data Transfer model • CSMA-CA • CSMA-CA

  9. Smart Home Design(1) • Using a wireless sensor network withactuator functionality, our system can automatically gatherphysical sensing information and efficiently control variousconsumer home devices. We call this system the “Smart homecontrol system”.

  10. Smart Home Design(2) • Scenarios • CC2430

  11. Smart Home Design(3) • System Design • Smart Home Control System Smart Home Control System

  12. Smart Home Design(4-1) • (DMPR) –Disjoint Multi Path Routing Protocol • Kruskal's algorithm • Kruskal's algorithm

  13. Smart Home Design(4-2) • (DMPR) –Disjoint Multi Path Routing Protocol DMPR Routing algorithm

  14. Smart Home Design(5) • Device Binding System Device Binding System Multi-Binding Devices

  15. Developing Control System(1) • Binding Management Binding Management

  16. Developing Control System(2) • Sensor Network Analyzer (SNA) SNA Visual tool SNA Device View

  17. Conclusions • As a part of future work,they will apply IEEE 802.15.4a standard technology in theirhome network systems to support location services.

  18. Ａ＆Ｑ
