  1. H-Store: A Specialized Architecture for High-throughputOLTP Applications Evan Jones (MIT)Andrew Pavlo (Brown) 13th Intl. Workshop on High Performance Transaction Systems October 26, 2009

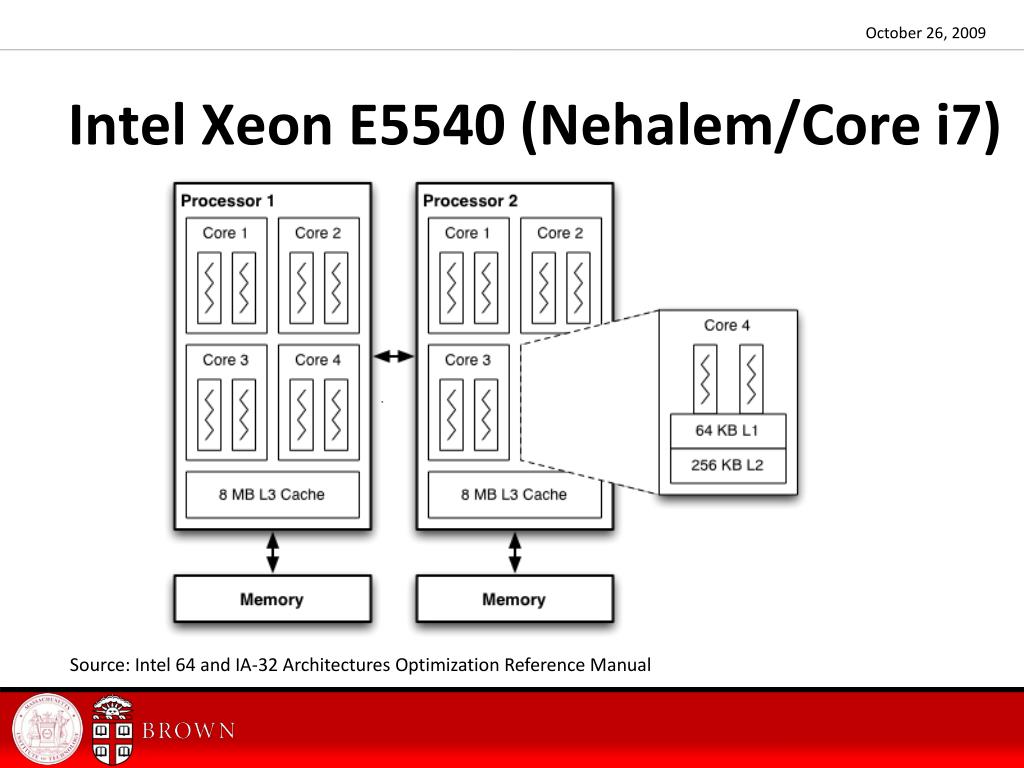

  2. Intel Xeon E5540 (Nehalem/Core i7) Source: Intel 64 and IA-32 Architectures Optimization Reference Manual

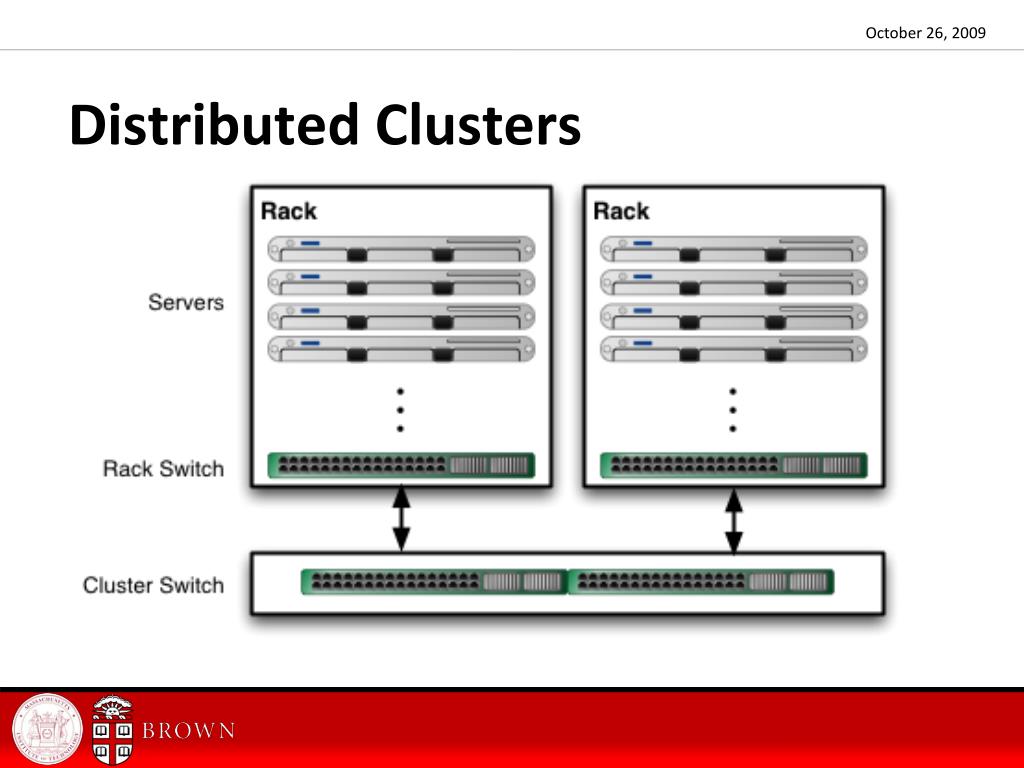

  3. Distributed Clusters

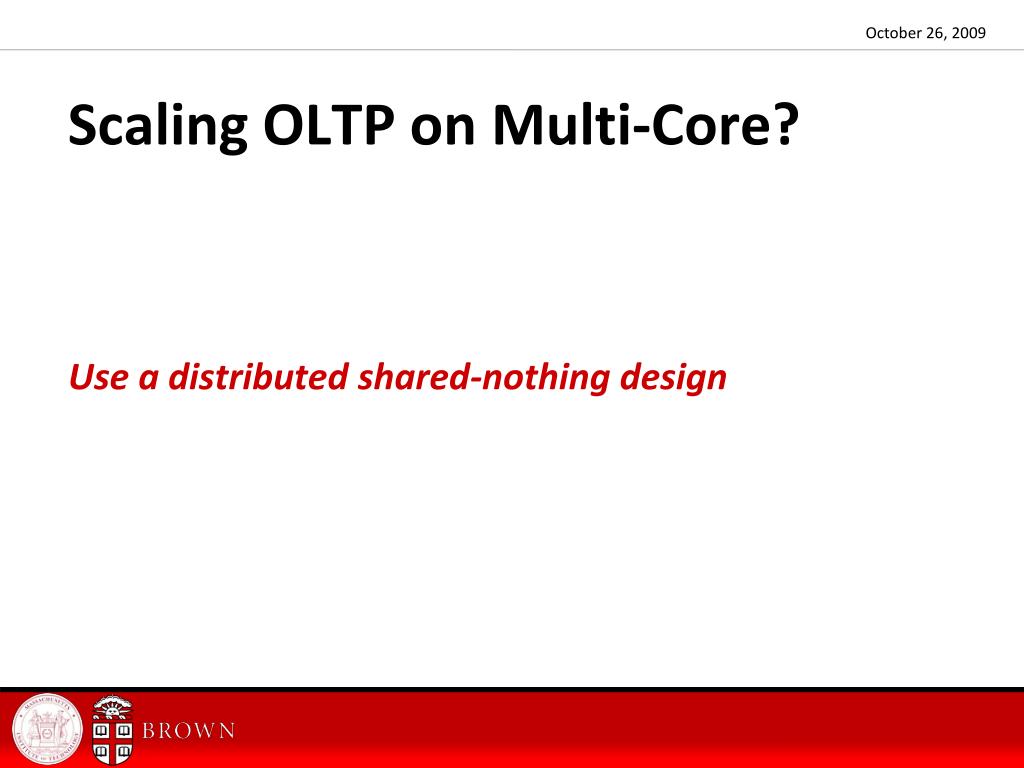

  4. Scaling OLTP on Multi-Core? Use a distributed shared-nothing design

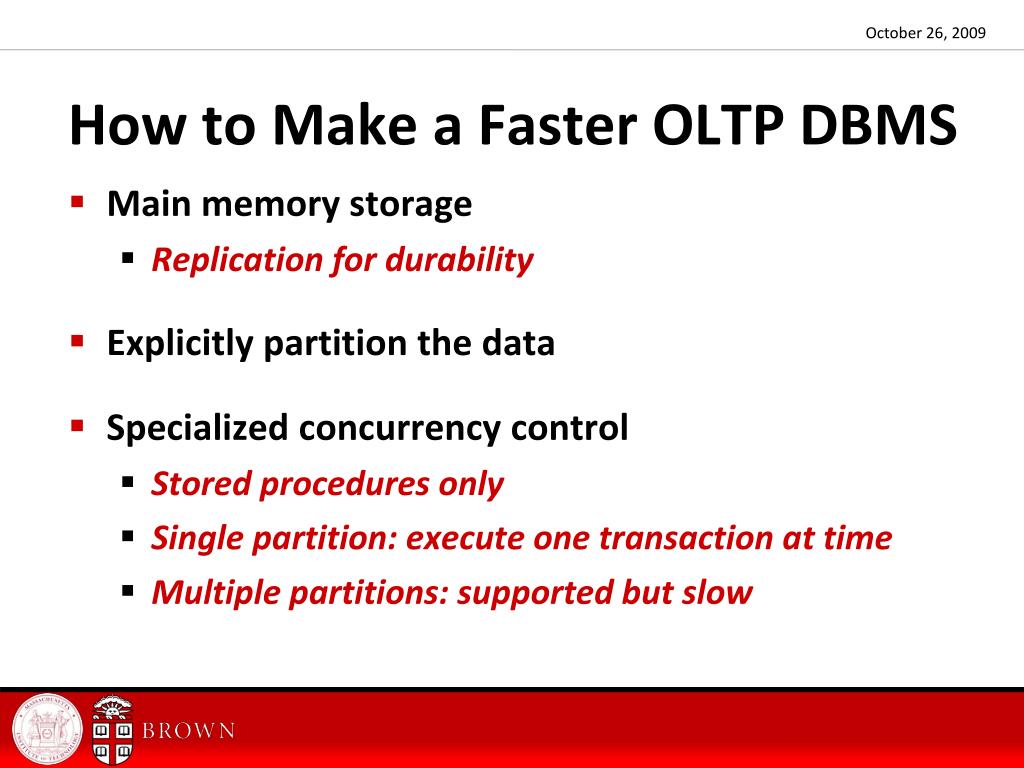

  5. How to Make a Faster OLTP DBMS • Main memory storage • Replication for durability • Explicitly partition the data • Specialized concurrency control • Stored procedures only • Single partition: execute one transaction at time • Multiple partitions: supported but slow

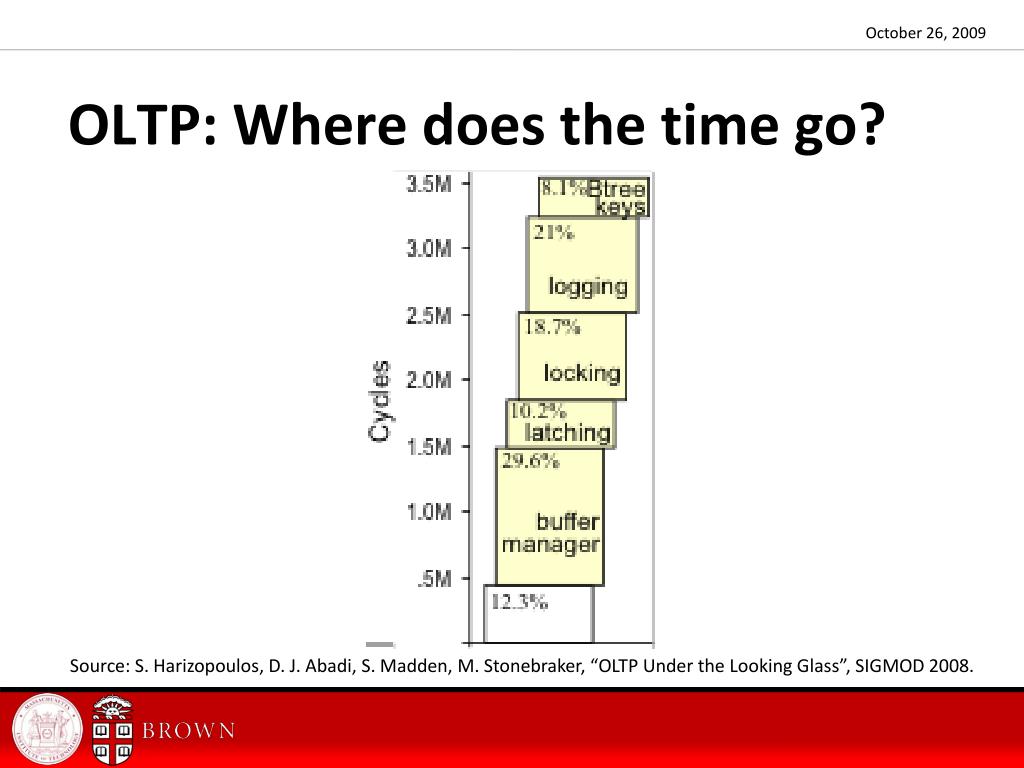

  6. OLTP: Where does the time go? Source: S. Harizopoulos, D. J. Abadi, S. Madden, M. Stonebraker, “OLTP Under the Looking Glass”, SIGMOD 2008.

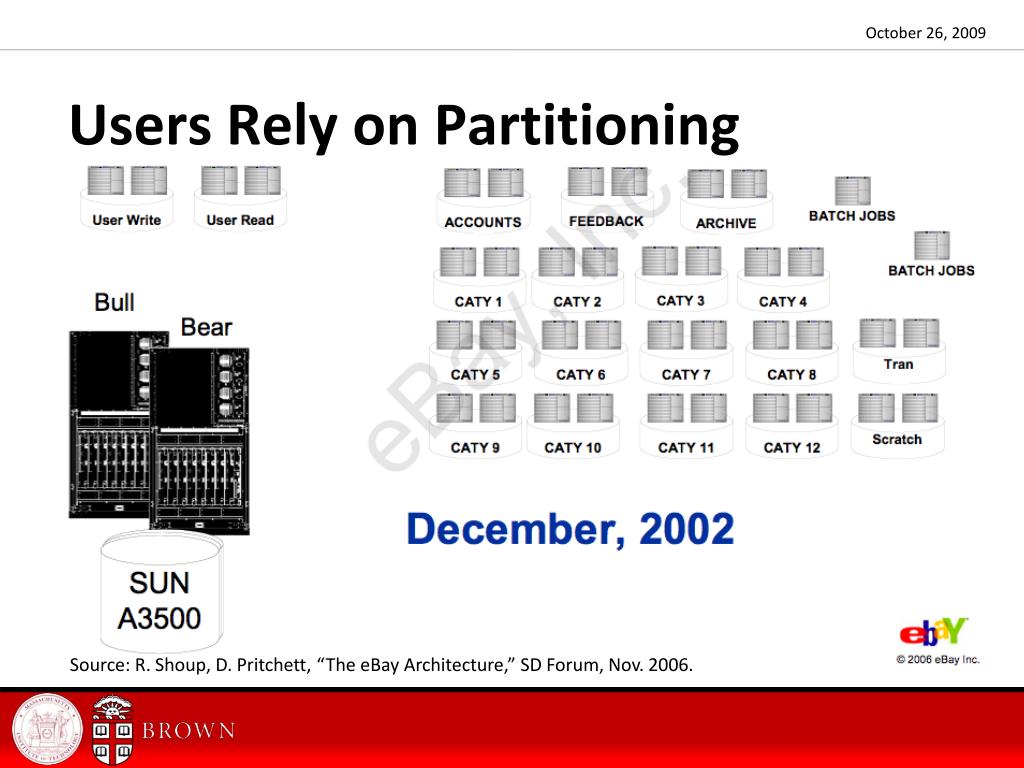

  7. Users Rely on Partitioning Source: R. Shoup, D. Pritchett, “The eBay Architecture,” SD Forum, Nov. 2006.

  8. What about multi-core? • Traditional approach: • One database process • Thread per connection • Shared-memory, locks and latches • H-Store approach: • Thread per partition • Distributed transactions

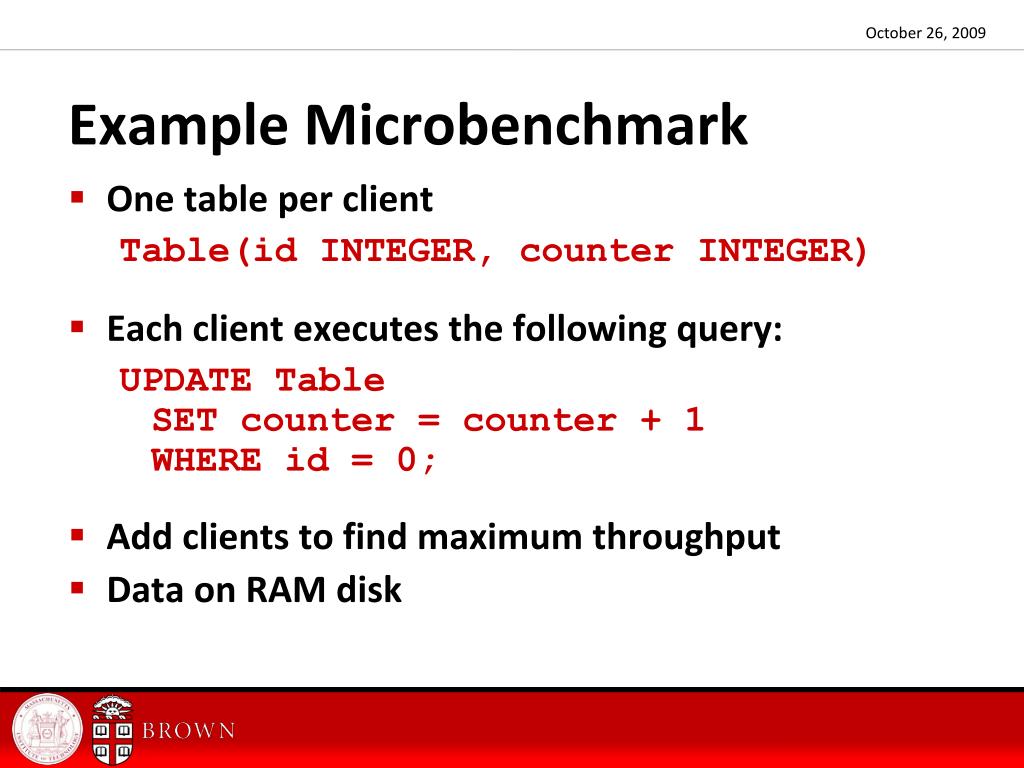

  9. Example Microbenchmark • One table per client Table(id INTEGER, counter INTEGER) • Each client executes the following query: UPDATE TableSET counter = counter + 1WHERE id = 0; • Add clients to find maximum throughput • Data on RAM disk

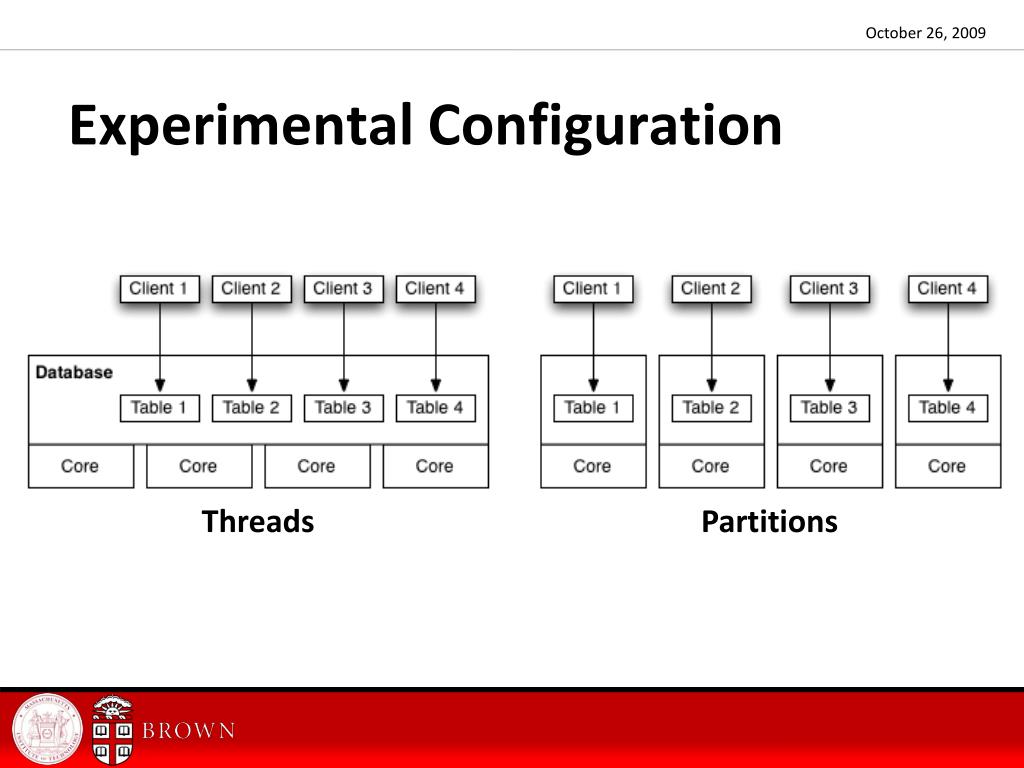

  10. Experimental Configuration Threads Partitions

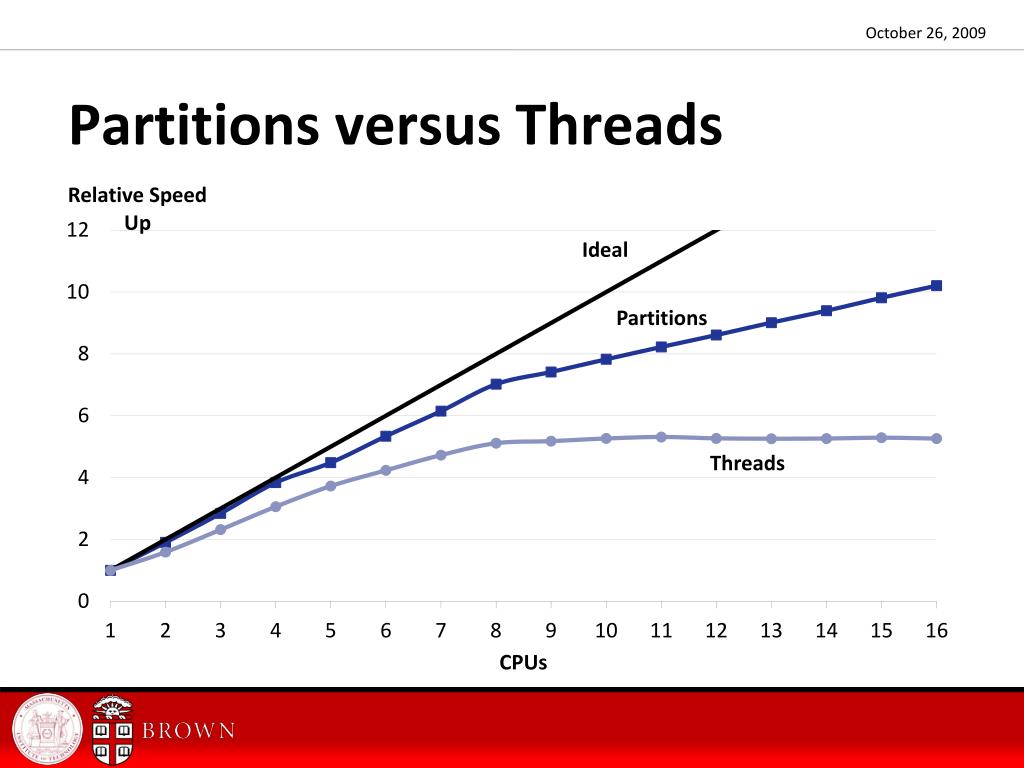

  11. Partitions versus Threads Ideal Partitions Threads

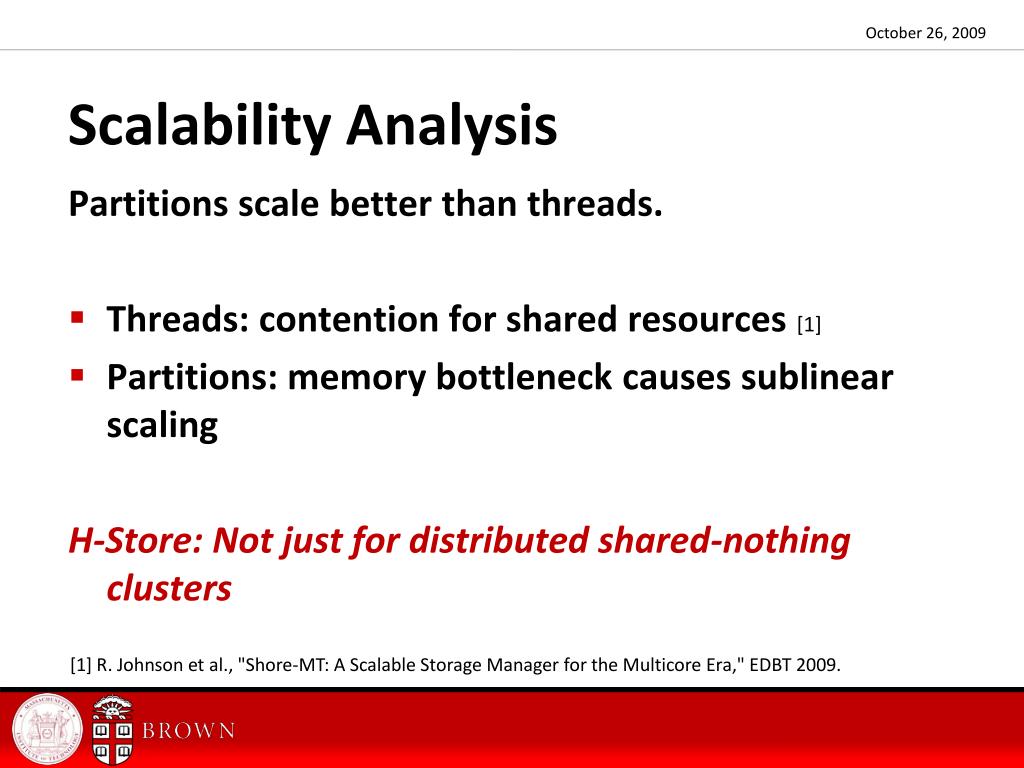

  12. Scalability Analysis Partitions scale better than threads. • Threads: contention for shared resources [1] • Partitions: memory bottleneck causes sublinear scaling H-Store: Not just for distributed shared-nothing clusters [1] R. Johnson et al., "Shore-MT: A Scalable Storage Manager for the Multicore Era," EDBT 2009.

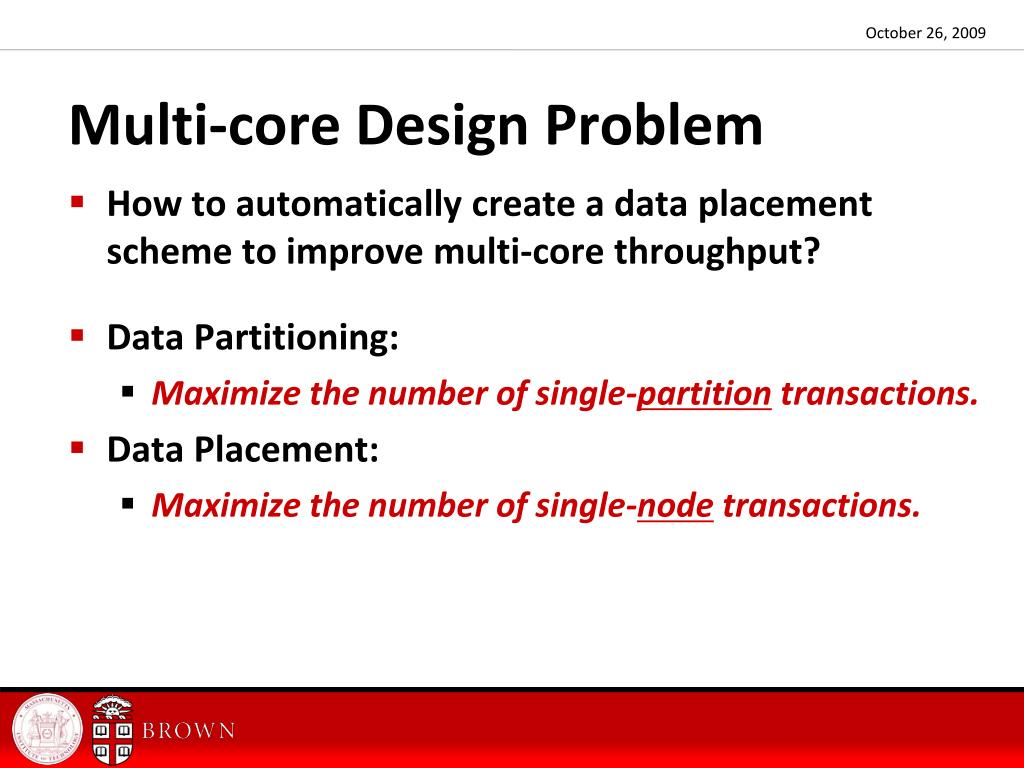

  13. Multi-core Design Problem • How to automatically create a data placement scheme to improve multi-core throughput? • Data Partitioning: • Maximize the number of single-partition transactions. • Data Placement: • Maximize the number of single-node transactions.

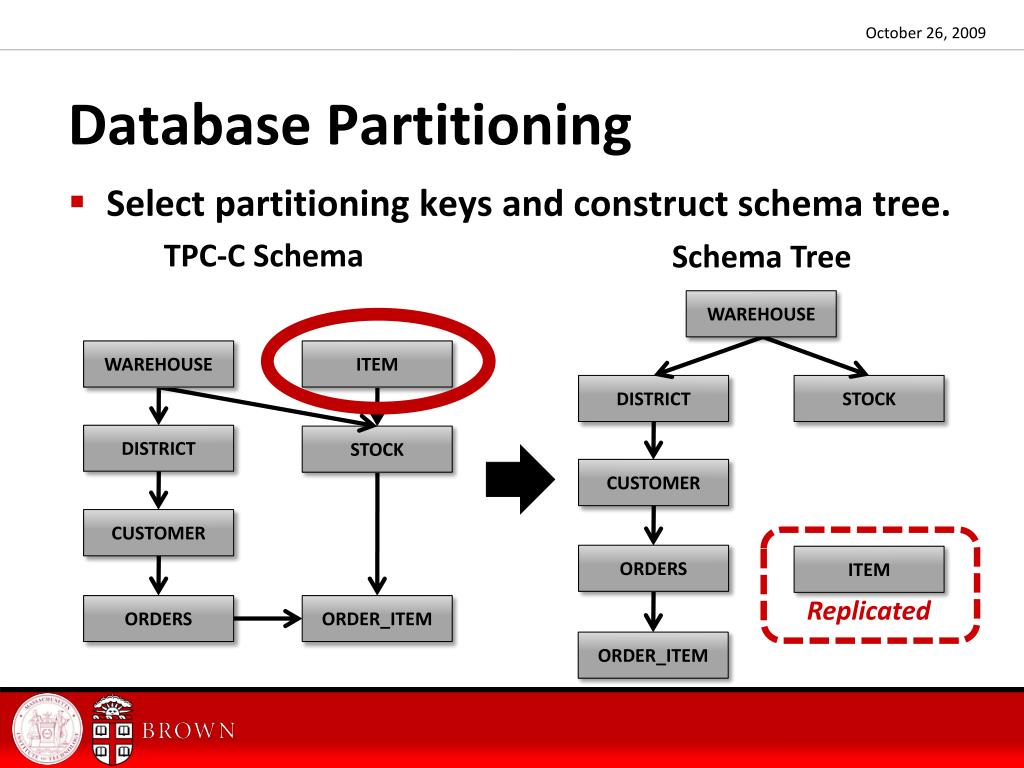

  14. Database Partitioning • Select partitioning keys and construct schema tree. TPC-C Schema Schema Tree WAREHOUSE WAREHOUSE ITEM DISTRICT STOCK DISTRICT STOCK CUSTOMER CUSTOMER ORDERS ITEM Replicated ORDERS ORDER_ITEM ORDER_ITEM

  15. Database Partitioning • Combine table fragments into partitions. Schema Tree Partitions P1 P2 P3 P4 P5 WAREHOUSE P3 P4 P2 P5 P1 P1 P2 P3 P4 P5 P1 P2 P3 P4 P5 ITEM ITEM DISTRICT STOCK P1 P2 P3 P4 P5 CUSTOMER ITEM ITEM P1 P2 P3 P4 P5 ORDERS ITEM ITEM ITEMj ITEM ITEM ITEM Replicated P1 P2 P3 P4 P5 ORDER_ITEM ITEM

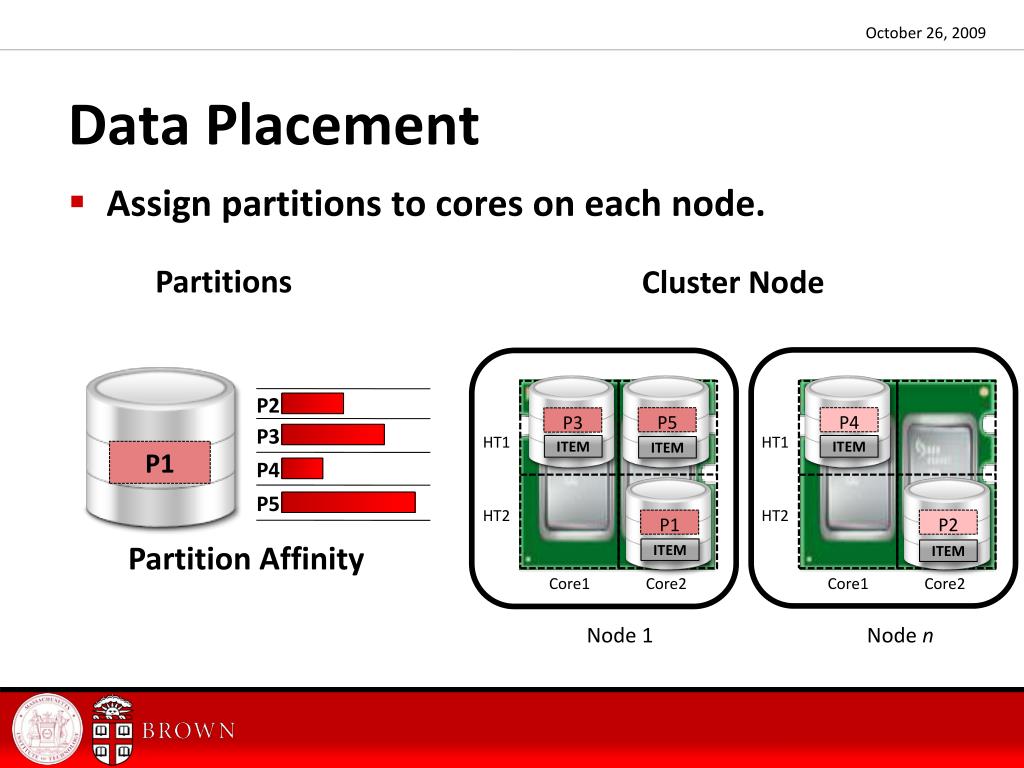

  16. Data Placement • Assign partitions to cores on each node. Partitions Cluster Node P1 P2 P4 P5 P3 P1 P2 ITEM ITEM P3 HT1 HT1 P4 P5 HT2 HT2 Partition Affinity ITEM ITEM Core1 Core1 Core2 Core2 Node 1 Node n ITEM

  17. H-Store’s Future • New Name. New Company. • Six full-time developers. • Open-source project (GPL) • Beta by end of 2009 • Multiple deployments in financial service areas.

  18. More Information • H-Store Info + Papers: • http://db.cs.yale.edu/hstore/ • VoltDB Project Information: • http://www.voltdb.org/
