  1. Chapter One Performing Disaster Recovery Operations

  2. Objectives • Understand backup operations and recovery models • Create database devices • Create full database, differential database and transaction log backups • Use backups to restore a database

  3. Objectives • Configure log shipping • Use the Database Maintenance Plan Wizard to create a disaster recovery plan • Ensure the consistency of databases using DBCC T-SQL statements

  4. Planning for Disaster • With improvements in reliability of hardware and software, system meltdowns are less frequent • Still, hardware will fail and users will make mistakes like deleting important information by accident • Only recourse is to plan for such events and minimize the effects on an organization using SQL Server 2000 • SQL Server 2000 offers a flexible backup architecture that allows database administrators to execute backup operations that meet the data availability requirements of any database

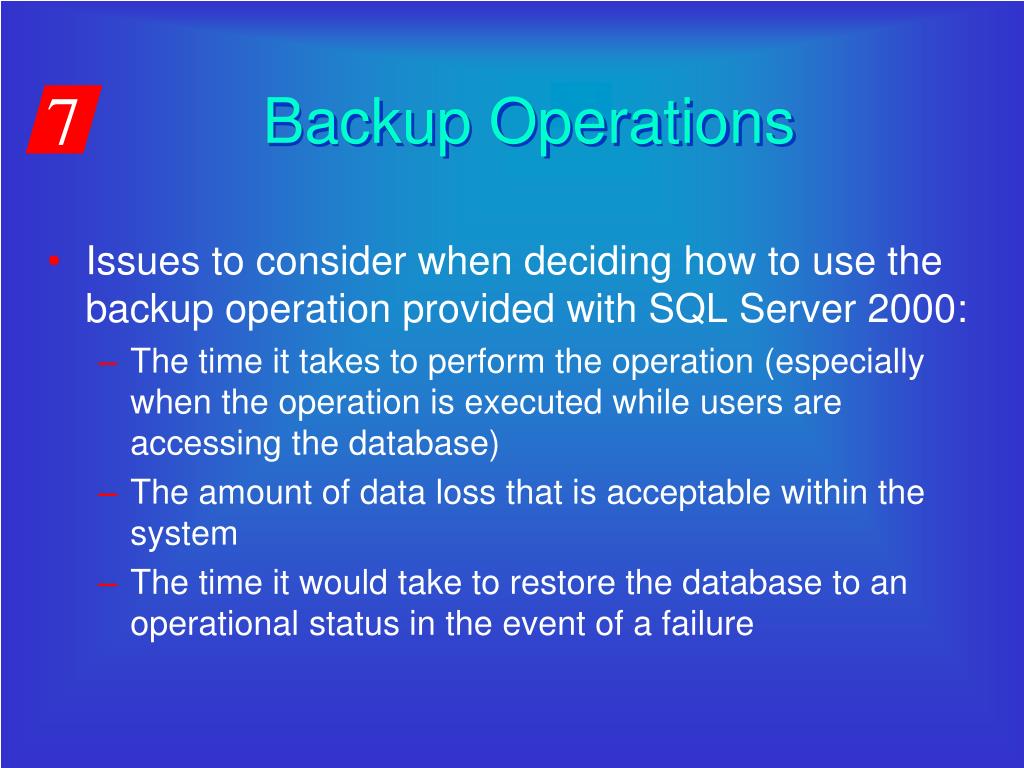

  5. Backup Operations • Issues to consider when deciding how to use the backup operation provided with SQL Server 2000: • The time it takes to perform the operation (especially when the operation is executed while users are accessing the database) • The amount of data loss that is acceptable within the system • The time it would take to restore the database to an operational status in the event of a failure

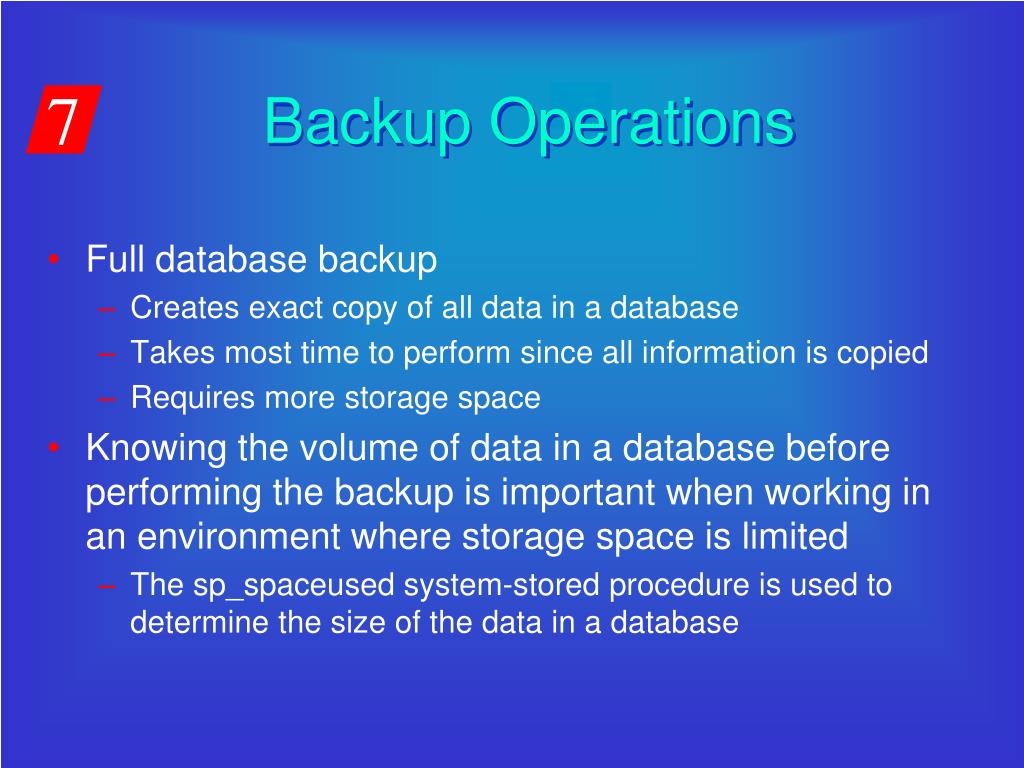

  6. Backup Operations • Full database backup • Creates exact copy of all data in a database • Takes most time to perform since all information is copied • Requires more storage space • Knowing the volume of data in a database before performing the backup is important when working in an environment where storage space is limited • The sp_spaceused system-stored procedure is used to determine the size of the data in a database

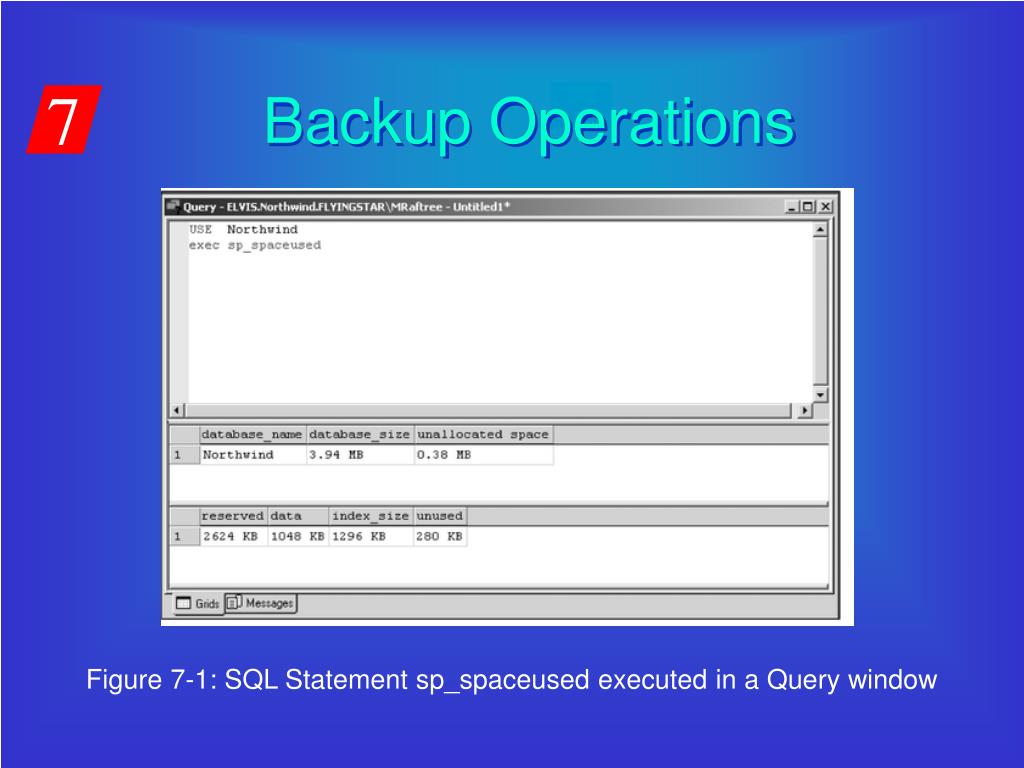

  7. Backup Operations Figure 7-1: SQL Statement sp_spaceused executed in a Query window

  8. Backup Operations • Differential database backup • Only backs up data pages that changed since last full database backup was performed • Transaction log backup • Allows transaction logs to be backed up • File backup • Can be used to back up only the data residing on a single file or filegroup of a database

  9. SQL Server 2000 Recovery Models • Recovery model • Model by which you recover the backed up database • Recovery models include: • Simple • Full • Bulk-logged • Each model addresses different needs, including: • Minimizing data loss in the event of a failure • Amount of disk space available to stored backups • Impacting performance of the system

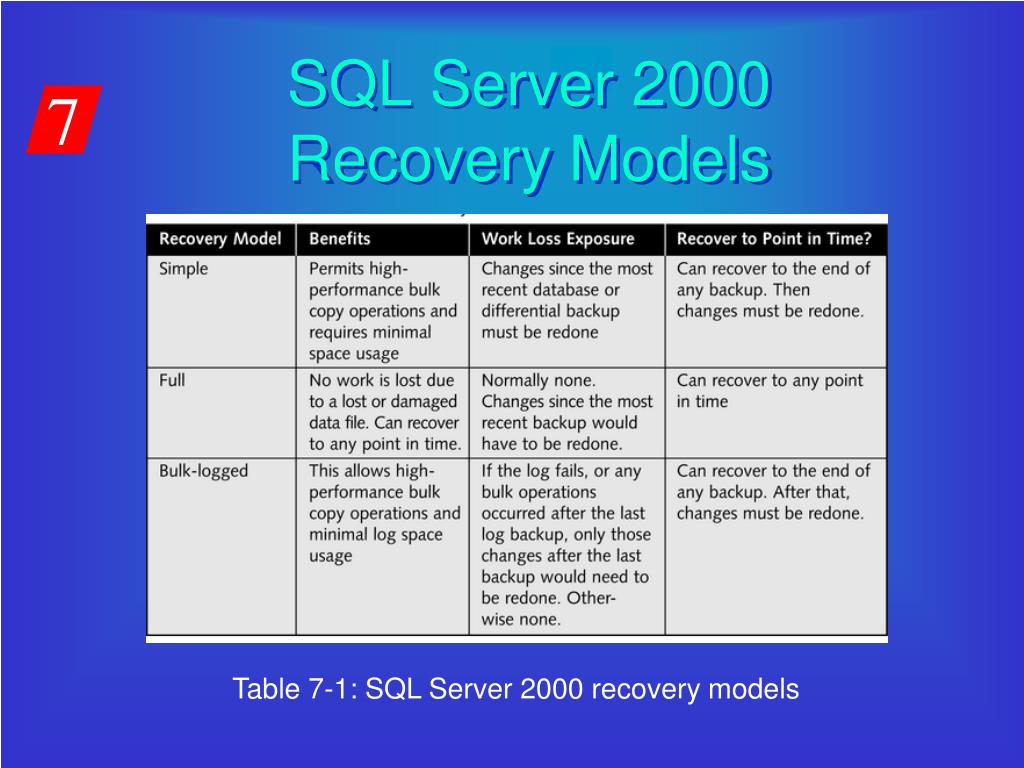

  10. SQL Server 2000 Recovery Models Table 7-1: SQL Server 2000 recovery models

  11. Simple Recovery • Simple recovery model requires the least administration Figure 7-2: Simple recovery model performing full backups everyday

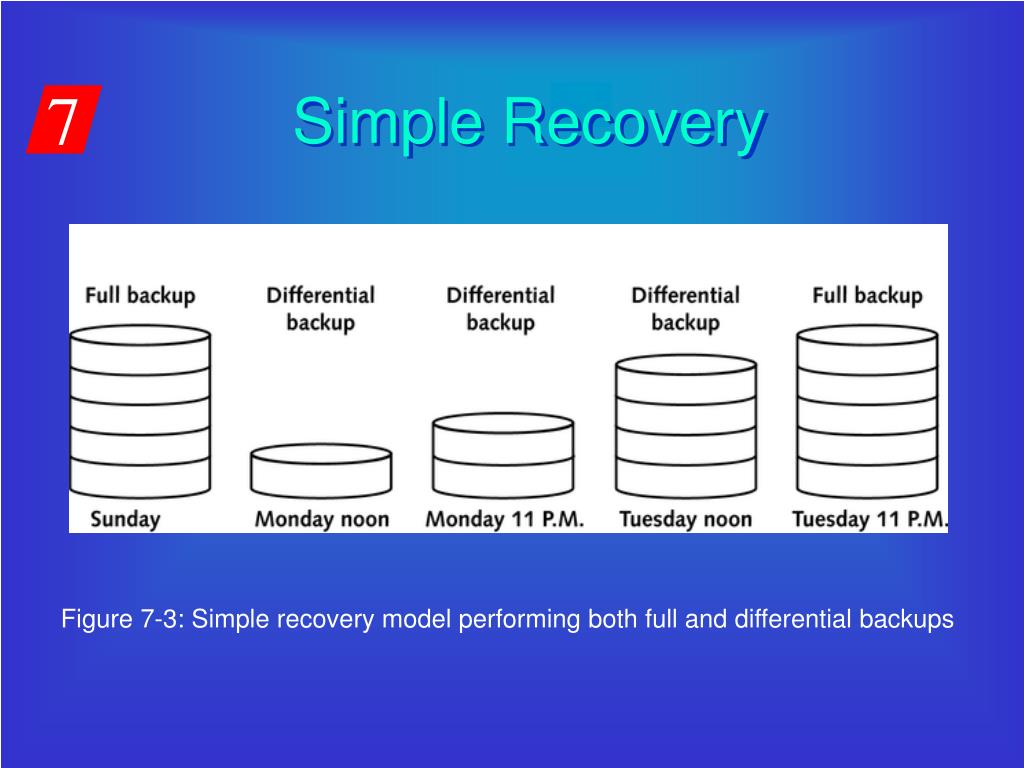

  12. Simple Recovery Figure 7-3: Simple recovery model performing both full and differential backups

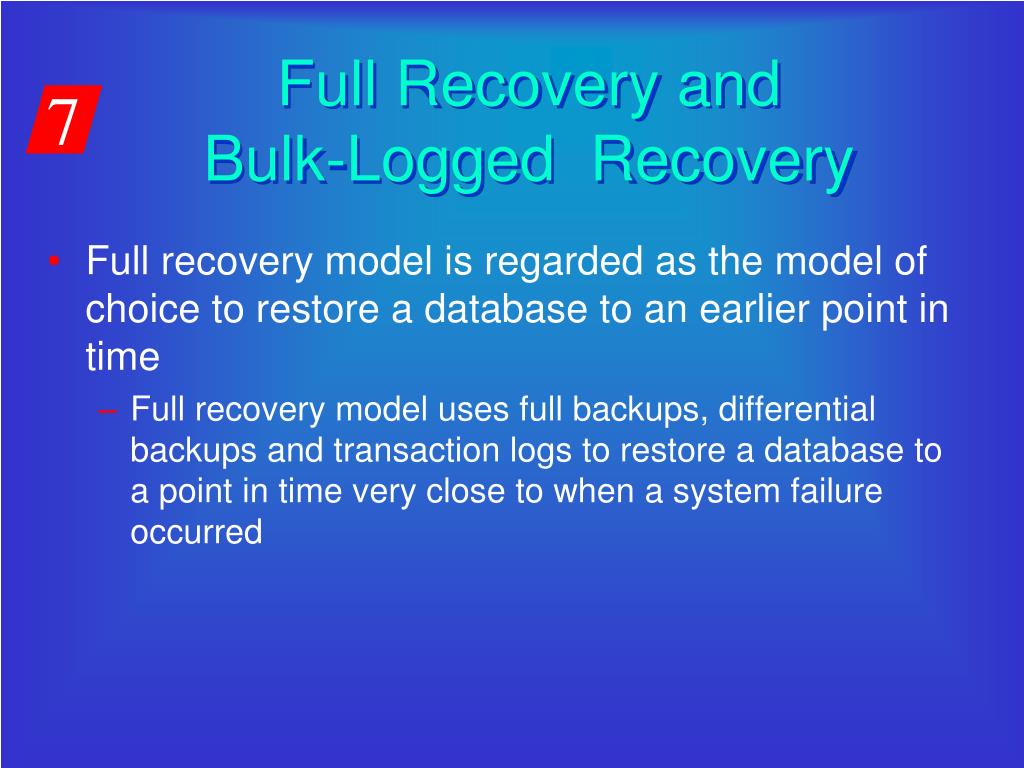

  13. Full Recovery and Bulk-Logged Recovery • Full recovery model is regarded as the model of choice to restore a database to an earlier point in time • Full recovery model uses full backups, differential backups and transaction logs to restore a database to a point in time very close to when a system failure occurred

  14. Full Recovery and Bulk-Logged Recovery • Location of the transaction log • It is strongly recommended that the transaction log for a mission-critical database be placed on a separate physical disk than the data • Transaction logs in bulk-logged recovery model • Like full recovery model, bulk-logged provides optimal performance and limited exposure to data loss • Differentiating factor between the two models is how operations are logged

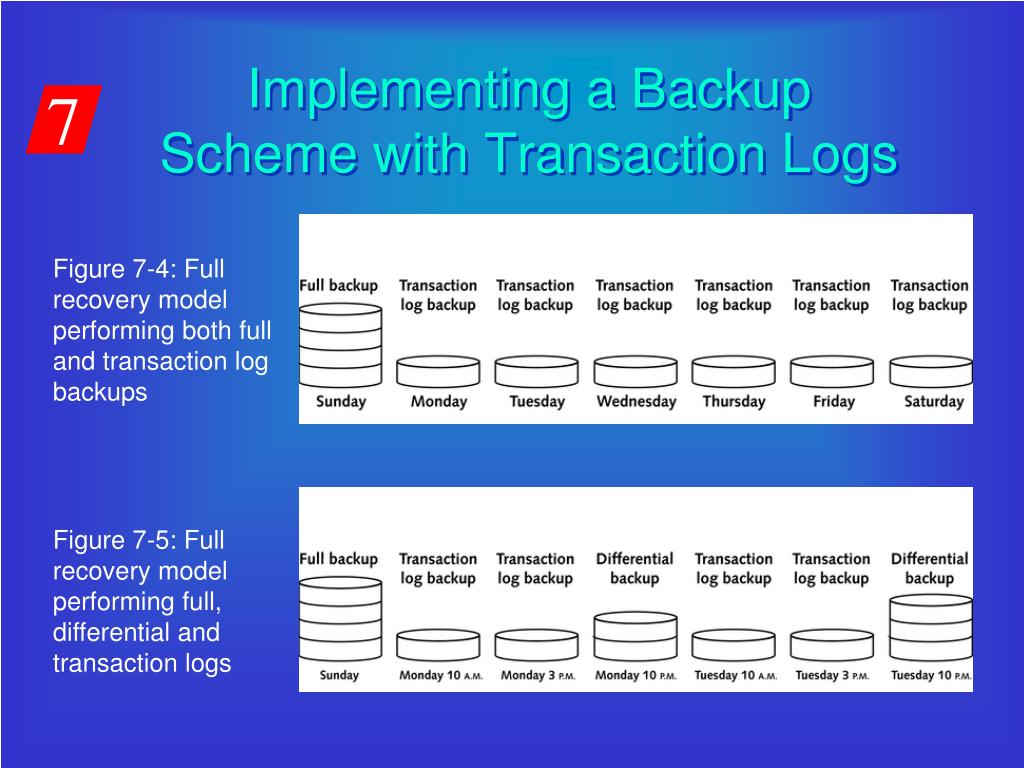

  15. Implementing a Backup Scheme with Transaction Logs Figure 7-4: Full recovery model performing both full and transaction log backups Figure 7-5: Full recovery model performing full, differential and transaction logs

  16. Implementing a Backup Scheme with Transaction Logs Figure 7-6 Full recovery model performing full file and transaction log backups

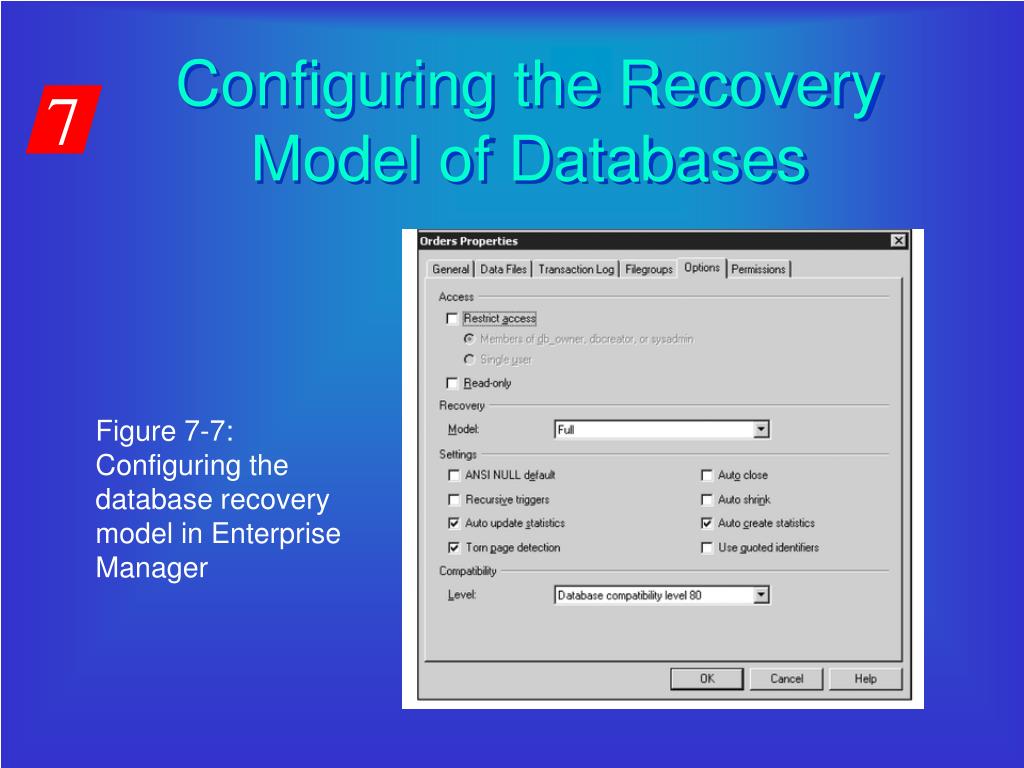

  17. Configuring the Recovery Model of Databases Figure 7-7: Configuring the database recovery model in Enterprise Manager

  18. Backup Devices • Backup devices • Files on hard drives or other disk storage media used to store backups • Disk devices • Files that reside on hard drives or other storage media on a network • Tape devices • Allow backups to be stored on tapes in a local tape drive

  19. Microsoft Tape Format • Microsoft Tape Format (MTF) • Standard backup format developed by Microsoft to allow backups from multiple sources to be stored on the same media • Media • Largest unit in MTF • Can house multiple backups from both Windows 2000/NT and SQL Server 2000 • Backup set • Unit in MTF that houses a backup from a single source like SQL Server 2000 or Windows 2000/NT

  20. Microsoft Tape Format Figure 7-8: Microsoft Tape Format (MTF) structure

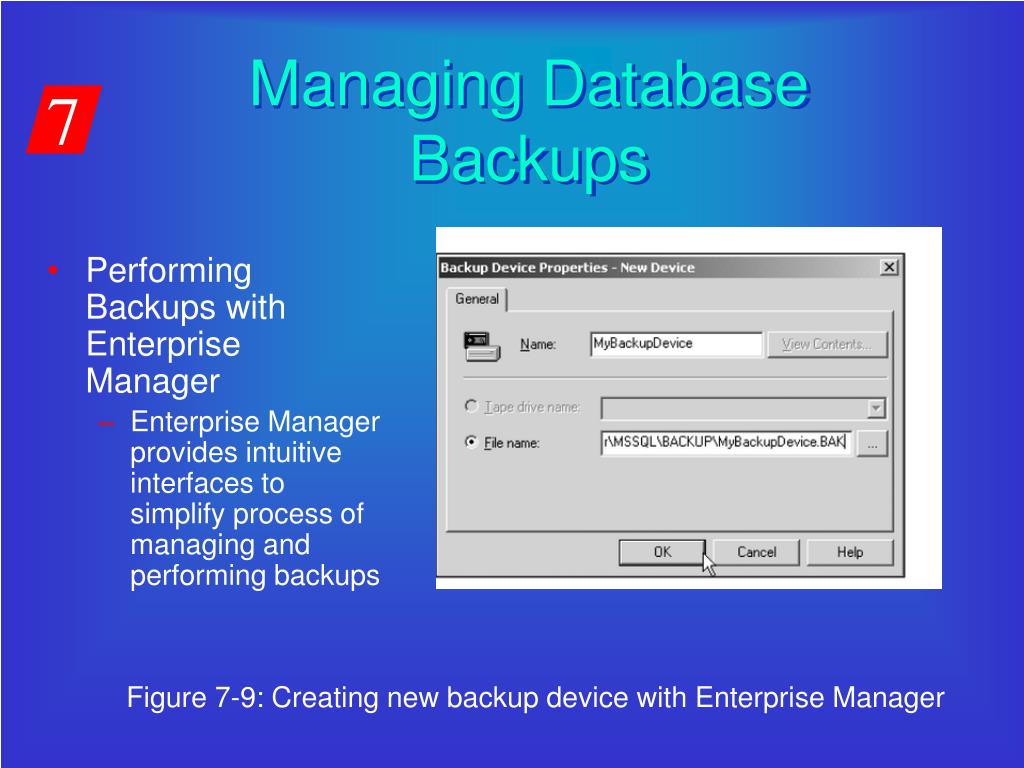

  21. Managing Database Backups • Performing Backups with Enterprise Manager • Enterprise Manager provides intuitive interfaces to simplify process of managing and performing backups Figure 7-9: Creating new backup device with Enterprise Manager

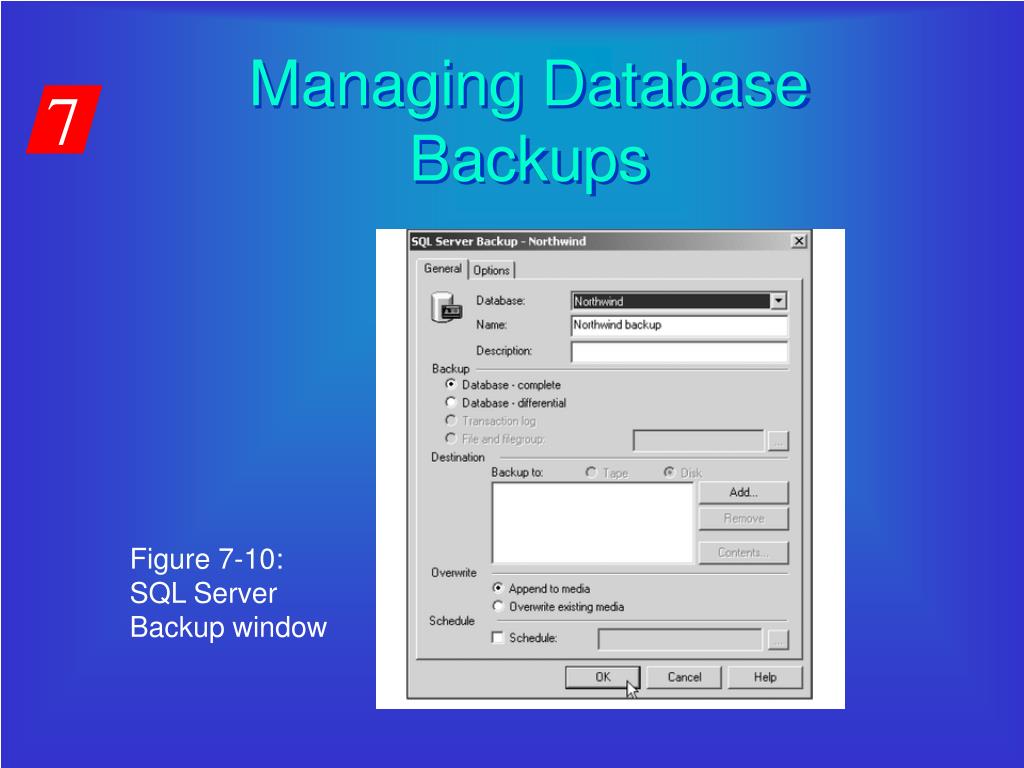

  22. Managing Database Backups Figure 7-10: SQL Server Backup window

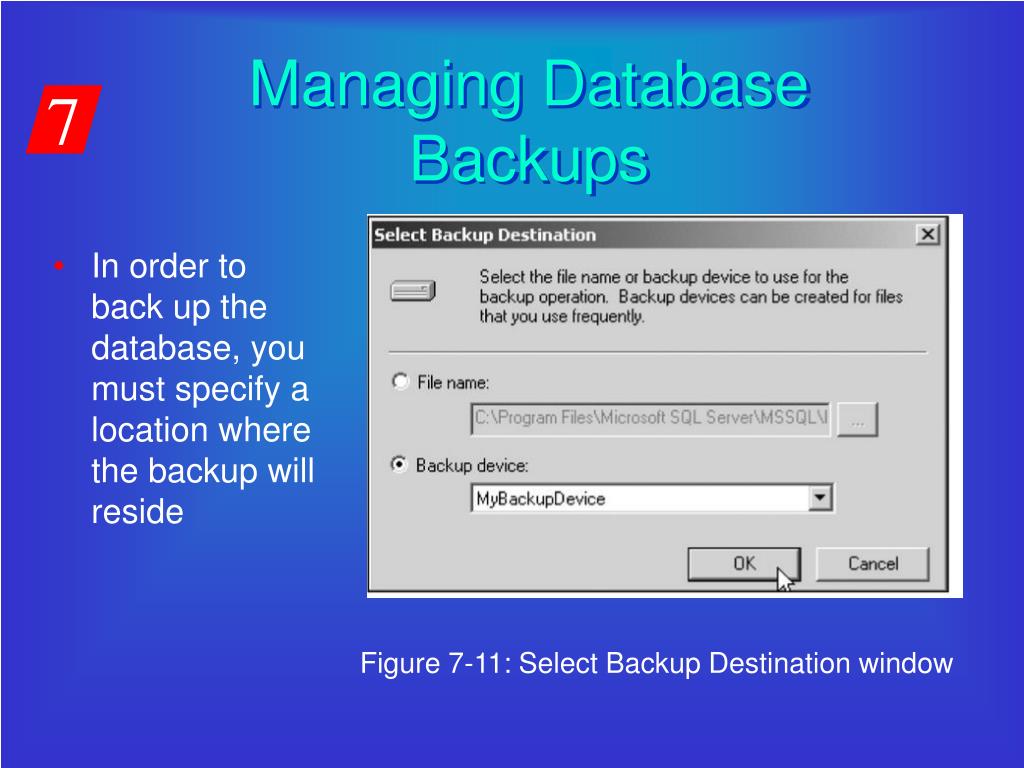

  23. Managing Database Backups • In order to back up the database, you must specify a location where the backup will reside Figure 7-11: Select Backup Destination window

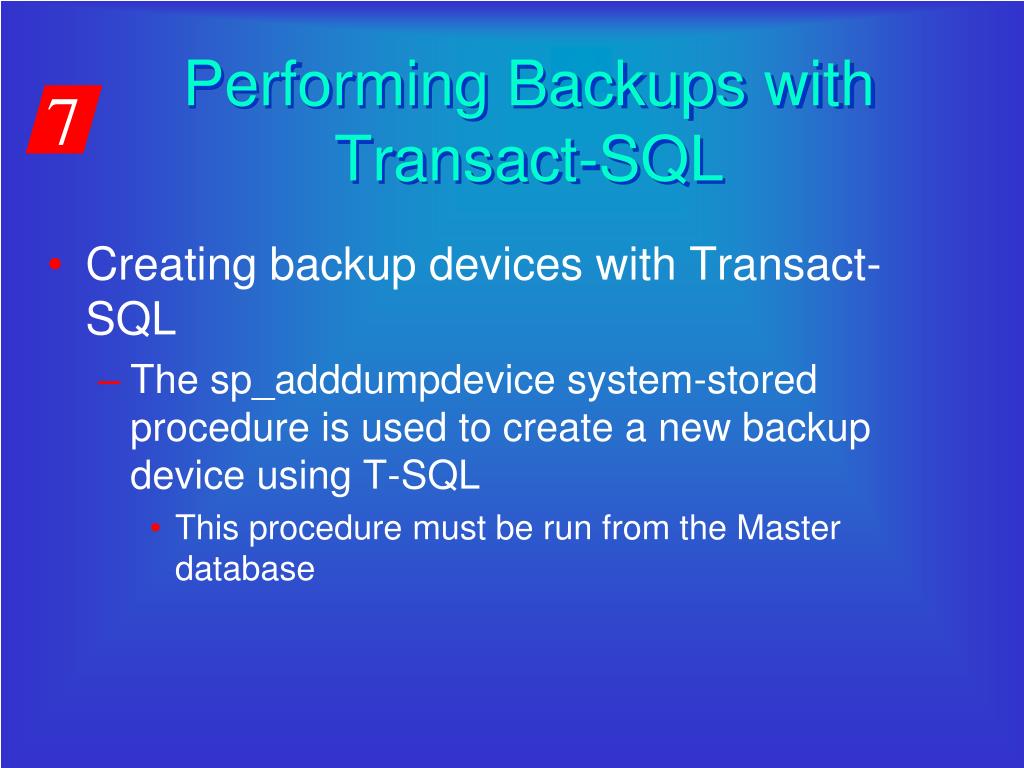

  24. Performing Backups with Transact-SQL • Creating backup devices with Transact-SQL • The sp_adddumpdevice system-stored procedure is used to create a new backup device using T-SQL • This procedure must be run from the Master database

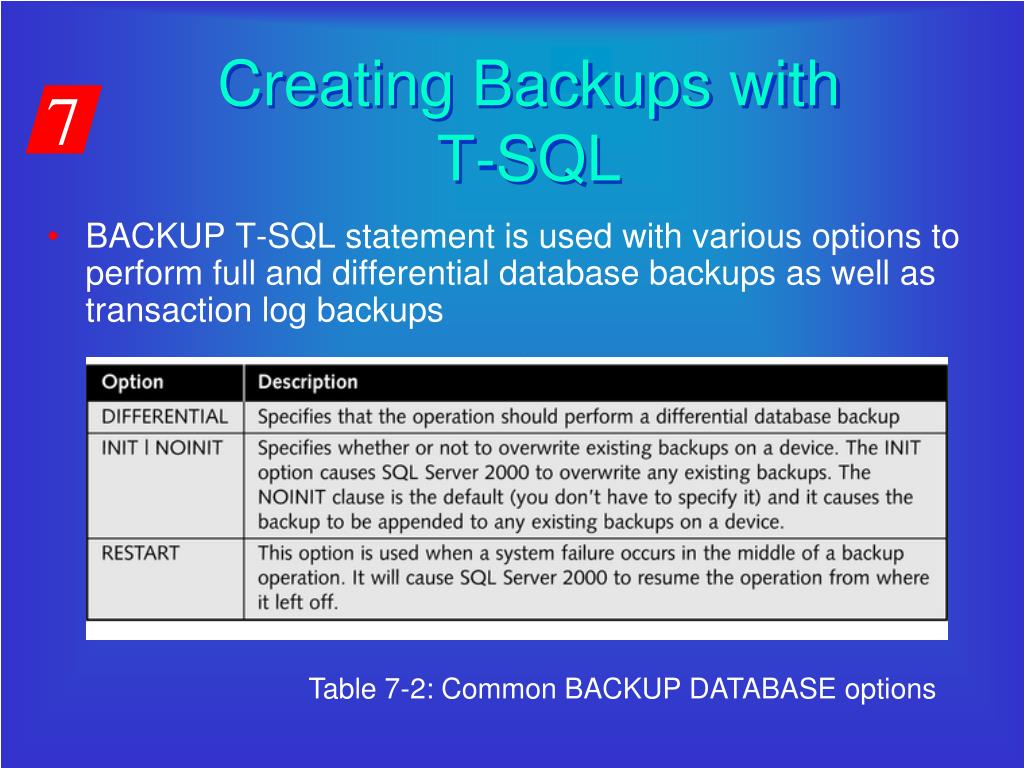

  25. Creating Backups with T-SQL • BACKUP T-SQL statement is used with various options to perform full and differential database backups as well as transaction log backups Table 7-2: Common BACKUP DATABASE options

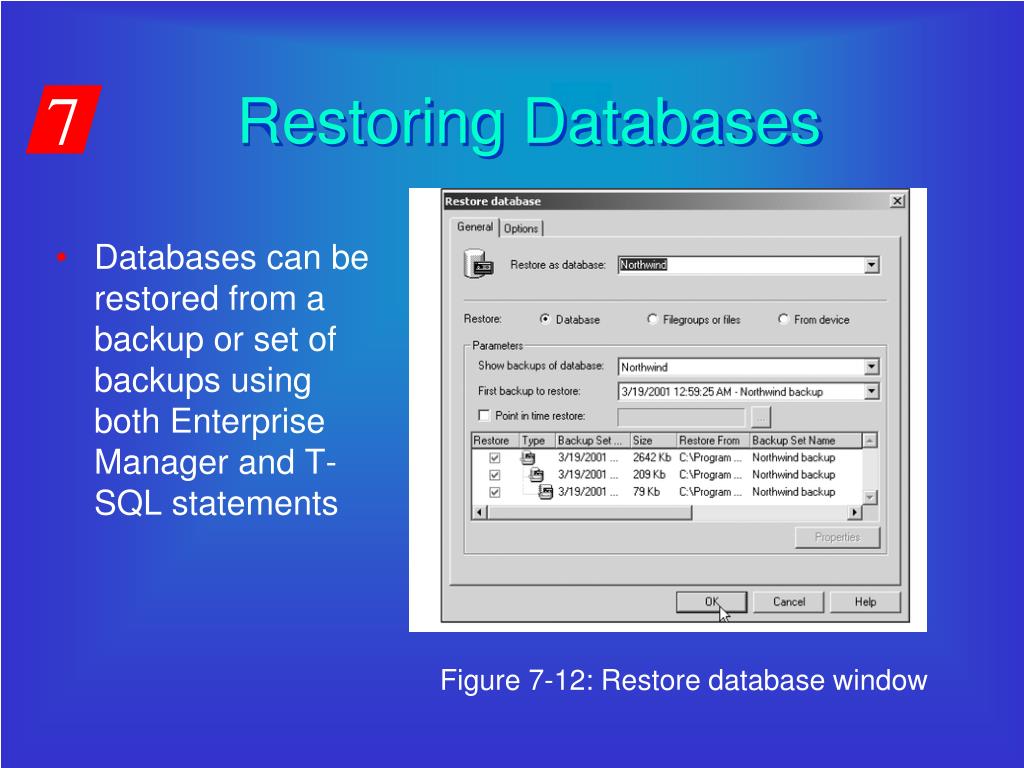

  26. Restoring Databases • Databases can be restored from a backup or set of backups using both Enterprise Manager and T-SQL statements Figure 7-12: Restore database window

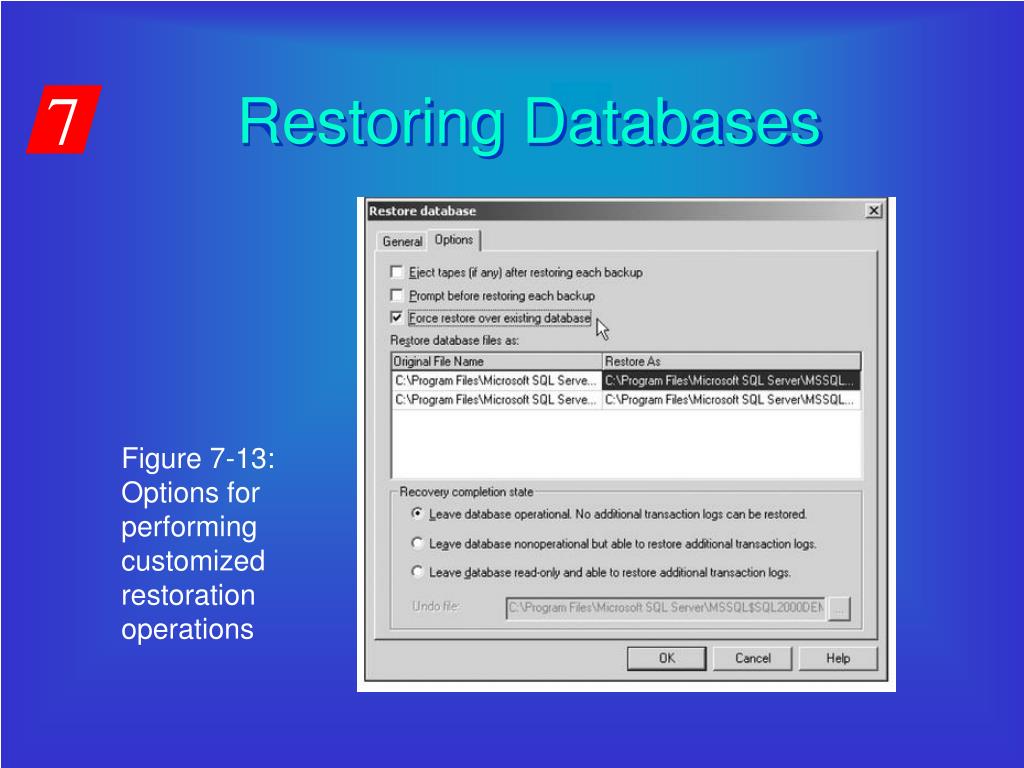

  27. Restoring Databases Figure 7-13: Options for performing customized restoration operations

  28. Restoring Databases with Transact-SQL • The RESTORE T-SQL statement is used to recover different backups should the need arise • SQL Server 2000 recovery architecture is very flexible

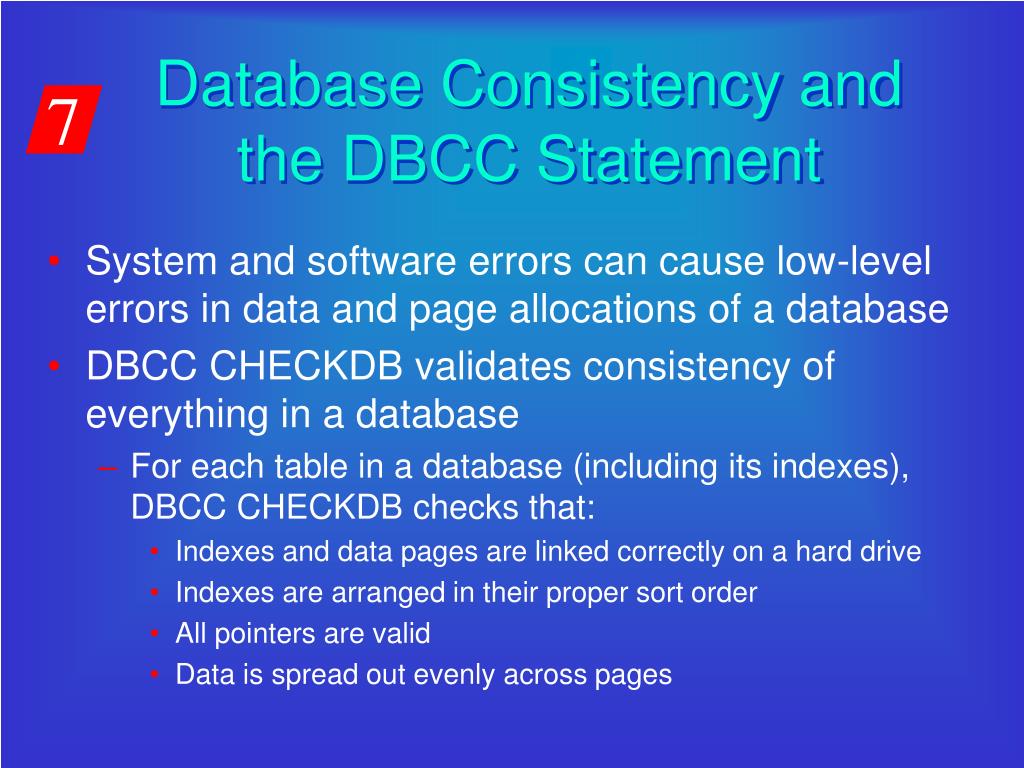

  29. Database Consistency and the DBCC Statement • System and software errors can cause low-level errors in data and page allocations of a database • DBCC CHECKDB validates consistency of everything in a database • For each table in a database (including its indexes), DBCC CHECKDB checks that: • Indexes and data pages are linked correctly on a hard drive • Indexes are arranged in their proper sort order • All pointers are valid • Data is spread out evenly across pages

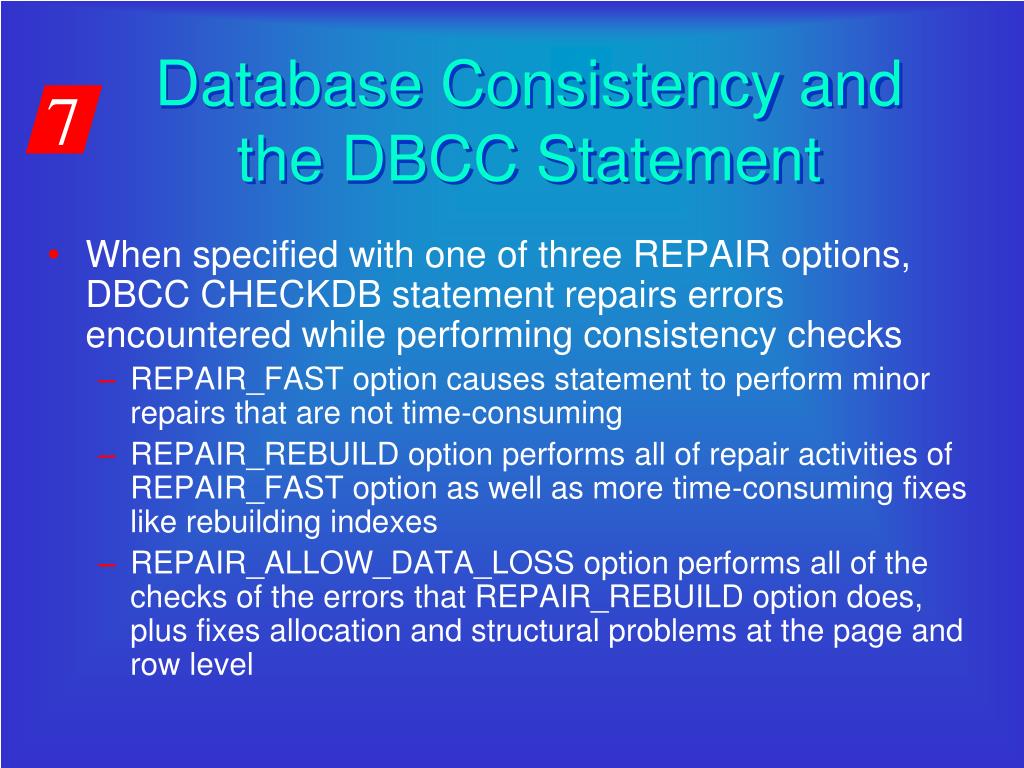

  30. Database Consistency and the DBCC Statement • When specified with one of three REPAIR options, DBCC CHECKDB statement repairs errors encountered while performing consistency checks • REPAIR_FAST option causes statement to perform minor repairs that are not time-consuming • REPAIR_REBUILD option performs all of repair activities of REPAIR_FAST option as well as more time-consuming fixes like rebuilding indexes • REPAIR_ALLOW_DATA_LOSS option performs all of the checks of the errors that REPAIR_REBUILD option does, plus fixes allocation and structural problems at the page and row level

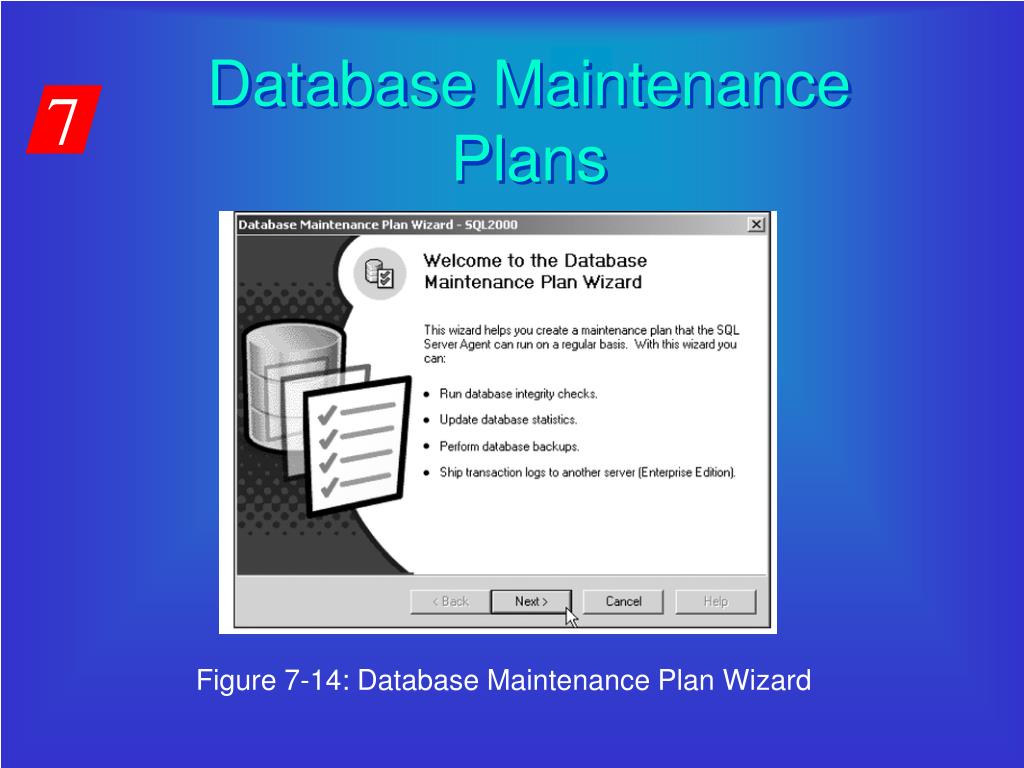

  31. Database Maintenance Plans Figure 7-14: Database Maintenance Plan Wizard

  32. Database Maintenance Plans Figure 7-15: Selecting databases

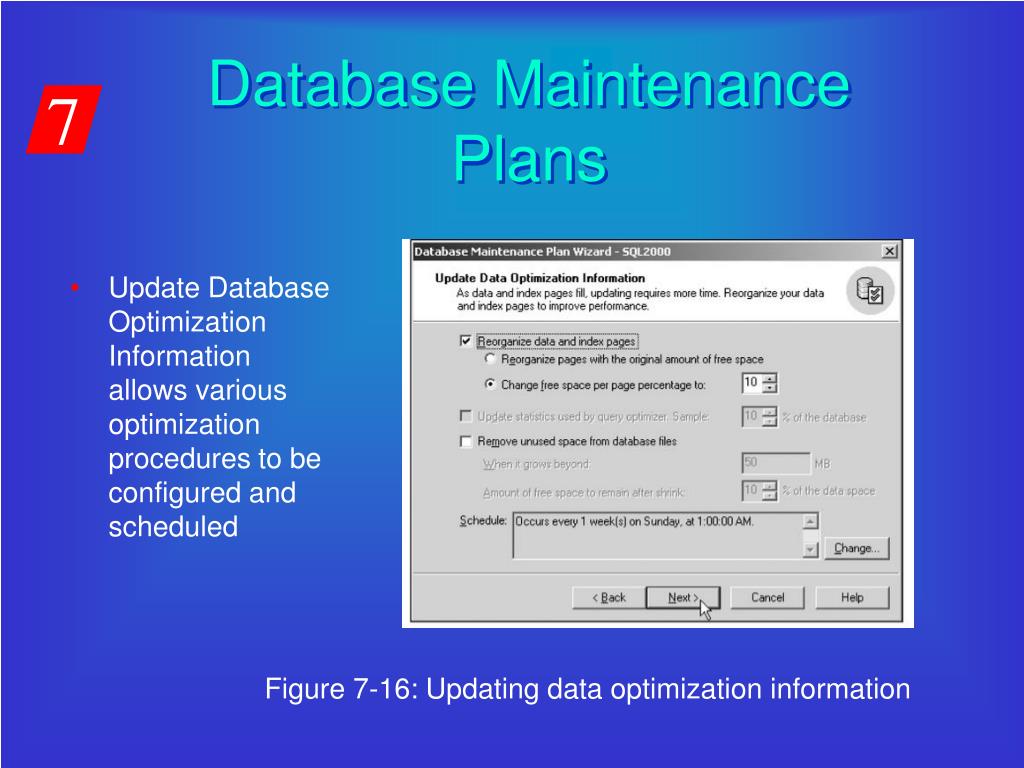

  33. Database Maintenance Plans • Update Database Optimization Information allows various optimization procedures to be configured and scheduled Figure 7-16: Updating data optimization information

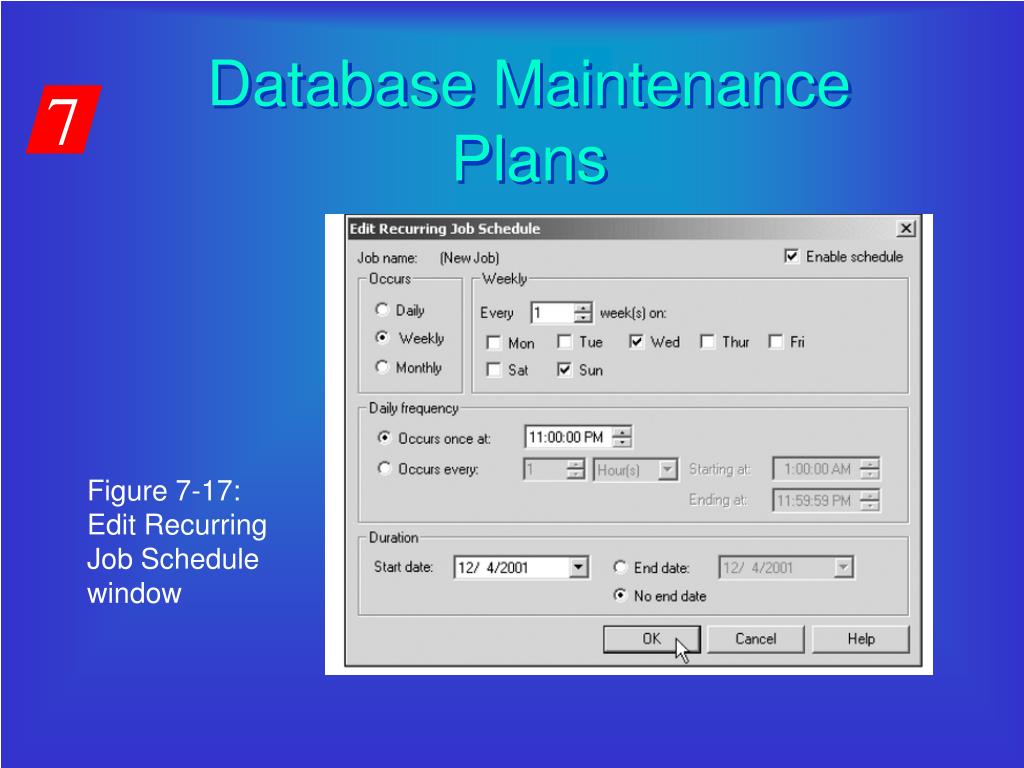

  34. Database Maintenance Plans Figure 7-17: Edit Recurring Job Schedule window

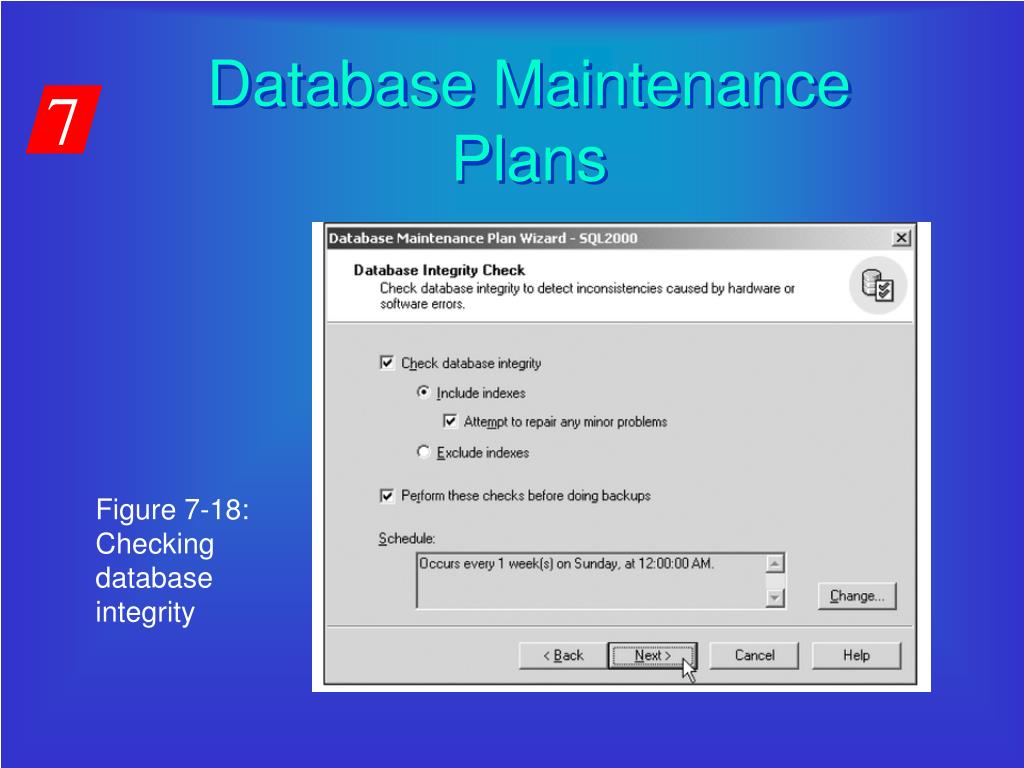

  35. Database Maintenance Plans Figure 7-18: Checking database integrity

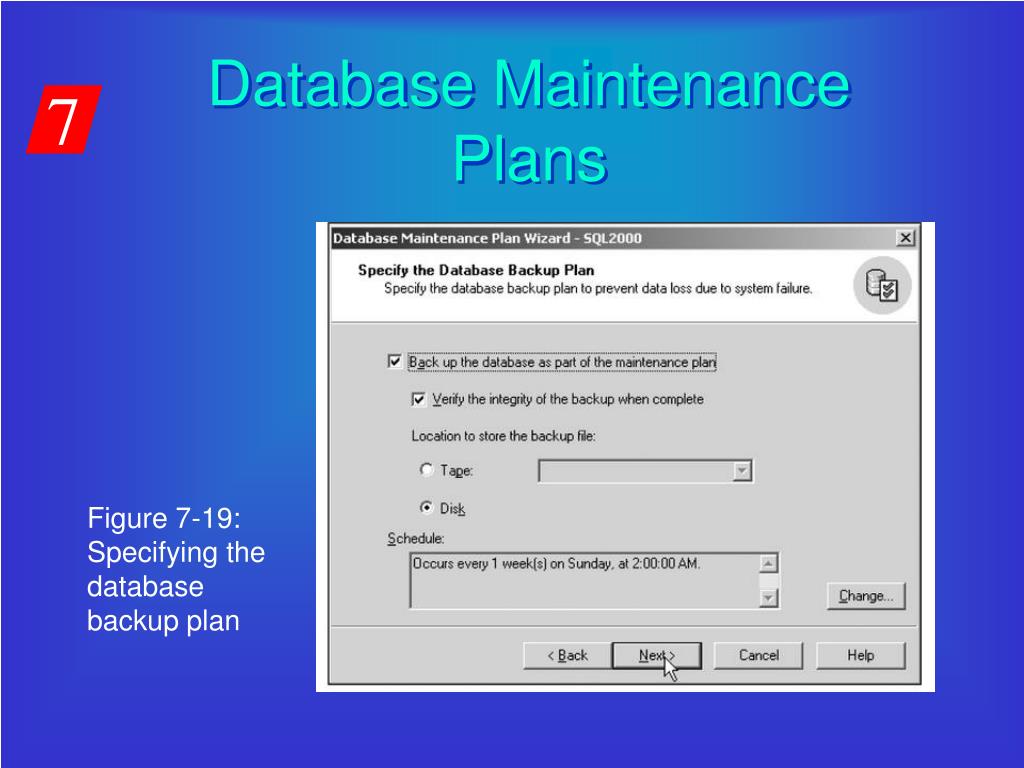

  36. Database Maintenance Plans Figure 7-19: Specifying the database backup plan

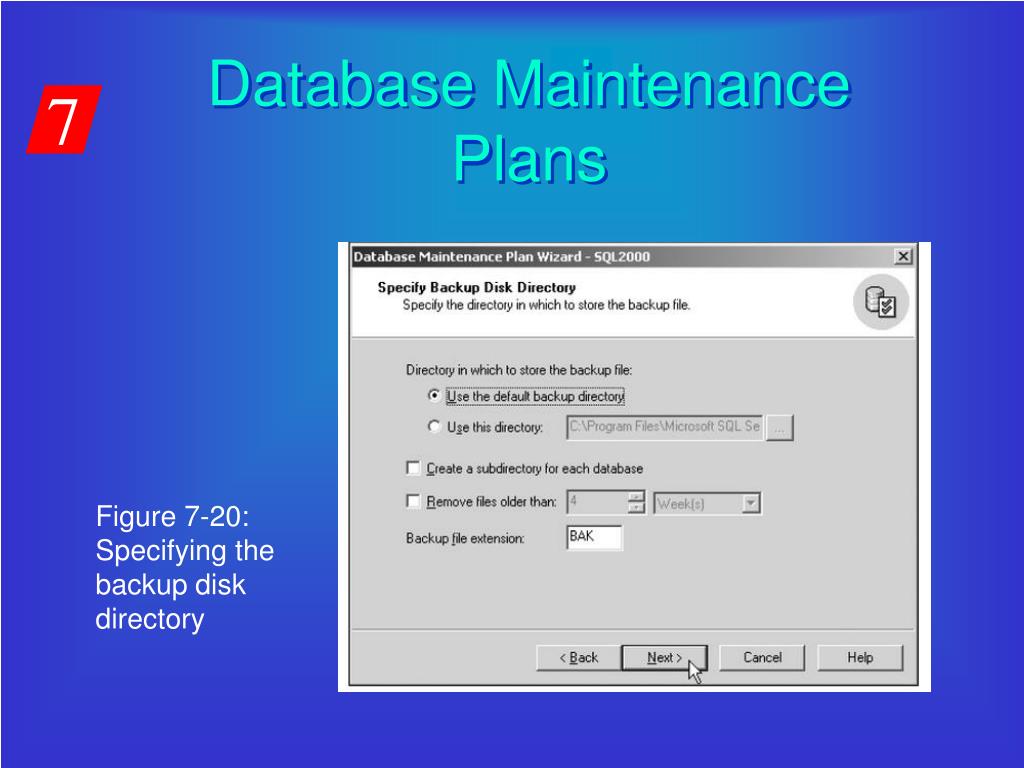

  37. Database Maintenance Plans Figure 7-20: Specifying the backup disk directory

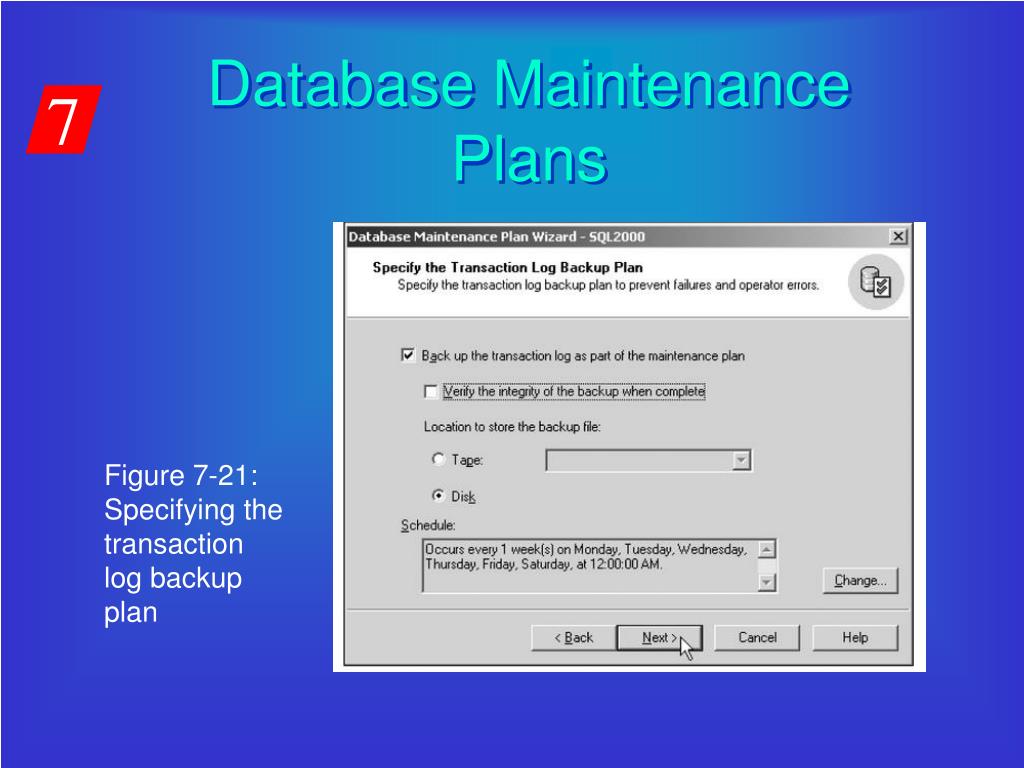

  38. Database Maintenance Plans Figure 7-21: Specifying the transaction log backup plan

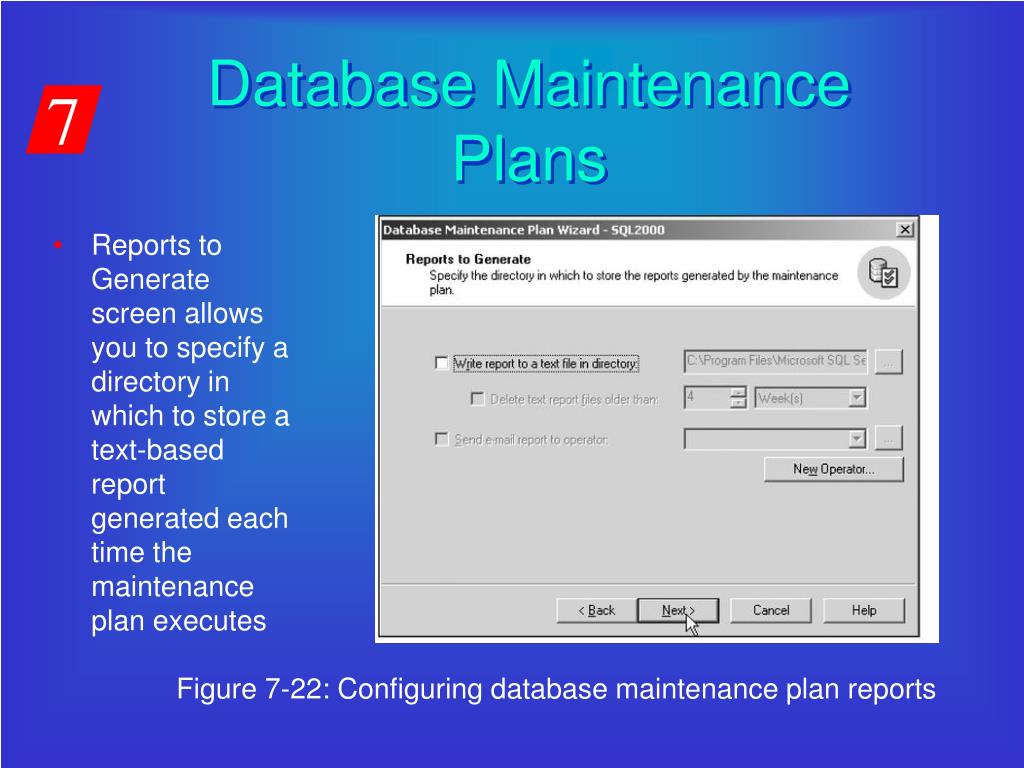

  39. Database Maintenance Plans • Reports to Generate screen allows you to specify a directory in which to store a text-based report generated each time the maintenance plan executes Figure 7-22: Configuring database maintenance plan reports

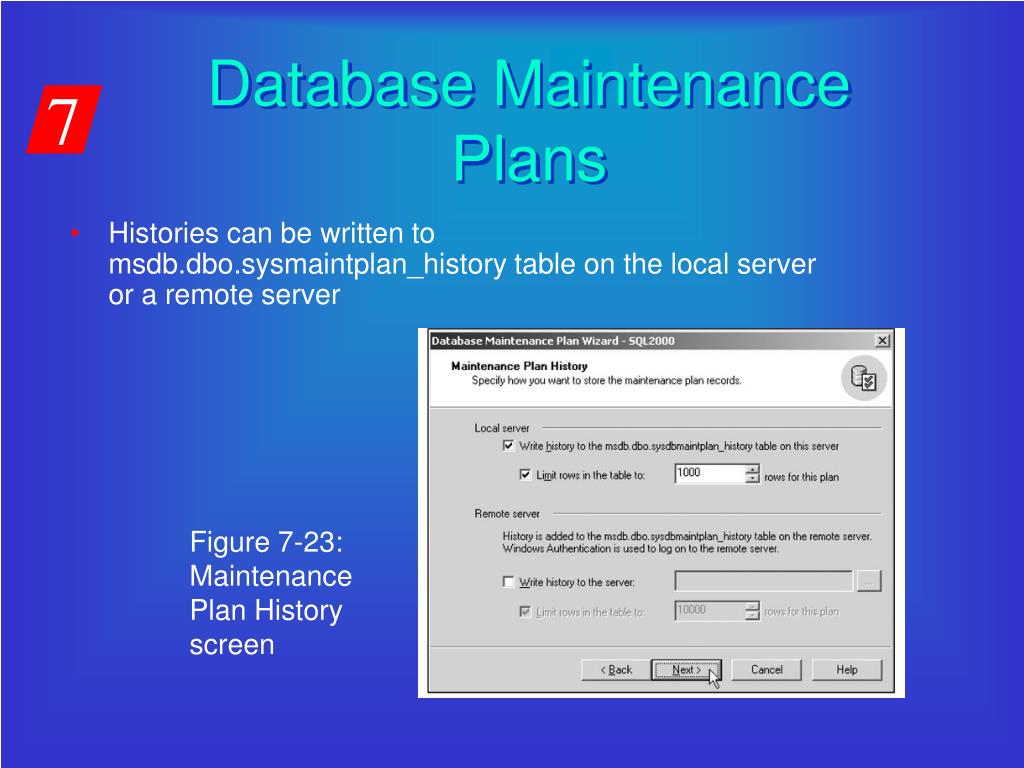

  40. Database Maintenance Plans • Histories can be written to msdb.dbo.sysmaintplan_history table on the local server or a remote server Figure 7-23: Maintenance Plan History screen

  41. Standby Servers and Log Shipping • Warm standby server is a backup computer that is kept in sync with a computer supporting a production environment • They are used to recover the production database in the event of a hardware failure or to offload query processing by providing a read-only database for queries and reports • Log shipping • The process by which transaction logs are backed up from one database, copied to a remote SQL Server 2000 computer and applied to an identical remote database

  42. Standby Servers and Log Shipping • In the log shipping architecture, there are three entities that interact: • A source server that houses a production database whose transaction log backups will be applied to one or more standby database servers • One or more destination servers, which will receive transaction log backups from the source server and apply them to a local database • A monitor server that is responsible for coordinating the log shipping process

  43. Standby Servers and Log Shipping Figure 7-24: Log shipping architecture

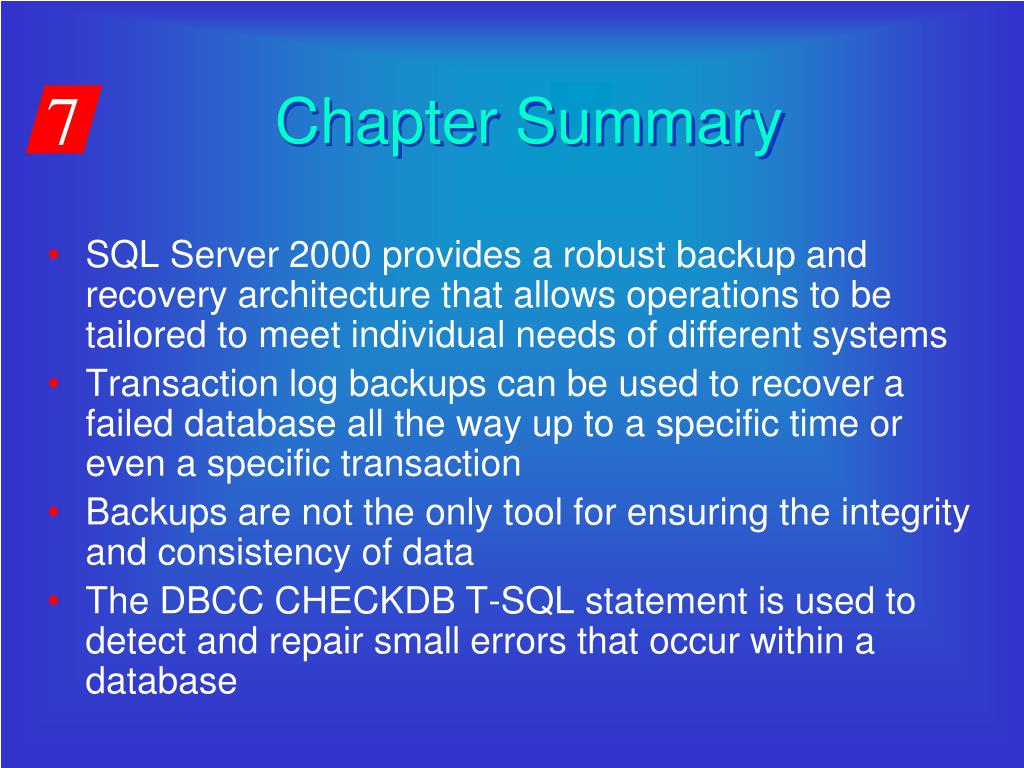

  44. Chapter Summary • SQL Server 2000 provides a robust backup and recovery architecture that allows operations to be tailored to meet individual needs of different systems • Transaction log backups can be used to recover a failed database all the way up to a specific time or even a specific transaction • Backups are not the only tool for ensuring the integrity and consistency of data • The DBCC CHECKDB T-SQL statement is used to detect and repair small errors that occur within a database

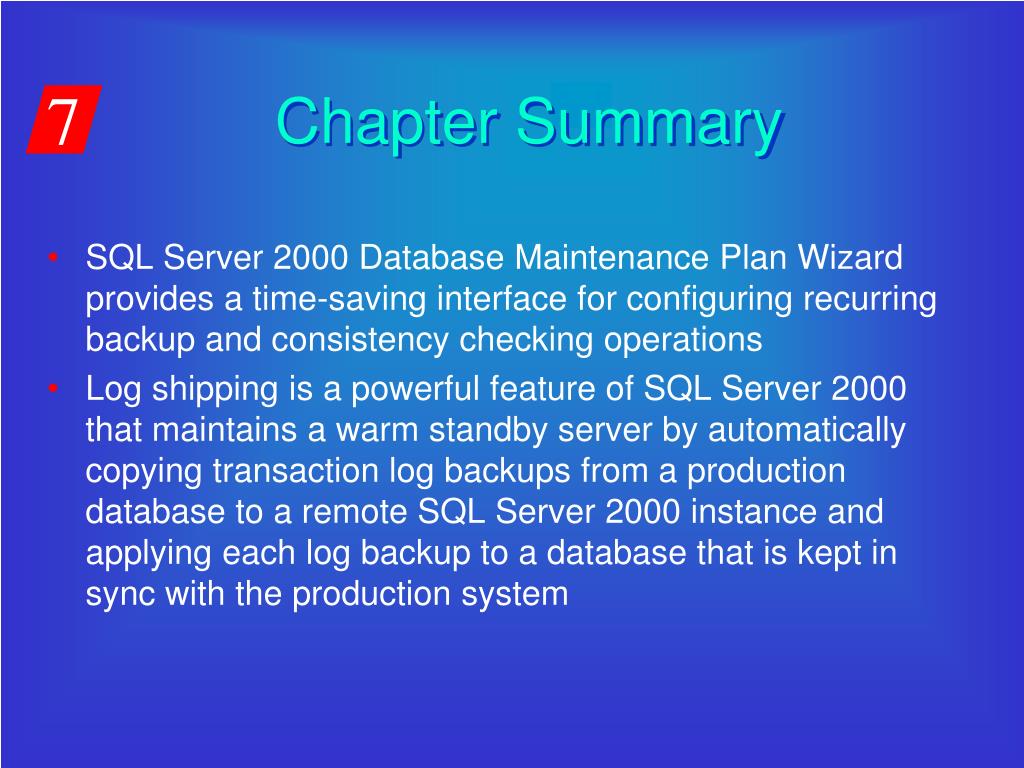

  45. Chapter Summary • SQL Server 2000 Database Maintenance Plan Wizard provides a time-saving interface for configuring recurring backup and consistency checking operations • Log shipping is a powerful feature of SQL Server 2000 that maintains a warm standby server by automatically copying transaction log backups from a production database to a remote SQL Server 2000 instance and applying each log backup to a database that is kept in sync with the production system
