  1. Automatic Rack-In Rack-Out System (ARIRO)

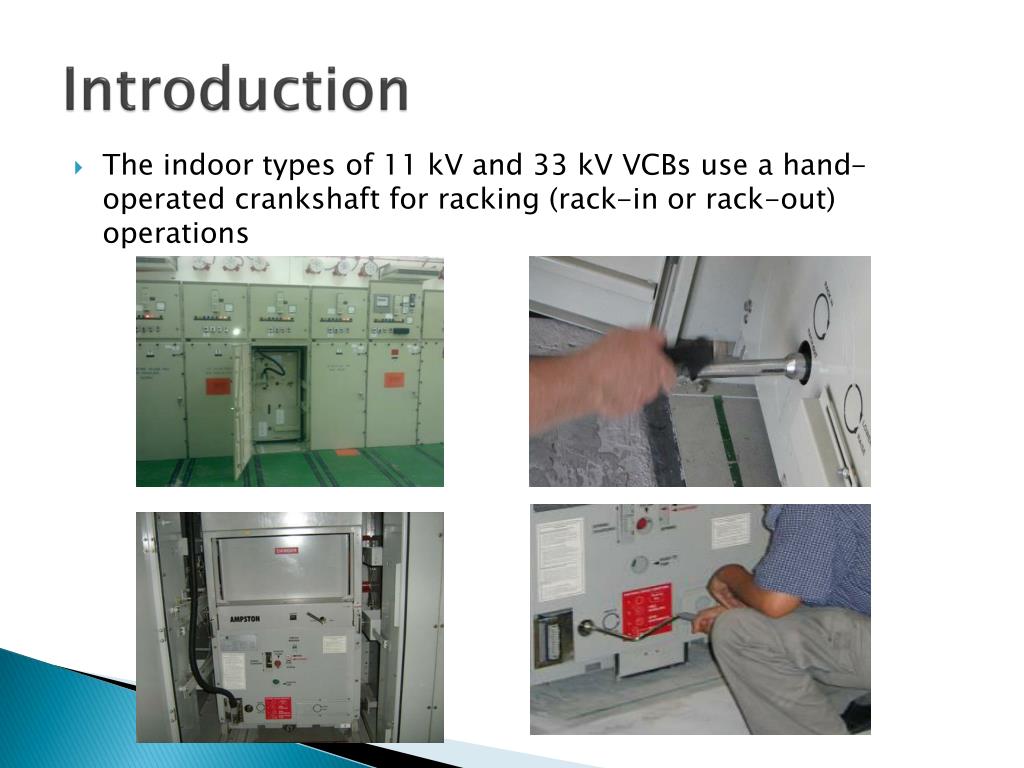

  2. Introduction • The indoor types of 11 kV and 33 kV VCBs use a hand-operated crankshaft for racking (rack-in or rack-out) operations

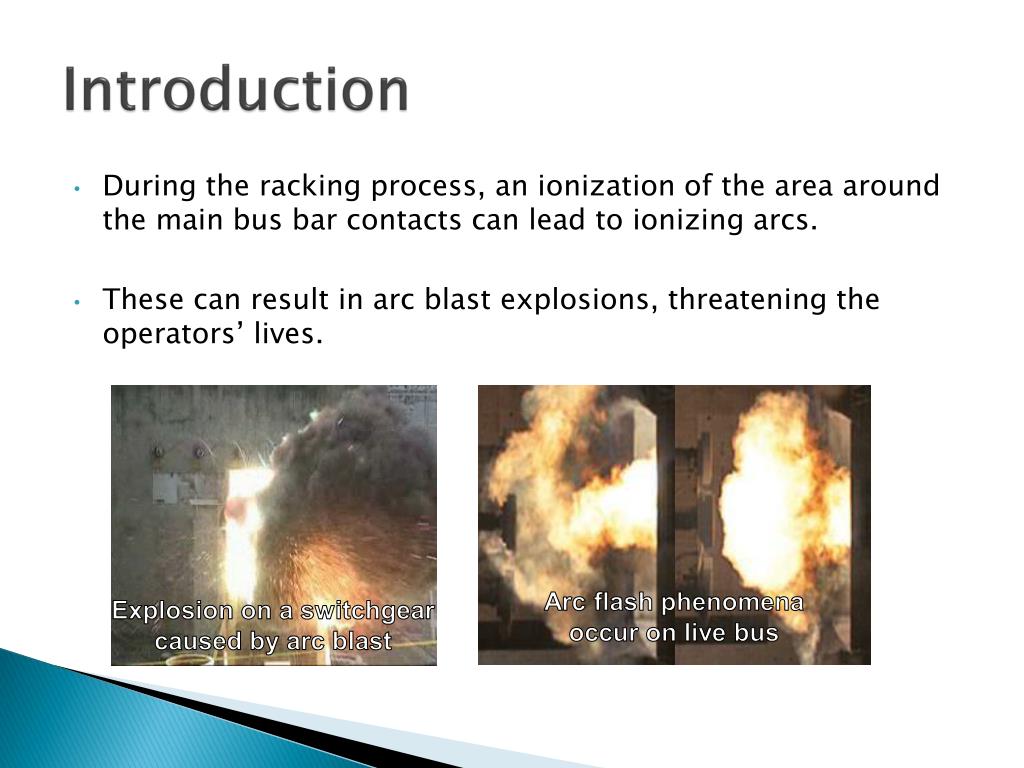

  3. Introduction • During the racking process, an ionization of the area around the main bus bar contacts can lead to ionizing arcs. • These can result in arc blast explosions, threatening the operators’ lives. Arc flash phenomena occur on live bus Explosion on a switchgear caused by arc blast

  4. Introduction • Examples of damaged VCB due to arc explosion.

  5. Introduction • Consequently, personal safety in the field of power distribution is becoming a major concern worldwide. • But, accident do happen……. Third degree burn caused by arc blast Operator with a protective gear

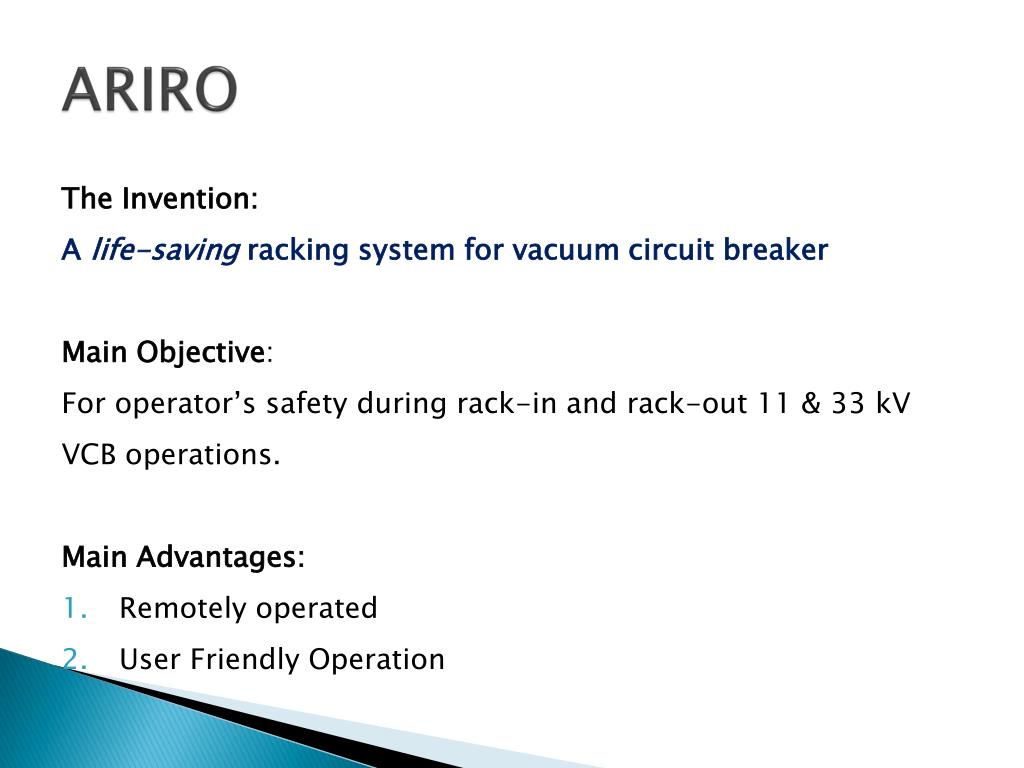

  6. ARIRO The Invention: A life-saving racking system for vacuum circuit breaker Main Objective: For operator’s safety during rack-in and rack-out 11 & 33 kV VCB operations. Main Advantages: • Remotely operated • User Friendly Operation

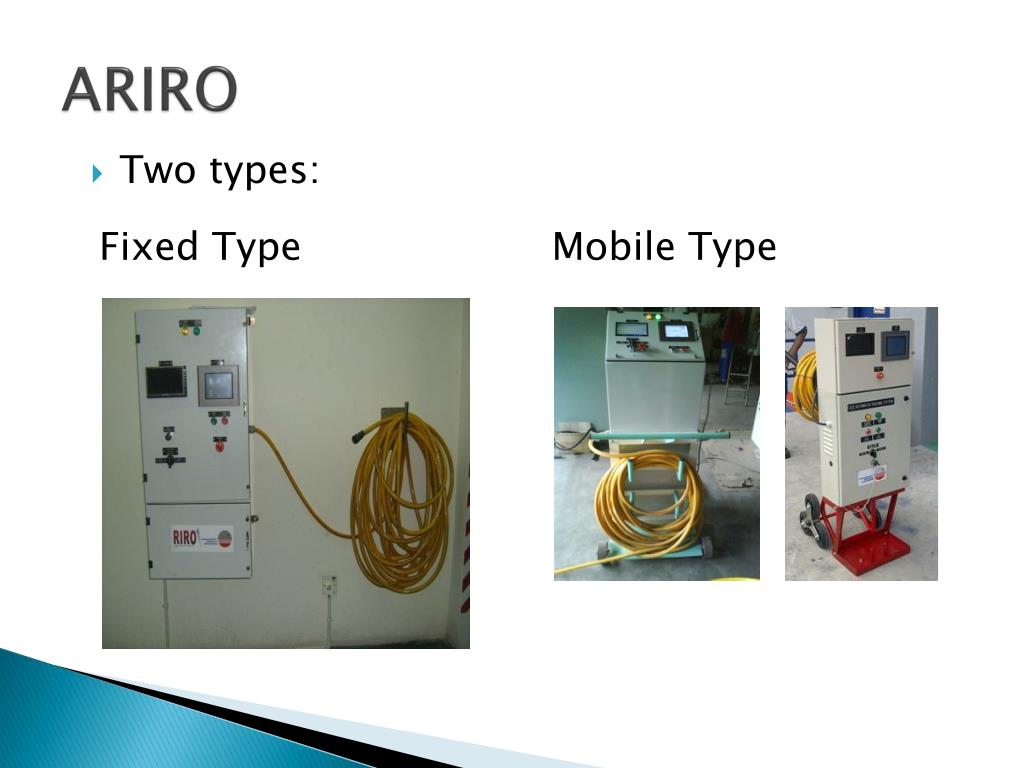

  7. ARIRO • Two types: Fixed Type Mobile Type

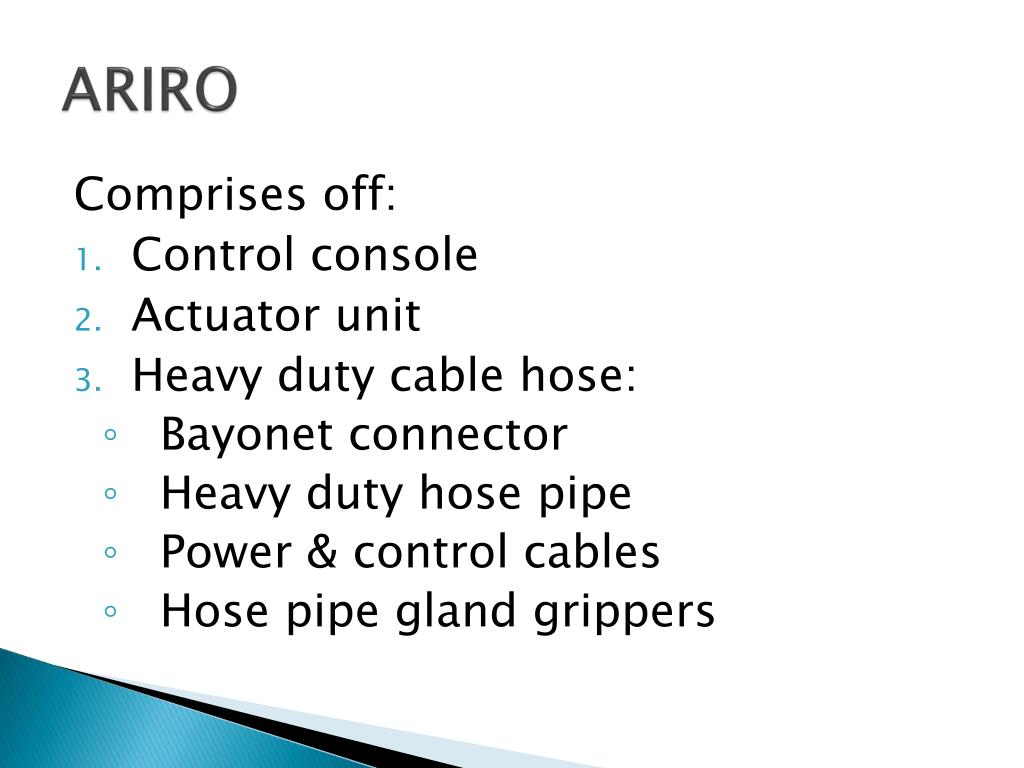

  8. ARIRO Comprises off: • Control console • Actuator unit • Heavy duty cable hose: • Bayonet connector • Heavy duty hose pipe • Power & control cables • Hose pipe gland grippers

  9. ARIRO Fixed Type: Actuator Unit Cable Hose Control Console

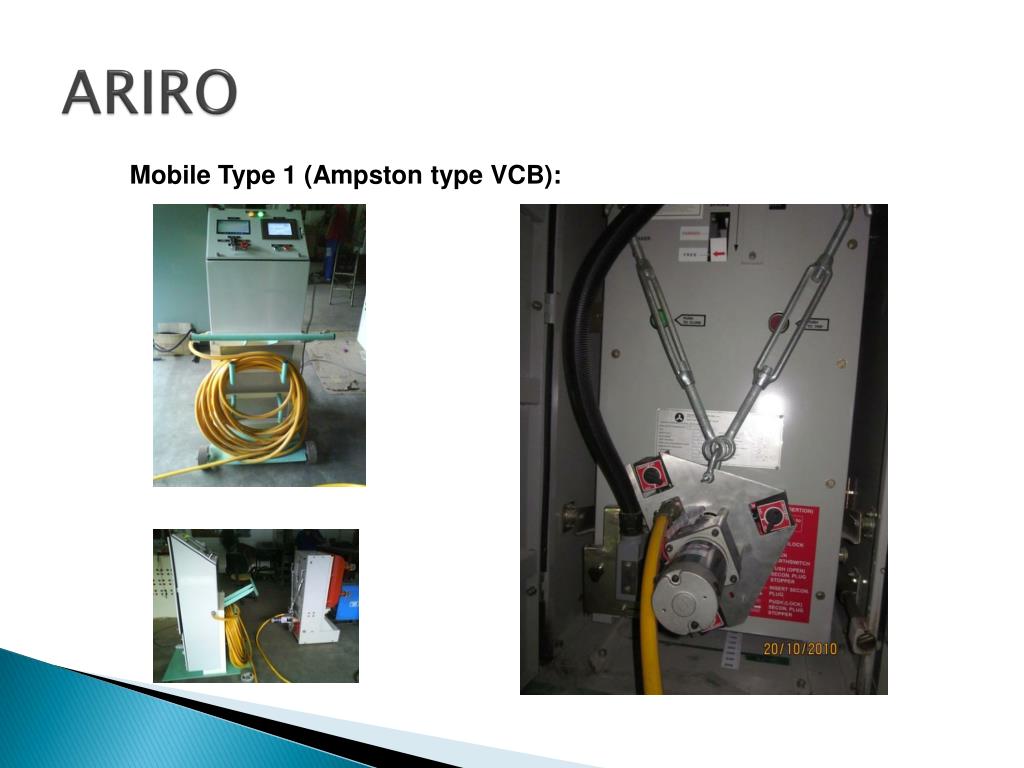

  10. ARIRO Mobile Type 1 (Ampston type VCB):

  11. ARIRO Mobile Type 2:

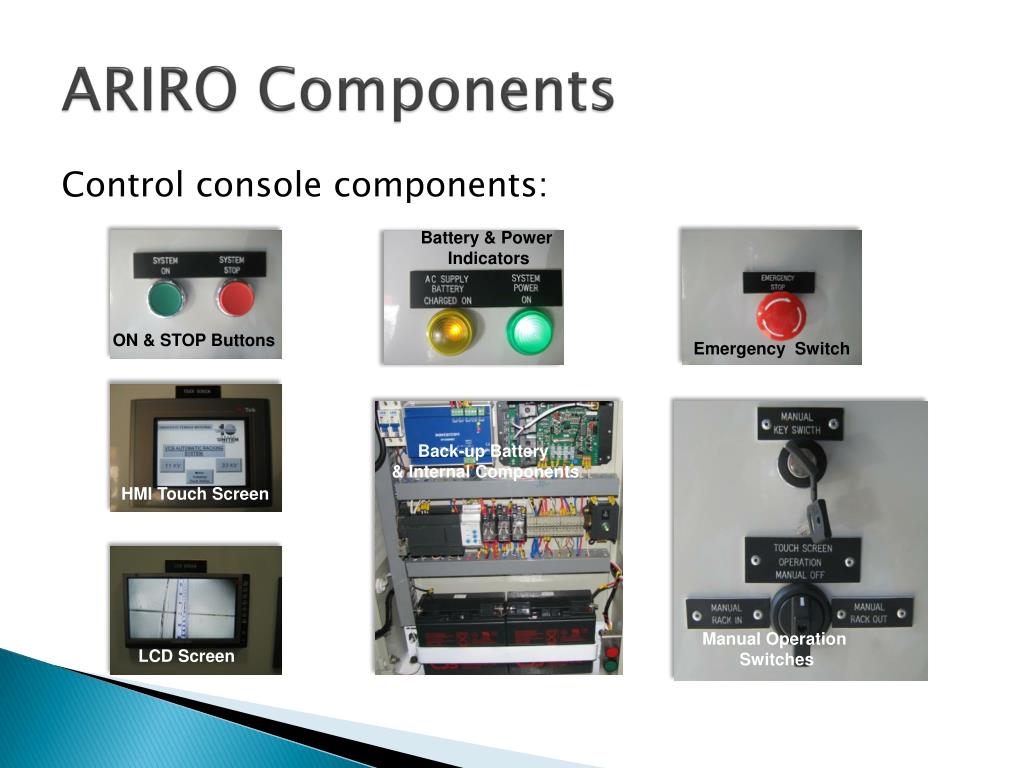

  12. ARIRO Components Control console components: Battery & Power Indicators ON & STOP Buttons Emergency Switch Back-up Battery & Internal Components HMI Touch Screen Manual Operation Switches LCD Screen

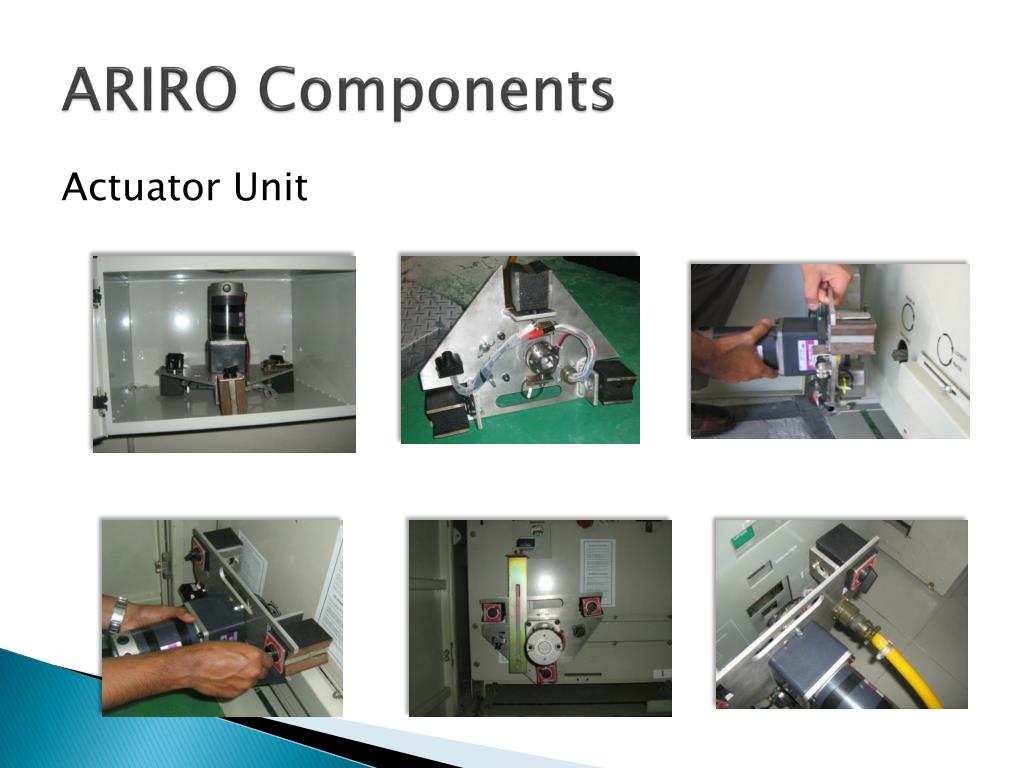

  13. ARIRO Components Actuator Unit

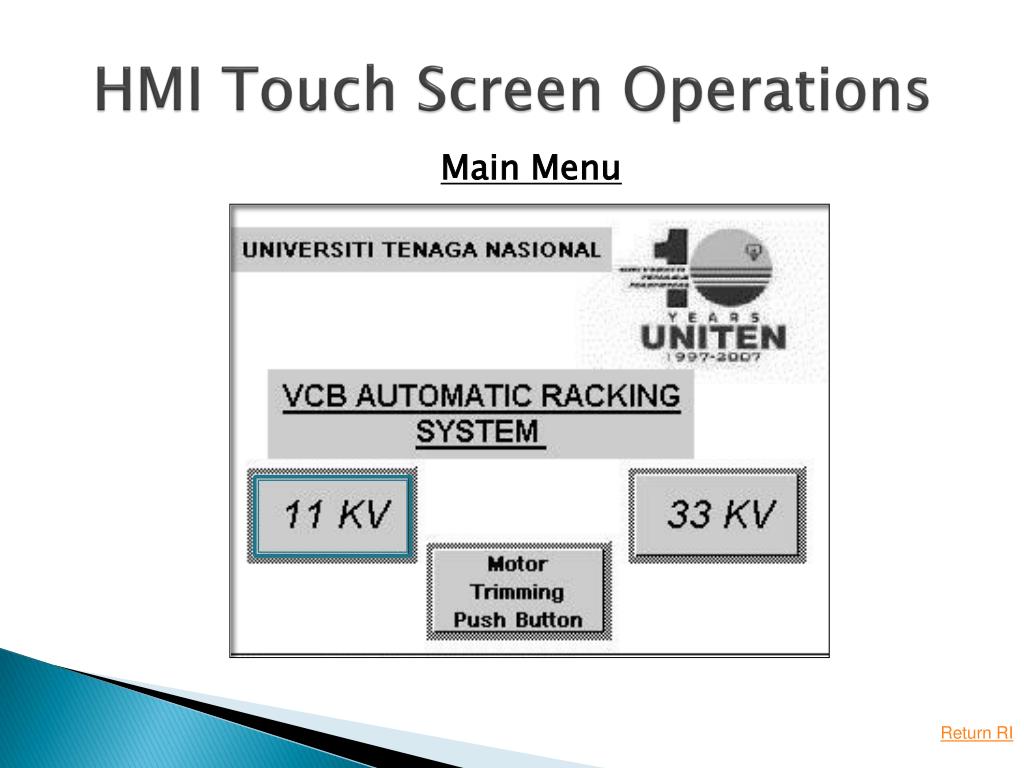

  14. HMI Touch Screen Operations Main Menu Return RI

  15. HMI Touch Screen Operations : Rack-Out Click START for system demo. START

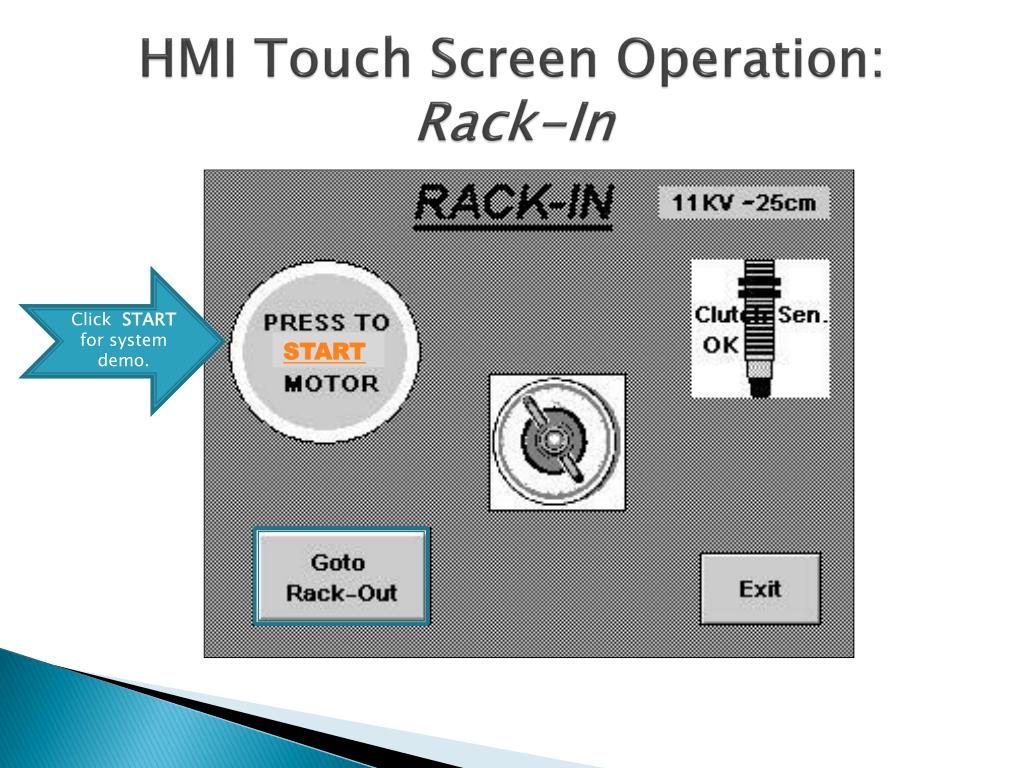

  16. HMI Touch Screen Operation: Rack-In Click START for system demo. START

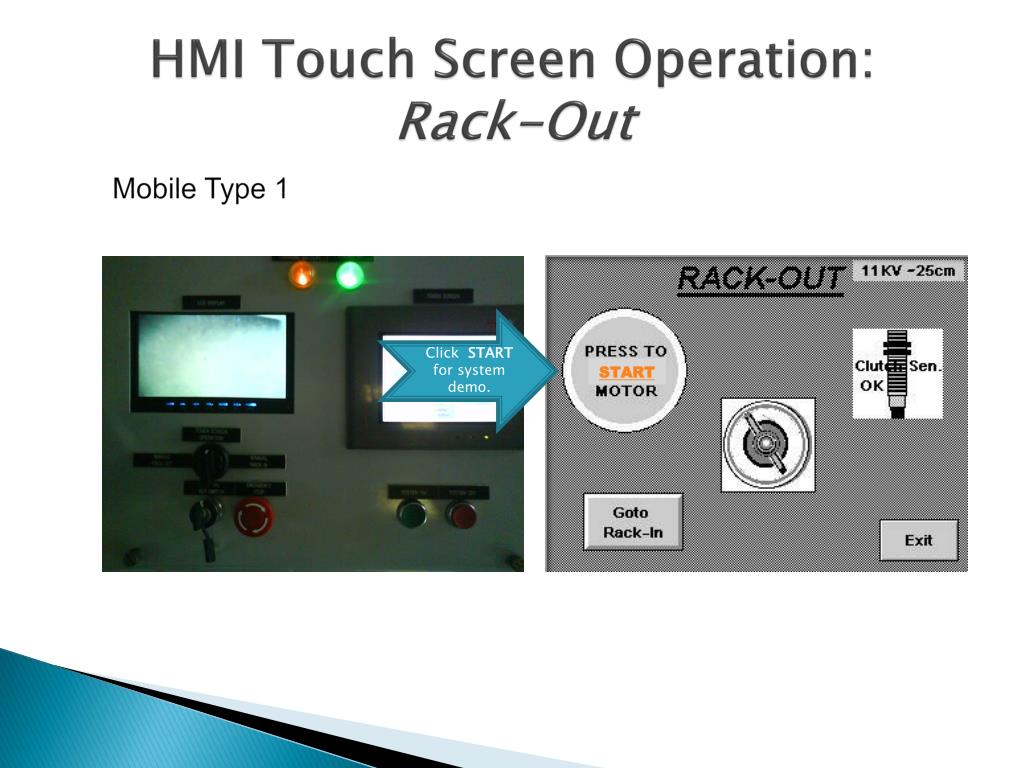

  17. HMI Touch Screen Operation: Rack-Out Mobile Type 1 Click START for system demo. START

  18. Installation & Training TNB’s PMU & PPU installed with ARIRO : • PMU Pantai, Kuala Lumpur • PMU Kg. Awah, Temerloh, Pahang • PMU Kulim, Kedah • PPU Taman Senangin, Kulim, Kedah • PPU Honda Hicom, Sg. Petani, Kedah • PPU CergasLayar, SgPetani, Kedah • PPU UiTMMerbok, Sg. Petani, Kedah • PPU Kepala Batas, AlorSetar, Kedah • PMU RantauPetronas, Kerteh, Terengganu • PMU Johor Tengah Johor Click this button for training & installation sessions pictures:

  19. Thank you

  20. HMI Touch Screen Operations: Rack-In

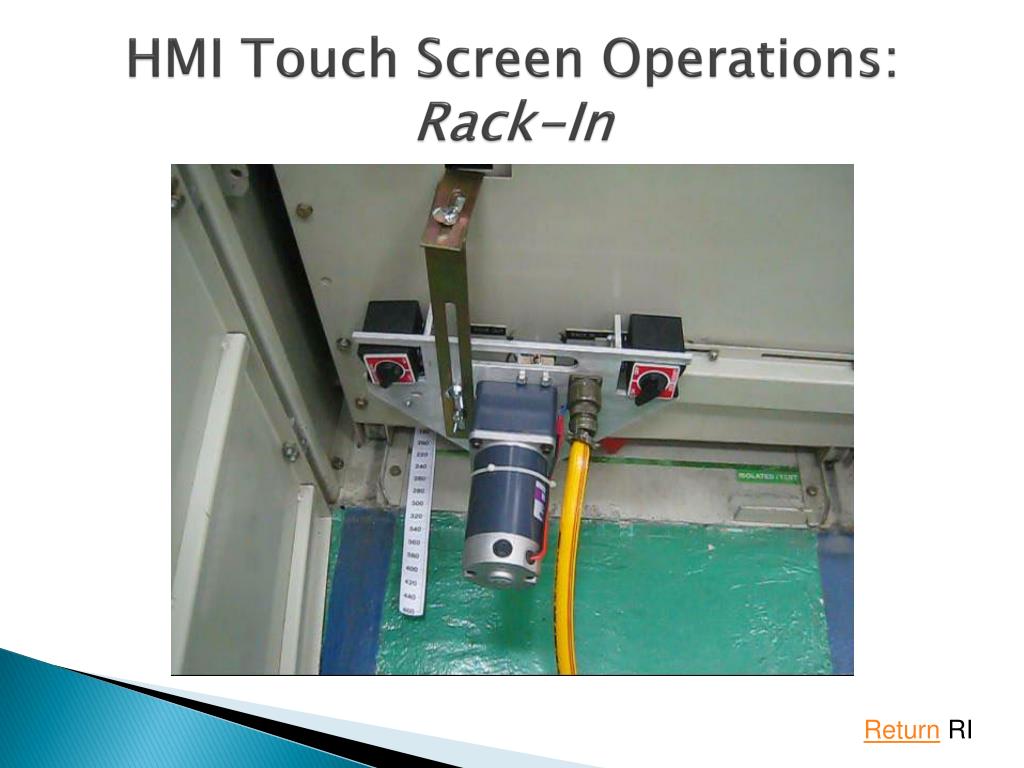

  21. HMI Touch Screen Operations: Rack-In Return RI

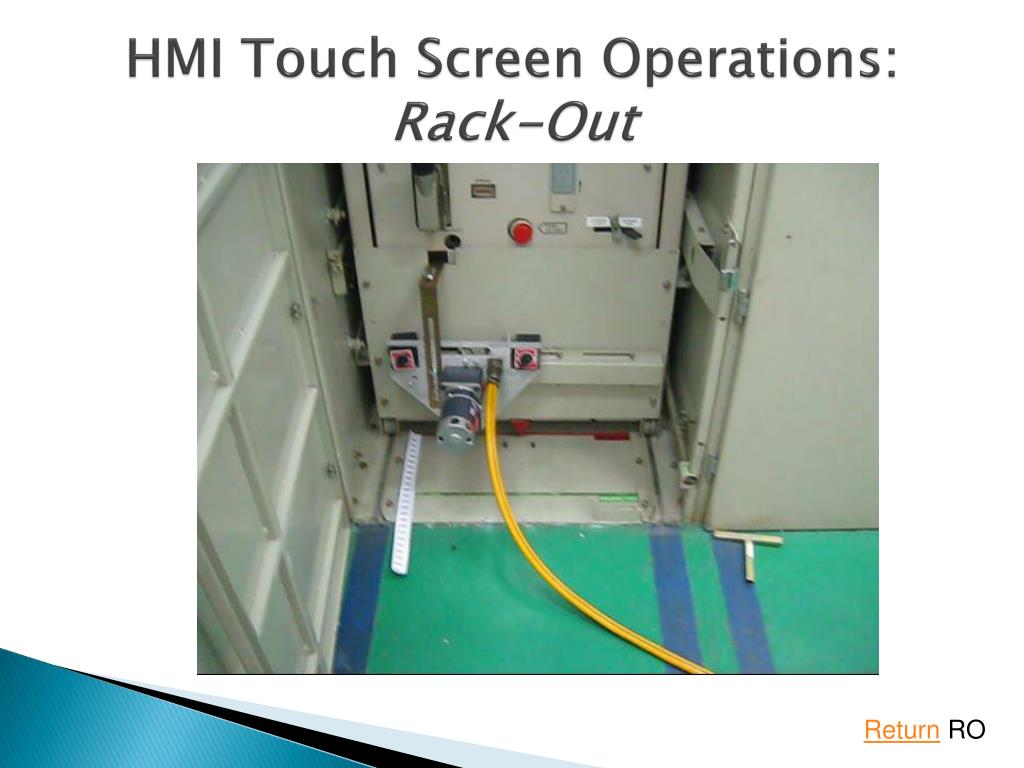

  22. HMI Touch Screen Operations: Rack-Out Return RO

  23. Mobile Type 1:Rack-Out Operation Return Mobile
