  1. GNU Radio

  2. Outline • What is GNU Radio? • Basic Concepts • Developing Applications 2

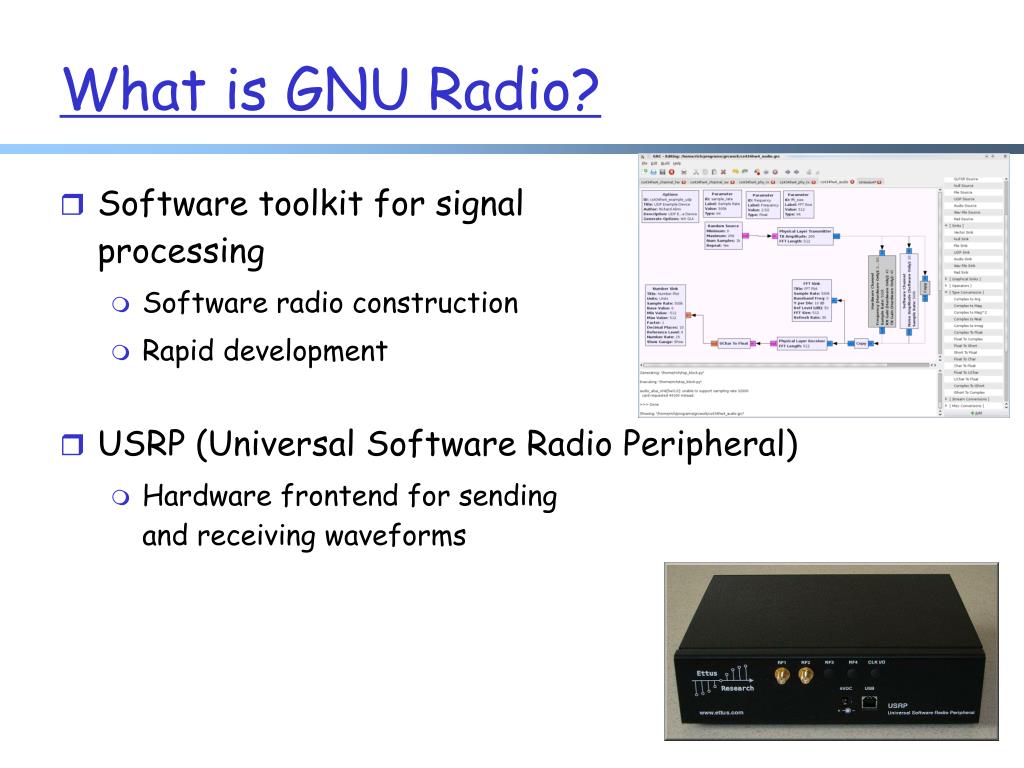

  3. What is GNU Radio? • Software toolkit for signalprocessing • Software radio construction • Rapid development • USRP (Universal Software Radio Peripheral) • Hardware frontend for sendingand receiving waveforms

  4. GNU Radio Components Hardware Frontend Host Computer RF Frontend (Daugtherboard) ADC/DAC and Digital Frontend (USRP) GNU Radio Software http://mobiledevices.kom.aau.dk/fileadmin/mobiledevices/teaching/software_testing/Gnu_radio_lecture.pdf

  5. GNU Radio Software • Opensource software (GPL) • Don't know how something works? Take a look! • Existing examples: 802.11b(Wi-Fi), ATSC (HDTV), OFDM, DBPSK, DQPSK • Features • Extensive library of signal processing blocks(C++/ and assembly) • Python environment for composing blocks (flow graph)

  6. GNU Radio Hardware • Sends/receives waveforms • USRP Features • USB 2.0 interface (480Mbps) • FPGA (customizable) • 64Msps Digital to Analog converters • 128Msps Analog to Digital converteres • Daughterboards for different frequency ranges • Available Daughterboard • 400-500Mhz, 800-1000Mhz, 1150-1450Mhz, 1.5-2.1Ghz, 2.3-2.9Ghz

  7. GNU Radio Hardware Schematic Host Computer RX/TXDaughterboard ADC/DAC FPGA USB Interface http://mobiledevices.kom.aau.dk/fileadmin/mobiledevices/teaching/software_testing/Gnu_radio_lecture.pdf

  8. Outline • What is GNU Radio? • Basic Concepts • Developing Applications 8

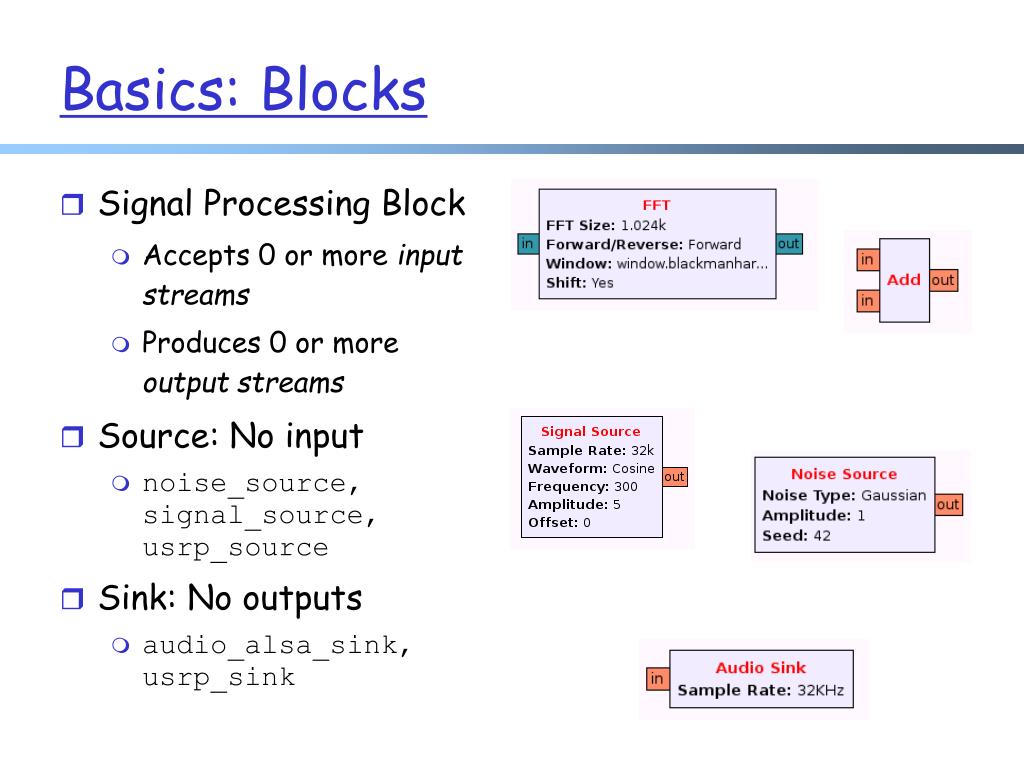

  9. Basics: Blocks • Signal Processing Block • Accepts 0 or more input streams • Produces 0 or more output streams • Source: No input • noise_source,signal_source,usrp_source • Sink: No outputs • audio_alsa_sink,usrp_sink

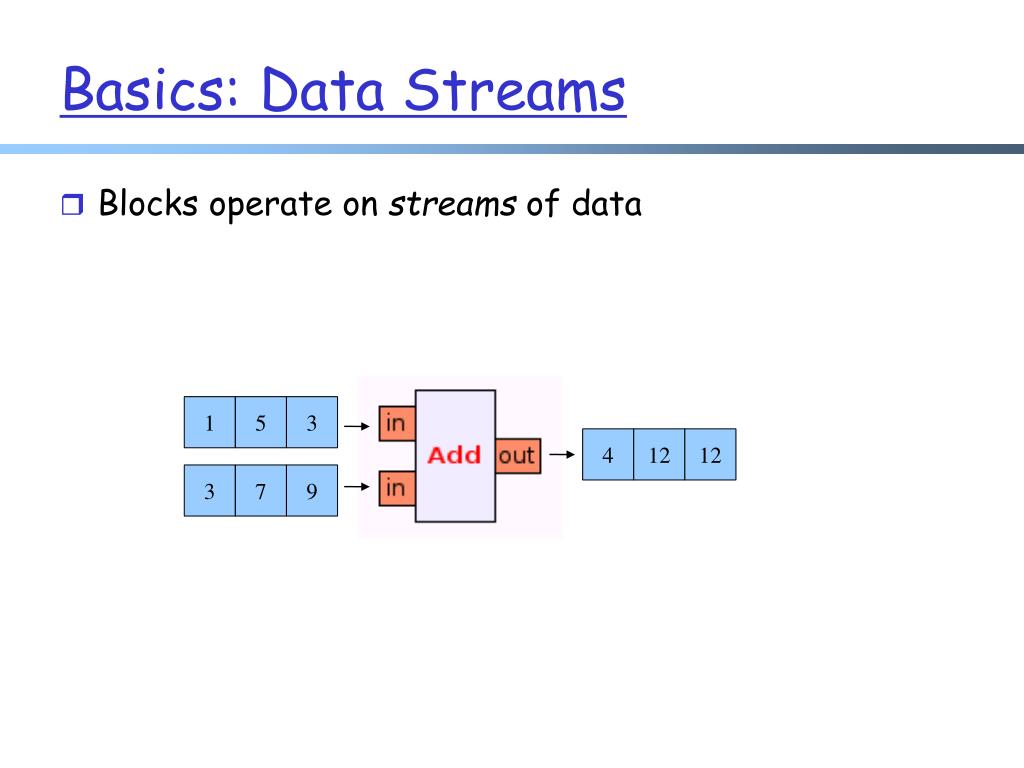

  10. Basics: Data Streams • Blocks operate on streams of data 1 5 3 4 12 12 3 7 9

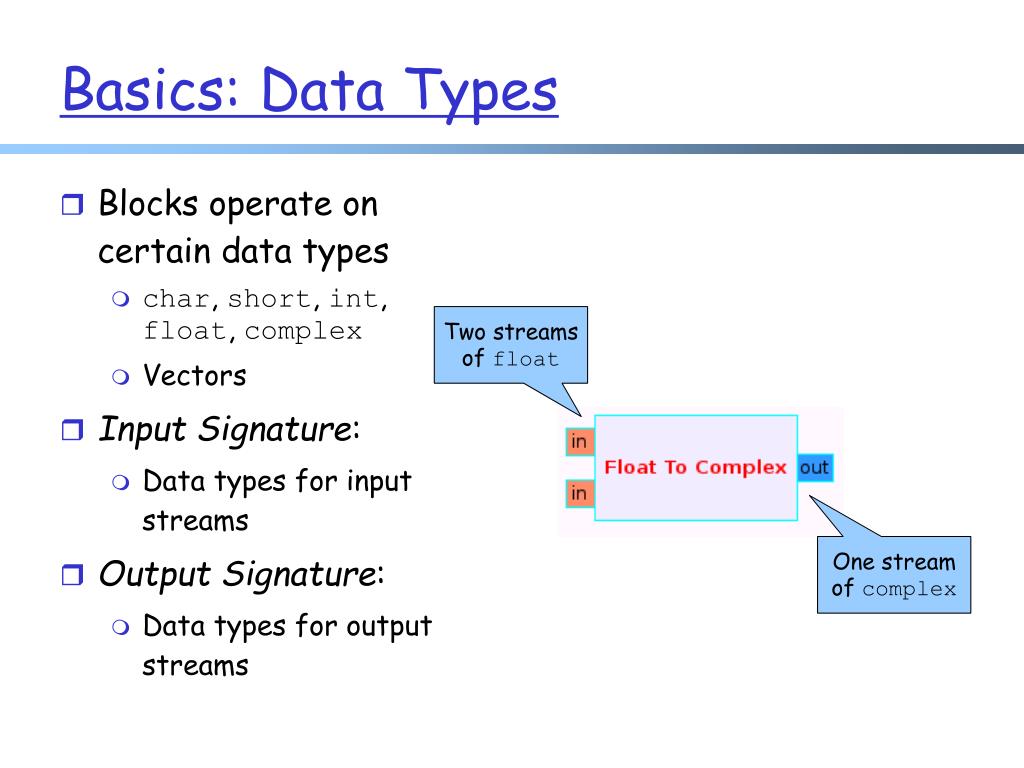

  11. Basics: Data Types • Blocks operate on certain data types • char, short, int, float, complex • Vectors • Input Signature: • Data types for input streams • Output Signature: • Data types for output streams Two streamsof float One streamof complex

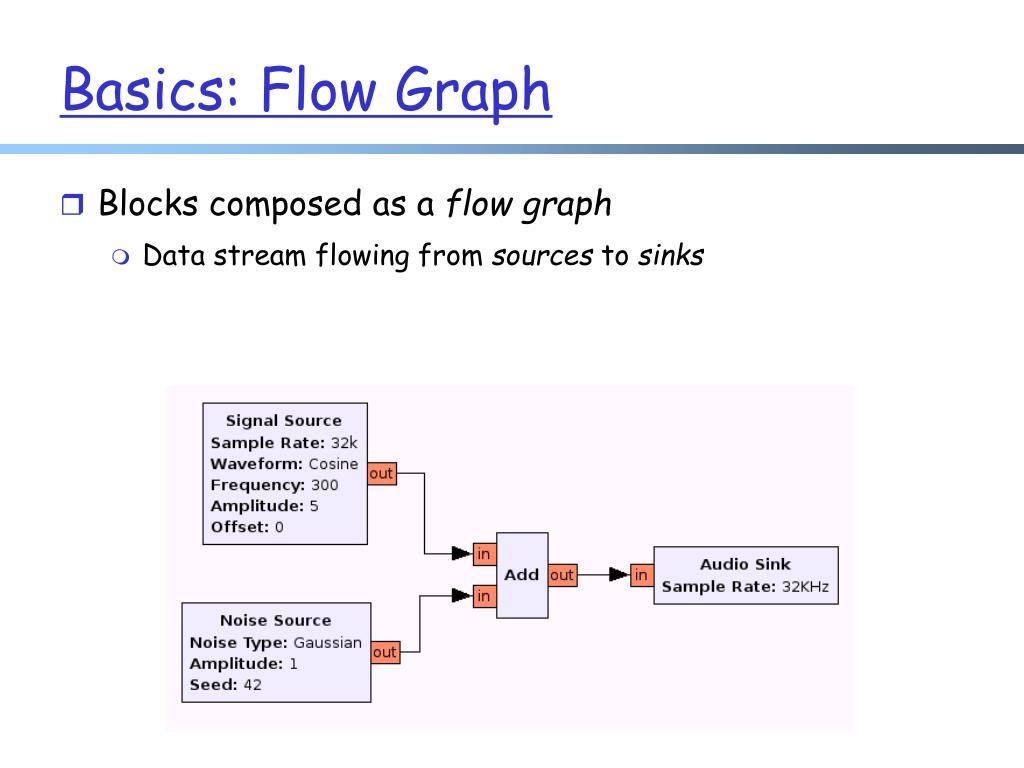

  12. Basics: Flow Graph • Blocks composed as a flow graph • Data stream flowing from sources to sinks

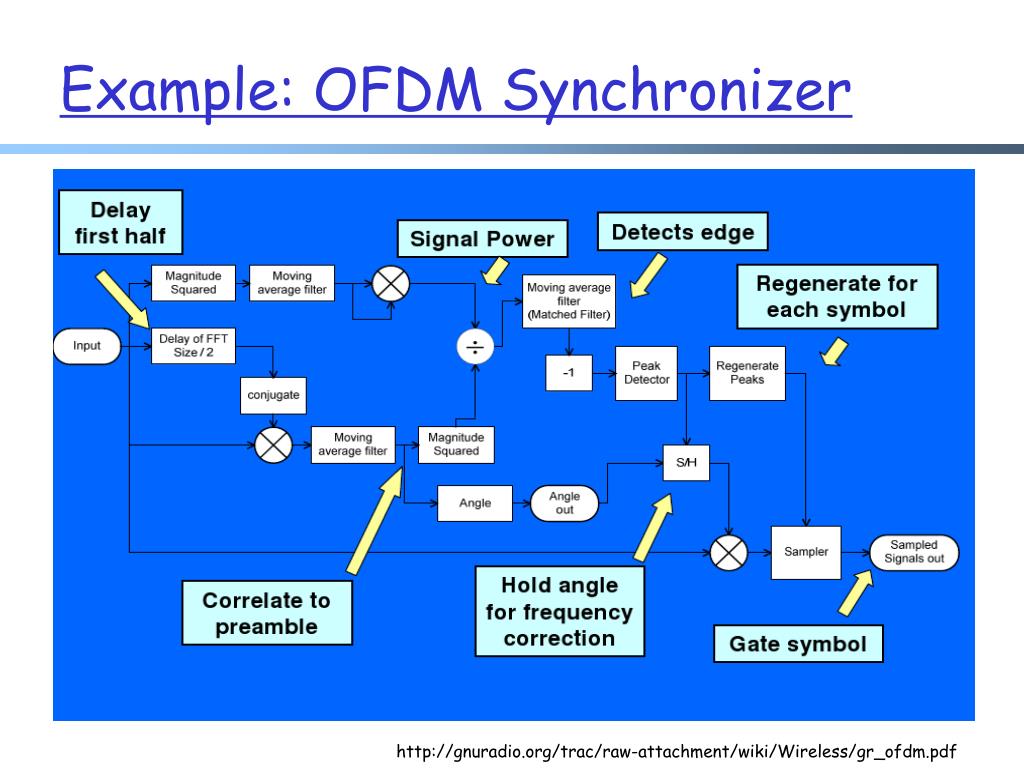

  13. Example: OFDM Synchronizer http://gnuradio.org/trac/raw-attachment/wiki/Wireless/gr_ofdm.pdf

  14. GNU Radio Companion

  15. GNU Radio Companion (Cont'd) • GNU Radio Companion • Design flow graphsgraphically • Generate runnable code • Demonstration

  16. Outline • What is GNU Radio? • Basic Concepts • Developing Applications 16

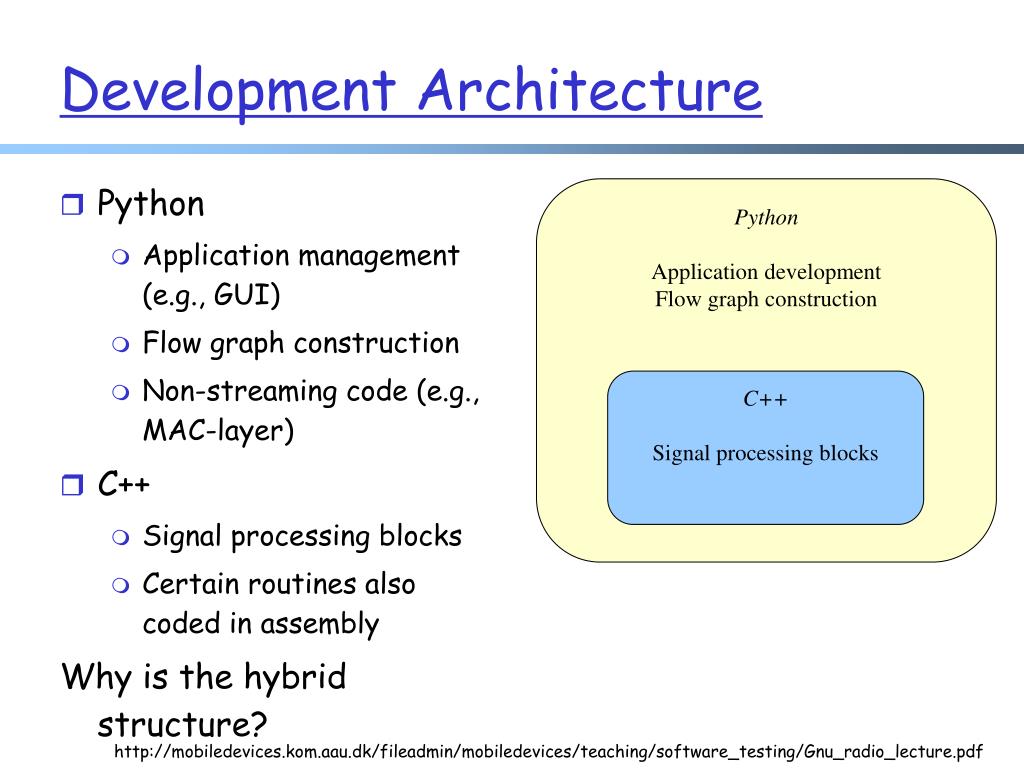

  17. Development Architecture PythonApplication developmentFlow graph construction • Python • Application management (e.g., GUI) • Flow graph construction • Non-streaming code (e.g., MAC-layer) • C++ • Signal processing blocks • Certain routines also coded in assembly Why is the hybrid structure? C++Signal processing blocks http://mobiledevices.kom.aau.dk/fileadmin/mobiledevices/teaching/software_testing/Gnu_radio_lecture.pdf

  18. Dial Tone Example #!/usr/bin/env python from gnuradio import gr from gnuradio import audio from gnuradio.eng_option import eng_option from optparse import OptionParser class my_top_block(gr.top_block): def __init__(self): gr.top_block.__init__(self) parser = OptionParser(option_class=eng_option) parser.add_option("-O", "--audio-output", type="string", default="", help="pcm output device name. E.g., hw:0,0") parser.add_option("-r", "--sample-rate", type="eng_float", default=48000, help="set sample rate to RATE (48000)") (options, args) = parser.parse_args () if len(args) != 0: parser.print_help() raise SystemExit, 1 sample_rate = int(options.sample_rate) ampl = 0.1 src0 = gr.sig_source_f (sample_rate, gr.GR_SIN_WAVE, 350, ampl) src1 = gr.sig_source_f (sample_rate, gr.GR_SIN_WAVE, 440, ampl) dst = audio.sink (sample_rate, options.audio_output) self.connect (src0, (dst, 0)) self.connect (src1, (dst, 1)) if __name__ == '__main__': try: my_top_block().run() except KeyboardInterrupt: pass

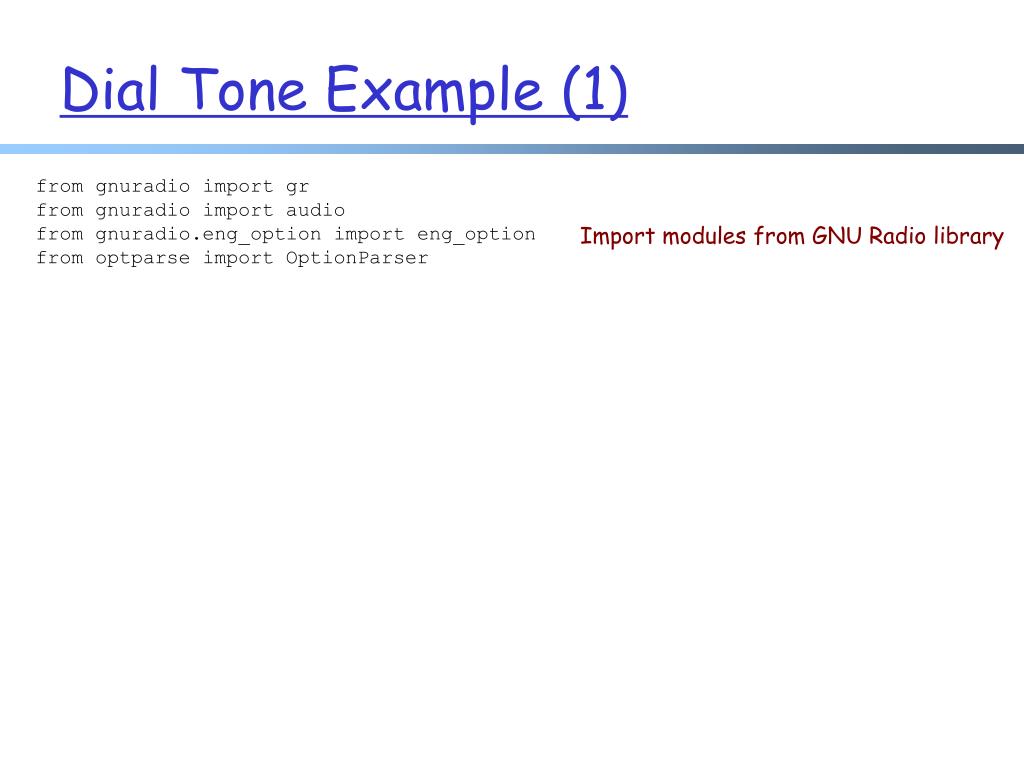

  19. Dial Tone Example (1) from gnuradio import gr from gnuradio import audio from gnuradio.eng_option import eng_option from optparse import OptionParser Import modules from GNU Radio library

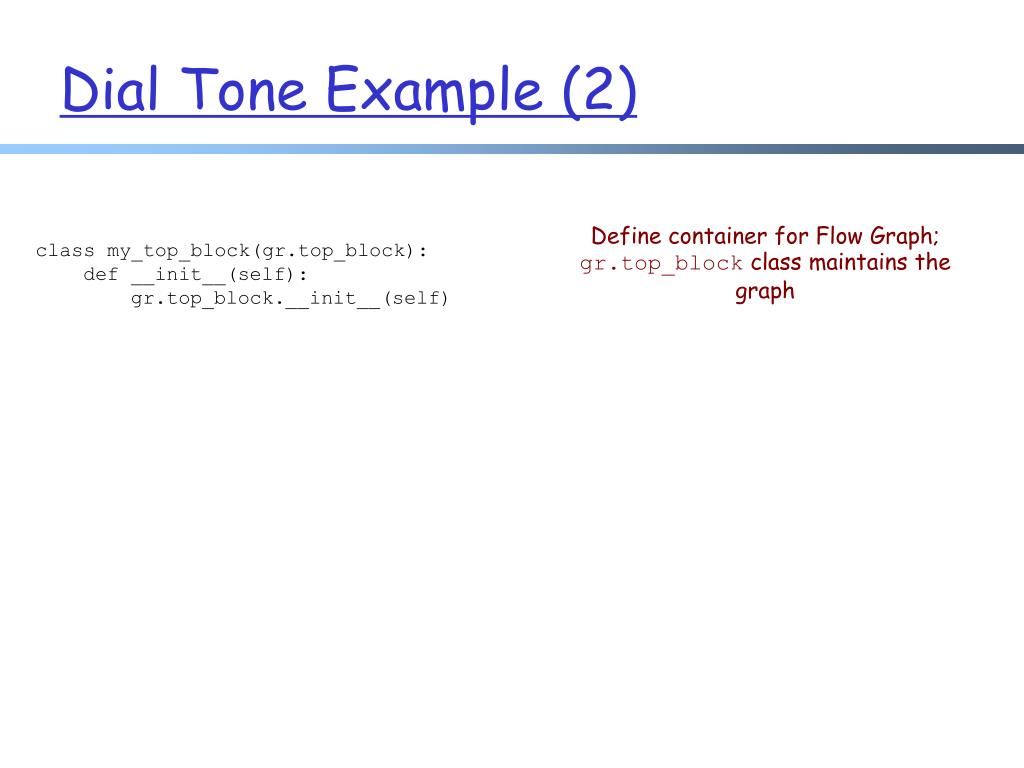

  20. Dial Tone Example (2) class my_top_block(gr.top_block): def __init__(self): gr.top_block.__init__(self) Define container for Flow Graph; gr.top_block class maintains thegraph

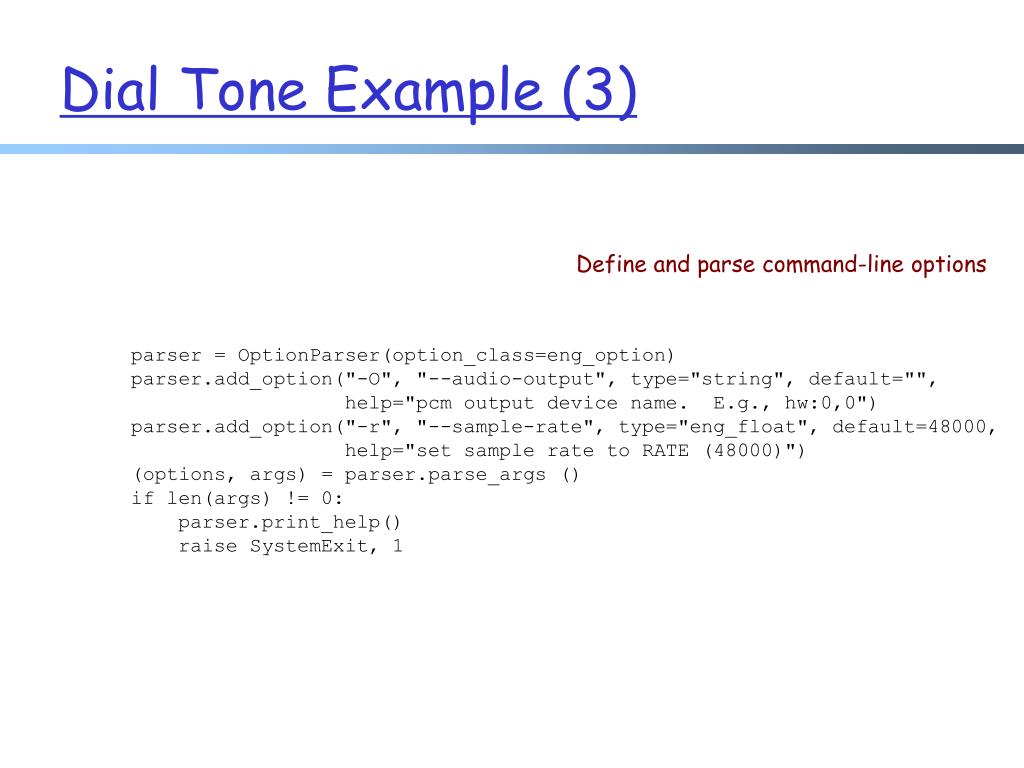

  21. Dial Tone Example (3) Define and parse command-line options parser = OptionParser(option_class=eng_option) parser.add_option("-O", "--audio-output", type="string", default="", help="pcm output device name. E.g., hw:0,0") parser.add_option("-r", "--sample-rate", type="eng_float", default=48000, help="set sample rate to RATE (48000)") (options, args) = parser.parse_args () if len(args) != 0: parser.print_help() raise SystemExit, 1

  22. Dial Tone Example (4) Create and connect signal processing blocks sample_rate = int(options.sample_rate) ampl = 0.1 src0 = gr.sig_source_f (sample_rate, gr.GR_SIN_WAVE, 350, ampl) src1 = gr.sig_source_f (sample_rate, gr.GR_SIN_WAVE, 440, ampl) dst = audio.sink (sample_rate, options.audio_output) self.connect (src0, (dst, 0)) self.connect (src1, (dst, 1))

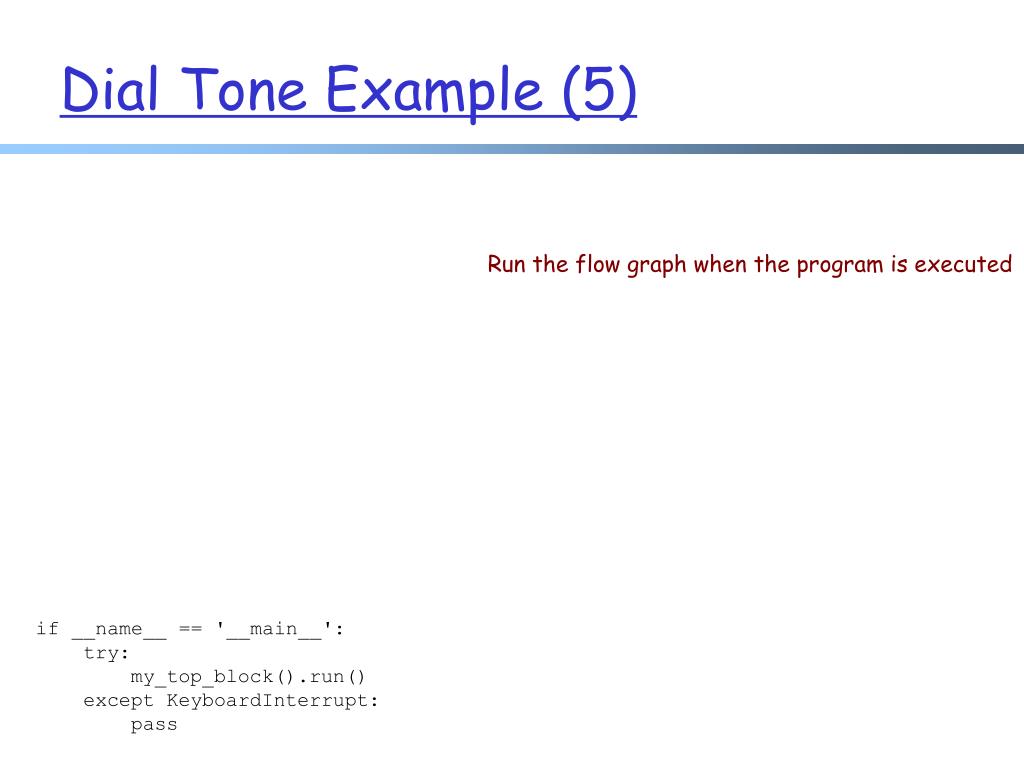

  23. Dial Tone Example (5) Run the flow graph when the program is executed if __name__ == '__main__': try: my_top_block().run() except KeyboardInterrupt: pass

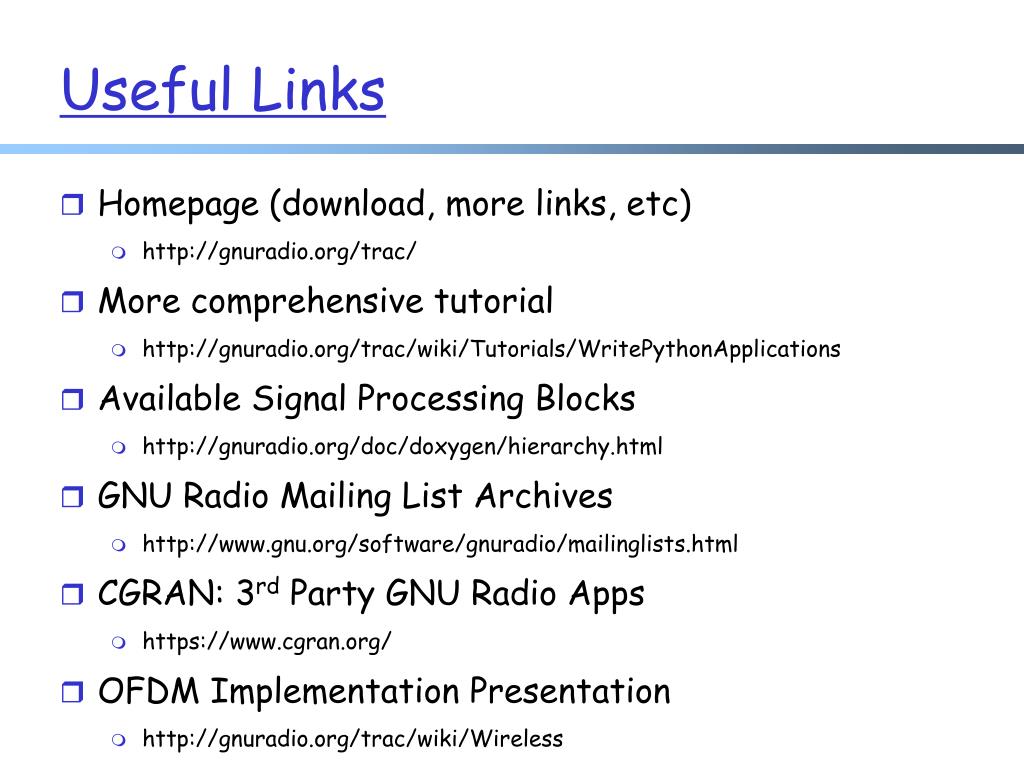

  24. Useful Links • Homepage (download, more links, etc) • http://gnuradio.org/trac/ • More comprehensive tutorial • http://gnuradio.org/trac/wiki/Tutorials/WritePythonApplications • Available Signal Processing Blocks • http://gnuradio.org/doc/doxygen/hierarchy.html • GNU Radio Mailing List Archives • http://www.gnu.org/software/gnuradio/mailinglists.html • CGRAN: 3rd Party GNU Radio Apps • https://www.cgran.org/ • OFDM Implementation Presentation • http://gnuradio.org/trac/wiki/Wireless

  25. Backup

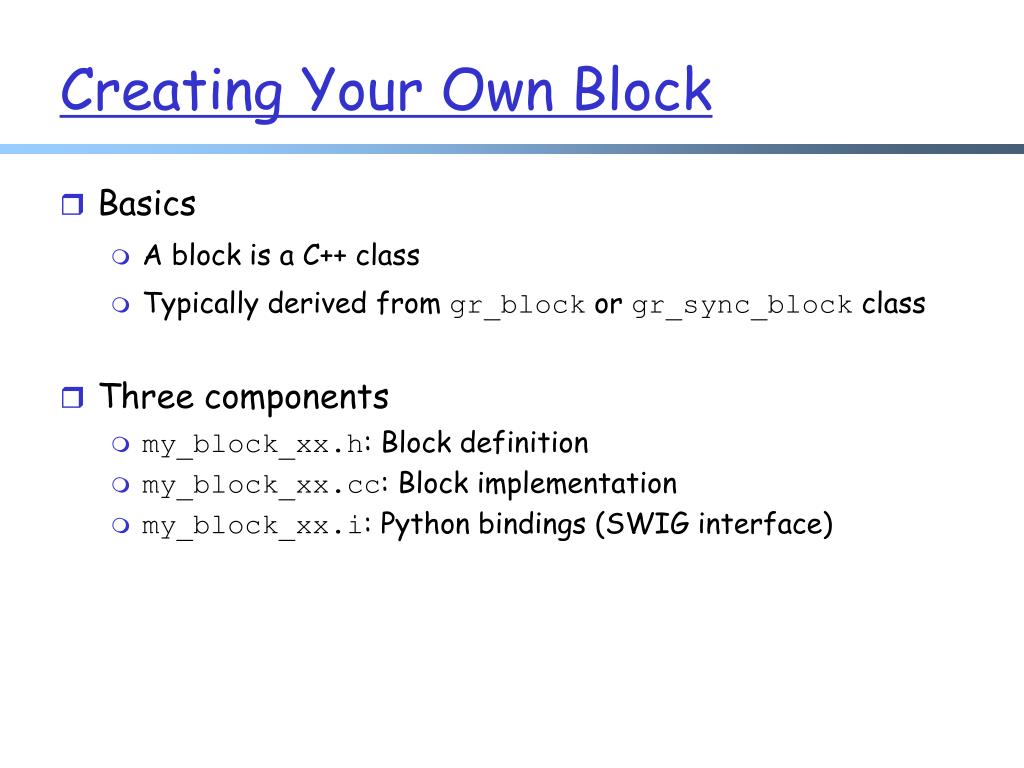

  26. Creating Your Own Block • Basics • A block is a C++ class • Typically derived from gr_block or gr_sync_block class • Three components • my_block_xx.h: Block definition • my_block_xx.cc: Block implementation • my_block_xx.i: Python bindings (SWIG interface)

  27. Block Definition #include <gr_sync_block.h> class my_block_cc; typedef boost::shared_ptr<cs434_my_block_cc> cs434_my_block_cc_sptr; cs434_my_block_cc_sptr cs434_make_my_block_cc(); class my_block_cc : public gr_sync_block { private: unsigned int d_count; friend cs434_my_block_cc_sptr cs434_make_my_block_cc(); cs434_my_block_cc(); public: int work(int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items); }; Create instances of block Method for processing input streams andproducing output streams

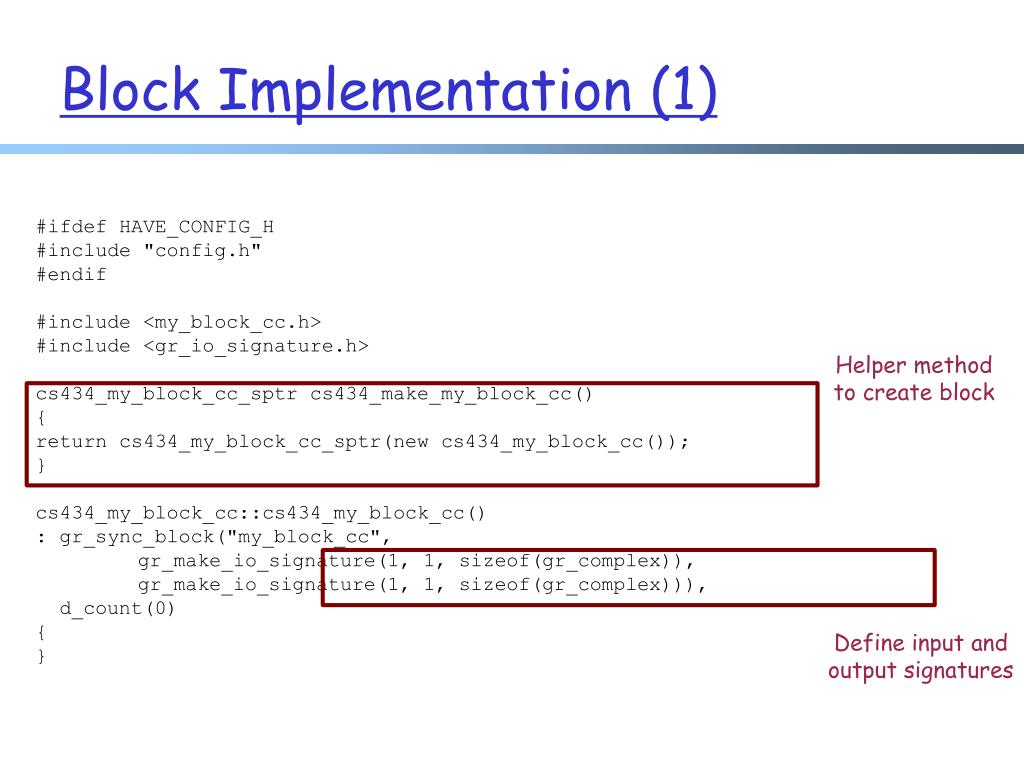

  28. Block Implementation (1) #ifdef HAVE_CONFIG_H #include "config.h" #endif #include <my_block_cc.h> #include <gr_io_signature.h> cs434_my_block_cc_sptr cs434_make_my_block_cc() { return cs434_my_block_cc_sptr(new cs434_my_block_cc()); } cs434_my_block_cc::cs434_my_block_cc() : gr_sync_block("my_block_cc", gr_make_io_signature(1, 1, sizeof(gr_complex)), gr_make_io_signature(1, 1, sizeof(gr_complex))), d_count(0) { } Helper method to create block Define input and output signatures

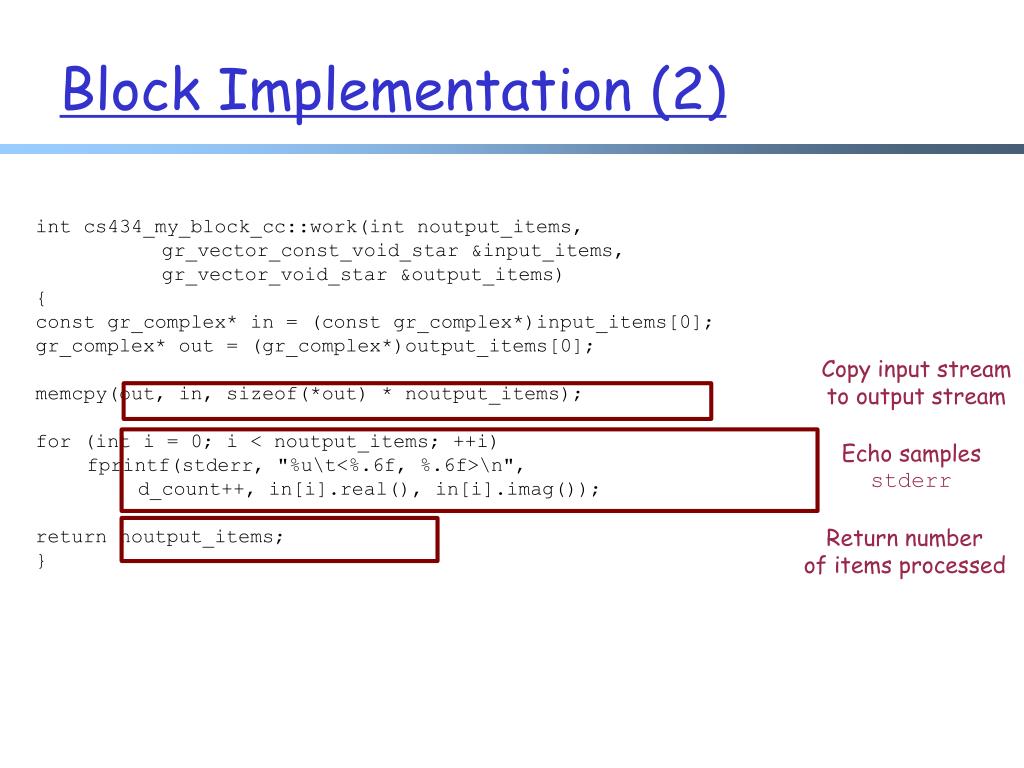

  29. Block Implementation (2) int cs434_my_block_cc::work(int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items) { const gr_complex* in = (const gr_complex*)input_items[0]; gr_complex* out = (gr_complex*)output_items[0]; memcpy(out, in, sizeof(*out) * noutput_items); for (int i = 0; i < noutput_items; ++i) fprintf(stderr, "%u\t<%.6f, %.6f>\n", d_count++, in[i].real(), in[i].imag()); return noutput_items; } Copy input stream to output stream Echo samples stderr Return number of items processed

  30. SWIG Interface Condensed copy of block definition (in header file) GR_SWIG_BLOCK_MAGIC(cs434, my_block_cc); cs434_my_block_cc_sptr cs434_make_my_block_cc(); class cs434_my_block_cc : public gr_sync_block { private: cs434_my_block_cc(); };

  31. Outline • What is GNU Radio? • Basic Concepts • Developing Applications • HW2 Introduction 31

  32. HW2 Overview • Implement MAC layer for a wireless device • Link-layer header • Carrier-sensing and backoff • Link-layer acknowledgments • Template code at • https://www-net.cs.yale.edu/svn/courses/cs434/spring09/hw4/gr-cs434-hw4/
