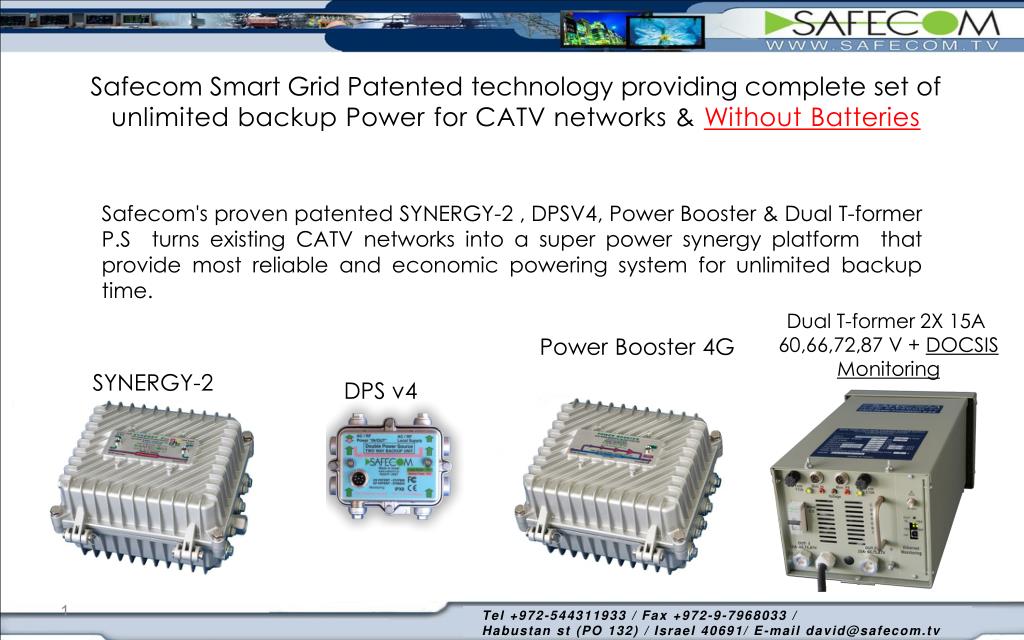

  1. Safecom Smart Grid Patented technology providing complete set of unlimited backup Power for CATV networks & Without Batteries Safecom's proven patented SYNERGY-2 , DPSV4, Power Booster & Dual T-former P.S turns existing CATV networks into a super power synergy platform that provide most reliable and economic powering system for unlimited backup time. Dual T-former 2X 15A 60,66,72,87 V + DOCSIS Monitoring Power Booster 4G SYNERGY-2 DPS v4 Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  2. The Backup Power concept. • Based on the strategic placing of intelligent power management devices throughout the network, in the event of a power outage the SYNERGY-2 & DPS4 draws power from the distant available source over existing coax or power cables. Utilizing breakthrough direct AC/AC On-Line stabilize technology safecom's SYNERGY-2 and Power Booster ensures an optimal voltage level – even over long distances. Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

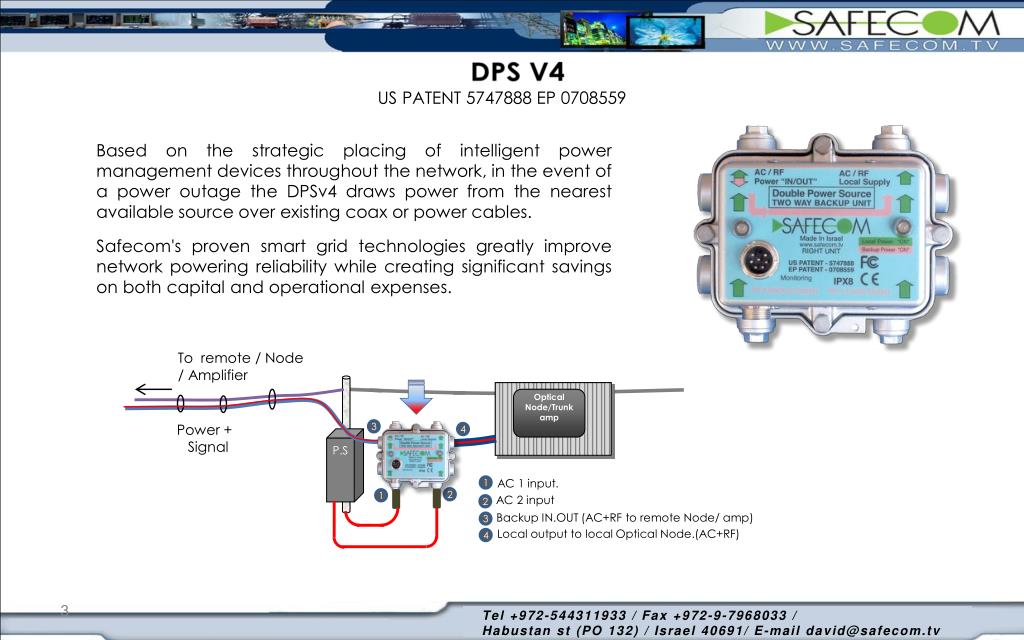

  3. DPS V4 To remote / Node / Amplifier US PATENT 5747888EP 0708559 Optical Node/Trunk amp Based on the strategic placing of intelligent power management devices throughout the network, in the event of a power outage the DPSv4 draws power from the nearest available source over existing coax or power cables. Safecom's proven smart grid technologies greatly improve network powering reliability while creating significant savings on both capital and operational expenses. Power + Signal 3 4 P.S 1 2 1 2 3 4 Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv AC 1 input. AC 2 input Backup IN.OUT (AC+RF to remote Node/ amp) Local output to local Optical Node.(AC+RF)

  4. POWER BOOSTER US PATENT 8,415,822 Utilizing patented breakthrough direct on-line zero crossing AC/AC stabilize technology safecom's ensures an optimal voltage level to Optical Nodes & Line Amplifiers even the source of power from over long distances. Passive , Standalone element , power booster solves the power distribution problem in a CATV network caused by high-resistance and low energy efficient coax & electricity cables. US PATENT 8,415,822 • MINIMIZE THE NUMBER OF POWER SUPPLIES IN THE NETWORK. • INCREASING THE POWERING AREA COVERED BY POWER SUPPLY Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv v t v t Vout 87 Vac (US) Vout 60 Vac (EU) Vin 30-87Vac (US) Vin 30-64Vac (EU)

  5. Power Booster – the 4G Transmission Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  6. SYNERGY-2 US PATENT 8,415,822 • All in One two-way RF Pass 1GHZ passive device that “toggle” available • power between two distant locations. • Redirecting power from the "normally" remote powered area to the • area subject to power outage. • During the normal mode of operation, when there is no power outage • at either end of the pair, the SYNERGY-2 act as power • block to the other side. • Utilizing breakthrough step-up & stabilizing voltage technologythe unit • provides optimal & stable voltage level from local or • remote P.S even from very long distance or using a un-stabilized P.S. = + DPS V 4 Power Booster Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv AC 1 input. Backup IN.OUT (AC+RF to remote Node/ amp) AC 2 input Local output to local Optical Node.(AC+RF) To remote / Node / Amplifier Optical Node/Trunk amp 1 2 Power + Signal P.S 3 4 1 3 2 4

  7. Inside view : SYNERGY-2 60/87V -2x15A Inputs/ Outputs configuration Monitoring Inputs/outputs ONLINE Current & Voltage + status. US PATENT 8,415,822 AC 2 - Input AC1 - Input RF / AC 5-1000MHz 15A OUTPUT To Local Amplifier / Node RF / AC 5-1000Mhz 15A INPUT / OUTPUT To / From Remote Amplifier / Node Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv v t v t Vout 87 Vac (US) Vout 60 Vac (EU) Vin 30-87V Vac (US) Vin 30-64V Vac (EU)

  8. SYNERGY 2 the New generation. Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  9. Dual Port P.S + Docsis / EuroDOCSIS monitoring US PATENT 8,415,822 NEW UR – Ultra Range +/- 25% Vin • a • a • a • a • a • a Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv Power Innovation

  10. Dual Port P.S model SC-D-TFPS-1800-E-O-M 2 ports X 15A 60,66,72Vac 50/60 Hz. External Monitoring DPS, SYNERGY-2 & more Direct RF connection to CATV network Voltage testing points DOCSIS® & EuroDOCSIS Status Monitoring Embedded Transponder. Current loop testing points (For Clamp meter) Output 1 60,66,72 15A Output 2 60,66,72 15A Direct connection. Direct connection. Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  11. SYNERGY-2 Typical configuration Optical node + Trunk amplifier(or second optical node). 60V Optical Node 1 2 Power + Signal To remote / amplifier / Node 60V 3 4 P.S .S AC 2 input. 1 AC 2 input 2 Backup IN.OUT (AC+RF to remote Node/ amp) Area A 3 Local output to local Optical Node.(AC+RF) 4 60V 60V Power + Signal Trunk amplifier Or Optical Node 1 2 From Optical node 4 3 Area B P.S Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  12. SYNERGY-2 – Demo backup power from Area A to Area B 50V 60V 55V Optical Node 1 2 Power + Signal To remote / amplifier / Node 60V 3 4 P.S .S AC 2 input. 1 45V AC 2 input 2 Backup IN.OUT (AC+RF to remote Node/ amp) Area A 3 Local output to local Optical Node.(AC+RF) 4 40V 60V Power + Signal Trunk amplifier Or Optical Node 1 2 From Optical node 40V 60V 3 4 3 Area B P.S Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  13. SYNERGY-2 – Demo backup power from Area B to Area A 50V 40V 45V 60V Optical Node 1 2 40V 60V Power + Signal From remote amplifier / Node 3 4 P.S P.S .S AC 2 input. 1 55V AC 2 input 2 Backup IN.OUT (AC+RF to remote Node/ amp) Area A 3 Local output to local Optical Node.(AC+RF) 4 60V 60V Power + Signal Trunk amplifier Or Optical Node 1 2 To Optical node 4 3 Area B P.S Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  14. SAFECOM’s powering system around the worldReliability since 1994 Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

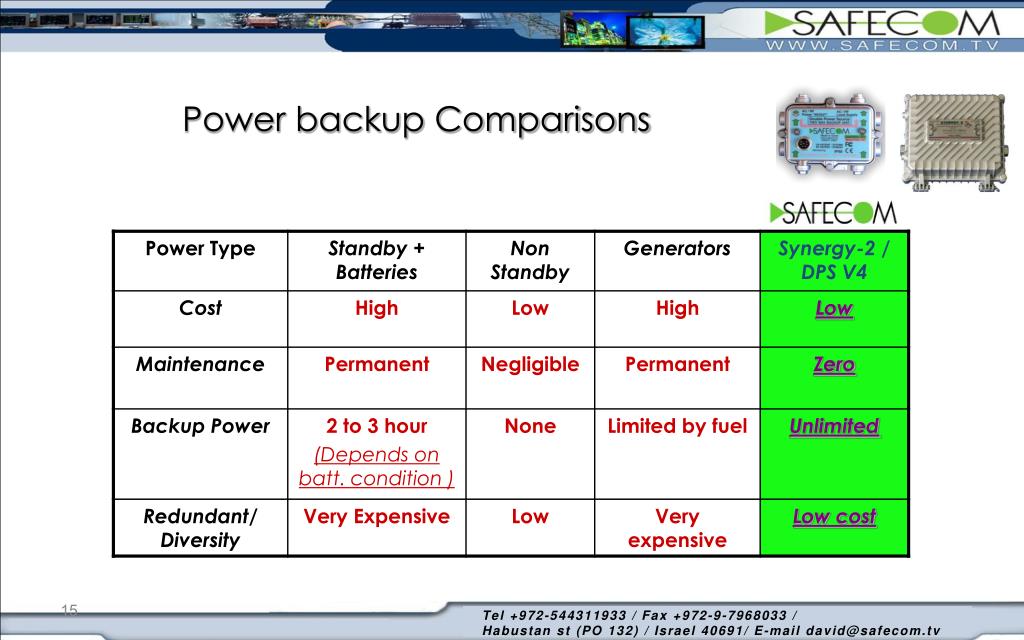

  15. Power backup Comparisons Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

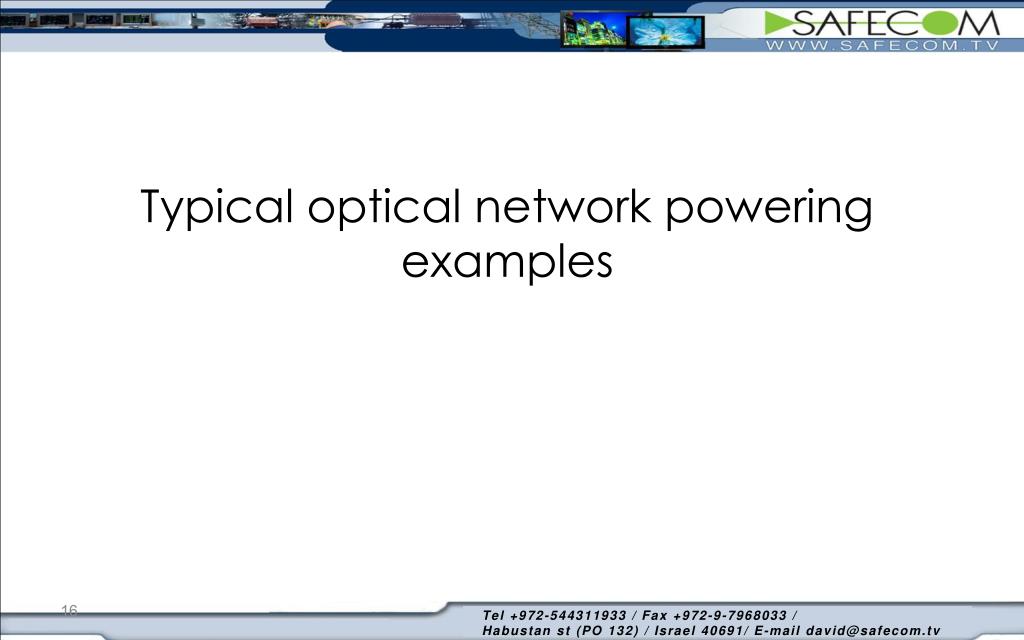

  16. Typical optical network powering examples Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  17. 90V-network 60V-available Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  18. 60V-network 90V-available Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  19. HFC Network DPS4 power backup 60V-network 90V-available Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  20. Business case. • Improving customer service and satisfaction. • Enabling MSO to add new services that required top high reliability. • Unlimited backup time. • Reducing dramatically CAPEX & OPEX. • Increasing powering efficacy & save energy. Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  21. DOCSIS® & EuroDOCSIS Status Monitoring Complete Tree-View Import using CSV file Also can discover One node at a time from the UI (on –demand discovery ) Network discovery Export the Tree-View for further Use Discovery can be backed up Automated Full Topology DPS/ SYNERGY back up Auto Discovery of the PS Monitor Supports any device that has a SCTE-HMS-PS-MIB Supports auto discovery of thresholds (SCTE-HMS-COMMON-MIB ) Auto Generates Attribute Widgets with properly formatted thresholds Supports all Adjacent devices like APC, Cordex Controllers etc. Supports Discrete Thresholds Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  22. Monitors the Attributes • Pre-Configured Poll Interval • Summarization ( Hourly , Daily ) • Graphing ( Single or Multiple attributes ) • Attribute Refresh ( on demand ) • Monitors the Current Alarm Table • Generates the Events from this table • Auto Correlation ( If the alarm is pre-existing, does not generate a new Alarm) • Updates the Tree-view with corresponding Severity • If SNMP Traps are enabled, It will auto-correlate the incoming traps with Current Alarm table

  23. Google Maps Integration Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  24. ON-LINE REPORT

  25. Standard Features • Europe 60V & US 90V Standard. • Support full 15A rms input /output. • Prefect voltage at the remote location in the network. • †† Water-proof Enclosure.(IPX8) • Opposite connection protected. • †† Input & Output Surge Protection. • DOCSIS® & EuroDOCSIS Status Monitoring. • Online RF transmission during operation. (INTERNET,VOD,VOIP) Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv Power Innovation

  26. Summery • SAFECOM SYNERGY-2 & DPSv4 offers CATV operators the most efficient and reliable complete backup solution for unlimited time at minimum cost. • No additional cost for MSO further to the fact that SYNERGY-2 / DPS v4 unit can be reuse from HFC network to full optical network. • Following the government regulation for full powering backup. • SYNERGY-2 ,DPSv4 & Power Booster systems enabling additional backup from remote powering. • No maintenance. • Unlimited life time. • Two way powering on a single cable (Coax or electrical cable) • Full DOCSIS® & EuroDOCSIS Status Monitoring Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv

  27. Thank you Tel +972-544311933 / Fax +972-9-7968033 / Habustanst (PO 132) / Israel 40691/ E-mail david@safecom.tv
