  1. Modulo Scheduling for Highly Customized Datapaths to Increase Hardware Reusability Kevin Fan, Hyunchul Park,Manjunath Kudlur, Scott Mahlke Advanced Computer Architecture Laboratory University of Michigan April 8, 2008 1

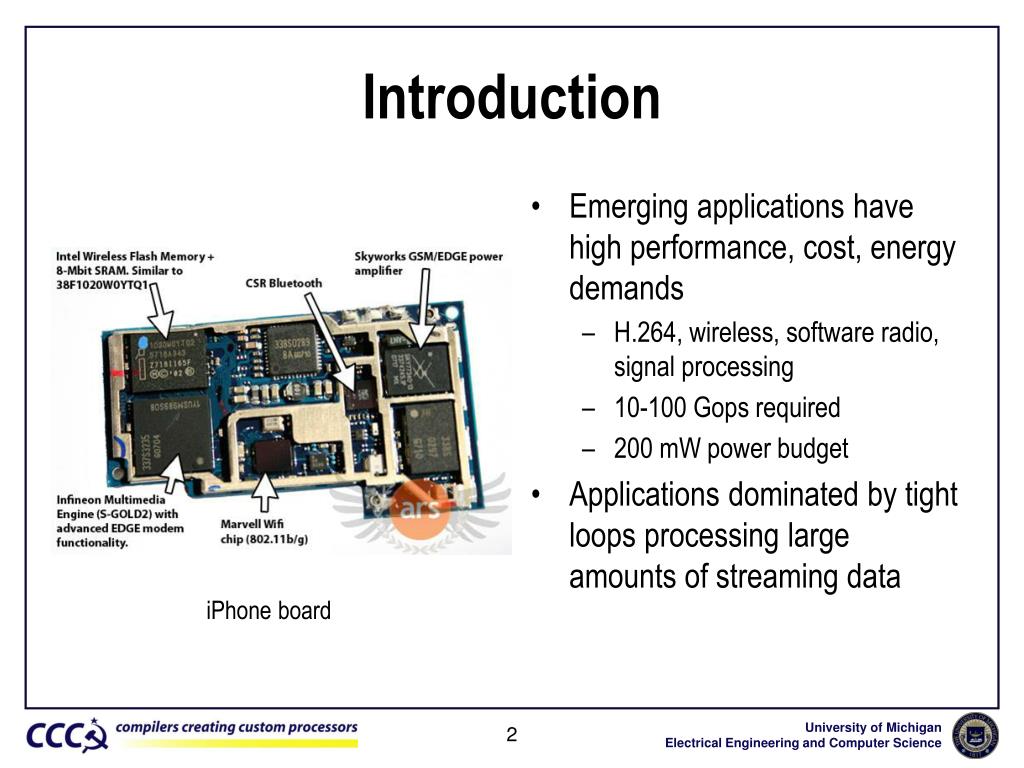

  2. Introduction • Emerging applications have high performance, cost, energy demands • H.264, wireless, software radio, signal processing • 10-100 Gops required • 200 mW power budget • Applications dominated by tight loops processing large amounts of streaming data iPhone board 2

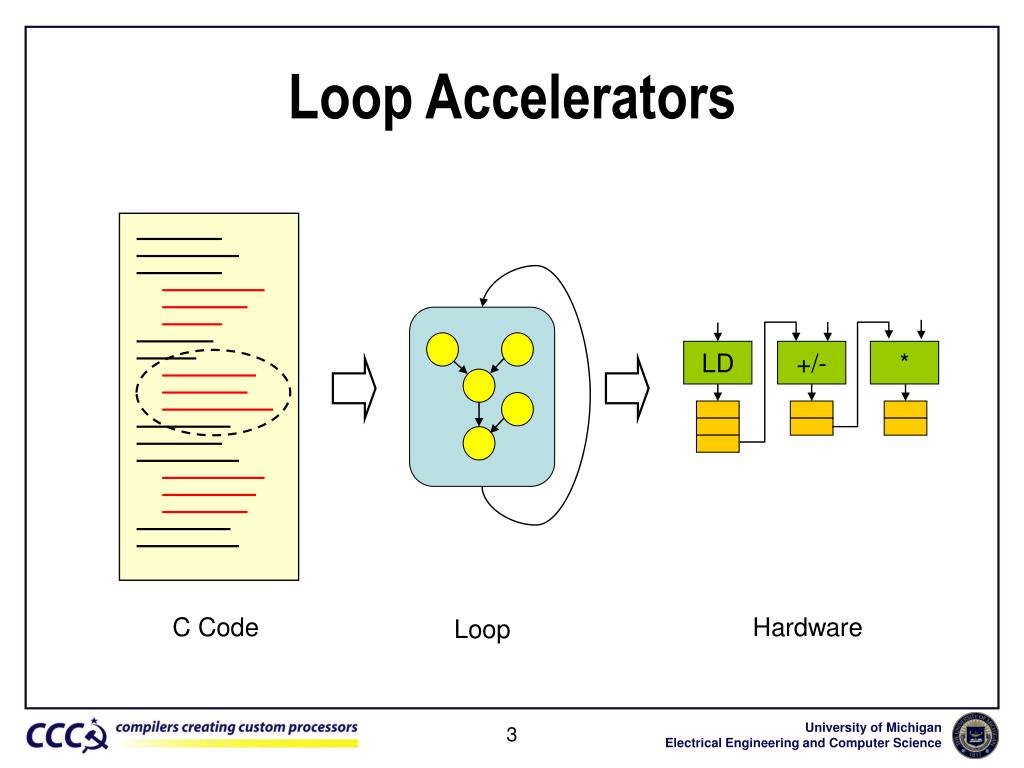

  3. LD +/- * Loop Accelerators C Code Hardware Loop 3

  4. Hardware Implementations • Customization gets order-of-magnitude performance and efficiency wins • Viterbi: 100x speedup vs. ARM9 FPGAs General PurposeProcessors DSPs CGRAs Flexibility Multifunction Loop Accelerators Loop Accelerators, ASICs Efficiency, Performance 4

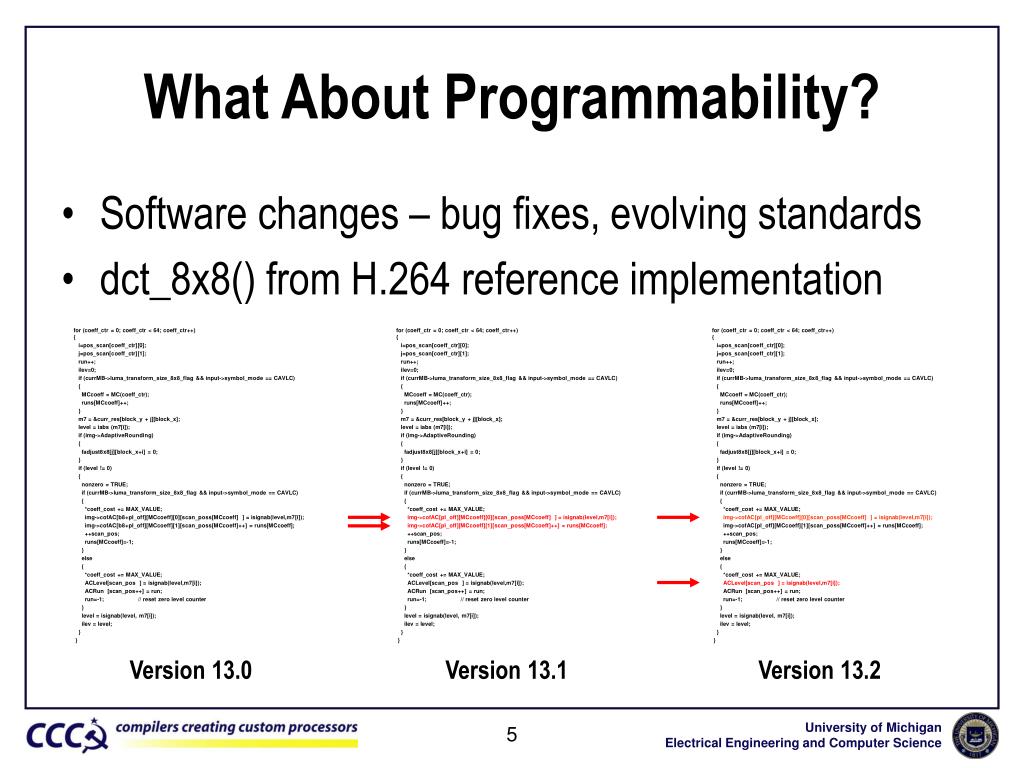

  5. What About Programmability? • Software changes – bug fixes, evolving standards • dct_8x8() from H.264 reference implementation for (coeff_ctr = 0; coeff_ctr < 64; coeff_ctr++) { i=pos_scan[coeff_ctr][0]; j=pos_scan[coeff_ctr][1]; run++; ilev=0; if (currMB->luma_transform_size_8x8_flag && input->symbol_mode == CAVLC) { MCcoeff = MC(coeff_ctr); runs[MCcoeff]++; } m7 = &curr_res[block_y + j][block_x]; level = iabs (m7[i]); if (img->AdaptiveRounding) { fadjust8x8[j][block_x+i] = 0; } if (level != 0) { nonzero = TRUE; if (currMB->luma_transform_size_8x8_flag && input->symbol_mode == CAVLC) { *coeff_cost += MAX_VALUE; img->cofAC[b8+pl_off][MCcoeff][0][scan_poss[MCcoeff] ] = isignab(level,m7[i]); img->cofAC[b8+pl_off][MCcoeff][1][scan_poss[MCcoeff]++] = runs[MCcoeff]; ++scan_pos; runs[MCcoeff]=-1; } else { *coeff_cost += MAX_VALUE; ACLevel[scan_pos ] = isignab(level,m7[i]); ACRun [scan_pos++] = run; run=-1; // reset zero level counter } level = isignab(level, m7[i]); ilev = level; } } for (coeff_ctr = 0; coeff_ctr < 64; coeff_ctr++) { i=pos_scan[coeff_ctr][0]; j=pos_scan[coeff_ctr][1]; run++; ilev=0; if (currMB->luma_transform_size_8x8_flag && input->symbol_mode == CAVLC) { MCcoeff = MC(coeff_ctr); runs[MCcoeff]++; } m7 = &curr_res[block_y + j][block_x]; level = iabs (m7[i]); if (img->AdaptiveRounding) { fadjust8x8[j][block_x+i] = 0; } if (level != 0) { nonzero = TRUE; if (currMB->luma_transform_size_8x8_flag && input->symbol_mode == CAVLC) { *coeff_cost += MAX_VALUE; img->cofAC[pl_off][MCcoeff][0][scan_poss[MCcoeff] ] = isignab(level,m7[i]); img->cofAC[pl_off][MCcoeff][1][scan_poss[MCcoeff]++] = runs[MCcoeff]; ++scan_pos; runs[MCcoeff]=-1; } else { *coeff_cost += MAX_VALUE; ACLevel[scan_pos ] = isignab(level,m7[i]); ACRun [scan_pos++] = run; run=-1; // reset zero level counter } level = isignab(level, m7[i]); ilev = level; } } for (coeff_ctr = 0; coeff_ctr < 64; coeff_ctr++) { i=pos_scan[coeff_ctr][0]; j=pos_scan[coeff_ctr][1]; run++; ilev=0; if (currMB->luma_transform_size_8x8_flag && input->symbol_mode == CAVLC) { MCcoeff = MC(coeff_ctr); runs[MCcoeff]++; } m7 = &curr_res[block_y + j][block_x]; level = iabs (m7[i]); if (img->AdaptiveRounding) { fadjust8x8[j][block_x+i] = 0; } if (level != 0) { nonzero = TRUE; if (currMB->luma_transform_size_8x8_flag && input->symbol_mode == CAVLC) { *coeff_cost += MAX_VALUE; img->cofAC[pl_off][MCcoeff][0][scan_poss[MCcoeff] ] = isignab(level,m7[i]); img->cofAC[pl_off][MCcoeff][1][scan_poss[MCcoeff]++] = runs[MCcoeff]; ++scan_pos; runs[MCcoeff]=-1; } else { *coeff_cost += MAX_VALUE; ACLevel[scan_pos ] = isignab(level,m7[i]); ACRun [scan_pos++] = run; run=-1; // reset zero level counter } level = isignab(level, m7[i]); ilev = level; } } Version 13.0 Version 13.1 Version 13.2 5

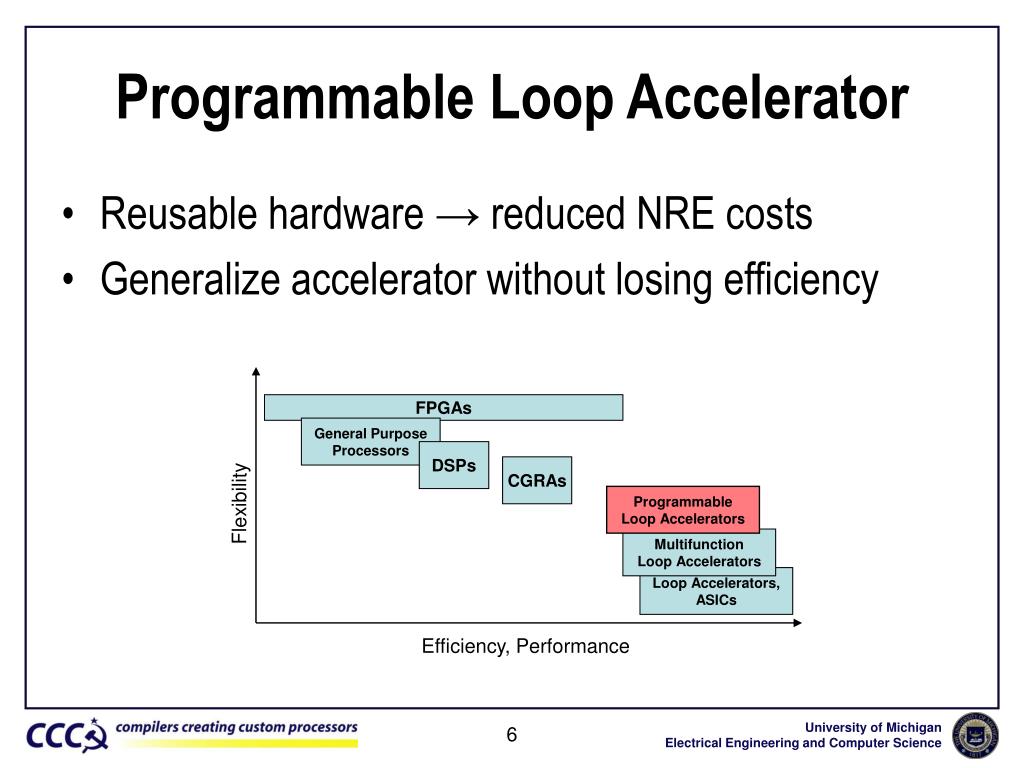

  6. Programmable Loop Accelerator • Reusable hardware → reduced NRE costs • Generalize accelerator without losing efficiency FPGAs General PurposeProcessors DSPs CGRAs Programmable Loop Accelerators Flexibility Multifunction Loop Accelerators Loop Accelerators, ASICs Efficiency, Performance 6

  7. Loop 1 Flexible Accelerators • Generalize accelerator architecture • Map new loops to existing hardware SynthesisSystem Hardware Compiler Loop 2 7

  8. Loop Accelerator Architecture CRF Point-to-point Connections … … … … … … FSM Local Mem BR + & MEM Controlsignals • Hardware realization of modulo scheduled loop • Parameterized execution resources, storage, connectivity 8

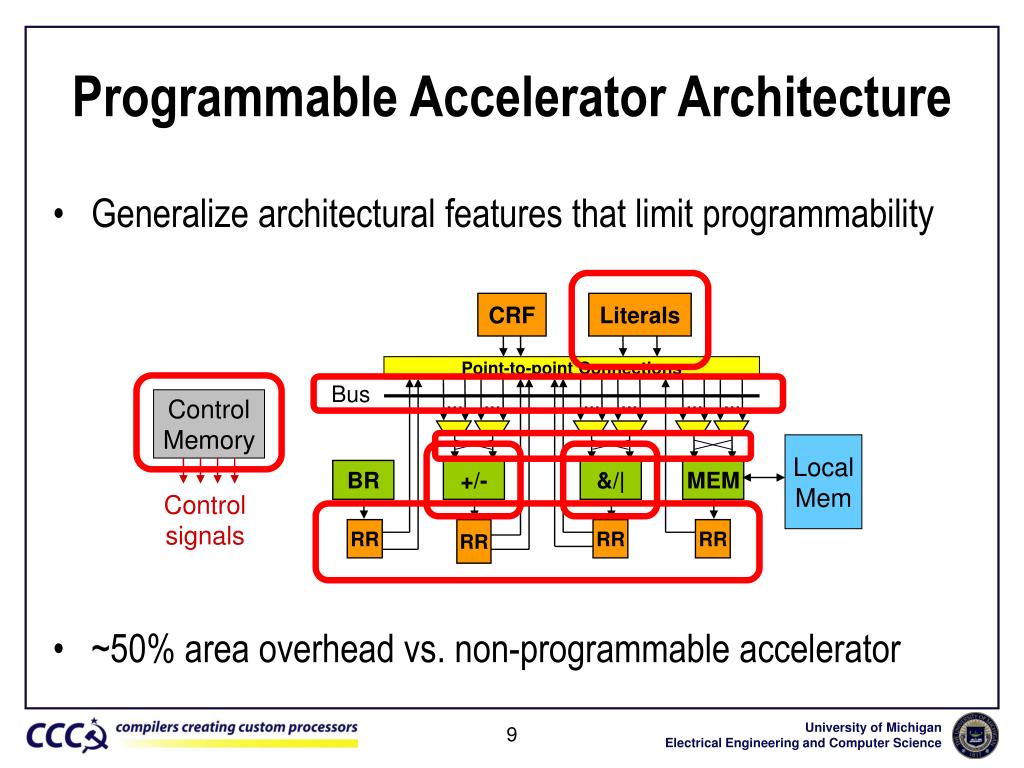

  9. Programmable Accelerator Architecture • Generalize architectural features that limit programmability CRF Literals Point-to-point Connections Bus … … … … … … Control Memory Local Mem BR +/- &/| MEM Controlsignals RR RR RR RR • ~50% area overhead vs. non-programmable accelerator 9

  10. Mapping Loops onto Hardware Processor Accelerator FUs Storage Connectivity ALU ALU LD +/- * CRF 8 16 8 10

  11. +3 +2 +5 +4 +3 +2 +5 +4 Scheduling Example MEM ADDER1 ADDER2 LD1 Time +2 +3 LD1 II=2 +4 +5 +2 +3 LD1 +4 +5 ? +2 +3 LD1 +4 11

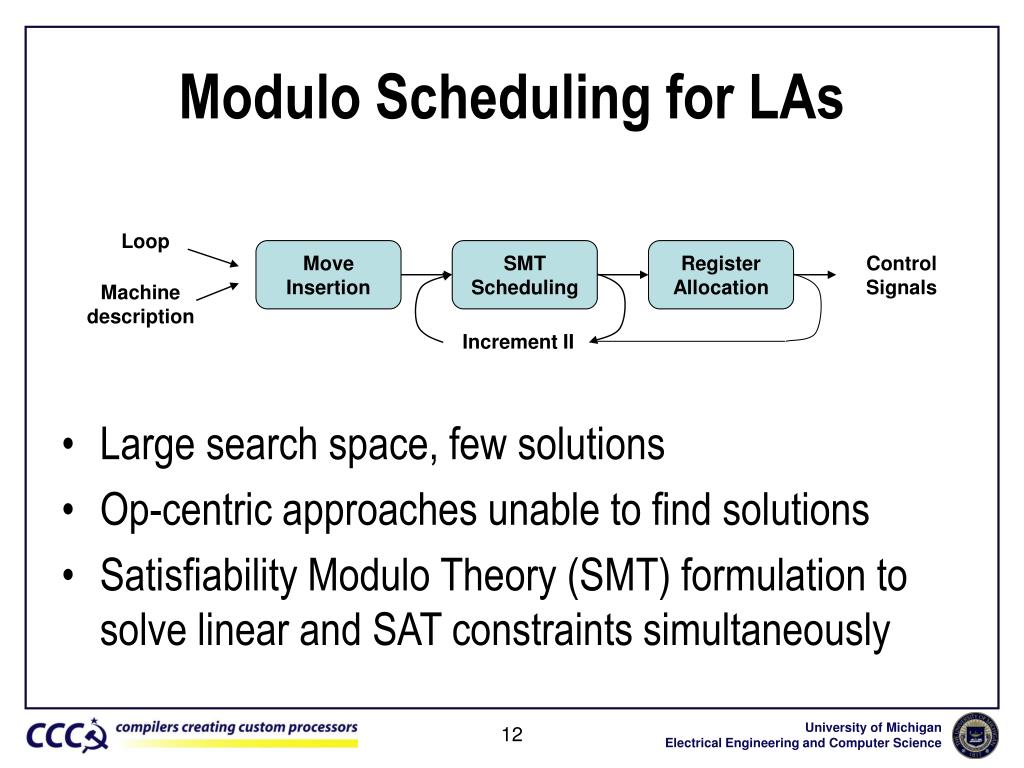

  12. Modulo Scheduling for LAs • Large search space, few solutions • Op-centric approaches unable to find solutions • Satisfiability Modulo Theory (SMT) formulation to solve linear and SAT constraints simultaneously Loop Move Insertion SMT Scheduling Register Allocation Control Signals Machine description Increment II 12

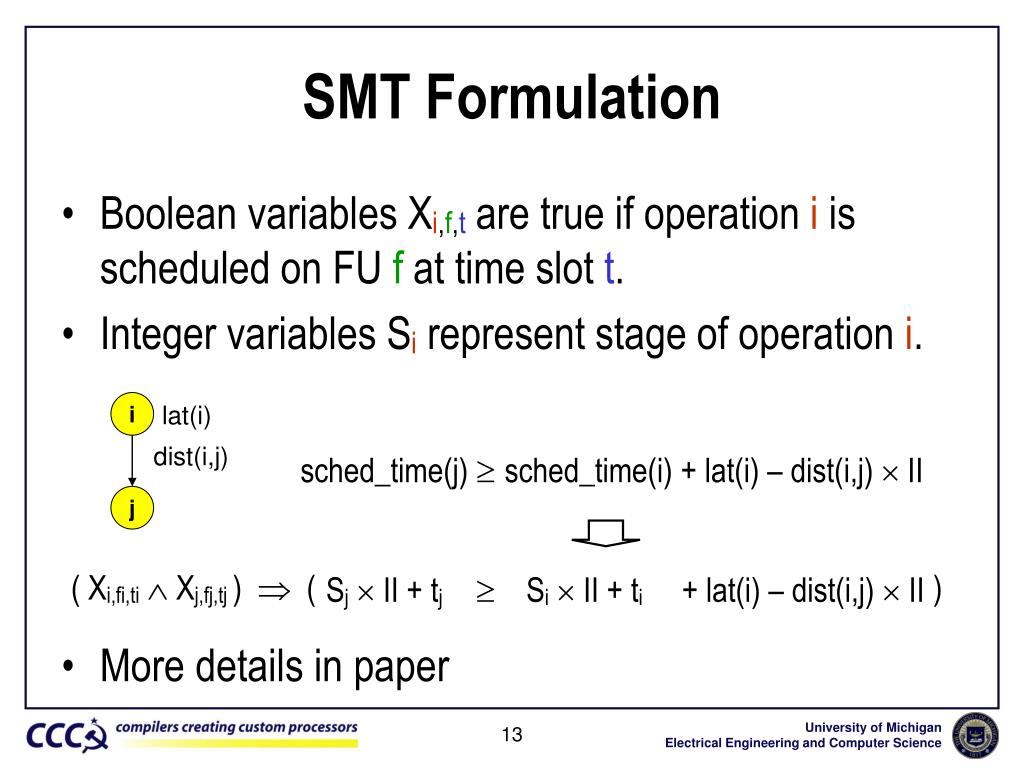

  13. SMT Formulation • Boolean variables Xi,f,t are true if operation i is scheduled on FU f at time slot t. • Integer variables Si represent stage of operation i. i lat(i) dist(i,j) sched_time(j)  sched_time(i) + lat(i) – dist(i,j)  II j ( Xi,fi,ti Xj,fj,tj )  ( ) Sj II + tj  Si  II + ti + lat(i) – dist(i,j)  II • More details in paper 13

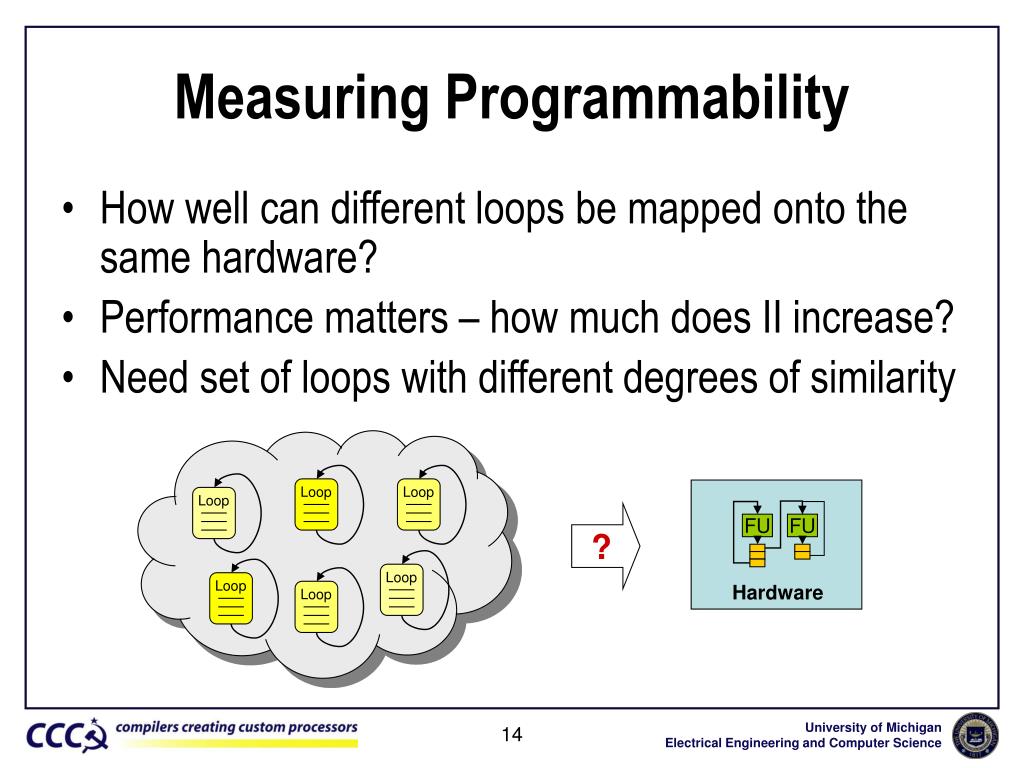

  14. FU FU Hardware Loop Loop Loop Loop Loop Loop Measuring Programmability • How well can different loops be mapped onto the same hardware? • Performance matters – how much does II increase? • Need set of loops with different degrees of similarity ? 14

  15. Graph Perturbation • Synthetically generated graphs • More perturbations → less similar to original graph • Iteratively apply random transformations: 15

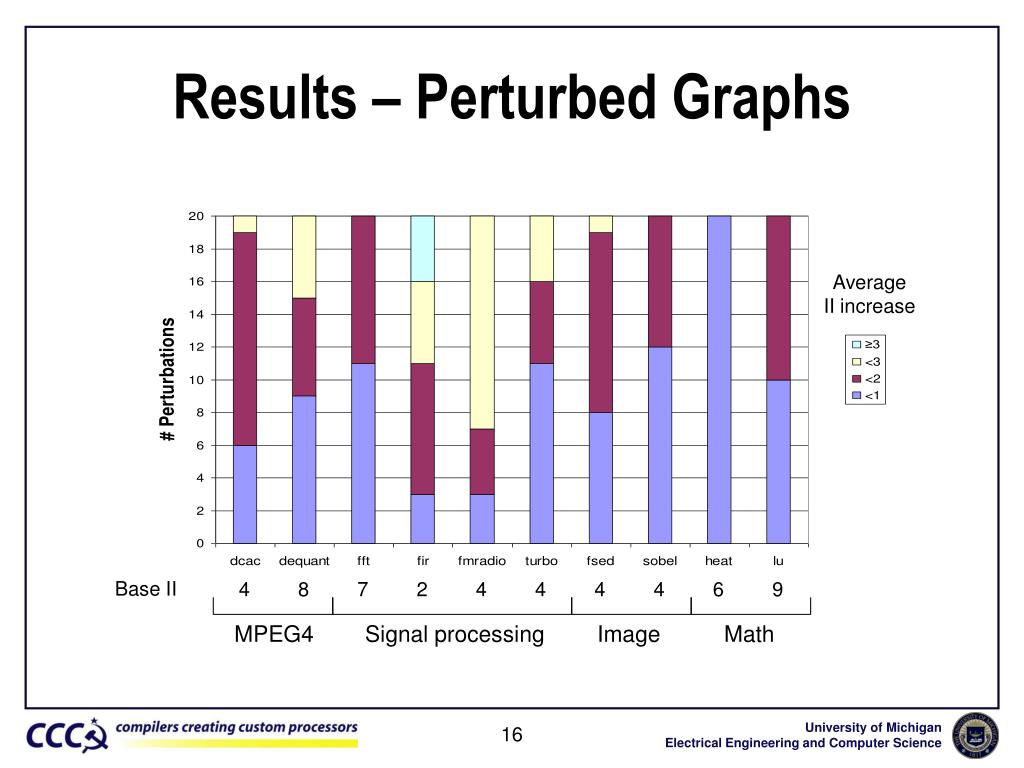

  16. Results – Perturbed Graphs Average II increase Base II 4 8 7 2 4 4 4 4 6 9 MPEG4 Signal processing Image Math 16

  17. Results – Restricted Datapath 17

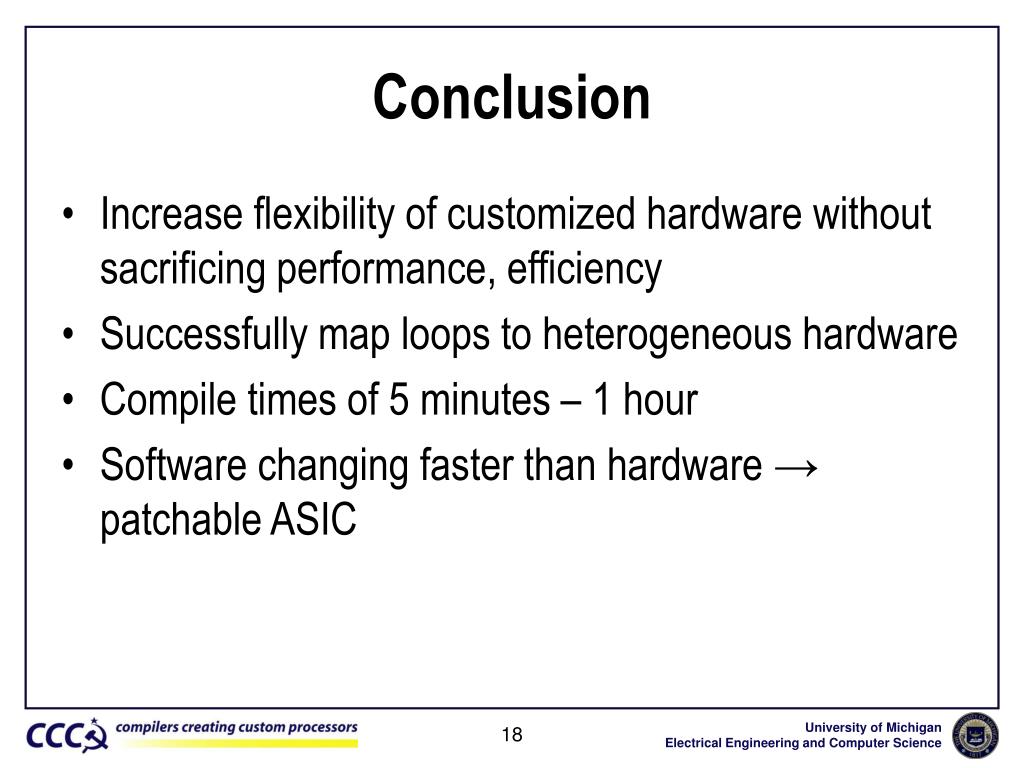

  18. Conclusion • Increase flexibility of customized hardware without sacrificing performance, efficiency • Successfully map loops to heterogeneous hardware • Compile times of 5 minutes – 1 hour • Software changing faster than hardware → patchable ASIC 18

  19. Questions? 19

  20. 20

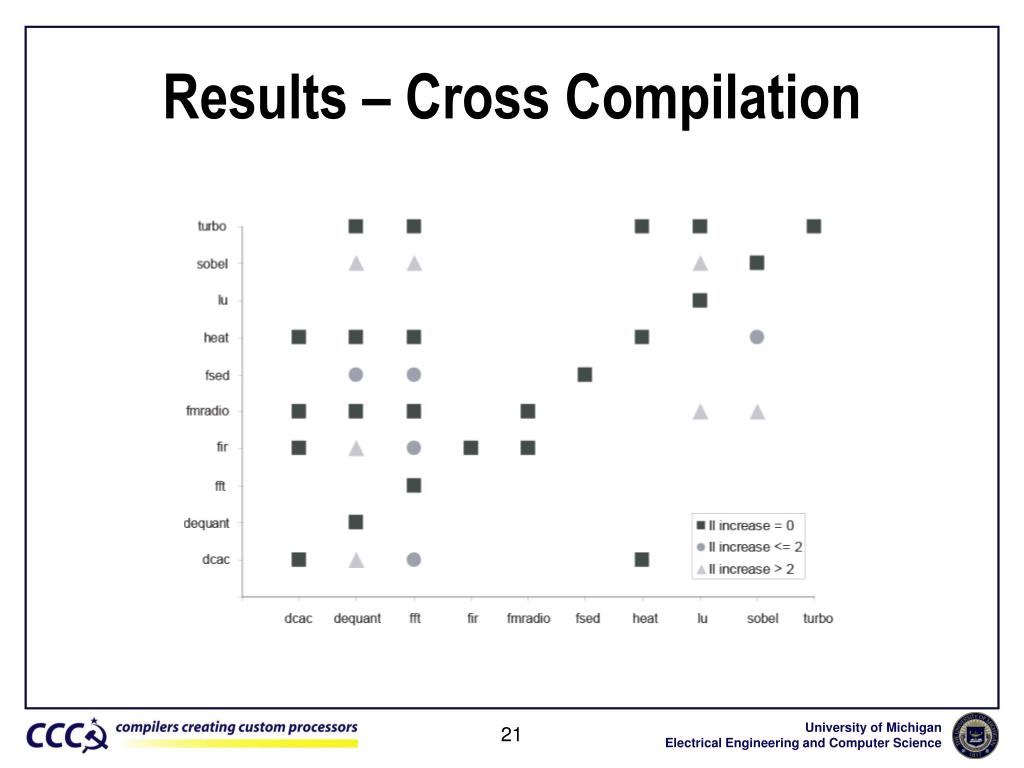

  21. Results – Cross Compilation 21
