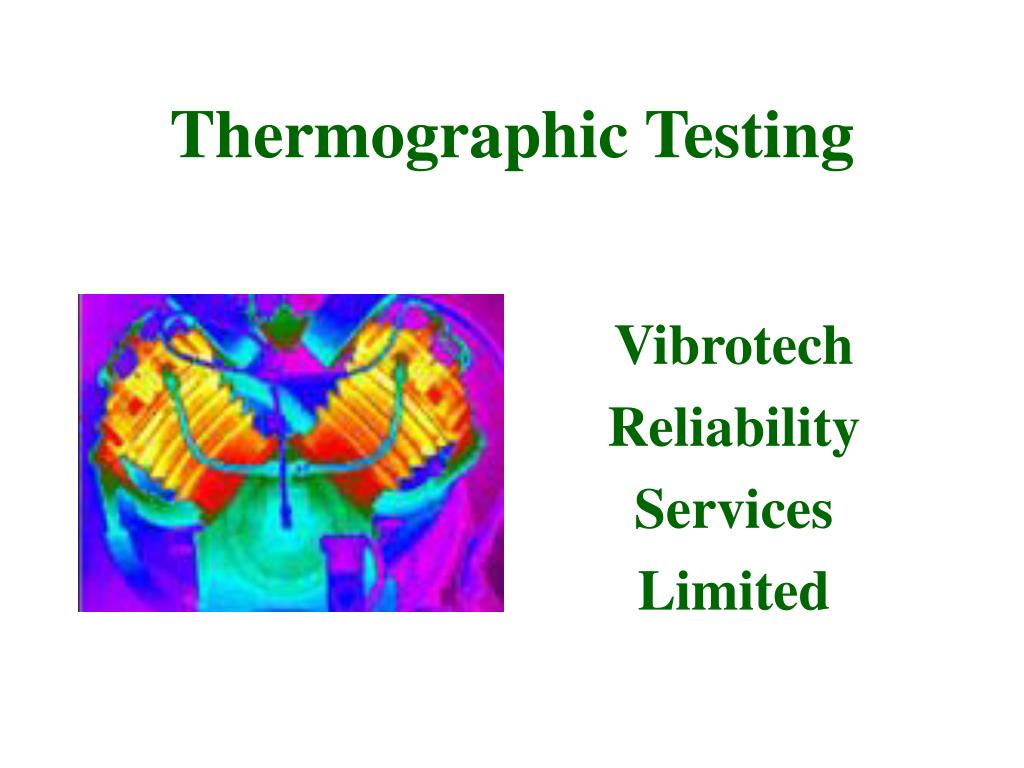

  1. Thermographic Testing Vibrotech Reliability Services Limited

  2. What is Thermography? Infra Red Thermography is a technique for producing a visible image of invisible (to our eyes) infra red radiation emitted by objects due to their thermal conditions

  3. Thermography Objectives of Test • To detect hot or cold area’s • To determine absolute temperature • To view Thermal profiles • To detect temperature loss

  4. Thermography Infra Red is part of the Electromagnetic Spectrum • It travels in straight lines at the speed of light • The useful part is divided between Short and Long wavelengths • Use of the correct wavelength is essential

  5. Test Equipment • Hand held portable camera • Battery Powered • Operating at correct wavelength • Range…..-20°c to +1500°c • Sensitivity…..0.1°c at 30°c • Real time display • Image Recording capability

  6. Why Thermography? • Non Contact • Rapid Scanning • Data can be recorded in differing formats • Images produced are comprehensive & reliable • Is there a viable alternative?

  7. Principles of Operation • Object radiates infra red radiation • Temperature difference • Differences are detected and displayed visually • Emissivity values must be observed

  8. Advantages • Non Contact • Non Intrusive • Can work at a distance • Fast and Reliable • Portable • Convincing Results

  9. Limitations • Non Intrinsically safe • There must be a temperature difference for certain surveys • Operator experience is essential • Filters may be needed for certain applications • Sensitivity and Resolution reduce with distance and angle of view

  10. Electrical • Switch Gear • Fuse boxes • Cable runs • Electrical connectors • Insulation • Transformers

  11. Junction Box

  12. Fan

  13. Fuse Box

  14. Electrical Connections Used for the detection of; • Corroded connections • Slack / loose connectors • Connectors at too high an operating temperature • Hot spots

  15. Transformers • Electrical connections • Insulators • Thermal profile • Operating temperature • Liquid Level

  16. Refractory Linings • Torpedo ladles • Boilers • Furnaces • Exhausts • Ducting • Kilns

  17. Rotary Kiln - Access Door

  18. Kiln - Refractory Lining

  19. Torpedo Ladle

  20. Steel Carrying Ladle

  21. Building Surveys Used to detect, • Lack of insulation • Cold air infiltration Draughts • Moisture traps • Hot / warm air escaping • Structural Integrity • Heating / Cooling

  22. Building Surveys

  23. Building Surveys Moisture/Water Ingress • Leaking Roof • Bridged Cavity • Leaking pipes

  24. Refinery & Petro-Chem • Vessel Surveys • Blockages • Defective lagging or insulation • Steam traps • Erosion / Corrosion

  25. Vessel Surveys

  26. Flare Stacks

  27. Process Plant The above Thermograms show how Thermography can be used as a very fast and effective maintenance tool. • The image on the right has a defective cylinder

  28. Process Plant Thermography may be used for; • Corrosion surveys • Ensuring valve operation • Leaks • Blockages

  29. Process Plant • Hot spots • Cold spots (Cryogenics) • Damaged or missing insulation • Tank levels

  30. Miscellaneous • The detection of process or manufacturing faults • Can be used as a quality control tool
