Baseline AnalysisCBP, AMP, and DBP Steve Braithwait, Dan Hansen, and Dave Armstrong Christensen Associates Energy Consulting DRMEC Spring Workshop May 7, 2014
Presentation Outline • Objectives • Methodology • Data • Performance measures • Aggregator program (CBP and AMP) results • Demand Bidding Program (DBP) results

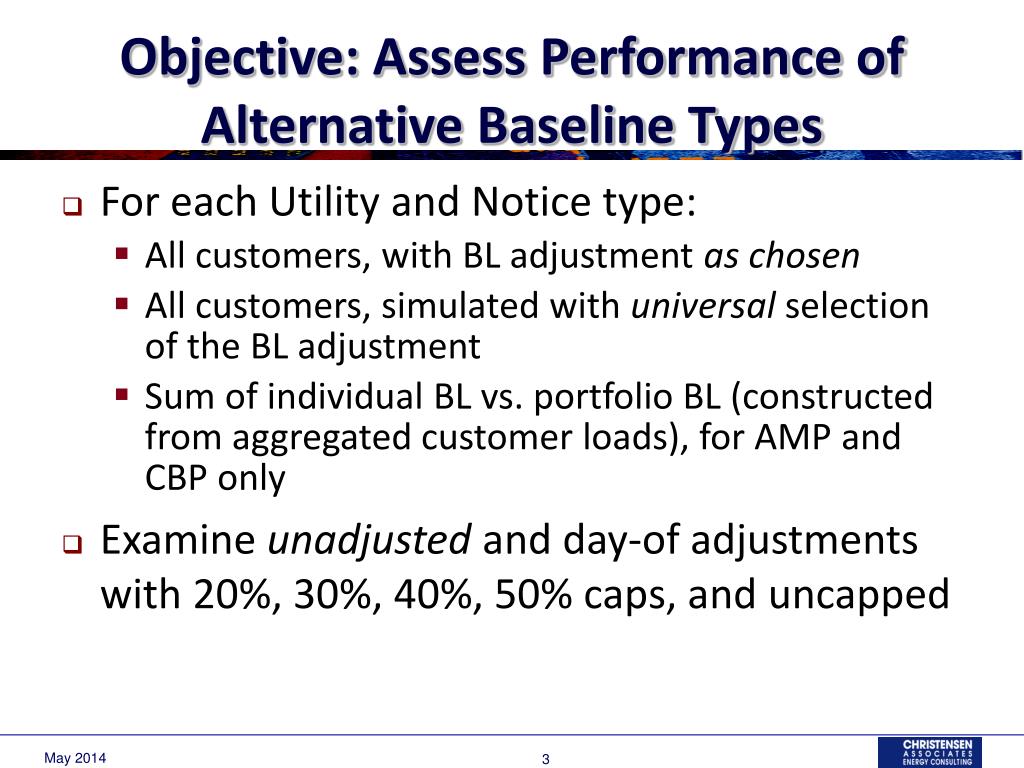

Objective: Assess Performance of Alternative Baseline Types • For each Utility and Notice type: • All customers, with BL adjustment as chosen • All customers, simulated with universal selection of the BL adjustment • Sum of individual BL vs. portfolio BL (constructed from aggregated customer loads), for AMP and CBP only • Examine unadjusted and day-of adjustments with 20%, 30%, 40%, 50% caps, and uncapped
Analysis Details • For actual program event days • The “true” baseline is the estimated reference load from the ex post evaluation • For event-like non-event days • The “true” baseline is the observed load

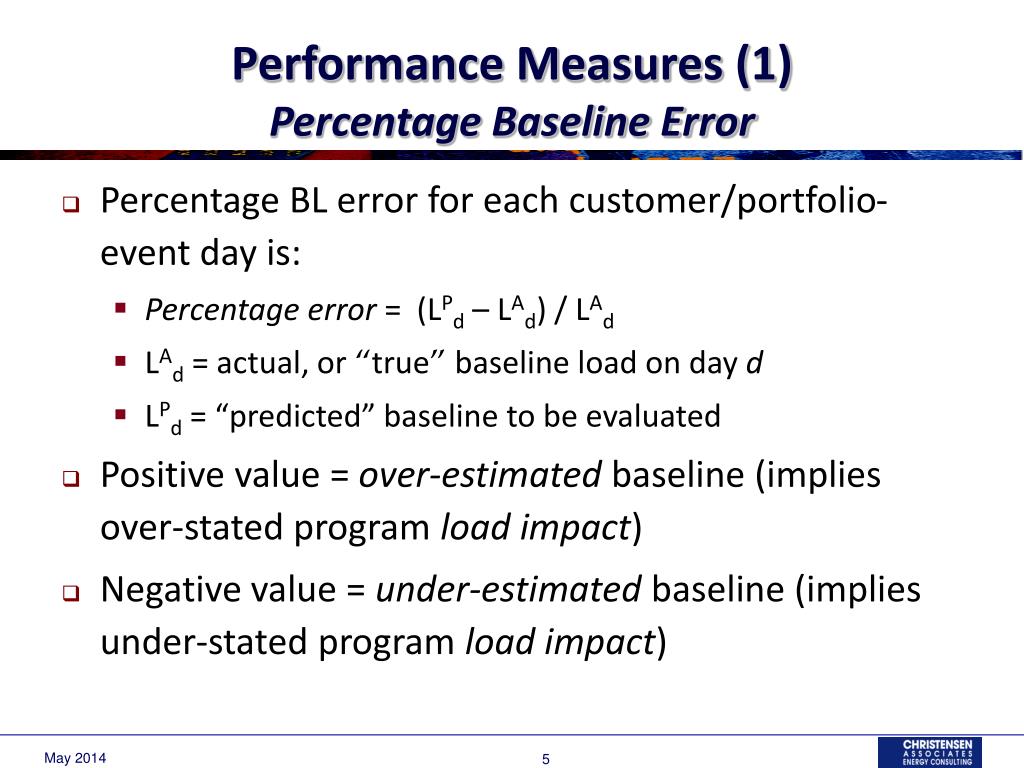

Performance Measures (1)Percentage Baseline Error • Percentage BL error for each customer/portfolio-event day is: • Percentage error = (LPd – LAd) / LAd • LAd = actual, or “true” baseline load on day d • LPd = “predicted” baseline to be evaluated • Positive value = over-estimated baseline (implies over-stated program load impact) • Negative value = under-estimatedbaseline (implies under-stated program load impact)
Performance Measures (2) Accuracy • Accuracy is measured as the median absolute percentage error (MAPE) • Calculate the absolute value of the percentage error for each customer/event-day • Calculate the median of values across customer/event-days (mean can be misleading due to extreme values) • Higher values correspond to larger baseline errors

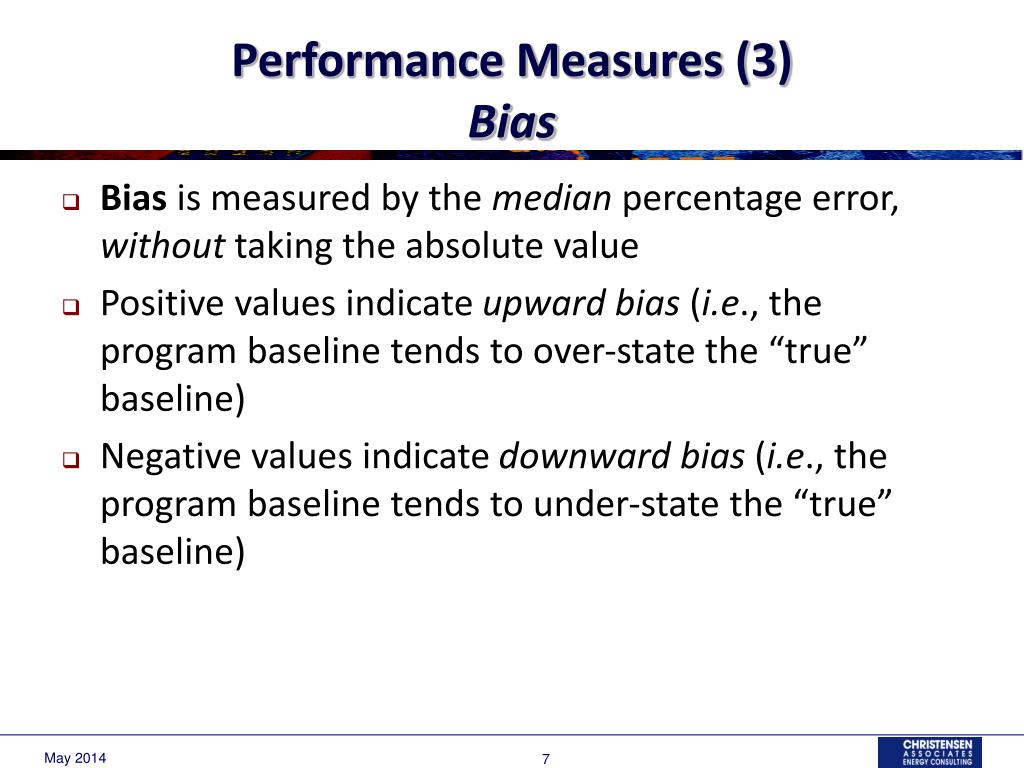

Performance Measures (3)Bias • Bias is measured by the median percentage error, without taking the absolute value • Positive values indicate upward bias (i.e., the program baseline tends to over-state the “true” baseline) • Negative values indicate downward bias (i.e., the program baseline tends to under-state the “true” baseline)
Nominated Customers by Choice of BL Adjustment – CBP and AMP
Percentiles of % Errors – PG&E CBP-DOActual Events, by Adjustment Cap

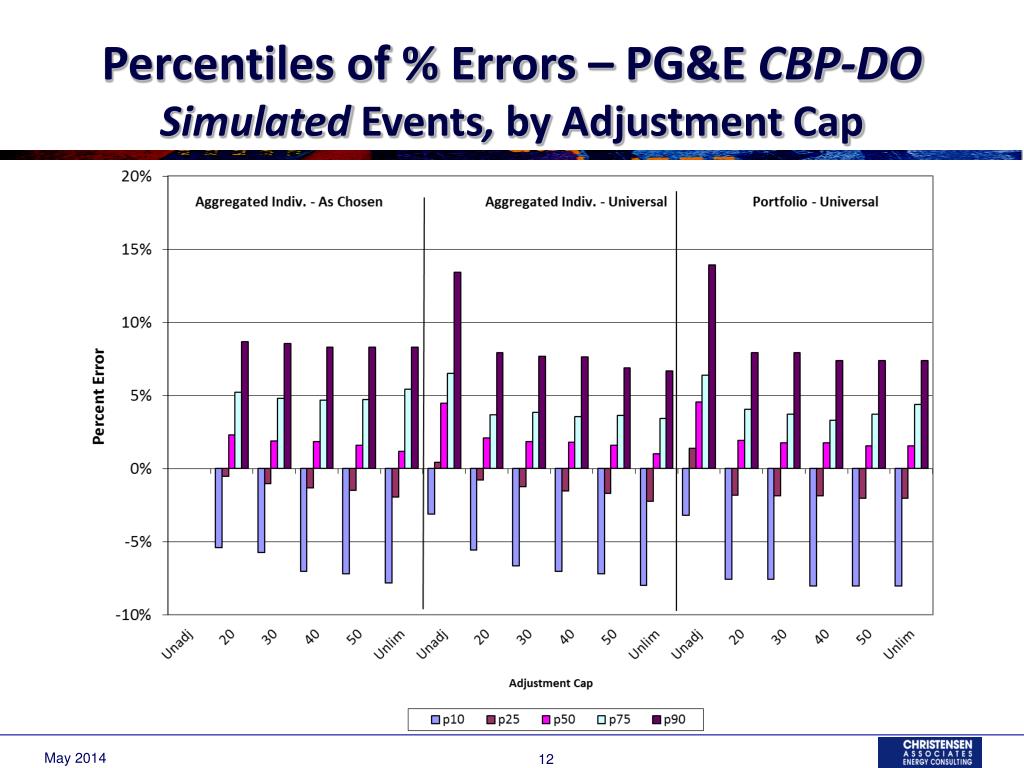

Percentiles of % Errors – PG&E CBP-DOSimulated Events, by Adjustment Cap

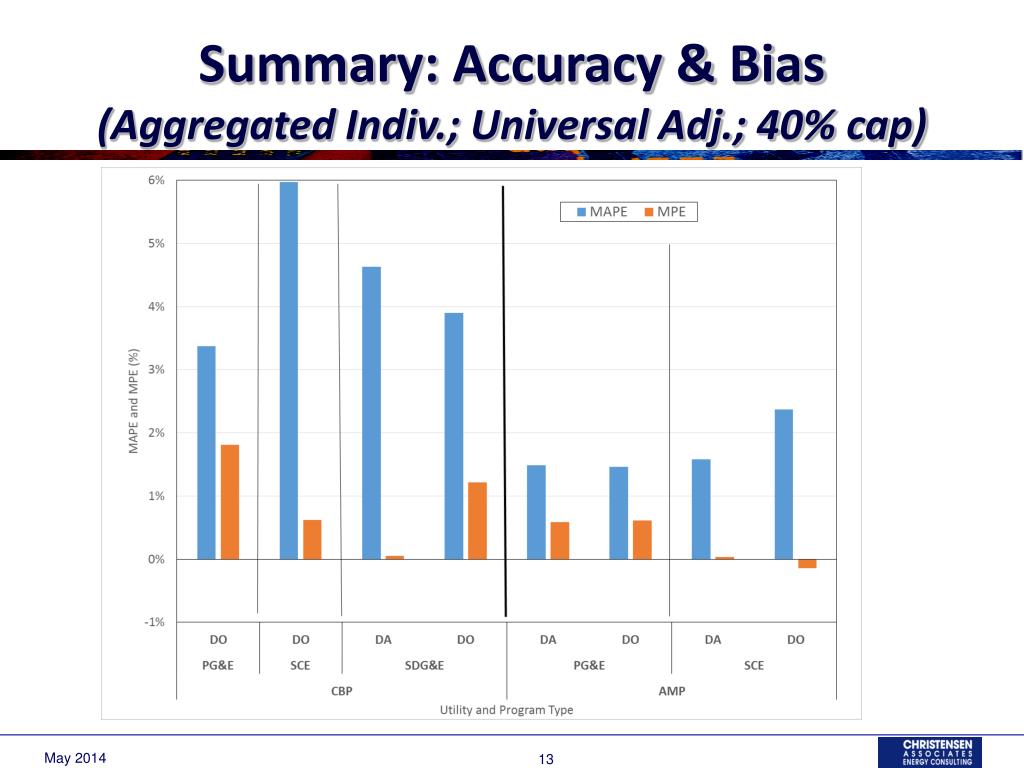

Summary: Accuracy & Bias (Aggregated Indiv.; Universal Adj.; 40% cap)
Summary: Percentiles of % Errors(Aggregated Indiv.; Universal Adj.; 40% cap)

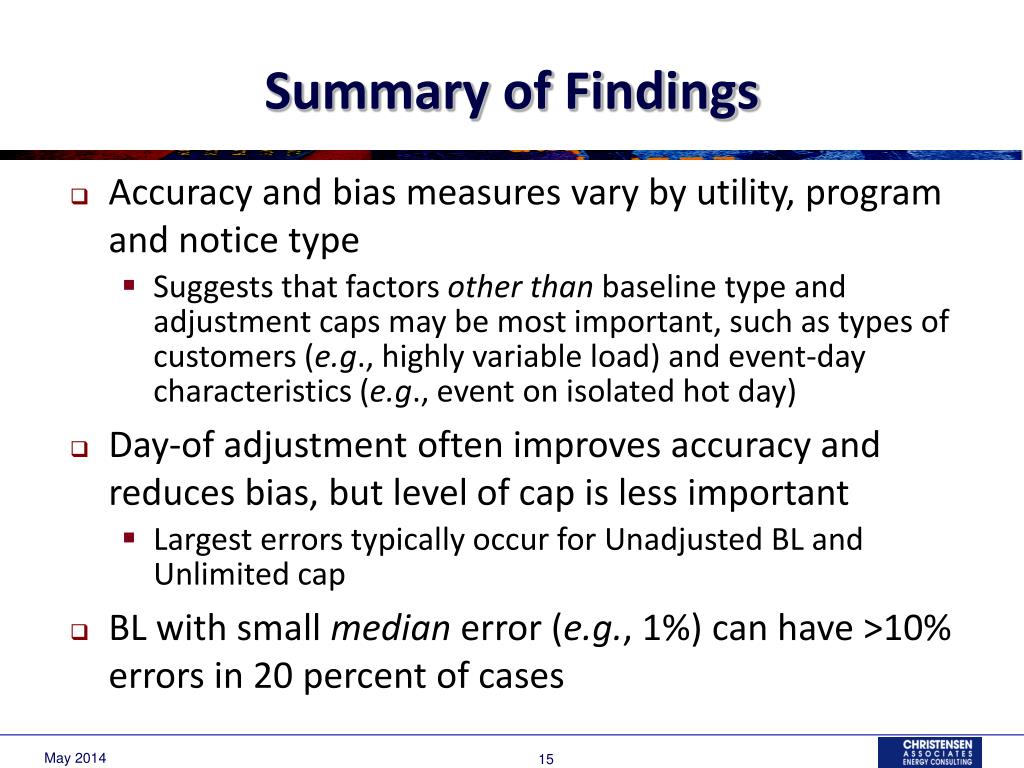

Summary of Findings • Accuracy and bias measures vary by utility, program and notice type • Suggests that factors other than baseline type and adjustment caps may be most important, such as types of customers (e.g., highly variable load) and event-day characteristics (e.g., event on isolated hot day) • Day-of adjustment often improves accuracy and reduces bias, but level of cap is less important • Largest errors typically occur for Unadjusted BL and Unlimited cap • BL with small median error (e.g., 1%) can have >10% errors in 20 percent of cases
Summary • Day-of adjustments tend to improve baseline accuracy and reduce bias • The analysis provides support for making the day-of adjustment the default option • The effectiveness of the day-of adjustment is not very sensitive to the level of the cap

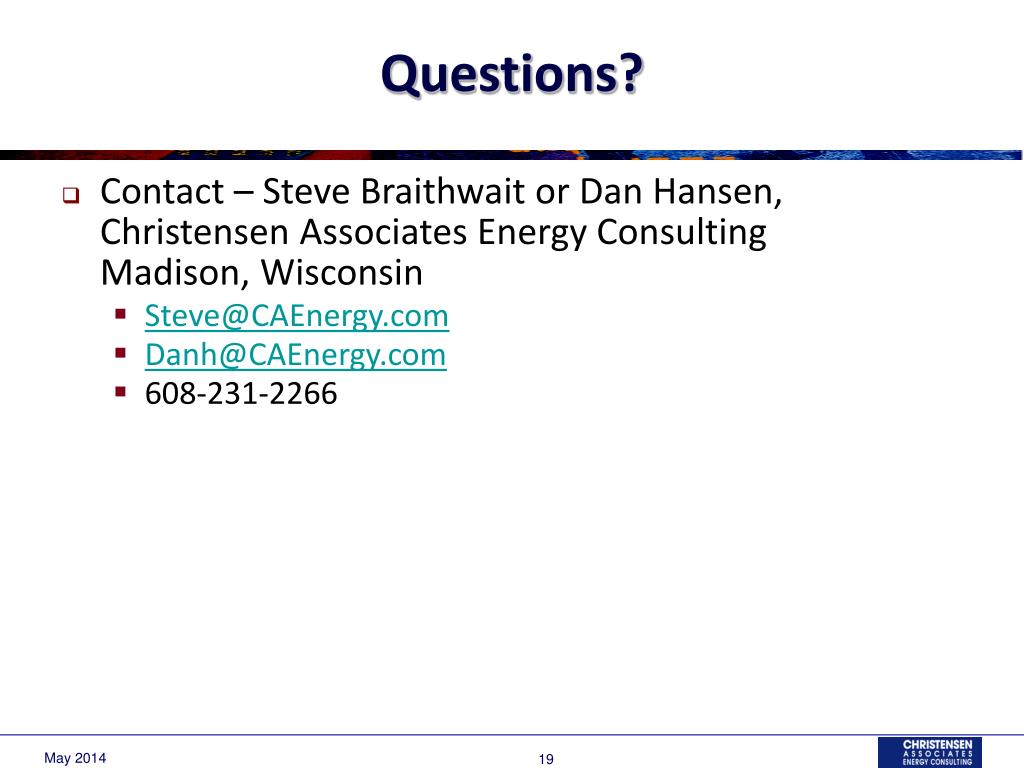

Questions? • Contact – Steve Braithwait or Dan Hansen, Christensen Associates Energy ConsultingMadison, Wisconsin • Steve@CAEnergy.com • Danh@CAEnergy.com • 608-231-2266

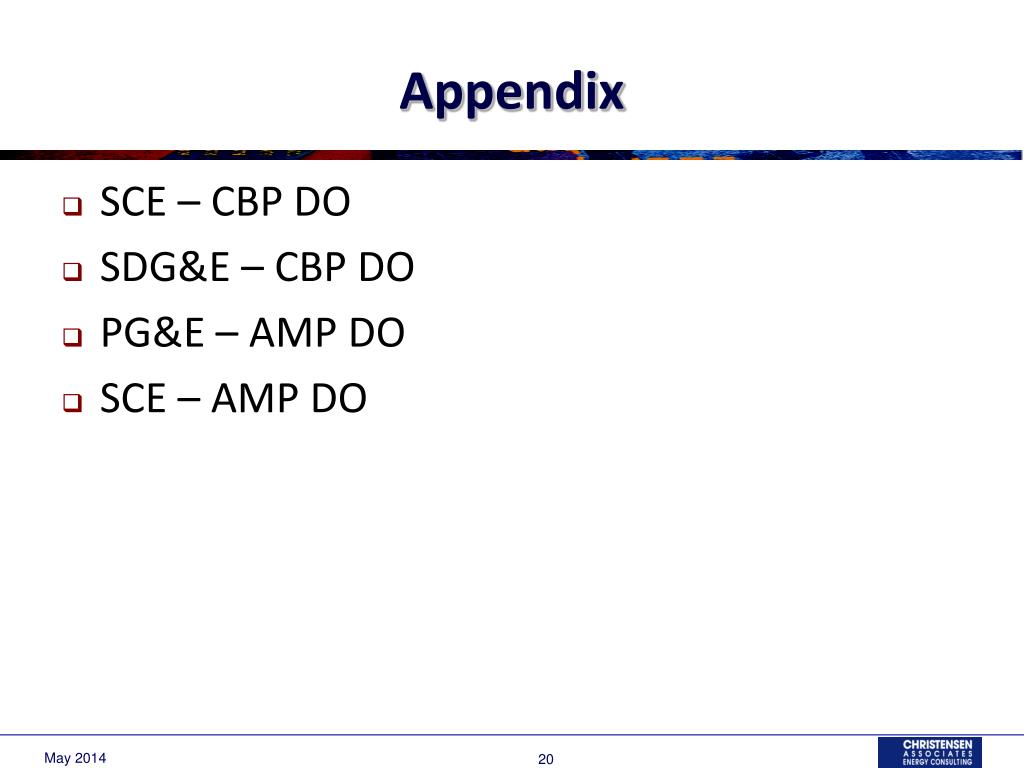

Appendix • SCE – CBP DO • SDG&E – CBP DO • PG&E – AMP DO • SCE – AMP DO
Percentiles of % Errors – SCE CBP-DOActual Events, by Adjustment Cap

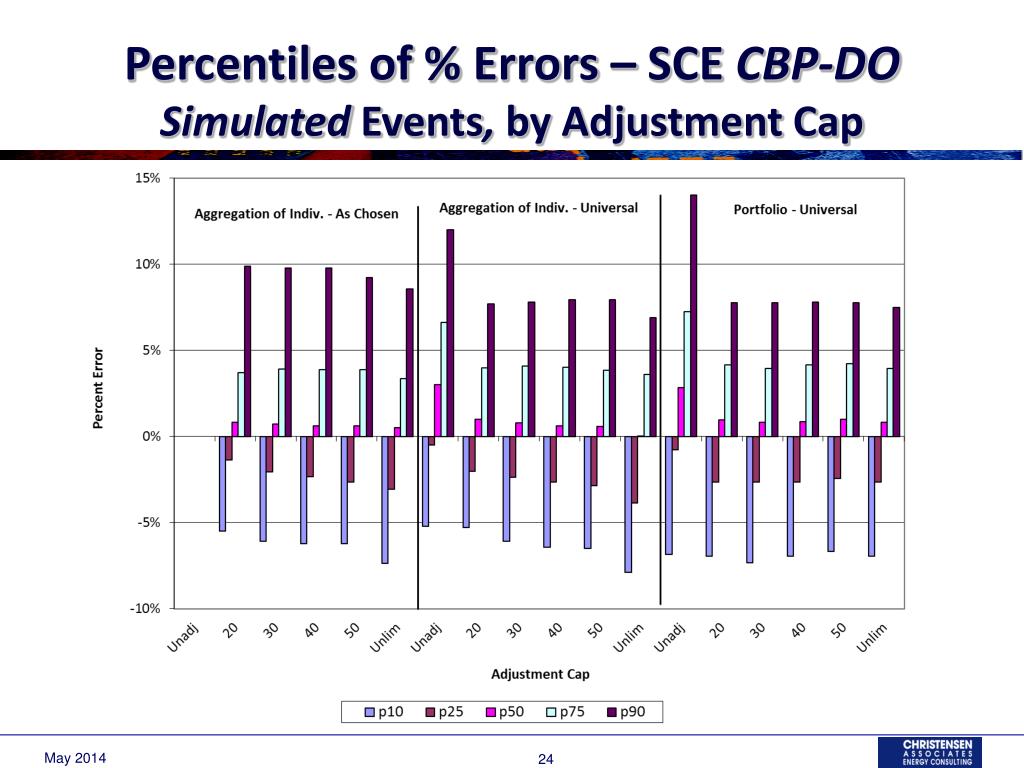

Percentiles of % Errors – SCE CBP-DOSimulated Events, by Adjustment Cap
