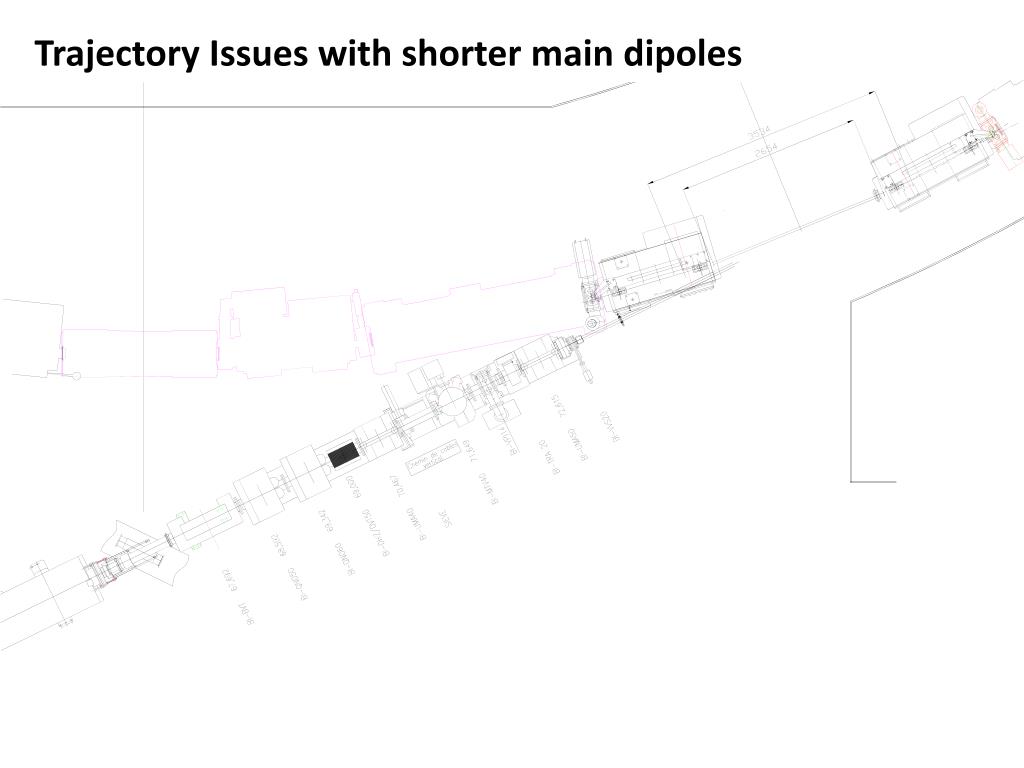

  1. Trajectory Issues with shorter main dipoles

  2. Trajectory Issues with shorter main dipoles NewDipoles

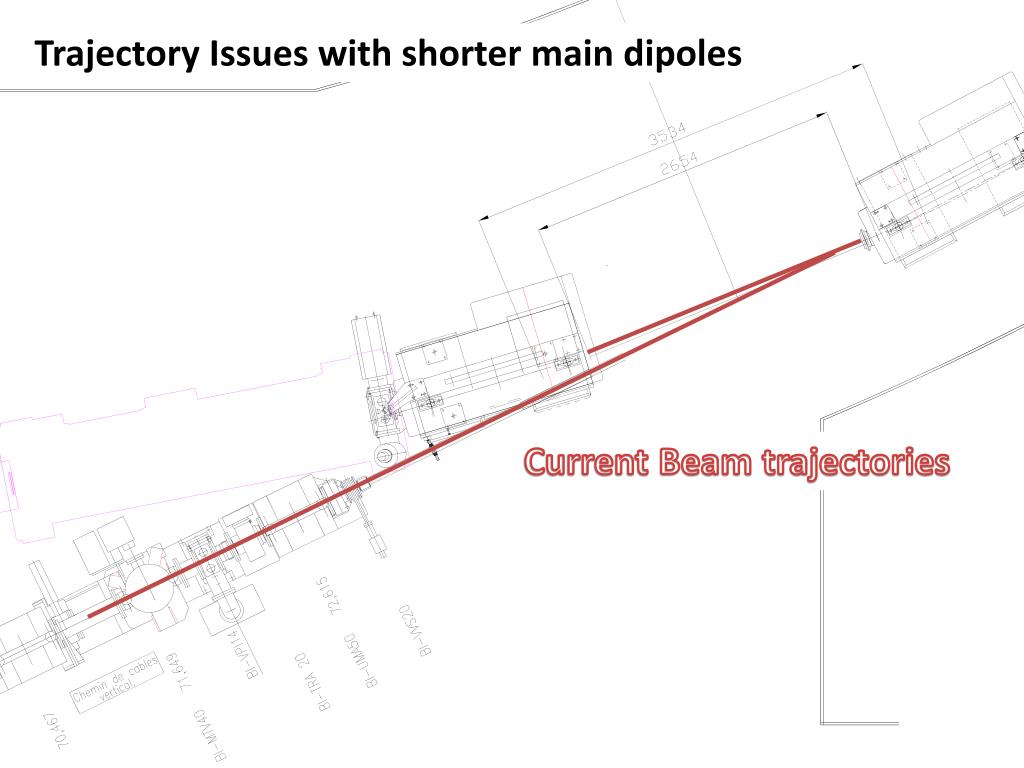

  3. Trajectory Issues with shorter main dipoles Current Beam trajectories

  4. Trajectory Issues with shorter main dipoles ~25 mm Projected Beam trajectories

  5. Trajectory Issues with shorter main dipoles Option 1; Dedicated magnets 25mm offset / 1.1m -> ~23mrad deflection (required ∫Bdl=0.044Tm) ~ 1.1 m

  6. Trajectory Issues with shorter main dipoles Option 2; Use DHZ 50 & DHZ 70 25mm offset / 3m -> ~8.4mrad deflection (required ∫Bdl=0.016 Tm)
