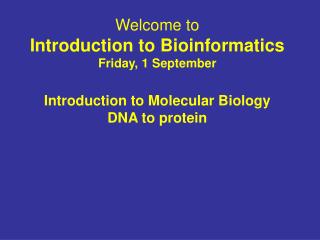

  1. Welcome toIntroduction to BioinformaticsFriday, 1 September Introduction to Molecular Biology DNA to protein

  2. Transcription Translation Replication The “Central Dogma” of Molecular Biology Term coined by Francis Crick in 1956 to describe the flow of information in the cell DNA RNA Protein

  3. What is the nature of the Gene? Oswald Avery, Colin MacLeod & Maclyn McCarty first show that DNA is the “genetic principle” Enzymes used to degrade proteins

  4. What is the structure of DNA? 1952 Rosalind Franklin and Maurice Wilkins produce X-ray diffraction images of DNA crystals that suggested that DNA must have some helical arrangement

  5. What is the structure of DNA? 1953 Francis Crick and James Watson put together all of the clues and correctly deduce that DNA is a Double Helix

  6. DNA base pairing occurs through hydrogen bonds A:T pairs: 2 bonds G:C pairs: 2 bonds

  7. The double helix strongly suggested that DNA replication might proceed by a “semiconservative” process

  8. Genes control the amino acid sequence of proteins • 1957 – Vernon Ingram shows that sickle cell haemoglobin varies from wild type by the substitution of one amino acid

  9. Genes control the amino acid sequence of proteins Alteration of amino acid sequence is also observed in all other hereditary anaemias!

  10. DNA cannot directly specify the sequence of amino acids in proteins • Protein synthesis in eukaryotic cells known to take place in the cytoplasm • There must therefore be a SECOND information containing molecule that gets its specificity from DNA, but then moves to the cytoplasm • Attention immediately focuses on RNA – was easy to imagine that it could be produced from a DNA template • Torborn Caspersson and Jean Brachet demonstrated that RNA was mostly in the cytoplasm Jean Brachet (1909-1998)

  11. The case for RNA Missing methyl group in uracil relative to thymine Hydroxyl group Chemically very similar to DNA

  12. RNA Polymerase is a molecular machine that carries out transcription

  13. RNA is synthesised in the nucleus but travels to the cytoplasm Cells pulse-labelled with 3H coupled cytidine T = 15 minutes T = ~90 minutes D.M. Prescott

  14. Ribosomes are the site of protein synthesis ribosomes studding the endoplastic reticulum Shown using radio labelled amino acids in conjunction with ultracentrifugation to isolate Different cell fractions. Where does the radioactivity end up at various times?

  15. Ribosomesand associated rRNAs are the factories for protein synthesis More on ribosomes in BNFO 507!

  16. Nature of the genetic code • Obvious early on most likely a triplet code in order to code 20 amino acids: • 4 x 4 nucleotides can specify 42 = 16 amino acids • 4 x 4 x 4 nucleotides can specify 43 = 64 amino acids • Code must be redundant • Not overlapping – Sydney Brenner’s thought experiment • Marshall Nirenberg and Heinrich Matthaei showed that a homopolymer (UUUUUU…. etc. ) produced a poly-phenylalanine protein

  17. Khorana's synthetic RNA approach to cracking the genetic code • Example RNA with two repeating units • RNAs with two repeating units: • (UCUCUCU → UCU CUC UCU) produced a polypetide consisting of alternating Serine and CUC codes for Leucine • RNAs with three repeating units: • (UACUACUA → UAC UAC UAC, or ACU ACU ACU, or CUA CUA CUA) produced three different strings of amino acids • RNAs with four repeating units including UAG, UAA, or UGA, produced only dipiptides and tripeptides thus revealing that UAG, UAA and UGA are stop codons.

  18. Amino acids fall into five functional categories

  19. Crick’s adaptor hypothesis • Can folded RNA act as the template for protein synthesis? • Seems unlikely: • the nucleosides chemically want to react with water soluble groups • but many amino acids are polar • no clear way to discriminate chemically similar amino acids Crick proposes that an adaptor molecule must fit between RNA and the incoming amino acids, but its nature is unknown Incoming amino acid Adaptor molecule RNA

  20. Translation proceeds through a tRNA intermediate

  21. The genetic code is (almost) universal

  22. Study Question 5Analogy: Translation / Tape recorder

  23. AAAAAA...AAA Splicing AAAAAA...AAA Study Question 8Why do introns exist? Splice boundaries highly conserved

  24. Protein #2 DNA-bindingprotein Study Question 8Why do introns exist? Protein #1 hormoneresponsiveness protein kinase DNA binding chromosomal rearrangement Hormone-responsive protein kinase

  25. Study Question 8Why do introns exist? hormoneresponsiveness protein kinase DNA binding AAAAAA...AAA New protein:Hormone-responsiveDNA-binding protein

  26. Study Question 11Degeneracy and frequency of amino acids Most commonLeu Gly Ser Least commonTrp Met His

  27. Study Question 12Single mutation from AGA Silent: | Hydrophilic/Hydrophilic: |

  28. Study Question 12Single mutation from AGA Silent: | Conservative: | Hydrophilic/Hydrophilic: | | Hydrophilic/Hydrophobic: |

  29. Study Question 12Single mutation from AGA Silent: | | Conservative: | Hydrophilic/Hydrophilic: | | | Hydrophilic/Hydrophobic: | Other: |

  30. Study Question 4Example of palindromic DNA

  31. Proteins have four levels of structure

  32. Enzymes lower the activation energies associated with biochemical reactions DG Typical energy of activation is 20-30 kcal/mol

  33. Eukaryotic mRNA must often must be spliced in order to produce a mature transcript Exons often correspond to functional protein domains and alternative splicing can give rise to variant proteins
