  1. Design of Front-End Low-Noise and Radiation Tolerant Readout Systems José Pedro Cardoso

  2. Overview • Introduction • Training • Project • Milestones • Conclusions Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

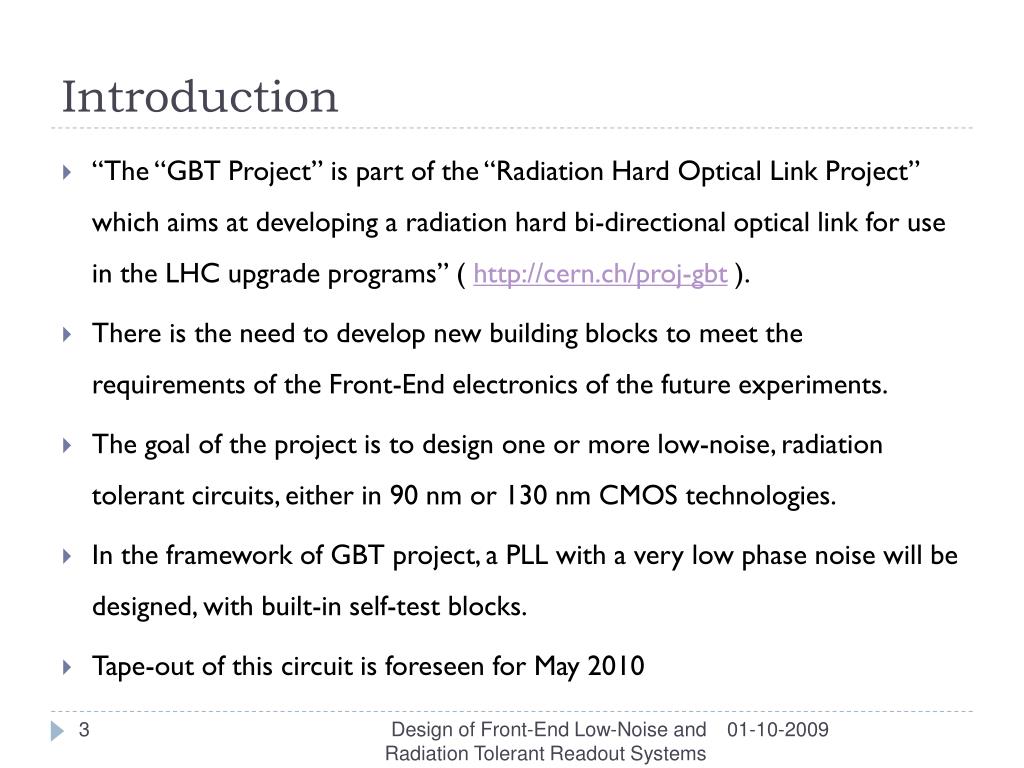

  3. Introduction • “The “GBT Project” is part of the “Radiation Hard Optical Link Project” which aims at developing a radiation hard bi-directional optical link for use in the LHC upgrade programs” ( http://cern.ch/proj-gbt ). • There is the need to develop new building blocks to meet the requirements of the Front-End electronics of the future experiments. • The goal of the project is to design one or more low-noise, radiation tolerant circuits, either in 90 nm or 130 nm CMOS technologies. • In the framework of GBT project, a PLL with a very low phase noise will be designed, with built-in self-test blocks. • Tape-out of this circuit is foreseen for May 2010 Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

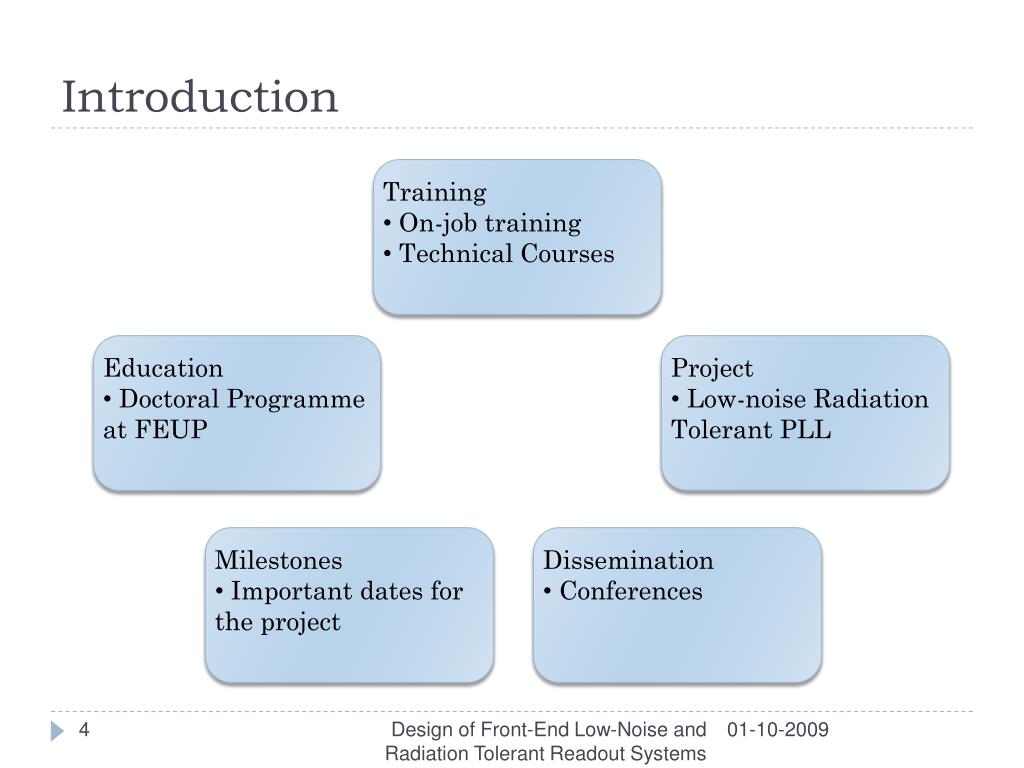

  4. Introduction • Training • On-job training • Technical Courses • Education • Doctoral Programme • at FEUP • Dissemination • Conferences • Milestones • Important dates for the project • Project • Low-noise Radiation Tolerant PLL Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

  5. Training Training Training Self-training Interaction with experts On-Job training Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

  6. Training • EPLF Course – “PLLs, VCOs and Frequency Synthesizers“ Ali Hajimiri • Modelling and Design of High-Speed VCOs • Jitter and Phase Noise in PLLs MichielSteyaert • Low-Power Crystal Oscillators • Basic Concepts of PLL Topologies • CMOS Prescalers & Advanced Loop Filters • Integrated VCOs and Synthesizers Ian Galton • Fractional-N PLLs John Cowles • High Speed Synthesizers for Communications • ESSCIRC 2009 Conference Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

  7. Training • PhD in Electrical and Computer Engineering Design of Front-End Low-Noise and Radiation Tolerant Readout Systems 1st semester (2009/2010) • Microelectronic and Micro-electro-Mechanical Technologies • Test and Design for Testability • Digital Communication Systems • Seminars 2nd semester (2011/2012) • Advanced Microelectronic Systems Design • Instrumentation and Systems Testing • Measure Theory and Stochastic Processes • Individual Topics Education Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

  8. Project Top-levelanalisysusingMatLab Project IC Design UsingCadence Radiation/ performacetests Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

  9. Project Phase Locked Loop – PLL • Digital communication of data is affected by noise • There is the need to develop circuit that does data recovering • The PLL will act as a Jitter-filter, as well as a clock multiplier and can be used in CDR applications. • Is a feedback system that generates an output frequency according to a reference. • Compares the output and the input phase of two signals • Main blocks: • Phase-Detector (PD or PFD) • Voltage Controlled Oscillator (VCO) • Low-Pass Filter (LPF) • Divider or Pre-scaler Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

  10. Project • Phase Locked Loop – PLL • Based on QPLL characteristics • Crystal frequency = 80.1572 MHz • Locking range = 40.0786 MHz ± 8 kHz • Output Jitter < 15 ps • 130 nm CMOS Technology • One frequency multiplication mode: × 2 • Power voltage: 1.2 V • 10 GHz VCO for High-Speed Transceiver • Very low-phase noise characteristics Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

  11. Project 130 nm CMOS Technology • Main focus of this period was the VCO • First approach to oscillator design was done with a Colpitts oscillator. Later the cross-coupled pair and a mixture of both. • First oscillator designed at schematics level @ 1 GHz • Single-ended oscillator @ 10 GHz • Differential oscillator @ 10 GHz Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

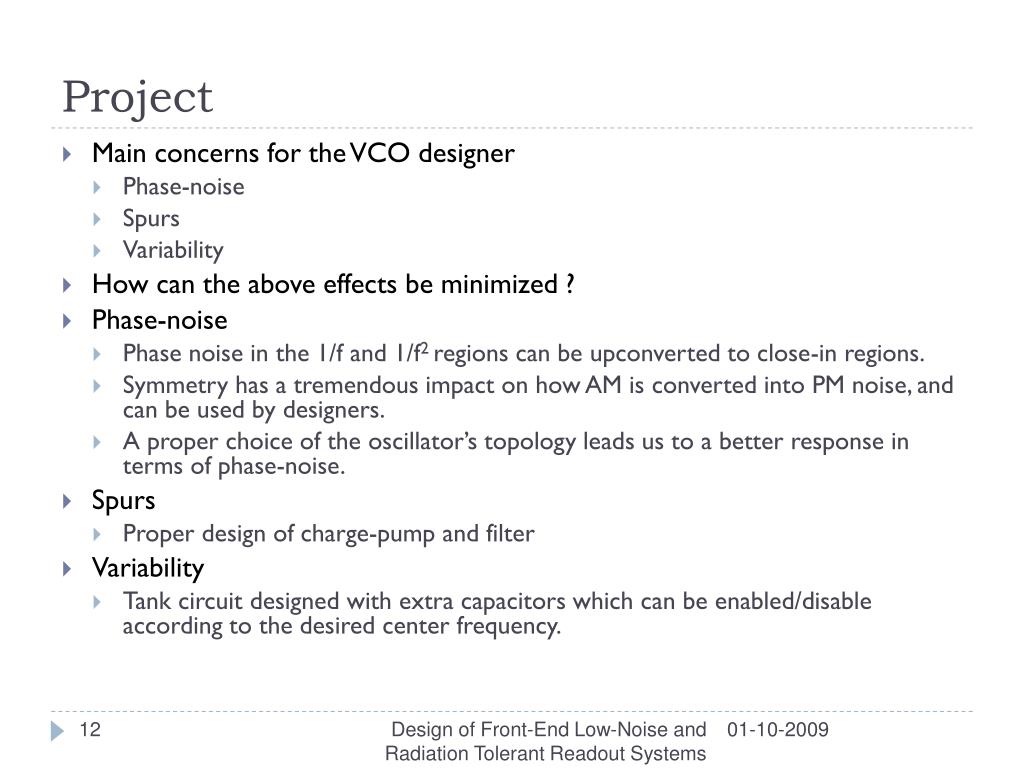

  12. Project • Main concerns for the VCO designer • Phase-noise • Spurs • Variability • How can the above effects be minimized ? • Phase-noise • Phase noise in the 1/f and 1/f2 regions can be upconverted to close-in regions. • Symmetry has a tremendous impact on how AM is converted into PM noise, and can be used by designers. • A proper choice of the oscillator’s topology leads us to a better response in terms of phase-noise. • Spurs • Proper design of charge-pump and filter • Variability • Tank circuit designed with extra capacitors which can be enabled/disable according to the desired center frequency. 12 Design of Front-End Low-Noise and Radiation Tolerant Readout Systems 01-10-2009

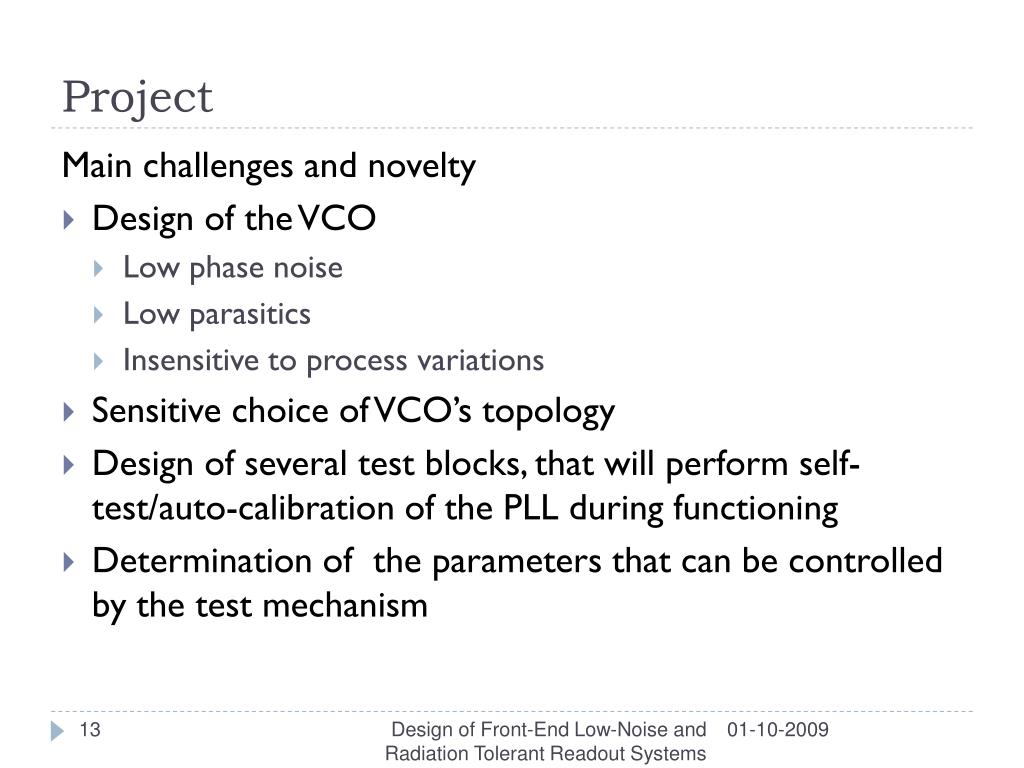

  13. Project Main challenges and novelty • Design of the VCO • Low phase noise • Low parasitics • Insensitive to process variations • Sensitive choice of VCO’s topology • Design of several test blocks, that will perform self-test/auto-calibration of the PLL during functioning • Determination of the parameters that can be controlled by the test mechanism Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

  14. Project What to expect from the circuit ? • A low noise PLL • Embedded Built-in self-test system • Jitter Measuring circuit • Automatic Amplitude Control/ Automatic Gain Control • Automatic Frequency Control • Memory to save the settings of the PLL Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

  15. Milestones 10th of May 2010 Tape-out Crystal PLL 1st of October 2010 Radiation tests 1st of March 2010 First part of the secondment 25th of October 2010 Tape-out LC PLL Milestones 1st of March 2011 Radiation tests 1st of August 2011 Second part of the secondment Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

  16. Conferences • Targeted conferences: 2010 • PRIME 2010 – July 2010 • TWEPP 2010 – September 2010 • DCIS 2010 – November 2010 2011 • IM3STW 2011– June 2011 • DATE 2011– March 2011 • ITC 2011– October 2011 Dissemination Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

  17. Conclusions • A top-level modelling is being used to analyse and specify the system, prior to design • There are two circuits to be developed: • Crystal PLL • LC VCO for a 10 GHz PLL • The final versions will include self-test building blocks • Tape-out of the first circuit should be done during May 2010 • By September 2010 at least one paper should have been published in one of the conferences Design of Front-End Low-Noise and Radiation Tolerant Readout Systems

  18. Thank you for your attention. Design of Front-End Low-Noise and Radiation Tolerant Readout Systems
