1. Windows Rootkits – Userland API Hooking Robert Vinson – IT Security Analyst – University of Iowa 09/06/06

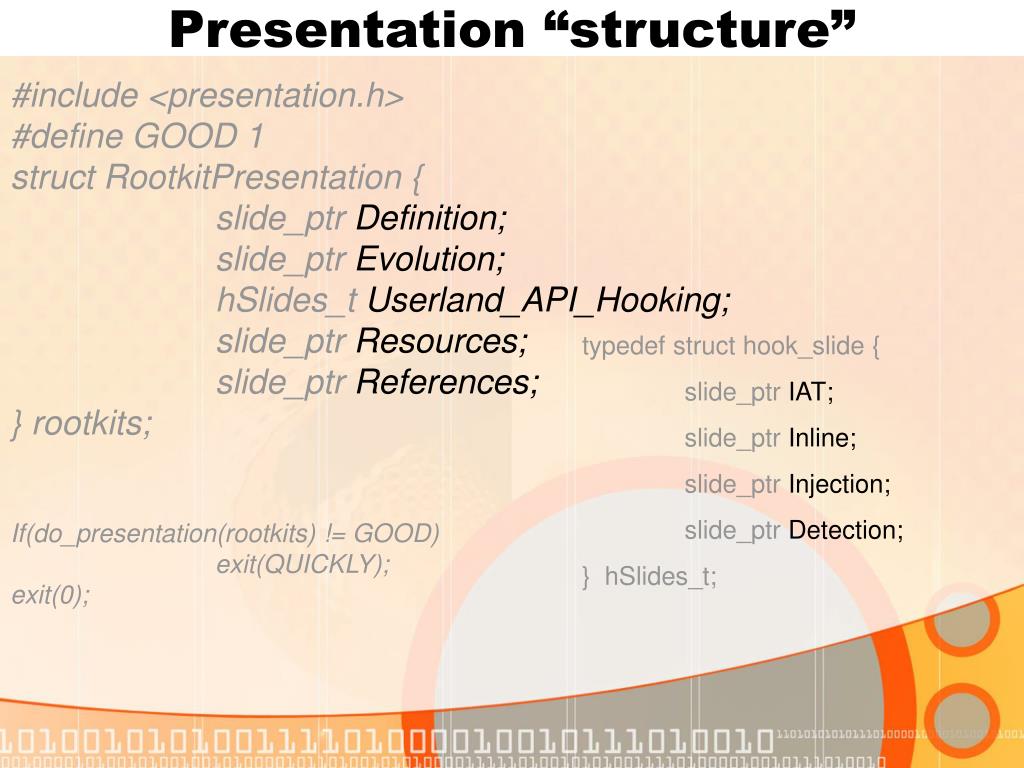

2. Presentation “structure” #include <presentation.h> #define GOOD 1 struct RootkitPresentation { slide_ptr Definition; slide_ptr Evolution; hSlides_t Userland_API_Hooking; slide_ptr Resources; slide_ptr References; } rootkits; typedef struct hook_slide { slide_ptr IAT; slide_ptr Inline; slide_ptr Injection; slide_ptr Detection; } hSlides_t; If(do_presentation(rootkits) != GOOD) exit(QUICKLY); exit(0);

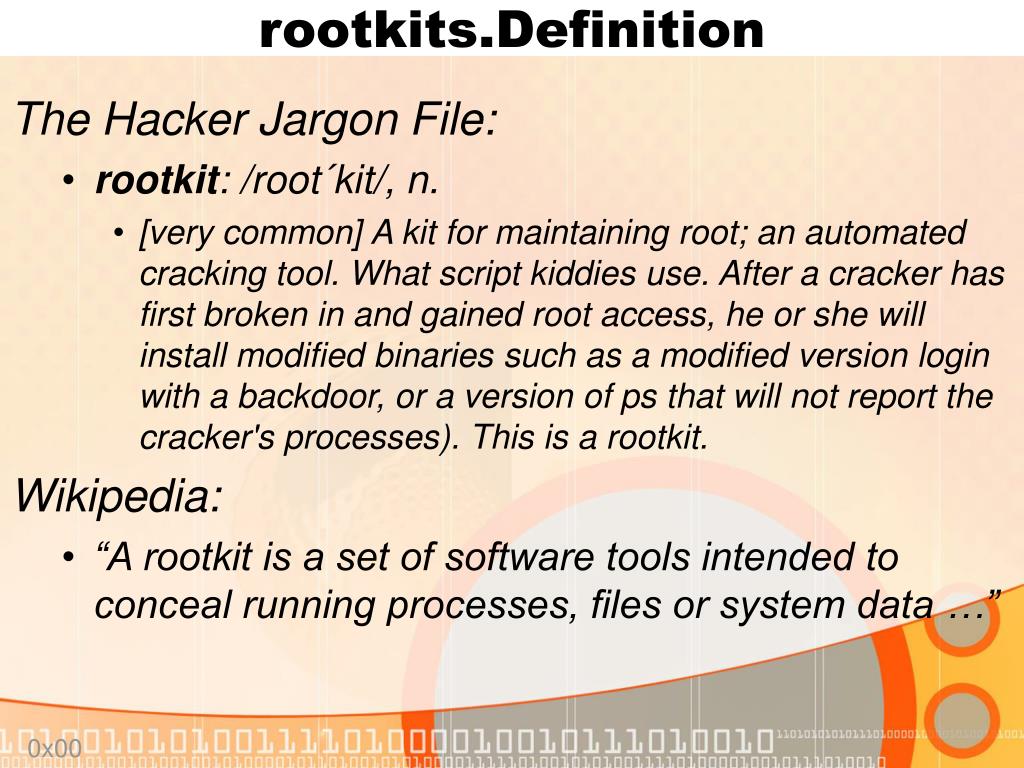

3. rootkits.Definition The Hacker Jargon File: • rootkit: /root´kit/, n. • [very common] A kit for maintaining root; an automated cracking tool. What script kiddies use. After a cracker has first broken in and gained root access, he or she will install modified binaries such as a modified version login with a backdoor, or a version of ps that will not report the cracker's processes). This is a rootkit. Wikipedia: • “A rootkit is a set of software tools intended to conceal running processes, files or system data …” 0x00

4. rootkits.Evolution The Roots: • Rootkits were originally for *nix systems. The goal of these kits were to allow an attacker to maintain root access to a computer. This is where the “root” comes from in the compound word. These kits typically replaced/modified common administrative utilities to hide backdoor utilities. The Branches: • Rootkits have grown into API hooking, kernel hooking, DKOM (Direct Kernel Object Manipulation), and more… 0x00

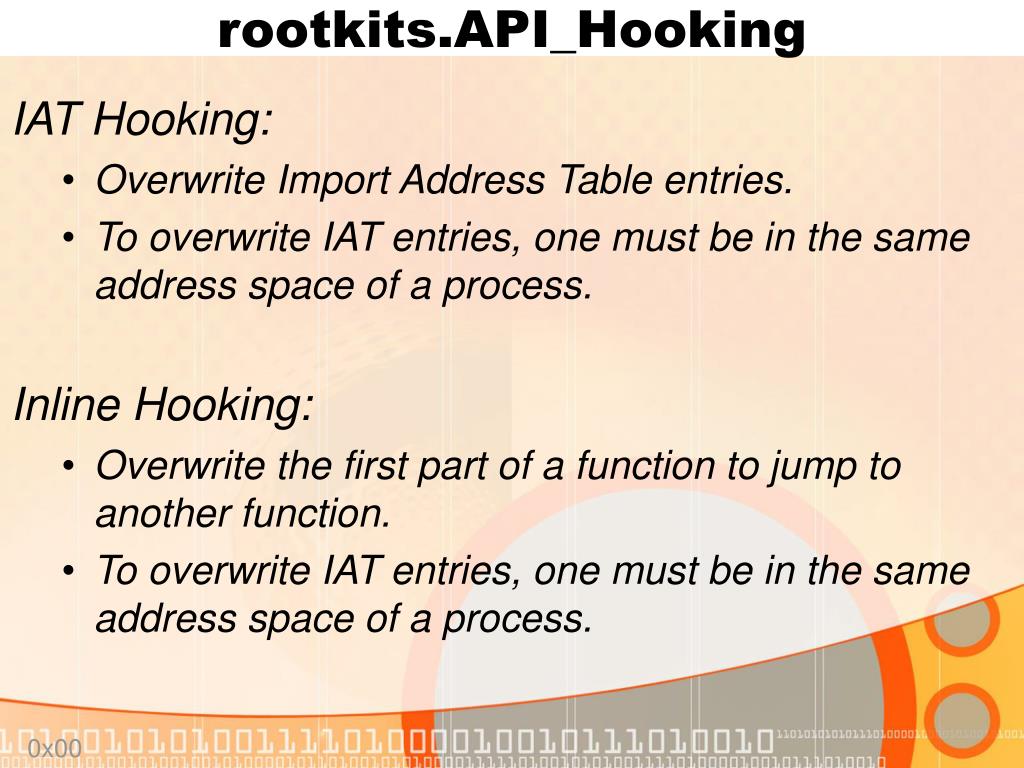

5. rootkits.API_Hooking IAT Hooking: • Overwrite Import Address Table entries. • To overwrite IAT entries, one must be in the same address space of a process. Inline Hooking: • Overwrite the first part of a function to jump to another function. • To overwrite IAT entries, one must be in the same address space of a process. 0x00

6. rootkits.API_Hooking.IAT Definition - IAT: • The Import Address Table is a list of function pointers. • IAT function pointers are set when the Windows loader loads a program. • A function pointer points to the address of a function contained in a .dll loaded into the address space of the process. 0x00

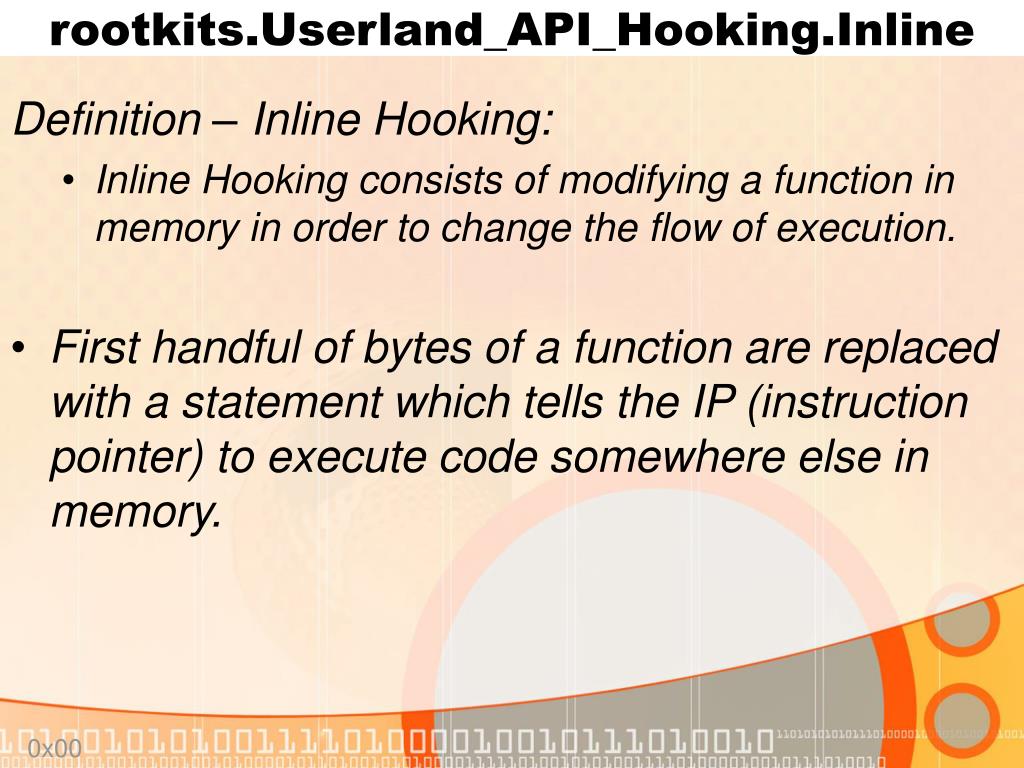

7. rootkits.Userland_API_Hooking.Inline Definition – Inline Hooking: • Inline Hooking consists of modifying a function in memory in order to change the flow of execution. • First handful of bytes of a function are replaced with a statement which tells the IP (instruction pointer) to execute code somewhere else in memory. 0x00

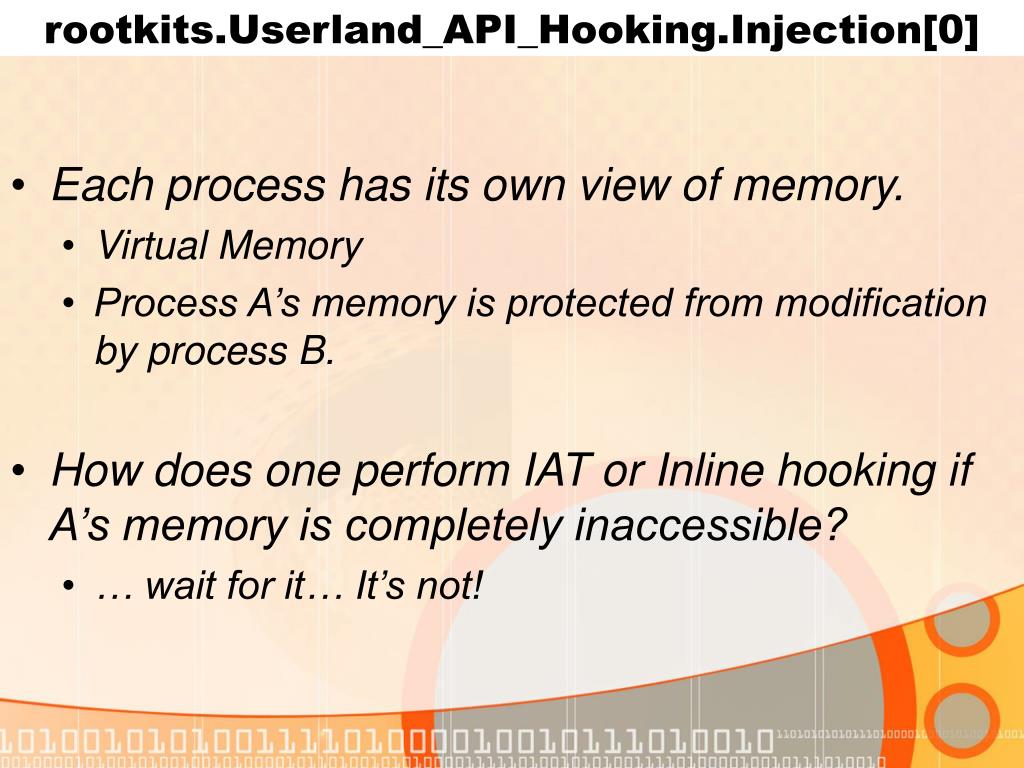

8. rootkits.Userland_API_Hooking.Injection[0] • Each process has its own view of memory. • Virtual Memory • Process A’s memory is protected from modification by process B. • How does one perform IAT or Inline hooking if A’s memory is completely inaccessible? • … wait for it… It’s not!

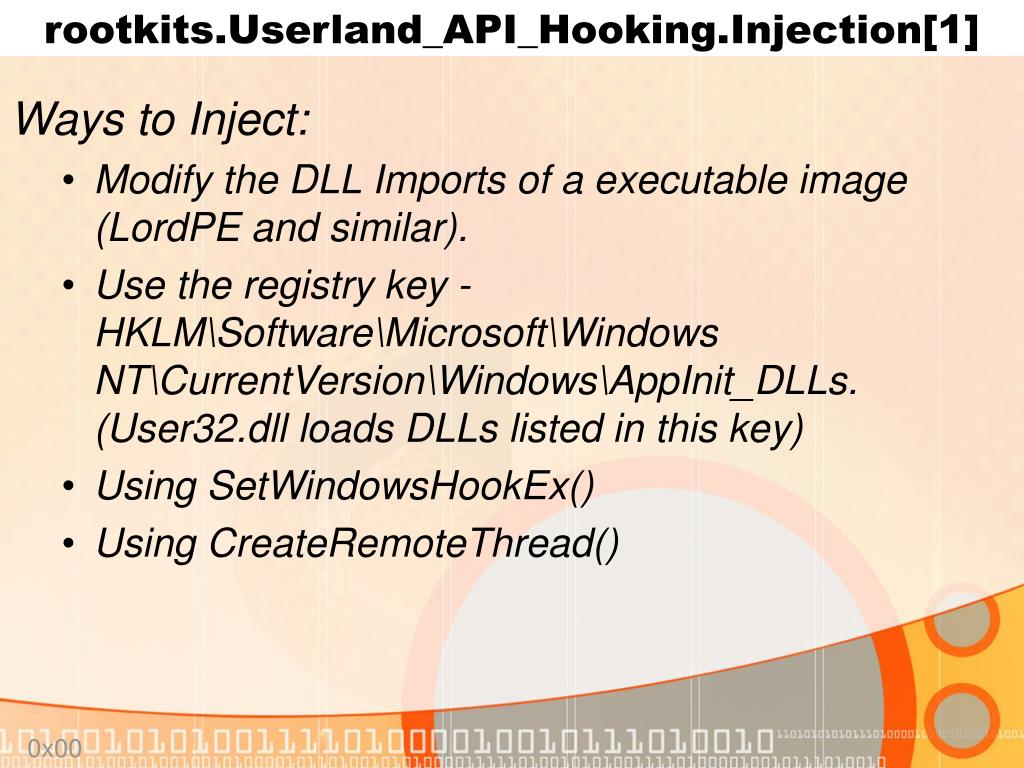

9. rootkits.Userland_API_Hooking.Injection[1] Ways to Inject: • Modify the DLL Imports of a executable image (LordPE and similar). • Use the registry key -HKLM\Software\Microsoft\Windows NT\CurrentVersion\Windows\AppInit_DLLs. (User32.dll loads DLLs listed in this key) • Using SetWindowsHookEx() • Using CreateRemoteThread() 0x00

10. rootkits.Userland_API_Hooking.Detection IAT Hooking: • Look in the IAT for function addresses that are not in the typical range. Inline Hooking: • Check first few bytes of a function for a jump. 0x00

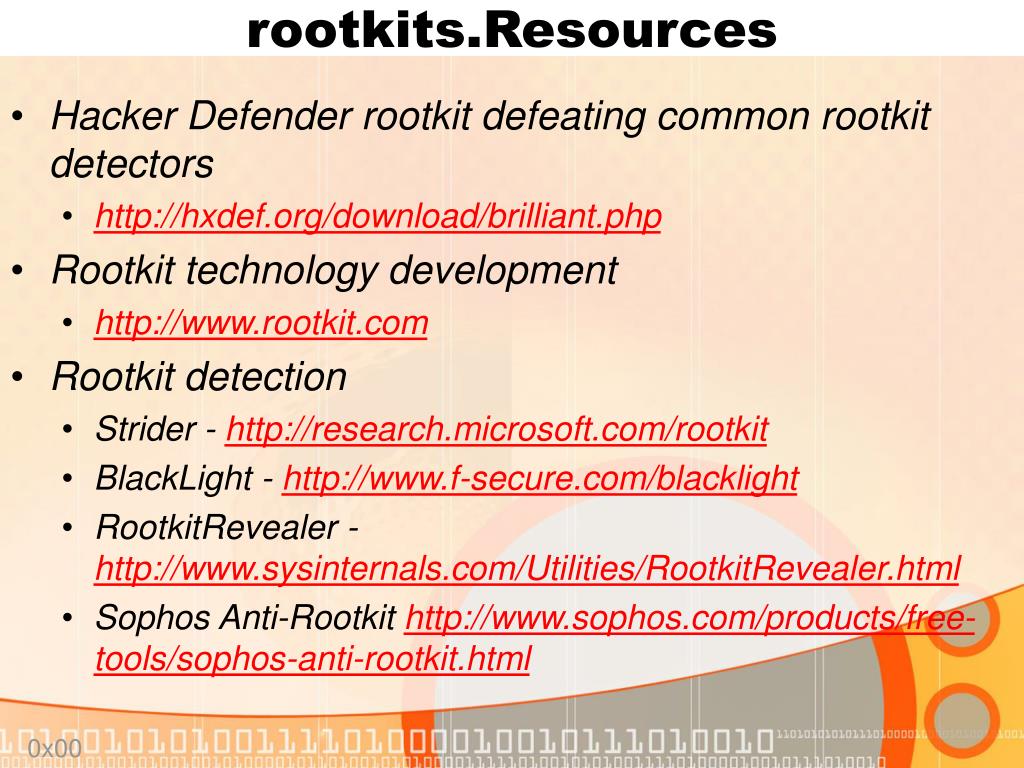

11. rootkits.Resources • Hacker Defender rootkit defeating common rootkit detectors • http://hxdef.org/download/brilliant.php • Rootkit technology development • http://www.rootkit.com • Rootkit detection • Strider - http://research.microsoft.com/rootkit • BlackLight - http://www.f-secure.com/blacklight • RootkitRevealer - http://www.sysinternals.com/Utilities/RootkitRevealer.html • Sophos Anti-Rootkit http://www.sophos.com/products/free-tools/sophos-anti-rootkit.html 0x00

12. rootkits.References • Hoglund, Greg and James Butler. Rootkits: Subverting the Windows Kernel. Stoughton, MA: Addison-Wesley, 2006 • Portable Executable format - http://www.microsoft.com/whdc/system/platform/firmware/PECOFF.mspx 0x00
