  1. 7.3 Applications of the Normal Distribution

  2. Probabilities • We want to calculate probabilities and values for general normal probability distributions • We can relate these problems to calculations for the standard normal in the previous section

  3. Z-Score • For a general normal random variable X with mean μ and standard deviation σ, the variable has a standard normal probability distribution • We can use this relationship to perform calculations for X

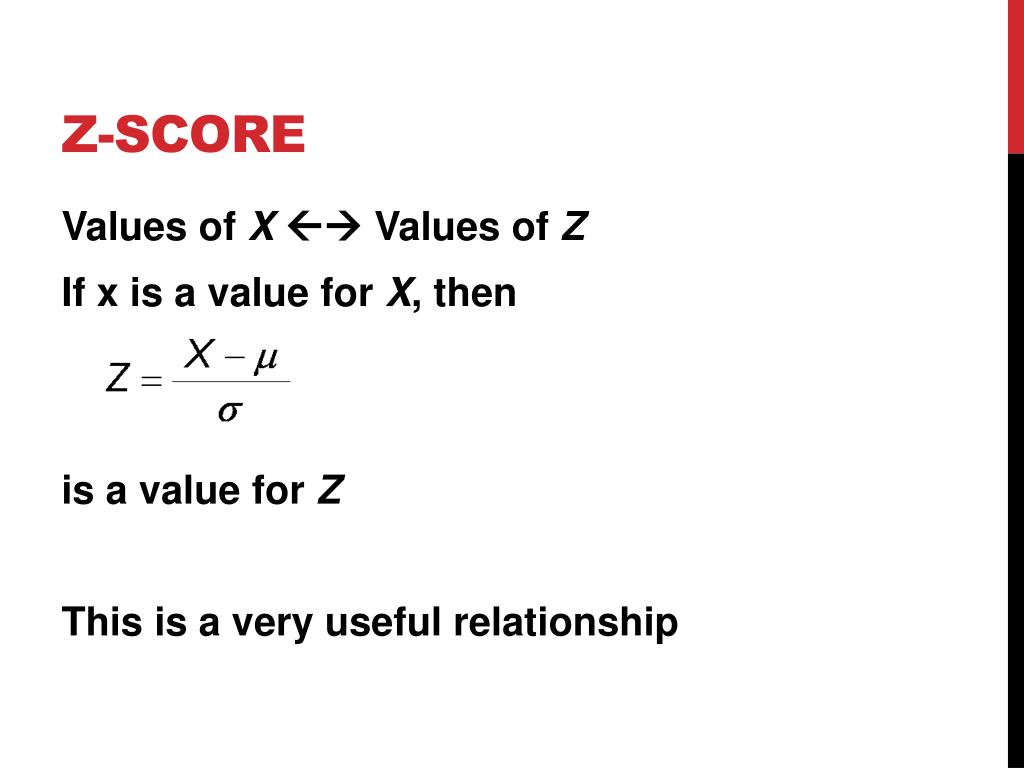

  4. Z-Score • Values of X Values of Z • If x is a value for X, then is a value for Z • This is a very useful relationship

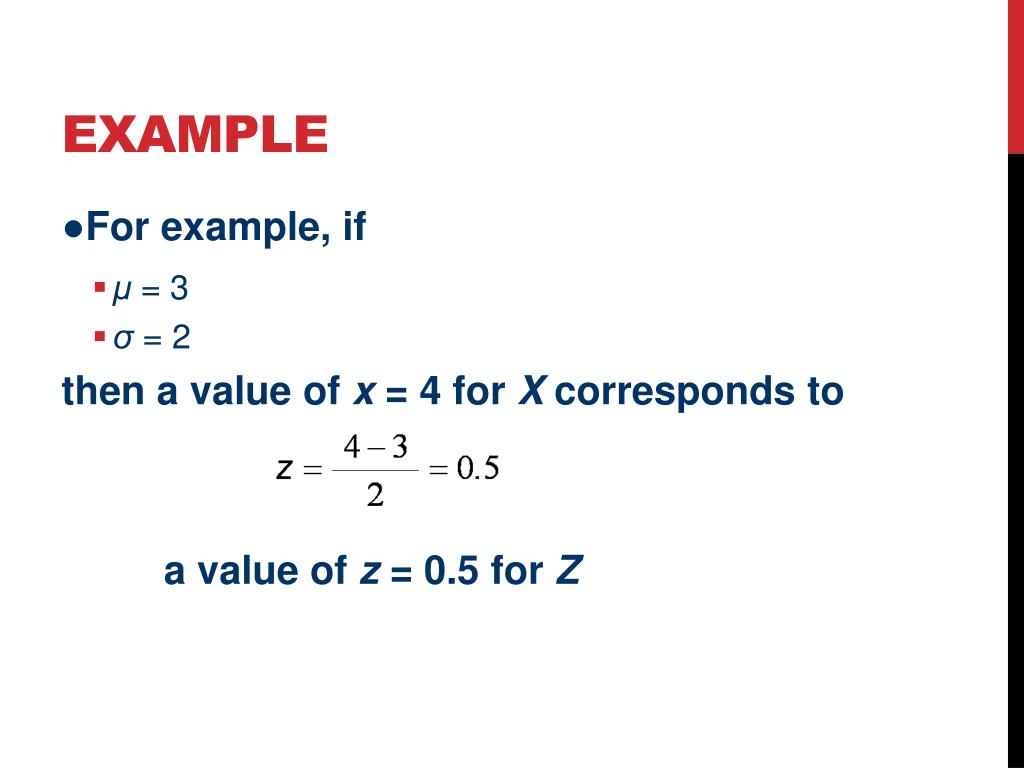

  5. Example • For example, if • μ = 3 • σ = 2 then a value of x = 4 for X corresponds to a value of z = 0.5 for Z

  6. Relationships • Because of this relationship • Values of X Values of Z Then P(X < x) = P(Z < z) • To find P(X < x) for a general normal random variable, we could calculate P(Z < z) for the standard normal random variable

  7. Z is X • With this relationship, the following method can be used to compute areas for a general normal random variable X • Shade the desired area to be computed for X • Convert all values of X to Z-scores using • Solve the problem for the standard normal Z (Section 7.2 Stuff) • The answer will be the same for the general normal X

  8. Example • For a general random variable X with • μ = 3 • σ = 2 calculate P(X < 6) • This corresponds to so P(X < 6) = P(Z < 1.5) = 0.9332 Hint…Normalcdf(small, z , 0,1)

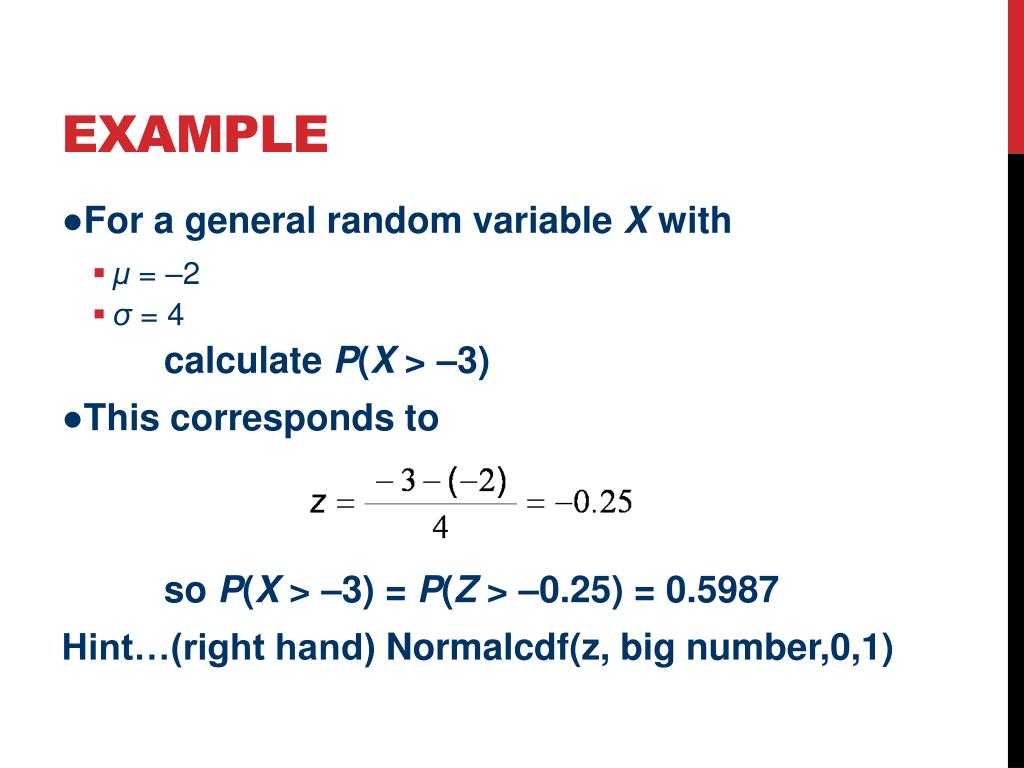

  9. Example • For a general random variable X with • μ = –2 • σ = 4 calculate P(X > –3) • This corresponds to so P(X > –3) = P(Z > –0.25) = 0.5987 Hint…(right hand) Normalcdf(z, big number,0,1)

  10. Between • For a general random variable X with • μ = 6 • σ = 4 calculate P(4 < X < 11) • This corresponds to so P(4 < X < 11) = P(– 0.5 < Z < 1.25) = 0.5858 • Hint…Normalcdf(smaller z,bigger z,0,1)

  11. Inverse • The inverse of the relationship is the relationship • With this, we can compute value problems for the general normal probability distribution

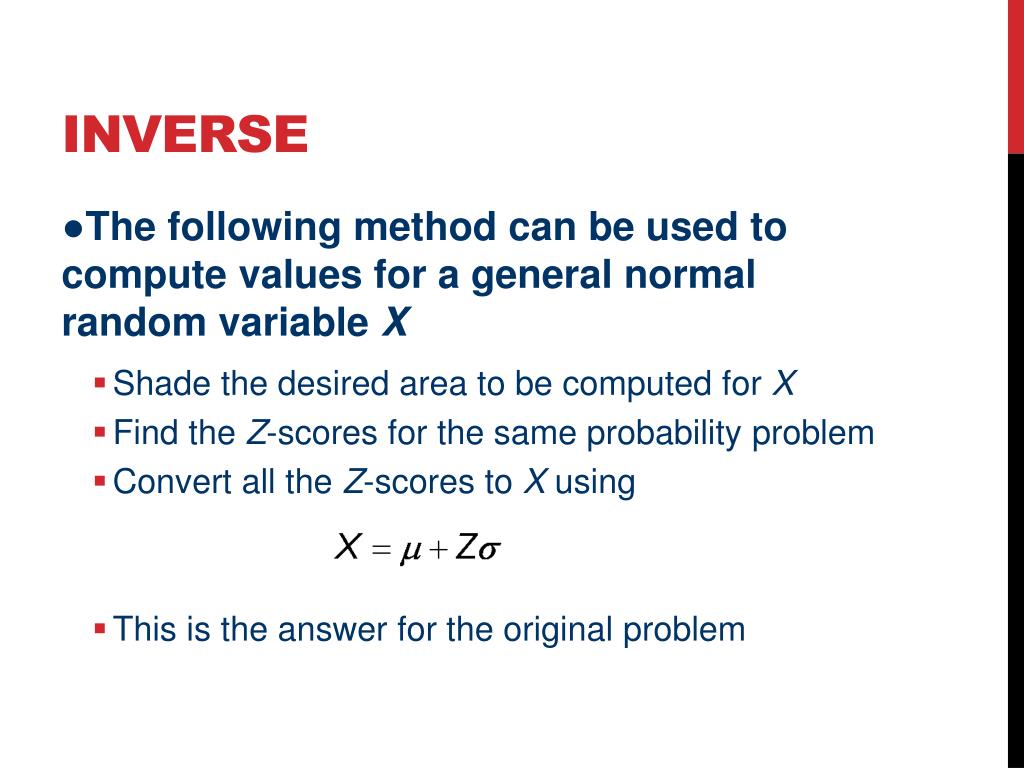

  12. Inverse • The following method can be used to compute values for a general normal random variable X • Shade the desired area to be computed for X • Find the Z-scores for the same probability problem • Convert all the Z-scores to X using • This is the answer for the original problem

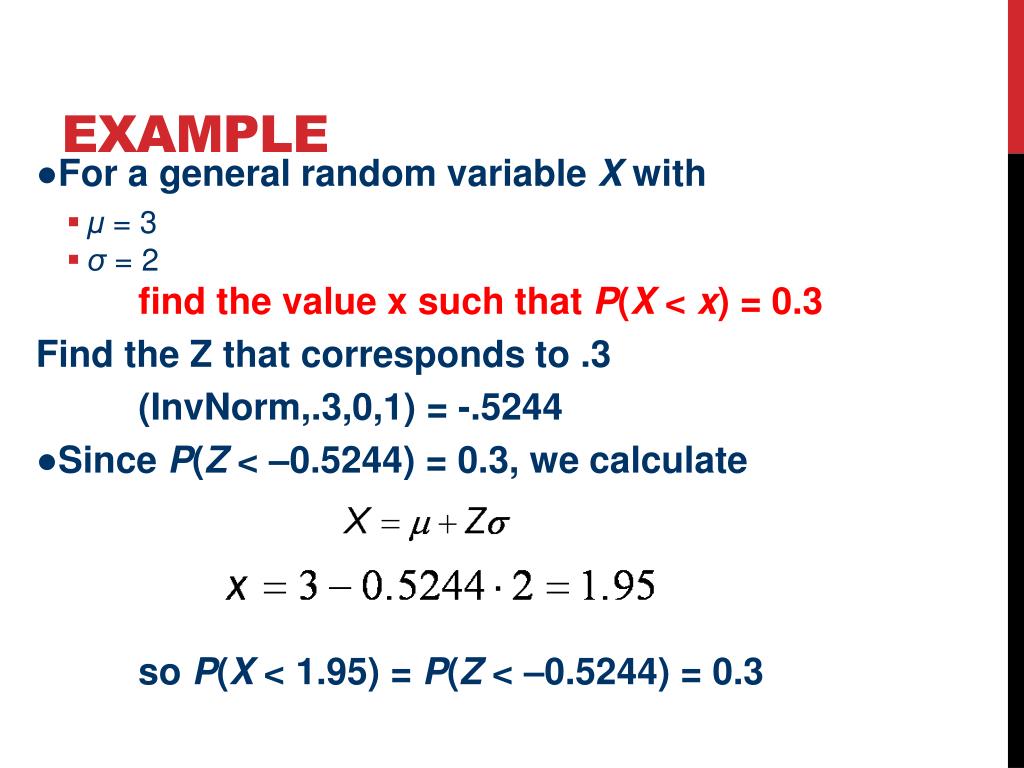

  13. Example • For a general random variable X with • μ = 3 • σ = 2 find the value x such that P(X < x) = 0.3 Find the Z that corresponds to .3 (InvNorm,.3,0,1) = -.5244 • Since P(Z < –0.5244) = 0.3, we calculate so P(X < 1.95) = P(Z < –0.5244) = 0.3

  14. Notice the Greater than!! • For a general random variable X with • μ = –2 • σ = 4 find the value x such that P(X > x) = 0.2 Since it is a “Righthand” we must use 1 - .2 or .8 in our invNorm(.8,0,1) = 0.8416 so P(X > 1.37) = P(Z > 0.8416) = 0.2

  15. Same old Same old • Tough Stuff…work hard on this!
