Understanding Basic Computer Hardware Components

halla-skinner avatar
halla-skinner
9 diapositives · 260 Views · Nov 13, 2014

This guide provides an overview of essential computer hardware components, focusing on input devices, processors, primary and secondary storage, and output devices. Learn about the Central Processing Unit (CPU), its parts like the Arithmetic Logic Unit (ALU) and Control Unit, and the types of primary memory such as ROM and RAM. Discover the significance of cache memory and its impact on computer performance, along with important terminologies like clock speed, word length, and data bus width. Perfect for beginners looking to understand the inner workings of computers.

Understanding Basic Computer Hardware Components - slide 1
01 / 9Understanding Basic Computer Hardware Components
1 / 17

Télécharger la présentation

Understanding Basic Computer Hardware Components
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

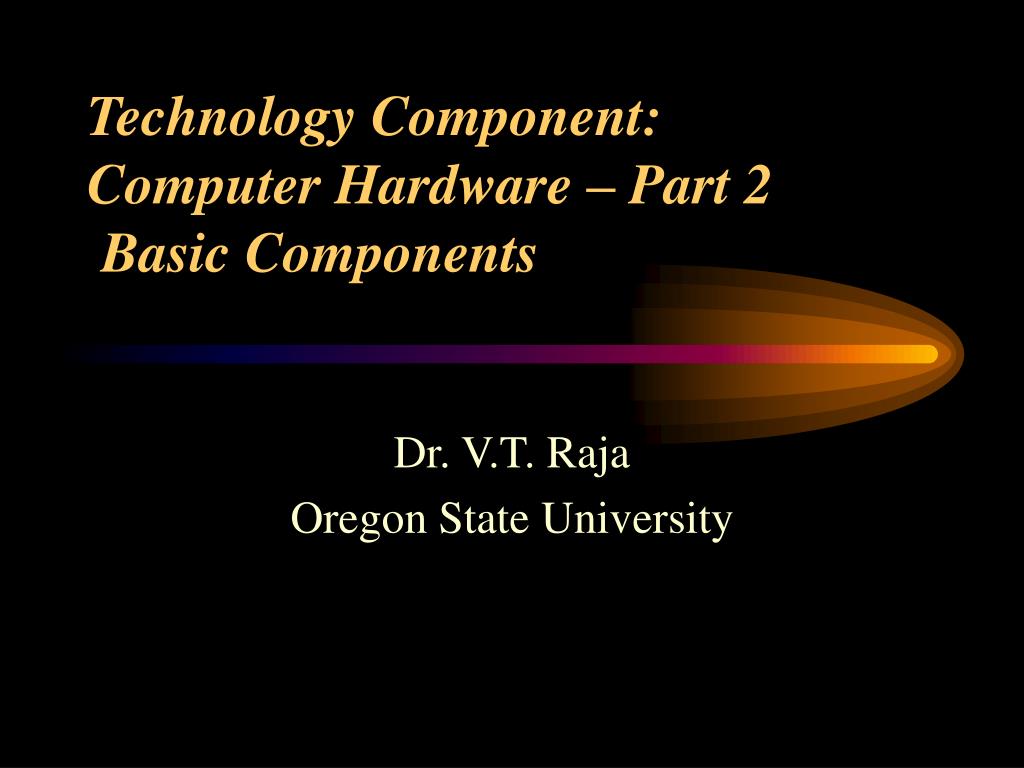

  1. Technology Component: Computer Hardware – Part 2 Basic Components Dr. V.T. Raja Oregon State University

  2. Basic Components of Hardware • Input Devices • Processor/Central Processor/Chip • CPU/ALU • Primary Storage • Secondary Storage • Output Devices • Communication Devices (to be discussed later in another chapter)

  3. Processor • Processor (Chip) has CPU and Primary Memory • CPU does all the processing work in a computer • Primary memory stores data and instructions Instruction: A command that tells a computer how to accomplish a given task • CPU has Arithmetic Logic Unit (ALU) and Control Unit • Control Unit accesses data and instructions from Primary Memory, and transfers them to ALU • ALU performs basic arithmetic and logical operations

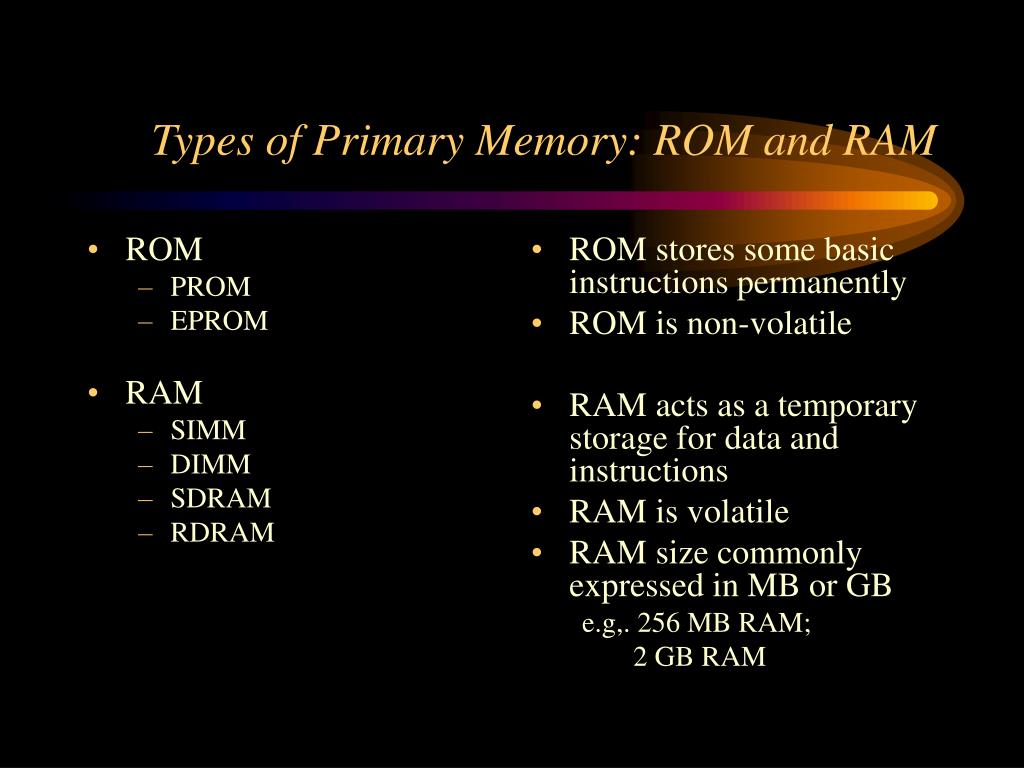

  4. ROM PROM EPROM RAM SIMM DIMM SDRAM RDRAM ROM stores some basic instructions permanently ROM is non-volatile RAM acts as a temporary storage for data and instructions RAM is volatile RAM size commonly expressed in MB or GB e.g,. 256 MB RAM; 2 GB RAM Types of Primary Memory: ROM and RAM

  5. Types of Primary Memory: Cache Memory • Cache memory is a temporary storage for frequently used information • CPU searches cache memory for data and instructions before it searches RAM • Cache is typically located closer to CPU than RAM • Bigger the cache, the faster the computer will perform (assuming all other factors are constant) • Cache is volatile

  6. Terminology • What is clock speed? • Speed at which the processor completes machine cycles • Measured in Megahertz (MHz) or Gigahertz (GHz) • Mega: Million; Giga: Billion • Hence, terminologies such as Pentium 4 / 3.2 GHz • What is word length? • Number of bits that the processor processes at one time. • Example: 16-bit, 32-bit, 64-bit chips

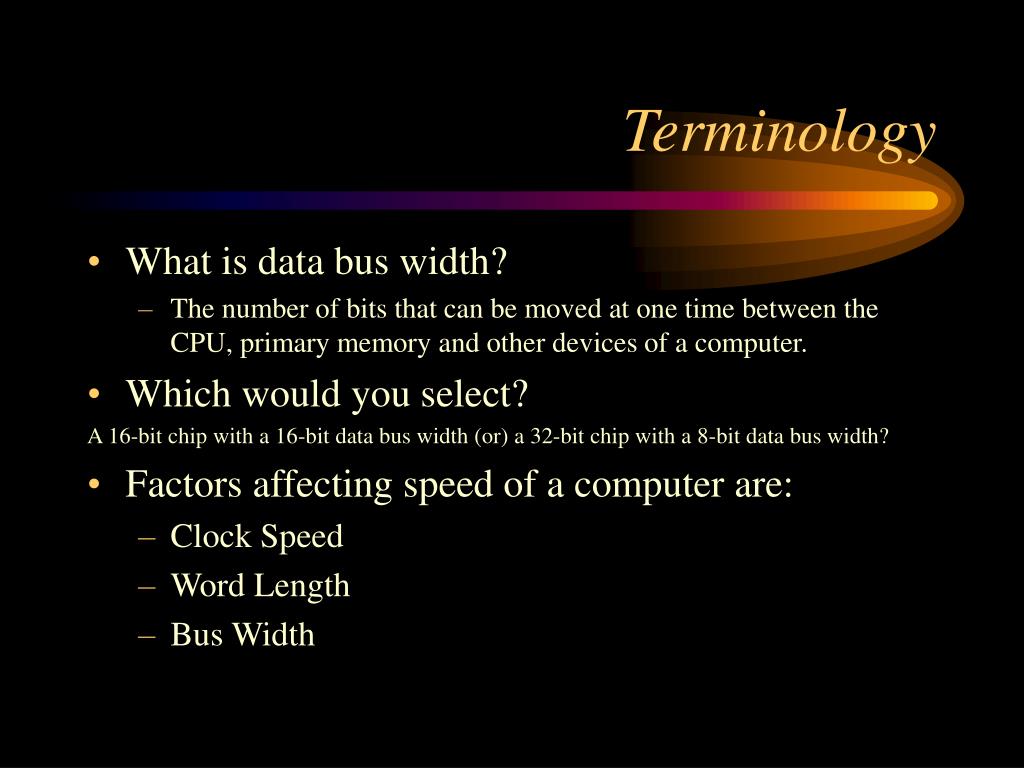

  7. Terminology • What is data bus width? • The number of bits that can be moved at one time between the CPU, primary memory and other devices of a computer. • Which would you select? A 16-bit chip with a 16-bit data bus width (or) a 32-bit chip with a 8-bit data bus width? • Factors affecting speed of a computer are: • Clock Speed • Word Length • Bus Width

  8. Input Devices • Examples of input devices? • What is Source Data Automation (SDA)? • Examples of SDA? • What are some advantages associated with SDA?

  9. Storage Devices • Examples of secondary storage? • Typical storage capacity of secondary storage devices
