  1. Images andWeb Pages Masters Project CS 490

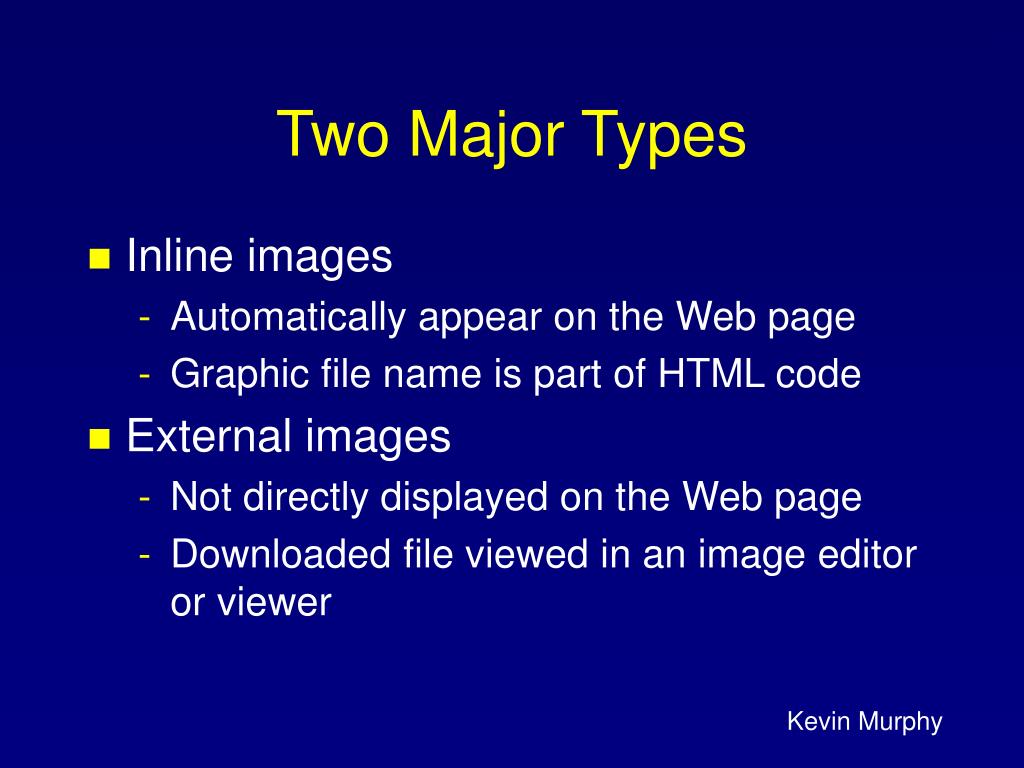

  2. Two Major Types • Inline images • Automatically appear on the Web page • Graphic file name is part of HTML code • External images • Not directly displayed on the Web page • Downloaded file viewed in an image editor or viewer

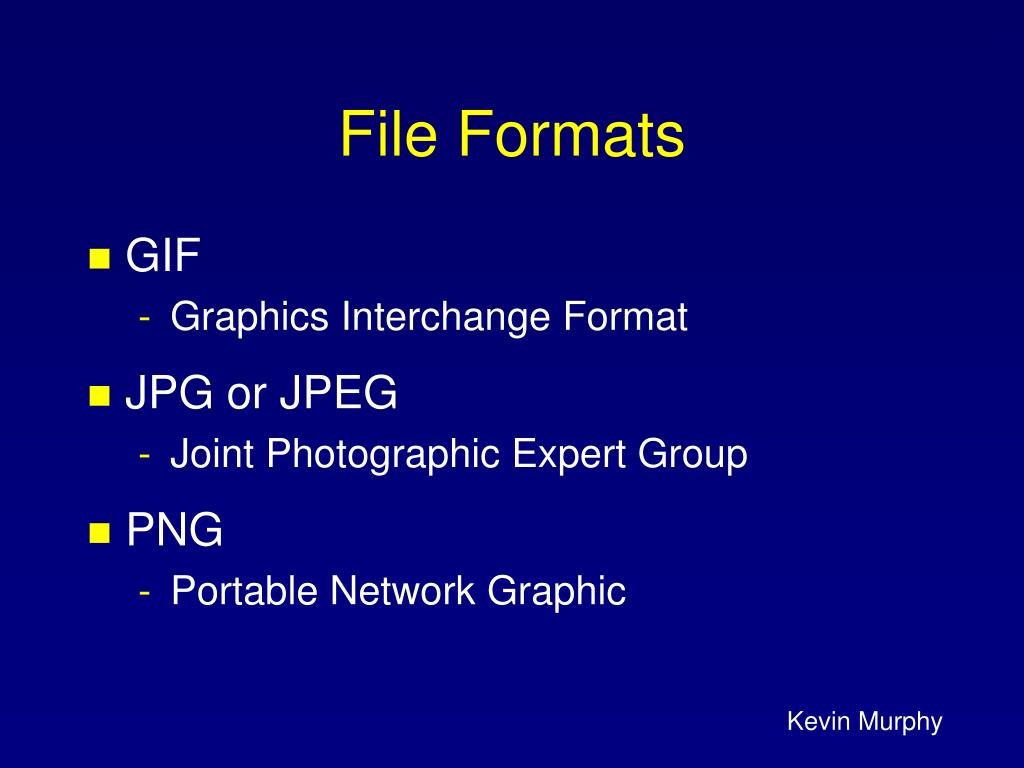

  3. File Formats • GIF • Graphics Interchange Format • JPG or JPEG • Joint Photographic Expert Group • PNG • Portable Network Graphic

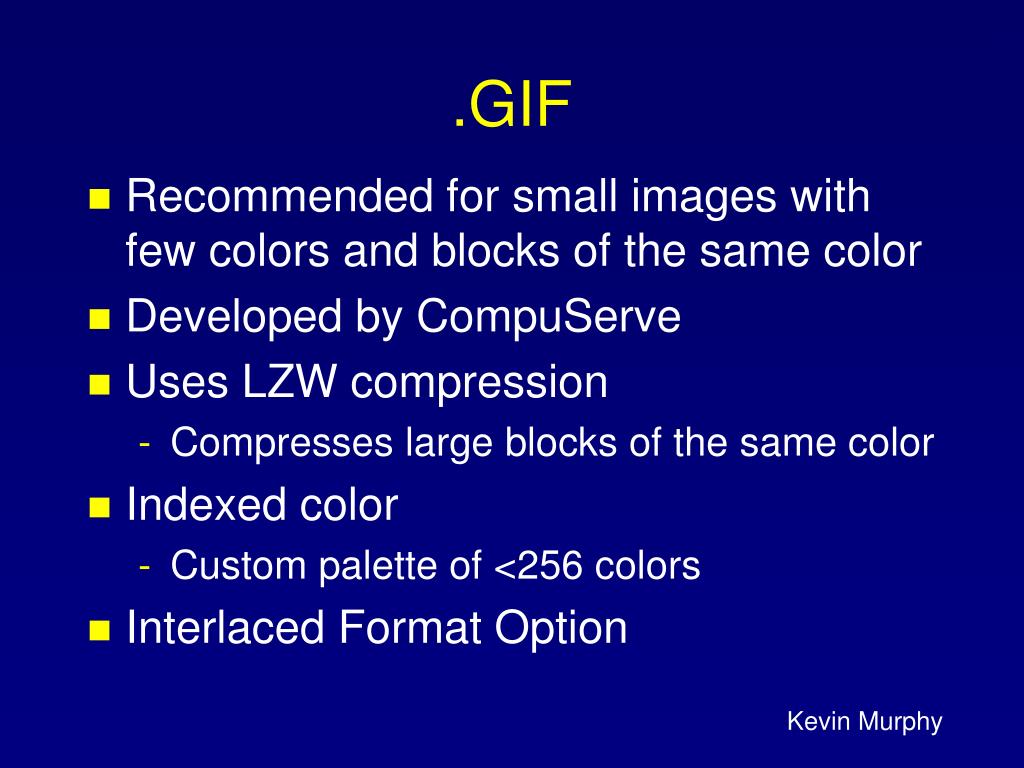

  4. .GIF • Recommended for small images with few colors and blocks of the same color • Developed by CompuServe • Uses LZW compression • Compresses large blocks of the same color • Indexed color • Custom palette of <256 colors • Interlaced Format Option

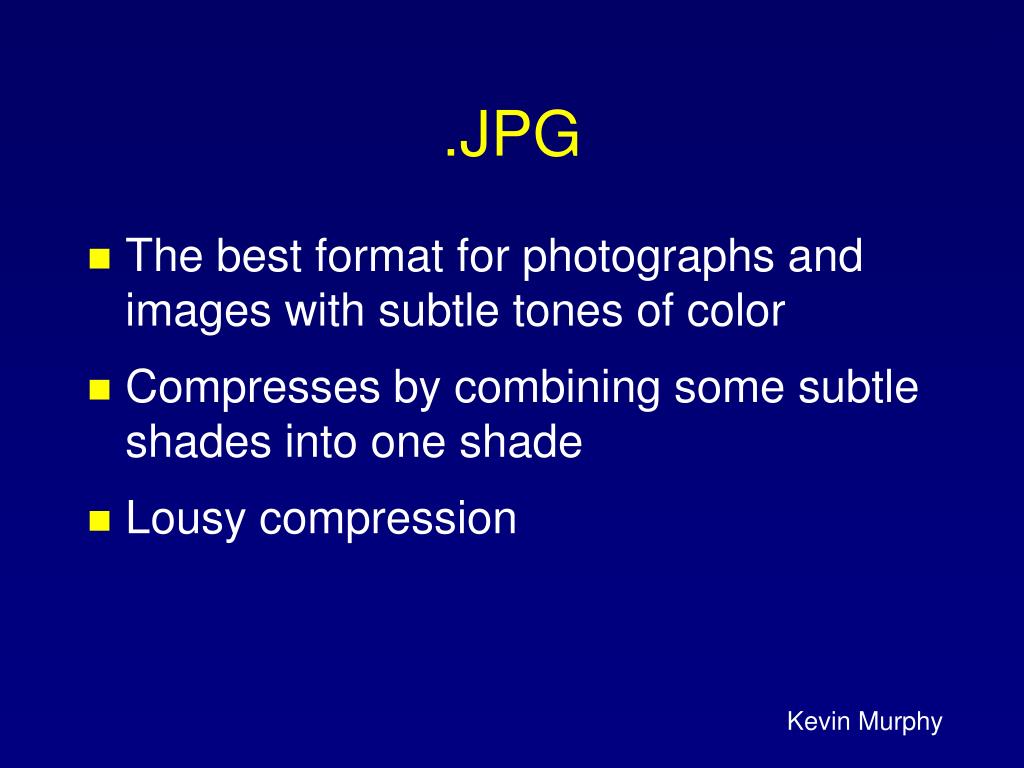

  5. .JPG • The best format for photographs and images with subtle tones of color • Compresses by combining some subtle shades into one shade • Lousy compression

  6. .PNG • Developed in 1995 with the intention of replacing GIF files • Based on a public-domain version of LZW that results in 10-30% file size reduction

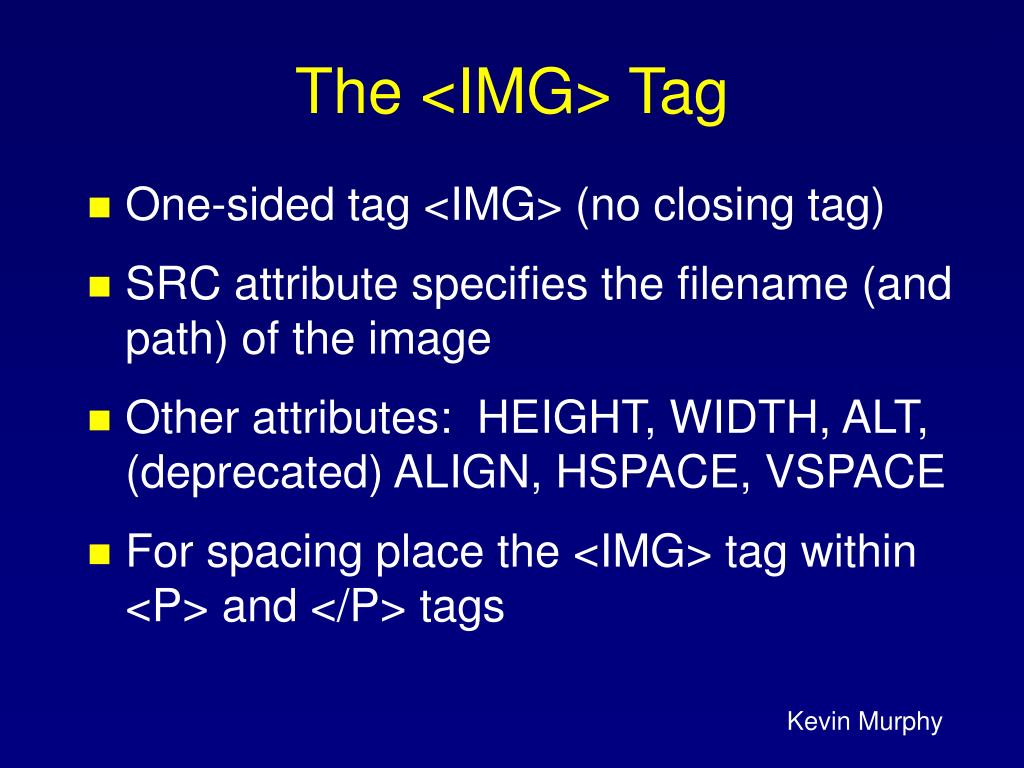

  7. The <IMG> Tag • One-sided tag <IMG> (no closing tag) • SRC attribute specifies the filename (and path) of the image • Other attributes: HEIGHT, WIDTH, ALT, (deprecated) ALIGN, HSPACE, VSPACE • For spacing place the <IMG> tag within <P> and </P> tags

  8. Sample <P> <IMG SRC=“cup.gif” ALT=“Cup Logo”> </P>

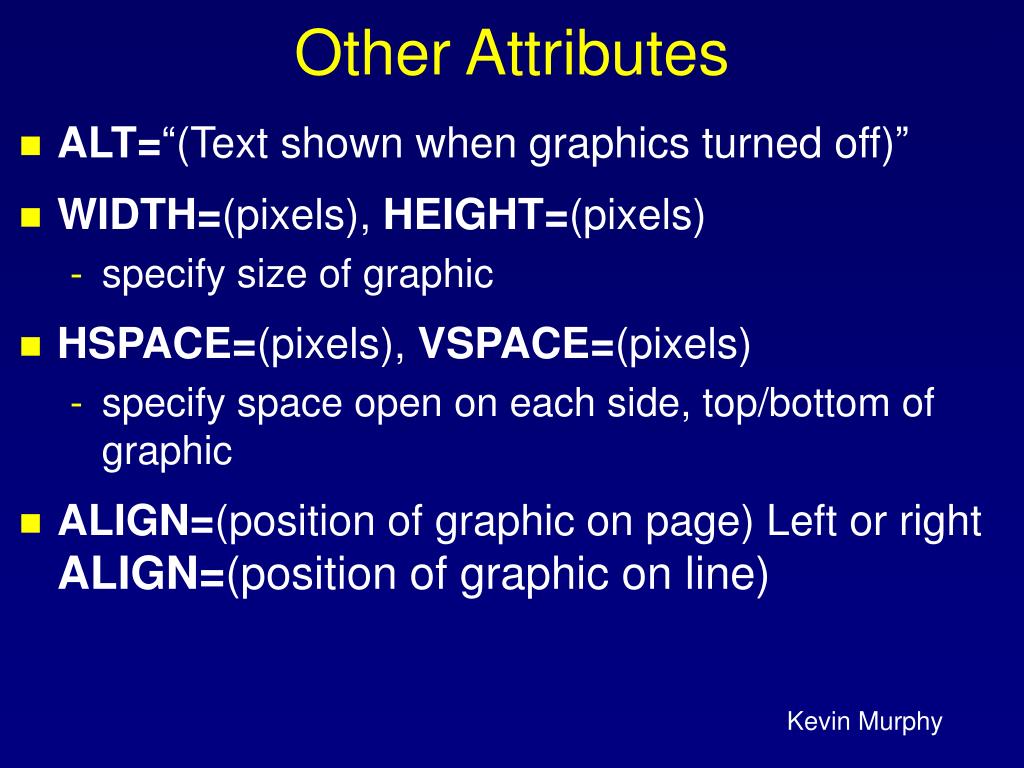

  9. Other Attributes • ALT=“(Text shown when graphics turned off)” • WIDTH=(pixels), HEIGHT=(pixels) • specify size of graphic • HSPACE=(pixels), VSPACE=(pixels) • specify space open on each side, top/bottom of graphic • ALIGN=(position of graphic on page) Left or rightALIGN=(position of graphic on line)

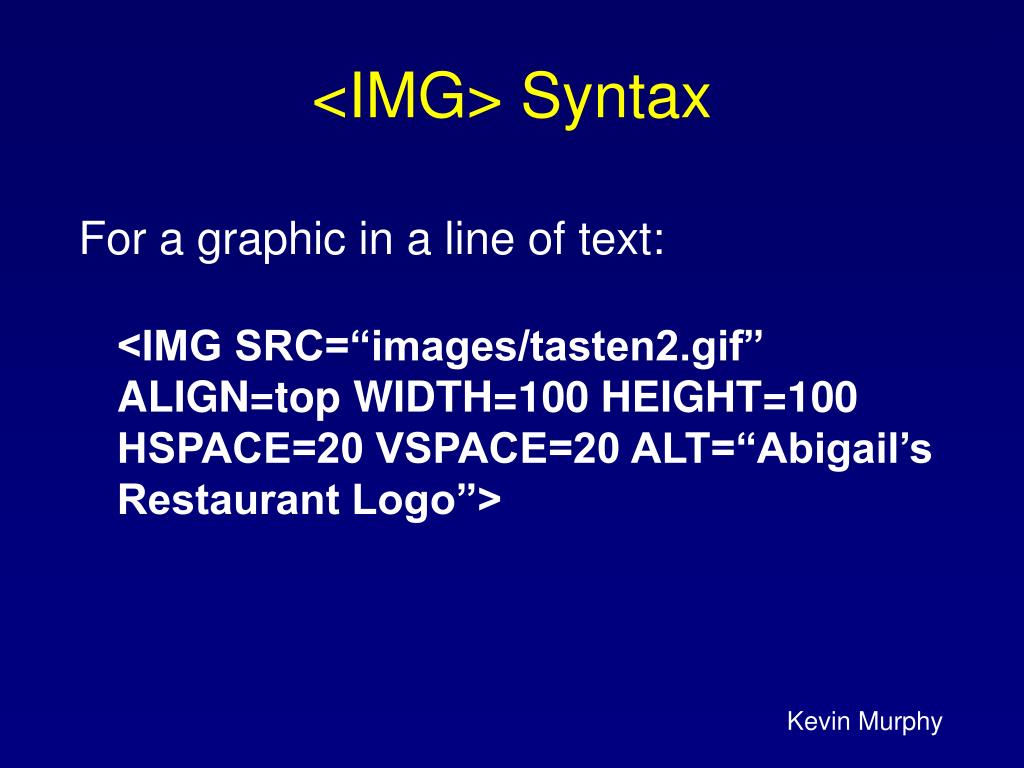

  10. <IMG> Syntax For a graphic in a line of text:<IMG SRC=“images/tasten2.gif” ALIGN=top WIDTH=100 HEIGHT=100 HSPACE=20 VSPACE=20 ALT=“Abigail’s Restaurant Logo”>

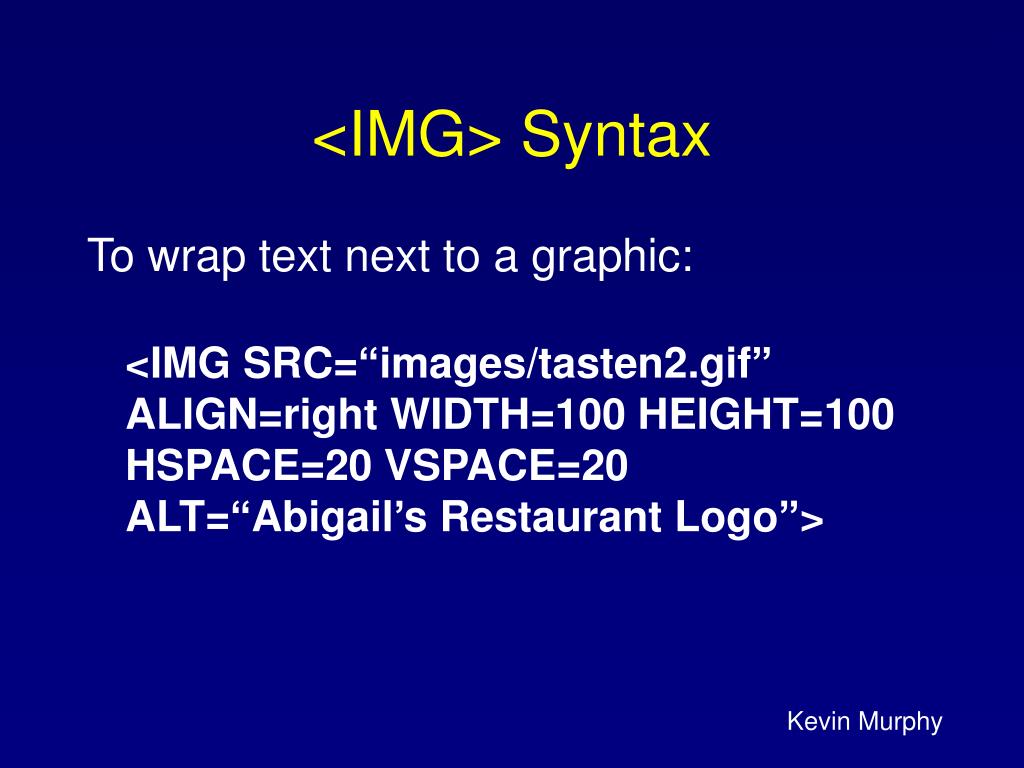

  11. <IMG> Syntax To wrap text next to a graphic:<IMG SRC=“images/tasten2.gif” ALIGN=right WIDTH=100 HEIGHT=100 HSPACE=20 VSPACE=20 ALT=“Abigail’s Restaurant Logo”>

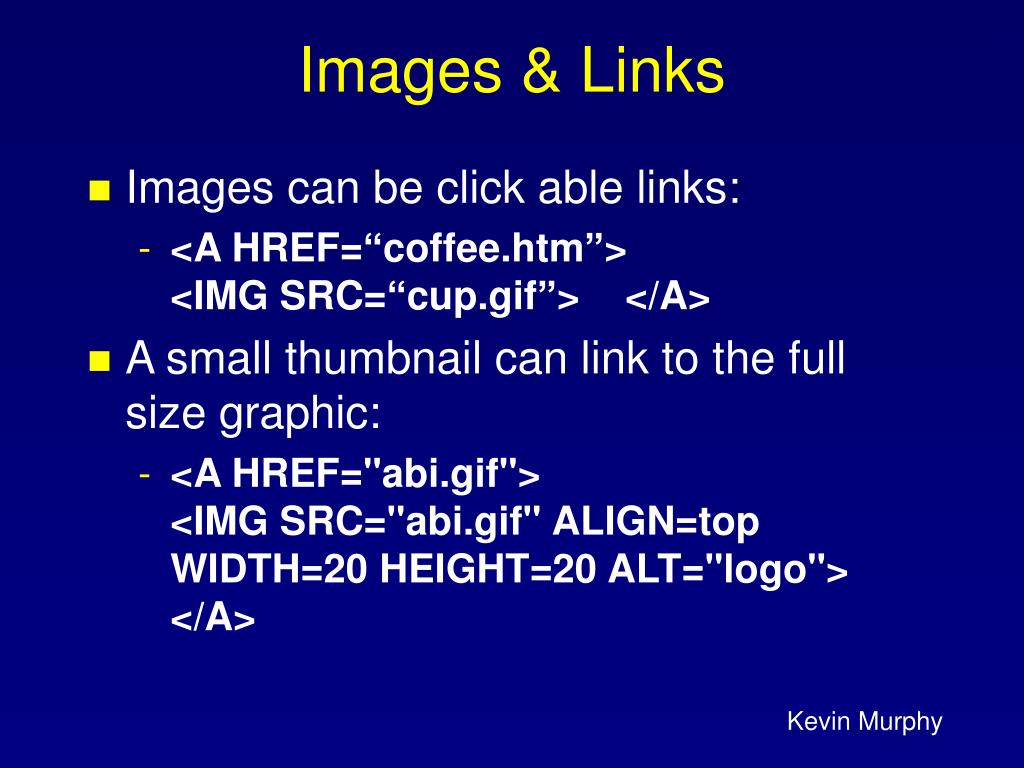

  12. Images & Links • Images can be click able links: • <A HREF=“coffee.htm”> <IMG SRC=“cup.gif”> </A> • A small thumbnail can link to the full size graphic: • <A HREF="abi.gif"> <IMG SRC="abi.gif" ALIGN=top WIDTH=20 HEIGHT=20 ALT="logo"> </A>
