Timber Assessment and Replacement: Revitalizing Rotted Boundry Joist

Timber assessment was conducted through endoscope inspection to address localized damage caused by window corner seal failure. Rotted timber was removed and replaced with treated timber in a swift two-day process, restoring the frame to normal. The windows were resealed, avoiding the need for recladding, and regular monitoring is advised to ensure long-lasting results.

ham
Télécharger la présentation

Timber Assessment and Replacement: Revitalizing Rotted Boundry Joist

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Looks normal Elevated scan readings suggest other wise

  2. Timber assessment required • Endoscope inserted to check timber What is should look like What it did look like - Rot

  3. Removed the lining

  4. Removed more lining Looks worse than it is.. Damaged is localised and is caused by failed window corner seals

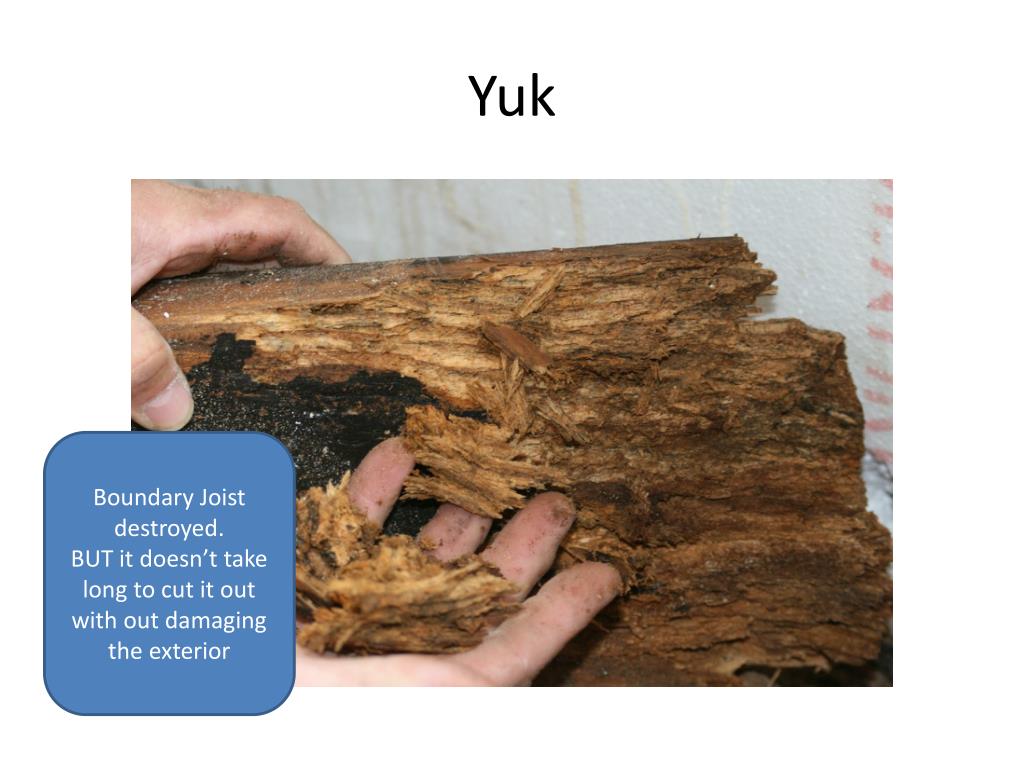

  5. Yuk Boundary Joist destroyed. BUT it doesn’t take long to cut it out with out damaging the exterior

  6. Boundry joist removed Boundary Joist removed

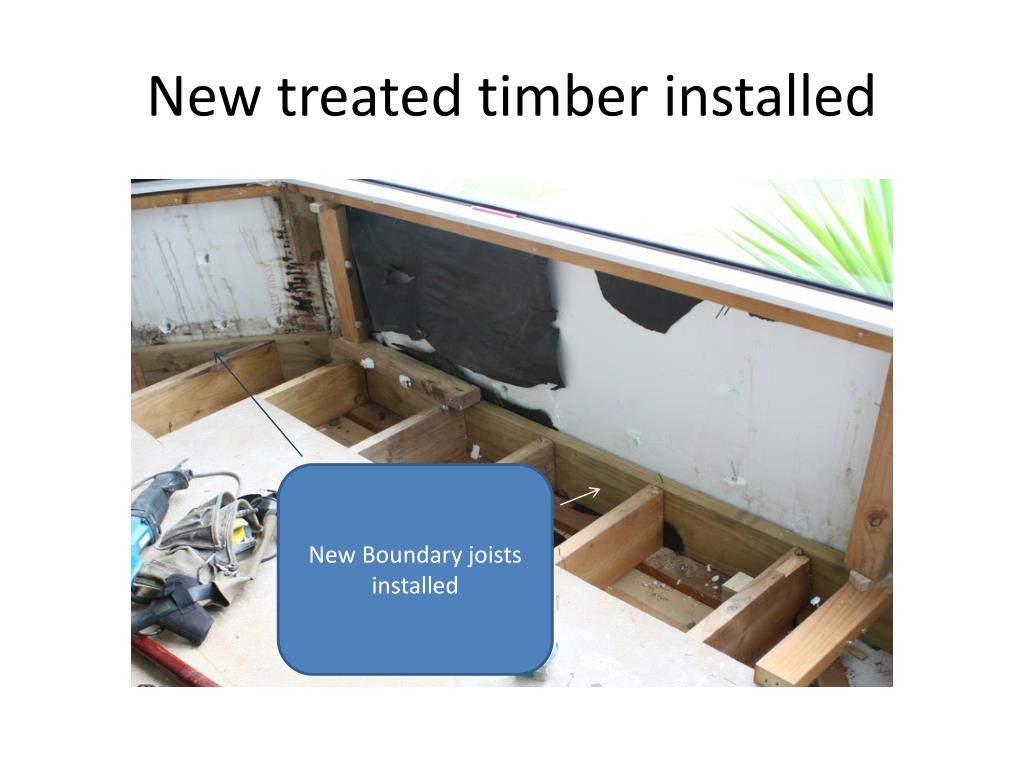

  7. New treated timber installed New Boundary joists installed

  8. Timber replaced

  9. Nearly finished From start to finish has taken two days

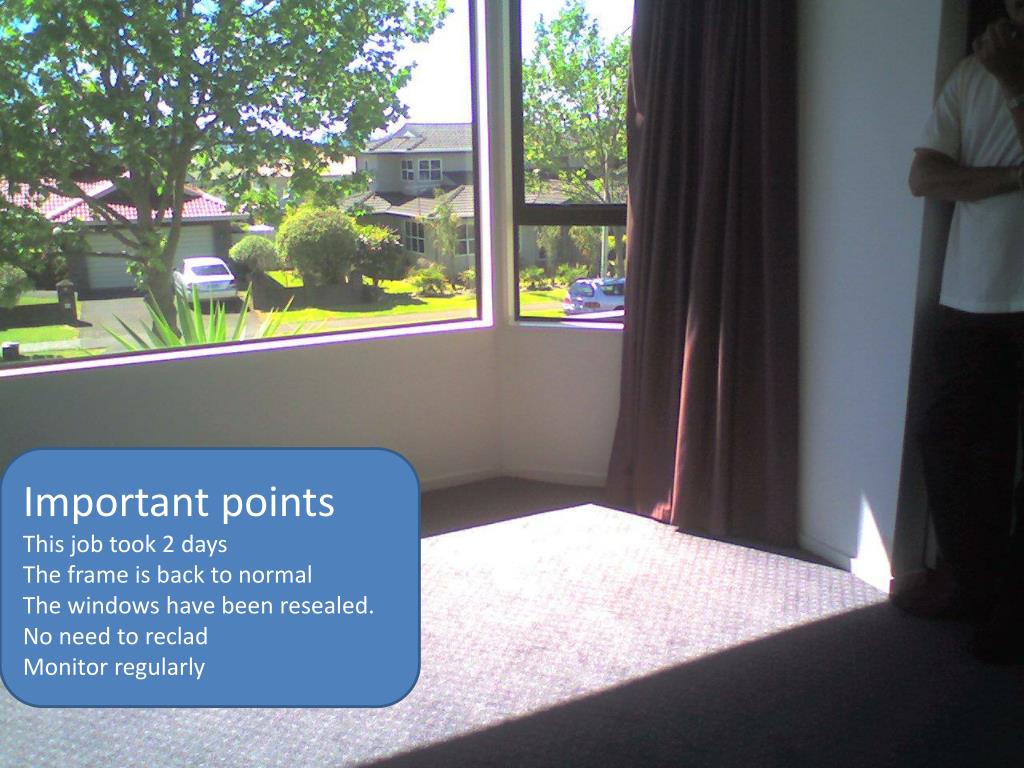

  10. Finished Important pointsThis job took 2 daysThe frame is back to normalThe windows have been resealed.No need to recladMonitor regularly
