  1. Windows 8 Game development using HTML5 and JavaScript Martin Beeby Technical Evangelist Microsoft @thebeebs

  2. Agenda Why Windows 8 10’ Store and distribution Options HTML5, DirectX, C#, Middleware Engines Basics of Canvas 20’ Animation Collision Detection Sprites Using CreateJS 20’ Building a Windows 8 Game with a leaderboard in Azure.

  3. Why Windows 8

  4. The store Designed for Discovery Unprecedented reach Flexible business models Transparent terms Best economics

  5. Flexibility of options One time Purchase Use Your Existing Commerce Purchases over time Ad Supported

  6. Basics of Canvas

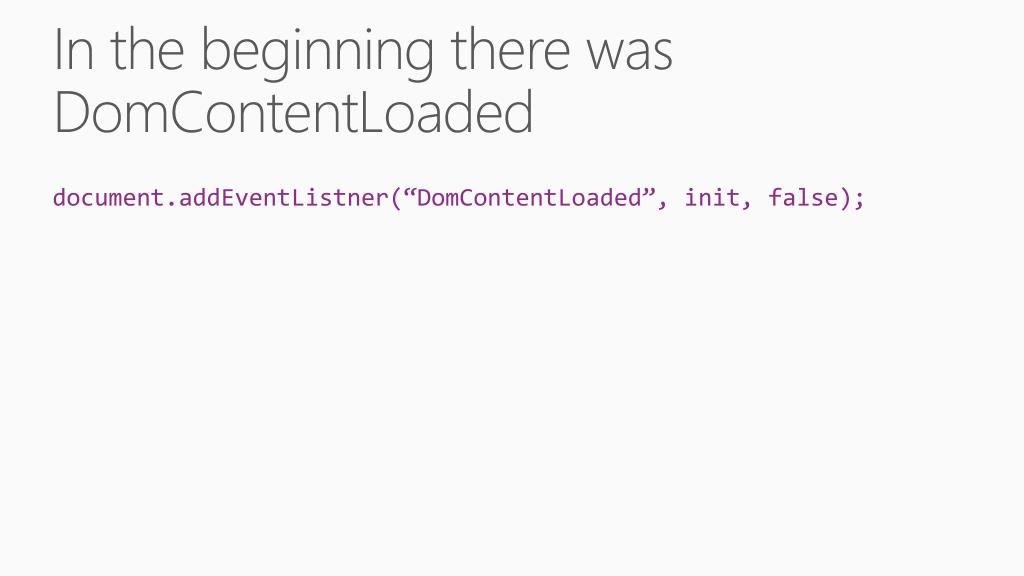

  7. In the beginning there was DomContentLoaded document.addEventListner(“DomContentLoaded”, init, false);

  8. Game loop DOMContentLoaded() init() draw() exit

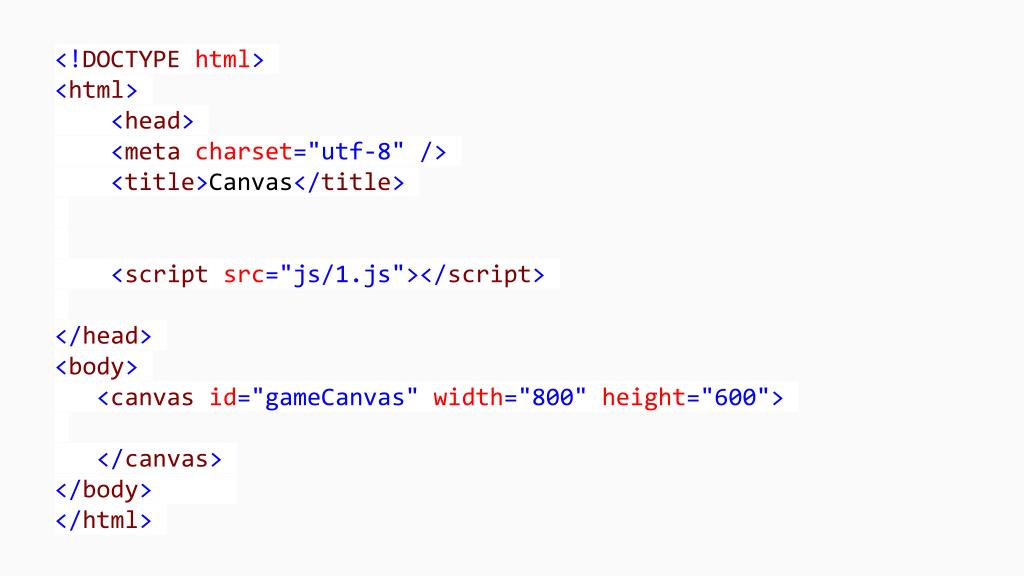

  9. <!DOCTYPEhtml> <html> <head> <metacharset="utf-8"/> <title>Canvas</title> <scriptsrc="js/1.js"></script> </head> <body> <canvasid="gameCanvas"width="800"height="600"> </canvas> </body> </html>

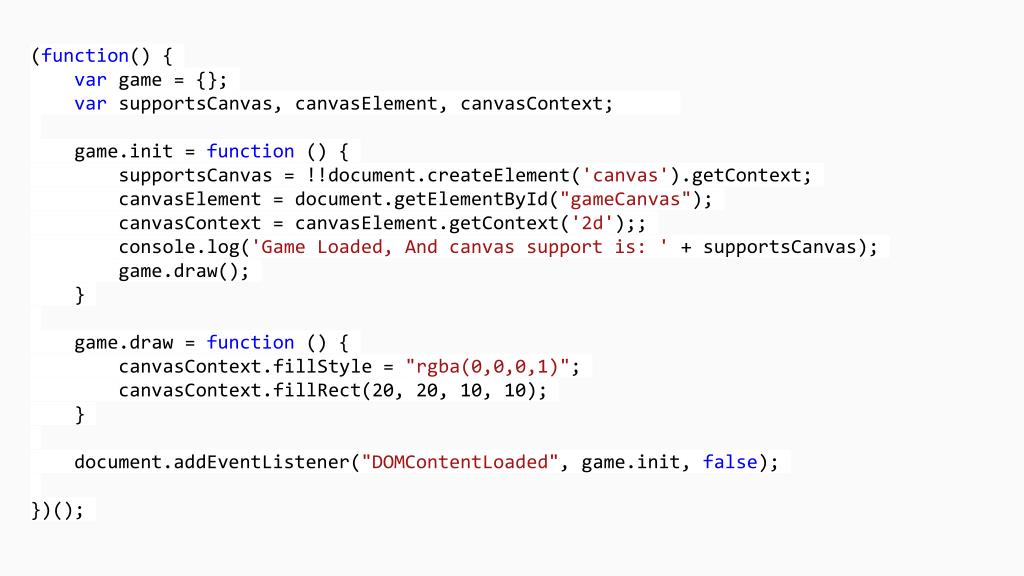

  10. (function() { var game = {}; varsupportsCanvas, canvasElement, canvasContext; game.init = function () { supportsCanvas = !!document.createElement('canvas').getContext; canvasElement = document.getElementById("gameCanvas"); canvasContext = canvasElement.getContext('2d');; console.log('Game Loaded, And canvas support is: ' + supportsCanvas); game.draw(); } game.draw = function () { canvasContext.fillStyle = "rgba(0,0,0,1)"; canvasContext.fillRect(20, 20, 10, 10); } document.addEventListener("DOMContentLoaded", game.init, false); })();

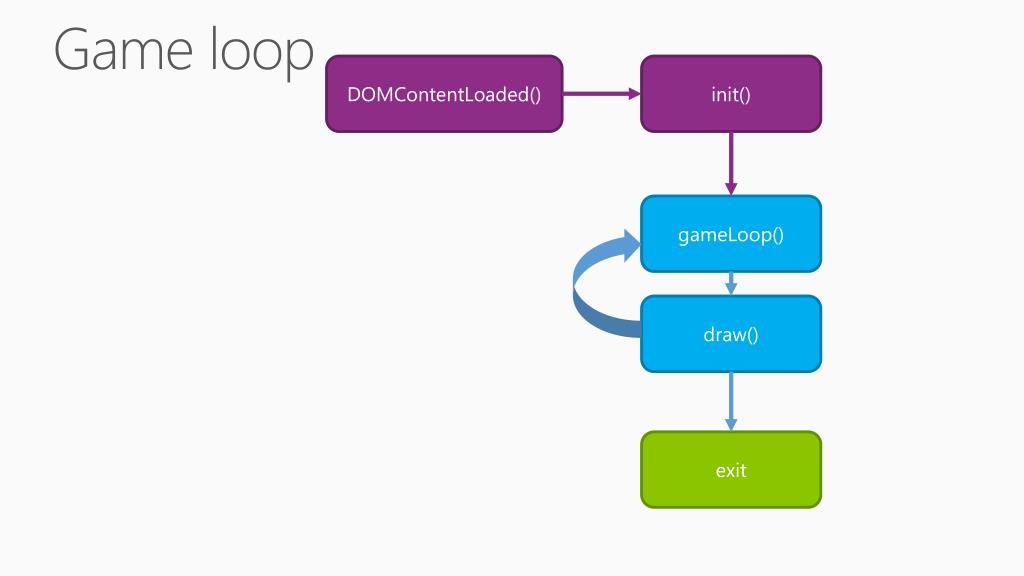

  11. Game loop DOMContentLoaded() init() gameLoop() draw() exit

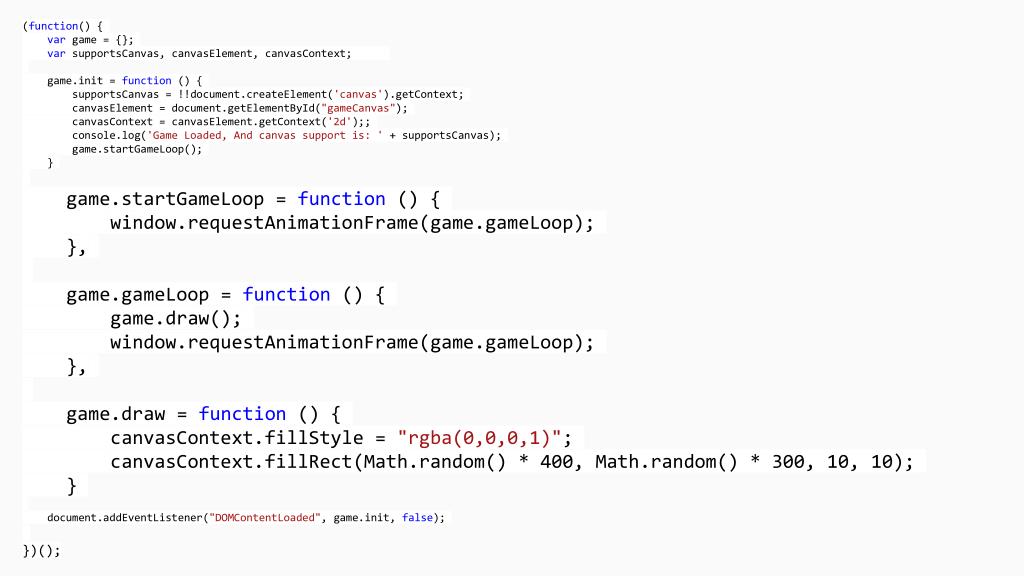

  12. (function() { var game = {}; varsupportsCanvas, canvasElement, canvasContext; game.init = function () { supportsCanvas = !!document.createElement('canvas').getContext; canvasElement = document.getElementById("gameCanvas"); canvasContext = canvasElement.getContext('2d');; console.log('Game Loaded, And canvas support is: ' + supportsCanvas); game.startGameLoop(); } game.startGameLoop = function () { window.requestAnimationFrame(game.gameLoop); }, game.gameLoop = function () { game.draw(); window.requestAnimationFrame(game.gameLoop); }, game.draw = function () { canvasContext.fillStyle = "rgba(0,0,0,1)"; canvasContext.fillRect(Math.random() * 400, Math.random() * 300, 10, 10); } document.addEventListener("DOMContentLoaded", game.init, false); })();

  13. Game loop DOMContentLoaded() init() gameLoop() clear() draw() exit

  14. (function() { var game = {}; varsupportsCanvas, canvasElement, canvasContext; game.init = function () { supportsCanvas = !!document.createElement('canvas').getContext; canvasElement = document.getElementById("gameCanvas"); canvasContext = canvasElement.getContext('2d'); console.log('Game Loaded, And canvas support is: ' + supportsCanvas); window.requestAnimationFrame(game.gameLoop); } game.gameLoop = function () { game.clear(); game.draw(); window.requestAnimationFrame(game.gameLoop); } game.draw = function () { canvasContext.fillStyle = "rgba(0,0,0,1)"; canvasContext.fillRect(Math.random() * 400, Math.random() * 300, 10, 10); } game.clear = function () { canvasContext.clearRect(0, 0, canvasContext.canvas.width, canvasContext.canvas.height); } document.addEventListener("DOMContentLoaded", game.init, false); })();

  15. (function() { var game = {}; varsupportsCanvas, canvasElement, canvasContext; varlilSquareList = []; game.init = function () { supportsCanvas = !!document.createElement('canvas').getContext; canvasElement = document.getElementById("gameCanvas"); canvasContext = canvasElement.getContext('2d'); console.log('Game Loaded, And canvas support is: ' + supportsCanvas); window.requestAnimationFrame(game.gameLoop); } game.gameLoop = function () { game.clear(); var square = { w: 10, h: 10, xSpeed: randomXToY(-10, 10), ySpeed: randomXToY(-10, 10), x: canvasContext.canvas.width / 2, y: canvasContext.canvas.height / 2, }; lilSquareList.push(square); game.draw(); window.requestAnimationFrame(game.gameLoop); } game.draw = function () { for (vari = 0; i < lilSquareList.length; i++) { var square = lilSquareList[i]; canvasContext.fillStyle = "rgba(255,3,255,0.5)"; canvasContext.fillRect(square.x, square.y, square.w, square.h); square.x = square.x - square.xSpeed; square.y = square.y + square.ySpeed; square.size = square.size - 0.1; } } game.clear = function () { canvasContext.clearRect(0, 0, canvasContext.canvas.width, canvasContext.canvas.height); } functionrandomXToY(minVal, maxVal, floatVal) { var randVal = minVal + (Math.random() * (maxVal - minVal)); returntypeoffloatVal == 'undefined' ? Math.round(randVal) : randVal.toFixed(floatVal); } document.addEventListener("DOMContentLoaded", game.init, false); })();

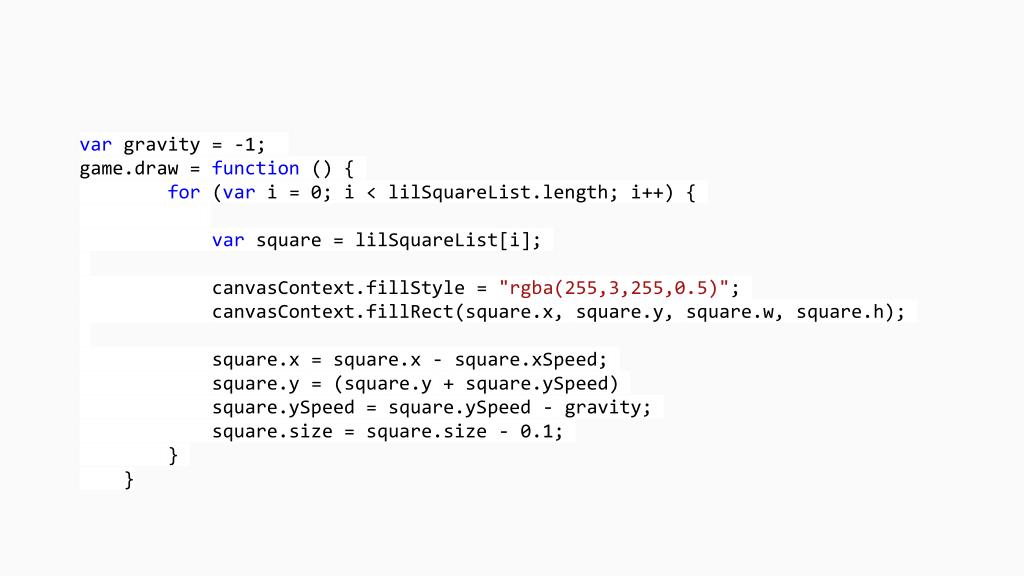

  16. var gravity = -1; game.draw= function () { for (vari = 0; i < lilSquareList.length; i++) { var square = lilSquareList[i]; canvasContext.fillStyle = "rgba(255,3,255,0.5)"; canvasContext.fillRect(square.x, square.y, square.w, square.h); square.x = square.x - square.xSpeed; square.y = (square.y + square.ySpeed) square.ySpeed = square.ySpeed - gravity; square.size = square.size - 0.1; } }

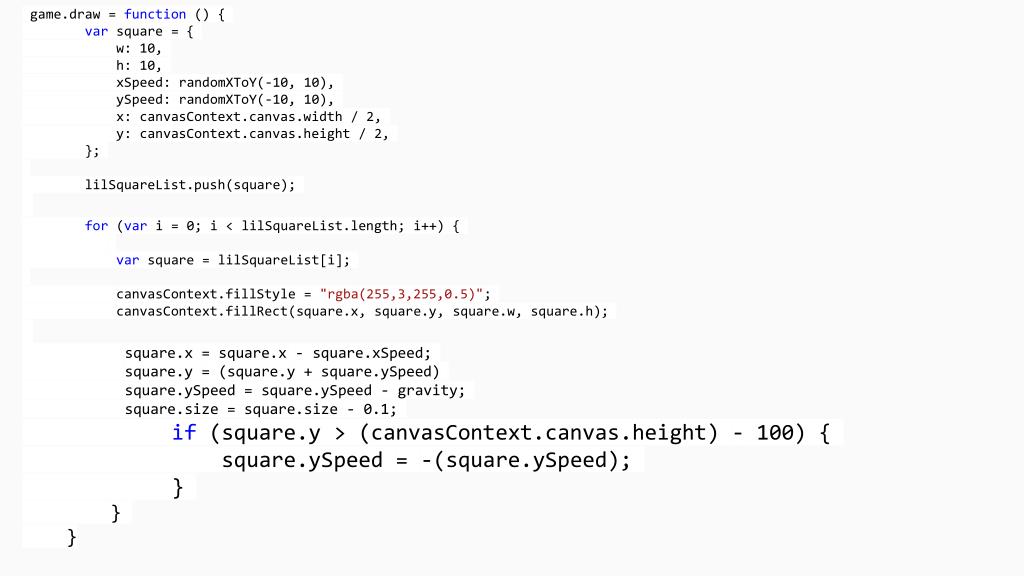

  17. game.draw = function () { var square = { w: 10, h: 10, xSpeed: randomXToY(-10, 10), ySpeed: randomXToY(-10, 10), x: canvasContext.canvas.width / 2, y: canvasContext.canvas.height / 2, }; lilSquareList.push(square); for (vari = 0; i < lilSquareList.length; i++) { var square = lilSquareList[i]; canvasContext.fillStyle = "rgba(255,3,255,0.5)"; canvasContext.fillRect(square.x, square.y, square.w, square.h); square.x = square.x - square.xSpeed; square.y = (square.y + square.ySpeed) square.ySpeed = square.ySpeed - gravity; square.size = square.size - 0.1; if (square.y > (canvasContext.canvas.height) - 100) { square.ySpeed = -(square.ySpeed); } } }

  18. CreateJS A JavaScript library that makes working with the HTML5 Canvas element easy.

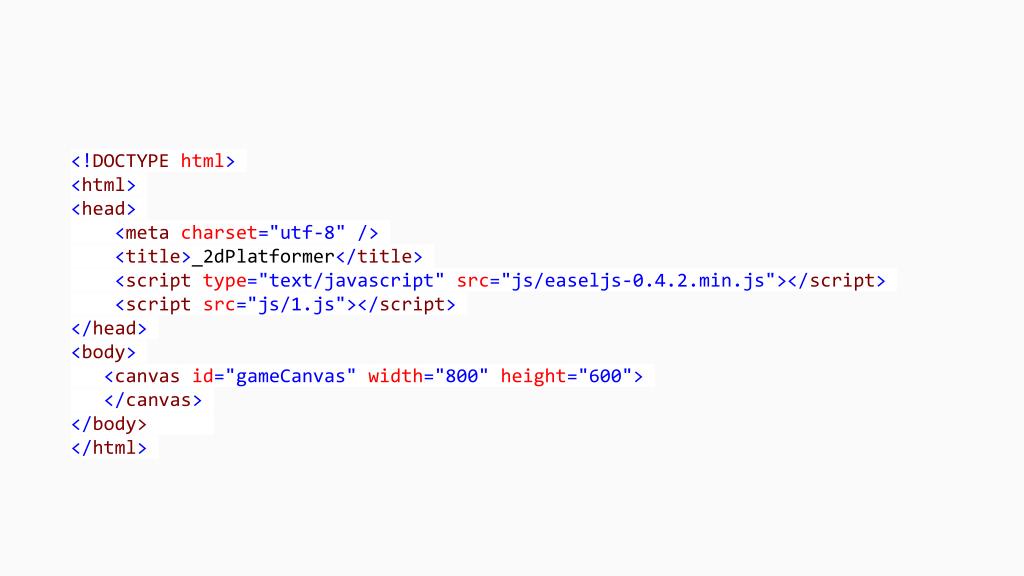

  19. <!DOCTYPEhtml> <html> <head> <metacharset="utf-8"/> <title>_2dPlatformer</title> <scripttype="text/javascript"src="js/easeljs-0.4.2.min.js"></script> <scriptsrc="js/1.js"></script> </head> <body> <canvasid="gameCanvas"width="800"height="600"> </canvas> </body> </html>

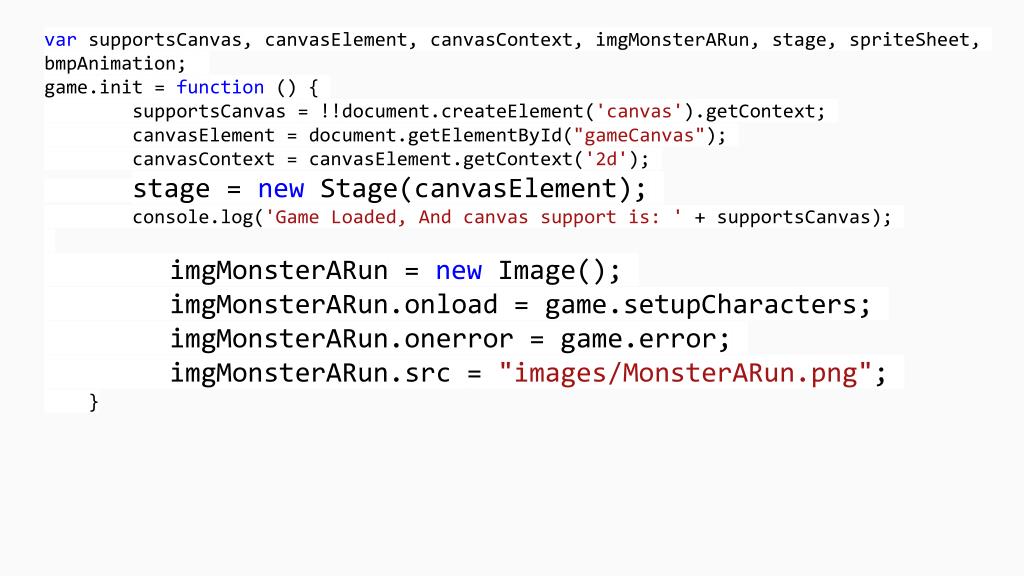

  20. varsupportsCanvas, canvasElement, canvasContext, imgMonsterARun, stage, spriteSheet, bmpAnimation; game.init= function () { supportsCanvas = !!document.createElement('canvas').getContext; canvasElement = document.getElementById("gameCanvas"); canvasContext = canvasElement.getContext('2d'); stage = new Stage(canvasElement); console.log('Game Loaded, And canvas support is: ' + supportsCanvas); imgMonsterARun = new Image(); imgMonsterARun.onload = game.setupCharacters; imgMonsterARun.onerror = game.error; imgMonsterARun.src = "images/MonsterARun.png"; }

  21. Image Sprites

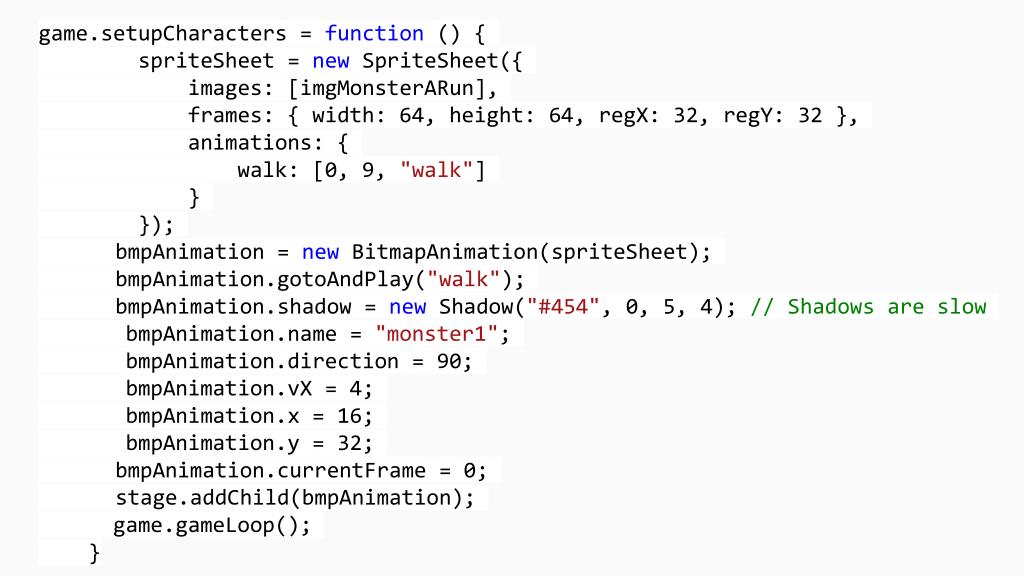

  22. game.setupCharacters = function () { spriteSheet = newSpriteSheet({ images: [imgMonsterARun], frames: { width: 64, height: 64, regX: 32, regY: 32 }, animations: { walk: [0, 9, "walk"] } }); bmpAnimation= newBitmapAnimation(spriteSheet); bmpAnimation.gotoAndPlay("walk"); bmpAnimation.shadow= new Shadow("#454", 0, 5, 4); // Shadows are slow bmpAnimation.name = "monster1"; bmpAnimation.direction= 90; bmpAnimation.vX= 4; bmpAnimation.x= 16; bmpAnimation.y= 32; bmpAnimation.currentFrame= 0; stage.addChild(bmpAnimation); game.gameLoop(); }

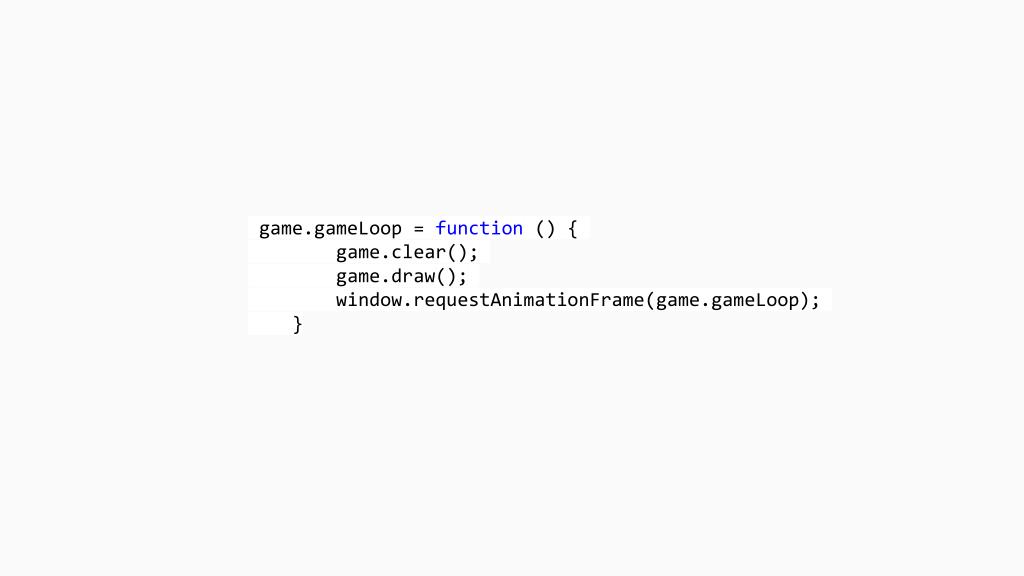

  23. game.gameLoop = function () { game.clear(); game.draw(); window.requestAnimationFrame(game.gameLoop); }

  24. game.draw = function () { // Hit testing the screen width, otherwise our sprite would disappear if (bmpAnimation.x >= canvasContext.canvas.width - 16) { // We've reached the right side of our screen bmpAnimation.direction = -90; } if (bmpAnimation.x < 16) { // We've reached the left side of our screen // We need to walk right now bmpAnimation.direction = 90; } // Moving the sprite based on the direction & the speed if (bmpAnimation.direction == 90) { bmpAnimation.x += bmpAnimation.vX; } else { bmpAnimation.x -= bmpAnimation.vX; } stage.update(); }

  25. game.setupCharacters = function () { spriteSheet = newSpriteSheet({ images: [imgMonsterARun], frames: { width: 64, height: 64, regX: 32, regY: 32 }, animations: { walk: [0, 9, "walk", 4] } }); SpriteSheetUtils.addFlippedFrames(spriteSheet, true, false, false); bmpAnimation= newBitmapAnimation(spriteSheet); bmpAnimation.gotoAndPlay("walk_h"); bmpAnimation.shadow = new Shadow("#454", 0, 5, 4); bmpAnimation.name = "monster1"; bmpAnimation.direction = 90; bmpAnimation.vX = 4; bmpAnimation.x = 16; bmpAnimation.y = 32; bmpAnimation.currentFrame = 0; stage.addChild(bmpAnimation); game.gameLoop(); }

  26. game.draw = function () { // Hit testing the screen width, otherwise our sprite would disappear if (bmpAnimation.x >= canvasContext.canvas.width - 16) { // We've reached the right side of our screen // We need to walk left now to go back to our initial position bmpAnimation.direction = -90; bmpAnimation.gotoAndPlay("walk"); } if (bmpAnimation.x < 16) { // We've reached the left side of our screen // We need to walk right now bmpAnimation.direction = 90; bmpAnimation.gotoAndPlay("walk_h"); } if(bmpAnimation.direction == 90) { bmpAnimation.x += bmpAnimation.vX; } else { bmpAnimation.x -= bmpAnimation.vX; } stage.update(); }

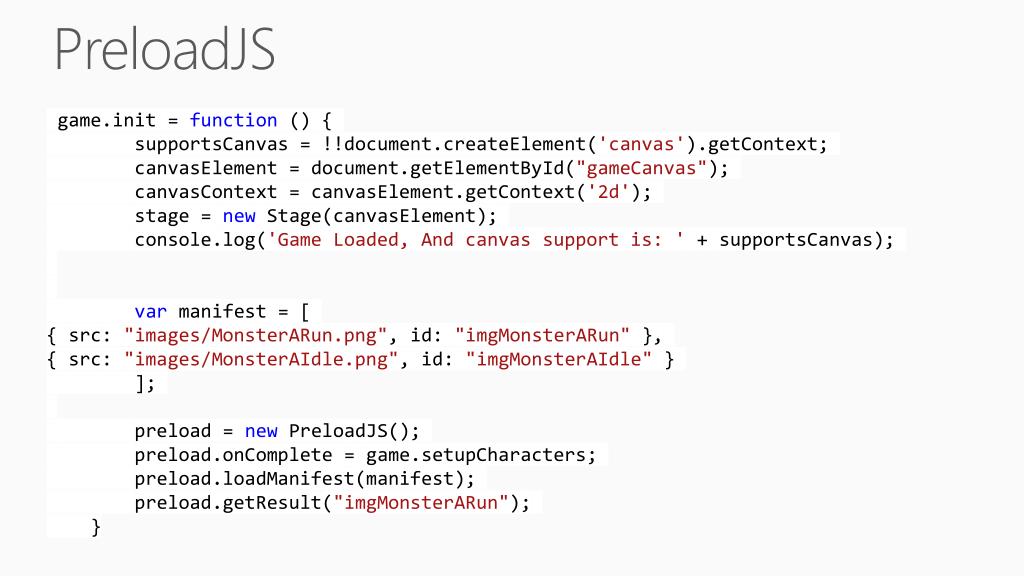

  27. PreloadJS game.init = function () { supportsCanvas = !!document.createElement('canvas').getContext; canvasElement = document.getElementById("gameCanvas"); canvasContext = canvasElement.getContext('2d'); stage = new Stage(canvasElement); console.log('Game Loaded, And canvas support is: ' + supportsCanvas); var manifest = [ { src: "images/MonsterARun.png", id: "imgMonsterARun" }, { src: "images/MonsterAIdle.png", id: "imgMonsterAIdle" } ]; preload = newPreloadJS(); preload.onComplete = game.setupCharacters; preload.loadManifest(manifest); preload.getResult("imgMonsterARun"); }

  28. game.setupCharacters = function () { • var image = preload.getResult("imgMonsterARun").result; • spriteSheet = newSpriteSheet({ • images: [image], • frames: { width: 64, height: 64, regX: 32, regY: 32 }, • animations: { • walk: [0, 9, "walk", 4] • } • }); • SpriteSheetUtils.addFlippedFrames(spriteSheet, true, false, false); • bmpAnimation= newBitmapAnimation(spriteSheet); • bmpAnimation.gotoAndPlay("walk_h"); //animate • bmpAnimation.shadow= new Shadow("#454", 0, 5, 4); • bmpAnimation.name = "monster1"; • bmpAnimation.direction = 90; • bmpAnimation.vX = 4; • bmpAnimation.x = 16; • bmpAnimation.y = 32; • bmpAnimation.currentFrame= 0; • stage.addChild(bmpAnimation); • varimgMonsterAIdle = preload.getResult("imgMonsterAIdle").result; • spriteSheetIdle = newSpriteSheet({ • images: [imgMonsterAIdle], • frames: { width: 64, height: 64, regX: 32, regY: 32 }, • animations: { • idle: [0, 10, "idle", 4] • } • }); • bmpAnimationIdle = newBitmapAnimation(spriteSheetIdle); • bmpAnimationIdle.name = "monsteridle1"; • bmpAnimationIdle.x = 16; • bmpAnimationIdle.y = 32; • game.gameLoop(); • }

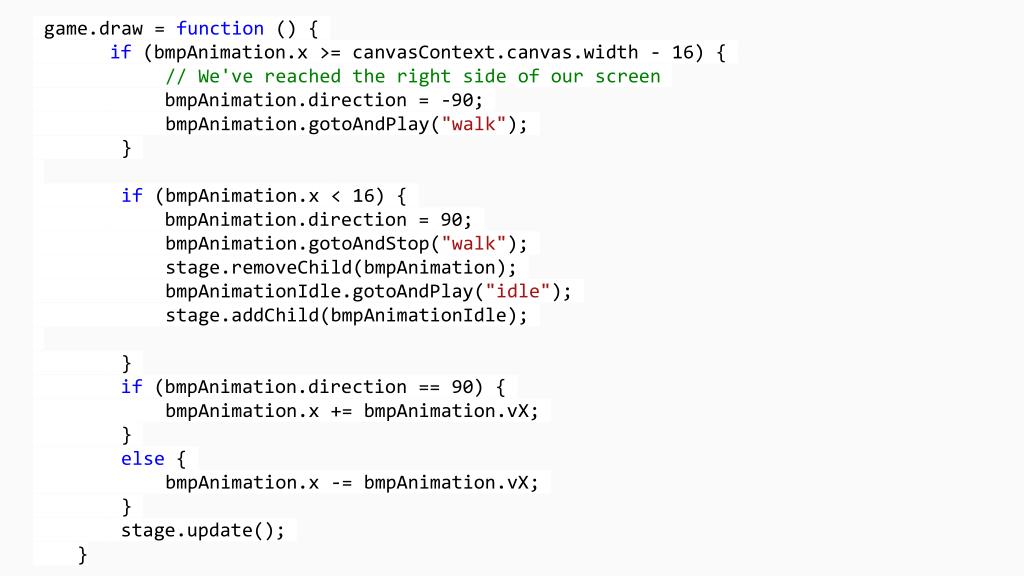

  29. game.draw = function () { if(bmpAnimation.x >= canvasContext.canvas.width - 16) { // We've reached the right side of our screen bmpAnimation.direction= -90; bmpAnimation.gotoAndPlay("walk"); } if (bmpAnimation.x < 16) { bmpAnimation.direction= 90; bmpAnimation.gotoAndStop("walk"); stage.removeChild(bmpAnimation); bmpAnimationIdle.gotoAndPlay("idle"); stage.addChild(bmpAnimationIdle); } if (bmpAnimation.direction == 90) { bmpAnimation.x += bmpAnimation.vX; } else { bmpAnimation.x -= bmpAnimation.vX; } stage.update(); }

  30. http://bit.ly/Windows8Game Links to EaselJS, and source code of both projects with instructions
