  1. Data Management in the U.S. GLOBEC Program SCOR/IGBP Meeting on Data Management for Marine Research Projects Robert C. Groman Woods Hole Oceanographic Institution 8 – 10 December 2003 Click here for PowerPoint version.

  2. U.S. GLOBEC: Goal • To understand the population dynamics. Ultimately want to be able to predict changes in distribution and abundance of key species as a result of changes in the physical and biotic environment, such as from climate change.

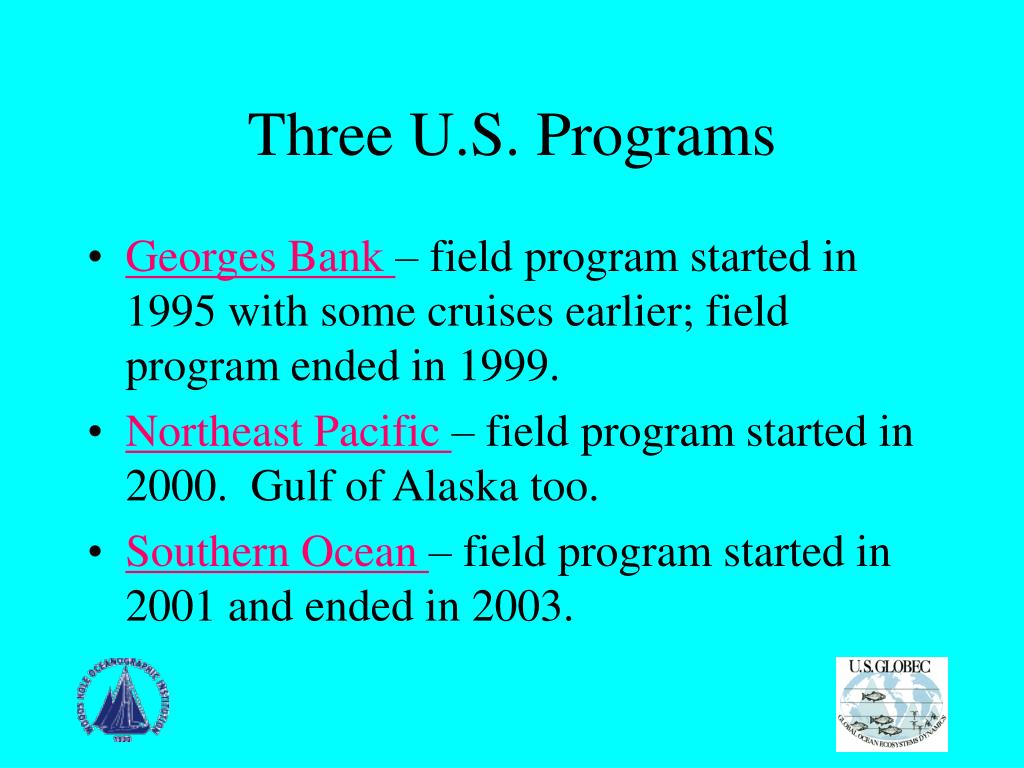

  3. Three U.S. Programs • Georges Bank – field program started in 1995 with some cruises earlier; field program ended in 1999. • Northeast Pacific – field program started in 2000. Gulf of Alaska too. • Southern Ocean – field program started in 2001 and ended in 2003.

  4. Georges Bank Study Area

  5. Northeast Pacific Study Area

  6. Southern Ocean Study Area

  7. Project Components • Field program: Georges Bank project completed 120 cruises with 360 days at sea. • Laboratory experiments • Retrospective studies • Analysis and synthesis

  8. Georges Bank Data 120 Cruises in inventory 118 Cruise reports printed 56 Cruise reports on-line Data objects on-line: See web site Missing data: Zooplankton counts VPR data Acoustics data Mooring data

  9. Northeast Pacific/CGOA Coastal Gulf of Alaska (CGOA) 35 Cruise reports on-line; 16 will be on-line soon; 36 to come later 35 Event logs on-line 11 from LTOP cruises [29 missing] 9 from Haldorson Trawling cruises [8 missing] 10 from Process/Survey cruises [5 missing] 5 from SECM cruises (via on-line report) [10 missing]

  10. Northeast Pacific/CCS California Current System (CCS) 46 Cruise reports on-line; 2 more in the works 47 Event logs on-line 36 from CCS - LTOP cruises (via on-line report) 11 from CCS – Process/Other cruises

  11. Northeast Pacific Summary Available on-line data include CTD, SST, alongtrack, bottle, SeaSoar, nutrients, pigments, and event logs. Data soon to be added include CTD, nutrients, and zooplankton.

  12. Southern Ocean 11 Cruises in inventory 11 Cruise reports on-line 11 Event logs on-line 110 data objects on-line, locally or linked remotely, including: Ice core and water column bacteria studies Bird studies BIOMAPERII Chlorophyll, irradiance and productivity studies MOCNESS CTD data Nutrient data Sea ice data Whale sonobuoy data 120 kHz acoustic backscattering data ADCP data Alongtrack data Seal tracking and biology Bathymetry

  13. Southern Ocean Data in the Works IWC Whale data CTD rosette data MOC1/MOC10/net collection data XCTD/XBT data Penguin studies (exists on SO GLOBEC website) ROV data Mooring data

  14. Data Policy • Dissemination of data to scientific investigators and others on a timely basis • Make available when useful (not necessarily only when finalized) • Serve data and information, such as reports, papers, and other program documentation

  15. Data Characteristics and Distribution Approach • Data from many, distributed, researchers (greater than 100 contributors) • Open access – read only by everyone • Restricted access supported, but rarely used • Quality control is contributors’ responsibility and on-going • Emphasis on access to data and information as early as possible • Data sets most useful when used with other data

  16. Data Acknowledgement Policy • Any person making substantial use of a data set must communicate with the investigator(s) who acquired the data prior to publication and anticipate that the data collector(s) will be co-author(s) of published results. This extends to model results and to data organized for retrospective studies. • See on-line policy statement

  17. Data are accessed from the U.S. GLOBEC Data Server, http://globec.whoi.edu.

  18. Data can be viewed

  19. Or plotted

  20. Track plot of NBP0202

  21. Or downloaded

  22. Data Sources • Broad-scale cruises • Process cruises • Moorings • Drifters • Satellites • Modeling

  23. Instruments • CTDs • Rosette • MOCNESS (3 flavors) • Bongo tows • Acoustic biomass measurements • Video Plankton Recorder • Drifters, MET packages, . . .

  24. Sensors and Computed Parameters • Conductivity, temperature, pressure, fluorescence, transmittance, acoustics, light (PAR), video, wind speed/direction, AVHRR, . . . • Biomass, taxonomic composition/size distribution, species (counts, size, stage, status, rates, behavior), density, currents, stratification, heat flux, nutrients, turbulence, chlorophyll, . . .

  25. Data Access • Using the JGOFS Data Management System developed by G. Flierl, J. Bishop, D. Glover, and S. Paranjpe • Distributed access via standard web browsers

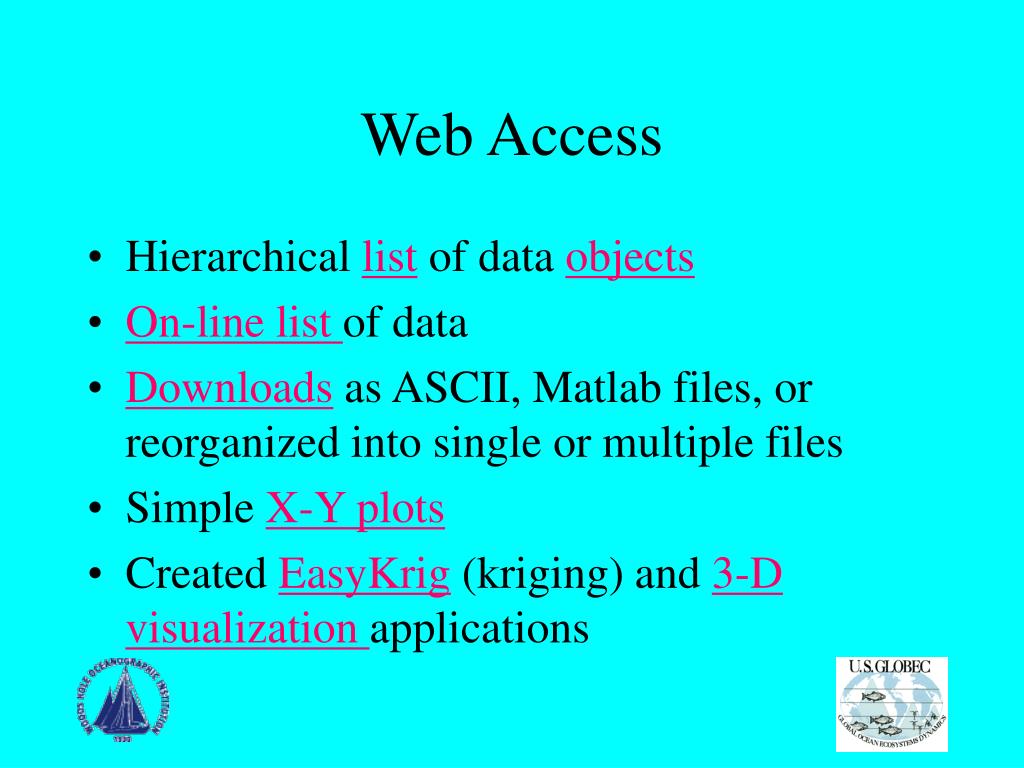

  26. Web Access • Hierarchical list of data objects • On-line list of data • Downloads as ASCII, Matlab files, or reorganized into single or multiple files • Simple X-Y plots • Created EasyKrig (kriging) and 3-D visualization applications

  27. Distributed Data • Ten distributed data servers use the US JGOFS software • Uses the Web httpd protocol - integrates very well with standard web pages • Handles tabular data in ASCII, Matlab format, and user-supplied formats using methods. It is object oriented and data driven.

  28. NostalgiaIn the Olden Days …. • Reformatting and processing data was a common activity • Merging navigation with measured and computed results also took time • First data management system used 9 track tapes for data storage, run in batch • Second system used data on disk with techniques to located data within degree squares to improve performance

  29. Meta-data • Data about data. • Document information about data elements or attributes (name, size, data type, etc), about records or data structures (length, fields, columns, etc), and about data (where it is located, ownership, etc.). Meta-data may include descriptive information about the context, quality and condition, or characteristics of the data.

  30. Detailed Meta-data • Pros – required for full understanding of data within a database management system. Required if others want to use the data • Cons – pain in the neck to prepare, maintain, and enter (Best to take advantage of tools) • Currently completing Global Change Master Directory’s DIF records

  31. What’s Happening • Organizations creating systems to access their own meta-data and/or data. • Umbrella databases linking to other peoples meta-data and/or data. (OBIS, GMBIS, …) • Linking to meta-data is more manageable than is linking to other people’s data.

  32. Other Efforts • LabNet – consortium of marine organizations to make their data available (uses 4D Geobrowser “index cards”) • Ocean Data View - access WOCE, NGDC, and other data sets. CTD, bottle, XBT … • OBIS – “portal” (aggregation server) for biological data (using Darwin Core 2 – OBIS)

  33. Other Efforts, continued • ZOPE – object oriented application server • LAS – web-based, active-image based data interface for registered data. Used by US JGOFS Program • uBio – (Universal Biological Indexer and Organizer) a networked information service for biological information resources based on the Taxonomic Name Server (TNS), a thesaurus; an index.

  34. Other Efforts, continued • Hexacoral – biggest user in OBIS; uses DiGIR (D.G. Fautin, et al.) • DiGIR – Distributed Generic Information Retrieval. Uses XML protocol to get the data. Extends XML to do queries. Uses php software package to execute the code. Supports 14 or 15 databases, e.g SQL based. Three options for JGOFS: export to flat file, export to MySQL, or write own perl script to interface directly to DiGIR (ZooGene -> OBIS)

  35. Other Efforts, continued • Oregon State University, Randy Keller and Paul Johnson, mapping specialist at HMRG • Steve Hankin, “An Implementation Plan for the Data and Communication Subsystem of the U.S. Integrated Ocean Observing System” • Margo Edwards at HIG and Dawn Wright at OSU

  36. Other Efforts, continued • RIDGE, petrological data. Endeavor Observatory website, Lamont’s PetDB • SIO Ocean Exploration data portal, http://sioexplorer.ucsd.edu • University of Washington’s Endeavor GIS and Portal to Endeavor Data (PED)

  37. Educational “Tools” • Virtual Research Vessel, University of Oregon and Oregon State University • REVEL, University of Washington • Dive and Discover, WHOI

  38. Protocols • OpenDAP (was DODS)  http • DiGIR  uses XML; but too verbose for physical data. OBIS may use OpenDAP for physical data. • JGOFS  http

  39. Other Projects and Protocols • Apologies for references I’ve missed. • There are many other efforts underway in all these areas.

  40. In the Trenches • What temperature: Sea surface, air, at depth? • Units? • How collected? • How calibrated? • Data quality control still labor intensive even though we can collect and store gigabytes of data daily

  41. Future Data Management and Display Efforts • Enhance data search capabilities • Add additional graphical display (visualization) options • Improve interface between data system and visualization/analysis tool • Consider other protocols, such as OpenDAP

  42. End
