Exploring Alternative Routes in Information System Development Methodologies

hamish avatar
hamish
17 diapositives · 331 Views · Sep 03, 2014

This lesson delves into four fundamental alternative routes through the basic phases of system development: Model-Driven Development (MDD), Rapid Application Development (RAD), Commercial Off-the-Shelf Software (COTS), and Maintenance/Reengineering. We will discuss how these routes can be customized or combined for various projects. Additionally, the lesson differentiates between Computer-Aided Systems Engineering (CASE), Application Development Environments (ADEs), and Project Management Tools as automated aids in system development, enhancing efficiency and quality.

#exploring alternative routes in information system development methodologies #exploring alternative routes in information system development methodologies ppt #powerpoint #presentation
Exploring Alternative Routes in Information System Development Methodologies - slide 1
01 / 17Exploring Alternative Routes in Information System Development Methodologies
1 / 17

Télécharger la présentation

Exploring Alternative Routes in Information System Development Methodologies
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

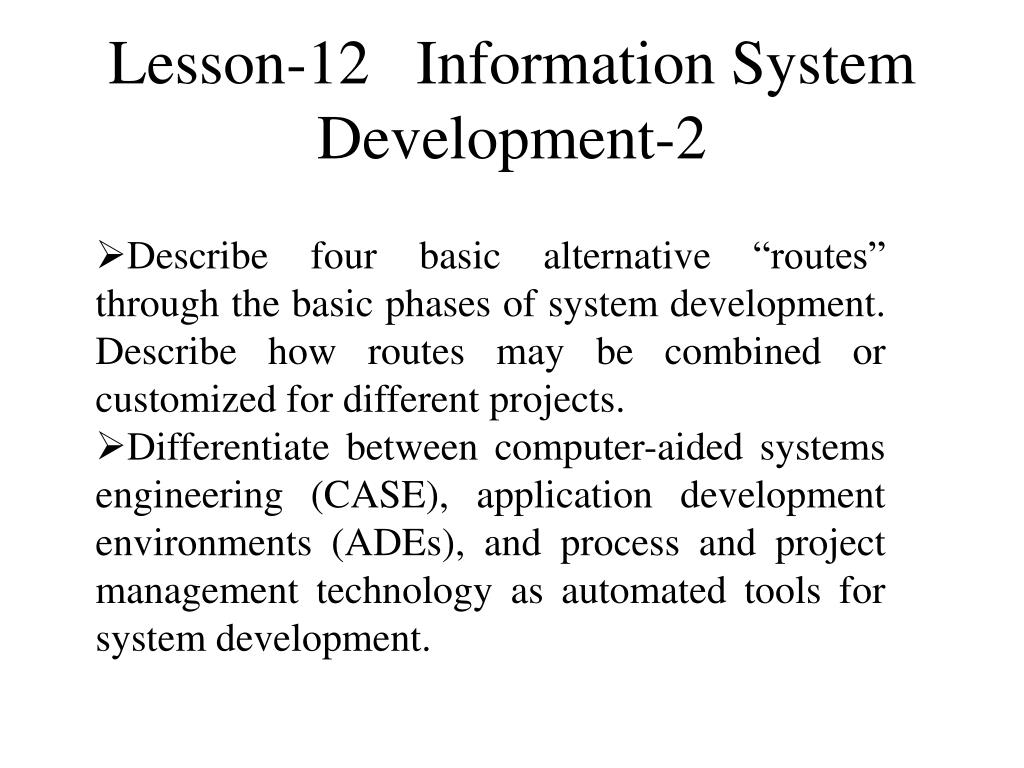

  1. Lesson-12 Information System Development-2 • Describe four basic alternative “routes” through the basic phases of system development. Describe how routes may be combined or customized for different projects. • Differentiate between computer-aided systems engineering (CASE), application development environments (ADEs), and process and project management technology as automated tools for system development.

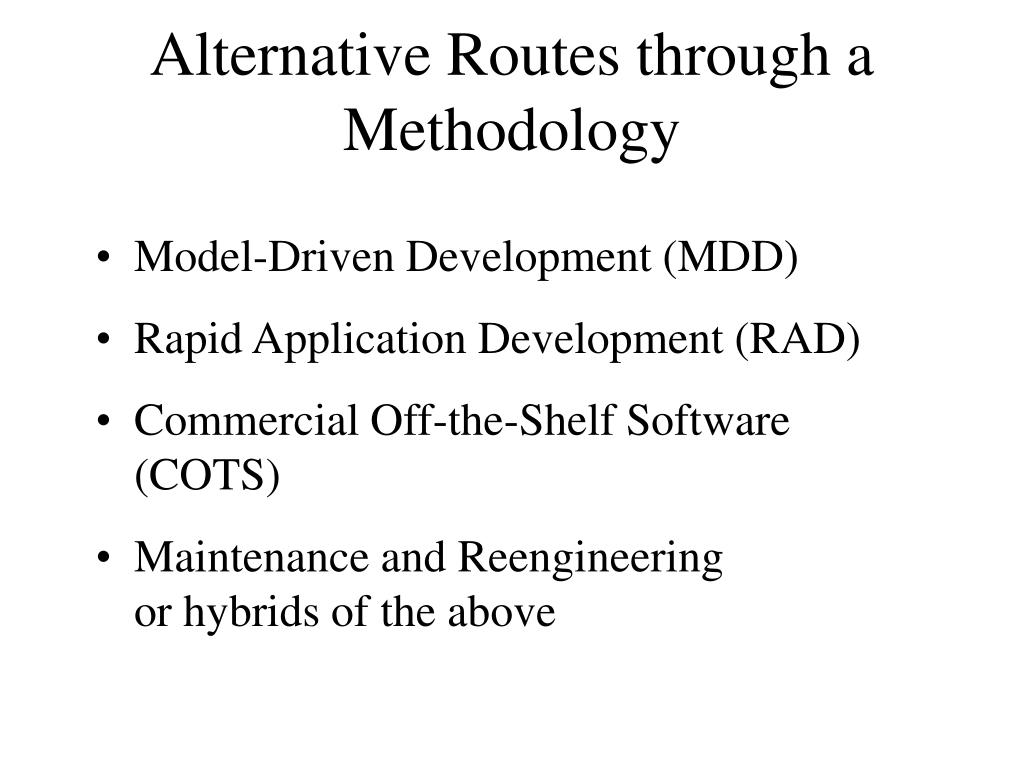

  2. Alternative Routes through a Methodology • Model-Driven Development (MDD) • Rapid Application Development (RAD) • Commercial Off-the-Shelf Software (COTS) • Maintenance and Reengineeringor hybrids of the above

  3. Model-Driven Development Route • Modeling is the act of drawing one or more graphical representations (or pictures) of a system. Modeling is a communication technique based upon the old saying, “a picture is worth a thousand words.” • Model-drivendevelopment techniques emphasize the drawing of models to help visualize and analyze problems, define business requirements, and design information systems. • Structured systems analysis and design —process-centered • Information engineering (IE) —data-centered • Object-oriented analysis and design (OOAD) —object-centered (integration of data and process concerns)

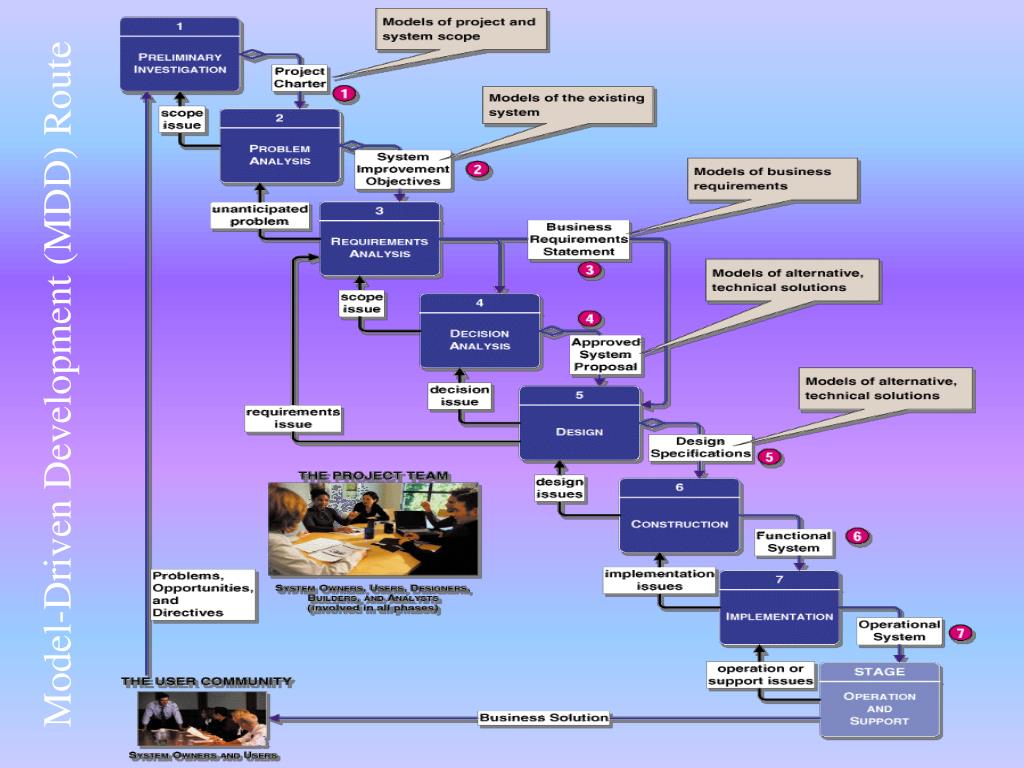

  4. Model-Driven Development (MDD) Route

  5. Rapid Application Development Route • Rapid application development (RAD) techniques emphasize extensive user involvement in the rapid and evolutionary construction of working prototypes of a system to accelerate the system development process.RAD is based on building prototypes that evolve into finished systems (often using time boxing) • A prototype is a smaller-scale, representative or working model of the users’ requirements or a proposed design for an information system. • A time box is a nonexpendable period of time, usually 60-120 days, by which a candidate system must be placed into operation.

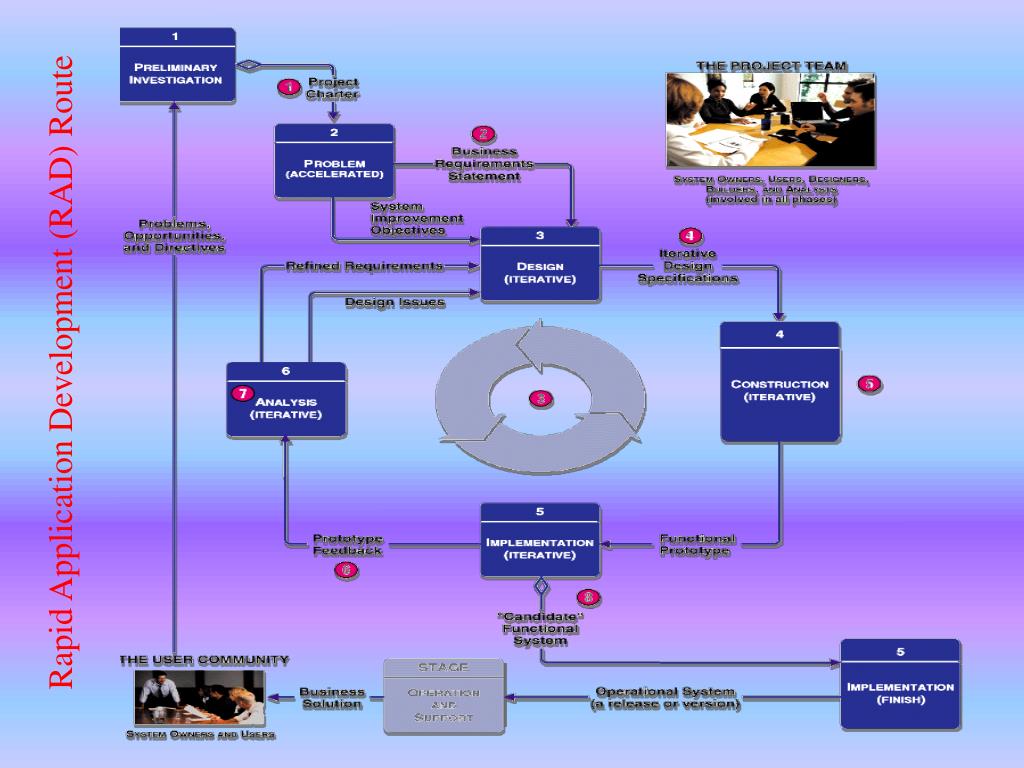

  6. Rapid Application Development (RAD) Route

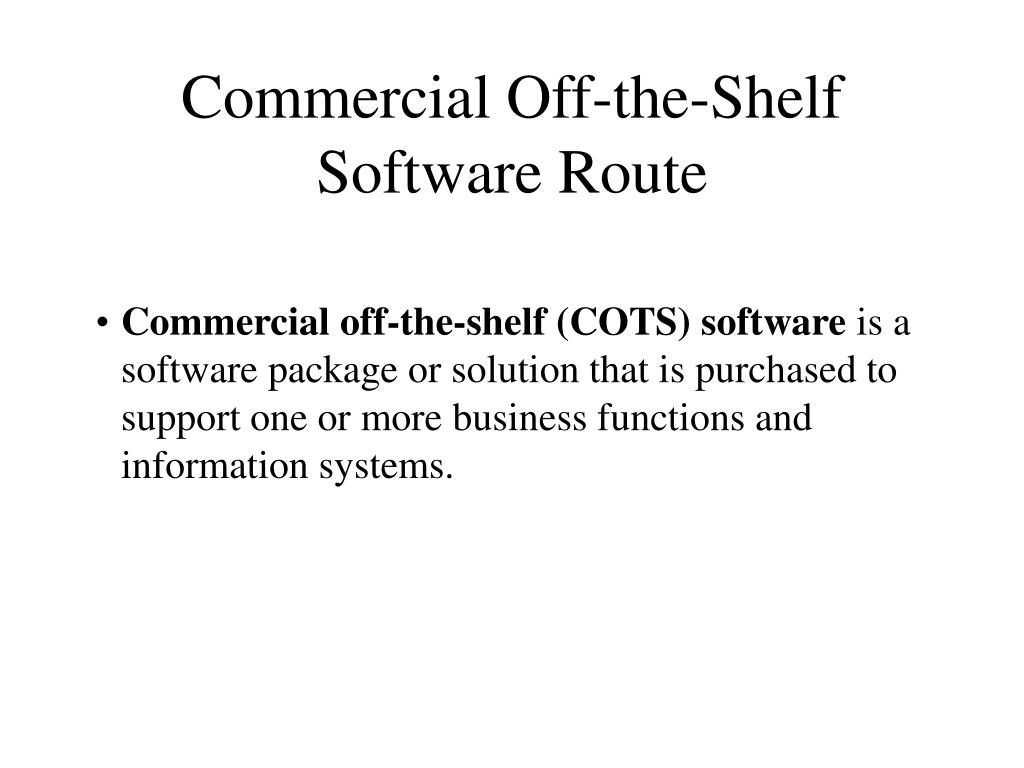

  7. Commercial Off-the-Shelf Software Route • Commercial off-the-shelf (COTS) software is a software package or solution that is purchased to support one or more business functions and information systems.

  8. Commercial Off-the-Shelf (COTS) Software Route

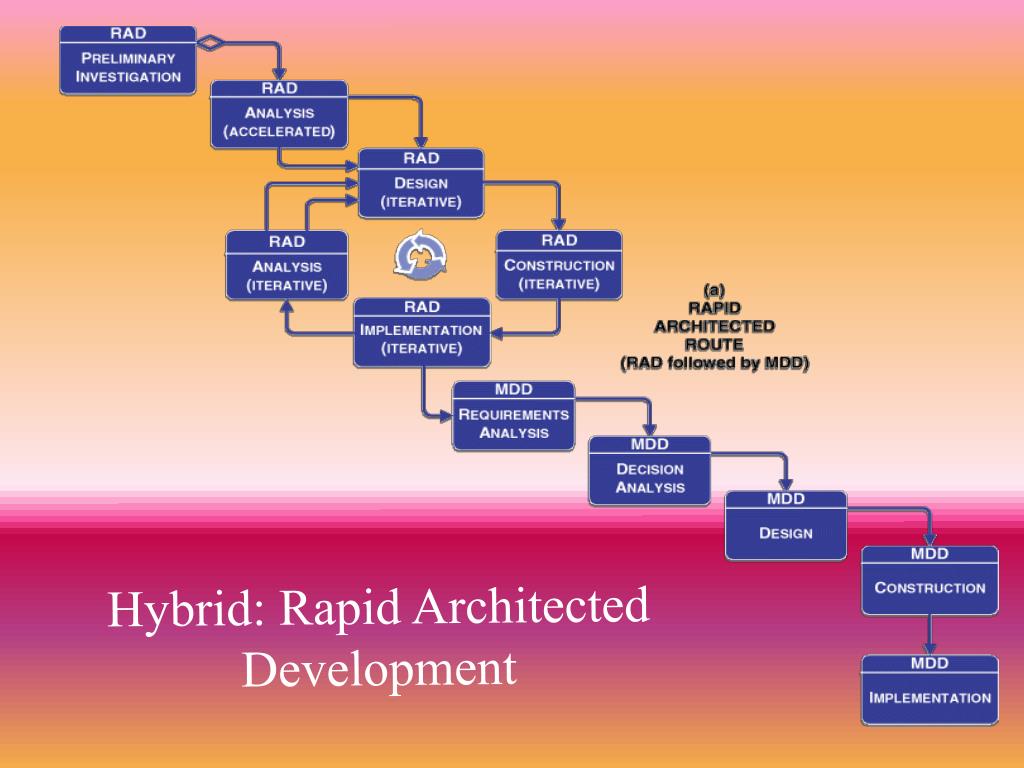

  9. Hybrid: Rapid Architected Development

  10. Hybrid: Multiple Implementation

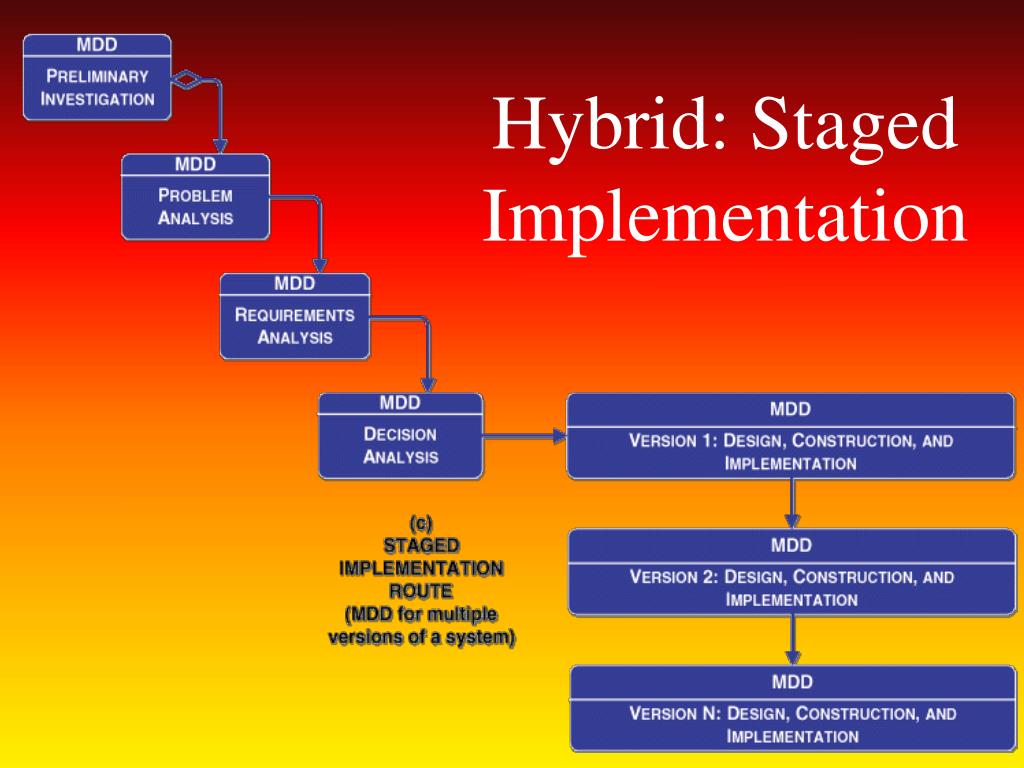

  11. Hybrid: Staged Implementation

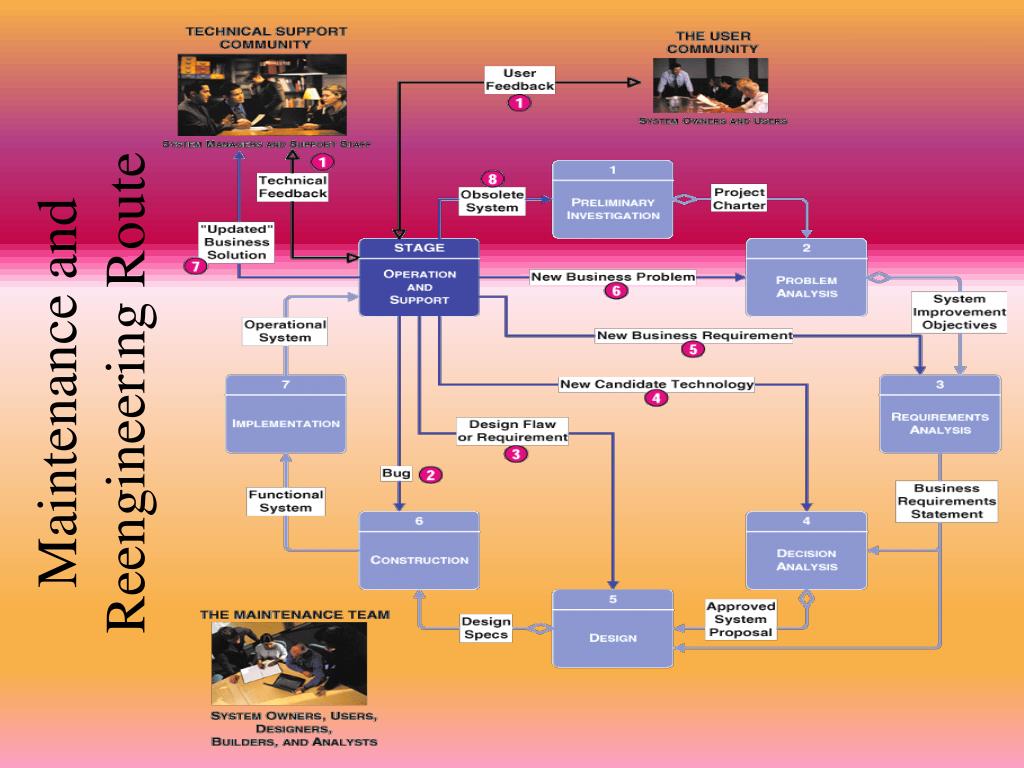

  12. Maintenance and Reengineering Route

  13. Automated Tools and Technology • Computer-aided systems engineering (CASE) • Application development environments (ADEs) • Process and project managers

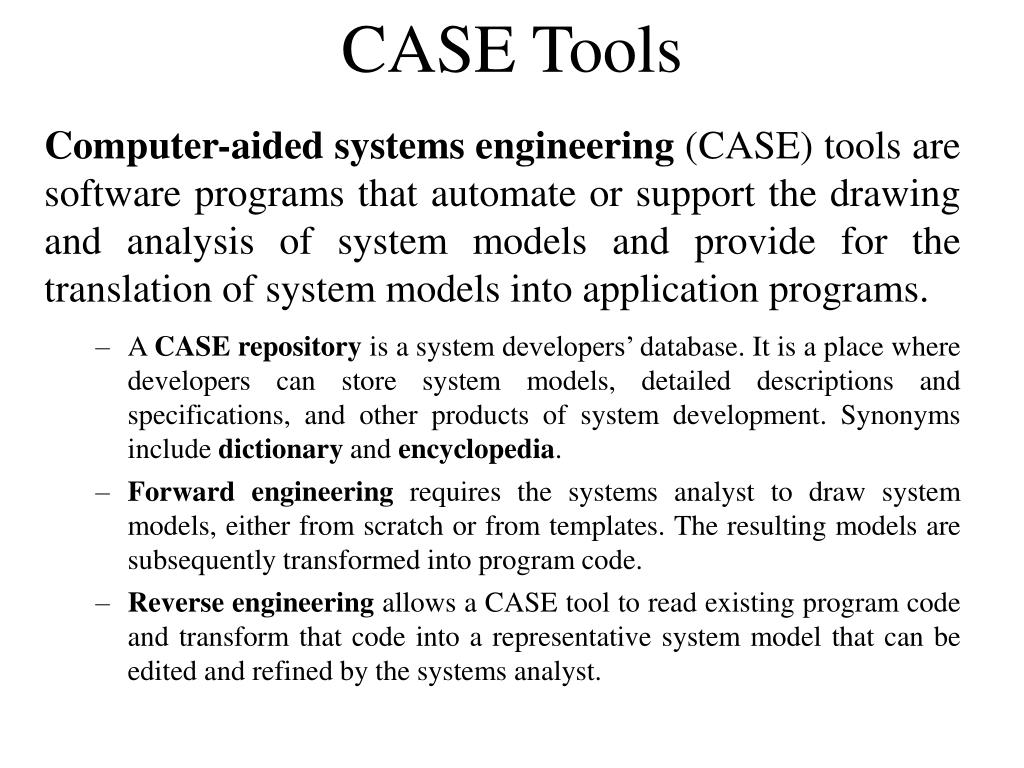

  14. CASE Tools Computer-aided systems engineering (CASE) tools are software programs that automate or support the drawing and analysis of system models and provide for the translation of system models into application programs. • A CASE repository is a system developers’ database. It is a place where developers can store system models, detailed descriptions and specifications, and other products of system development. Synonyms include dictionary and encyclopedia. • Forward engineering requires the systems analyst to draw system models, either from scratch or from templates. The resulting models are subsequently transformed into program code. • Reverse engineering allows a CASE tool to read existing program code and transform that code into a representative system model that can be edited and refined by the systems analyst.

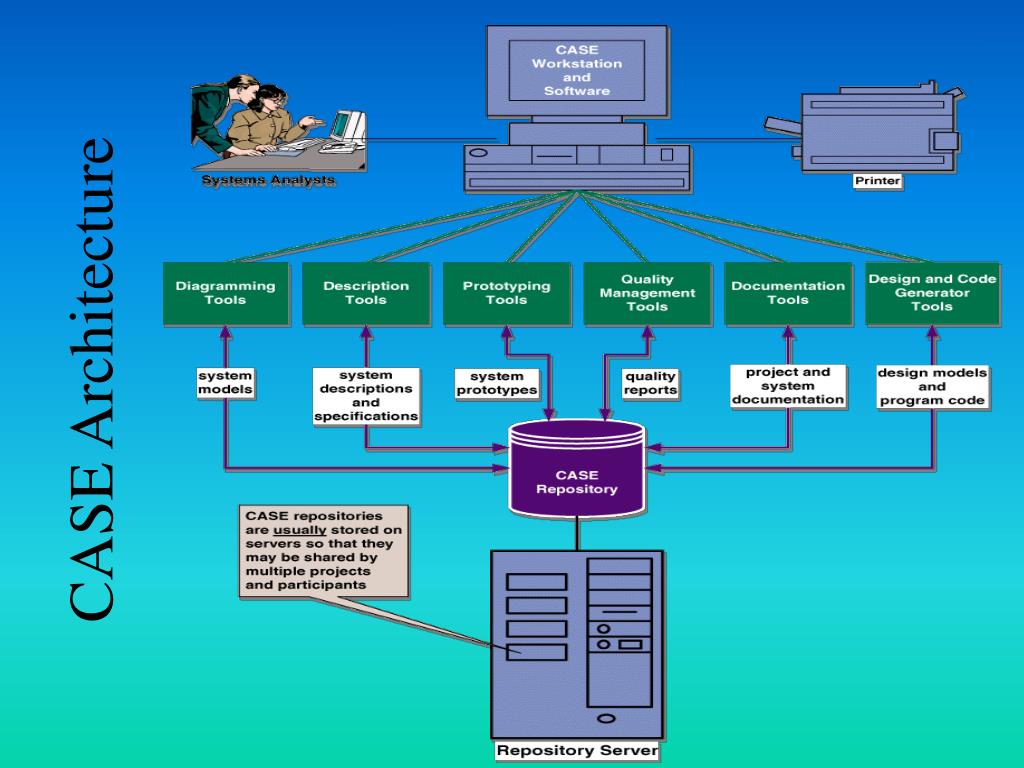

  15. CASE Architecture

  16. ADE Tools Application development environments (ADEs) are integrated software development tools that provide all the facilities necessary to develop new application software with maximum speed and quality. A common synonym is integrated development environment (IDE) • ADE facilities may include: • Programming languages or interpreters • Interface construction tools • Middleware • Testing tools • Version control tools • Help authoring tools • Repository links

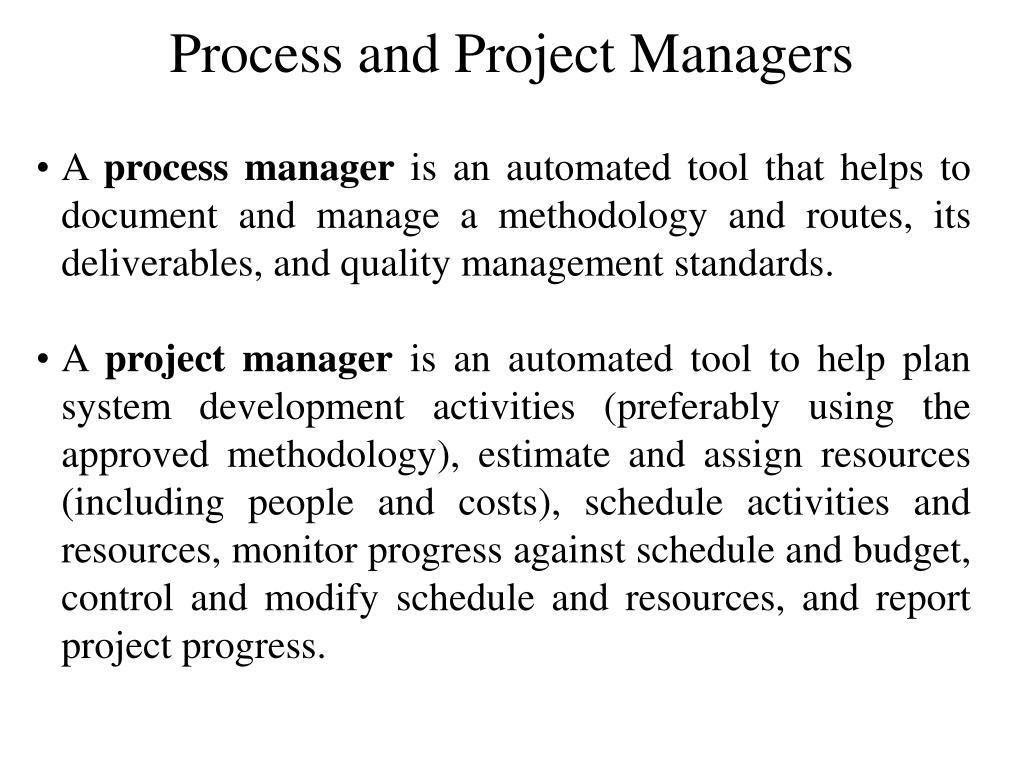

  17. Process and Project Managers • A process manager is an automated tool that helps to document and manage a methodology and routes, its deliverables, and quality management standards. • A project manager is an automated tool to help plan system development activities (preferably using the approved methodology), estimate and assign resources (including people and costs), schedule activities and resources, monitor progress against schedule and budget, control and modify schedule and resources, and report project progress.
