Air Shower 700kg

Labtron Air Shower ensures clean room integrity with a self-contained chamber, adjustable shower time (0-99 sec), and powerful. a 25 m/sec wind speed from 24 nozzles for contaminant reduction. It features HEPA filters with 99.999% efficiency at 0.3u00b5m and secure double doors with electric interlocks.

hannacurry
Télécharger la présentation

Air Shower 700kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

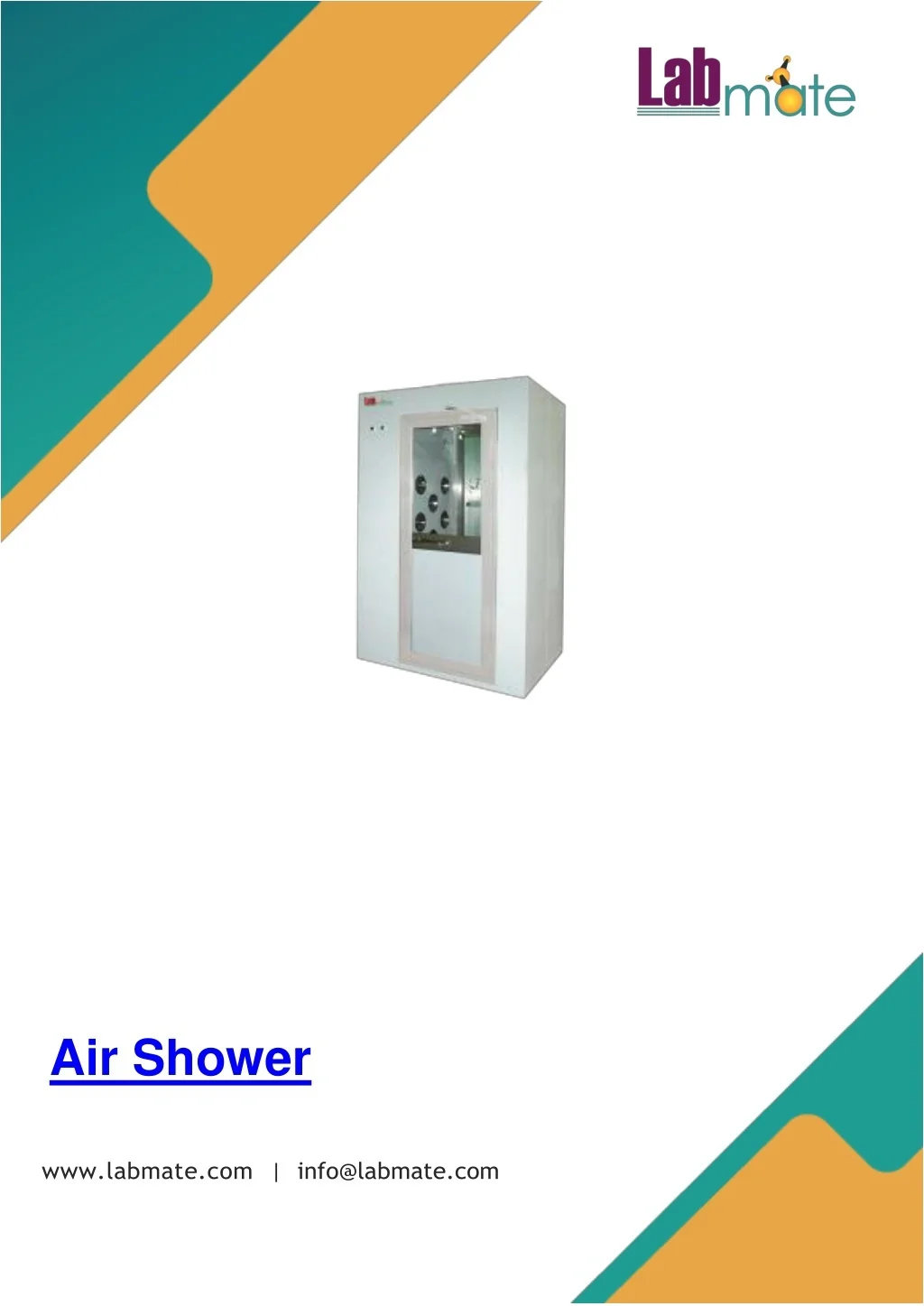

  1. Air Shower www.labmate.com|info@labmate.com

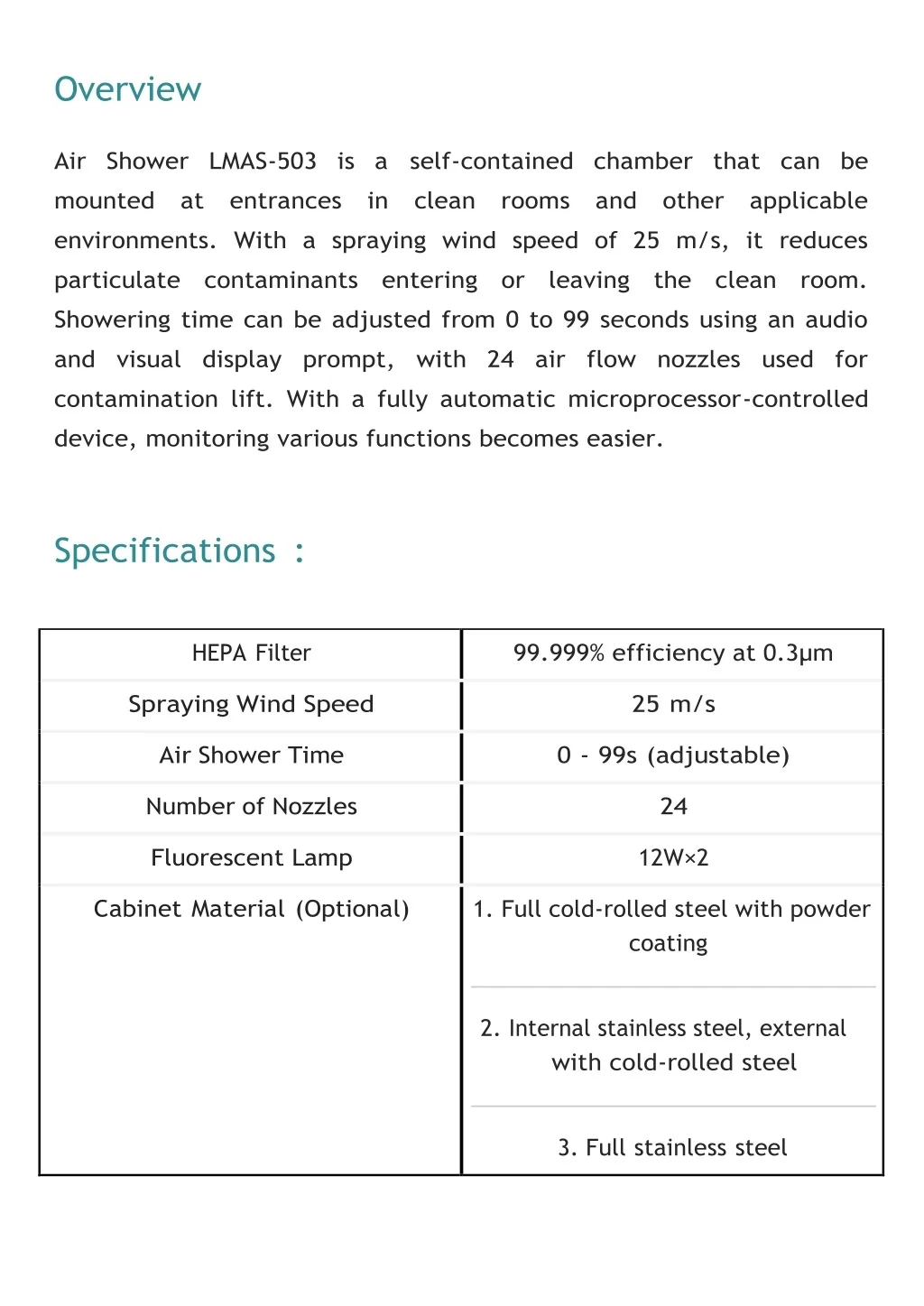

  2. Overview Air Shower LMAS-503 is a self-contained chamber that can be mounted at entrances in clean rooms and other applicable environments. With a spraying wind speed of 25 m/s, it reduces particulate contaminants entering or leaving the clean room. Showering time can be adjusted from 0 to 99 seconds using an audio and visual display prompt, with 24 air flow nozzles used for contamination lift. With a fully automatic microprocessor-controlled device, monitoring various functions becomes easier. Specifications : HEPA Filter 99.999% efficiency at 0.3µm Spraying Wind Speed 25 m/s Air Shower Time 0 - 99s (adjustable) Number of Nozzles 24 Fluorescent Lamp 12W×2 1.Full cold-rolled steel with powder coating Cabinet Material (Optional) 2.Internal stainless steel, external with cold-rolled steel 3.Full stainless steel

  3. 1.Cold-rolled steel with powder coating Door Material (Optional) 2.Stainless steel Chassis Stainless steel Power Consumption 2000 W Power Supply AC 220V ±10%, 50/60HZ; 110V±10%, 60Hz Shower Area Dimension (W×D×H) 800×1890×1930 mm External Dimension (W×D×H) 1500×2000×2050 mm Package Dimension (W×D×H) 1600×1650×2200 mm Gross Weight 700 Kg Features: -Equipped with circulation wind to ensure the cleanliness of shower area under non-shower status -Double doors with electric interlocks -LED display with adjustable blowing time -Photoelectric sensor -Fully automatic operation with automatic blow and shower -Energy efficient and disposable pre-filter -Designed for easy installation and maintenance in any application -Equipped with an emergency stop function -Easy to operate membrane touch switches -It incorporates a control panel plug-in system Applications:

  4. Used in pharmaceutical and lab animal research applications, electronic, biological manufacturing industry, food processing, space and air, automobile manufacturing industries, etc. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
