Software Challenges in Wireless Sensor Networks

1. Software ChallengesinWireless Sensor Networks Jeremy Elson Microsoft Research IPSN/SPOTS Tutorial Wednesday, April 27, 2005

2. Outrageous(?) Opinion Tutorial • Outrageous opinion survey • A dozen contributors • Ideas that deserve credit are theirs, blame for dumb ideas is mine • More questions than answers • Basic question: Why is writing software for sensor networks so hard? • Some examples of ongoing research

3. Is it hard? • Internet: • Cost of new devices is really just the device • Pressure is on hardware designers – smaller, cheaper, faster • We can network every node that exists • Far more motes exist than we can network • 100,000 (?) exist • Biggest networks, ~100 or maybe ~1000 • Why is this?

4. Can we just blame hardware? • Energy is “non-negotiable” • Un-tethered sensing is the reason we’re here • Will always limit radio ranges, link qualities • “Architecture challenges” come somewhere in between hardware and software • e.g., how do we structure hierarchies? • Billions of PCs can’t be wrong! • Even with the right structure, it’s harder • Why?

5. Worst of All Worlds Data Uncertainty Real-World Sensor Inputs Distributed Robotics Robotics Sensor Networks Timing- Dependent Data OS Kernels/ Device Drivers TCP Squid MS Word MPI/Linda cat “Text” Distributed, Timing Dependent System Single- or Few- Threaded Multi-Threaded System Uncertainty

6. Big Challenge 1:Visibility, Visibility, Visibility! Of a dozen sensor network researchers polled, 10 listed “debugging support” in some form as a core challenge

7. Visibility, visibility, visibility… • Ground truth is hard to capture, even with unlimited capacity systems – damn you, real world! • We want to interpret responses to stimuli • The stimuli, not the sensor outputs, are ground truths • The lab is not the same as the field • Things that worked in the lab don’t work during deployment • Bugs in MAC layers, positioning errors, non-Guassian noise… • It’s also hard to model • Models are appearing (e.g., Cerpa, Whitehouse) • But notice that models are highly environment-specific

8. Visibility, visibility, visibility… • The differences have substantial effects • If only I had $100 for every routing algorithm designed with a circular radio model • I still couldn’t afford to buy a circular radio • Observing reality concurrent with design should be mandatory • Brings us back to needing visibility

9. Visibility, visibility, visibility… • Even traditionally easy-to-observe things (e.g. messages, states) become hard to capture, because… • Debugging information is now huge compared to data, instead of the opposite (vs. Internet) • You can’t store it on Mote-sized devices, either

10. Simulators, Emulators, Testbeds • TOSSIM (Levis) • Real-code-simulator for motes • Avrora (Titzer, Palsberg) • Simulates down to microcode level • Motelab (Welsh, et al.) • Always-on testbed, lowers the massive systems motivation effort required for deployments • EmStar (Girod, Elson, et al.) • Reminders: • Sensor outputs are not ground truths • Matt’s office is not the same as a Redwood forest

11. Simulators, Emulators, Testbeds EmStar’s runtime environments allow high-visibility debugging before jumping into low-visibility deployment

12. Visibility for Design • Even understanding the behavior of a big parallel process is hard • How do you know what’s going onBut even if you do… • Designing local rules to cause global behavior is hard (Culler, Liu, Welsh) • How do you control what’s going on

13. Visibility for Management • The need for visibility doesn’t end when the design is done (Madden, Polastre) • Which sensors have failed? • For repair purposes • Because it tells you about the data • Doesn’t obviate the need for statistical elimination of sensors we think are bad • “Shut up, you’re confusing everyone!”

14. Another take: Predictability • Instead of observing what happened(post-facto),predict what will happen (static analysis) (Srivastava)

15. “Giving Up” • Tenet (Kohler) – motes can only do the most basic tasks (e.g., thresholding), and route back to a microserver • In the low-visibility nodes, complexity is limited to reasoning about one node’s data • “Hard part” happens at microservers • Mechanism vs. policy separation for routing (Girod) • Motes send link states to microserver • Microserver computes routes; installs them on motes

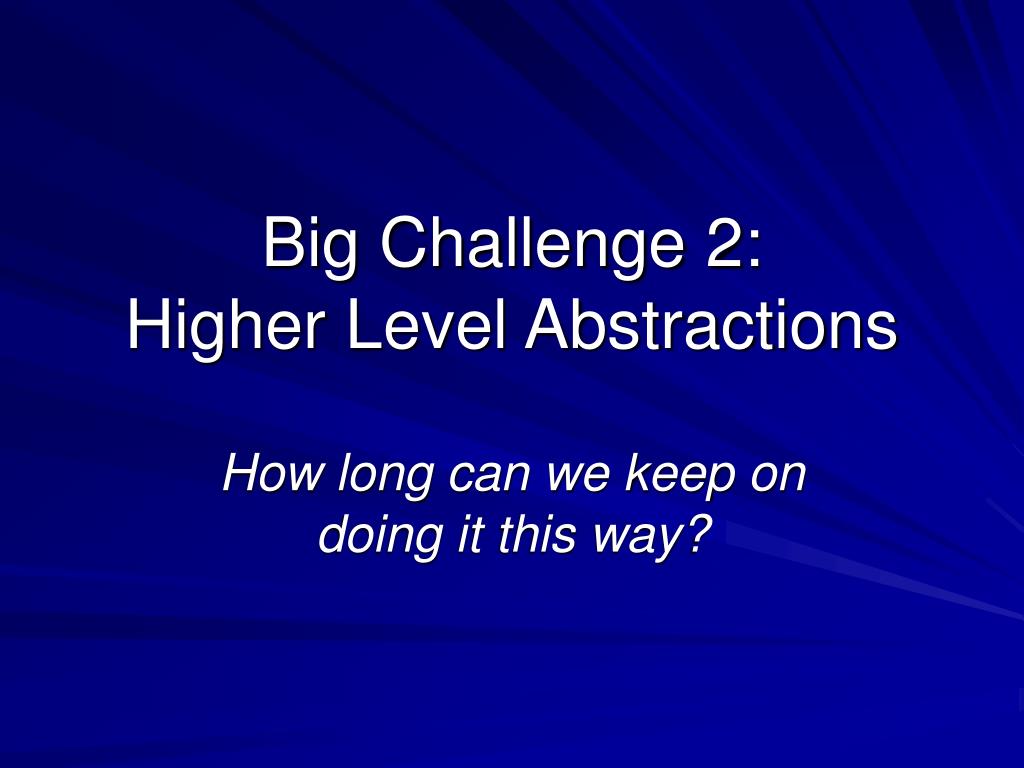

16. Big Challenge 2:Higher Level Abstractions How long can we keep on doing it this way?

17. Why are abstractions important? • They let you reason about software at a higher level • Right now we manually script every packet sent and received, most timers… • They (can) let software interoperate better • Applications can share the underlying building blocks; system is smaller, more consistent • Services like TCP port numbers

18. Higher Level Abstractions • Consider compiler arc: • First, “compiled code is too slow” • Second, “But computers are now fast” • Third, “The compiler does it better anyway” • We’re still at Step 1 • Not with CPU cycles (we use compilers)… • … but bandwidth, energy, and memory. • Unfortunately there may not be a Step 2

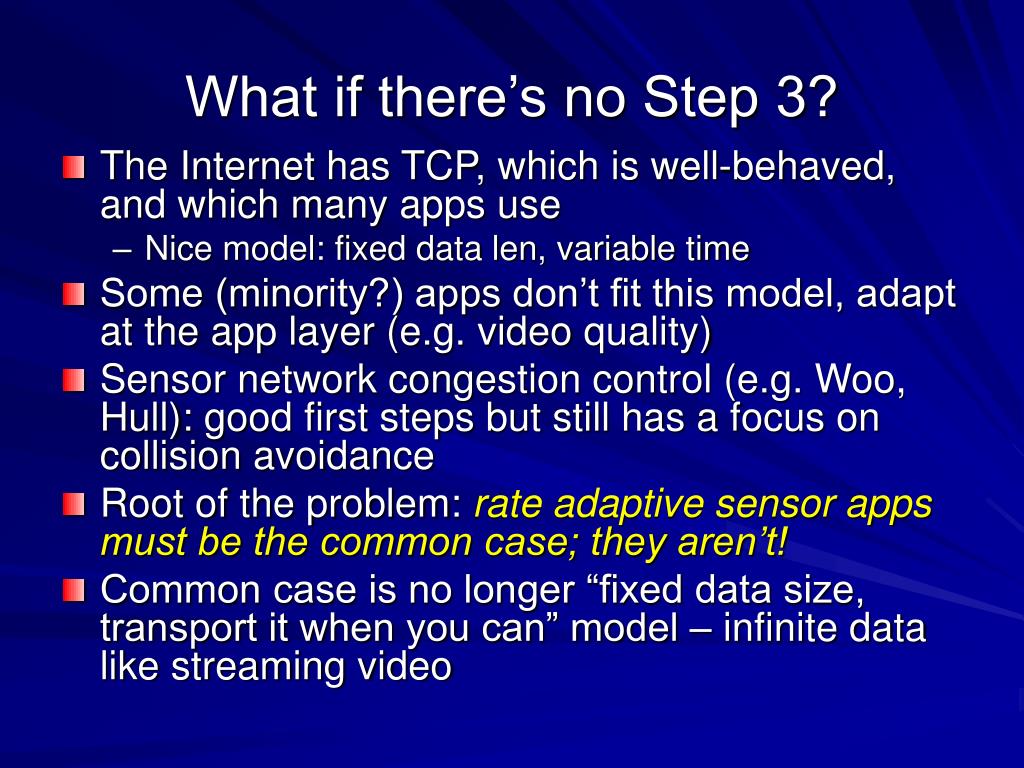

19. What if there’s no Step 3? • The Internet has TCP, which is well-behaved, and which many apps use • Nice model: fixed data len, variable time • Some (minority?) apps don’t fit this model, adapt at the app layer (e.g. video quality) • Sensor network congestion control (e.g. Woo, Hull): good first steps but still has a focus on collision avoidance • Root of the problem: rate adaptive sensor apps must be the common case; they aren’t! • Common case is no longer “fixed data size, transport it when you can” model – infinite data like streaming video

20. Some Abstractions • TinyDB (Madden) • Among the first; programming interface is queries • Abstract regions (Welsh) • Program collections at a higher layer than sending messages • Reliable Multi-Hop State Sync (Girod) • Publish and update structs over lossy nets • This week, we’ve seen State-Machines (Kasten) and new intermediate languages (Newton) • But the real question: do they work across a diversity of applications? Only time will tell.

21. Sub Challenge:Re-Usable Software • TinyOS, EmStar, etc. are modular, yet reuse isn’t as pervasive as it “should be” • One part software engineering, one part Big Problem (as in congestion control) • An encouraging first step: SP (Sensor Protocol) by Polastre, Culler, et al. • Standardized interface to MAC, with some basic feedback in both directions

22. Meta-Challenge: Applications That Do More Than Web Cameras • 1999 “Grand Challenges” paper:“Data processing must be in-network” • Where are we now? • Many (most?) applications are “bring all the data back” • Some notable exceptions including sniper tracking (vanderbilt), Magneto-Car Tracking (berkeley), Self-Healing networks (sensoria)

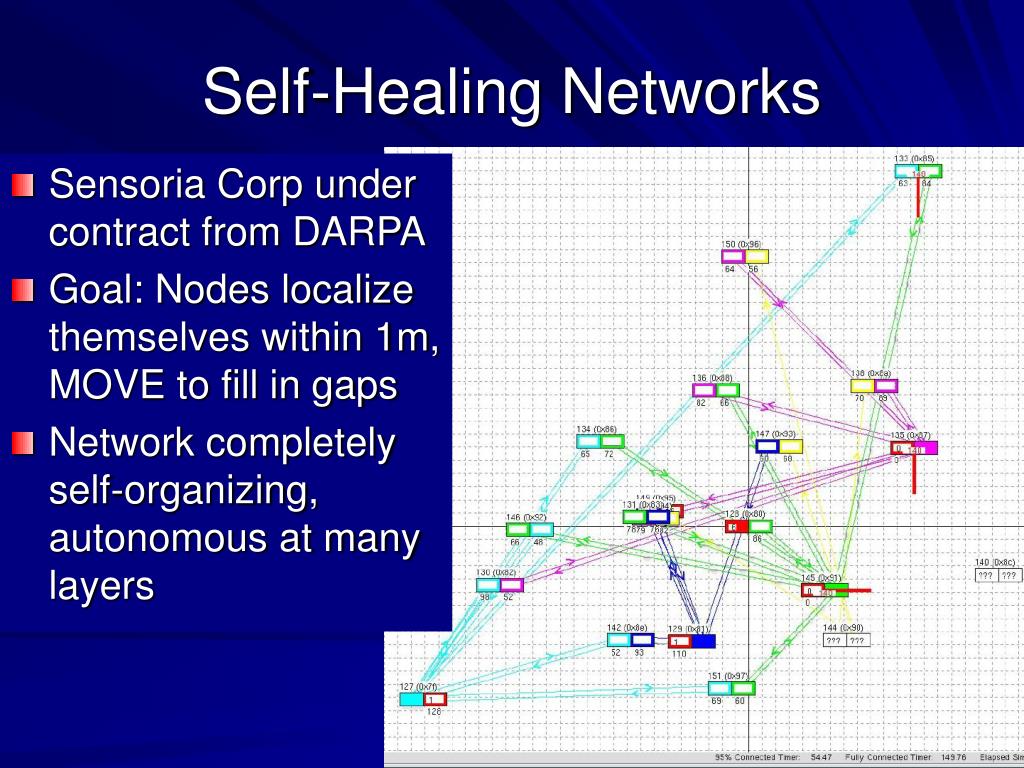

23. Self-Healing Networks • Sensoria Corp under contract from DARPA • Goal: Nodes localize themselves within 1m, MOVE to fill in gaps • Network completely self-organizing, autonomous at many layers

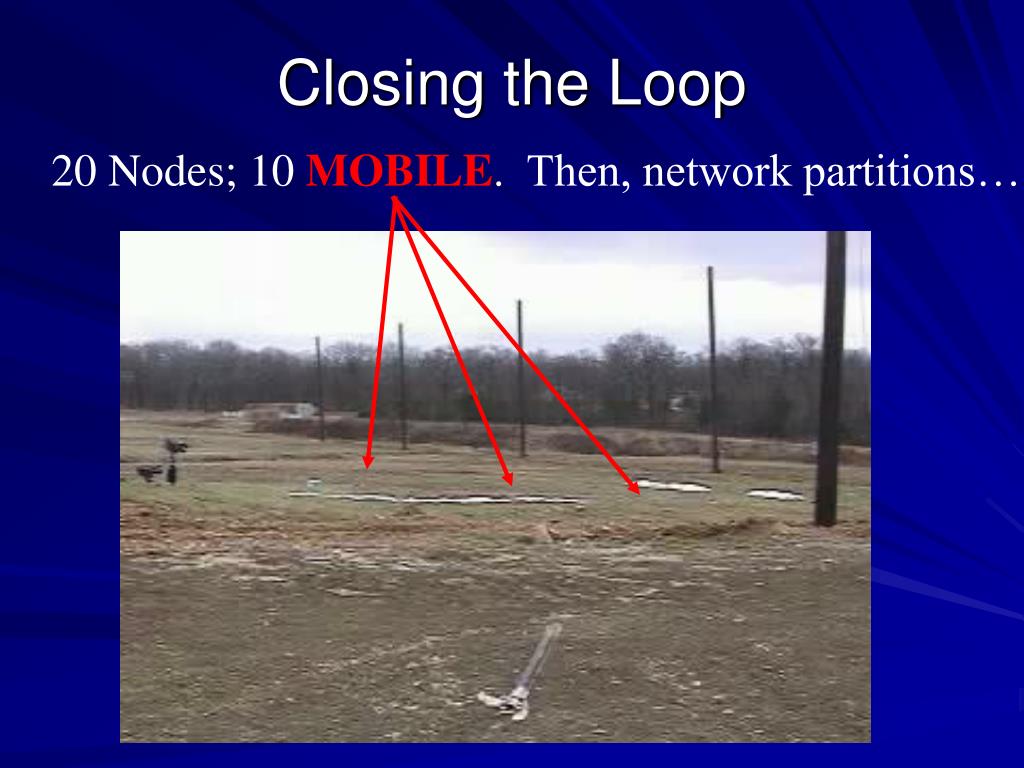

24. Closing the Loop 20 Nodes; 10 MOBILE. Then, network partitions…

25. Summary • Ultimately we want to get to systems that do amazing things • We just keep building on ideas; we have to build on each others’ systems • Abstractions are needed, so we can build additive systems instead of just more • None of this will happen without visibility • And above all…

26. What the heck is thekiller application?!!??

27. David Culler Henri Dubois-Ferrier Lew Girod Richard Guy Bill Kaiser Eddie Kohler Jie Liu Sam Madden Andrew Parker Joe Polastre Matt Welsh Alec Woo Yan Yu Feng Zhao Acknowledgements

28. Thank you!Questions? Comments?
